Model Image
Manufacturer

Whirlpool

Model Number

JFFCF72DKL07

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876370 876370 "MISCELLANEOUS, INSULATION (2 PIECES, 3"" X 24"" X 48"")"
W11506623 W11506623 5 NK MS 00 (3-WAY VALVE TO DRIER)
W11504447 W11504447 5/1.8 NR MS 00 (CAPILLARY TUBE TO DRIER)
W11504445 W11504445 5/4 NR MS 00 (HEAT LOOP TO CONDENSER)
W11506621 W11506621 6 NK MS 00 (CHARGING TUBE TO COMPRESSOR)
W11504432 W11504432 6/5 NR MS 00 (SUCTION LINE TO CONDENSER)
W11504431 W11504431 7/5 NR MS 00 (COMPRESSOR TO CONDENSER)
W11504416 W11504416 8.5/6 NR MS 00 (SUCTION TUBE TO COMPRESSOR)
W11504415 W11504415 8.5/8 NR MS 00 (SUCTION TUBE TO COMPRESSOR)
W11504423 W11504423 8/2 NR AL 00 (CAPILLARY TUBE TO EVAPORATOR)

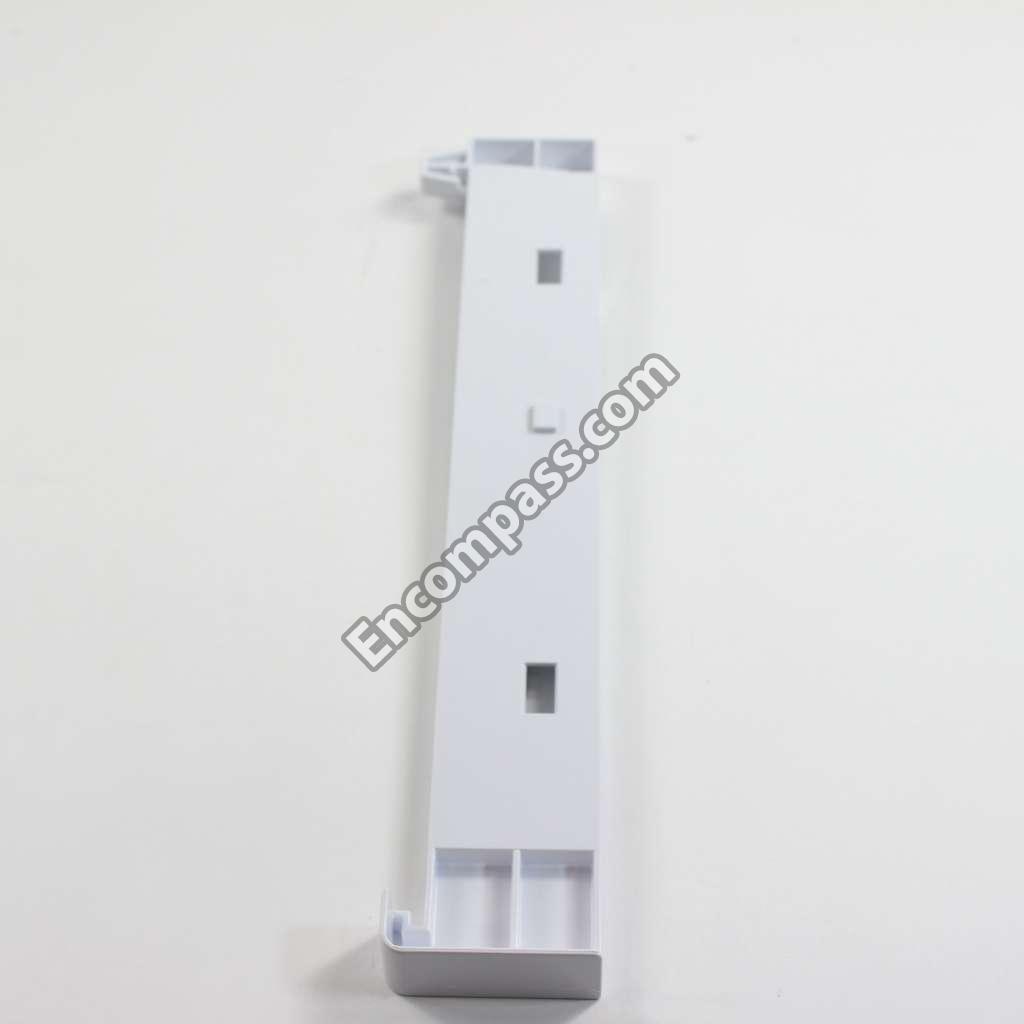

W10163084 W10163084 ADAPTER, BASKET (LEFT HAND)
W10163087 W10163087 ADAPTER, BASKET (RIGHT HAND)
W10144706 W10144706 ASSEMBLY, BIN
W10826105 W10826105 ASSEMBLY, PRODUCE PRESERVER
67006434 67006434 AXLE, ROLLER (2)
67003794 67003794 BAR, TEMP CONTROL
W10120003 W10120003 BASKET, UPPER FREEZER
WPW10119854 WPW10119854 BASKET-FZR
WPW10119846 WPW10119846 BIN CONTROL LEVER
WPW10119841 WPW10119841 BIN CONTROL LEVER
WP12825803 WP12825803 BLADE-FAN
WP2169142 WP2169142 BLADE-FAN
W11686793 W11686793 BLOCK

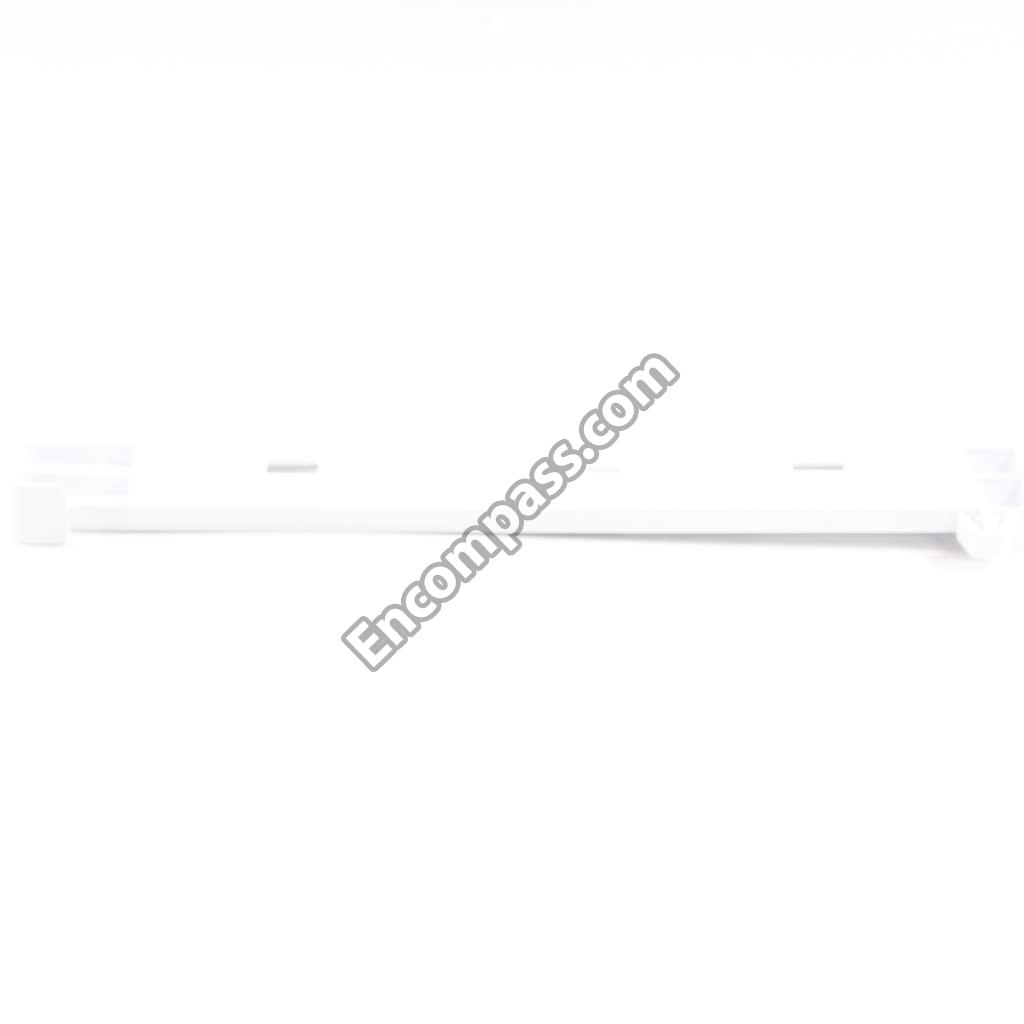

W10490807 W10490807 BRACE, CRISPER FRAME
WPW10544404 WPW10544404 BRACKET
WPW10544403 WPW10544403 BRACKET
WPW10330995 WPW10330995 BRACKET
WPW10330994 WPW10330994 BRACKET
67006325 67006325 BRACKET, FILTER BASE
100000 100000 CABINET (NOT A SERVICABLE PART)
W11395888 W11395888 CAP-FILTER
WPW10350564 WPW10350564 CAPACITOR
W11456069 W11456069 CLAMP
W11689467 W11689467 CLIP
WPM0104106 WPM0104106 CLIP
12996601 12996601 CLIP, BUSHING
W10815863 W10815863 CLIP, CONDENSER
W10281329 W10281329 CLIP, DRIER
10623002 10623002 CLIP, EVAPORATOR
13058002 13058002 CLIP, EVAPORATOR MOTOR
W11380964 W11380964 CLIP, HEATER
WP12028505AP WP12028505AP CLOSER
W11686820 W11686820 COMPRESSOR
W11733334 W11733334 CONDENSER
WPW10594329 WPW10594329 CONTROL
W11674464 W11674464 CONTROL BOARD
WPW10356039 WPW10356039 CONTROL BOARD
WPW10120827 WPW10120827 CONTROL BOARD
WP12656822 WP12656822 COVER
W11243624 W11243624 COVER
W11284721 W11284721 COVER
WPW10120103 WPW10120103 COVER
12961602 12961602 COVER, CONTROL BOX
W11331291 W11331291 COVER, EVAPORATOR
W11039391 W11039391 COVER, HINGE LEFT HAND (GREY)
12726003 12726003 COVER, WATER LINE
W10116529 W10116529 COVER, WATERLINE
WP67003924 WP67003924 COVER- FZ
WPW10211855 WPW10211855 COVER-BACK
WP12806701 WP12806701 COVER-BOX
WP67006331 WP67006331 COVER-FILT
W10119848 W10119848 CRADLE, BASKET (LEFT HAND)
W10119849 W10119849 CRADLE, BASKET (RIGHT HAND)
W10157765 W10157765 DIVERTER, AIR
WP67002321 WP67002321 DIVIDER- P
13094917SQ 13094917SQ DOOR ASSEMBLY SS
13094739SQ 13094739SQ DOOR ASSEMBLY SS
13094747SQ 13094747SQ DOOR ASSEMBLY SS
W10121002 W10121002 DOOR LATCH, COUPLER
W11177238 W11177238 DRAWER SLIDE RAIL
W11109499 W11109499 DRIER-TUBE
WPW10121977 WPW10121977 ENDCAP
WPW10122078 WPW10122078 ENDCAP
W11647514 W11647514 ENERGY GUIDE
W11598433 W11598433 EVAP REPAR
WPW10128551 WPW10128551 EVAPORATOR MOTOR
WP12587703AP WP12587703AP FILLER
EDR4RXD1 EDR4RXD1 FILTER
WP2300868 WP2300868 FITTING
WPW10119215 WPW10119215 FRAME
W10212414 W10212414 FRONT, CRISPER
WPW10174720 WPW10174720 FRONT-PAN
W10815413 W10815413 FUNNEL
W11451451 W11451451 GASKET
W11159728 W11159728 GASKET
W10856123 W10856123 GASKET
W11534848 W11534848 GASKET
W10443320 W10443320 GASKET, DOOR (GREY)
W10830046 W10830046 GASKET, DOOR (GREY)
67002329 67002329 GASKET, PANTRY
WPB8381501 WPB8381501 GASKET- DR
12002497 12002497 GEAR
W11094557 W11094557 GLASS SHELF
W11032132 W11032132 GLASS SHELF
WP12204827 WP12204827 GLASS SHELF
W11032133 W11032133 GLASS SHELF
WP67002332 WP67002332 GLASS- PAN
WPW10170987 WPW10170987 GLIDE
WPW10170835 WPW10170835 GLIDE
WPW10170836 WPW10170836 GLIDE
WPW10132653 WPW10132653 GLIDE
WPW10132652 WPW10132652 GLIDE, DRAWER (RIGHT HAND)
WP542638 WP542638 GREASE
WPW10175909 WPW10175909 GRILLE
WPW10534155 WPW10534155 GRILLE
W10852725 W10852725 GROMMET
WPW10169124 WPW10169124 GROMMET
WPW10137529 WPW10137529 GROMMET
W10121318 W10121318 GROMMET, FAN MOTOR
W10208593 W10208593 GUARD, DUAL WATER VALVE
W11412315 W11412315 GUIDE, FILL TUBE
W11438356 W11438356 HANDLE
W11254134 W11254134 HANDLE
W11305543 W11305543 HARNESS, EVAPORATOR HEATER
W10196195 W10196195 HARNESS, LIGHTS (FREEZER)
W11654038 W11654038 HARNESS, UNIT (INCLUDES POWER CORD)
W11346623 W11346623 HEAD-FILTR
W11547652 W11547652 HEATER
W11610760 W11610760 HINGE, CENTER (LEFT HAND)
W11610761 W11610761 HINGE, CENTER (RIGHT HAND)
W10892768 W10892768 HINGE, TOP (LEFT HAND)
W10210891 W10210891 HINGE, TOP (RIGHT HAND)
W11712699 W11712699 HOUSING
W11702858 W11702858 HOUSING
W11416469 W11416469 HOUSING
12656202 12656202 HOUSING, CONTROL
W10121004 W10121004 HOUSING, COUPLER
W10443023 W10443023 HOUSING, LIGHT
W11692158 W11692158 ICEMAKER
67003900 67003900 INSERT, DAMPER COVER
W11553819 W11553819 INSULATION
W11657832 W11657832 INSULATION, DAMPER
W11498983 W11498983 KNOB
W10119222 W10119222 KNOB, HUMIDITY CONTROL
WPW10569182 WPW10569182 LADDER
W10273463 W10273463 LADDER, CENTER
WPW10141622 WPW10141622 LEVELER
W10184030 W10184030 LEVER, ICE PAN
W10296541 W10296541 LID, HV CONTROL BOX
W11175810 W11175810 MAGNET-DOR
WPW10451455 WPW10451455 MAT
W11510593 W11510593 MAT
W11510594 W11510594 MAT
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
8003RP 8003RP MISCELLANEOUS, KIT, WATER INLET
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
W11602886 W11602886 MODULE
W10464766 W10464766 MODULE, LIGHT
W11613295 W11613295 MOTOR-COND
2207415 2207415 NUT, HEX
W11422122 W11422122 OVERLAY
W10119219 W10119219 PAN, CRISPER
W10120005 W10120005 PAN, ICE
WPW10655368 WPW10655368 PAN-DRIP
WPW10120008 WPW10120008 PAN-ICE
WP12655703 WP12655703 PAN-UTILTY
W11727651 W11727651 PLATE
W11214481 W11214481 RACK-WINE
W11361728 W11361728 RESERVOIR
W11214482 W11214482 ROLLER
WP67005149 WP67005149 ROLLER
WPW10515762 WPW10515762 ROLLER-CAB
WPW10515763 WPW10515763 ROLLER-CAB
W10182881 W10182881 SCOOP, ICE PAN
W10215666 W10215666 SCREW
W10709798 W10709798 SCREW
W10829281 W10829281 SCREW
12992301 12992301 SCREW
WP67006908 WP67006908 SCREW
W11449276 W11449276 SCREW
W11311945 W11311945 SCREW
WP489474 WP489474 SCREW
WP400021-1 WP400021-1 SCREW
W11693756 W11693756 SCREW
W11686675 W11686675 SCREW
WP489349 WP489349 SCREW
W11573362 W11573362 SCREW
12992603 12992603 SCREW
WP98165 WP98165 SCREW
67006425 67006425 SCREW (3)
67006564 67006564 SCREW (8)
WPM0500703 WPM0500703 SEAL- O RI
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
W11028221 W11028221 SHAFT
12999501 12999501 SHIM, HINGE (LEFT HAND)
12999502 12999502 SHIM, HINGE (RIGHT HAND)
W11556315 W11556315 SHROUD
WPW10167023 WPW10167023 SHROUD
W11661094 W11661094 SLEEVE
W11658403 W11658403 SLIDE
2302952 2302952 SLIDE, CRISPER (LEFT HAND)
2302953 2302953 SLIDE, CRISPER (RIGHT HAND)
W10119217 W10119217 SLIDE, HUMIDITY CONTROL
WP67003793 WP67003793 SLIDE- TEM
W11524472 W11524472 START-DEV
WPW10120097 WPW10120097 STOP-DOOR
W10236396 W10236396 STRAP, COMPRESSOR
WP12227305WD WP12227305WD SUPPORT
W10528513 W10528513 SWEEP, DUAL TUBE
W11396033 W11396033 SWITCH
W11291138 W11291138 SWITCH
WP12575502 WP12575502 SWITCH
W11665551 W11665551 TECH SHEET
W10316760 W10316760 THERMISTOR
W11690896 W11690896 THERMISTOR
W10134625 W10134625 TOUCH-UP PAINT (APOLLO GREY)
W10917540 W10917540 TOUCH-UP PAINT (MIDNIGHT GREY)
W11547653 W11547653 TRAY-DRIP
W11024160 W11024160 TRIM-BRKR
W11210956 W11210956 TRIM-SHELF
W11689475 W11689475 TUBE
W11506635 W11506635 TUBE, CHARGING (1/4 IN W/ SCHRADER VALVE)
W10619951 W10619951 TUBE-DRAIN
W11468670 W11468670 USE AND CARE GUIDE
W11524655 W11524655 VALVE
W11181718 W11181718 WATER TUBE
W10117324 W10117324 WATERLINE, DISPENSER

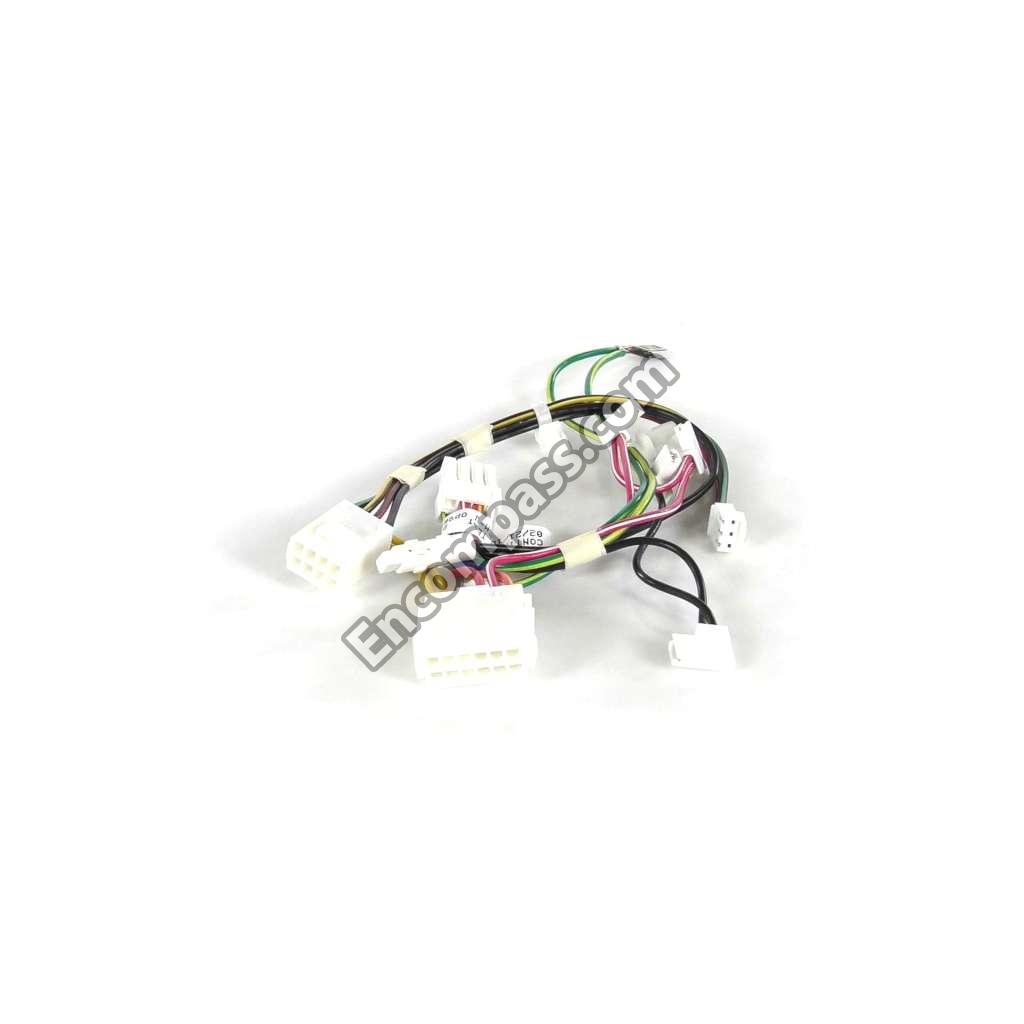

W11084235 W11084235 WIRE HARNESS
