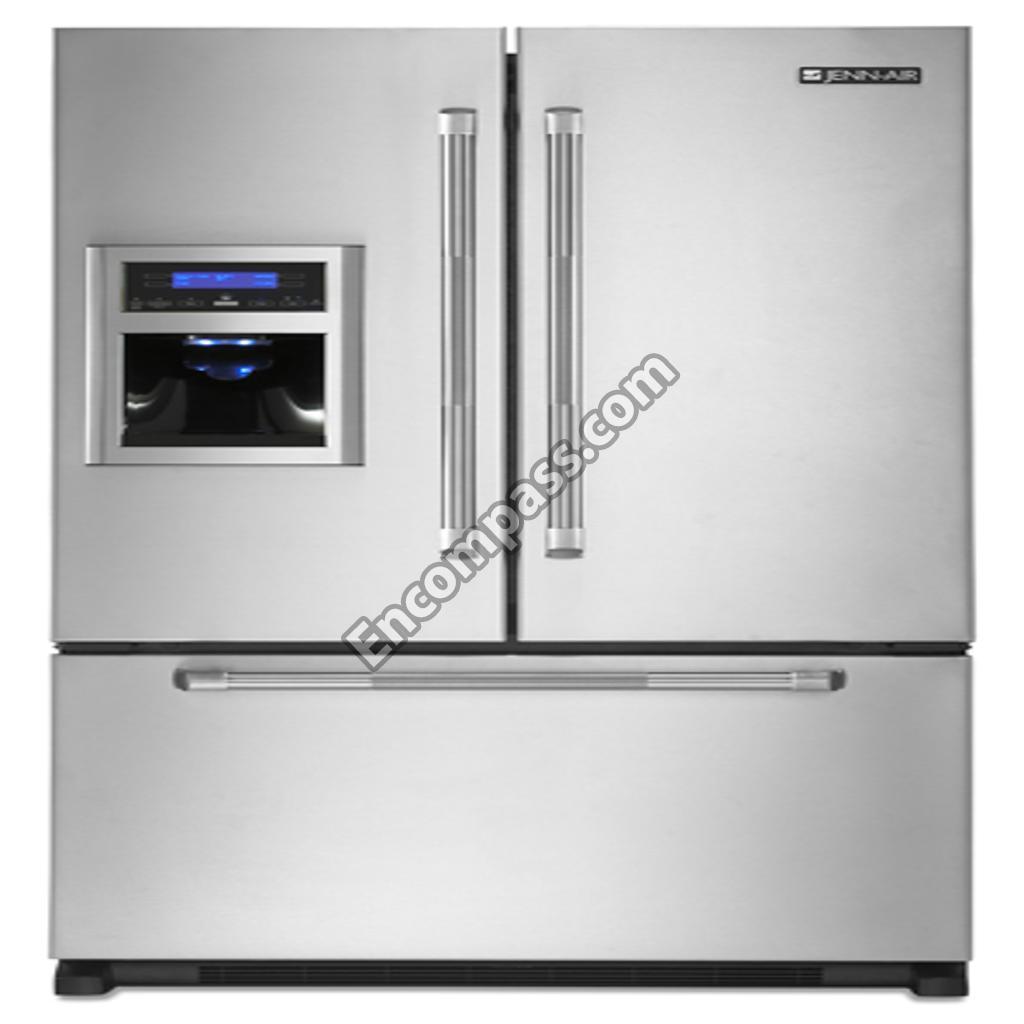

Model Image
Manufacturer

Whirlpool

Model Number

JFI2589AEP10

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
67006536 67006536 ADAPTER C
12925404SP 12925404SP ADAPTER, BIN (INNER)
WPW10121269 WPW10121269 AIR-BAFFLE
WP627843 WP627843 ARM-EJECTR
WPW10175514 WPW10175514 ARM-SHUT
WP2182124 WP2182124 ARM-STRIPR
67006434 67006434 AXLE- ROLL
606755 606755 BAG
WP67003795 WP67003795 BAR- TEMP
12457108 12457108 BASEPAN
WP627985 WP627985 BIMETL-DEF
WP12840004 WP12840004 BIN CONTROL LEVER
W10187454 W10187454 BIN-CNTLVR
W10187453 W10187453 BIN-CNTLVR
WP12924903 WP12924903 BIN-FREEZR
WP67006366 WP67006366 BIN-FREEZR
WPW10324090 WPW10324090 BIN-ICE
W10156818 W10156818 BLADE, FAN
WP67006337 WP67006337 BLADE- FAN
67005491 67005491 BLOCK EPS
WP67003405 WP67003405 BLOCK- PIV
WP67006390 WP67006390 BOX- HV CO
WP12642303WD WP12642303WD BRACE- CRI
WP67004953 WP67004953 BRACKET
WPW10284682 WPW10284682 BRACKET
WPW10330993 WPW10330993 BRACKET
WPW10330991 WPW10330991 BRACKET
W10166742 W10166742 BRACKET
WPW10284683 WPW10284683 BRACKET
12906303WD 12906303WD BRACKET, FOOT CABINET (2)
67006325 67006325 BRACKET- F
67007111 67007111 BRACKET- S
67006324 67006324 BRACKET- W
WP67006313 WP67006313 BUCKET- CH
100000 100000 CABINET (NOT A SERVICEABLE PART)
W11395888 W11395888 CAP-FILTER
WPW10662129 WPW10662129 CAPACITOR
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
W11266639 W11266639 CHILLER
WP13005702B WP13005702B CHUTE
W10833902 W10833902 CLAMP
M0108106 M0108106 CLAMP
31462A 31462A CLEANER, STNLS STEEL MAGIC
WP628379 WP628379 CLIP
WP2315522 WP2315522 CLIP
W10165970 W10165970 CLIP
2255199 2255199 CLIP
10623002 10623002 CLIP, EVAPORATOR
67001067 67001067 CLIP- DRAI
10547003 10547003 CLIP- DRIE
W11673433 W11673433 CLIP- EVAP
W11712696 W11712696 CLIP- FAN
WP67003639 WP67003639 CLOSER
W10160407 W10160407 COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
WP67006131 WP67006131 CONDENSER
WPW10127427 WPW10127427 CONTROL
WPW10708780 WPW10708780 CONTROL ASSEMBLY (BLACK)
WPW10310240 WPW10310240 CONTROL BOARD
W11033771 W11033771 COUPLING
W10827015 W10827015 COVER
WP67005956 WP67005956 COVER
W10187474 W10187474 COVER
W10118194 W10118194 COVER
W10118193 W10118193 COVER
67006428 67006428 COVER
12987301 12987301 COVER
67006318 67006318 COVER
67006427 67006427 COVER CON
12921801 12921801 COVER, LIGHT
12575101WD 12575101WD COVER, MC BACK
12701908 12701908 COVER, WATER VALVE
67003485 67003485 COVER- COR
12981401B 12981401B COVER- FIL
WP67003924 WP67003924 COVER- FZ
67006350 67006350 COVER- ICE
W10337647 W10337647 COVER- TOP
67006329 67006329 COVER- WAT
12960101 12960101 COVER- WAT
12935801 12935801 COVER-EVAP
WP67006331 WP67006331 COVER-FILT
W10122561 W10122561 CUP, WATER FILL
W10162962 W10162962 DAM (LEFT SIDE)
WP67002759 WP67002759 DIVIDER
12958408 12958408 DIVIDER
67006373 67006373 DIVIDER, UPPER BIN
W11592374 W11592374 DOOR HINGE
W11592375 W11592375 DOOR HINGE
12978005SQ 12978005SQ DOOR, RIGHT (STAINLESS)
WP67006312 WP67006312 DOOR- CHIL
WP67003637 WP67003637 DOOR-COMP
12978006SQ 12978006SQ DOR-FIP SS
WPW10151713 WPW10151713 DRAWER SLIDE RAIL
WP67003531 WP67003531 DRAWER- PA
WPW10143759 WPW10143759 DRIER-UV
W10874836 W10874836 ENDCAP
12002730 12002730 EVAPORATOR
WPW10121440 WPW10121440 EXTENSION
WP67006010 WP67006010 EXTR- GLAS
W11177593 W11177593 FEET-LVLNG
67003796 67003796 FIBER- ACO
12691605 12691605 FOIL LIGH
12753917 12753917 FRAME ASSEMBLY., ELEVATOR SHELF
WP67003854 WP67003854 FRAME- CRI
12977803SQ 12977803SQ FREEZER DOOR (STAINLESS)
WPW10121444 WPW10121444 FRONT COVER
WP67005912 WP67005912 FRONT, CRISPER PAN (2)
W10815413 W10815413 FUNNEL
W11451451 W11451451 GASKET
WP67006341 WP67006341 GASKET
67006429 67006429 GASKET
W11378944 W11378944 GASKET ASSEMBLY
B5759649 B5759649 GASKET MC
WPB8381501 WPB8381501 GASKET- DR
67002329 67002329 GASKET- PA
WPW10436253 WPW10436253 GASKET-FIP
12002497 12002497 GEAR
WP67002761 WP67002761 GLASS, PANTRY
WP67006704 WP67006704 GLASS- CRI
WPW10235367 WPW10235367 GLIDE
WPW10235357 WPW10235357 GLIDE
WPW10235370 WPW10235370 GLIDE
WP542638 WP542638 GREASE
W11176847 W11176847 GRILLE- FR
W10555984 W10555984 GRILLE- RE
WPW10534153 WPW10534153 GRILLE-FRT
WPW10137529 WPW10137529 GROMMET
WPW10169124 WPW10169124 GROMMET
W10151687 W10151687 GROMMET
12996601 12996601 GROMMET
WP61004743 WP61004743 GROMMET- B
67005680 67005680 GROMMET- C
W11676465 W11676465 GROMMET- F
W10190618 W10190618 GUIDE, ENERGY
WP12859110 WP12859110 HANDLE
WP12850909 WP12850909 HANDLE
WP12859109 WP12859109 HANDLE
WP12850910 WP12850910 HANDLE
W10850438 W10850438 HARNS-WIRE
W11256689 W11256689 HARNS-WIRE
13060202 13060202 HARNS-WIRE
W10162932 W10162932 HEATER
W10918164 W10918164 HINGE- CEN
67006442 67006442 HINGE-DOOR
12656202 12656202 HOUSING
12806601 12806601 HOUSING- L
W11702858 W11702858 HOUSING- L
WP2195914 WP2195914 HOUSING-IM
WPW10190981 WPW10190981 ICEMAKER
WP63052-2 WP63052-2 IMPELLER
WPW10121434 WPW10121434 INSERT
W10121282 W10121282 INSERT
W11676504 W11676504 INSERT
876029 876029 INSULATION
876370 876370 INSULATION
12820504 12820504 INSULATION
W11498983 W11498983 KNOB
67006356 67006356 LADDER CE
67006355 67006355 LADDER SI
67006354 67006354 LADDER SI
67006358 67006358 LADDER, CENTER
W11679940 W11679940 LIGHT BULB
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
67006328 67006328 MODULE, LIGHT
WP67006423 WP67006423 MODULE- FR
WPW10190929 WPW10190929 MOLD-ICE
WPW10162697 WPW10162697 MOTOR
67006342 67006342 MOTOR- AUG
W11613295 W11613295 MOTOR-COND
WP12945201 WP12945201 MOUNT, HANDLE
W11636815 W11636815 NAMEPLATE
12848704 12848704 NAMEPLATE
799344 799344 PAINT
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
WP67004515 WP67004515 PAN- CRISP
WP12579803 WP12579803 PAN- DRAIN
67004838 67004838 PLUG- VENT
350942 350942 PRIMER
67005999 67005999 RACK, BOTTLE
WPW10326469 WPW10326469 RAIL-CENTR
WP12956202 WP12956202 RESERVOIR
WP67006368 WP67006368 RETAINER-
W10826788 W10826788 RETAINER-
67006295 67006295 RING- TARG
WP67005149 WP67005149 ROLLER
WP12580304 WP12580304 ROLLER ASSEMBLY. (2)
WP33001882 WP33001882 SCREW
WP67004954 WP67004954 SCREW
WPW10133608 WPW10133608 SCREW
WP489464 WP489464 SCREW
WP98165 WP98165 SCREW
WP67006415 WP67006415 SCREW
W10709795 W10709795 SCREW
W11233072 W11233072 SCREW
WP489349 WP489349 SCREW
71003131 71003131 SCREW
WP67006380 WP67006380 SCREW
WP8281196 WP8281196 SCREW
8533917 8533917 SCREW
67006564 67006564 SCREW
67006425 67006425 SCREW
WP3400805 WP3400805 SCREW
WP489474 WP489474 SCREW
12846902 12846902 SCREW
12992301 12992301 SCREW
W10709798 W10709798 SCREW
489279 489279 SCREW (3)
WPW10287601 WPW10287601 SEAL
WPM0500703 WPM0500703 SEAL- O RI
WP854334 WP854334 SEAL-STRIP
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER-GUM
16026312 16026312 SERVICE MANUAL (BOTTOM MOUNT)
W11028221 W11028221 SHAFT
W10187852 W10187852 SHELF, MINI (STATIONARY)
W10187845 W10187845 SHELFCANT
W10187854 W10187854 SHELFGLAS
W10142628 W10142628 SHIELD
12999501 12999501 SHIM, TOP HINGE (LEFT HAND)
12999502 12999502 SHIM, TOP HINGE (RIGHT HAND)
12575309 12575309 SHROUD
W10121281 W10121281 SHROUD
W11700329 W11700329 SHROUD- EV
W11658402 W11658402 SLIDE
WP67005864 WP67005864 SLIDE
WP67003793 WP67003793 SLIDE- TEM
W11447232 W11447232 SOCKET
67006344 67006344 SOLENOID
350930 350930 SPRAY
67006348 67006348 SPRING- SO
WPW10197428 WPW10197428 START-DEV
W11708403 W11708403 STOP-DOOR
WP12227305WD WP12227305WD SUPPORT
WP12603701 WP12603701 SUPPORT- C
12963102SP 12963102SP SUPPORT-EV
W11445850 W11445850 SWITCH
WP2313326 WP2313326 SWITCH
W11396033 W11396033 SWITCH
W11238399 W11238399 TAPE
W10189628 W10189628 TECH SHEET
833938 833938 TERMINAL
12002355 12002355 THERMISTOR
WP67006387 WP67006387 THERMOSTAT
WP1117510 WP1117510 TORX KEY
WP67001719 WP67001719 TRACK
WP67001279 WP67001279 TRAY- DAIR
W11547653 W11547653 TRAY-DRIP
W10187472 W10187472 TRAY-DRIP
WPW10231486 WPW10231486 TRIMSHELF
67001656 67001656 TRIVET- BO
WPW10134293 WPW10134293 TUBE
W10164397 W10164397 TUBE-DRAIN
W11415785 W11415785 TUBE-WATER
4392899 4392899 TUCHUP
72032 72032 TUCHUP
72017 72017 TUCHUP
W10189629 W10189629 USE & CARE GUIDE
WP978025 WP978025 VALVE
978027 978027 VALVE
978026 978026 VALVE
876764 876764 VALVE
978030 978030 VALVE
978029 978029 VALVE
978028 978028 VALVE, ACCESS (1/2``)
67006322 67006322 VALVE- DUA
67006346 67006346 WASHER
EDR4RXD1 EDR4RXD1 WATER FILTER
WP12962204 WP12962204 WATERLINE-
12962106 12962106 WATERLINE-
WPW10123444K WPW10123444K WHEEL
67006347 67006347 YOKE- SOLE
