Manufacturer

Whirlpool

Model Number

JGC3536GS0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10692377 W10692377 "NUT, COMPRESSION 1/4"" TUBING"
W10692371 W10692371 "SLEEVE, COMPRESSION 1/4"" TUBING"
31617 31617 ACCESSORIES, CLEANER, GAS GRATE & DRIP PAN
W10355010 W10355010 ACCESSORIES, CLEANER, KITCHEN & APPLIANCE
W11042467 W11042467 ACCESSORIES, CLEANER, STAINLESS STEEL
W11043538 W11043538 ASSEMBLY, BURNER BOX
W11043539 W11043539 ASSEMBLY, MANIFOLD
W11043467 W11043467 BASE, BURNER (DUAL) (CENTER)
W11043462 W11043462 BASE, BURNER (LARGE) (LEFT FRONT, LEFT REAR & RIGHT FRONT)

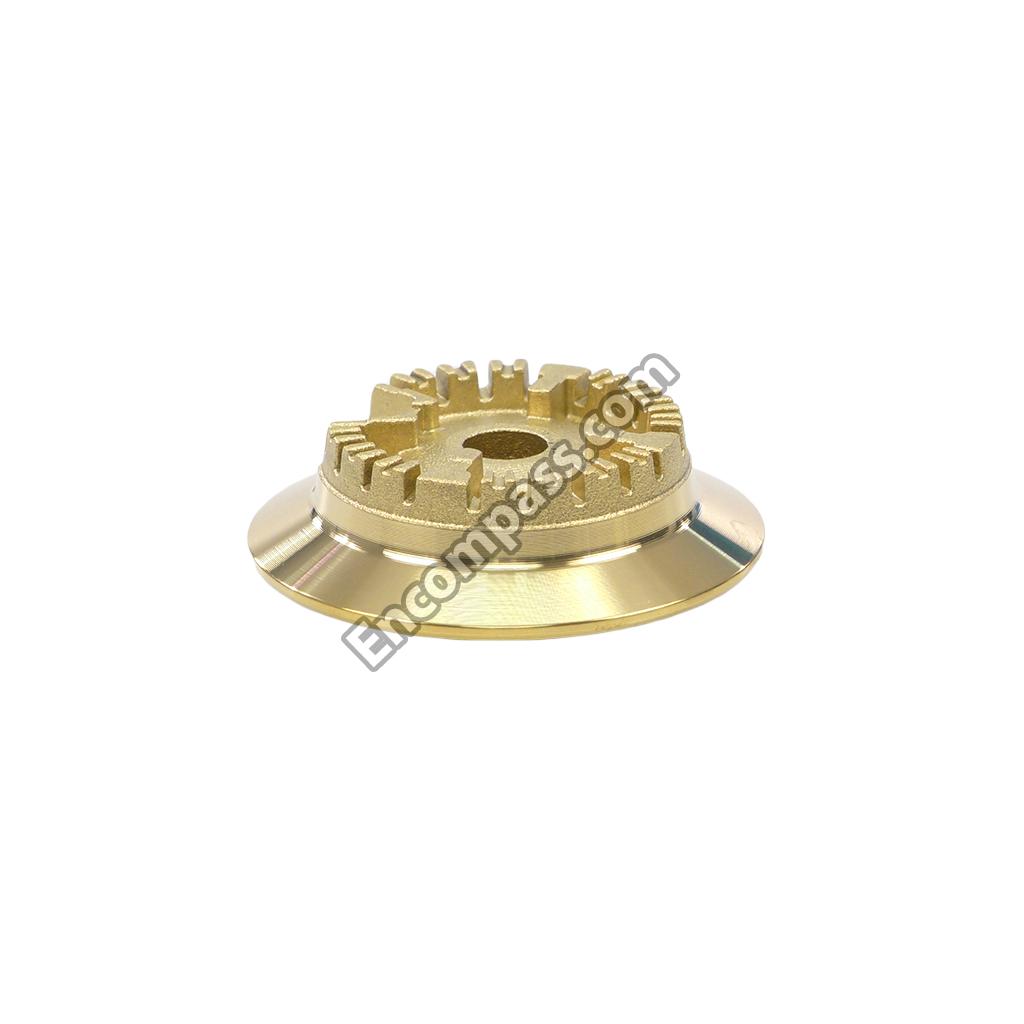

W11043517 W11043517 BASE, BURNER (SMALL) (RIGHT REAR)
W11042557 W11042557 BEZEL, ILLUMINATOR
W10618500 W10618500 BEZEL, KNOB (STAINLESS)
W11042981 W11042981 BRACKET, CONTROL PANEL
8190978 8190978 BRACKET, MOUNTING
W10691683 W10691683 BRACKET, ORIFICE HOLDER (DUAL BURNER)
W10618476 W10618476 BRACKET, ORIFICE HOLDER (SINGLE BURNER)
W10617475 W10617475 BRACKET, VALVE
W10691282 W10691282 CAP, BURNER (BLACK (DUAL) (CENTER))
W10691232 W10691232 CAP, BURNER (BLACK (LARGE) (LEFT FRONT, LEFT REAR & RIGHT FRONT))
W10691233 W10691233 CAP, BURNER (BLACK (MELT SMALL BURNER))
W10691229 W10691229 CAP, BURNER (BLACK (SMALL) (RIGHT REAR))
W10571930 W10571930 CLIP, ELECTRODE
W11043522 W11043522 COOKTOP, MAIN
W10617810 W10617810 ELECTRODE (250MM) (RIGHT FRONT)
W10692364 W10692364 ELECTRODE (500MM) (LEFT REAR)
W10692365 W10692365 ELECTRODE DUAL (360MM) (CENTER)
W10845603 W10845603 FERRULE, DUAL INJECTOR
W10575399 W10575399 FERRULE, INJECTOR
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
W10689386 W10689386 GRATE, BURNER (CENTER)
W10689385 W10689385 GRATE, BURNER (SIDE)
W11043536 W11043536 HARNESS, SWITCH AND LIGHT
W10691684 W10691684 HOLDER, ORIFICE (S2) (RIGHT REAR)
W10759294 W10759294 HOLDER-ORF
WPW10571493 WPW10571493 HOLDER-ORF
WPW10571492 WPW10571492 HOLDER-ORF
WPW10571489 WPW10571489 IGNTR-SURF
WPW10571488 WPW10571488 IGNTR-SURF
W11032277 W11032277 INSTALLATION INSTRUCTIONS
W10686634 W10686634 KIT, ORIFICE LP CONVERSION
W11045335 W11045335 KNOB
W11032278 W11032278 LP CONVERSION INSTRUCTIONS
W10692372 W10692372 NUT, COMPRESSION
8190918 8190918 NUT, COMPRESSION
W10575398 W10575398 NUT, INJECTOR
W10392007 W10392007 POWER CORD
W11601369 W11601369 RANGE SPARK MODULE
WPW10569189 WPW10569189 REGULATOR
W10626012 W10626012 SCREW
W10617476 W10617476 SCREW, VALVES
8190917 8190917 SLEEVE, COMPRESSON
W10691690 W10691690 TUBING, BURNER (1/4`` CENTER SIMMER)
W10691691 W10691691 TUBING, BURNER (CENTER)
W10691687 W10691687 TUBING, BURNER (LEFT FRONT)
W10691688 W10691688 TUBING, BURNER (LEFT REAR)
W10692352 W10692352 TUBING, BURNER (RIGHT FRONT)
W10691692 W10691692 TUBING, BURNER (RIGHT REAR)
W11032276 W11032276 USE AND CARE GUIDE
W11043379 W11043379 VALVE, GAS (DUAL) (CENTER)
W11043516 W11043516 VALVE, GAS (SINGLE) (LEFT FRONT, LEFT REAR & RIGHT FRONT)
W11043537 W11043537 VALVE, GAS (SINGLE) (RIGHT REAR)
