Model Image
Manufacturer

Whirlpool

Model Number

JGCP548HL00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10352736 W10352736 ACCESSORY PARTS, BACKSPLASH (ADJUSTABLE)
W11317495 W11317495 ACCESSORY PARTS, BRASS, GRIDDLE
W11323014 W11323014 ACCESSORY PARTS, BRASS, LARGE BURNER CAP (SINGLE)
W11323012 W11323012 ACCESSORY PARTS, BRASS, LARGE KIT, BEZEL (SET OF 4)
W11323067 W11323067 ACCESSORY PARTS, BRASS, OVEN
W11323068 W11323068 ACCESSORY PARTS, BRASS, OVEN BEZEL (SINGLE)
W11323015 W11323015 ACCESSORY PARTS, BRASS, SMALL
W11316873 W11316873 ACCESSORY PARTS, BRASS, SURFACE AND GRIL
W11323024 W11323024 ACCESSORY PARTS, CHROME, GRIDDLE
W11317499 W11317499 ACCESSORY PARTS, CHROME, OVEN
W11323061 W11323061 ACCESSORY PARTS, CHROME, SURFACE AND GRILL
W11323062 W11323062 ACCESSORY PARTS, CHROME, SURFACE AND GRILL
W10160195 W10160195 ACCESSORY PARTS, COVER, GRILL/GRIDDLE
W11238043 W11238043 ACCESSORY PARTS, KIT, HIGH ALTITUDE BURNER CAP (SET OF 4)
W10123240 W10123240 ACCESSORY PARTS, RACK, BROILER PAN & ROASTING
W10216179 W10216179 ACCESSORY PARTS, RING, WOK
31462A 31462A ACCESSORY PARTS, STAINLESS STEEL CLEANER & POLISH
N_P N_P ASSEMBLY, BURNER BOX (NOT SERVICED)
W10285449 W10285449 BACKSPLASH, DUAL POSITION
W11121199 W11121199 BRACKET, MANIFOLD
8285790 8285790 BRACKET, MOUNTING ORIFICE
W11319226 W11319226 BRKT-MNTG
W11319673 W11319673 BURNR-HEAD
W11319683 W11319683 BURNR-HEAD
W10294500 W10294500 CAMERA LENS, INDICATOR LIGHT
W11319224 W11319224 CAP-BURNER
W10355051 W10355051 CLEANER, COOKTOP
W11428599 W11428599 CNVRSN-KIT
W11634752 W11634752 CONTROL PANEL
W11316698 W11316698 COOKTOP
W11316697 W11316697 COOKTOP
W11316696 W11316696 COOKTOP
W10624584 W10624584 CORD, POWER
W11266584 W11266584 DIAGRAM, WIRING (COOKTOP)
W11319602 W11319602 ELMNT-GRIL
W11515370 W11515370 GRATE-BRNR
W11114328 W11114328 GUIDE, USE AND CARE
W11038934 W11038934 HARNESS, JUMPER

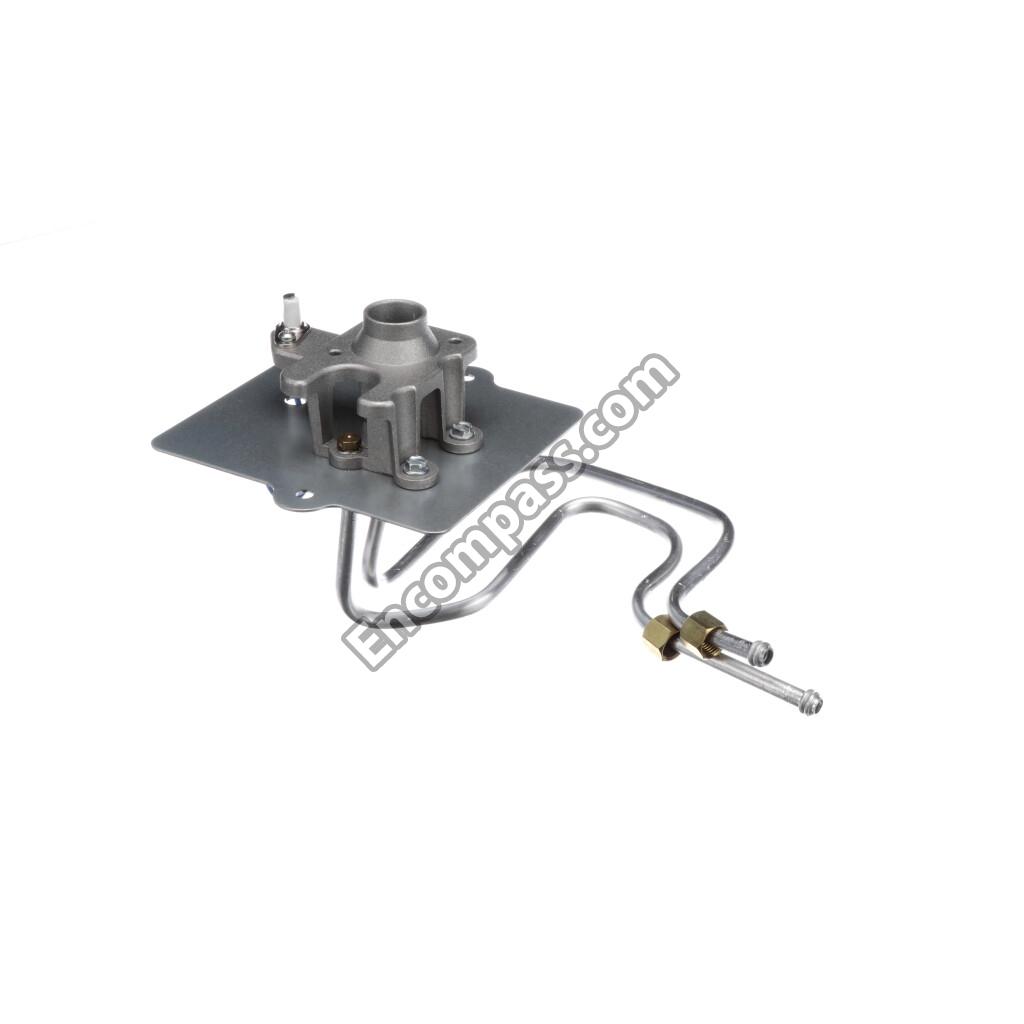

W11337065 W11337065 HOLDER-ORF
W11337063 W11337063 HOLDER-ORF
W11337062 W11337062 HOLDER-ORF
W11238756 W11238756 IGNITER (LEFT CENTER REAR)
W11580024 W11580024 IGNTR-SURF
W11318834 W11318834 INFINITE CONTROL SWITCH
W11110989 W11110989 INSTRUCTIONS, INSTALLATION
W11319228 W11319228 INSULATION
W11574368 W11574368 KNOB
W11316866 W11316866 KNOB
W10116114 W10116114 LIGHT, INDICATOR HOUSING
W11333175 W11333175 MANIFOLD
W11333176 W11333176 MANIFOLD
W11338090 W11338090 MANIFOLD
W11602621 W11602621 MODULE
W11700312 W11700312 NAMEPLATE
W10892440 W10892440 ORIFICE, MAIN (7.2K) (LEFT CENTER REAR)
W10892429 W10892429 ORIFICE, SIMMER (2.0K) (LEFT CENTER REAR)
W11550692 W11550692 PAD-GRATE
W11319687 W11319687 RANGE SPARK MODULE
W11106948 W11106948 REGULATOR
W11674763 W11674763 SCREW
W10674068 W10674068 SCREW
W11447718 W11447718 SCREW
WP90767 WP90767 SCREW
W10491985 W10491985 SCREW
W11233072 W11233072 SCREW
4450800 4450800 SCREW, GROUNDING
W11319618 W11319618 SENSOR
W11266565 W11266565 SHEET, TECH
W11661909 W11661909 SPUD-ORFCE
W11643164 W11643164 SPUD-ORFCE
W10276497 W10276497 TRAY, GRIDDLE DRIP
W11330430 W11330430 TRAY, GRIDDLE INSULATION
W11337061 W11337061 TRIM
W11337059 W11337059 TRIM
W11355761 W11355761 TRIM, ISLAND
W10291193 W10291193 TRIM, L-STRIP
W10271524 W10271524 TRIM, T-STRIP (BLACK)
W11337056 W11337056 TUBING-GAS
W11339377 W11339377 TUBING-GAS
W11339379 W11339379 TUBING-GAS
W11317788 W11317788 WIRE HARNESS
W11317787 W11317787 WIRE HARNESS
W11320016 W11320016 WIRE HARNESS
