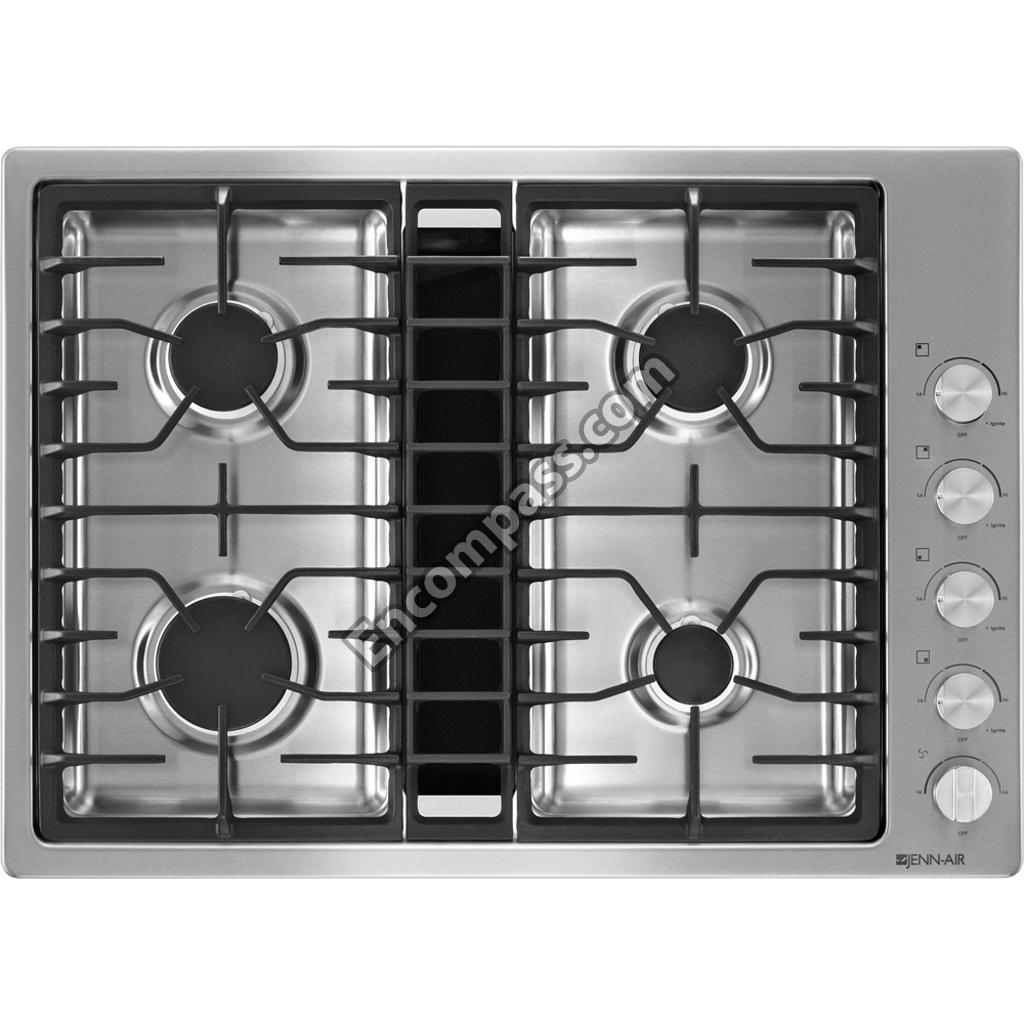

Model Image
Manufacturer

Whirlpool

Model Number

JGD3430BS00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10355010 W10355010 ACCESSORIES, CLEANER, KITCHEN & APPLIANCE
W11042467 W11042467 ACCESSORIES, CLEANER, STAINLESS STEEL
W10777874 W10777874 ASSEMBLY, SCROLL
W10646812 W10646812 BRACKET, BURNER BOX SHIELD (LEFT)
W10646811 W10646811 BRACKET, BURNER BOX SHIELD (RIGHT)
W10221532 W10221532 BRKT-MNTG
W10949105 W10949105 BRKT-MNTG
W10235925 W10235925 BRKT-SWTCH
W10919249 W10919249 BUMPER
74007735 74007735 BURNER ASSEMBLY (LRG)
74007734 74007734 BURNER ASSEMBLY (SMALL)
74007736 74007736 BURNER ASSEMBLY (X-LRG)
WP7718P023-60 WP7718P023-60 BUTTON-PLG
7504P296-60 7504P296-60 CAP, BURNER (WETSTONE (LEFT FRONT))
7504P295-60 7504P295-60 CAP, BURNER (WETSTONE (LEFT REAR & RIGHT REAR))
7504P294-60 7504P294-60 CAP, BURNER (WETSTONE (RIGHT FRONT))
WP7504P298-60 WP7504P298-60 CAP-BURNER
WP7504P299-60 WP7504P299-60 CAP-BURNER
WP7504P300-60 WP7504P300-60 CAP-BURNER
8106P068-60 8106P068-60 CARD, FLOW TESTER
16515 16515 CLIP, HARNESS
8287106 8287106 CLIP, WIRE
W10239523 W10239523 CNVRSN-KIT
WPW10555853 WPW10555853 COOKTOP
WPW10555855 WPW10555855 COOKTOP
WPW10555854 WPW10555854 COOKTOP
3188867 3188867 CORD, POWER
W10237163 W10237163 COVR-MODLE
W10258697 W10258697 COVR-WIRE
W10222821 W10222821 DIAGRAM, WIRING (ENGLISH)
W10222822 W10222822 DIAGRAM, WIRING (FRENCH)
W10905834 W10905834 FILTER
W10177003 W10177003 FILTER
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WP71002569 WP71002569 GASKET- IN
WPW10203095 WPW10203095 GRATE-BRNR
W10204541 W10204541 GRATE-BRNR
WPW10203097 WPW10203097 GRILLE
W10204544 W10204544 GRILLE
WPW10559494 WPW10559494 GROMMET
W11544657 W11544657 GROMMET
W10559485 W10559485 GROMMET
8312P151-60 8312P151-60 GUARD, BLOWER
W10555863 W10555863 GUIDE, USE & CARE
W10253222 W10253222 HARNS-WIRE
W10207829 W10207829 HARNS-WIRE
W10207828 W10207828 HARNS-WIRE
74009553 74009553 HOLDER, ORIFICE (5K)
WP7527P003-60 WP7527P003-60 HOLDER-ORF
WP7527P002-60 WP7527P002-60 HOLDER-ORF
WP7527P031-60 WP7527P031-60 HOLDER-ORF
WP74009336 WP74009336 IGNTR-SURF
W10574732 W10574732 INSTRUCTIONS, INSTALLATION
W10240007 W10240007 INSTRUCTIONS, LP CONVERSION
WPW10559475 WPW10559475 KNOB
W10549673 W10549673 KNOB
W10551840 W10551840 KNOB
W10559477 W10559477 KNOB
W10551841 W10551841 KNOB
W10559476 W10559476 KNOB
WPY707702 WPY707702 LOCKNUT
WPW10247586 WPW10247586 MOTOR-BLWR

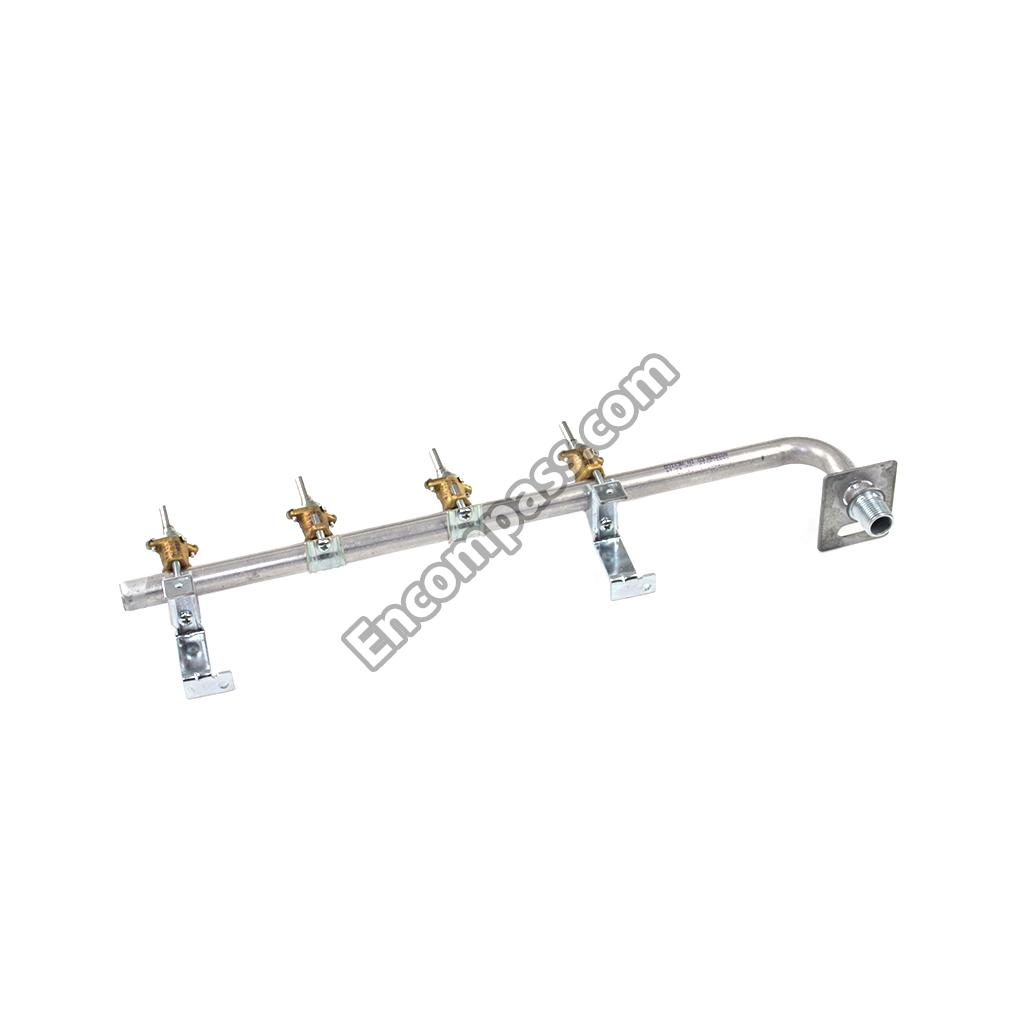

W10575616 W10575616 PIPE-MNFLD
W10777870 W10777870 PLENUM-AIR
W10184125 W10184125 PLENUM-AIR
W10184137 W10184137 RAIL-MTG
WPW10475147 WPW10475147 RANGE SPARK MODULE
W11087445 W11087445 REGULATOR
8019P017-60 8019P017-60 RELIEF, STRAIN

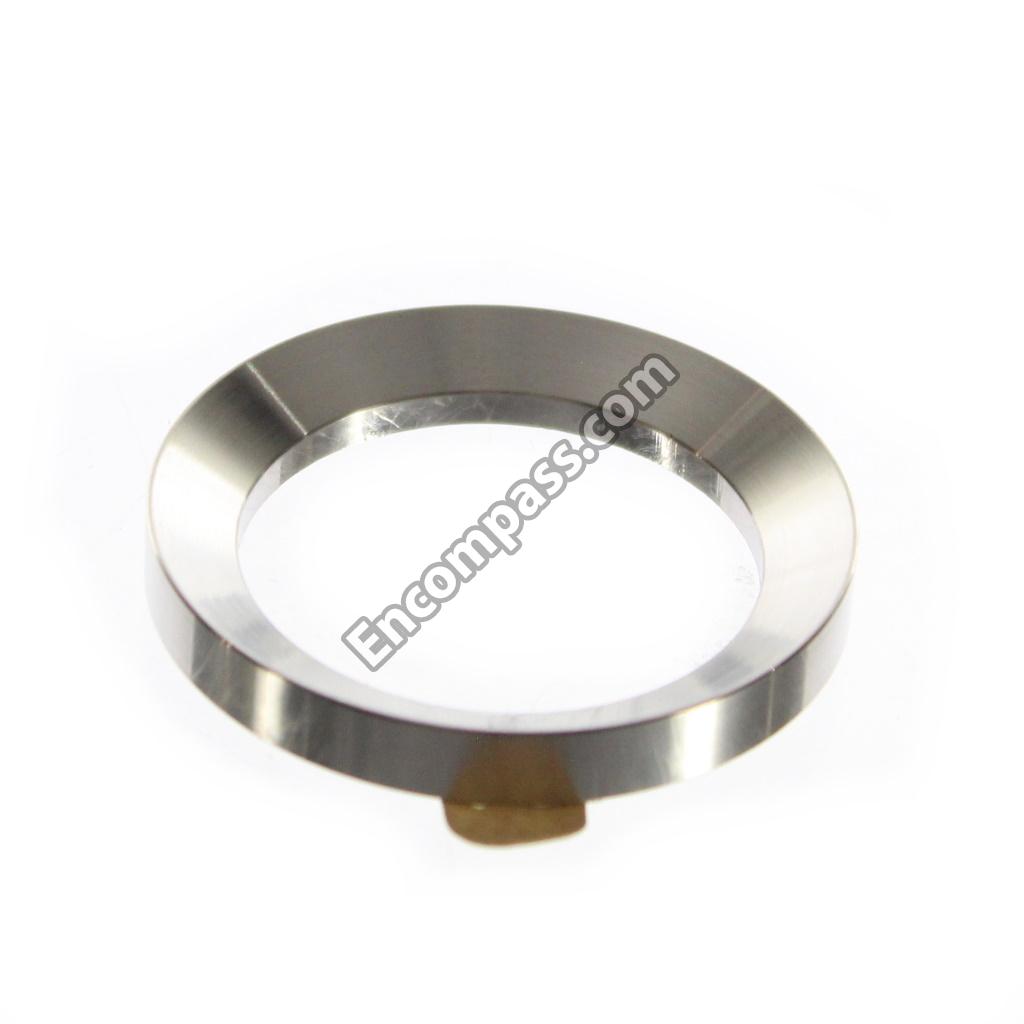

4026F008-51 4026F008-51 RING, INLET
W10249271 W10249271 RIVET
WP8273062 WP8273062 SCREW
WP7101P309-60 WP7101P309-60 SCREW
WP90767 WP90767 SCREW
WPY706189 WPY706189 SCREW
W11666001 W11666001 SCREW
WP3188425 WP3188425 SEAL-SWTCH
W10269705 W10269705 SHIELDHT
W10269712 W10269712 SHIELDHT
W10205616 W10205616 SUPPORT
W10581950 W10581950 SUPPORT
WP4456836 WP4456836 SWITCH-SPD
12002793 12002793 TAPE- FOAM
9762761 9762761 TIPS, SAFE COOKING (ENGLISH)
W10065852 W10065852 TIPS, SAFE COOKING (FRENCH)
W10235990 W10235990 TRAY-DRIP
W10421246 W10421246 TUBING, GAS (LEFT FRONT)
W10188364 W10188364 TUBING-GAS
W10188371 W10188371 TUBING-GAS
W10237284 W10237284 TUBING-GAS

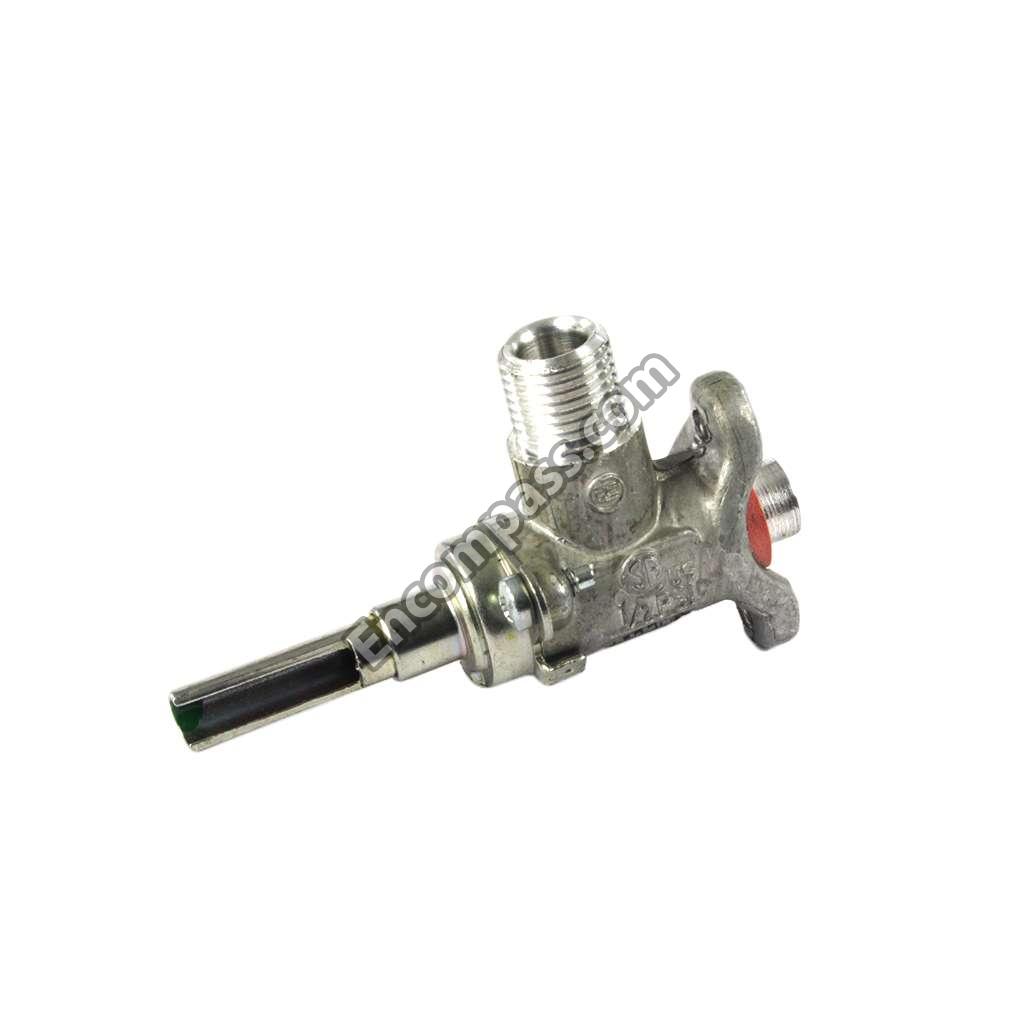

W11676567 W11676567 VALVE-BRNR
W10467729 W10467729 VALVE-BRNR
W11676621 W11676621 VALVE-BRNR
WP74001521 WP74001521 WASHER
WPY707985 WPY707985 WHEEL-FAN

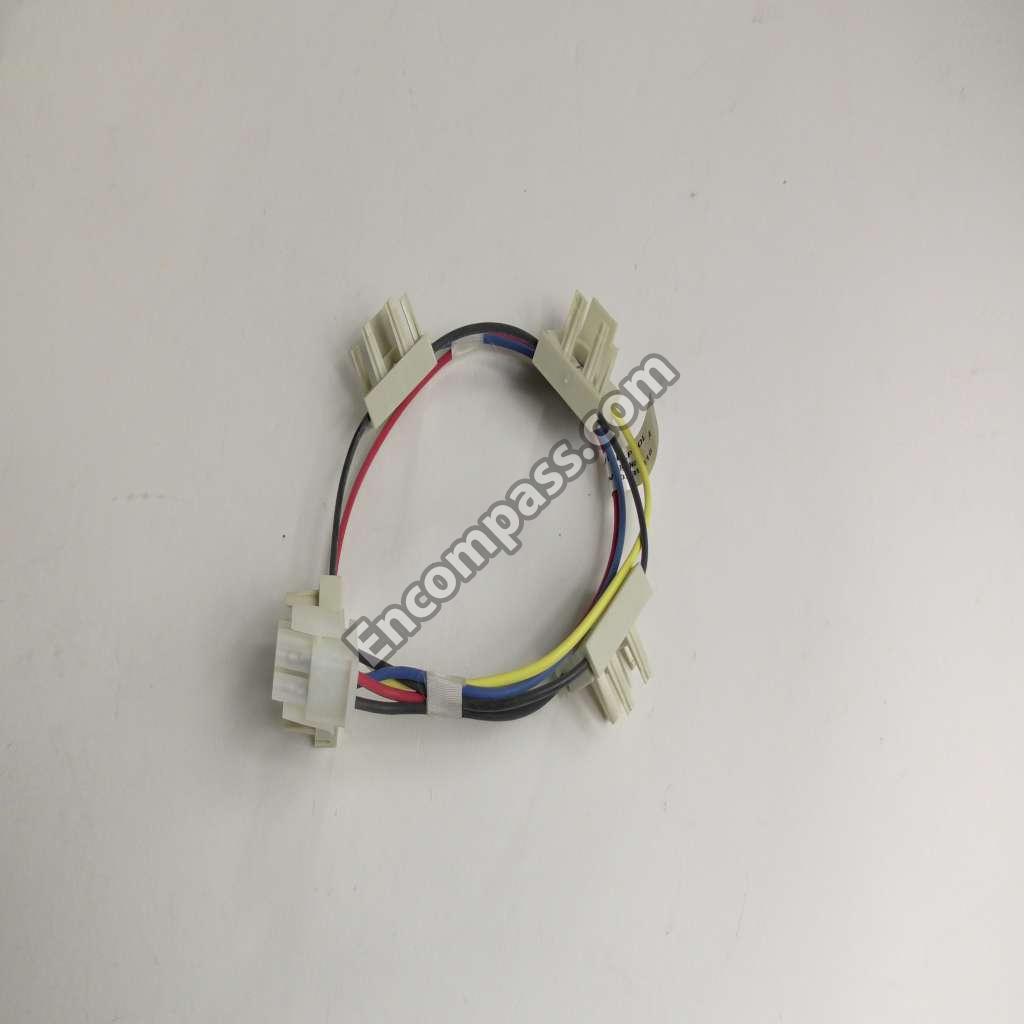

W10854963 W10854963 WIRE HARNESS
