Whirlpool

Model Number

JGR8855ADS

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
1555258K 1555258K 3/8`` NUT & FERRULE
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
74009884 74009884 BACK, MAIN
3601F307-45 3601F307-45 BAFFLE, BROIL
3601F353-45 3601F353-45 BAFFLE, DOOR
74003050 74003050 BAFFLE, OVEN DOOR SECONDARY
74003033 74003033 BALLAST
74005690 74005690 BEZEL KNO
WP74003782 WP74003782 BEZEL- KNO
7401P037-60 7401P037-60 BLOCK TER
WP5504M003-19 WP5504M003-19 BOTTOM, OVEN ASSEMBLY.
WP7725P021-60 WP7725P021-60 BOWL, DRIP (DBL-BLK)
74002632 74002632 BOX BURNE
74002633 74002633 BOX, BURNER (LT)
4006D187-45 4006D187-45 BOX, VENT
WP3801F656-51 WP3801F656-51 BRACKET
74003489 74003489 BRACKET C
74003490 74003490 BRACKET C
74003550 74003550 BRACKET C
74001632 74001632 BRACKET, SWITCH ACTUATOR
74001631 74001631 BUMPER- RO
3403D024-45 3403D024-45 BURNER, BROIL
74003960 74003960 BURNER- BA
WP3412D024-09 WP3412D024-09 BURNR-HEAD
WP3403F088-00 WP3403F088-00 CAP-BURNER
74004827 74004827 CLIP TOP
7112P087-60 7112P087-60 CLIP, TOP LOCKING
71003114 71003114 CLOCK (BLK)
12400044 12400044 CORD, POWER
4005F421-45 4005F421-45 COVER IGN
74003389 74003389 COVER, BULB
74002943 74002943 COVER, CONVECT FAN
74002598 74002598 COVER, CONVECT WIRE
74003573 74003573 COVER, LIGHT (BLK)
74003321 74003321 COVER, MAIN WIRE
74005465 74005465 COVER, VALVE/REGULATOR
12002354 12002354 DOOR LATCH, DOOR LOCK

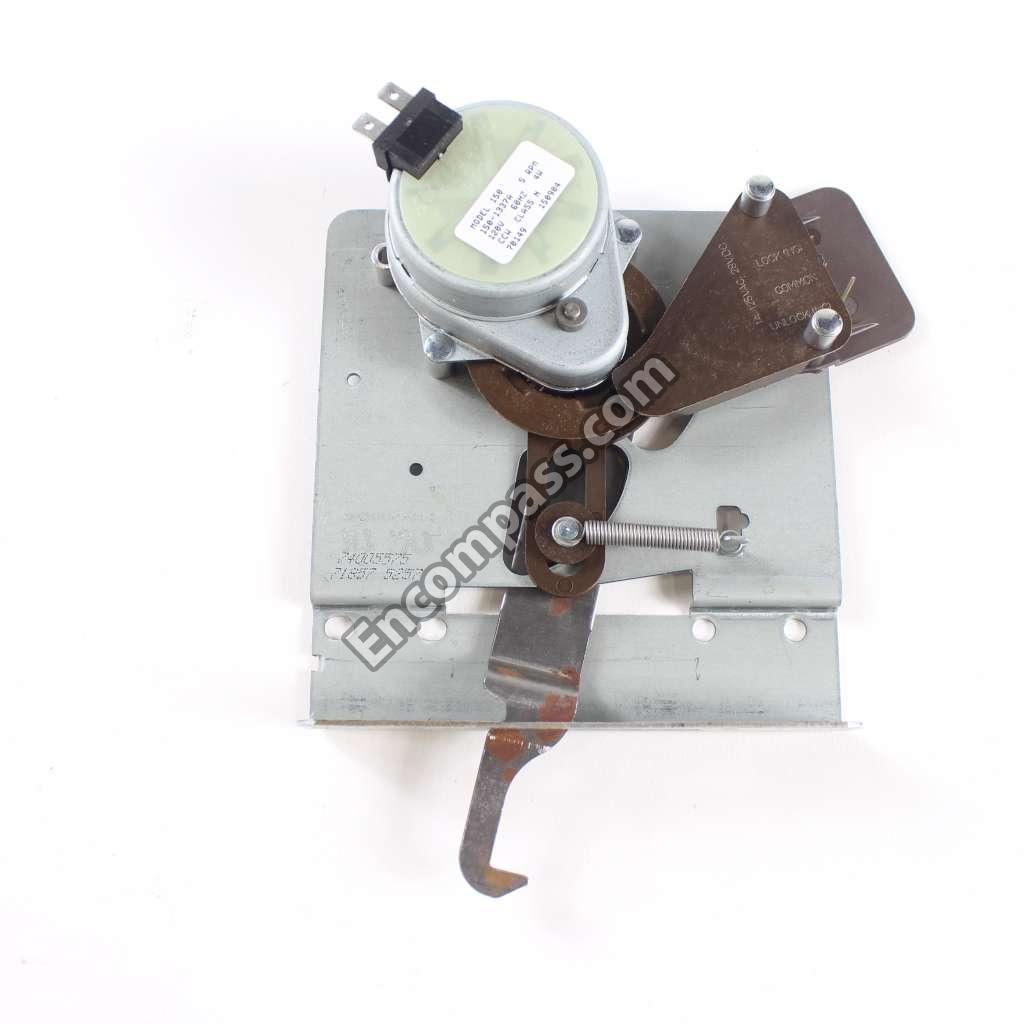

WP74005575 WP74005575 DOOR LOCK MOTOR ASSEMBLY.
74008337 74008337 DRAWER, STORAGE
74003498 74003498 END CAP P
74003575 74003575 END CAP, CONTROL PNL (LT-BLK)
74003574 74003574 END CAP, CONTROL PNL (RT-BLK)
74003497 74003497 END CAP, PANEL (RT-BLK)
4022W007-19 4022W007-19 EXTENSION, FLUE BOX
74002596 74002596 FAN ASSEMBLY. (CONVECT)
74005676 74005676 FAN ASSEMBLY. (GAS-CONVECTION)
WP5787M052-60 WP5787M052-60 FITTING
WP5787M053-60 WP5787M053-60 FITTING ASSEMBLY., ORIFICE (LT)
7507P088-60 7507P088-60 FITTING, BROIL BURNER
W11665456 W11665456 FOOT-LEVEL
74002745 74002745 GASKET, BURNER
WP7201P017-60 WP7201P017-60 GASKET, WINDOW
WPW10162384 WPW10162384 GASKT-DOOR
74003320 74003320 GLASS, INNER
WP74002002 WP74002002 GLASS, INNER
74001072 74001072 GLASS, OUTER DOOR (BLK)
71003048 71003048 GRATE (BLK)
16000326 16000326 GUIDE, QUICK REF - JENN-AIR
WP74003617 WP74003617 HANDLE, DOOR (BLK)
5120D019-60 5120D019-60 HARNESS S
71003046 71003046 HARNESS S
5125A312-60 5125A312-60 HARNESS, LOOSE/BURNER BOX
74003371 74003371 HINGE MAI
WP74011140 WP74011140 HINGE- OVE
74003388 74003388 HOUSING, BULB
74004963 74004963 HOUSING, CONTROL PANEL
12400035 12400035 IGNITER KIT
74004053 74004053 IGNITER- T
WP3413F018-19 WP3413F018-19 INSERT
WP74009201 WP74009201 INSULATION
WP74010942 WP74010942 INSULATION
7002P078-60 7002P078-60 INSULATION
74001842 74001842 INSULATION
74003560 74003560 INSULATION
74003146 74003146 INSULATION
74003503 74003503 INSULATION, OVEN
74001872 74001872 INSULATOR
12001257 12001257 KIT- HEAT
74005689 74005689 KNOB VALV
WP74003781 WP74003781 KNOB- VALV
WP95292 WP95292 LAMP-FLUOR
8009 8009 LIGHT BULB
WP2402W271-19 WP2402W271-19 LINER-DOOR
2404F030-51 2404F030-51 LINING DR
74004682 74004682 MANUAL, USE & CARE
74005285 74005285 MANUAL, USE & CARE (TRI)
8215557 8215557 MODULE, SPARK (4+0)
W10124350 W10124350 NOT REQUIRED PART OR SEE NOTE IGNITER NOT SOLD SEPARATELY (MUST ORDER SEALED BURNER- ITEM NO.6)
WP488130 WP488130 NUT
WPW10131078 WPW10131078 NUT
7103P130-60 7103P130-60 NUT
7103P030-60 7103P030-60 NUT- WING
74001219 74001219 ORIFICE
74001651 74001651 PAN, BAKE BURNER
WP3401F075-19 WP3401F075-19 PAN, BROIL
74004043 74004043 PANEL
74004044 74004044 PANEL, CONTROL
74003698 74003698 PANEL, DOOR (STNLS)
74004045 74004045 PANEL, DRAWER (CHR)
74003283 74003283 PANEL, SIDE (BLK)
4020F001-80 4020F001-80 PEDESTAL
74003405 74003405 PEDESTAL, SIDE
74003504 74003504 PIPE, MANIFOLD
74005681 74005681 PIPE, MANIFOLD
3605F186-45 3605F186-45 PLATE, FITTING
74003595A 74003595A RACK-DEHYD
WPW10282492 WPW10282492 RACK-OVEN
12001596 12001596 RANGE SPARK MODULE
7408P030-60 7408P030-60 RECEPTACLE
WP74006429 WP74006429 REGULATOR-
74003561 74003561 RETAINER
74003391 74003391 RETAINER
3804F245-51 3804F245-51 RETAINER, BOTTOM
74003048 74003048 RETAINER, GLASS
74005498 74005498 RETAINER, INSULATION (CONVECT)
74003562 74003562 ROD, DOOR LIGHT SWITCH
12001527 12001527 ROLLER, DRAWER
W10182835 W10182835 RUNNER, DRAWER (2)
WPW10068250 WPW10068250 SCREW
WP59002061 WP59002061 SCREW
WP3351614 WP3351614 SCREW
WP8273096 WP8273096 SCREW
WP7101P072-60 WP7101P072-60 SCREW
WP7101P126-60 WP7101P126-60 SCREW
WP179051 WP179051 SCREW
W11233072 W11233072 SCREW
WPY706189 WPY706189 SCREW
WP98008545 WP98008545 SCREW
3400409 3400409 SCREW
W11693756 W11693756 SCREW
WP4159193 WP4159193 SCREW
W10856125 W10856125 SCREW
W10491986 W10491986 SCREW
WP7101P498-60 WP7101P498-60 SCREW
74003640 74003640 SCREW
74002432 74002432 SCREW 1 3
74008798 74008798 SCREW W/SHOULDER (NO.8)
12001655 12001655 SENSOR
3604F165-51 3604F165-51 SHIELD FL
74002447 74002447 SHIELD SI
3604F205-51 3604F205-51 SHIELD, DRAWER
74003558 74003558 SHIELD, LIGHT
8036P003-60 8036P003-60 SHIELD, SIGHT
4318047 4318047 SHIELD, VENT DEFLECTOR
3604F327-51 3604F327-51 SHIELD, WARMING DRAWER
WP74003387 WP74003387 SOCKT-LITE
W10857933 W10857933 SPACER
74003639 74003639 SPACER DO
8010P085-60 8010P085-60 SPACER RU
8010P048-60 8010P048-60 SPACER, MAIN TOP
8010P088-60 8010P088-60 SPACER, MAIN TOP (RT)
8010P087-60 8010P087-60 SPACER- MA
74001629 74001629 SPRING- DO
74003385 74003385 STRAP INS
3807F480-45 3807F480-45 SUPPORT, BAKE BNR
3807F473-51 3807F473-51 SUPPORT, SPARK MODULE
74007129 74007129 SUPPORT, VALVE/REGULATOR
74001802 74001802 SWITCH
74003571 74003571 SWITCH, FLRSCENT LIGHT (BLK)
WP74008718 WP74008718 SWITCH, ROCKER (BLK)
WP7403P279-60 WP7403P279-60 SWITCH- IG
WP74007095 WP74007095 SWITCH- IG
8270P078-60 8270P078-60 TAPE, FOIL (29 1/2``)
71003047 71003047 TOP, MAIN (BLK)
74007370 74007370 TRIM, VENT (BLK)
74002592 74002592 TUBING, BROIL FITTING (3/8``)
WP74006428 WP74006428 TUBING, REGULATOR/PIPE (3/8``)
WP74003924 WP74003924 VALVE, BURNER
12002316 12002316 VALVE, TOP BURNER
WP74006427 WP74006427 VALVE- OVE
12001323 12001323 WIRE TERMI
5140D035-60 5140D035-60 WIRES, IGNITER
15002806 15002806 WIRING INFORMATION
15002275 15002275 WIRING INFORMATION
