Model Image
Manufacturer

Whirlpool

Model Number

JGR8875QDS

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
12002239 12002239 12K, HARPER (VALVE & SCREW)
12002240 12002240 16K, HARPER (VALVE & SCREW)
12002235 12002235 5K, SOURDILLION VALVE & SCREW
W10841140 W10841140 ADHESIVE
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
74009676 74009676 BACK, MAIN (GAS)
3601P336-45 3601P336-45 BAFFL-BRNR
74008846 74008846 BAFFLBRNR
3601F322-51 3601F322-51 BAFFLE, DOOR
74009027 74009027 BAFFLE, DOOR (STL)
74008831 74008831 BAFFLE, HEAT
WPW10211368 WPW10211368 BOTTM-OVEN
WP3801F656-51 WP3801F656-51 BRACKET
3801F885-51 3801F885-51 BRACKET
3801F850-51 3801F850-51 BRKT-MNTG
3801P822-45 3801P822-45 BRKT-SUPRT
W10919249 W10919249 BUMPER
74008707 74008707 BUMPER
31945701 31945701 BURNER BACK
74008820 74008820 BURNER BR
WPW10406797 WPW10406797 BURNR-HEAD
WPW10406243 WPW10406243 BURNR-HEAD
WPW10406878 WPW10406878 BURNR-HEAD
WP9781049 WP9781049 CAMERA LENS-LIGHT
WP3191898 WP3191898 CAP-BURNER
WPW10154101 WPW10154101 CAP-BURNER
WP74007925 WP74007925 CAP-BURNER
74008835 74008835 CLIP- RETA

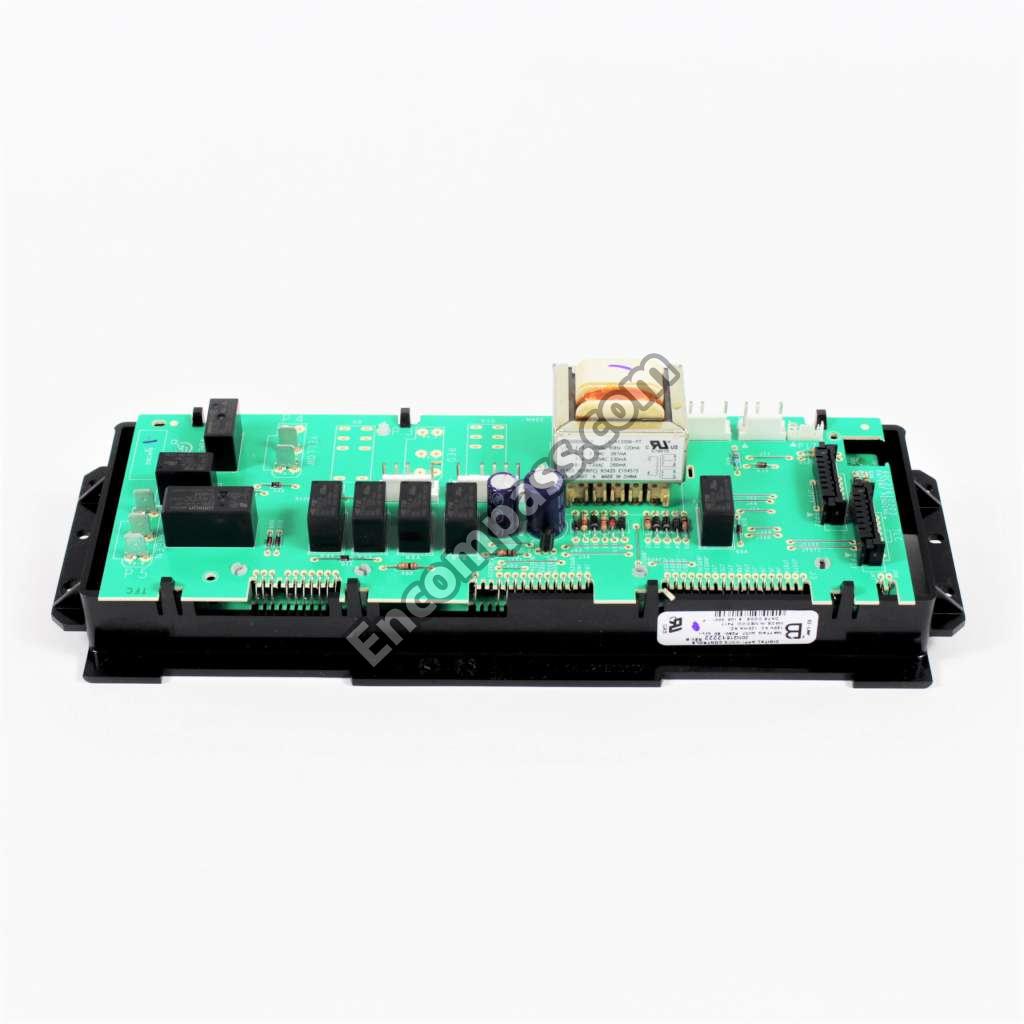

WP74009154 WP74009154 CLOCK W/CONVECT
74009086 74009086 COOKTOP
74008876 74008876 CORD, POWER
74009653 74009653 COVER BRO
4005F421-45 4005F421-45 COVER IGN
74009652 74009652 COVER MAI
74008760 74008760 COVER WIR
4005F804-51 4005F804-51 COVER, BACKGUARD WIRE
74005783 74005783 COVER, CONVECT
4005P711-51 4005P711-51 COVER-REAR
WP74008702 WP74008702 DOOR LATCH ASSEMBLY
WP3405F037-80 WP3405F037-80 DRAWR-UTIL
74009022 74009022 END CAP (RT-BLK)
74009023 74009023 ENDCAP-PNL
74009142 74009142 FAN- CONVE
74008818 74008818 FITTING, BROIL BURNER
W11665456 W11665456 FOOT-LEVEL
74003644 74003644 FRAME, GLASS
74008916 74008916 GASKET- WI
74008917 74008917 GASKET- WI
W11562931 W11562931 GASKT-DOOR
74008925 74008925 GLASS DOO
74004857 74004857 GLASS, DOOR
74003645 74003645 GLASS-DOOR
WP74009143 WP74009143 GRATE, DOUBLE (BLK)
74007136 74007136 GUIDE, COOKING (TRILINGUAL)
74008920 74008920 HANDLE DO
WP74008909 WP74008909 HANDLE, DRAWER
74009107 74009107 HARNESS M
74009674 74009674 HARNESS M
74009141 74009141 HARNESS M
WP74009392 WP74009392 HARNESS, SPARK SWITCH(5 VALVE)
WP74010753 WP74010753 HARNESS- S
74010546 74010546 HINGE, DOOR
WP74009099 WP74009099 HOLDER-ORF
WP7432P136-60 WP7432P136-60 IGNTR-OVEN
74007498 74007498 IGNTR-OVEN
WP74009958 WP74009958 IGNTR-SURF
WP3413F018-19 WP3413F018-19 INSERT
WP74009587 WP74009587 INSERT, HALF RACK 30``
W11161816 W11161816 INSULATION
74009093 74009093 INSULATION
74008836 74008836 INSULATION
7002P246-60 7002P246-60 INSULATION
7002P492-60 7002P492-60 INSULATION, BACK
74009956 74009956 INSULATION, SIDE BAFFLE
74008704 74008704 INSULATOR
12002421 12002421 KIT, SUPPLY TUBE AND SCREW
74009070 74009070 KIT-ORIFCE
WP74009148 WP74009148 KNOB- VALV
8009 8009 LIGHT BULB
WP74011278 WP74011278 LIGHT- OVE
WP2402W297-19 WP2402W297-19 LINING, DOOR
8113P463-60 8113P463-60 MANUAL, USE & CARE
8113P398-60 8113P398-60 MANUAL, USE & CARE
74009098 74009098 MODULE- SP
WP488130 WP488130 NUT
WP3400029 WP3400029 NUT
74005230 74005230 NUT
7103P030-60 7103P030-60 NUT- WING
WP7527P100-60 WP7527P100-60 ORIFICE HO
7527P097-60 7527P097-60 ORIFICE HOLDER (CENTER)
W10154209 W10154209 ORIFICE HOLDER/TUB ASSEMBLY (RR)
74009103 74009103 ORIFICE HOLDER/TUBE ASSEMBLY.(LF)
WP3401F075-19 WP3401F075-19 PAN, BROIL
4005P704-51 4005P704-51 PANEL, ACCESS
74008923 74008923 PANEL, DOOR (STL)
74009024 74009024 PANEL, DRAWER (STL)
74009146 74009146 PANEL, MANIFOLD (STL)
WP2618F172-69 WP2618F172-69 PANEL, SIDE (BLK)
WP5701M666-60 WP5701M666-60 PANEL/OVERLAY(STL)
74008815 74008815 PIPE MANI
3605F146-51 3605F146-51 PLATE
WP3605F337-51 WP3605F337-51 PLATE, DRAWER MOUNTING
WP74008924 WP74008924 RACK, CREATE A SPACE HALF ``Q``
WP74008763 WP74008763 RACK- OVEN
WP74010551 WP74010551 RECEIVER-
12002604 12002604 REGULATOR
74008745 74008745 RETAINER
12002192 12002192 RETAINER
74008701 74008701 RETAINER, SIDE
3804F300-51 3804F300-51 RETAINER-
74008706 74008706 ROD DOOR
WP74004078 WP74004078 ROLLER- DR
WP3406P034-51 WP3406P034-51 RUNNER, SERVICE DRAWER
W10491986 W10491986 SCREW
W11693756 W11693756 SCREW
WP400021-1 WP400021-1 SCREW
WP74008812 WP74008812 SCREW
WP74009391 WP74009391 SCREW
WP74009857 WP74009857 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP74003976 WP74003976 SCREW
74009538 74009538 SCREW
WP4159193 WP4159193 SCREW
W11233072 W11233072 SCREW
74003975 74003975 SCREW
74008798 74008798 SCREW
74003640 74003640 SCREW
12001655 12001655 SENSOR
WP74005231 WP74005231 SHAFT, STORAGE DRAWER ROLLER
74010577 74010577 SHIELD HE
74008858 74008858 SHIELD VE
74008825 74008825 SHIELD, HEAT VISOR (BLK)
74009445 74009445 SHIELD- VE
74008705 74008705 SLEEVE RO
74007237 74007237 SPACER- DE
74008690 74008690 SPACER- SI
74008761 74008761 SPACER- SN
74008688 74008688 STOP, DRAWER
3807P680-45 3807P680-45 SUPPORT
74008816 74008816 SWITCH ASY
74008703 74008703 SWITCH- DO
74008830 74008830 TUBING- BR
12002238 12002238 VALVE, BURNER (5K)
74010751 74010751 VALVE- 16K
WP7502P499-60 WP7502P499-60 VALVE-BRNR
WP7502P500-60 WP7502P500-60 VALVE-BRNR
12002236 12002236 VALVE-GAS
12002237 12002237 VALVE-GAS
74008817 74008817 VENT OVEN
15003327 15003327 WIRING INFORMATION
