Model Image
Manufacturer

Whirlpool

Model Number

JGR8875RDB1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
3601P336-45 3601P336-45 BAFFL-BRNR
3601P356-45 3601P356-45 BAFFL-BRNR
3601F380-51 3601F380-51 BAFFLE INS
WPW10211368 WPW10211368 BOTTM-OVEN
4005F753-45 4005F753-45 BOTTM-OVEN
3401F082-45 3401F082-45 BOX-BURNER
WP3801F656-51 WP3801F656-51 BRACKET
74011187 74011187 BRACKET O
3801F945-51 3801F945-51 BRKT-CNTRL
3801P858-45 3801P858-45 BRKT-MNTG
3801F886-51 3801F886-51 BRKT-MNTG
3801P822-45 3801P822-45 BRKT-SUPRT
3801P798-51 3801P798-51 BRKT-SUPRT
3801P857-45 3801P857-45 BRKTMNTG
31945701 31945701 BURNER BACK
W10160904 W10160904 BURNR-BRLR
WPW10406243 WPW10406243 BURNR-HEAD
WPW10406878 WPW10406878 BURNR-HEAD
WPW10406797 WPW10406797 BURNR-HEAD
WPW10406283 WPW10406283 BURNR-HEAD

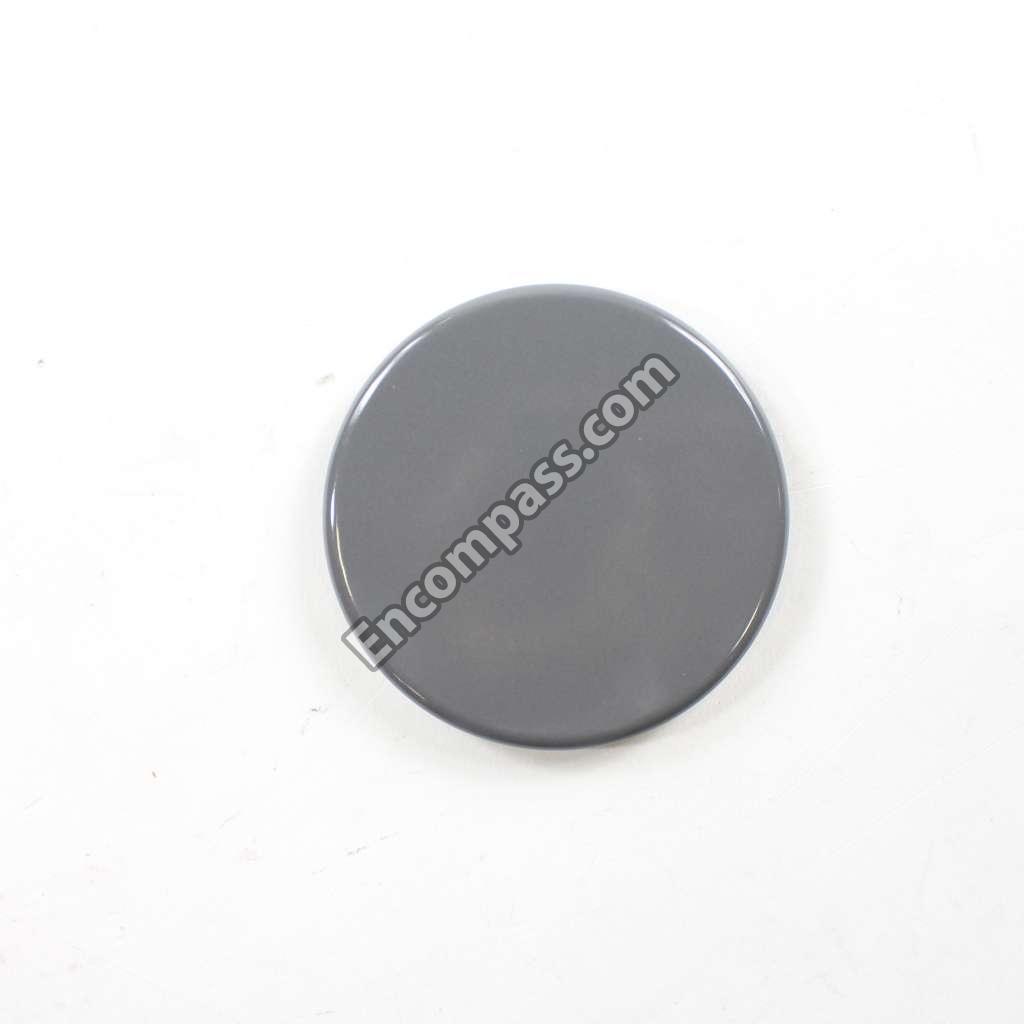

WP74007422 WP74007422 CAP, BURNER (CTR) (GRAY)
WP74007415 WP74007415 CAP-BURNER
WP74007421 WP74007421 CAP-BURNER
WP74007925 WP74007925 CAP-BURNER
WP3191898 WP3191898 CAP-BURNER
WPW10154101 WPW10154101 CAP-BURNER
WP74007752 WP74007752 CAP-BURNER
WP74007420 WP74007420 CAP-BURNER
8019P026-60 8019P026-60 CLIP
74008835 74008835 CLIP, RETAINER
WP8507P351-60 WP8507P351-60 CONTROL BOARD
W10182781 W10182781 COOKTOP (WHITE)
WP7402P109-60 WP7402P109-60 CORD, POWER
4005F804-51 4005F804-51 COVER
4005F421-45 4005F421-45 COVER IGN
4005P704-51 4005P704-51 COVER-REAR
4002F347-51 4002F347-51 COVERREAR
4005P703-51 4005P703-51 COVRWIRE
4005F748-51 4005F748-51 COVRWIRE
W10792991 W10792991 DOOR DOOR LATCH
WP3608F126-71 WP3608F126-71 DOOR TRIM
8038P037-60 8038P037-60 DRAWER, STOP
WP3405F037-80 WP3405F037-80 DRAWR-UTIL
3807F702-70 3807F702-70 ENDCAP, RIGHT HAND (BLACK)
3807F703-70 3807F703-70 ENDCAP-PNL
74008818 74008818 FITTING, BROIL BURNER
241430 241430 FOIL-ALUM
W11665456 W11665456 FOOT-LEVEL
N_P N_P FRAME, FRONT (NOT SERVICED)
W11562931 W11562931 GASKT-DOOR
74003645 74003645 GLASS, INNER
7902P792-60 7902P792-60 GLASS, OUTER DOOR (BLACK)
7902P784-60 7902P784-60 GLASS, OUTER DOOR (WHITE)
WP74009143 WP74009143 GRATE, BURNER (2) (BLACK)
74009145 74009145 GRATE, BURNER (2) (GRAY)
7701P467-60 7701P467-60 HANDLE, DOOR (STAINLESS)
5171P894-60 5171P894-60 HARNS-WIRE
W10173438 W10173438 HARNS-WIRE
74010546 74010546 HINGE, DOOR
7527P101-60 7527P101-60 HOLDER, ORIFICE (LF)
WP74009099 WP74009099 HOLDER-ORF
7527P097-60 7527P097-60 HOLDER-ORF
7527P125-60 7527P125-60 HOLDER-ORF
WP7432P136-60 WP7432P136-60 IGNTR-OVEN
74007498 74007498 IGNTR-OVEN
8101P571-60 8101P571-60 INSTALLATION INSTRUCTIONS
W11161816 W11161816 INSULATION
7002P246-60 7002P246-60 INSULATION
7002P484-60 7002P484-60 INSULATION
7002P494-60 7002P494-60 INSULATION
7002P492-60 7002P492-60 INSULATION
WPW10208653 WPW10208653 INSULATION
7002P373-60 7002P373-60 INSULATION FOIL
7003P142-60 7003P142-60 INSULATOR, SHIELD
5789A601-60 5789A601-60 KIT LP CO
12002421 12002421 KIT, SUPPLY TUBE AND SCREW

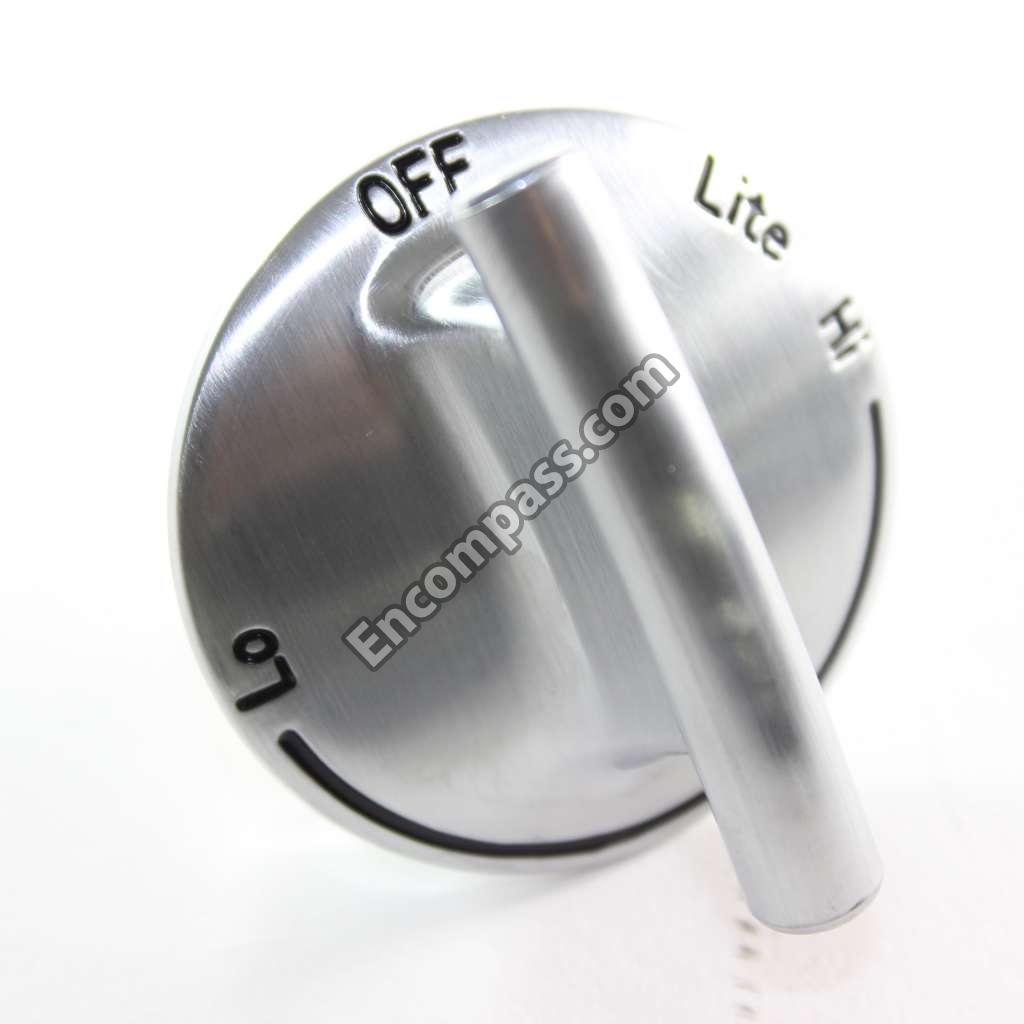

WP74009147 WP74009147 KNOB- VALV
8009 8009 LIGHT BULB
WP74011278 WP74011278 LIGHT- OVE
WP2402W297-19 WP2402W297-19 LINER, DOOR
74009098 74009098 MODULE, SPARK
7427P108-60 7427P108-60 MOTOR-FAN
WP488130 WP488130 NUT
WP3400029 WP3400029 NUT
7103P030-60 7103P030-60 NUT- WING
74008834 74008834 ORIFICE
7509P123-60 7509P123-60 ORIFICE
W10154209 W10154209 ORIFICE HOLDER/TUB ASSEMBLY (RR)
W10156137 W10156137 ORIFICE, BURNER (LEFT REAR)
W10156836 W10156836 ORIFICE, BURNER (RIGHT FRONT)
8113P714-60 8113P714-60 OWNERS MANUAL
511873 511873 PAINT
4392900 4392900 PAINT
799344 799344 PAINT
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
WP3605P337-51 WP3605P337-51 PANEL, INNER
WP2618F172-69 WP2618F172-69 PANEL, SIDE (2) (BLACK)
WP2618F172-58 WP2618F172-58 PANEL, SIDE (2) (WHITE)
2416F104-70 2416F104-70 PANEL-DRWR
2416F104-71 2416F104-71 PANEL-DRWR
2616F328-09 2616F328-09 PANLMNFLD
2616F328-81 2616F328-81 PANLMNFLD
7513P524-60 7513P524-60 PIPE-MNFLD
3605F146-51 3605F146-51 PLATE
3605F305-19 3605F305-19 PLATE, CONVECT
WPW10256908 WPW10256908 RACK-OVEN
WP3406P034-51 WP3406P034-51 RAIL, DRAWER
WP74010551 WP74010551 RECEIVER-
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
12002604 12002604 REGULATOR
3804F300-51 3804F300-51 RETAINER
WPW10272883 WPW10272883 ROLLER
WP7101P072-60 WP7101P072-60 SCREW
WP3400832 WP3400832 SCREW
WP3196175 WP3196175 SCREW
WP98008545 WP98008545 SCREW
W11164114 W11164114 SCREW
WP8273062 WP8273062 SCREW
W10491986 W10491986 SCREW
WP4159193 WP4159193 SCREW
W10491985 W10491985 SCREW
W11347848 W11347848 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP74003976 WP74003976 SCREW
WP90767 WP90767 SCREW
W11233072 W11233072 SCREW
3196166 3196166 SCREW
74003975 74003975 SCREW
74005401 74005401 SCREW
74008798 74008798 SCREW
WP3368921 WP3368921 SCREW-TORX
12001655 12001655 SENSOR
WP74005231 WP74005231 SHAFT, STORAGE DRAWER ROLLER
3604F383-09 3604F383-09 SHIELD HE
3604F383-81 3604F383-81 SHIELD HE
WP3604F381-19 WP3604F381-19 SHIELD, VENT
3604P409-51 3604P409-51 SHIELD-HT
74008690 74008690 SPACER, SIDE PANEL
74008761 74008761 SPACER, SNAP-IN
WP74005546 WP74005546 SPACER- RU
4392901 4392901 SPRAY
285006 285006 SPRAY
350930 350930 SPRAY
3807P680-45 3807P680-45 SUPPORT
3807F703-71 3807F703-71 SUPPORT
3807F702-71 3807F702-71 SUPPORT
WP7450P075-60 WP7450P075-60 SWTCH-MEMB
WP74004224 WP74004224 TAPE
W10208307 W10208307 TAPE, DOUBLE SIDED (BLACK)
W10208308 W10208308 TAPE, DOUBLE SIDED (WHITE)
8270P090-60 8270P090-60 TAPE, FOIL (3``)
9762761 9762761 TIP, SAFE COOKING (ENGLISH)
W10065852 W10065852 TIP, SAFE COOKING (FRENCH)
WP3608F092-71 WP3608F092-71 TRIM-BOTTM
3608F126-70 3608F126-70 TRIM-DOOR
3608F092-70 3608F092-70 TRIM-DOOR
3608F139-70 3608F139-70 TRIM-DOOR
3608F139-71 3608F139-71 TRIMDOOR
74008830 74008830 TUBING, BROIL
72032 72032 TUCHUP
72017 72017 TUCHUP
4392899 4392899 TUCHUP
WP7502P500-60 WP7502P500-60 VALVE (LR/RR/RF)
74010751 74010751 VALVE (RF)
WP7502P499-60 WP7502P499-60 VALVE-BRNR
8026P080-60 8026P080-60 VENT, OVEN
8119P373-60 8119P373-60 WIRING DIAGRAM
