Model Image
Manufacturer

Whirlpool

Model Number

JGRP548WP02

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10160844 W10160844 "BRACKET, BLOWER (18"")"
W10145748 W10145748 "BRACKET, BLOWER (30"")"
W10774046 W10774046 "DUCT, BOTTOM (48"")"
W10145364 W10145364 "DUCT, PRIMARY AIR (18"")"
W10145363 W10145363 "DUCT, PRIMARY AIR (30"")"
W10775946 W10775946 "GASKET, OVEN (18"")"
W10570879 W10570879 "RACK, OVEN (18"")"
W10216520 W10216520 "RETAINER, GASKET (18"")"
W10340583 W10340583 "VENT, CHIMNEY BOX (18"")"
W10340579 W10340579 "VENT, CHIMNEY BOX (30"" / 36"")"
W10349047 W10349047 "VENT, COOLING BOTTOM (18"")"
W10349015 W10349015 "VENT, COOLING BOTTOM (30"")"
W10246081 W10246081 "VENT, COOLING TOP (18"")"
W10299182 W10299182 "VENT, COOLING TOP (30"")"
W10352736 W10352736 ACCESSORY PARTS, BACKSPLASH (ADJUSTABLE)
W10160195 W10160195 ACCESSORY PARTS, COVER, GRILL/GRIDDLE
W10123240 W10123240 ACCESSORY PARTS, RACK, BROILER PAN & ROASTING
W10216179 W10216179 ACCESSORY PARTS, RING, WOK
31462A 31462A ACCESSORY PARTS, STAINLESS STEEL CLEANER & POLISH
4453115 4453115 ADAPTER, FEMALE
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W10235557 W10235557 ASSEMBLY, DRAWER
W10846622 W10846622 ASSEMBLY, ORIFICE HOLDER (LEFT FRONT & RIGHT FRONT)
W10846623 W10846623 ASSEMBLY, ORIFICE HOLDER (LEFT REAR, CENTER FRONT, RIGHT REAR)
W10145354 W10145354 BACK, CHASSIS
W10285449 W10285449 BACKSPLASH, DUAL POSITION
W10246060 W10246060 BAFFLE, CONVECTION
W10249333 W10249333 BASE, LEVELING LEG
W10276494 W10276494 BEZEL
W10145453 W10145453 BEZEL, GRIDDLE
WPW10245511 WPW10245511 BLOWER
W10308051 W10308051 BOX, BROIL
W10371521 W10371521 BOX, BURNER
W10308039 W10308039 BRACKET, BAKE ALIGNEMENT
W10308041 W10308041 BRACKET, BAKE BURNER
W10308040 W10308040 BRACKET, BAKE BURNER
W10317437 W10317437 BRACKET, BROIL STANDOFF
W10560553 W10560553 BRACKET, BURNER
W10145762 W10145762 BRACKET, CENTER OUTER GLASS
W10145763 W10145763 BRACKET, CENTER OUTER GLASS
W10115715 W10115715 BRACKET, DOOR TOP
W10130760 W10130760 BRACKET, MOVING CONSOLE (LEFT)
W10130759 W10130759 BRACKET, MOVING CONSOLE (RIGHT)
W10145761 W10145761 BRACKET, OUTER GLASS SIDE
W10308042 W10308042 BRACKET, PRESSURE REGULATOR
W10498404 W10498404 BRACKET, SPARK MODULE
W10145362 W10145362 BRACKET-BOARD, DSI
WP9759230 WP9759230 BRKT-MNTG
WP9759229 WP9759229 BRKT-MNTG
WPW10432260 WPW10432260 BRKT-MNTG
W10105790 W10105790 BUMPER & SCREW
W10878505 W10878505 BURNER, BAKE W/O SPREADER
W11661180 W11661180 BURNR-BRLR
WPW10282515 WPW10282515 BURNR-HEAD
WPW10256027 WPW10256027 BURNR-HEAD
W11106799 W11106799 BURNR-HEAD
W11643161 W11643161 BURNR-OVEN
W10189097 W10189097 BUSHING, BURNER BOX
W10294500 W10294500 CAMERA LENS, INDICATOR LIGHT
W10169756 W10169756 CAMERA LENS, LIGHT
WPW10364463 WPW10364463 CAP-BURNER
WPW10256032 WPW10256032 CAP-BURNER
WPW10256034 WPW10256034 CAP-BURNER
W10145369 W10145369 CHASSIS, BOTTOM
W10269206 W10269206 CHASSIS, SIDE (LEFT)
W10269205 W10269205 CHASSIS, SIDE (RIGHT)
W10145372 W10145372 CHASSIS, TOP
W10355051 W10355051 CLEANER, COOKTOP
W11684564 W11684564 CLIP
16515 16515 CLIP, HARNESS
W10115819 W10115819 COLUMN, CENTRAL
W10888661 W10888661 CONTROL BOARD
WPW10464534 WPW10464534 CONTROL BOARD
WPW10145531 WPW10145531 CONTROL BOARD
W11444934 W11444934 CONTROL PANEL
W10825584 W10825584 CONVERSION KIT, KIT, LP CONVERSION
W10352966 W10352966 COOKTOP (BLACK (CENTER))
W10352969 W10352969 COOKTOP (BLACK (LEFT))
W10352963 W10352963 COOKTOP (BLACK (RIGHT))
W10624584 W10624584 CORD, POWER
W10335955 W10335955 COUNTERBALANCE, DOOR
W10310985 W10310985 COVER, BROIL
W10145381 W10145381 COVER, CHANNEL
W10160858 W10160858 COVER, DOOR LATCH
W10246100 W10246100 COVER, GAS BAKE
W10115876 W10115876 COVER, HINGE (LEFT)
W10115877 W10115877 COVER, HINGE (RIGHT)
W10115843 W10115843 COVER, IGNITION
WPW10160821 WPW10160821 COVER-FAN

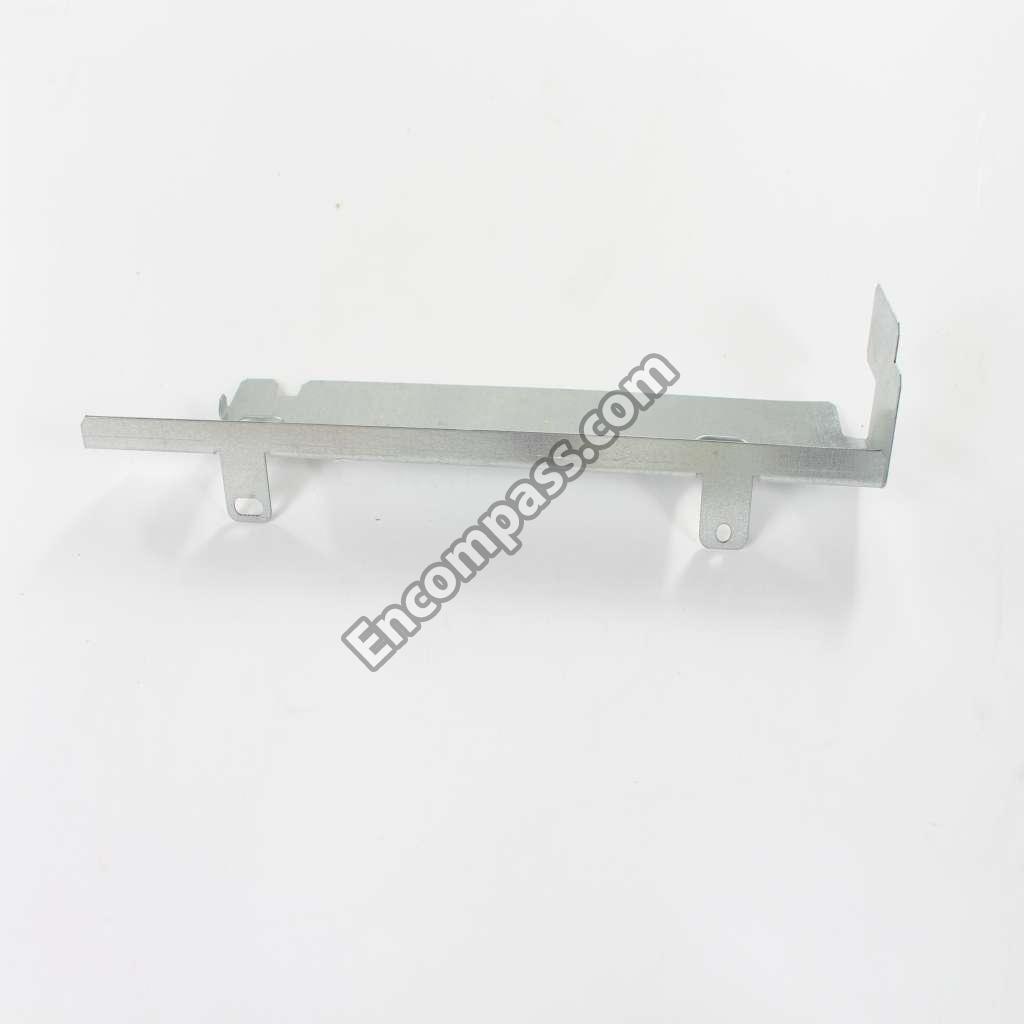

W10856770 W10856770 DIVERTER
W11029221 W11029221 DOOR DOOR LATCH
WP7701P475-60 WP7701P475-60 DOOR HANDLE
W10782124 W10782124 DOOR HINGE
W10782125 W10782125 DOOR HINGE
489504 489504 E-RING
W11033310 W11033310 ELEMENT
W10193014 W10193014 ELEMENT, GRIDDLE
W10819914 W10819914 FAN-CONVCT
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WP9759117 WP9759117 FOOT-LEVEL
W10859931 W10859931 FOOT-LEVEL
W10160895 W10160895 FRAME, FRONT
W11239228 W11239228 GAS VALVE
8286930 8286930 GASKET, ORIFICE (CENTER REAR)
W11675844 W11675844 GASKET-OVN
W11124798 W11124798 GLASS DOOR
WPW10115695 WPW10115695 GLASS DOOR
WPW10115693 WPW10115693 GLASS DOOR
W11124797 W11124797 GLASS DOOR
WP9759225 WP9759225 GLASS DOOR
WP4449259 WP4449259 GLASS DOOR
W11344501 W11344501 GRATE-BRNR
W11090459 W11090459 GUIDE, LP CONVERSION
W11090435 W11090435 GUIDE, USE & CARE
W10145768 W10145768 HANDLE, DOOR
W10344051 W10344051 HARNESS, COMMUNICATION
W10780278 W10780278 HARNESS, DOOR LOCK
W10116146 W10116146 HARNESS, GRIDDLE
W10763503 W10763503 HARNESS, IGNITOR (INCLUDES 5 IGNITORS)
W10116169 W10116169 HARNESS, MAIN
W10399611 W10399611 HARNESS, SWITCH
W10774091 W10774091 HINGE, DOOR (LEFT)
W10774090 W10774090 HINGE, DOOR (RIGHT)
WP4455606 WP4455606 HINGE-RECV
WP4455605 WP4455605 HINGE-RECV
W10883622 W10883622 HOLDER, ORIFICE (AUX) (CENTER REAR)
W10115855 W10115855 HOLDER, STRAIN RELIEF
W11446096 W11446096 IGNTR-SURF
W11448312 W11448312 IGNTR-SURF
WP8286724 WP8286724 IGNTR-SURF
WPW10116113 WPW10116113 INFINITE CONTROL SWITCH
W11090455 W11090455 INSTRUCTIONS, INSTALLATION
W11688507 W11688507 INSULATION
WP4451722 WP4451722 INSULATION
W11688744 W11688744 INSULATION
W11688776 W11688776 INSULATION
W11688581 W11688581 INSULATION
W11688580 W11688580 INSULATION
W11661177 W11661177 INSULATION
W11684890 W11684890 INSULATION
W11688851 W11688851 INSULATION
W10646234 W10646234 INSULATION
W11684995 W11684995 INSULATION
W11688741 W11688741 INSULATION
W10246087 W10246087 INSULATION, CHIMNEY
W10115737 W10115737 INSULATION, DOOR
8186589 8186589 JACK-PROBE
W10145568 W10145568 KNOB, DUAL (STAINLESS (LEFT FRONT & RIGHT FRONT))
W10145566 W10145566 KNOB, GRIDDLE (STAINLESS)
WPW10145454 WPW10145454 KNOB, SINGLE (STAINLESS (LEFT REAR, CENTER FRONT, CENTER REAR, RIGHT REAR))
WPW10169757 WPW10169757 LIGHT BULB
W10116114 W10116114 LIGHT, INDICATOR HOUSING
WPW10307114 WPW10307114 LIGHT-OVEN
WP9759413 WP9759413 LINER-DOOR
WP9755546 WP9755546 LOCKNUT
WP9755547 WP9755547 LOCKWASHER
WPW10402608 WPW10402608 MANIFOLD
W11544575 W11544575 MISCELLANEOUS, BRACKET, ANTI-TIP
W10625221 W10625221 MODULE, GRIDDLE
W10794440 W10794440 MOTOR-FAN
WPW10159578 WPW10159578 NAMEPLATE
W10794042 W10794042 NUT
WP3400968 WP3400968 NUT
W11051480 W11051480 ORIFICE
W10657945 W10657945 ORIFICE (20K) (LEFT FRONT & RIGHT FRONT, HIGH)
8186321 8186321 PAD-GRATE
WPW10272546 WPW10272546 PAN-BROILR
W10145390 W10145390 PANEL, BACK BOTTOM
W10321816 W10321816 PANEL, BACK TOP
W10322615 W10322615 PANEL, EXTERIOR (INCLUDES GLASS)
W10322618 W10322618 PANEL, EXTERIOR (INCLUDES GLASS)
W10188323 W10188323 PANEL, INTERIOR DOOR
W10250466 W10250466 PANEL, SIDE (RIGHT)
W10160875 W10160875 PLATE, COOLING DOOR LATCH
W10261523 W10261523 PLATE, FAN
WP9759118 WP9759118 PLATE-MTG
WP9755542 WP9755542 PROBE-MEAT
W11186364 W11186364 RACK-OVEN
W11550107 W11550107 RACK-OVEN
WPW10511278 WPW10511278 RANGE SPARK MODULE
W11601369 W11601369 RANGE SPARK MODULE
WPW10475147 WPW10475147 RANGE SPARK MODULE
WP4450249 WP4450249 RANGE THERMOSTAT
W11193822 W11193822 REGULATOR
WP4457132 WP4457132 RETAINER
W11368870 W11368870 RETAINER
W10188325 W10188325 RETAINER, GLASS
W10246086 W10246086 RETAINER, INSULATION
WPW10138054 WPW10138054 ROLLER-CAB
W10850807 W10850807 SCREW
WPW10276043 WPW10276043 SCREW
WP4449154 WP4449154 SCREW
4449748 4449748 SCREW
WPW10292297 WPW10292297 SCREW
WP7101P434-60 WP7101P434-60 SCREW
3400518 3400518 SCREW
WP4449743 WP4449743 SCREW
WP3196557 WP3196557 SCREW
W10189140 W10189140 SCREW
WP90767 WP90767 SCREW
WP3177991 WP3177991 SCREW
W11676349 W11676349 SCREW
W10491985 W10491985 SCREW
WP74003976 WP74003976 SCREW
W11233072 W11233072 SCREW
W10674068 W10674068 SCREW
W11241230 W11241230 SCREW
4450800 4450800 SCREW, GROUNDING
W10239444 W10239444 SEAL, CONTROL
W10189177 W10189177 SEAL, SWITCH COVER
WPW10131825 WPW10131825 SENSOR
W10319835 W10319835 SENSOR, GRIDDLE
W10115869 W10115869 SHAFT, LONG
W10115793 W10115793 SHAFT, SHORT
W10403310 W10403310 SHEET, TECH (ENGLISH)
W10403311 W10403311 SHEET, TECH (FRENCH)
4457114 4457114 SHIELD, HEAT BOTTOM
WP4457104 WP4457104 SHIELD, HEAT TOP
W10115708 W10115708 SHIELD, LOWER HEAT
W10115700 W10115700 SHIELD, TOP HEAT
W11321067 W11321067 SIDE-COMPT
8286863 8286863 SPRING, ELECTRODE (CENTER REAR)
W10791075 W10791075 SPUD-ORFCE
W10819958 W10819958 SPUD-ORFCE
WPW10145744 WPW10145744 SUPPORT
W10145651 W10145651 SUPPORT, BAKE PAN
W10145375 W10145375 SUPPORT, CHANNEL
W10853036 W10853036 SUPPORT, CONTROL
W10271524 W10271524 T-STRIP
W10145620 W10145620 TRAY, ELEMENT GRIDDLE
W10276497 W10276497 TRAY, GRIDDLE DRIP
W10246074 W10246074 TRAY, GRIDDLE INSULATION
W10323251 W10323251 TRIM, ISLAND
W10323252 W10323252 TRIM, ISLAND INSERT
W10291193 W10291193 TRIM, L-STRIP
WPW10454313 WPW10454313 TRIM-KICK
W10367098 W10367098 TUBE (CENTER FRONT)
W10145492 W10145492 TUBE (CENTER REAR)
W10367097 W10367097 TUBE (LEFT FRONT, HIGH)
W10367096 W10367096 TUBE (LEFT FRONT, LOW)
W10367101 W10367101 TUBE (RIGHT FRONT, HIGH)
W10367100 W10367100 TUBE (RIGHT FRONT, LOW)
W10145706 W10145706 TUBE, BAKE
W10145715 W10145715 TUBE, BAKE
W10145716 W10145716 TUBE, BROIL
W10348600 W10348600 TUBE, PRESSURE REGULATOR
W10145704 W10145704 TUBE, VALVE DUAL
W10145743 W10145743 TUBE, VENT
WPW10367095 WPW10367095 TUBING-GAS
WPW10367099 WPW10367099 TUBING-GAS
W10311268 W10311268 VALVE, SINGLE
WPW10371235 WPW10371235 VALVE-BRNR
WPW10385583 WPW10385583 VALVE-BRNR
WPW10385582 WPW10385582 VALVE-BRNR
W10830796 W10830796 WIRE, ELECTRODE
W10830797 W10830797 WIRE, ELECTRODE (ORANGE)
