Model Image
Manufacturer

Whirlpool

Model Number

JGS8850ADS

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
WP74005675 WP74005675 ASSEMBLY, DOOR DOOR LATCH
74010949 74010949 BACK, MAIN
3601F307-45 3601F307-45 BAFFLE, BROIL
74003648 74003648 BAFFLE, DOOR
3601F239-47 3601F239-47 BAFFLE, OVEN BOTTOM
3601F221-45 3601F221-45 BAFFLE,VENT COVER
74006037 74006037 BLOCK, TERMINAL
WP5504M003-19 WP5504M003-19 BOTTOM, OVEN ASSEMBLY.
4006D187-45 4006D187-45 BOX, VENT
WP3801F656-51 WP3801F656-51 BRACKET
3807F681-51 3807F681-51 BRACKET
74005729 74005729 BRACKET C
74005877 74005877 BRACKET T
74005992 74005992 BRACKET V
74001632 74001632 BRACKET, SWITCH ACTUATOR
WP74009925 WP74009925 BULB- HALO
74001631 74001631 BUMPER- RO
74007185 74007185 BURNER, BASE (SM)
7505P293-60 7505P293-60 BURNER, BROIL
74003960 74003960 BURNER- BA
74007184 74007184 BURNER- BA
74007186 74007186 BURNER- BA
WP74004607 WP74004607 CAMERA LENS-LIGHT
74007191 74007191 CAP, BURNER (SMR-MT BLK)
WP74007196 WP74007196 CAP-BURNER
WP74007203 WP74007203 CAP-BURNER
74002377 74002377 CLIP OVEN

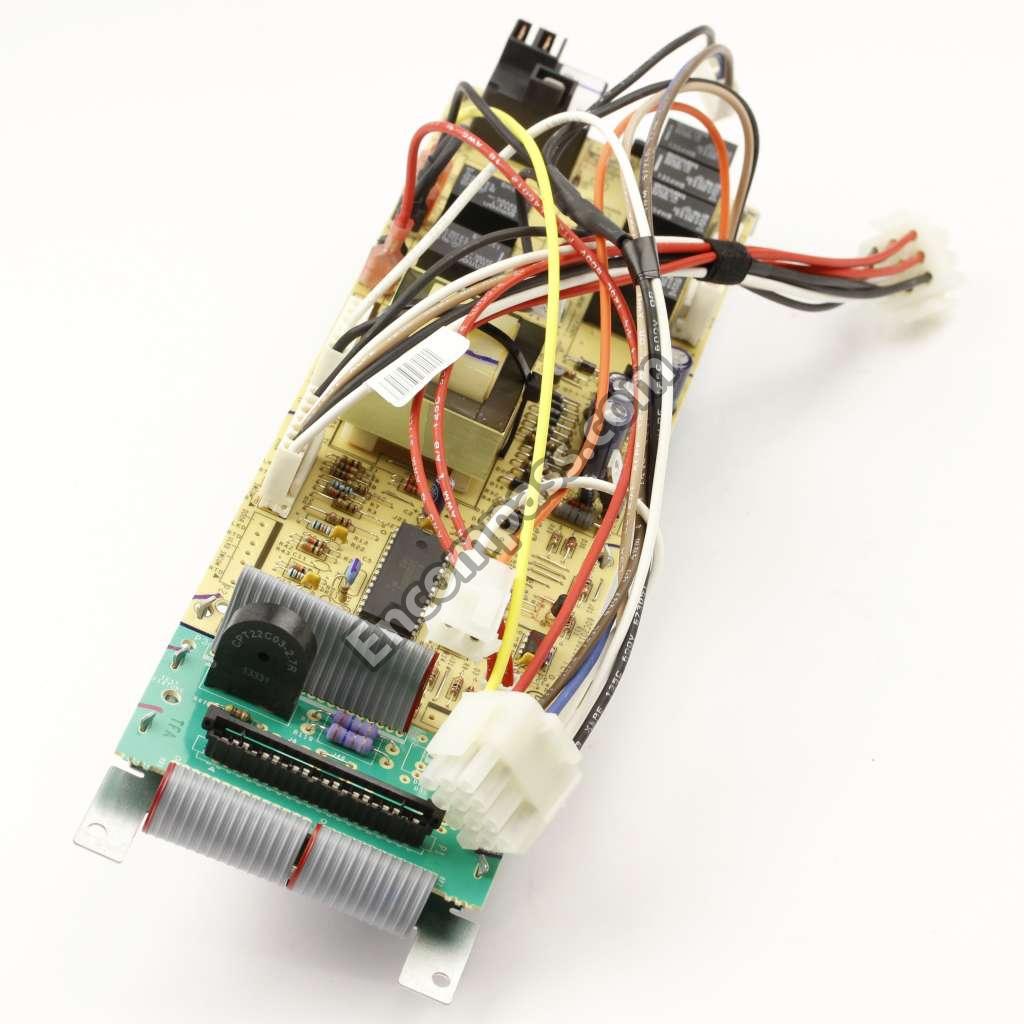

WP74007217 WP74007217 CLOCK, W/HARNESS
WP74005739 WP74005739 CONTROL PANEL
74004438 74004438 CORD- POWE
702929 702929 COVER HOL
4005F421-45 4005F421-45 COVER IGN
74005465 74005465 COVER VAL
74005783 74005783 COVER, CONVECT
74002380 74002380 COVER, HOLE
4005F810-51 4005F810-51 COVER, MAIN WIRE
4005F612-51 4005F612-51 COVER, TERMINAL BLOCK
74006004 74006004 COVER, VENT (BLK)
74008337 74008337 DRAWER, STORAGE
74003908 74003908 ELEMENT B
74004176 74004176 EXTENSION
74005728 74005728 EXTENSION
74005722 74005722 EXTENSION
74004294 74004294 EXTENSION
74005676 74005676 FAN ASSEMBLY. (GAS-CONVECTION)
WP74004947 WP74004947 FAN MOTOR
7507P088-60 7507P088-60 FITTING, BROIL BURNER
W11665456 W11665456 FOOT-LEVEL
74003644 74003644 FRAME, GLASS
WPW10162384 WPW10162384 GASKT-DOOR
7201P143-60 7201P143-60 GASKT-DOOR
74008319 74008319 GLASS, DOOR (INR)
74007211 74007211 GLASS, DOOR ASSEMBLY. (STL)
74003645 74003645 GLASS-DOOR
74006011 74006011 GRATE (BLK)
74006014 74006014 GRATE BLK
74007136 74007136 GUIDE, COOKING (TRILINGUAL)
74005773 74005773 HALOGEN LA
74005698 74005698 HANDLE DO
74005873 74005873 HARNESS C
74005996 74005996 HARNESS C
74007484 74007484 HARNESS P
74006171 74006171 HARNESS S
74011564 74011564 HARNESS- M
74007483 74007483 HARNESS- S
74007017 74007017 HARNESS- W
74005997 74005997 HARNS-WIRE
74005998 74005998 HARNS-WIRE
74011142 74011142 HINGE, OVEN DOOR
74007498 74007498 IGNITER, OVEN
WP7432P109-60 WP7432P109-60 IGNTR-OVEN
WP3413F018-19 WP3413F018-19 INSERT
74005704 74005704 INSERT DO
WP74010942 WP74010942 INSULATION
WP74009201 WP74009201 INSULATION
74005994 74005994 INSULATION
7002P246-60 7002P246-60 INSULATION
74007207 74007207 INSULATION
74003503 74003503 INSULATION, OVEN
74001872 74001872 INSULATOR
74005755 74005755 INSULATOR
12002342 12002342 KIT-VALVE
12002343 12002343 KIT-VALVE
12002341 12002341 KIT-VALVE
74006008 74006008 KNOB VALV
WP74011220 WP74011220 LIGHT ASY-
WP2402W267-19 WP2402W267-19 LINING, DOOR
74007212 74007212 MANUAL, USE & CARE
W10124350 W10124350 NOT REQUIRED PART OR SEE NOTE
WPW10131078 WPW10131078 NUT
WP488130 WP488130 NUT
74006032 74006032 NUT BURNE
9831122 9831122 NUT, HEX 3/8``
WP74001574 WP74001574 NUT- SNAP
WP7103P114-60 WP7103P114-60 NUT- SNAP
7103P030-60 7103P030-60 NUT- WING
74001219 74001219 ORIFICE
74004465 74004465 PAN, BAKE BURNER
WP3401F075-19 WP3401F075-19 PAN, BROIL
74007210 74007210 PANEL, DRAWER ACCENT (STL)
4020F001-80 4020F001-80 PEDESTAL
74005772 74005772 PEDESTAL, SIDE
74006023 74006023 PIPE MANI
74004307 74004307 PLATE BRO
74004173 74004173 PLATE, HINGE
WPW10282492 WPW10282492 RACK-OVEN
WPW10475147 WPW10475147 RANGE SPARK MODULE
74009649 74009649 RECEPTACLE, PROBE
WP74006035 WP74006035 REGULATOR
74004348 74004348 RETAINER
74007206 74007206 RETAINER
74007205 74007205 RETAINER
3804F245-51 3804F245-51 RETAINER, BOTTOM
3804F317-80 3804F317-80 RETAINER, DOOR GLASS
74005993 74005993 RING RETA
74003562 74003562 ROD, DOOR LIGHT SWITCH
12001527 12001527 ROLLER, DRAWER
WP74004078 WP74004078 ROLLER- DR
W10182835 W10182835 RUNNER, DRAWER (2)
WP59002061 WP59002061 SCREW
WP74004005 WP74004005 SCREW
W10491986 W10491986 SCREW
WP7101P072-60 WP7101P072-60 SCREW
WP98008545 WP98008545 SCREW
WPY706189 WPY706189 SCREW
WP74003976 WP74003976 SCREW
W11233072 W11233072 SCREW
W11693756 W11693756 SCREW
WP4159193 WP4159193 SCREW
WP3387230 WP3387230 SCREW
313806 313806 SCREW
74005401 74005401 SCREW
WP71003275 WP71003275 SCREW (NO.10-32 X .625``)
71003201 71003201 SCREW W/WA
7101P330-60 7101P330-60 SCREW, SWITCH
12001655 12001655 SENSOR
WP74005231 WP74005231 SHAFT, STORAGE DRAWER ROLLER
74005999 74005999 SHIELD CO
3604F205-51 3604F205-51 SHIELD, DRAWER
74004177 74004177 SHIELD, HEAT
3604F327-51 3604F327-51 SHIELD, WARMING DRAWER
W10857933 W10857933 SPACER
WP74005546 WP74005546 SPACER- RU
74001629 74001629 SPRING- DO
74005756 74005756 SUPPORT C
74005763 74005763 SUPPORT G
74006026 74006026 SUPPORT T
3807F480-45 3807F480-45 SUPPORT, BAKE BNR
74007129 74007129 SUPPORT, VALVE/REGULATOR
74001802 74001802 SWITCH
7403P249-60 7403P249-60 SWITCH, HI LIMIT
WP74005954 WP74005954 SWITCH- IG
74003664 74003664 TAPE, FOIL 29`` X 2``
74007220 74007220 THERMOSTAT
74006001 74006001 TOP, MAIN (BLK)
74005416 74005416 TRANSFORMER (STEPDOWN)
74005693 74005693 TRIM DOOR
74005695 74005695 TRIM DOOR
74005700 74005700 TRIM, DOOR (TOP-BLK)
74004216 74004216 TRIM, SIDE (BLK)
74006000 74006000 TUBE REGU
74006024 74006024 TUBING CR
7506P301-60 7506P301-60 TUBING-GAS
74006028 74006028 VALVE, TOP BURNER (10.5K)
74006034 74006034 VALVE- OVE
74006016 74006016 VENTURI B
74006017 74006017 VENTURI B
74006018 74006018 VENTURI B
74006019 74006019 VENTURI B
15002820 15002820 WIRING INFORMATION
