Model Image
Manufacturer

Whirlpool

Model Number

JGS8850BDB

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10841140 W10841140 ADHESIVE
3804F294-51 3804F294-51 BACK-MAIN
3601F373-51 3601F373-51 BAFFLE
74011339 74011339 BAFFLE OV
3601F307-45 3601F307-45 BAFFLE, BROIL
3601F221-45 3601F221-45 BAFFLE,VENT COVER
2206F087-45 2206F087-45 BODY, WARMING DRAWER
WP2205F054-19 WP2205F054-19 BOTTM-OVEN
74011831 74011831 BOTTOM BU
4020W035-80 4020W035-80 BOTTOM-PE
WP3801F656-51 WP3801F656-51 BRACKET
3801F887-51 3801F887-51 BRACKET, DRAWER
74001632 74001632 BRACKET, SWITCH ACTUATOR
3801F886-51 3801F886-51 BRKT-MNTG
W10919249 W10919249 BUMPER
74001631 74001631 BUMPER- RO
74007734 74007734 BURNER ASY
74007735 74007735 BURNER ASY
74007736 74007736 BURNER ASY
74011652 74011652 BURNER ASY
7505P293-60 7505P293-60 BURNER, BROIL
74003960 74003960 BURNER- BA
3804F307-51 3804F307-51 C
WP74011651 WP74011651 CAP-BURNER
WP74011650 WP74011650 CAP-BURNER
WP74007749 WP74007749 CAP-BURNER
WP8284669 WP8284669 CAP-BURNER
WP74007750 WP74007750 CAP-BURNER
74006592 74006592 CLIP WARM
WP8507P228-60 WP8507P228-60 CONTROL BOARD
WPW10206092 WPW10206092 CONTROL PANEL
74011513 74011513 CONVERSION
74004438 74004438 CORD- POWE
4005F638-51 4005F638-51 COVER
3605F350-19 3605F350-19 COVER
4005F810-51 4005F810-51 COVER, MAIN WIRE
4005F612-51 4005F612-51 COVER, TERMINAL BLOCK
4005F750-51 4005F750-51 COVER- DOO
WP7724P200-60 WP7724P200-60 COVER-VENT
3405W043-19 3405W043-19 DRAWER-WA
74005789 74005789 ELEMENT W
3826F066-51 3826F066-51 EXTENSION-
WPW10586440 WPW10586440 FAN-BLWR
WPW10206590 WPW10206590 FAN-CONVCT
MK71FILLB MK71FILLB FILLER
WP74010901 WP74010901 FITTING- B
3603F075-70 3603F075-70 FRAME, DOOR (BLK)
74003644 74003644 FRAME, GLASS
WPW10162384 WPW10162384 GASKT-DOOR
7201P143-60 7201P143-60 GASKT-DOOR
W10331044 W10331044 GLASS ASY, DOOR (BLK)
74003645 74003645 GLASS-DOOR
74004857 74004857 GLASS-DOOR
74011543 74011543 GLASS-DOOR
WP74006588 WP74006588 GLIDE- WAR
74011706 74011706 GRATE BLK
WP74008625 WP74008625 HANDLE- DO
5171P537-60 5171P537-60 HARNESS, SENSOR (WITH PROBE)
74011645 74011645 HARNESS- M
W10173471 W10173471 HARNS-WIRE
74011619 74011619 HARNS-WIRE
74011475 74011475 HINGE- DOO
WP7527P061-60 WP7527P061-60 HOLDER-ORF
WP7527P004-60 WP7527P004-60 HOLDER-ORF
WP7527P002-60 WP7527P002-60 HOLDER-ORF
74009553 74009553 HOLDER-ORF
WP74011829 WP74011829 IGNITER D
74007498 74007498 IGNTR-OVEN
WP74009336 WP74009336 IGNTR-SURF
74010987 74010987 INSULATION
7002P246-60 7002P246-60 INSULATION
74011509 74011509 INSULATION
7002P443-60 7002P443-60 INSULATION
74008264 74008264 INSULATOR
74011825 74011825 INSULATOR
12002270 12002270 KIT, VALVE/SCREW 16K(MUELLER)
12002268 12002268 KIT, VALVE/SCREW 5K(MUELLER)
12002269 12002269 KIT, VALVE/SCREW 9K(MUELLER)

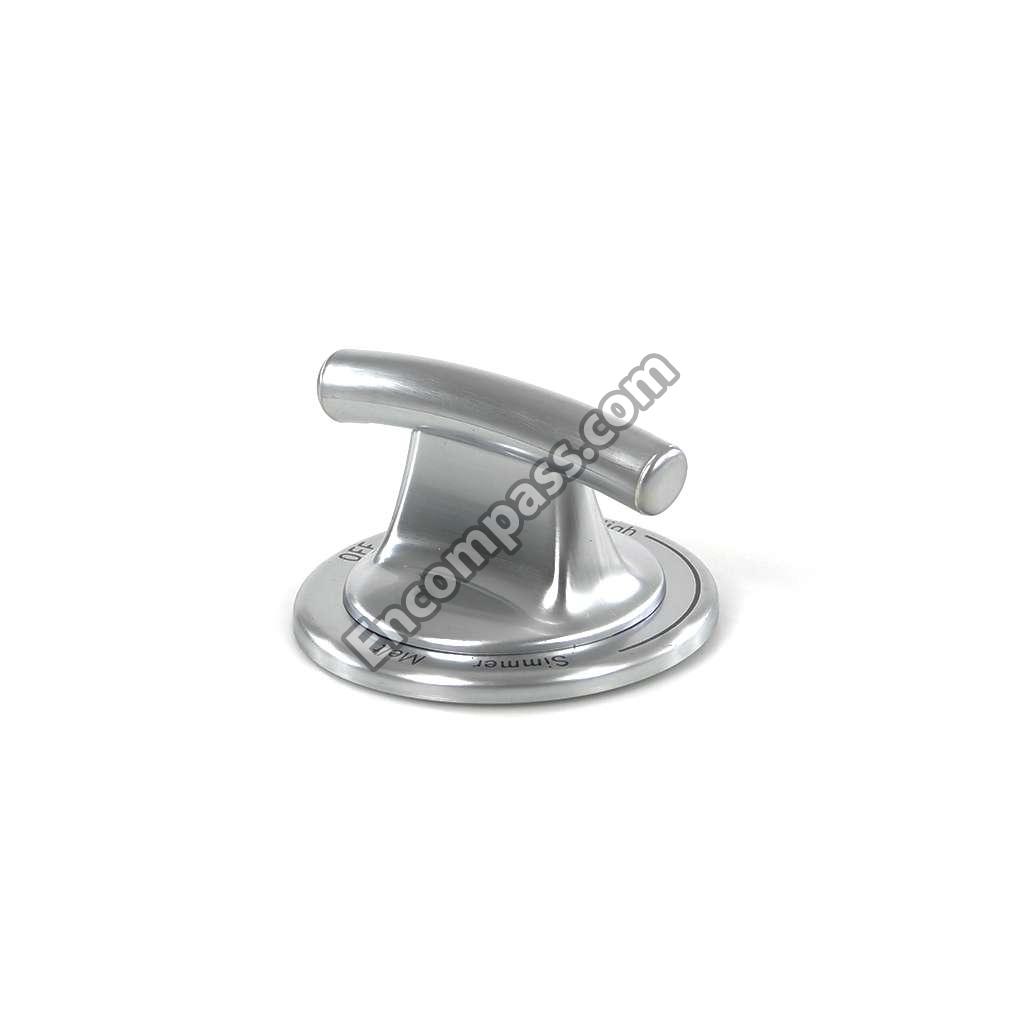

WP74011665 WP74011665 KNOB- BURN
WP74011666 WP74011666 KNOB- BURN
WP74011664 WP74011664 KNOB- BURN
74010819 74010819 LATCH ASY
WP74011220 WP74011220 LIGHT ASY-
4002F340-45 4002F340-45 LINER-BACK
WP2402W312-19 WP2402W312-19 LINER-DOOR
WP2402W267-19 WP2402W267-19 LINING, DOOR
7513P473-60 7513P473-60 MANIFOLD P
8113P759-60 8113P759-60 MANUAL USE & CARE
8113P523-60 8113P523-60 MANUAL, USE & CARE
15003888 15003888 NLAMWIRING I
WPW10131078 WPW10131078 NUT
WP3400029 WP3400029 NUT
WP74001574 WP74001574 NUT- SNAP
7103P030-60 7103P030-60 NUT- WING
74001219 74001219 ORIFICE
74004465 74004465 PAN, BAKE BURNER
WP2416F086-70 WP2416F086-70 PANEL
2618F206-51 2618F206-51 PANEL
2618F201-51 2618F201-51 PANEL- SHI
UXA1100AAB UXA1100AAB PANEL-SIDE
WP4020F036-80 WP4020F036-80 PEDESTAL, FRONT
74004307 74004307 PLATE BRO
WP7430P038-60 WP7430P038-60 PROBE-MEAT
4396923 4396923 PROCELAIN BROILER (PAN AND GRID)
WPW10282492 WPW10282492 RACK-OVEN
WPW10475147 WPW10475147 RANGE SPARK MODULE
WP7408P086-60 WP7408P086-60 RECEPTACLE
74011503 74011503 RETAINER
74011504 74011504 RETAINER
3804F317-80 3804F317-80 RETAINER
3804F245-51 3804F245-51 RETAINER
3804F308-51 3804F308-51 RETAINER-
3804F300-51 3804F300-51 RETAINER-
74003562 74003562 ROD, DOOR LIGHT SWITCH
WP90767 WP90767 SCREW
W11233072 W11233072 SCREW
WP7101P072-60 WP7101P072-60 SCREW
WP74010805 WP74010805 SCREW
WP400021-1 WP400021-1 SCREW
WP8273062 WP8273062 SCREW
WP98008545 WP98008545 SCREW
WP74004005 WP74004005 SCREW
WP74003976 WP74003976 SCREW
WP4159193 WP4159193 SCREW
WP7101P639-60 WP7101P639-60 SCREW
74003975 74003975 SCREW
22002368 22002368 SCREWN
12001655 12001655 SENSOR
74010905 74010905 SHIELD
WP3604F414-51 WP3604F414-51 SHIELD
3604F327-51 3604F327-51 SHIELD, WARMING DRAWER
3604F418-51 3604F418-51 SHIELD- DO
74006591 74006591 SHIELDHT
WP74005546 WP74005546 SPACER- RU
74001629 74001629 SPRING- DO
3807F727-45 3807F727-45 SUPPORT
74006576 74006576 SUPPORT E
3807F480-45 3807F480-45 SUPPORT, BAKE BNR
3807F751-51 3807F751-51 SUPPORT, CONTROL PANEL
74007129 74007129 SUPPORT- V
WP74011647 WP74011647 SWITCH HAR
WP74011648 WP74011648 SWITCH HAR
WP74008263 WP74008263 SWITCH- DO
74006587 74006587 SWITCH- HI
WP7450P108-60 WP7450P108-60 SWTCH-LITE
7450P030-60 7450P030-60 SWTCH-LMIT
7403P647-60 7403P647-60 SWTCH-LMIT
2001X240-09 2001X240-09 TOP, MAIN (BLK)
WP3608F138-70 WP3608F138-70 TRIM- SIDE
7506P445-60 7506P445-60 TUBING- BU
7506P447-60 7506P447-60 TUBING- BU
7506P489-60 7506P489-60 TUBING- SU
7506P448-60 7506P448-60 TUBING-GAS
7506P301-60 7506P301-60 TUBING-GAS
7506P469-60 7506P469-60 TUBING-GAS
7506P470-60 7506P470-60 TUBING-GAS
WP74011649 WP74011649 VALVE- BUR
W10130932 W10130932 VALVE/REGULATOR ASY
74010959 74010959 VENT OVEN
74009194 74009194 WASHER- HA
