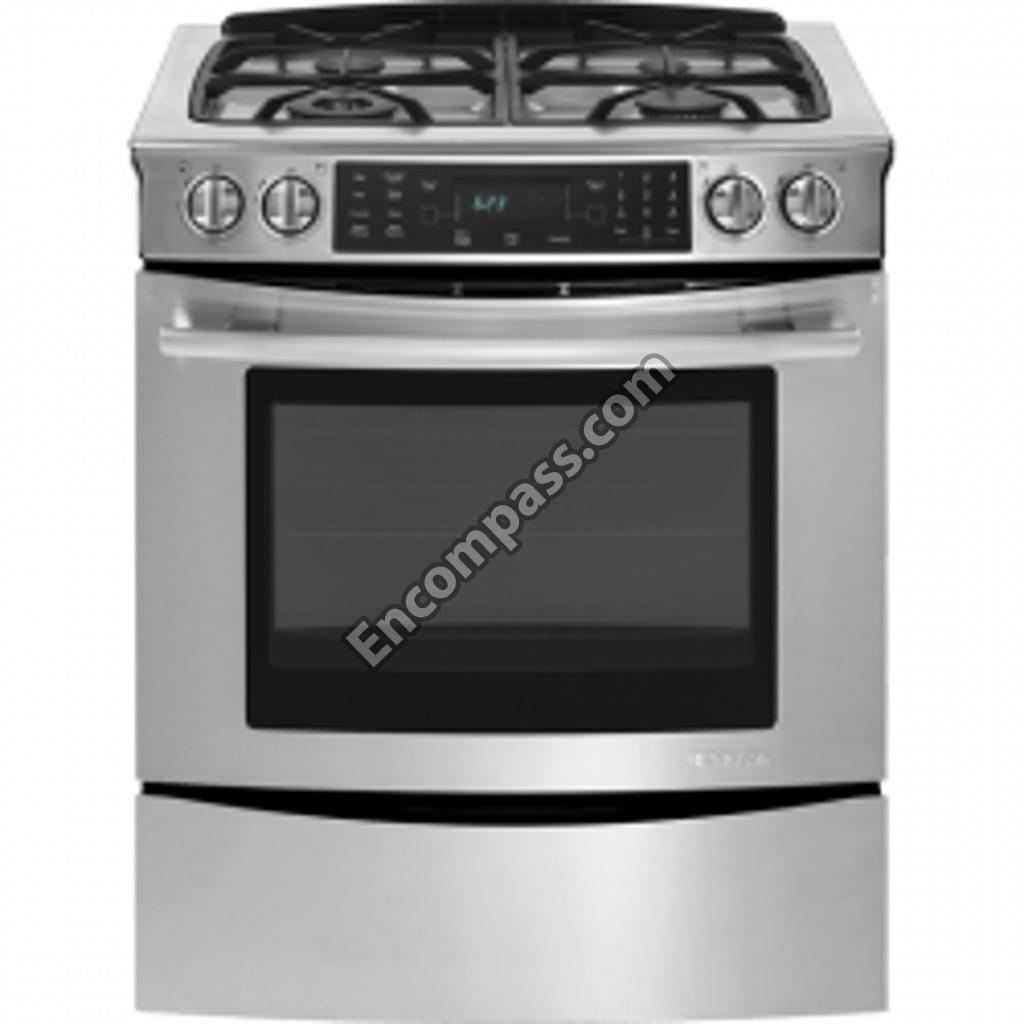

Model Image
Manufacturer

Whirlpool

Model Number

JGS8850CDS02

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3804F294-51 3804F294-51 BACK, MAIN GAS
3601F307-45 3601F307-45 BAFFL-BRNR
3601F373-51 3601F373-51 BAFFLE
3601F239-45 3601F239-45 BAFFLE, BAKE (BAKE)
3601F221-45 3601F221-45 BAFFLE,VENT COVER
2206F087-45 2206F087-45 BODY, WARM DRAWER
WP2205F054-19 WP2205F054-19 BOTTM-OVEN
4011F496-51 4011F496-51 BOTTOM BU
4020W035-80 4020W035-80 BOTTOM-PE
WP3801F656-51 WP3801F656-51 BRACKET
3801F887-51 3801F887-51 BRACKET
W10331048 W10331048 BRKT-GLASS
3801F886-51 3801F886-51 BRKT-MNTG
W10256422 W10256422 BRKT-SRVCE
74003960 74003960 BURNER, BAKE
W10203537 W10203537 BURNER, BASE (LARGE (RR))
W10203534 W10203534 BURNER, BASE (SMALL (LF))
8215559 8215559 BURNER, BASE (X-LARGE(RF, LR))
7505P293-60 7505P293-60 BURNR-BRLR
3804F307-51 3804F307-51 C
WP74011650 WP74011650 CAP, BURNER (DUAL INNER)
WP74007750 WP74007750 CAP-BURNER
WP74007749 WP74007749 CAP-BURNER
WP8284669 WP8284669 CAP-BURNER
WP74011651 WP74011651 CAP-BURNER
31682 31682 CLEANER
WP8507P228-60 WP8507P228-60 CONTROL BOARD
2001X240-50 2001X240-50 COOKTOP (STAINLESS)
74004438 74004438 CORD, POWER
4005F638-51 4005F638-51 COVER
3605F350-19 3605F350-19 COVER
4005F807-51 4005F807-51 COVER
4005F421-45 4005F421-45 COVER IGN
4005F750-51 4005F750-51 COVER- DOO
WP7724P200-60 WP7724P200-60 COVER-VENT
4005F810-51 4005F810-51 COVR-ACESS
W10394691 W10394691 DIAGRAM, WIRING
WPW10274035 WPW10274035 DOOR DOOR LATCH
3405W043-19 3405W043-19 DRAWER-WA
W10310262 W10310262 ELMNT-WARM
3826F066-51 3826F066-51 EXTENSION
WPW10586440 WPW10586440 FAN-BLWR
WPW10206590 WPW10206590 FAN-CONVCT
WP74010901 WP74010901 FITTING- B
8026P095-60 8026P095-60 FLUE-OVEN
241430 241430 FOIL-ALUM
3603F075-70 3603F075-70 FRAME, DOOR (BLACK)
31617 31617 GAS GRATE & DRIP PAN CLEANER
WPW10162384 WPW10162384 GASKT-DOOR
WPW10235390 WPW10235390 GLASS DOOR
74003645 74003645 GLASS, INNER
WPW10293200 WPW10293200 GLIDE-DRWR
74011706 74011706 GRATE (BLK)
WPW10223152 WPW10223152 HANDLE, DOOR (STAINLESS)
W10160396 W10160396 HARNS-WIRE
W10173471 W10173471 HARNS-WIRE
W10250350 W10250350 HARNS-WIRE
W10394662 W10394662 HARNS-WIRE
W10394791 W10394791 HARNS-WIRE
74011475 74011475 HINGE, DOOR
74009553 74009553 HOLDER, ORIFICE (5K)
WP7527P004-60 WP7527P004-60 HOLDER-ORF
WP7527P002-60 WP7527P002-60 HOLDER-ORF
74007498 74007498 IGNITER, OVEN
WP74009336 WP74009336 IGNTR-SURF
W10253459 W10253459 INSTALLATION INSTRUCTIONS
7002P246-60 7002P246-60 INSULATION
7002P443-60 7002P443-60 INSULATION
7002P474-60 7002P474-60 INSULATION
WPW10208653 WPW10208653 INSULATION
W10165725 W10165725 INSULATION, BACK
74010987 74010987 INSULATION, DRAWER
7003P154-60 7003P154-60 INSULATOR
12002268 12002268 KIT, VALVE/SCREW 5K(MUELLER)
12002269 12002269 KIT, VALVE/SCREW 9K(MUELLER)
WPW10255425 WPW10255425 KNOB, VALVE (STAINLESS)
WP74011220 WP74011220 LIGHT ASY-
8009 8009 LIGHT BULB
WP2402W312-19 WP2402W312-19 LINER-DOOR
7513P473-60 7513P473-60 MANIFOLD P
WPW10214168 WPW10214168 NAMEPLATE
9831122 9831122 NUT
WPW10131078 WPW10131078 NUT
WP3400029 WP3400029 NUT
WP74001574 WP74001574 NUT- SNAP
7103P030-60 7103P030-60 NUT- WING
3601F251-45 3601F251-45 ORIFICE
W10235526 W10235526 OWNERS MANUAL BROCHURE, TIPS
511873 511873 PAINT
8212471 8212471 PAINT
799344 799344 PAINT
3401F044-45 3401F044-45 PANBAKE
WP2416F086-70 WP2416F086-70 PANEL
2618F201-51 2618F201-51 PANEL
2618F206-51 2618F206-51 PANEL
WPW10297248 WPW10297248 PANEL-DRWR
W10314414 W10314414 PANL-CNTRL
3605F269-45 3605F269-45 PLATE, BROIL
350942 350942 PRIMER
WP7430P038-60 WP7430P038-60 PROBE-MEAT
74003595A 74003595A RACK-DEHYD
WP7801P173-60 WP7801P173-60 RACK-OVEN
WPW10475147 WPW10475147 RANGE SPARK MODULE
WP7408P086-60 WP7408P086-60 RECEPTACLE
WP74006035 WP74006035 REGULATOR
3804F317-80 3804F317-80 RETAINER
3804F300-51 3804F300-51 RETAINER
3804F245-51 3804F245-51 RETAINER
3804F308-51 3804F308-51 RETAINER-
9762761 9762761 SAFE COOKING (ENGLISH)
W10065852 W10065852 SAFE COOKING (FRENCH)
WP7101P072-60 WP7101P072-60 SCREW
WP98008545 WP98008545 SCREW
W11233072 W11233072 SCREW
WP90767 WP90767 SCREW
WP4159193 WP4159193 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP74010805 WP74010805 SCREW
W11347848 W11347848 SCREW
WP59002061 WP59002061 SCREW
W10828565 W10828565 SCREW
WP8273062 WP8273062 SCREW
W11682789 W11682789 SCREW
7101P676-60 7101P676-60 SCREW
74003975 74003975 SCREW (8ABX3/8-BLK)
12001655 12001655 SENSOR
3604F435-51 3604F435-51 SHIELD
3604F416-51 3604F416-51 SHIELD
WPW10256425 WPW10256425 SHIELD, GAS (LOWER BACK)
3604F418-51 3604F418-51 SHIELD- DO
3826F064-51 3826F064-51 SHIELD-HT
3604F327-51 3604F327-51 SHIELD-HT
3604F326-45 3604F326-45 SHIELDHT
74007237 74007237 SPACER, DEHYDRATION
WP74005546 WP74005546 SPACER- RU
285006 285006 SPRAY
350930 350930 SPRAY
W10258120 W10258120 SPUD-ORFCE
31462A 31462A STAINLESS STEEL CLEANER & POLISH
3807F480-45 3807F480-45 SUPPORT
3807F727-45 3807F727-45 SUPPORT
3807F751-51 3807F751-51 SUPPORT
W10271711 W10271711 SUPPORT
3807F640-51 3807F640-51 SUPPORT- V
WP74011648 WP74011648 SWITCH HAR
WP74011647 WP74011647 SWITCH HAR
74006587 74006587 SWITCH, HI-LIMIT (ELEC/DRAWER)
7450P030-60 7450P030-60 SWTCH-LMIT
WP3608F138-70 WP3608F138-70 TRIM-SIDE
W10177238 W10177238 TUBE, BROIL
7506P447-60 7506P447-60 TUBING- BU
7506P445-60 7506P445-60 TUBING- BU
7506P489-60 7506P489-60 TUBING- SU
7506P482-60 7506P482-60 TUBING-GAS
7506P470-60 7506P470-60 TUBING-GAS
7506P469-60 7506P469-60 TUBING-GAS
7506P448-60 7506P448-60 TUBING-GAS
72032 72032 TUCHUP
72017 72017 TUCHUP
74011867 74011867 VALVE, BURNER
WP7502P493-60 WP7502P493-60 VALVE, TOP BURNER (DUAL RING)
WP7501P232-60 WP7501P232-60 VALVE-OVEN
7109P084-60 7109P084-60 WASHER
74009194 74009194 WASHER, HANDLE
AO142 AO142 WOK-FLAT
