Model Image
Manufacturer

Whirlpool

Model Number

JGW8130DDB

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
74009486 74009486 BACK MAIN
3601F373-51 3601F373-51 BAFFLE
3601F307-45 3601F307-45 BAFFLE, BROIL
3601F239-45 3601F239-45 BAFFLE, OVEN BOTTOM
74002393 74002393 BAFFLE, OVEN BURNER
74009502 74009502 BAFFLE, OVEN DOOR
7401P037-60 7401P037-60 BLOCK TER
74009330 74009330 BOOKLET, COOKING MADE SIMPLE
5504M016-19 5504M016-19 BOTTM-OVEN
74001742 74001742 BOTTOM, MAIN
WP5504M003-19 WP5504M003-19 BOTTOM, OVEN
3801F768-51 3801F768-51 BRACKET
74009473 74009473 BRACKET C
74009482 74009482 BRACKET, BAKE BURNER MOUNTING
74001632 74001632 BRACKET, SWITCH ACTUATOR
3801F886-51 3801F886-51 BRKT-MNTG
7505P293-60 7505P293-60 BURNER, BROIL
74009483 74009483 BURNER- BA
74002377 74002377 CLIP OVEN
WP74009559 WP74009559 CONTROL BOARD
WP5766M099-60 WP5766M099-60 CONTROL PANEL
12400044 12400044 CORD, POWER
4005F405-51 4005F405-51 COVER BAC
74009477 74009477 COVER BUR
4005F421-45 4005F421-45 COVER IGN
74009498 74009498 COVER TOP
74003389 74003389 COVER, BULB
74007586 74007586 COVER, PLUNGER (DOOR LIGHT)
WPW10186996 WPW10186996 DOOR DOOR LATCH
WP3608F117-70 WP3608F117-70 DOOR TRIM
WP3608F116-70 WP3608F116-70 DOOR TRIM
74004131 74004131 EXTRUSION
74009488 74009488 EXTRUSION
7427P031-60 7427P031-60 FAN-BLWR
74009475 74009475 FITTING B
74003644 74003644 FRAME, GLASS
WPW10162384 WPW10162384 GASKT-DOOR
74004857 74004857 GLASS, DOOR
74003645 74003645 GLASS-DOOR
WP74003617 WP74003617 HANDLE, DOOR (BLK)
74009491 74009491 HARNESS D
74009495 74009495 HARNESS M
WP74011141 WP74011141 HINGE- OVE
74003388 74003388 HOUSING, BULB
74007498 74007498 IGNTR-OVEN
WP3413F018-19 WP3413F018-19 INSERT
WP74010942 WP74010942 INSULATION
74009481 74009481 INSULATION
74009484 74009484 INSULATION
7002P246-60 7002P246-60 INSULATION
74008264 74008264 INSULATOR
74009494 74009494 INSULATOR
12002300 12002300 KIT DOOR
8009 8009 LIGHT BULB
WP2402W312-19 WP2402W312-19 LINER-DOOR
WP2402W267-19 WP2402W267-19 LINING, DOOR
8112P214-60 8112P214-60 MANUAL, USE & CARE
8112P311-60 8112P311-60 MANUAL, USE AND CARE
4006W117-45 4006W117-45 NLABOX, FLUE
3801F290-51 3801F290-51 NLABRACKET, REGULATOR
4006D101-45 4006D101-45 NLADUCT ASSEMBLY.
4001F083-51 4001F083-51 NLANHOUSING, FAN
WP7103P027-60 WP7103P027-60 NUT
WP74001574 WP74001574 NUT- SNAP
7103P030-60 7103P030-60 NUT- WING

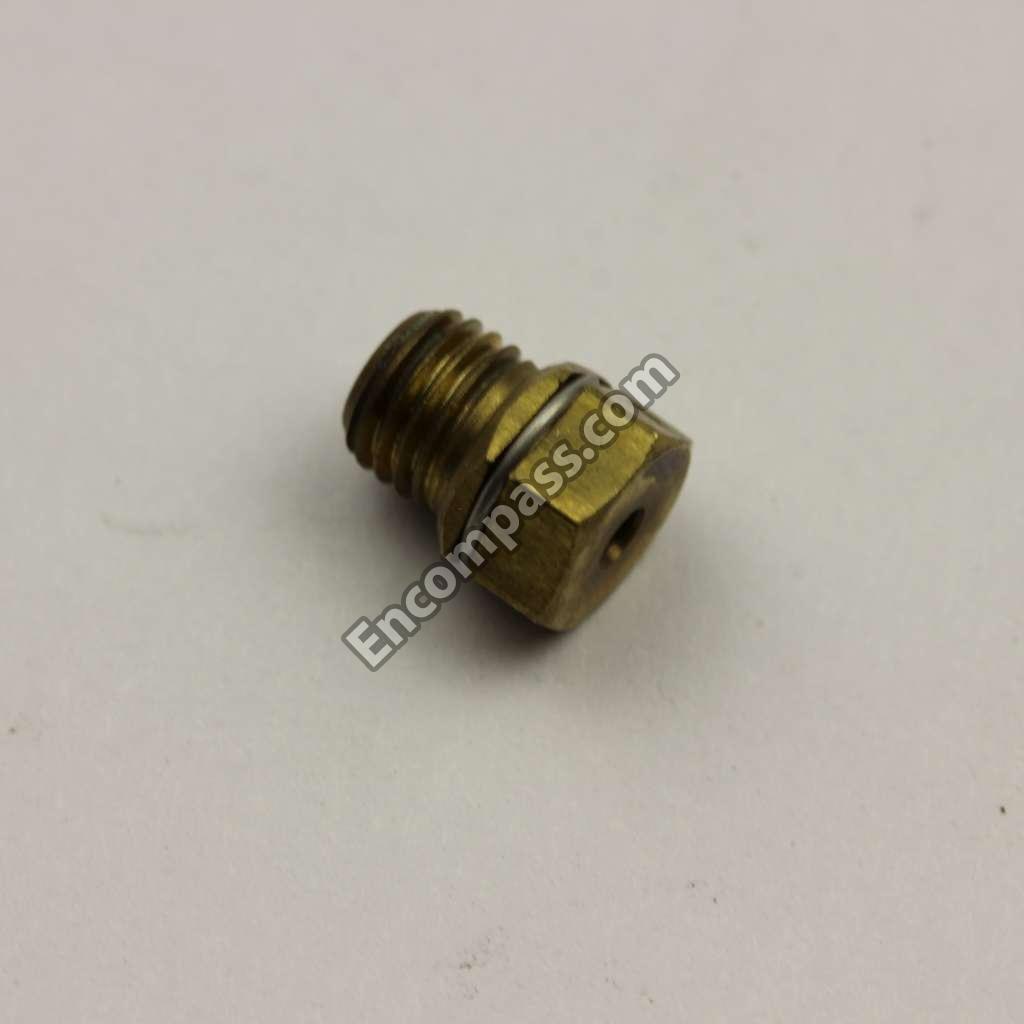

74001219 74001219 ORIFICE
74009471 74009471 ORIFICE #
74009472 74009472 ORIFICE #
WP74007576 WP74007576 ORIFICE- N
74001651 74001651 PAN, BAKE BURNER
WP3401F075-19 WP3401F075-19 PAN, BROIL
2618F083-51 2618F083-51 PANEL, BODY
74004307 74004307 PLATE BRO
WPW10282492 WPW10282492 RACK-OVEN
71003638 71003638 REGULATOR
74001436 74001436 RETAINER
74009474 74009474 RETAINER
74009485 74009485 RETAINER
74003650 74003650 RETAINER
74003391 74003391 RETAINER
3804F245-51 3804F245-51 RETAINER
4006D128-45 4006D128-45 RISER DUC
74003562 74003562 ROD, DOOR LIGHT SWITCH
WP7101P434-60 WP7101P434-60 SCREW
WP4159193 WP4159193 SCREW
WP3351614 WP3351614 SCREW
WP179051 WP179051 SCREW
WP90767 WP90767 SCREW
W10828565 W10828565 SCREW
WP7101P126-60 WP7101P126-60 SCREW
WP59002061 WP59002061 SCREW
W11233072 W11233072 SCREW
WP98008545 WP98008545 SCREW
WP3387230 WP3387230 SCREW
7101P287-60 7101P287-60 SCREW
7101P330-60 7101P330-60 SCREW, SWITCH
12001655 12001655 SENSOR
3604F379-51 3604F379-51 SHIELD
74009496 74009496 SHIELD VE
3604F166-45 3604F166-45 SHIELD, HEAT
WP74003387 WP74003387 SOCKT-LITE
WP74005546 WP74005546 SPACER- RU
74001629 74001629 SPRING- DO
74008226 74008226 SPUD-ORFCE
4005F354-70 4005F354-70 STRIP BOT
WP3807F708-70 WP3807F708-70 SUPPORT
3807W388-51 3807W388-51 SUPPORT
74004128 74004128 SUPPORT D
3807F480-45 3807F480-45 SUPPORT, BAKE BNR
WP74008263 WP74008263 SWITCH- DO
74009476 74009476 SWITCH- TE
74009489 74009489 TRIM
74009490 74009490 TRIM
WP74003652 WP74003652 TRIM- DOOR
74009505 74009505 TUBING 30
74009506 74009506 TUBING BA
74006348 74006348 TUBING BR
7506P401-60 7506P401-60 TUBING- OV
7501P041-60 7501P041-60 VALVE, SHUT OFF
WP74006345 WP74006345 VALVE- OVE
15003431 15003431 WIRING INFORMATION
15003432 15003432 WIRING INFORMATION (FRC)
