Model Image
Manufacturer

Whirlpool

Model Number

JGW8130DDB12

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
74009486 74009486 BACK MAIN
3601F239-45 3601F239-45 BAFFEL, BOTTOM
74009502 74009502 BAFFEL, DOOR
3601F373-51 3601F373-51 BAFFLE
3601F307-45 3601F307-45 BAFFLE, BROIL
7401P037-60 7401P037-60 BLOCK TER
74009330 74009330 BOOKLET, COOKING
5504M016-19 5504M016-19 BOTTM-OVEN
74001742 74001742 BOTTOM, MAIN
74009473 74009473 BRACKET C
74001632 74001632 BRACKET, SWITCH
3801F886-51 3801F886-51 BRKT-MNTG
7505P293-60 7505P293-60 BURNER, BROIL
74009483 74009483 BURNER- BA

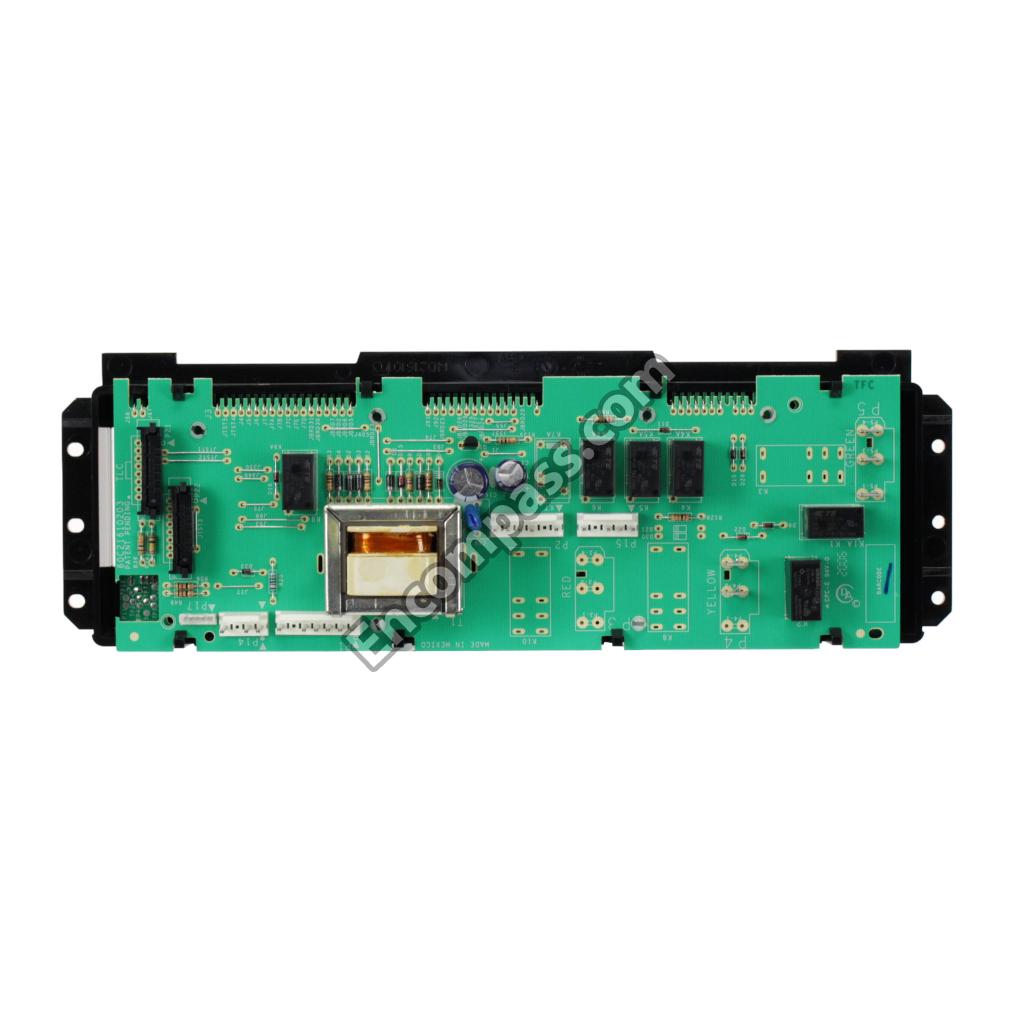

WP74009559 WP74009559 CONTROL BOARD

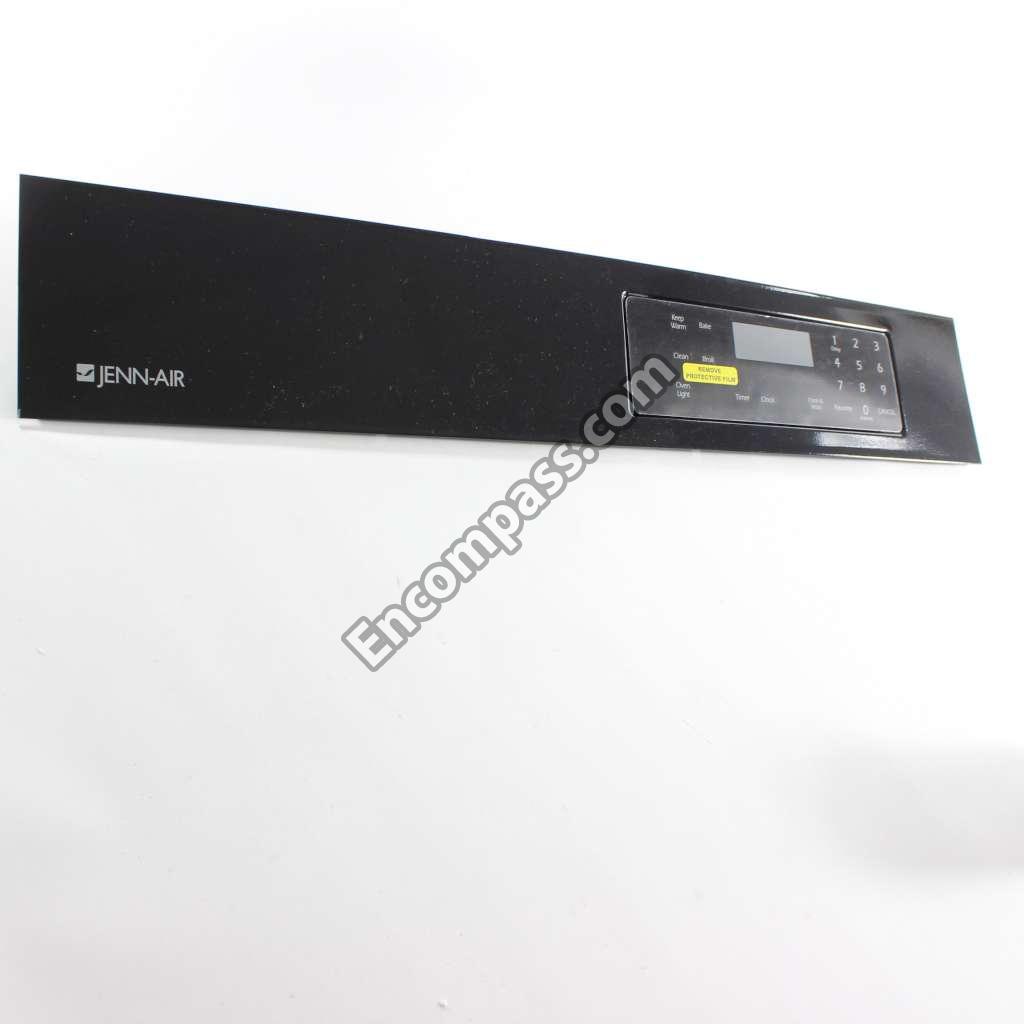

WP5766M099-60 WP5766M099-60 CONTROL PANEL
74007686 74007686 COOKTOP
12400044 12400044 CORD, POWER
4005F405-51 4005F405-51 COVER BAC
4005F421-45 4005F421-45 COVER IGN
74009498 74009498 COVER TOP
74003389 74003389 COVER, BULB
WPW10186996 WPW10186996 DOOR DOOR LATCH
WP3608F116-70 WP3608F116-70 DOOR TRIM
WP3608F117-70 WP3608F117-70 DOOR TRIM
74004131 74004131 EXTRUSION
74009493 74009493 EXTRUSION
74009492 74009492 EXTRUSION
74004130 74004130 EXTRUSION
74009488 74009488 EXTRUSION
74009499 74009499 EXTRUSION
7427P031-60 7427P031-60 FAN-BLWR
74009475 74009475 FITTING B
74003644 74003644 FRAME, GLASS
WPW10162384 WPW10162384 GASKT-DOOR
74004857 74004857 GLASS, DOOR
74003645 74003645 GLASS-DOOR
WP74003617 WP74003617 HANDLE DOOR (BLACK)
WP74003620 WP74003620 HANDLE DOOR (WHITE)
74009491 74009491 HARNESS D
74009495 74009495 HARNESS M
WP74011141 WP74011141 HINGE- OVE
74003388 74003388 HOUSING, BULB
74007498 74007498 IGNTR-OVEN
WP7728P094-60 WP7728P094-60 INSERT, WHITE
7002P246-60 7002P246-60 INSULATION
74008264 74008264 INSULATOR
12002300 12002300 KIT DOOR
12002301 12002301 KIT, DOOR GLASS (WHITE)
8009 8009 LIGHT BULB
WP2402W312-19 WP2402W312-19 LINER-DOOR
WP2402W267-19 WP2402W267-19 LINING, DOOR
8112P214-60 8112P214-60 MANUAL, U&C
4006W117-45 4006W117-45 NLABOX, FLUE
4001F083-51 4001F083-51 NLANHOUSING, FAN
WP7103P114-60 WP7103P114-60 NUT- SNAP
WP74001574 WP74001574 NUT- SNAP
7103P030-60 7103P030-60 NUT- WING
74001219 74001219 ORIFICE
74001651 74001651 PAN, BAKE BURNER
2618F083-51 2618F083-51 PANEL, BODY
WP5766M100-60 WP5766M100-60 PANEL, CONTROL (WHITE)
74004307 74004307 PLATE BRO
4396923 4396923 PROCELAIN BROILER (PAN AND GRID)
WPW10282492 WPW10282492 RACK-OVEN
71003638 71003638 REGULATOR
74001436 74001436 RETAINER
74003391 74003391 RETAINER
74009485 74009485 RETAINER
74009474 74009474 RETAINER
3804F245-51 3804F245-51 RETAINER
74003650 74003650 RETAINER
3804F247-45 3804F247-45 RETAINER, INSUL.
4006D128-45 4006D128-45 RISER DUC
74003562 74003562 ROD, LIGHT SWITCH
WP3351614 WP3351614 SCREW
WP179051 WP179051 SCREW
W11233072 W11233072 SCREW
74009538 74009538 SCREW
WP98008545 WP98008545 SCREW
7101P330-60 7101P330-60 SCREW, SWITCH
12001655 12001655 SENSOR
3604F379-51 3604F379-51 SHIELD
74009496 74009496 SHIELD VE
WP74003387 WP74003387 SOCKT-LITE
WP74005546 WP74005546 SPACER- RU
74001629 74001629 SPRING- DO
4005F354-70 4005F354-70 STRIP BOT
WP3807F708-70 WP3807F708-70 SUPPORT
WP3807F708-71 WP3807F708-71 SUPPORT
3807W388-51 3807W388-51 SUPPORT
WP74008263 WP74008263 SWITCH- DO
74009476 74009476 SWITCH- TE
74009489 74009489 TRIM
74009490 74009490 TRIM
WP74003652 WP74003652 TRIM- DOOR
WP74003653 WP74003653 TRIM- DOOR
WP3608F116-71 WP3608F116-71 TRIM-DOOR
74009505 74009505 TUBING 30
74009506 74009506 TUBING BA
74006348 74006348 TUBING BR
7506P401-60 7506P401-60 TUBING- OV
7501P041-60 7501P041-60 VALVE, SHUT OFF
WP74006345 WP74006345 VALVE- OVE
15003431 15003431 WIRING DIAGRAM
