Model Image
Manufacturer

Whirlpool

Model Number

JIM1550ARS

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
60001140 60001140 ADAPTER D
60001019 60001019 BASEPLATE
60001007 60001007 BLADE FAN
60001030 60001030 BLOCK TER
60001009 60001009 BOLT CARR
60001010 60001010 BOLT CARR
60001025 60001025 BRACKET W
60001142 60001142 BUSHING H
WPW10662129 WPW10662129 CAPACITOR
WP616099 WP616099 CLAMP
W10833902 W10833902 CLAMP
8534021 8534021 CLAMP
60001004 60001004 COIL SOLE
60001016 60001016 COMPRESSOR
60001001 60001001 CONDENSER
60001026 60001026 CONTROL, ELECTRICAL
60001024 60001024 CORD POWE
60001042 60001042 DEFLECTOR
60001145 60001145 DOOR STNL
WPW10143759 WPW10143759 DRIER-UV
60001033 60001033 END DISTR
60001046 60001046 ESCUTCHEON
60001035 60001035 EVAPORATOR
60001023 60001023 FITTING T
60001180 60001180 FITTING- W
60001136 60001136 GASKET, DOOR
60001041 60001041 GRID CUTTER ASSEMBLY.
60001048 60001048 GRILLE BL
60001012 60001012 GROMMET C
60001013 60001013 GROUND WIR
60001137 60001137 HANDLE, DOOR (INCL. STANDOFFS)
60001149 60001149 HINGE
60001179 60001179 LEG KIT L
60001054 60001054 LOCKNUT
41007621 41007621 MANUAL, USE & CARE
60001008 60001008 MOTORFAN
60001135 60001135 NAMEPLATE
W10080180 W10080180 NUT
60001032 60001032 PANEL ASM
60001018 60001018 PANEL BAC
60001150 60001150 PIN HINGE
60001040 60001040 PLUG DRAI
60001045 60001045 PLUG HOLE
JIMPUMPAXX JIMPUMPAXX PUMP
WP60001037 WP60001037 PUMP, CIRCULATION
60001038 60001038 RESERVOIR
60001133 60001133 RETAINER-
60001002 60001002 RIVET POP
W11420408 W11420408 SCOOP
WP3400088 WP3400088 SCREW
WP179051 WP179051 SCREW
60001141 60001141 SCREW
60001151 60001151 SCREW
60001131 60001131 SCREW
WP693995 WP693995 SCREW
WPW10068250 WPW10068250 SCREW
60001022 60001022 SCREW
60001128 60001128 SCREW (FOR BLK GRILLE)
60001181 60001181 SCREW SET
60001006 60001006 SHROUD FA
60001011 60001011 SLEEVE CO
60001130 60001130 SPACER
60001143 60001143 SPACERS H
60001139 60001139 STANDOFF
60001017 60001017 STARTER P
16022217 16022217 SVC MAN, FREESTANDING ICEMAKER
60001050 60001050 SWITCH ON
60001039 60001039 THERMISTOR

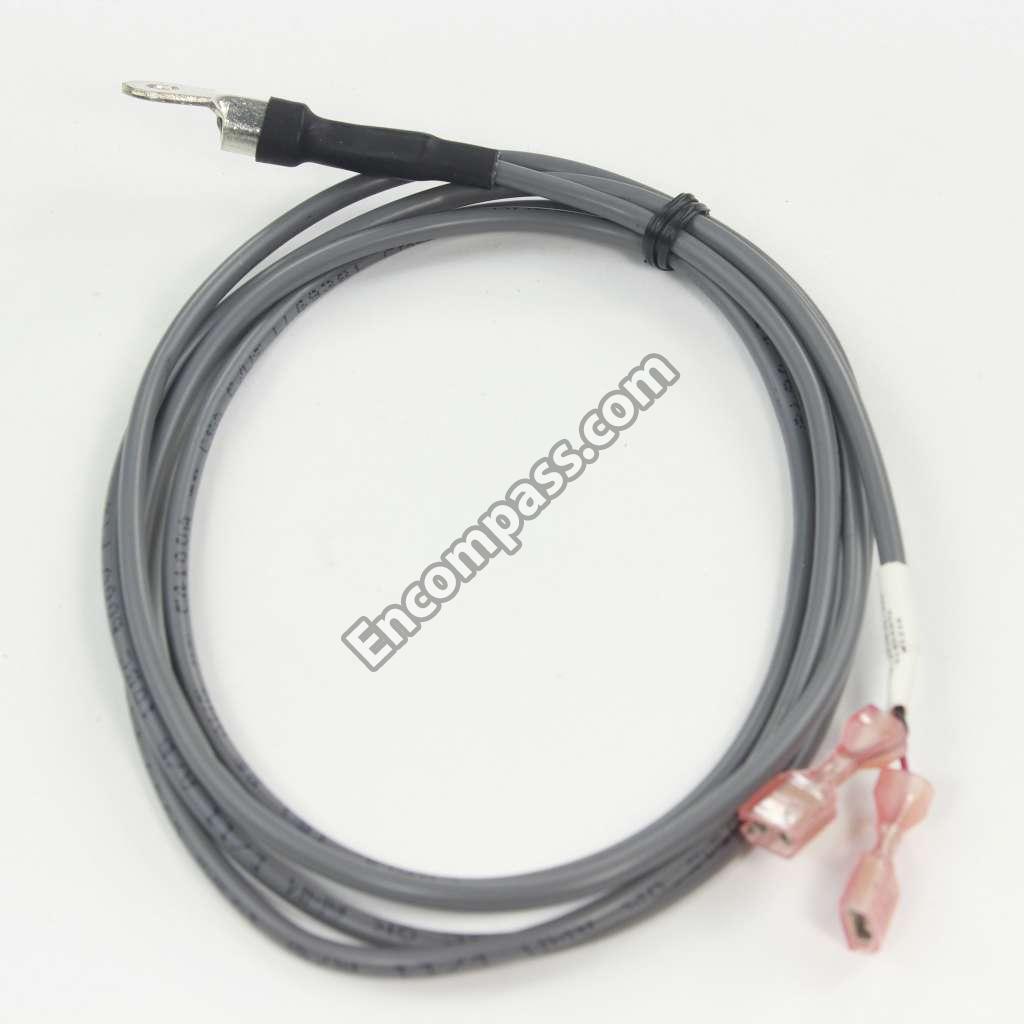

60001044 60001044 THERMISTOR
60001027 60001027 TRANSFORME
60001034 60001034 TUBE DIST
60001031 60001031 UCLIP W S
WP60001020 WP60001020 VALVE ASSEMBLY., WATER
60001005 60001005 VALVE HOT
60001021 60001021 VALVE- DRA
60001132 60001132 WASHER
60001053 60001053 WASHER
60001014 60001014 WASHER LO
60001043 60001043 WELLNUT
15003251 15003251 WIRING INFORMATION
