Model Image
Manufacturer

Whirlpool

Model Number

JIM158XWRB1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP279368 WP279368 ADHESIVE
W11179302 W11179302 AFF ICE MA
2217445 2217445 BASE-CONDR
WP2188935 WP2188935 BLADE-FAN
W10340993 W10340993 BOX, CONTROL
WP2185532 WP2185532 BRACKET
W11204894 W11204894 BRACKET
2313844 2313844 BRACKET
676304 676304 BULB
WP2151652 WP2151652 BUTTON-PLG
N_P N_P CABINET & LINER (NOT SERVICED)
2185695 2185695 CAM-DOOR
WP2185696 WP2185696 CAP-DRAIN
W11223751 W11223751 CATCH-ASM
2185691 2185691 CHANNEL, WIRING
WP489503 WP489503 CLAMP
WP488366 WP488366 CLAMP
2185825 2185825 CLAMP
2185960 2185960 CLAMP
31462A 31462A CLEANER, STAINLESS STEEL (12 OZ)
1115375 1115375 CLIP-WIRING
WPW10206473 WPW10206473 COIL-SOLND
W11735041 W11735041 COMPRESSOR
WP2313624 WP2313624 CONDENSER

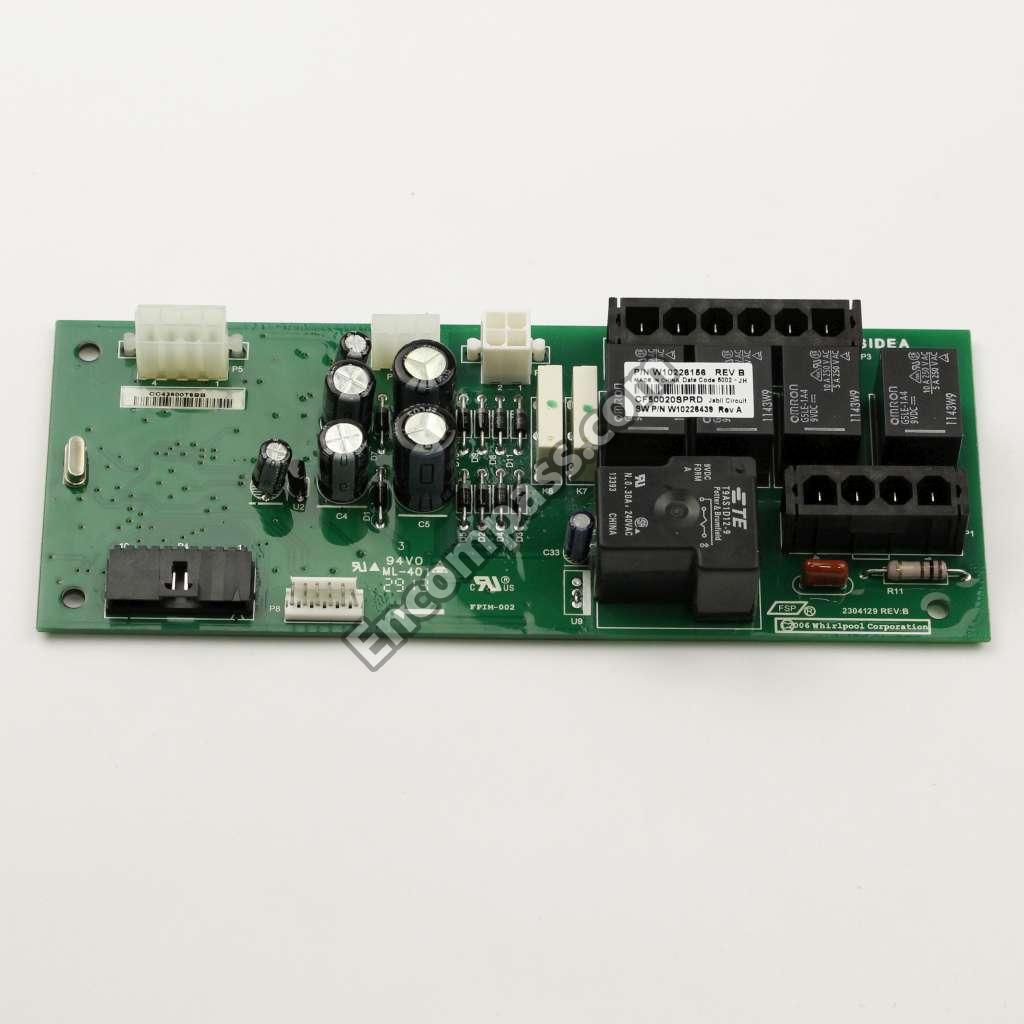

WPW10226156 WPW10226156 CONTROL BOARD
2185677 2185677 COVER-PUMP
WPW10136199 WPW10136199 COVER-UNIT
2217394 2217394 COVER-WIRE
4387020 4387020 CUTTR-WIRE
8201600 8201600 DOOR ASSEMBLY BL
WP2217294 WP2217294 DOOR GASKET
WP2185742 WP2185742 DOOR-INNER
W10843121 W10843121 DRIER-TUBE
2185964 2185964 EDGE-GUARD
WPW10218037 WPW10218037 EVAPORATOR
2185655B 2185655B FILLER, ENDCAP (LEFT SIDE)
2185656B 2185656B FILLER, ENDCAP (RIGHT SIDE)
WPW10534030 WPW10534030 GAS VALVE
2217367 2217367 GASKET-DOR
W11624957 W11624957 GASKET-TOP
WP2313637 WP2313637 GRID-CUTTR
WP2185571B WP2185571B GRILLE
WP4387558 WP4387558 GROMMET
W10852725 W10852725 GROMMET
2185965 2185965 GROMMET (4)
2313604 2313604 GUIDE
W10553448 W10553448 HANDLE
W10218053 W10218053 HANDLE

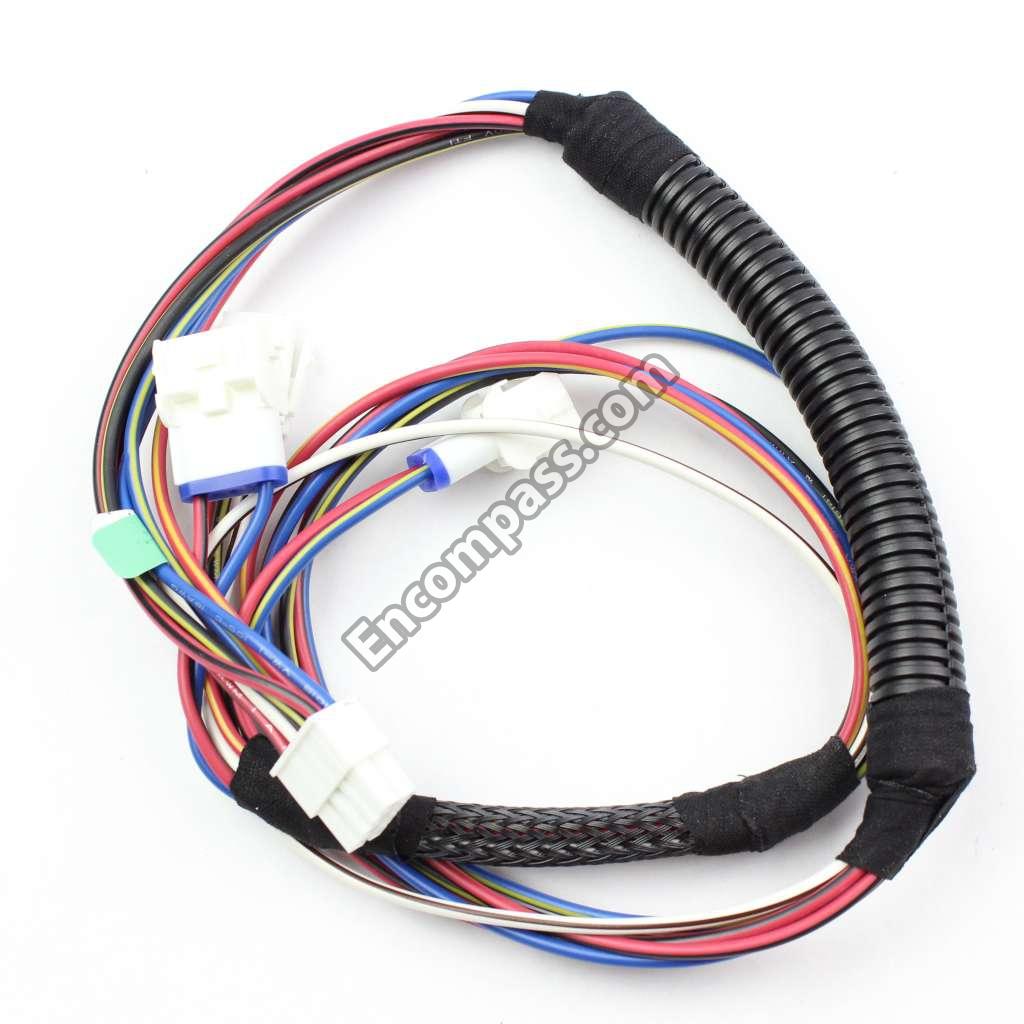

WPW10193296 WPW10193296 HARNESS
WP2187585 WP2187585 HARNESS
WP2310169 WP2310169 HARNESS
2185681 2185681 HARNESS, GRID
WP2310092 WP2310092 HARNS-PUMP
2185710 2185710 HINGE
2185711 2185711 HINGE
2185927 2185927 HOLDER

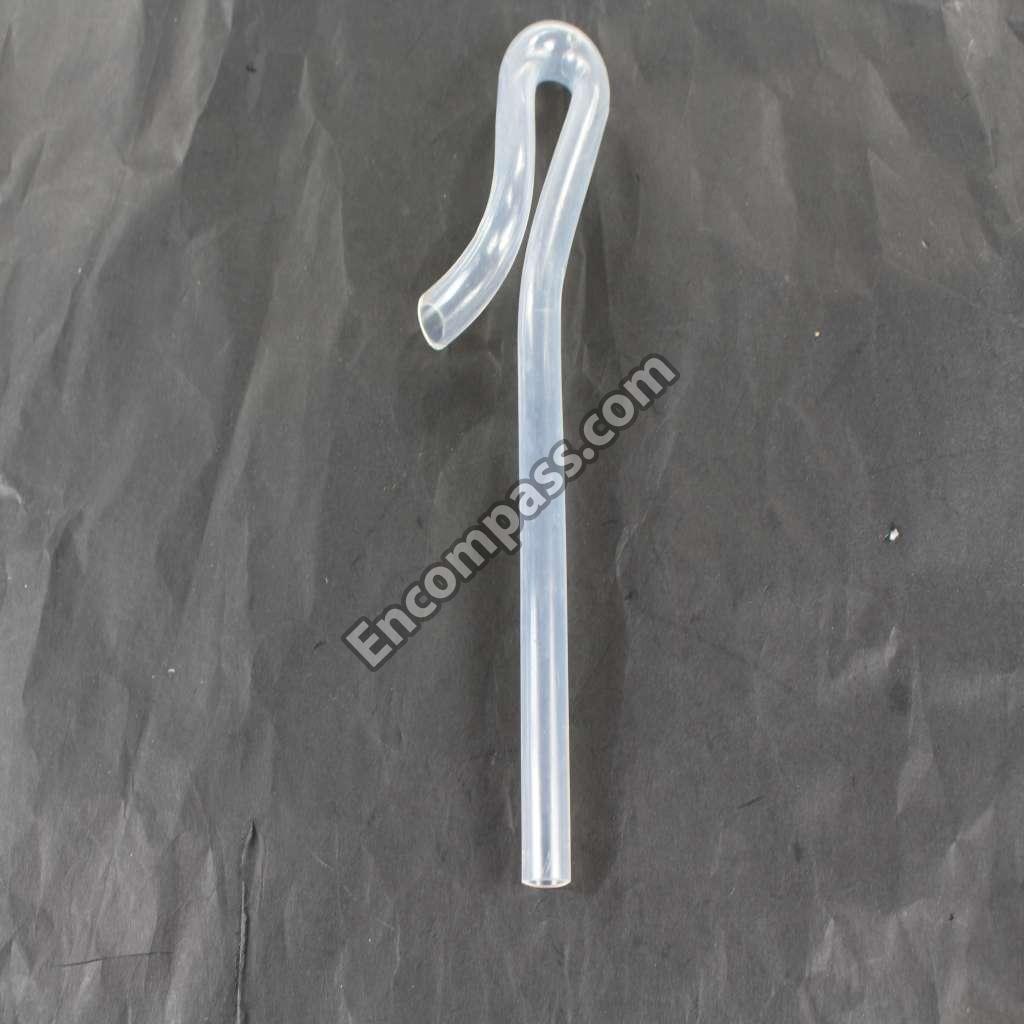

WP2313890 WP2313890 HOSE
WP2185626 WP2185626 HOSE
8193716 8193716 LEVLER-LEG
W10206442 W10206442 LIT SERVICE WIRING SHEET
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
W10124096 W10124096 MOTOR, FAN
WPW10214168 WPW10214168 NAMEPLATE
12848704 12848704 NAMEPLATE
WP3400909 WP3400909 NUT
3400240 3400240 NUT
W10136999 W10136999 NUT
488660 488660 NUT, SPEED
W10206469 W10206469 OVERLAY
2185675 2185675 PAD-FOAM
W10532250 W10532250 PAD-FOAM
2217397 2217397 PAD-FOAM

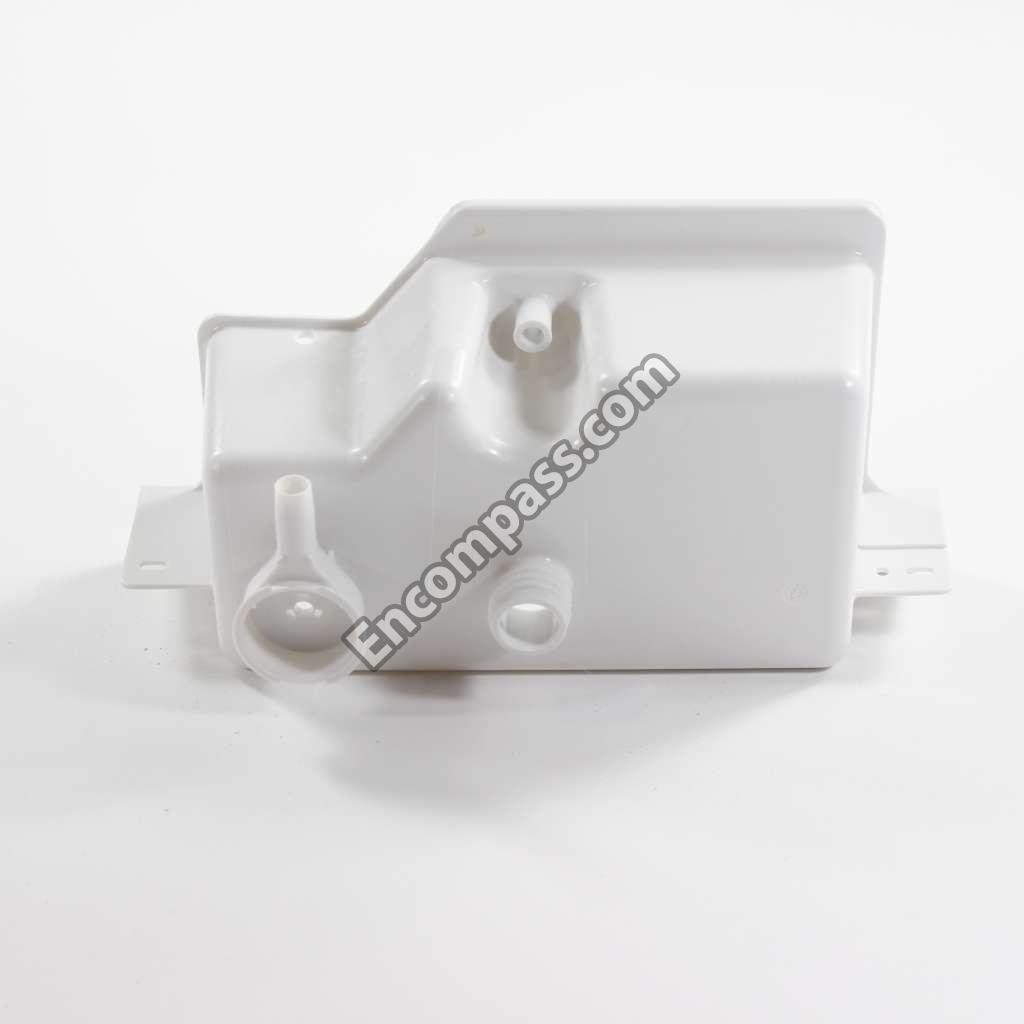

WP2324334 WP2324334 PAN-WATER
WP2185625 WP2185625 PAN-WATER
2185570 2185570 PANEL
2185712 2185712 PIN-HINGE

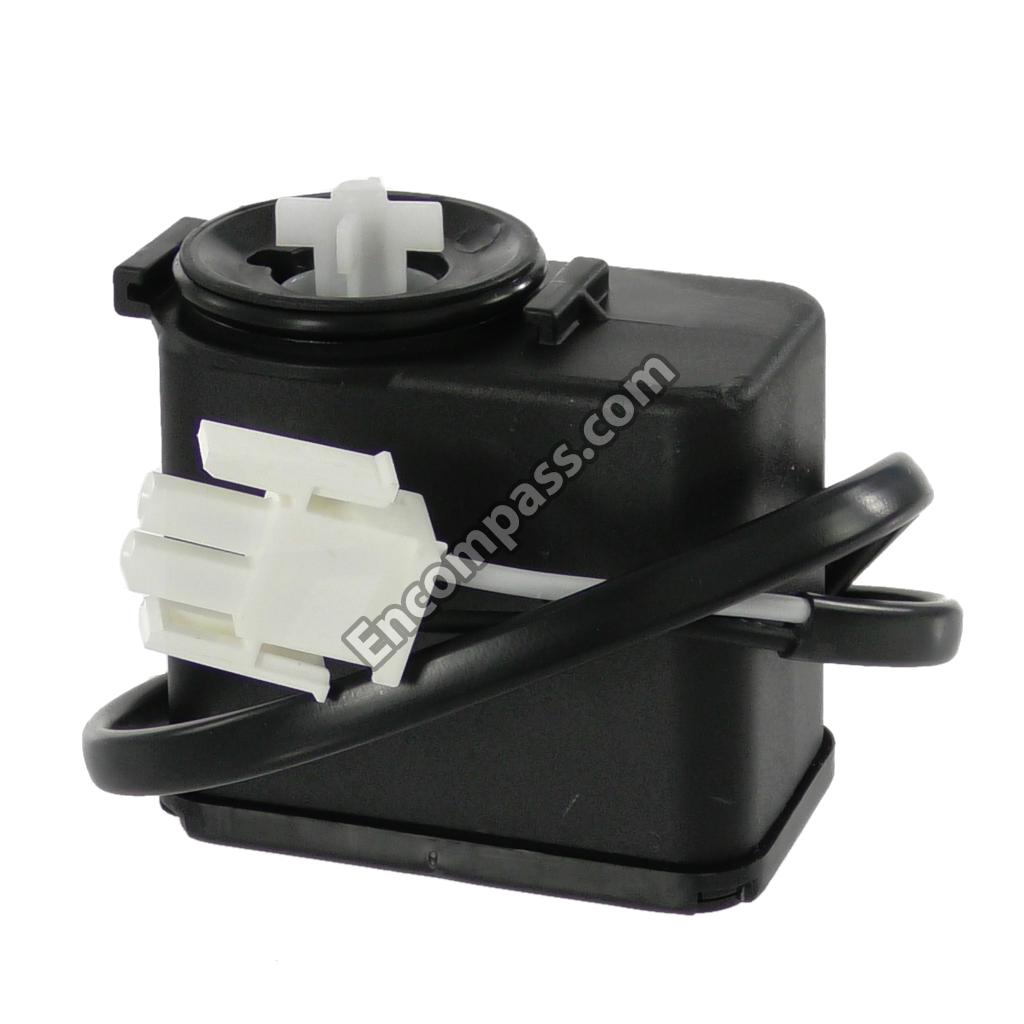

W11566405 W11566405 PUMP
W11566407 W11566407 PUMP

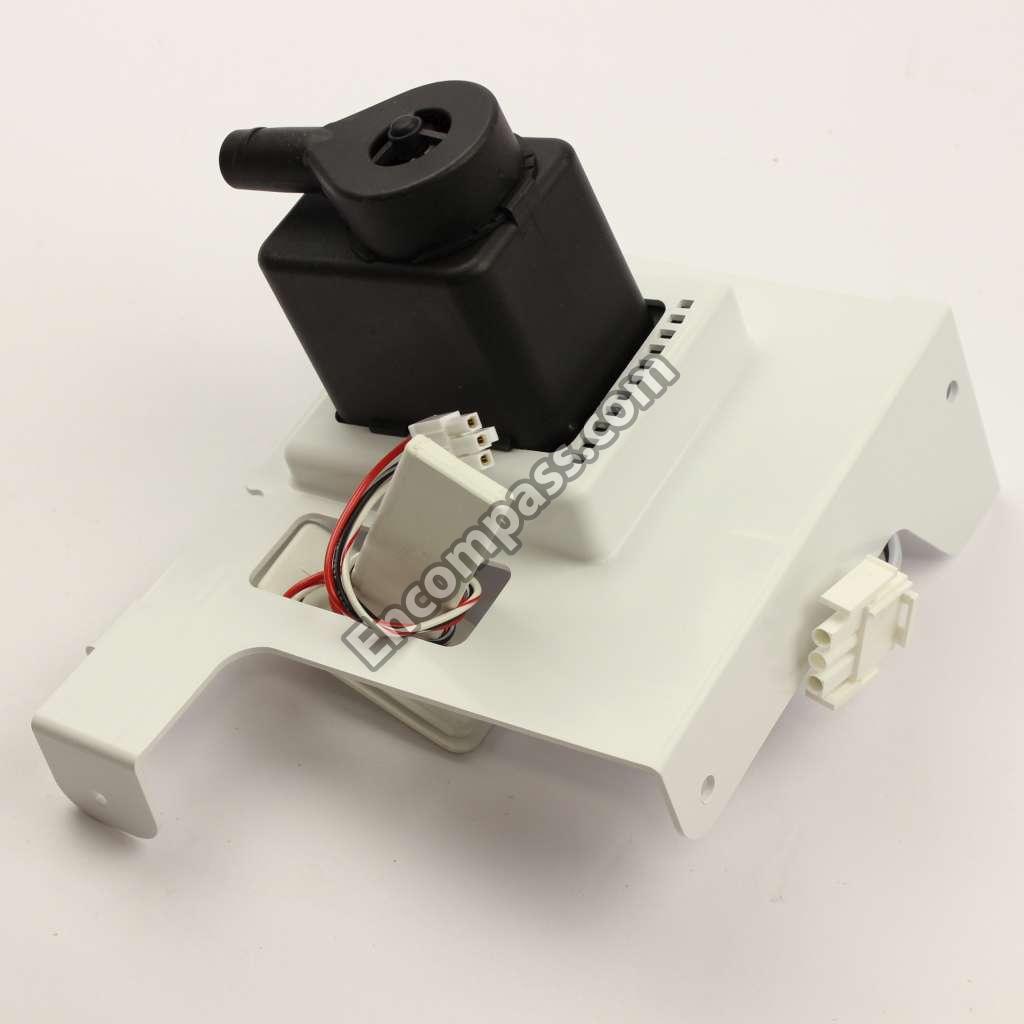

2313702 2313702 PUMP ASSEMBLY
8559320 8559320 RESTRAINT, HOSE
W11420408 W11420408 SCOOP
486420 486420 SCREW
WP489069 WP489069 SCREW
WP489443 WP489443 SCREW
WP488163 WP488163 SCREW
WP489474 WP489474 SCREW
WP489464 WP489464 SCREW
WP250830 WP250830 SCREW
WP3400237 WP3400237 SCREW
WP3400884 WP3400884 SCREW
WP8281186 WP8281186 SCREW
WP489442 WP489442 SCREW
WP3400886 WP3400886 SCREW
489472 489472 SCREW
348689 348689 SCREW
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER-GUM

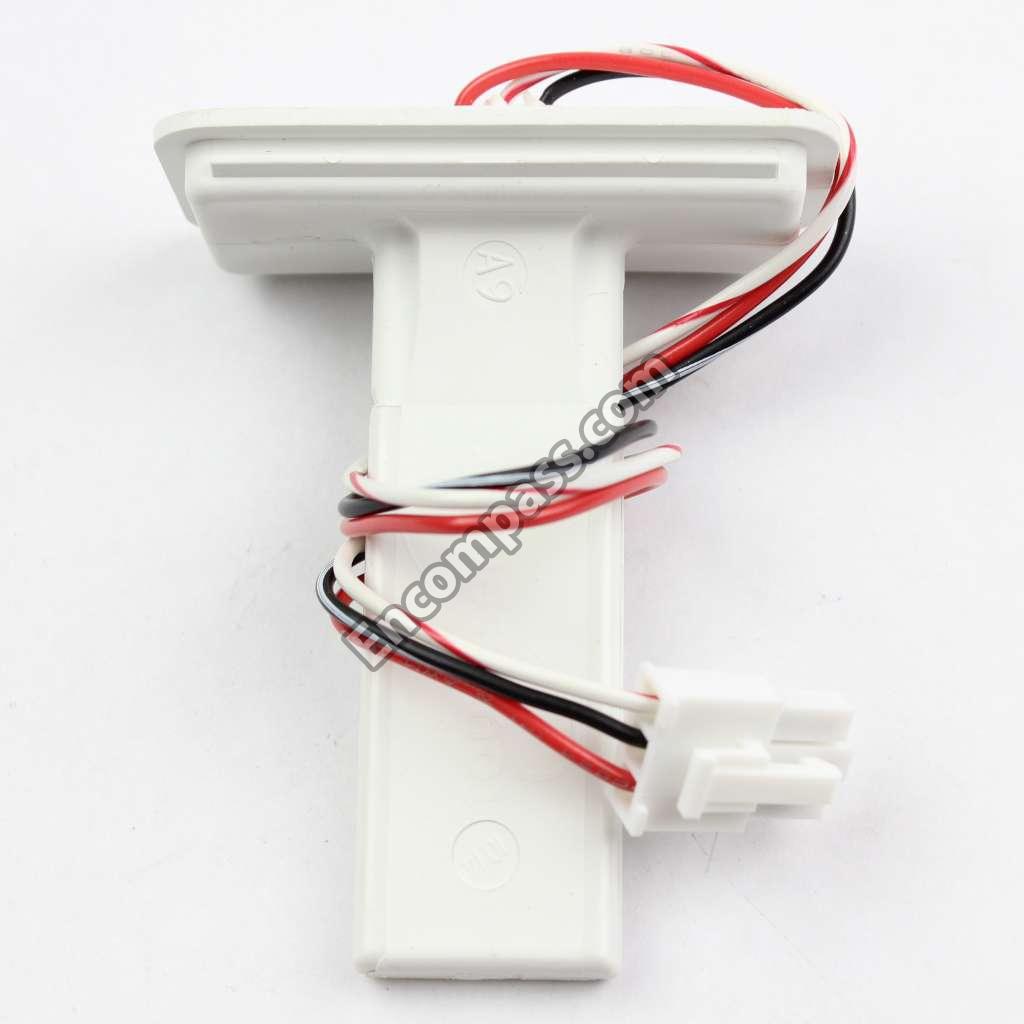

WPW10548509 WPW10548509 SENSOR
2185690 2185690 SHIELD, ELECTRICAL
A201441 A201441 SHIM
2185709 2185709 SHIM, HINGE
2185640 2185640 SLEEVE, HINGE
8201791 8201791 SPACER
8201790 8201790 SPACER
2185678 2185678 SPACER
836667 836667 SPACER

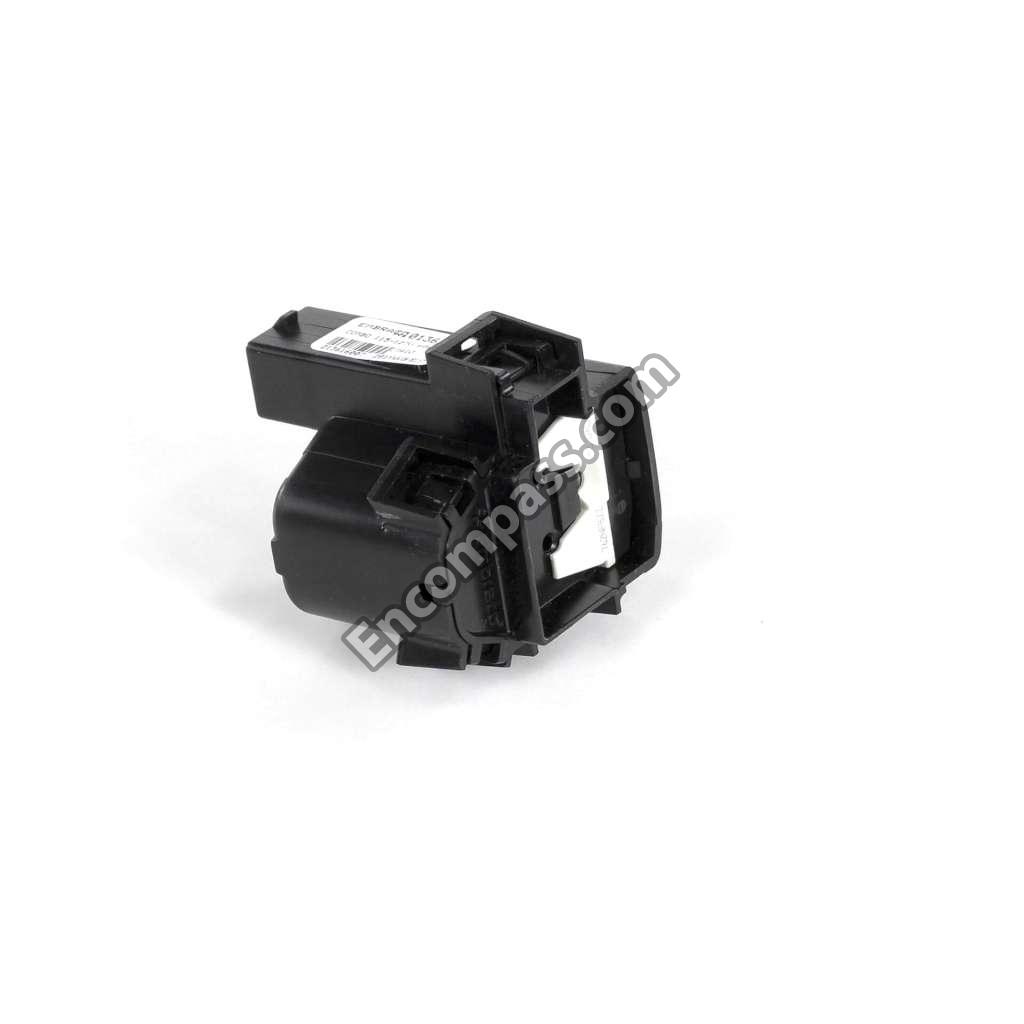

WPW10136197 WPW10136197 START-DEV
851095 851095 STRAP
WP2149705 WP2149705 SWITCH
W10122017 W10122017 SWITCH

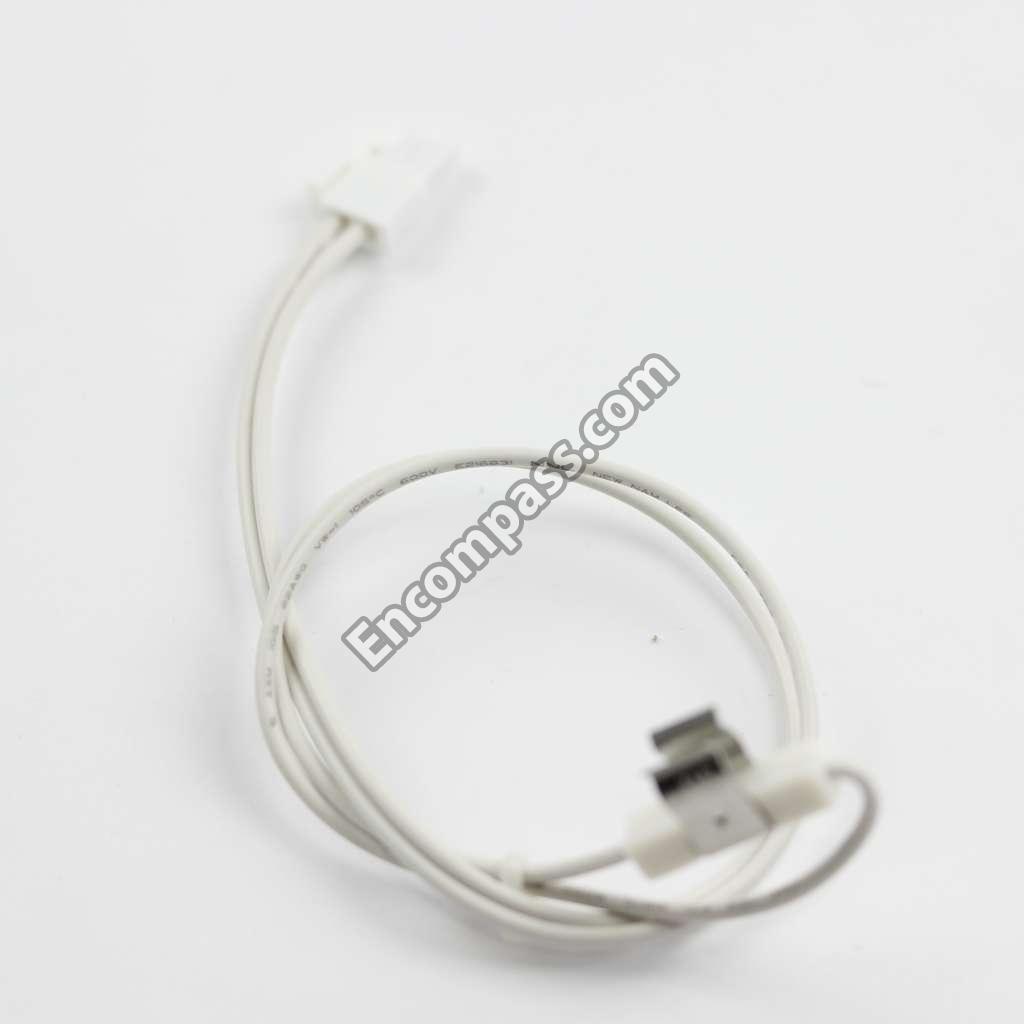

WP2313635 WP2313635 THERMISTOR
WPW10503764 WPW10503764 THERMISTOR
681534 681534 THUMBSCREW, 10-32 X 3/4
WPW10339879 WPW10339879 TIE-WIRE
2929702B 2929702B TOP-CABNET

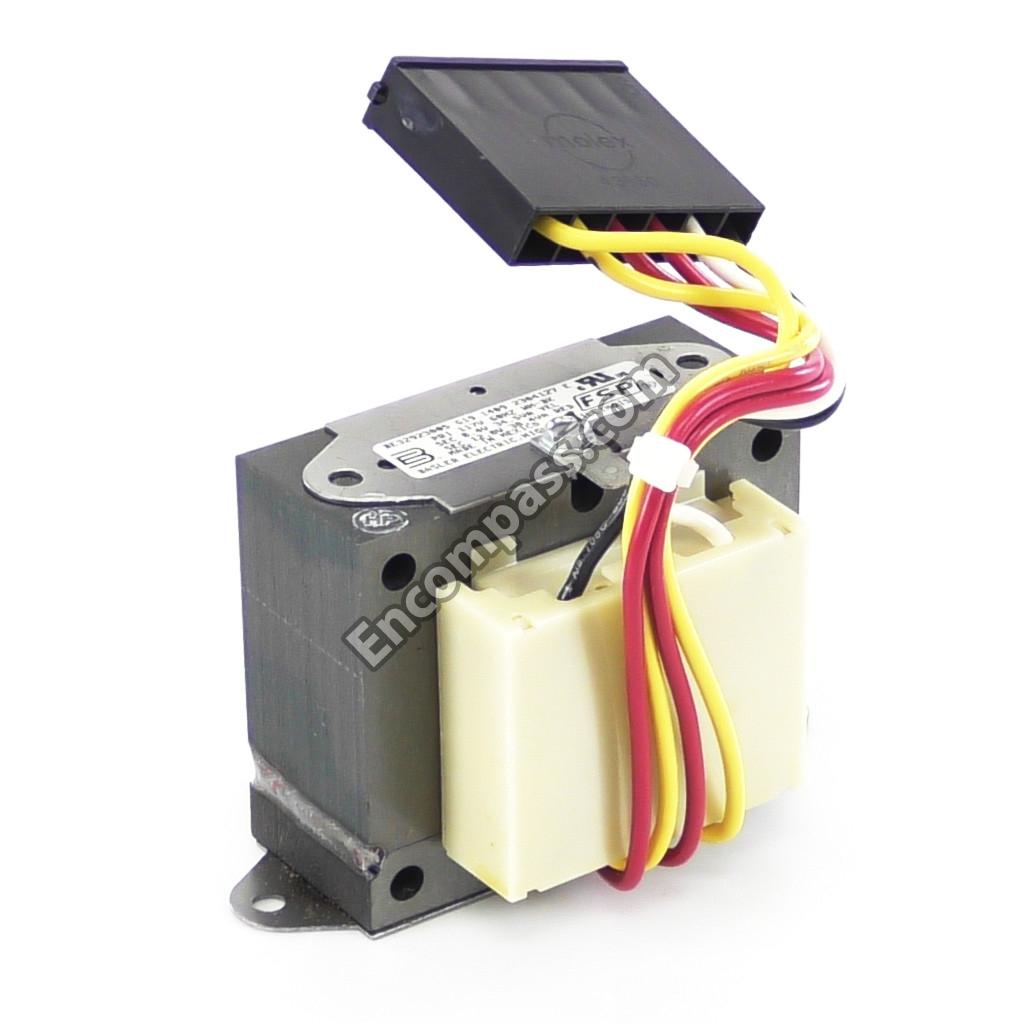

WP2310139 WP2310139 TRANSFORMR
WPW10217922 WPW10217922 TUBE
WP2313851 WP2313851 TUBE
W10863947 W10863947 TUBE
WP2185989 WP2185989 TUBE
W10528572 W10528572 TUBE, PROCESS
W10206439 W10206439 USE & CARE GUIDE
WP978025 WP978025 VALVE
978026 978026 VALVE
978027 978027 VALVE
978029 978029 VALVE
978030 978030 VALVE
978028 978028 VALVE, ACCESS (1/2``)
W10136596 W10136596 VALVE, COMPLETE WATER

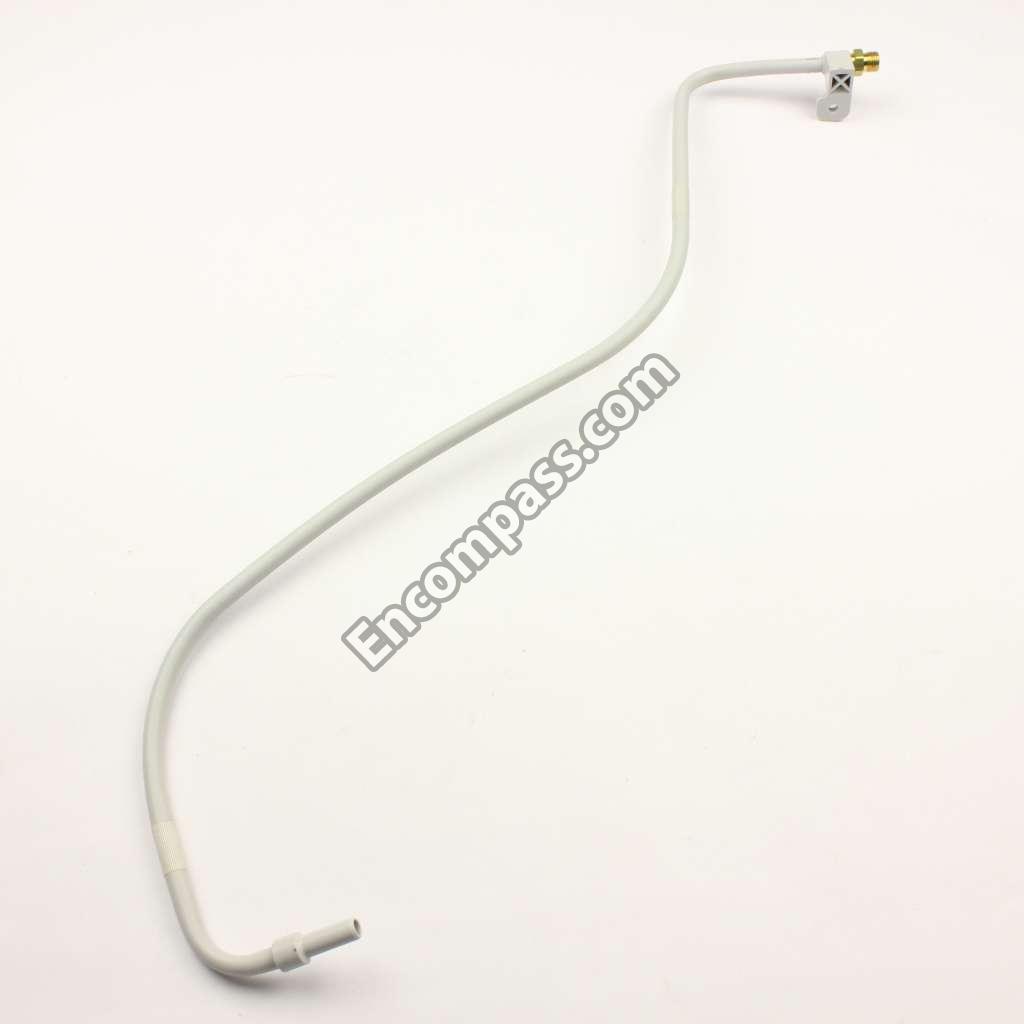

WPW10418868 WPW10418868 WATER TUBE
WP2187629 WP2187629 WIRE-JUMPR
W10217912 W10217912 WRAP-DOOR
W10218020 W10218020 WRAP-DOOR
