Model Image
Manufacturer

Whirlpool

Model Number

JIS1450DP2

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
W10750011 W10750011 ACCESSORIES, CLEANER, OVEN (AQUALIFT TECH)
W10432544 W10432544 ACCESSORY PARTS, ASSEMBLY, BACKSPLASH KIT, GRIDDLE
W10655449 W10655449 ACCESSORY PARTS, BACKSPLASH ASSEMBLY (BLACK)
W10655450 W10655450 ACCESSORY PARTS, BACKSPLASH ASSEMBLY (STAINLESS)
W10655448 W10655448 ACCESSORY PARTS, BACKSPLASH ASSEMBLY (WHITE)
W10355051 W10355051 ACCESSORY PARTS, CLEANERS / POLISHES, CLEANER, COOKTOP
W10275756 W10275756 ACCESSORY PARTS, CLEANERS / POLISHES, CLEANER, GRANITE
31617A 31617A ACCESSORY PARTS, CLEANERS / POLISHES, CLEANER, GRATE & DRIP PAN
W11042467 W11042467 ACCESSORY PARTS, CLEANERS / POLISHES, CLEANER, STAINLESS STEEL
W10391473 W10391473 ACCESSORY PARTS, CLEANERS / POLISHES, PAD, COOKTOP CLEANING
31463A 31463A ACCESSORY PARTS, CLEANERS / POLISHES, PROTECTANT, COOKTOP
WA906B WA906B ACCESSORY PARTS, CLEANERS / POLISHES, SCRAPER, COOKTOP
W10355049 W10355049 ACCESSORY PARTS, CLEANERS / POLISHES, WIPES, STAINLESS STEEL CLEANING
4396923 4396923 ACCESSORY PARTS, MISCELLANEOUS GRID, BROILER PAN AND
W10432545 W10432545 ACCESSORY PARTS, MISCELLANEOUS KIT, GRILL
W10123240 W10123240 ACCESSORY PARTS, MISCELLANEOUS RACK, BROILER PAN & ROASTING
W10675026 W10675026 ACCESSORY PARTS, TRIM KITS (BLACK)
WPW10675028 WPW10675028 ACCESSORY PARTS, TRIM KITS (STAINLESS)
W11430922 W11430922 ACCESSORY PARTS, TRIM KITS (WHITE)
W11502257 W11502257 ANCHOR-TIP
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W11122085 W11122085 ASSEMBLY, FLUE
W10719194 W10719194 ASSEMBLY, INDUCTION SIDE DUCT
W10554262 W10554262 BAFFLE, FULL CONVECTION
W11379357 W11379357 BAKE PAN
WP8203546 WP8203546 BLOCK-TERM
W10777210 W10777210 BOTTM-OVEN
W10289168 W10289168 BOX, BURNER SI
W10162253 W10162253 BRACE, CORNER (LEFT)
W10162252 W10162252 BRACE, CORNER (RIGHT)
W10557780 W10557780 BRACKET , CONTROL
W10598048 W10598048 BRACKET, CONSOLE (CENTER)
W10558372 W10558372 BRACKET, CONTROL
W10541911 W10541911 BRACKET, GLASS UPPER HANDLE
W10743281 W10743281 BRACKET, MOUNTING (STAINLESS)
W10273002 W10273002 BRACKET, OVEN SUPPORT
W11728255 W11728255 BRKT-SRVCE
W11104127 W11104127 BUMPER
W10162241 W10162241 CHANNEL, REAR
W10336909 W10336909 CLEANER
W10841090 W10841090 CLIP
W10137382 W10137382 CLIP, PANEL
W10866583 W10866583 CLIP-PANEL, RATCHETING
WPW10281322 WPW10281322 CONNECTOR

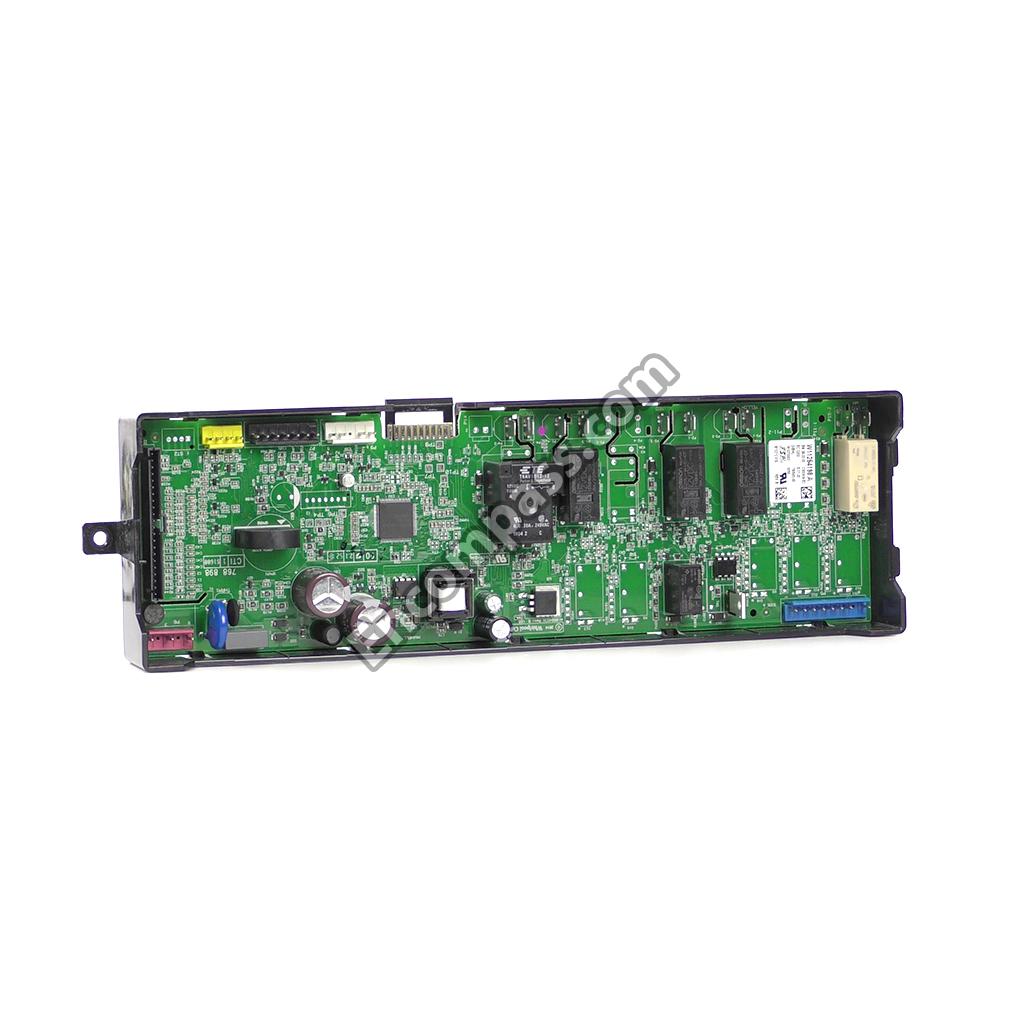

W11296051 W11296051 CONTROL BOARD
W11120573 W11120573 CONTROL BOARD
W11043339 W11043339 CONTROL PANEL
W10751485 W10751485 COOKTOP
W11379354 W11379354 COVER, BACK
W10727084 W10727084 COVER, GAS VALVE
W10551019 W10551019 COVER, SIDE
W10634259 W10634259 COVER, WIRE
W10162248 W10162248 COVER, WIRE
W11677629 W11677629 DISPLAY
W11234410 W11234410 DOOR HANDLE
W11226493 W11226493 DOOR HINGE
W11036176 W11036176 DRAWR-UTIL
W10606133 W10606133 DUCT, RECIRCULATION PLATE
W10541944 W10541944 ELEMENT, BAKE
W10779716 W10779716 ELMNT-BAKE
W11238400 W11238400 ELMNT-BROL
W10634260 W10634260 ENCLOSURE, WARMING
W10557751 W10557751 ENDCAP (STAINLESS (LEFT))
W10557754 W10557754 ENDCAP (STAINLESS (RIGHT))
W11414552 W11414552 FAN-CONVCT
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WPW10058460 WPW10058460 FOOT-LEVEL
WPW10341186 WPW10341186 FOOT-LEVEL
W10729897 W10729897 FUSE, THERMAL
WP3196548 WP3196548 FUSE-THRML
W10802441 W10802441 GASKET
W11562931 W11562931 GASKT-DOOR
W11339500 W11339500 GLASS DOOR
W11281831 W11281831 GLASS DOOR
W10400064 W10400064 GUIDE, QUICK START (ENGLISH)
W10400065 W10400065 GUIDE, QUICK START (FRENCH)
W11171883 W11171883 HARNESS, MAIN
W10634238 W10634238 HINGE, RECEIVER
WPW10410578 WPW10410578 HOTPLATE
WPW10410580 WPW10410580 HOTPLATE
W10744014 W10744014 INSTALLATION, INSTRUCTIONS
WPW10208653 WPW10208653 INSULATION
W11688515 W11688515 INSULATION
W11688730 W11688730 INSULATION
W11688781 W11688781 INSULATION
W11025151 W11025151 INSULATION
W11688815 W11688815 INSULATION
W10551018 W10551018 INSULATION, DRAWER FRONT
W10550984 W10550984 INSULATION, DRAWER SIDE
W10884792 W10884792 INSULATION, SHIELD
4820F015-59 4820F015-59 INSULATION, STRAP
W10655489 W10655489 INSULATION, WRAPPER
8009 8009 LIGHT BULB
W10902192 W10902192 LINER-DOOR
W10886867 W10886867 MODULE
WPW10159578 WPW10159578 NAMEPLATE
WP7103P027-60 WP7103P027-60 NUT
WP3400029 WP3400029 NUT
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10536319 W10536319 PAN, INDUCTION (LOWER)
W10541958 W10541958 PANEL, DRAWER FRONT (STAINLESS)
W10541947 W10541947 PANEL, FRONT INNER
WPW10162245 WPW10162245 PANEL-SIDE
W11727219 W11727219 PLATE
W11226497 W11226497 POWER CORD
W10602493 W10602493 RACK, BAKE DRAWER
W10603482 W10603482 RACK, LADDER
W11225131 W11225131 RACK-OVEN
W11256463 W11256463 RACK-OVEN
W11699908 W11699908 RACK-OVEN
W10813140 W10813140 RAIL, HORIZONTAL SUPPORT
WPW10306546 WPW10306546 RAIL-BASE
W10605411 W10605411 RECEIVER, SLOW CLOSE HINGE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W10550985 W10550985 RETAINER, SIDE INSULATION
W10273192 W10273192 ROD, DOOR SWITCH
W11169708 W11169708 SCREW
W10777162 W10777162 SCREW
WPW10031790 WPW10031790 SCREW
W10530626 W10530626 SCREW
W10516115 W10516115 SCREW
WP3400016 WP3400016 SCREW
3196172 3196172 SCREW
WPW10067840 WPW10067840 SCREW
WP3196557 WP3196557 SCREW
W11245710 W11245710 SCREW
W11233072 W11233072 SCREW
3400964 3400964 SCREW, GROUND
W10550987 W10550987 SEAL, DRAWER
W11676788 W11676788 SENSOR
W10833885 W10833885 SENSOR
W10844271 W10844271 SHEET, TECH
W10541959 W10541959 SHIELD, BAKE
W10162260 W10162260 SHIELD, HEAT
W10752321 W10752321 SHIELD, KEYPAD
W10655441 W10655441 SHIELD, POWER CORD
W11117035 W11117035 SHIELD, WIRE
W11670723 W11670723 SLIDE-DRWR
W11670722 W11670722 SLIDE-DRWR
W11594027 W11594027 SOCKT-LITE
W11190816 W11190816 SPACER
W10877054 W10877054 SPACER
W11673273 W11673273 SPACR-GLAS
W10854045 W10854045 SPRING (CANTILEVER)
W11744483 W11744483 SUPPORT
W10289170 W10289170 SUPPORT, COOKTOP (LEFT)
W10289169 W10289169 SUPPORT, COOKTOP (RIGHT)
W10035900 W10035900 SUPPORT, OVEN BOTTOM
W11175842 W11175842 SUPPRESSOR
W11672688 W11672688 SURFACE ELEMENT
WP9757262 WP9757262 SWTCH-LITE
W11251351 W11251351 TRIM-VENT
W11170796 W11170796 TRIM-VENT
W10896673 W10896673 USE AND CARE GUIDE
W11676355 W11676355 WASHER
W11226772 W11226772 WIRE HARNESS
W11226775 W11226775 WIRE HARNESS
W11025616 W11025616 WIRE HARNESS
W10902659 W10902659 WIRING DIAGRAM
