Model Image
Manufacturer

Whirlpool

Model Number

JJW8127AAB

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
71001852 71001852 BLADE FAN
WPW10245259 WPW10245259 BLOCK-TERM
74004455 74004455 BRACKET, DOOR HANDLE
74004713 74004713 CABLE ASSE
WP9781049 WP9781049 CAMERA LENS-LIGHT
71001170 71001170 CLIP OVEN
WP74009198 WP74009198 CONTROL BOARD
702929 702929 COVER HOL
71001813 71001813 COVER MAI
74002380 74002380 COVER, HOLE

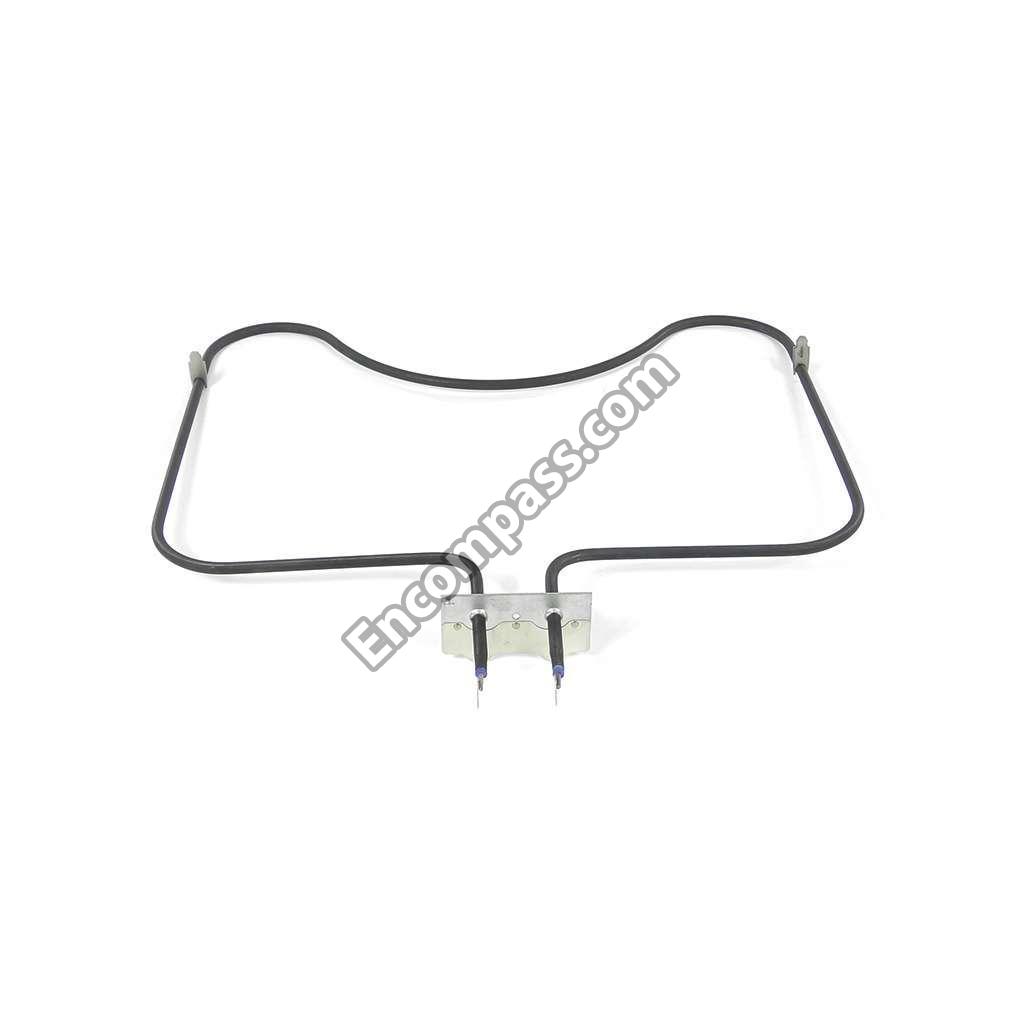

WP7406P272-60 WP7406P272-60 ELMNT-BAKE
WPW10310260 WPW10310260 ELMNT-BROL
71001794 71001794 END CAP, PANEL (BLK)
71001843 71001843 EXTENSION, VENT
WP74004947 WP74004947 FAN MOTOR
71003185 71003185 FRAME OVE
7706P561-60 7706P561-60 FRAME-INNR
74004511 74004511 GLASS, DOOR (BLK)
74006718 74006718 GLASS, DOOR (BLK)
74007136 74007136 GUIDE, COOKING (TRILINGUAL)
74004702 74004702 HARNESS L
74004711 74004711 HARNESS M
74004701 74004701 HARNESS S
WP74008231 WP74008231 HINGE, DOOR
WP74008015 WP74008015 HINGE-RECV
74004513 74004513 HNDLEDOOR
WP3413F018-19 WP3413F018-19 INSERT
71001960 71001960 INSULATION
71001963 71001963 INSULATION
71002227 71002227 INSULATION
71001839 71001839 INSULATION
71001969 71001969 INSULATION
Y705143 Y705143 INSULATOR
71003294 71003294 LATCH- DOO
8009 8009 LIGHT BULB
74005615 74005615 LINER, OVEN DOOR
74005621 74005621 MANUAL, USE & CARE
M0282005 M0282005 NUT
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
71003006 71003006 OVEN WELD ASSEMBLY.
WP3401F075-19 WP3401F075-19 PAN, BROIL
2624F055-51 2624F055-51 PANEL, BACK (INR)
74006746 74006746 PANEL, CONTROL (BLK)
74006827 74006827 PANEL, TOP (INR)
74006819 74006819 PANEL, TOP (OUTER)
74005627 74005627 PANELSIDE
71002903 71002903 PLATE NON
71001812 71001812 PLATE, HINGE TRAP
WPW10275562 WPW10275562 RACK, OVEN (OFFSET)
Y704660 Y704660 RACK- OVEN
71001866 71001866 RECEPTACLE, BULB
74005638 74005638 RETAINER
WP7101P434-60 WP7101P434-60 SCREW
WP74003976 WP74003976 SCREW
WP7101P126-60 WP7101P126-60 SCREW
W10828565 W10828565 SCREW
W11233072 W11233072 SCREW
70273-1 70273-1 SCREW
WPY706189 WPY706189 SCREW
WP90767 WP90767 SCREW
W10759523 W10759523 SCREW
WPW10296816 WPW10296816 SCREW
WP71001970 WP71001970 SEAL- DOOR
WP8010P073-60 WP8010P073-60 SPACER, HANDLE
74006817 74006817 SUPPORT, TOP CONTROL
WP71002904 WP71002904 SWITCH, DOOR LIGHT
71001129 71001129 SWITCH, DOOR LOCK
7403P067-60 7403P067-60 SWITCH, ROCKER (BLK)
74006855 74006855 SWITCH- ME
12001405 12001405 TAPE SUPT (CONTROL PANEL) KIT
WP71001844 WP71001844 THERMOSTAT
WPW10339879 WPW10339879 TIE-WIRE
74005626 74005626 TRIM OVEN
71001946 71001946 TRIM, CONTROL PANEL (BLK)
71001951 71001951 TRIM, SIDE (LT/BLK)
71001952 71001952 TRIM, SIDE (RT/BLK)
71002419 71002419 TUBE VENT
4011F438-45 4011F438-45 VENT (BTM)
71001847 71001847 VENT (TOP)
71001403 71001403 WASHER AL
WP5700M867-60 WP5700M867-60 WINDOW
15002627 15002627 WIRING INFORMATION
