Model Image
Manufacturer

Whirlpool

Model Number

JJW9527DDW29

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP482338 WP482338 ADHESIVE
591014 591014 ADHESIVE LOCTITE (1/3 OZ.))
WP74009970 WP74009970 ASSEMBLY, LIGHT
WPW10206587 WPW10206587 ASSY., CONVECT FAN
74008385 74008385 ASSY., DOOR GLASS (BLACK)
W10202022 W10202022 ASSY., DOOR GLASS (STAINLESS)
7922P018-60 7922P018-60 ASSY., DOOR GLASS (WHITE)
WPW10245259 WPW10245259 BLOCK-TERM
4006W218-45 4006W218-45 BOX-VENT
WP74011337 WP74011337 BRACKET
3801F829-51 3801F829-51 BRACKET
3807F678-45 3807F678-45 BRKT-MNTG
3801F823-51 3801F823-51 BRKT-PAN
9762761 9762761 BROCHURE, TIPS SAFE COOKING (ENGLISH)
W10065852 W10065852 BROCHURE, TIPS SAFE COOKING (FRENCH)
WP74009925 WP74009925 BULB- HALO
3818F108-51 3818F108-51 CHANNEL B
3601F343-51 3601F343-51 CHANNEL- V
WP74009716 WP74009716 CONTROL BOARD
4005F726-45 4005F726-45 COVER
2624F043-51 2624F043-51 COVER
3605F336-19 3605F336-19 COVER CON
W10187048 W10187048 COVER-REAR
4005P712-51 4005P712-51 COVERREAR
8119P253-60 8119P253-60 DIAGRAM, WIRING (ENGLISH)
8119P258-60 8119P258-60 DIAGRAM, WIRING (FRENCH)
WPW10186996 WPW10186996 DOOR DOOR LATCH
WP7406P322-60 WP7406P322-60 ELMNT-BAKE
WPW10184147 WPW10184147 ELMNT-BROL
WP74008383 WP74008383 FAN- TANGE
8038P035-60 8038P035-60 FOOT- OVEN
3807W663-70 3807W663-70 FRAME, CNTRL ASSEMBLY.
3603F074-70 3603F074-70 FRAMEDOOR
7912P339-60 7912P339-60 GLASS, CONTROL PNL (BLACK)
WP74011961 WP74011961 GLASS, CONTROL PNL (STAINLESS)
74011963 74011963 GLASS, CONTROL PNL (WHITE)
WP74008391 WP74008391 GLASS, DOOR (SCREENED)
7701P472-60 7701P472-60 HANDLE, DOOR
74008345 74008345 HARNESS, WIRE (CONTROL TOP)
5171P672-60 5171P672-60 HARNESS, WIRE (MAIN)
5171P153-60 5171P153-60 HARNESS, WIRE (SENSOR)
5171P208-60 5171P208-60 HARNS-WIRE
5700P829-60 5700P829-60 HARNS-WIRE

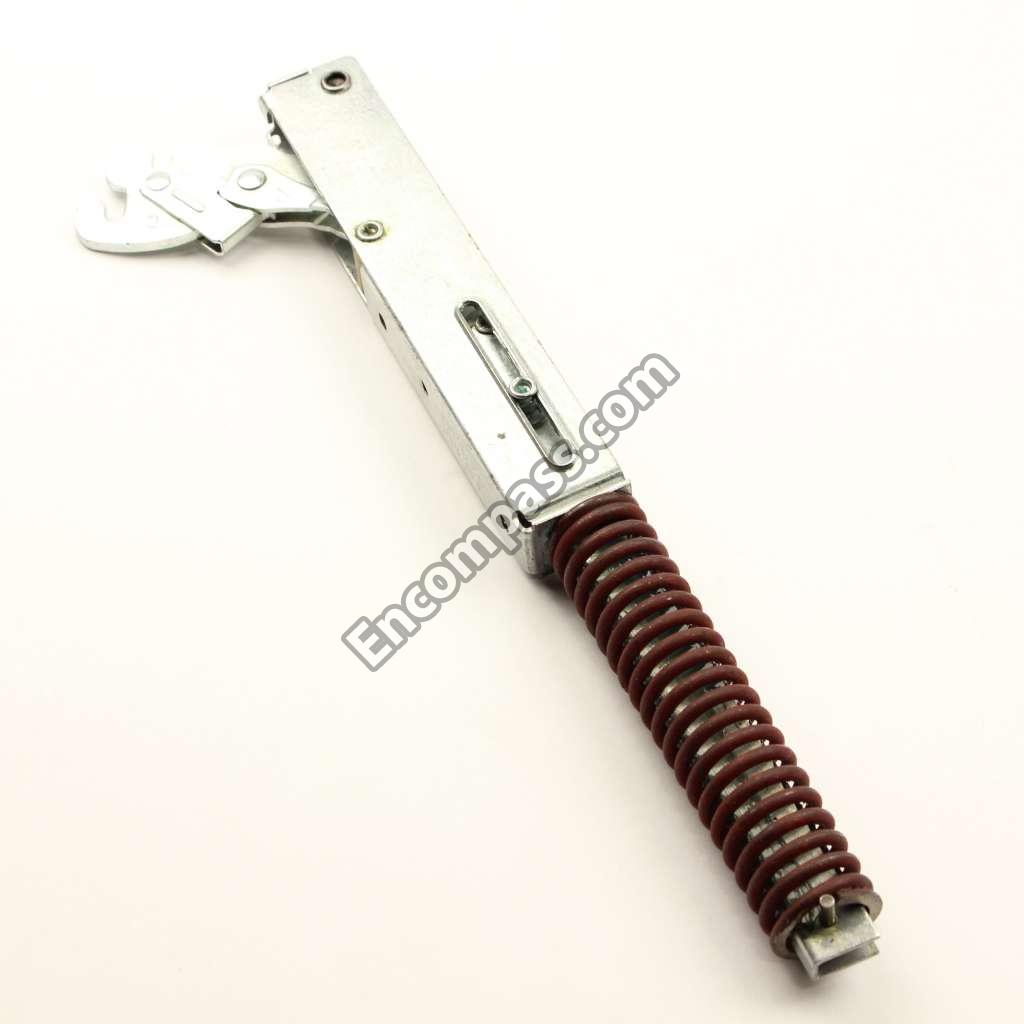

WP74010284 WP74010284 HINGE- DOO
8101P602-60 8101P602-60 INSTALLATION INSTRUCTIONS
7002P407-60 7002P407-60 INSULATION, BACK
7002P392-60 7002P392-60 INSULATION, DOOR
7002P201-60 7002P201-60 INSULATION, DOOR (BOTTOM)
7002P195-60 7002P195-60 INSULATION, DOOR (SIDE)
7002P396-60 7002P396-60 INSULATION, DOOR (STAINLESS ONLY)
7002P249-60 7002P249-60 INSULATION, DOOR (TOP)
7002P422-60 7002P422-60 INSULATION, WRAP
2402W311-19 2402W311-19 LINER, DOOR
9831122 9831122 NUT
WP3400029 WP3400029 NUT
W10169641 W10169641 OWNERS MANUAL
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
3401F079-45 3401F079-45 PAN-HIDDEN
2618F215-51 2618F215-51 PANEL SID
2624F078-51 2624F078-51 PANEL, BOTTOM
2624F098-44 2624F098-44 PANEL, CONTROL BOX TOP
2618F223-51 2618F223-51 PANELVENT
WP7430P038-60 WP7430P038-60 PROBE-MEAT
7408P088-60 7408P088-60 PROBE-MEAT
74009586 74009586 RACK, CREATE A SPACE HALF 27``
WPW10275562 WPW10275562 RACK, OFFSET
74009585 74009585 RACK, OVEN (SMART & EASY 27``)
7801P141-60 7801P141-60 RACK, OVEN HALF
3804F144-45 3804F144-45 RETAINER
3804F200-51 3804F200-51 RETAINER, INSUL.
2624F096-51 2624F096-51 RETAINER, REAR INSULATION
WP90767 WP90767 SCREW
WPY706189 WPY706189 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP71001970 WP71001970 SEAL- DOOR
WP74008369 WP74008369 SENSOR- OV
2624F076-51 2624F076-51 SIDE PANEL
2624F077-51 2624F077-51 SIDE PANEL
350930 350930 SPRAY
3807F717-51 3807F717-51 SUPPORT
3807F754-45 3807F754-45 SUPPORT
3807F706-51 3807F706-51 SUPPORT
WP7450P108-60 WP7450P108-60 SWTCH-LITE
WP7403P899-60 WP7403P899-60 SWTCH-SFTY
3608F098-70 3608F098-70 TRIM, BOTTOM VENT
3608F106-70 3608F106-70 TRIM, CONTROL PNL
WP74009752 WP74009752 TRIM, SIDE (LEFT)
WP74009751 WP74009751 TRIM, SIDE (RIGHT)
3608F102-70 3608F102-70 TRIMBOTTM
8026P066-60 8026P066-60 TUBE-VENT
8034P008-60 8034P008-60 TUBE-VENT
72032 72032 TUCHUP
72017 72017 TUCHUP
74009194 74009194 WASHER, HANDLE
WP5700M867-60 WP5700M867-60 WINDOW
