Model Image
Manufacturer

Whirlpool

Model Number

JJW9530DDP29

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP482338 WP482338 ADHESIVE
591014 591014 ADHESIVE LOCTITE (1/3 OZ.))
WP74009970 WP74009970 ASSEMBLY, LIGHT
WPW10206587 WPW10206587 ASSY., COVECT FAN
3601F373-51 3601F373-51 BAFFLE
7740P149-60 7740P149-60 BEZEL, KNOB
WPW10245259 WPW10245259 BLOCK-TERM
4006W217-45 4006W217-45 BOX-VENT
WP74011337 WP74011337 BRACKET
3801F829-51 3801F829-51 BRACKET
4005F698-51 4005F698-51 BRACKET, FILLER
3807F678-45 3807F678-45 BRKT-MNTG
3801F886-51 3801F886-51 BRKT-MNTG
3801F823-51 3801F823-51 BRKT-PAN
9762761 9762761 BROCHURE, TIPS SAFE COOKING (ENGLISH)
W10065852 W10065852 BROCHURE, TIPS SAFE COOKING (FRENCH)
WP74009925 WP74009925 BULB- HALO
74009408 74009408 BUTTON, PLUG (THERMOSTAT)
3818F108-51 3818F108-51 CHANNEL B
3601F343-51 3601F343-51 CHANNEL- V

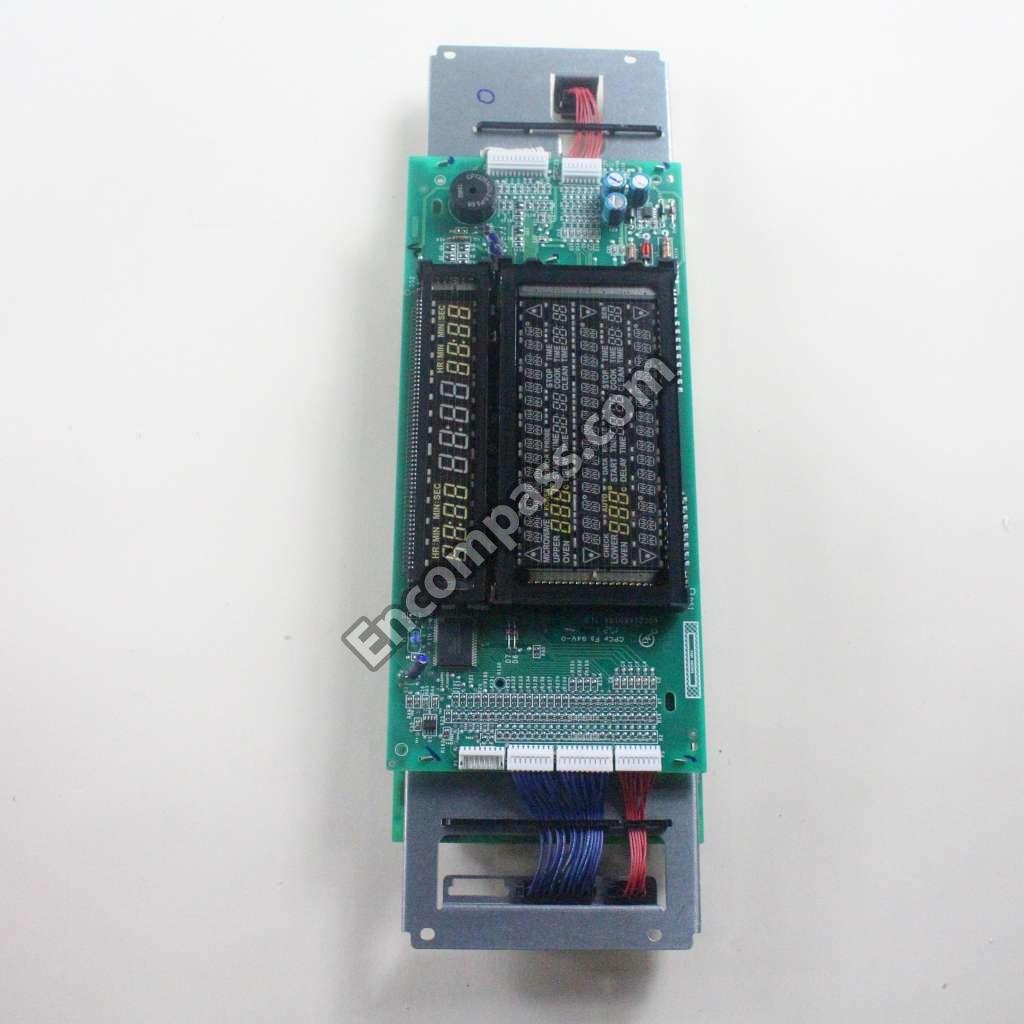

WP74009719 WP74009719 CONTROL, SINGLE
4005F726-45 4005F726-45 COVER
2624F043-51 2624F043-51 COVER
3605F336-19 3605F336-19 COVER CON
W10187048 W10187048 COVER-REAR
4005P712-51 4005P712-51 COVERREAR
8119P255-60 8119P255-60 DIAGRAM, WIRING (ENGLISH)
8119P260-60 8119P260-60 DIAGRAM, WIRING (FRENCH)
WPW10186996 WPW10186996 DOOR DOOR LATCH
WP7701P475-60 WP7701P475-60 DOOR HANDLE
WP7406P322-60 WP7406P322-60 ELMNT-BAKE
WPW10184147 WPW10184147 ELMNT-BROL

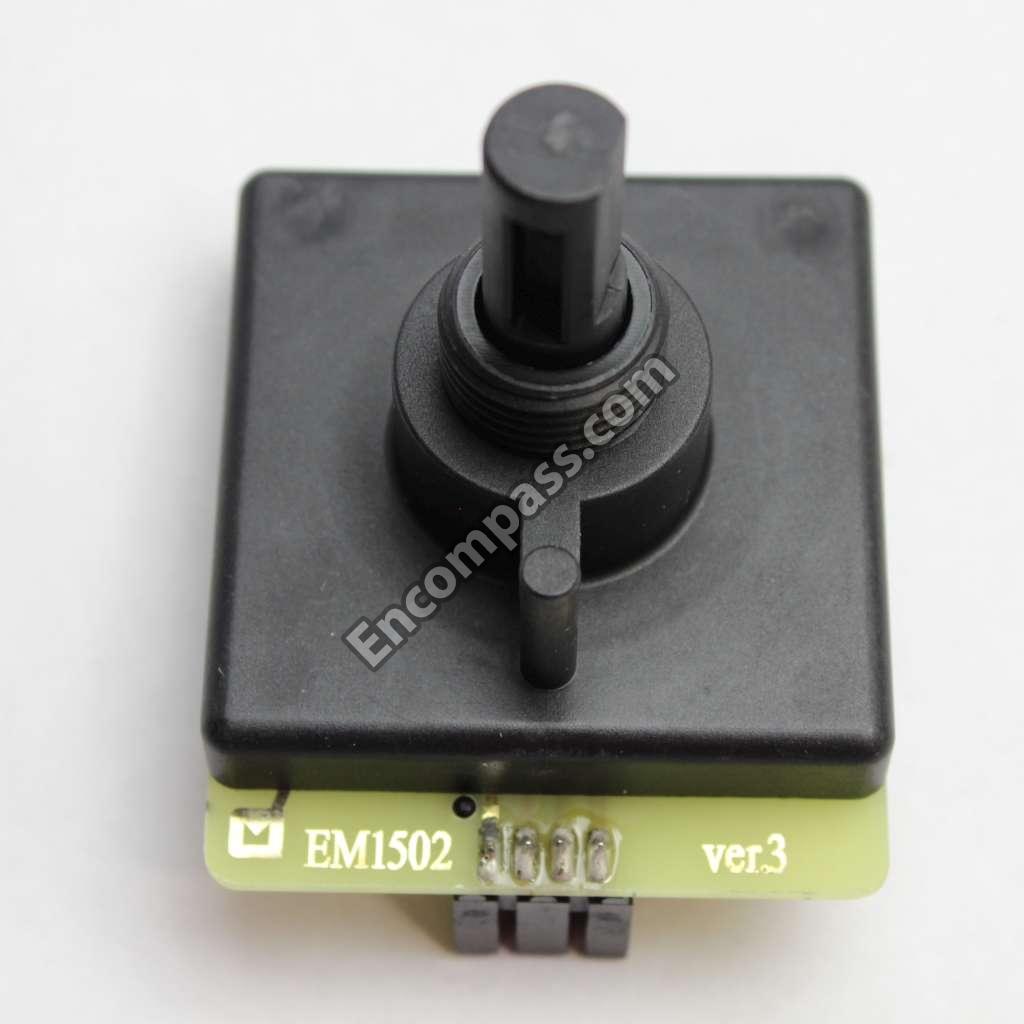

WP74008488 WP74008488 ENCODER, ROTARY
WP74008383 WP74008383 FAN- TANGE
8038P035-60 8038P035-60 FOOT- OVEN
WPW10162386 WPW10162386 GASKT-DOOR
7912P375-60 7912P375-60 GLASS, CONTROL
WPY74008423 WPY74008423 GLASS, DOOR (SCREENED)
7902P585-60 7902P585-60 GLASS, INNER
74003645 74003645 GLASS, INNER
5171P084-60 5171P084-60 HARNESS, WIRE (CONTROL ENCODED)
74008345 74008345 HARNESS, WIRE (CONTROL TOP)
5171P672-60 5171P672-60 HARNESS, WIRE (MAIN)
5171P153-60 5171P153-60 HARNESS, WIRE (SENSOR)
5171P208-60 5171P208-60 HARNS-WIRE
5700P829-60 5700P829-60 HARNS-WIRE
WP74010283 WP74010283 HINGE
8101P602-60 8101P602-60 INSTALLATION INSTRUCTIONS
7002P246-60 7002P246-60 INSULATION
7002P352-60 7002P352-60 INSULATION, BACK
7002P423-60 7002P423-60 INSULATION, WRAP
74008493 74008493 KNOB
2402W314-19 2402W314-19 LINER-DOOR
74006889 74006889 NAMEPLATE
Y704977 Y704977 NUT
9831122 9831122 NUT
W10169644 W10169644 OWNERS MANUAL
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
3401F079-45 3401F079-45 PAN-HIDDEN
2624F079-51 2624F079-51 PANEL BOT
2618F215-51 2618F215-51 PANEL SID
2624F098-44 2624F098-44 PANEL, CONTROL BOX TOP
7720P544-60 7720P544-60 PANEL, CONTROL PRO
7760P115-60 7760P115-60 PANEL, DOOR
7760P113-60 7760P113-60 PANEL, SIDE DOOR (LEFT)
7760P112-60 7760P112-60 PANEL, SIDE DOOR (RIGHT)
2618F226-51 2618F226-51 PANELVENT
WP7430P038-60 WP7430P038-60 PROBE-MEAT
7408P088-60 7408P088-60 PROBE-MEAT
WP74008410 WP74008410 RACK, OFFSET
WPW10273862 WPW10273862 RACK-OVEN
W10275560 W10275560 RACK-OVEN
W10273863 W10273863 RACKOVEN
3804F244-51 3804F244-51 RETAINER
3804F303-51 3804F303-51 RETAINER
3804F144-45 3804F144-45 RETAINER
2624F094-51 2624F094-51 RETAINER
3804F246-51 3804F246-51 RETAINER, CONTROL
WP7101P434-60 WP7101P434-60 SCREW
WP90767 WP90767 SCREW
WPY706189 WPY706189 SCREW
7101P652-60 7101P652-60 SCREW
WP74008369 WP74008369 SENSOR- OV
2624F076-51 2624F076-51 SIDE PANEL
2624F077-51 2624F077-51 SIDE PANEL
350930 350930 SPRAY
3807F717-51 3807F717-51 SUPPORT
3807F754-45 3807F754-45 SUPPORT
3807F706-51 3807F706-51 SUPPORT
WP7450P108-60 WP7450P108-60 SWTCH-LITE
WP7403P899-60 WP7403P899-60 SWTCH-SFTY
WP74009752 WP74009752 TRIM, SIDE (LEFT)
WP74009751 WP74009751 TRIM, SIDE (RIGHT)
3608F099-70 3608F099-70 TRIM-BOTTM
3608F102-70 3608F102-70 TRIMBOTTM
3608F109-70 3608F109-70 TRIMPANEL
8026P065-60 8026P065-60 TUBE-VENT
8034P008-60 8034P008-60 TUBE-VENT
72032 72032 TUCHUP
72017 72017 TUCHUP
