Model Image
Manufacturer

Whirlpool

Model Number

JMV8196ACS

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
815092 815092 ADAPTER
R9800472 R9800472 ASSEMBLY- FUSE
R0130588 R0130588 ASSY,DOOR FRAME
W10206728 W10206728 BLOCK-FUSE
53001046 53001046 BOARD, CONTROL
R9800480 R9800480 BOLT, TOGGLE
R0130615 R0130615 BRACKET C
R0130653 R0130653 BRACKET, CONTROL PANEL
W10141020 W10141020 BRKT-SUPPT
8184278 8184278 CANOPY
WP59001168 WP59001168 CAPACITOR-
Y53001527 Y53001527 CASE, OUTER (BLK)
R9800466 R9800466 CORD, POWER
R9800462 R9800462 COVER
R9800374 R9800374 COVER POW
R0130590 R0130590 COVER, CHOKE
R0131687 R0131687 COVER, STIRRER FAN

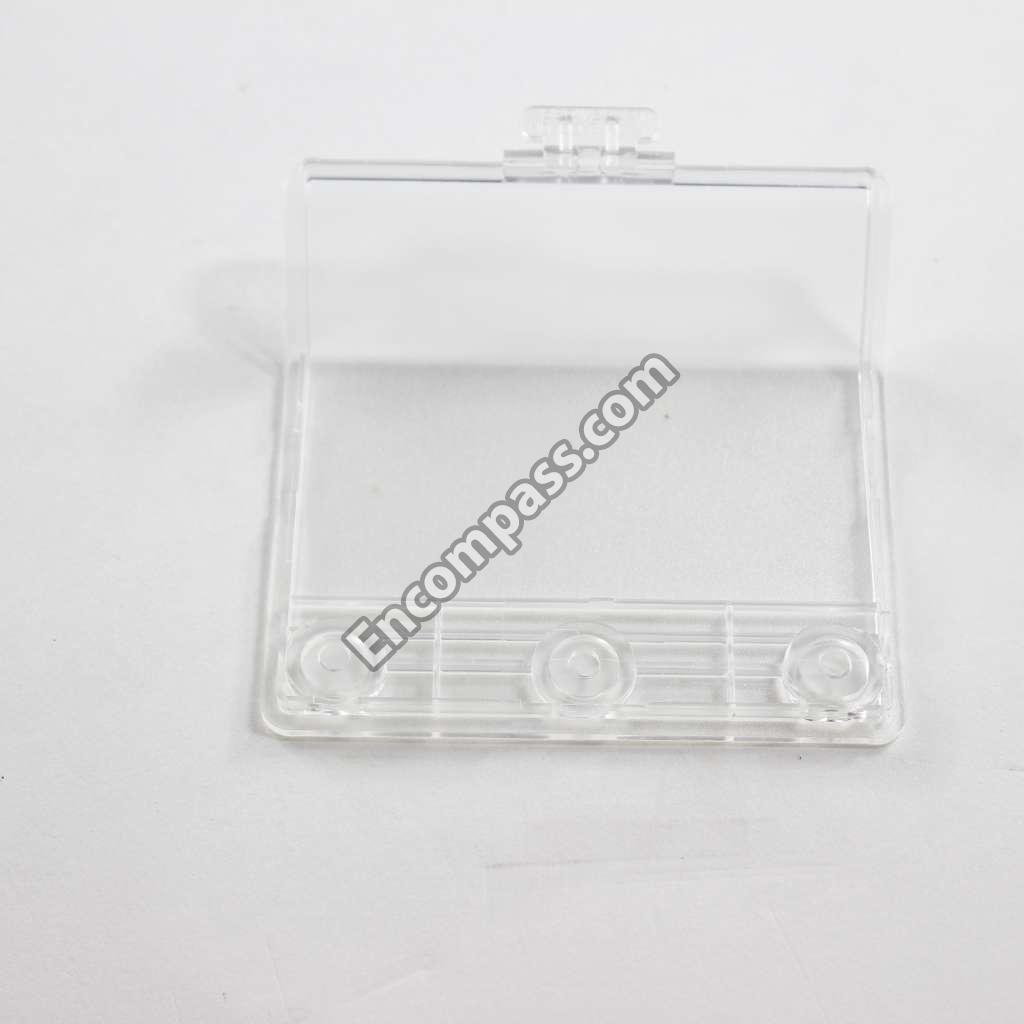

WPR0130614 WPR0130614 COVER- LAM
53001387 53001387 DAMPER, AIR
8183558 8183558 DOOR LATCH BOARD
WPW10273649 WPW10273649 DOOR LATCH, DOOR
R0130619 R0130619 FAN STIRR

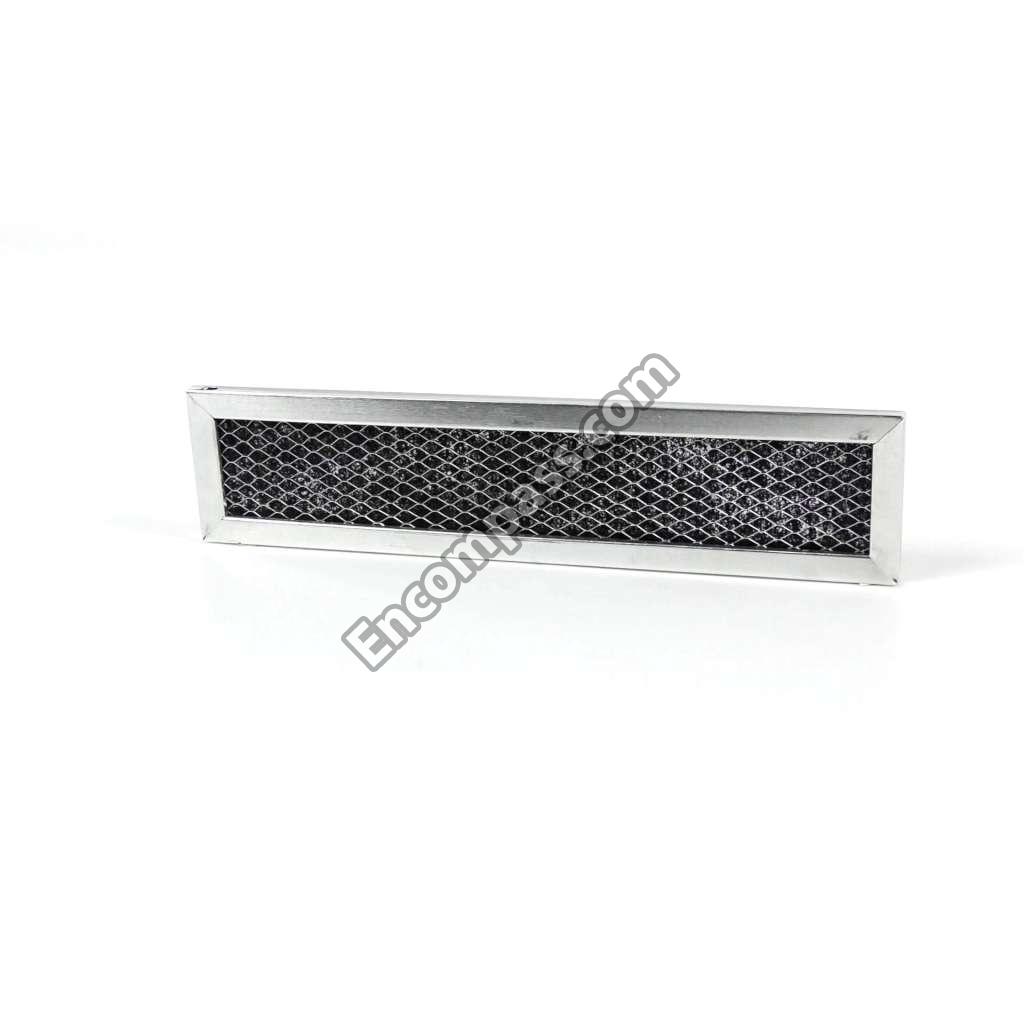

4359624 4359624 FILTER, CHOKE
WPR0131462 WPR0131462 FILTER- CH
WPR0130608 WPR0130608 FILTER- GR
WP8183507 WP8183507 FUSE
4359514 4359514 FUSE
53001064 53001064 GRILLE, VENT (STLS/BLK)
R0130618 R0130618 GUIDE AIR
53001011 53001011 HANDLE, DOOR (CHR)
8205041 8205041 HOLDER, SHELF
W10238931 W10238931 HOLDER, STIRRER FAN
W10310562 W10310562 KIT, MTG HARDWARE
53001178 53001178 LEAD WIRE
R9800416 R9800416 LEVER, DOOR LATCH
8206232A 8206232A LIGHT BULB
WPA3073101 WPA3073101 LIGHT BULB
16021668 16021668 MANUAL, SERVICE (OTR M/W OVEN)
53001177 53001177 MANUAL, USE & CARE
W10859575 W10859575 MICROWAVE MAGNETRON
R0130628 R0130628 MOTOR VEN
R0130627 R0130627 MOTOR, FAN
R0130610 R0130610 MOTOR, TURN TABLE
R0130606 R0130606 MOUNT, PLATE
WP4158326 WP4158326 NUT-TOGGLE
53001055 53001055 PANEL, DOOR (STNL/BLK)
R0130613 R0130613 PLATE BOT
R0130626 R0130626 PLATE, BASE
WP8184050 WP8184050 PLATE, MOUNTING PLATE
8184292 8184292 PROPELLER
WP13091701 WP13091701 RECTIFIER
R0130599 R0130599 REFLECTOR
R0130600 R0130600 REFLECTOR
WP4359508 WP4359508 RIVET-STIR
4358933 4358933 ROD
4358271 4358271 SCREW
4344826 4344826 SCREW
R9800487 R9800487 SCREW
WPY706189 WPY706189 SCREW
W11380570 W11380570 SCREW
8169475 8169475 SCREW
WP4158323 WP4158323 SCREW
4176862 4176862 SCREW
R0654180 R0654180 SCREW PAN
R0131307 R0131307 SCREW TAPP
R9800412 R9800412 SCREW, TAP TH
R0130646 R0130646 SENSOR ASY
W10192853 W10192853 SHELF
R9800407 R9800407 SOCKET, LAMP
8171918 8171918 SPRING
W11199019 W11199019 SUPPORT
WPW10207752 WPW10207752 SUPPORT
R0130605 R0130605 SUPPORT
4392027 4392027 SWITCH MICRO PRIMARY
53001048 53001048 SWITCH, M`BRANE W/CTR PNL(STN)
R0130589 R0130589 TAPE, SEAL
R0131460 R0131460 THERMOSTAT, BIMETAL
WP53001817 WP53001817 THERMOSTAT, BIMETAL
R0130620 R0130620 TRANSFORME
WPR0130603 WPR0130603 TRAY, GLASS
WP4158314 WP4158314 WASHER
R0130611 R0130611 WIRE LEAD
R0130624 R0130624 WIRE LEAD
