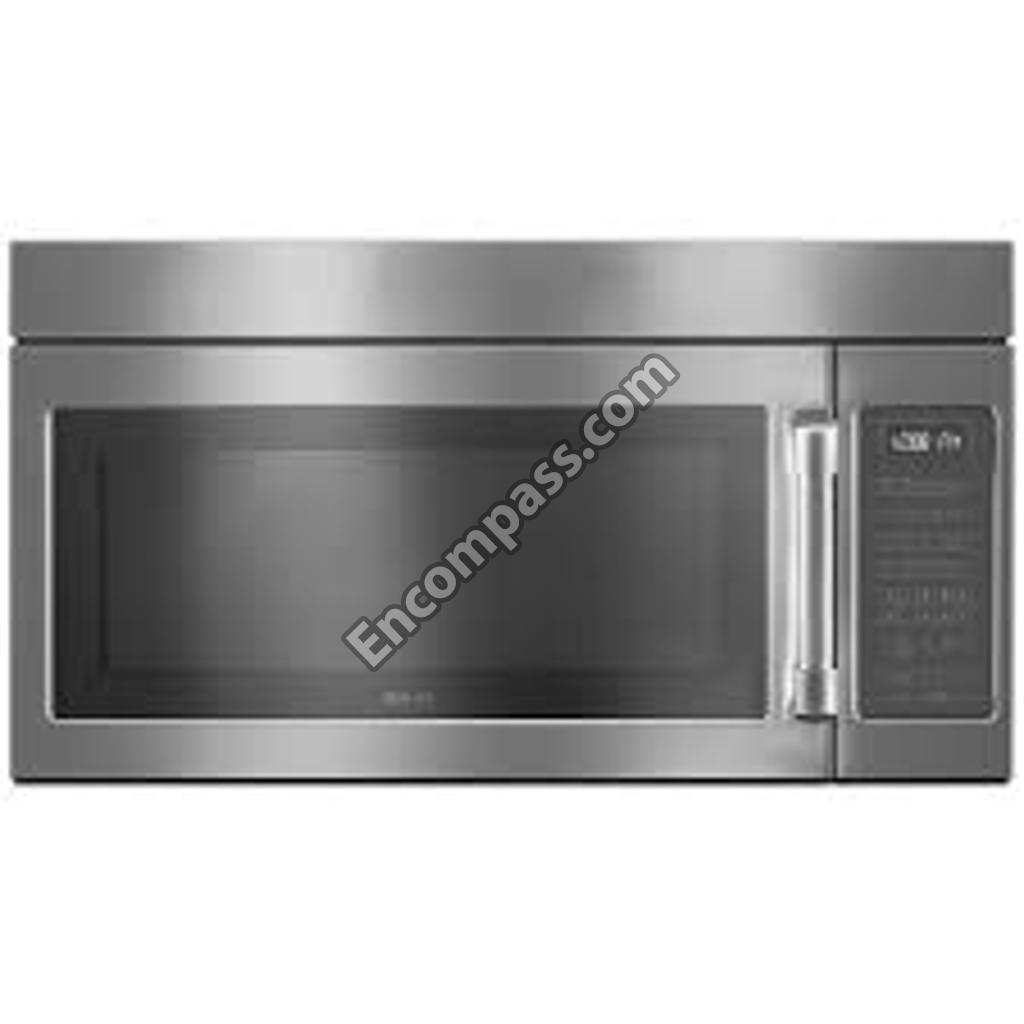

Model Image
Manufacturer

Whirlpool

Model Number

JMV8208WP0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10210832 W10210832 ADAPTER
W10640884 W10640884 AIR GUIDE, LOWER
W10245196 W10245196 BASE
W10286815 W10286815 BASE
W10310720 W10310720 BASE
W10420764 W10420764 BASE-HNDLE
W10420755 W10420755 BASE-HNDLE
W10420756 W10420756 BASE-HNDLE
W10420761 W10420761 BASE-HNDLE
W10420762 W10420762 BASE-HNDLE
W10245194 W10245194 BLOCK-FUSE
W10532063 W10532063 BRACKET, CAPACITOR
W10245199 W10245199 BRKT-CNTRL
W10156815 W10156815 BRKT-MOUNT
W10640885 W10640885 BRKT-MOUNT
W10508582 W10508582 BRKT-MOUNT
W10245179 W10245179 BRKT-SENSR
W10310724 W10310724 CAM-PLATE
W11405831 W11405831 CAPACTR-DM
W10850446 W10850446 CAPACTR-MG
8206385 8206385 CLIP-WIRE
WPW10499304 WPW10499304 CONTROL BOARD
WPW10569241 WPW10569241 CONTROL BOARD
W10708076 W10708076 CORD-POWER
W10245193 W10245193 COVR-DUCT
W10245182 W10245182 COVR-DUCT
W10313272 W10313272 COVR-INLET
8206382 8206382 COVR-LIGHT
W10210873 W10210873 COVR-LIGHT
W10245212 W10245212 COVR-LIGHT
W10843943 W10843943 DAMPER
W10286814 W10286814 DEFLCTR-AR
W11256462 W11256462 DIODE
W10372910 W10372910 DOOR/MW
W10372911 W10372911 DOOR/MW
W10372912 W10372912 DOOR/MW
W10372913 W10372913 DOOR/MW
W10387590 W10387590 DUCT-AIR
8206624 8206624 FILTER
8206230A 8206230A FILTER
W10208631A W10208631A FILTER
W11707984 W11707984 FUSE-THRML
WPW10210875 WPW10210875 GLASS-LAMP
WPW10310713 WPW10310713 GRILL-VENT
W10310711 W10310711 GRILL-VENT
W10310714 W10310714 GRILL-VENT
W10245214 W10245214 GUIDE-AIR
W10372909 W10372909 GUIDE-AIR
8205948 8205948 HARD-MOUNT
W10539840 W10539840 HARNS-WIRE
W10259386 W10259386 HARNS-WIRE
W10557519 W10557519 HARNS-WIRE
W10310702 W10310702 HNDLE-DOOR
W10310705 W10310705 HNDLE-DOOR
W10310701 W10310701 HNDLE-DOOR
W10310704 W10310704 HNDLE-DOOR
W10310722 W10310722 HOLDER
WPW10210878 WPW10210878 HOUSNG-LMP
W10270797 W10270797 HOUSNG-LMP
W10238252 W10238252 INSTALL, INSTRUCT.
WPW10156813 WPW10156813 INTERLOCK
WP8206419 WP8206419 INTERLOCK
W10709921 W10709921 LAMP, HALOGEN
8206232A 8206232A LIGHT BULB
W10222507 W10222507 MAGNETRON
W10557525 W10557525 MISCELLANEOUS PARTS, HARNESS, HEADLAMP AND TURNTABLE
W10310726 W10310726 MOTOR-CIRC
W10755867 W10755867 MOTOR-FAN
W11661547 W11661547 MOTOR-TURN
W10372906 W10372906 PANL-CNTRL
W10372907 W10372907 PANL-CNTRL
W10372908 W10372908 PANL-CNTRL
W10197758 W10197758 PISTON
W10164716 W10164716 PLATE
W10310725 W10310725 PLATE
W10562613 W10562613 PLATE, CAM
W11025649 W11025649 PLATE-MTNG
W10318721 W10318721 QUICK REFERENCE
WPW10447234 WPW10447234 RACK-MEAL
W10245190 W10245190 RESISTOR
W11319886 W11319886 RIVET-STIR
WP8169704 WP8169704 SCREW
W10138802 W10138802 SCREW
W10245178 W10245178 SENSOR
W10117846 W10117846 SOCKET, MOTOR WIRE
8184109 8184109 SPACER
W10156812 W10156812 SPRING
W10840795 W10840795 SUPPORT
W10840794 W10840794 SUPPORT
W10840759 W10840759 SUPPORT
W10289910 W10289910 SUPPORT
W10290311 W10290311 SUPPORT
W10727360 W10727360 SWITCH
W10269458 W10269458 SWITCH
W10269460 W10269460 SWITCH
W10310727 W10310727 SWITCH
W10318720 W10318720 TECH SHEET, SLIM
W10190018 W10190018 TEMPLATE, UPPER
W10163422 W10163422 THERMISTOR
W10864742 W10864742 THERMOSTAT, CAVITY 125/-35 CELCIUS
W10598693 W10598693 THERMOSTAT, MICROWAVE MAGNETRON
W10847064 W10847064 TRANSFORMR
W10289909 W10289909 TRAY-COOK
W10318717 W10318717 U & C GUIDE
WPW10245176 WPW10245176 WRAPER-CAB
WPW10244765 WPW10244765 WRAPER-CAB
