Model Image
Manufacturer

Whirlpool

Model Number

JMW2427IM02

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
W11037652 W11037652 "CHASSIS, COVER TOP BACK 27"" WIFI"
W10318159 W10318159 "CHASSIS, COVER TOP FRONT 27"""
W11242909 W11242909 "RACK, 27"" OVEN"
W11256306 W11256306 "RACK, 27"" SLIDING"
W11299325 W11299325 "VENT, CENTER 27"""
W11042467 W11042467 ACCESSORIES, CLEANER, STAINLESS STEEL
4396923 4396923 ACCESSORIES, GRID, BROILER PAN AND
W10123240 W10123240 ACCESSORIES, RACK, BROILER PAN & ROASTING
8205262RB 8205262RB ACCESSORIES, STEAMER, MICROWAVE
W10536162 W10536162 ACCESSORY PARTS, KIT, COMBO OVEN MICROWAVE SIDE TRIM (BLACK)
WP482338 WP482338 ADHESIVE
W11214480 W11214480 ARM
WPW10128850 WPW10128850 ARM
W11411895 W11411895 ASSEMBLY, HANDLE (STAINLESS)

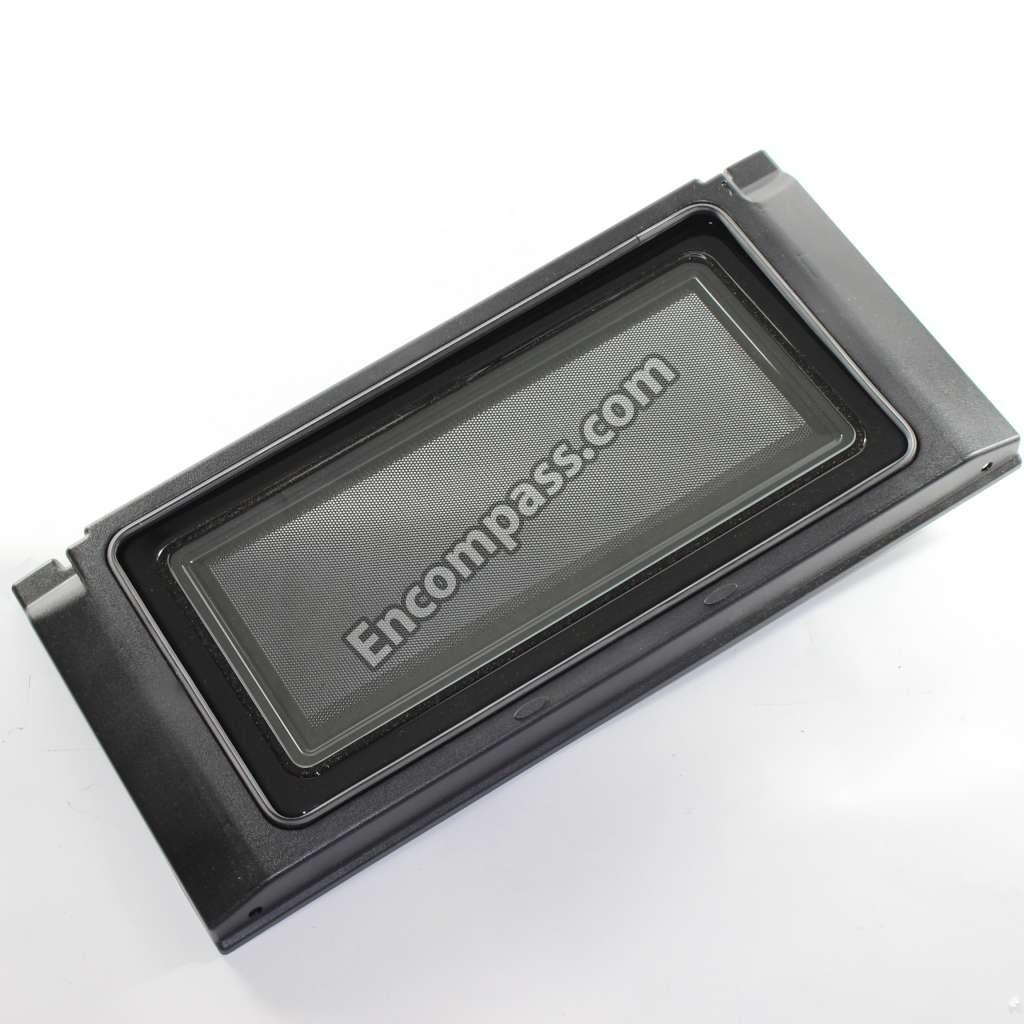

W10737653 W10737653 ASSEMBLY, INNER DOOR
W10904162 W10904162 BACK, CHASSIS
W11241587 W11241587 BAFFL-CONV
W10282901 W10282901 BASE, CHASSIS
W10616809 W10616809 BASE, VENT EXHAUST
W11248652 W11248652 BLOWER
W10655463 W10655463 BRACKET, BLOWER (LEFT)
W10655462 W10655462 BRACKET, BLOWER (RIGHT)
W11316564 W11316564 BRACKET, MWO BALANCING
WPW10581826 WPW10581826 BRKT-SUPRT
WPW10581831 WPW10581831 BRKT-SUPRT
WPW10351278 WPW10351278 BUMPER
W11193483 W11193483 CAMERA LENS-LAMP
8304588BL 8304588BL CAP, SCREW
W10655465 W10655465 CHASSIS, BACK DIVIDER
W10655467 W10655467 CHASSIS, COMBO SIDE
W10655466 W10655466 CHASSIS, COMBO SIDE (LEFT)
W10283029 W10283029 CHASSIS, COMBO SIDE (RIGHT)
W10904159 W10904159 CHASSIS, TOP
4448664 4448664 CLAMP, CONDUIT
WPW10549747 WPW10549747 CLIP
W10120231 W10120231 CLIP, SPRING
W11460599 W11460599 CONSOLE
W11325784 W11325784 CONTROL BOARD
WPW10260060 WPW10260060 CONTROL BOARD
W11448962 W11448962 CONTROL BOARD
W10519707 W10519707 COVER, BACK DUCT
W10521808 W10521808 COVER, BAFFLE
W10681157 W10681157 COVER, COMBO BLOWER
W11037653 W11037653 COVER, COMBO CHASSIS BACK DUCT (WITH HOLE)
8285593 8285593 COVER, CONNECTOR
W10616810 W10616810 COVER, VENT EXHAUST
W10915651 W10915651 COVER-PLT
WPW10283008 WPW10283008 COVR-ACESS
W11676353 W11676353 COVR-MOTOR
W10282957 W10282957 CROSSBAR, HIDDEN BAKE TRAY
W10904163 W10904163 DEFLECTOR, BLOWER
W10681156 W10681156 DEFLECTOR, CHASSIS
W11235300 W11235300 DIAGRAM, WIRING
W10883049 W10883049 DOOR DOOR LATCH
W10874474 W10874474 DOOR HINGE
461967754821 461967754821 DUCT, MICROWAVE MAGNETRON
WPW10387651 WPW10387651 ELEMENT
W11678579 W11678579 ELEMENT
W11545804 W11545804 ELMNT-BAKE
W10804429 W10804429 ELMNT-BROL
W11512064 W11512064 FAN
W10819914 W10819914 FAN-CONVCT
W11398764 W11398764 FILTER
W10359769 W10359769 FOAM, DOOR HANDLE
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WPW10017410 WPW10017410 FUSE
W11188752 W11188752 FUSE
W10739090 W10739090 GASKET, CAVITY
W11362210 W11362210 GLASS DOOR
W11349273 W11349273 GLASS DOOR
W11349274 W11349274 GLASS DOOR
W11349268 W11349268 GLASS DOOR
W11235342 W11235342 GUIDE, USE & CARE (OVEN)
W11235344 W11235344 GUIDE, USE & CARE (OVEN/MICRO COMBO)
W11218702 W11218702 HANDLE-PAN
W11356977 W11356977 HARNESS, CABLE TREE ASSEMBLY
W11218145 W11218145 HARNESS, COMMUNICATION
W11219538 W11219538 HARNESS, DOOR DOOR LATCH
W11356954 W11356954 HARNESS, FAN AND TURNTABLE
W11356968 W11356968 HARNESS, INVERTER
W10566973 W10566973 HARNESS, KEYPAD (LEFT TO CENTER)
W10524350 W10524350 HARNESS, KEYPAD (RIGHT TO CENTER)
W11216677 W11216677 HARNESS, MAIN
W11216660 W11216660 HARNESS, SIGNAL
WPW10493735 WPW10493735 HEATER
W11318032 W11318032 HINGE, DOOR
W11613828 W11613828 HINGE-RECV
4454949 4454949 HOLDER, FUSE
W10245194 W10245194 HOLDER, FUSE
W10668510 W10668510 HOUSING
WPW10490593 WPW10490593 HOUSNG-LMP
W11235622 W11235622 INSTRUCTIONS, INSTALLATION
W10351318 W10351318 INSTRUCTIONS, UNDERCOUNTER INSTALL
W11688333 W11688333 INSULATION
W10520716 W10520716 INSULATION, WRAP
W11214928 W11214928 INTERLOCK
W11325604 W11325604 INVERTER
W11252826 W11252826 JACK, MEAT PROBE
W10575307 W10575307 JUMPER HARNESS, POWER SUPPLY
WPW10472384 WPW10472384 LIGHT BULB
WPW10519866 WPW10519866 LIGHT-OVEN
W11292252 W11292252 LIGHT-OVEN
W10886919 W10886919 LMP-BASLES
W11231343 W11231343 LOCKNUT
W11346197 W11346197 MICROWAVE MAGNETRON
W11344874 W11344874 MOTOR-FAN
W10860984 W10860984 MOTOR-FAN
W10911403 W10911403 MOTOR-TURN
W11534564 W11534564 MTR-CONVCT
W10794042 W10794042 NUT
WP488130 WP488130 NUT
W10489274 W10489274 PAD, VENT
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
261900 261900 PAINT, SPRAY (CITRINE WHITE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11755098 W11755098 PAN-CRISP
WP9755542 WP9755542 PROBE-MEAT
W11175831 W11175831 RACK
W10748280 W10748280 RACK, HIGH CONVECTION
W10284278 W10284278 RAIL, DOOR SIDE (LEFT)
WPW10284279 WPW10284279 RAIL, DOOR SIDE (RIGHT)
W10710302 W10710302 RAIL, SIDE (LEFT)
W10710309 W10710309 RAIL, SIDE (RIGHT)
W11607085 W11607085 RANGE THERMOSTAT
WP4449751 WP4449751 RANGE THERMOSTAT
W11290976 W11290976 RANGE THERMOSTAT
423107022541 423107022541 REFLECTOR
W11110134 W11110134 RING-TURN
WPW10120235 WPW10120235 ROD-REL
W11233072 W11233072 SCREW
WP98008545 WP98008545 SCREW
W11684512 W11684512 SCREW
W11690594 W11690594 SCREW
461967825321 461967825321 SCREW
461967825971 461967825971 SCREW
W11347848 W11347848 SCREW
W10739592 W10739592 SCREW
W10850807 W10850807 SCREW
W11690596 W11690596 SCREW
WP3196183 WP3196183 SCREW
WPW10254050 WPW10254050 SCREW
WPY706189 WPY706189 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP90767 WP90767 SCREW
W10489172 W10489172 SCREW
4450800 4450800 SCREW, GROUNDING
W10491987 W10491987 SEAL-FOAM
W10769147 W10769147 SEALING, LAMP
W11208292 W11208292 SENSOR
W11699906 W11699906 SENSOR
W11233913 W11233913 SENSOR
W11179756 W11179756 SHAFT-TURN
W11284425 W11284425 SHEET, TECH (OVEN/MICRO COMBO)
W10588738 W10588738 SHIELD, BROIL FRONT
W11290999 W11290999 SHIELD-HT
W10283025 W10283025 SIDE, BRACKET
W10318190 W10318190 SIDE, CHASSIS
WPW10517428 WPW10517428 SPACER
W10840861 W10840861 SPACER
W11240831 W11240831 SPACER
W10351308 W10351308 SPACER, CHASSIS BOTTOM DUCT
W11132942 W11132942 SPACER, HANDLE
W10347649 W10347649 SPACERS, FRONT
W11123146 W11123146 SPEAKER
W11715912 W11715912 SPRING
W11700292 W11700292 SPRING
W10465869 W10465869 SPRING, LAMP
W11226264 W11226264 STRAP, GROUND
W11724411 W11724411 SUPPORT
W11684510 W11684510 SUPPORT
W10213759 W10213759 SUPPORT, AIR CHANNEL
W10283020 W10283020 SUPPORT, BASE (LEFT)
W10283021 W10283021 SUPPORT, BASE (RIGHT)
8205707 8205707 SUPPORT, BOTTOM
W10283023 W10283023 SUPPORT, CROSSBAR
W10211972 W10211972 SWITCH, MICRO V15T16-CZ200
461967842541 461967842541 THERMOACTUATOR
W11238401 W11238401 TRANSFORMR
W10318198 W10318198 TRAY, HIDDEN BAKE
W11373838 W11373838 TRAY-COOK
461967017511 461967017511 TRIM, SIDE (LEFT)
W11044584 W11044584 TRIM, SIDE (RIGHT)
W11240525 W11240525 TUBE-VENT
461968973251 461968973251 VENT, TOP
W11280093 W11280093 VENT, TOP METAL
WPW10327376 WPW10327376 VENT-OVEN
W11676355 W11676355 WASHER
W11313010 W11313010 WASHER
W11449277 W11449277 WIRE HARNESS
W11325605 W11325605 WIRE HARNESS
