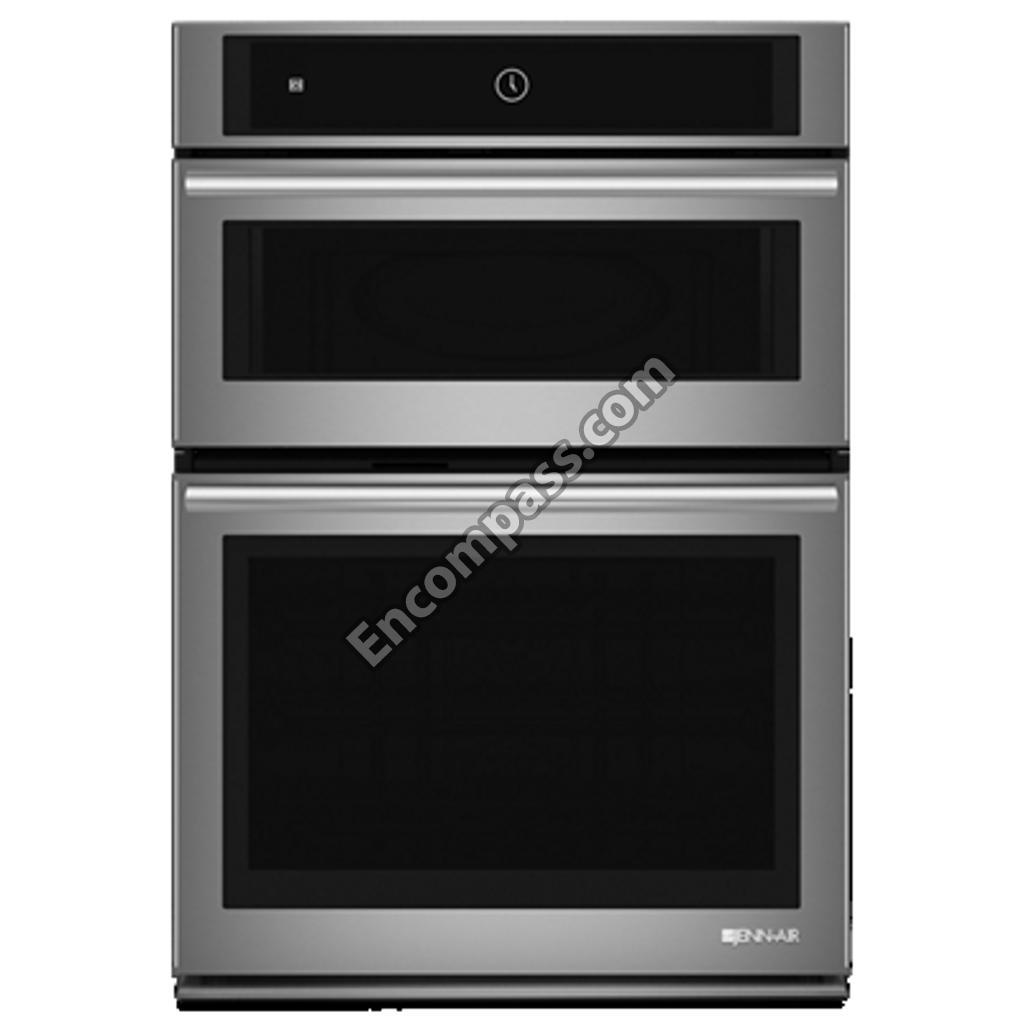

Model Image
Manufacturer

Whirlpool

Model Number

JMW2430DS00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4396923 4396923 ACCESSORIES, BROILER PAN AND GRID
8205262RB 8205262RB ACCESSORIES, STEAMER, MICROWAVE
W10536162 W10536162 ACCESSORY PARTS, KIT, COMBO OVEN MICROWAVE SIDE TRIM (BLACK)
WP482338 WP482338 ADHESIVE
W11042467 W11042467 AFFRESH STAINLESS STEEL CLEANE
W11214480 W11214480 ARM
WPW10128850 WPW10128850 ARM
W10725069 W10725069 ASSEMBLY, DOOR (BLACK)
W10527390 W10527390 ASSEMBLY, OUTER DOOR (BLACK)
W10457801 W10457801 ASSEMBLY, OUTER DOOR (STAINLESS)
W10496637 W10496637 BAFFL-CONV
W10521808 W10521808 BAFFL-CONV
W11245567 W11245567 BLOWER
W10853628 W10853628 BRKT-GLASS
W10812024 W10812024 BRKT-GLASS
W10669415 W10669415 BRKT-GLASS
W11025615 W11025615 BRKT-GLASS
W10655465 W10655465 BRKT-MNTG
W10655463 W10655463 BRKT-MNTG
W10655462 W10655462 BRKT-MNTG
W10283024 W10283024 BRKT-MNTG
W10407600 W10407600 BRKT-MNTG
W10351308 W10351308 BRKT-SUPRT
W10282957 W10282957 BRKT-SUPRT
WPW10351278 WPW10351278 BUMPER
W11193483 W11193483 CAMERA LENS-LAMP
8304588BL 8304588BL CAP, SCREW
4448664 4448664 CLAMP, CONDUIT
W10355010 W10355010 CLEANER
16515 16515 CLIP, HARNESS
W10120231 W10120231 CLIP, SPRING
W11236896 W11236896 CONSOLE

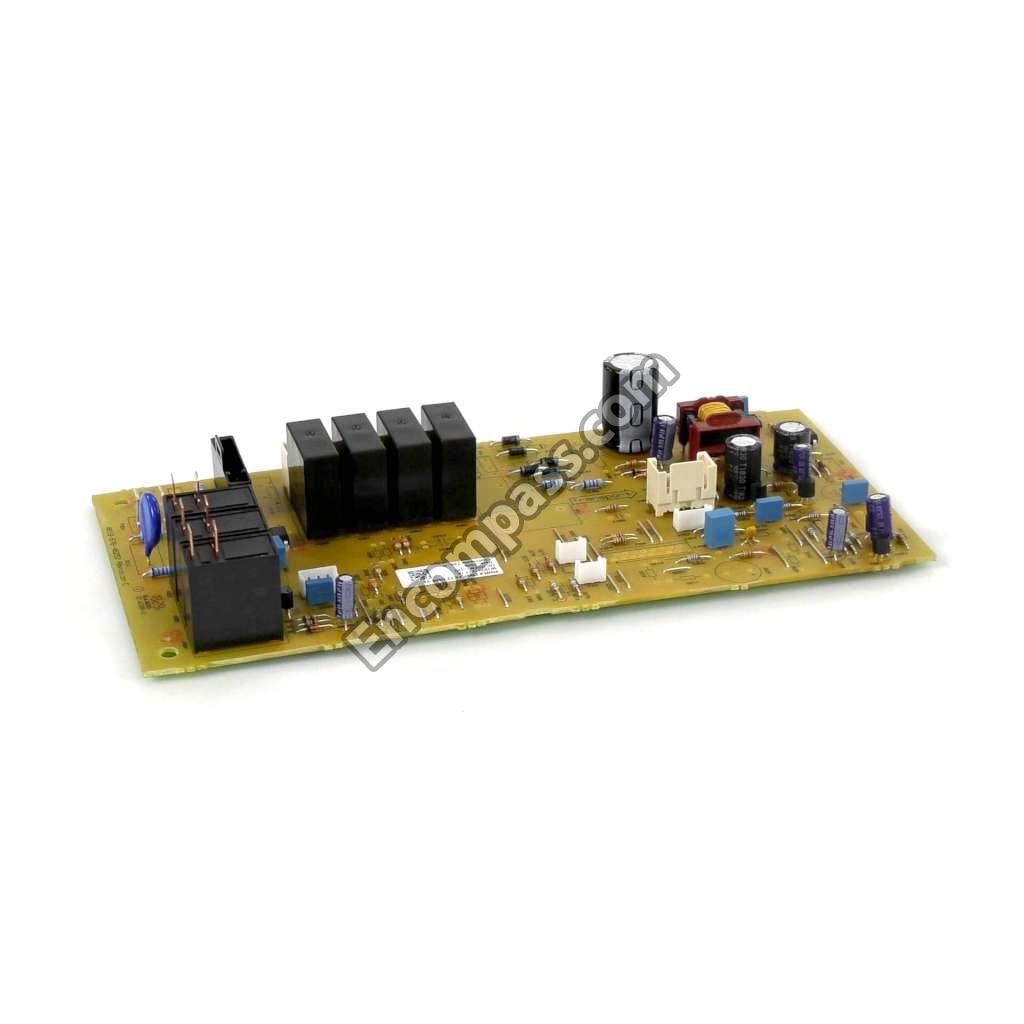

W10815465 W10815465 CONTROL BOARD
WPW10260060 WPW10260060 CONTROL BOARD
W11179310 W11179310 CONTROL BOARD
W10887855 W10887855 CONTROL PANEL
8285593 8285593 COVER, CONNECTOR
W10915651 W10915651 COVER-PLT
W10904160 W10904160 COVER-REAR
W10519703 W10519703 COVER-REAR
W10519707 W10519707 COVER-REAR
W10655467 W10655467 COVER-SIDE
W10655466 W10655466 COVER-SIDE
WPW10283008 WPW10283008 COVR-ACESS
W10283031 W10283031 COVR-ACESS
W10318158 W10318158 COVR-ACESS
W11238787 W11238787 COVR-ACESS
W10616810 W10616810 COVR-EXHST
W11676353 W11676353 COVR-MOTOR
W10681156 W10681156 DEFLCTR-VT
W10904163 W10904163 DEFLCTR-VT
W10883049 W10883049 DOOR DOOR LATCH
W10874474 W10874474 DOOR HINGE
W10825778 W10825778 DOOR HINGE
W10737653 W10737653 DOOR/MW
461967754821 461967754821 DUCT, MICROWAVE MAGNETRON
WPW10387651 WPW10387651 ELEMENT
W11678579 W11678579 ELEMENT
W11545804 W11545804 ELMNT-BAKE
W10804429 W10804429 ELMNT-BROL
W11512064 W11512064 FAN
W10819914 W10819914 FAN-CONVCT
W11398764 W11398764 FILTER
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WPW10709147 WPW10709147 FRAME-GLAS
WPW10017410 WPW10017410 FUSE
W11188752 W11188752 FUSE
W10359769 W10359769 GASKET-DOR
W11623080 W11623080 GASKET-OVN
WPW10618107 WPW10618107 GLASS DOOR
W10798378 W10798378 GLASS DOOR
WPW10347596 WPW10347596 GLASS DOOR
W10754335 W10754335 GUIDE, USE & CARE
W11218702 W11218702 HANDLE-PAN

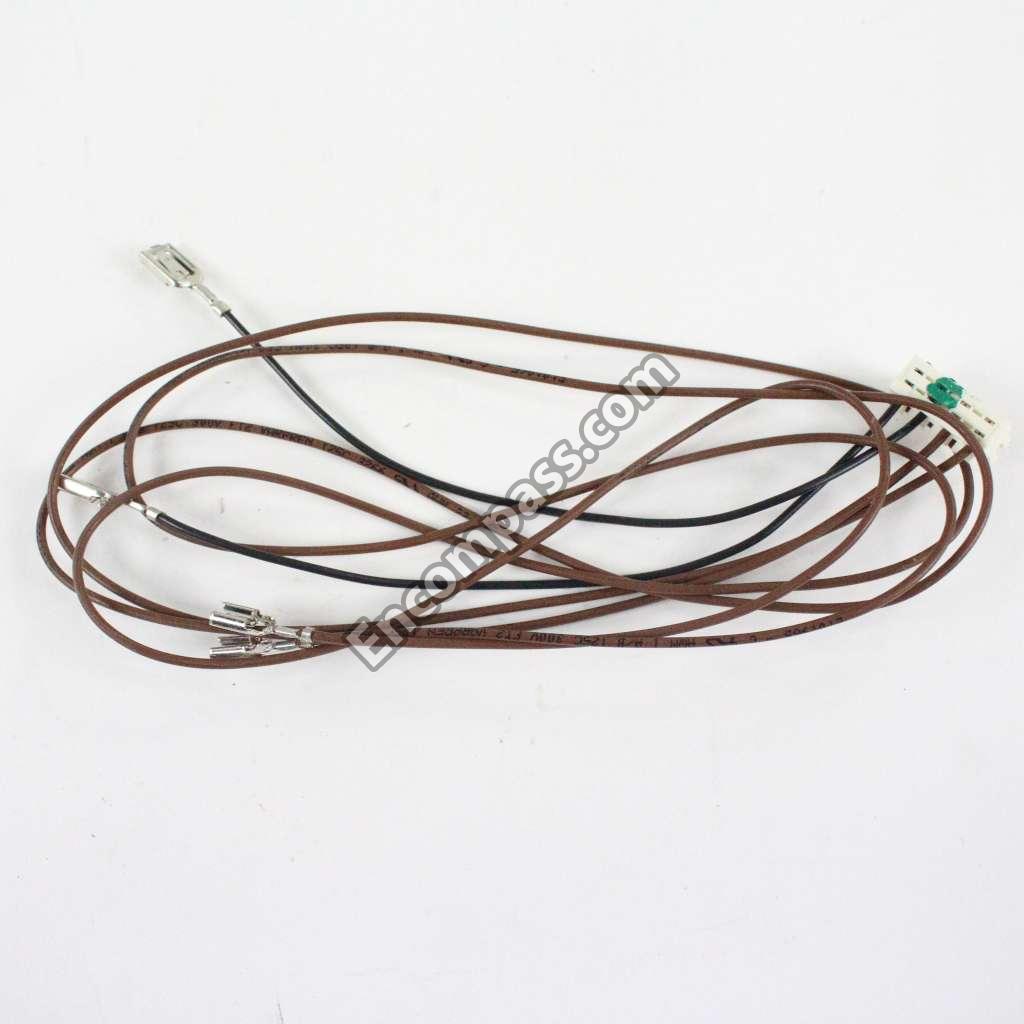

W11226264 W11226264 HARNS-WIRE
W10573327 W10573327 HARNS-WIRE
W10874060 W10874060 HARNS-WIRE
W10523786 W10523786 HARNS-WIRE
W11171471 W11171471 HARNS-WIRE
W11033088 W11033088 HARNS-WIRE
W10389372 W10389372 HARNS-WIRE
W11449277 W11449277 HARNS-WIRE
WPW10493735 WPW10493735 HEATER
W11642291 W11642291 HINGE-DOOR
W11613828 W11613828 HINGE-RECV
W10550998 W10550998 HNDLE-DOOR
W11195001 W11195001 HNDLE-DOOR
W11234410 W11234410 HNDLE-DOOR
4454949 4454949 HOLDER, FUSE
W10245194 W10245194 HOLDER, FUSE
WPW10490593 WPW10490593 HOUSNG-LMP
W10768184 W10768184 INSTALLATION INSTRUCTIONS
W10075750 W10075750 INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
W11684789 W11684789 INSULATION
W11688731 W11688731 INSULATION
WP8205683 WP8205683 INTERLOCK
W10217711 W10217711 INVERTER
WPW10524044 WPW10524044 JACK-PROBE
WPW10519866 WPW10519866 LENS-LIGHT
WPW10472384 WPW10472384 LIGHT BULB
W10886919 W10886919 LMP-BASLES
WP9755546 WP9755546 LOCKNUT
WP9755547 WP9755547 LOCKWASHER
W11684570 W11684570 MICROWAVE DOOR
W11346197 W11346197 MICROWAVE MAGNETRON
461969000371 461969000371 MOTOR, CONVECTION FAN
W11344874 W11344874 MOTOR-FAN
W10860984 W10860984 MOTOR-FAN
W10911403 W10911403 MOTOR-TURN
WPW10159578 WPW10159578 NAMEPLATE
WPW10214168 WPW10214168 NAMEPLATE
W10190724 W10190724 NAMEPLATE
W10794042 W10794042 NUT
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
261900 261900 PAINT, SPRAY (CITRINE WHITE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10123240 W10123240 PAN-BROILR
W11755098 W11755098 PAN-CRISP
W10318190 W10318190 PANEL-SIDE
W10444132 W10444132 PANL-CNTRL
W10323725 W10323725 PLATE-MTG
WP9755542 WP9755542 PROBE-MEAT
W11175831 W11175831 RACK
W10748280 W10748280 RACK
W11256305 W11256305 RACK, SLIDING
WPW10554526 WPW10554526 RACK-OVEN
W10710302 W10710302 RAIL, SIDE (LEFT)
W10710309 W10710309 RAIL, SIDE (RIGHT)
W11607085 W11607085 RANGE THERMOSTAT
WP4449751 WP4449751 RANGE THERMOSTAT
423107022541 423107022541 REFLECTOR
W11110134 W11110134 RING-TURN
WPW10120235 WPW10120235 ROD-REL
W11233072 W11233072 SCREW
W11684512 W11684512 SCREW
W11347848 W11347848 SCREW
WP98008545 WP98008545 SCREW
W10831019 W10831019 SCREW
WP3196183 WP3196183 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP90767 WP90767 SCREW
WP12990527 WP12990527 SCREW
461967825971 461967825971 SCREW
W10739592 W10739592 SCREW
4450800 4450800 SCREW, GROUNDING
W10491987 W10491987 SEAL-FOAM
W11208292 W11208292 SENSOR
W11699906 W11699906 SENSOR
W11233913 W11233913 SENSOR
W10859573 W10859573 SENSOR
W11179756 W11179756 SHAFT-TURN
W10588738 W10588738 SHIELD-HT
W10618105 W10618105 SPACER
W11376811 W11376811 SPACER
W11240831 W11240831 SPACER
W11123146 W11123146 SPEAKER
W11700292 W11700292 SPRING
W10465869 W10465869 SPRING
W11724411 W11724411 SUPPORT
W11684510 W11684510 SUPPORT
W10213759 W10213759 SUPPORT
W10283020 W10283020 SUPPORT
W10283021 W10283021 SUPPORT
W10283022 W10283022 SUPPORT
8205707 8205707 SUPPORT, BOTTOM
W10211972 W10211972 SWITCH, MICRO V15T16-CZ200
W10767736 W10767736 TECH SHEET
461967842541 461967842541 THERMOACTUATOR
W10730172 W10730172 TOP-CABNT
W11238401 W11238401 TRANSFORMR
W10318198 W10318198 TRAY-BAKE
W11373838 W11373838 TRAY-COOK
W10510106 W10510106 TRIM
W10486208 W10486208 TRIM, SIDE LEFT
W11240525 W11240525 TUBE-VENT
W10616809 W10616809 TUBE-VENT
W10754339 W10754339 USE AND CARE GUIDE (MICROWAVE)
461968973241 461968973241 VENT, TOP MICROWAVE
WPW10327374 WPW10327374 VENT-OVEN
WPW10351275 WPW10351275 VENT-OVEN
W10495154 W10495154 VENT-OVEN
