Model Image
Manufacturer

Whirlpool

Model Number

JMW3430WB02

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
461967842541 461967842541 ACTUATOR
W11214480 W11214480 ARM
WPW10128850 WPW10128850 ARM
W10176060 W10176060 BAFFL-CONV
W10245194 W10245194 BLOCK-FUSE
4454949 4454949 BLOCK-FUSE
WPW10273667 WPW10273667 BLOWER
W10280327 W10280327 BOTTM-MAIN
W10176094 W10176094 BOX-CNTRL
4006W217-45 4006W217-45 BOX-VENT
N_P N_P BRACKET (NOT SERVICED)
W10186882 W10186882 BRKT-GLASS
3807F678-45 3807F678-45 BRKT-MNTG
W10213720 W10213720 BRKT-MNTG
W10176126 W10176126 BRKT-MNTG
W10186997 W10186997 BRKT-MNTG
W10186983 W10186983 BRKT-MNTG
W10186986 W10186986 BRKT-MNTG
W10186985 W10186985 BRKT-MNTG
W10281176 W10281176 BRKT-MOUNT
W10176199 W10176199 BRKT-MOUNT
3801F823-51 3801F823-51 BRKT-PAN
W10130897 W10130897 BRKT-SUPPT
WPW10277424 WPW10277424 BRKT-SUPRT
WPW10277423 WPW10277423 BRKT-SUPRT
W10291274 W10291274 BRKT-SUPRT
7109P085-60 7109P085-60 BUMPER
W10176233 W10176233 BUMPER
74009408 74009408 BUTTON, PLUG (THERMOSTAT)
8304588BL 8304588BL BUTTON-PLG
W11193483 W11193483 CAMERA LENS-LAMP
W10280325 W10280325 CHANNEL
3601F343-51 3601F343-51 CHANNEL- V
W10176175 W10176175 CLIP
W10120231 W10120231 CLIP
W10176182 W10176182 CONDUIT
W11087470 W11087470 CONSOLE

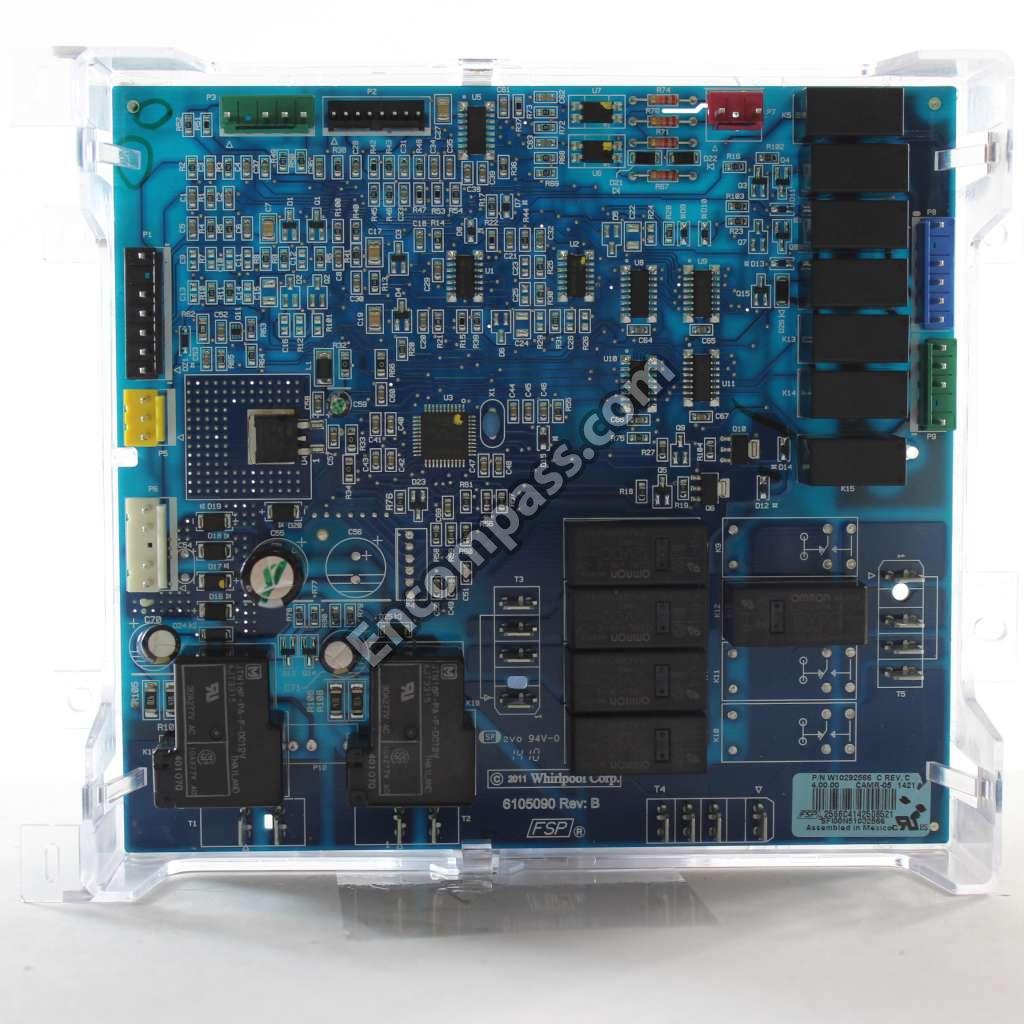

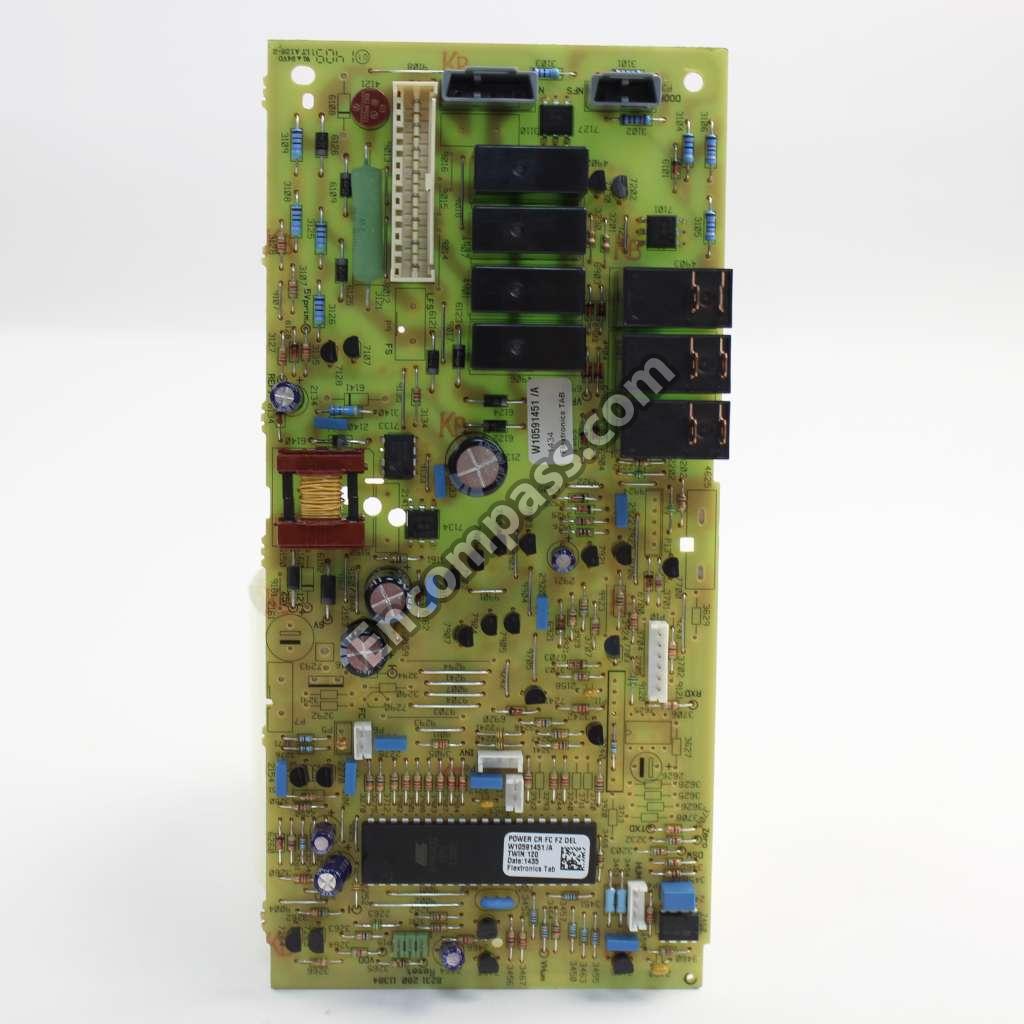

WPW10120228 WPW10120228 CONTROL BOARD
WPW10350780 WPW10350780 CONTROL BOARD
WPW10286791 WPW10286791 CONTROL BOARD
WPW10292566 WPW10292566 CONTROL BOARD
WPW10344082 WPW10344082 CONTROL BOARD

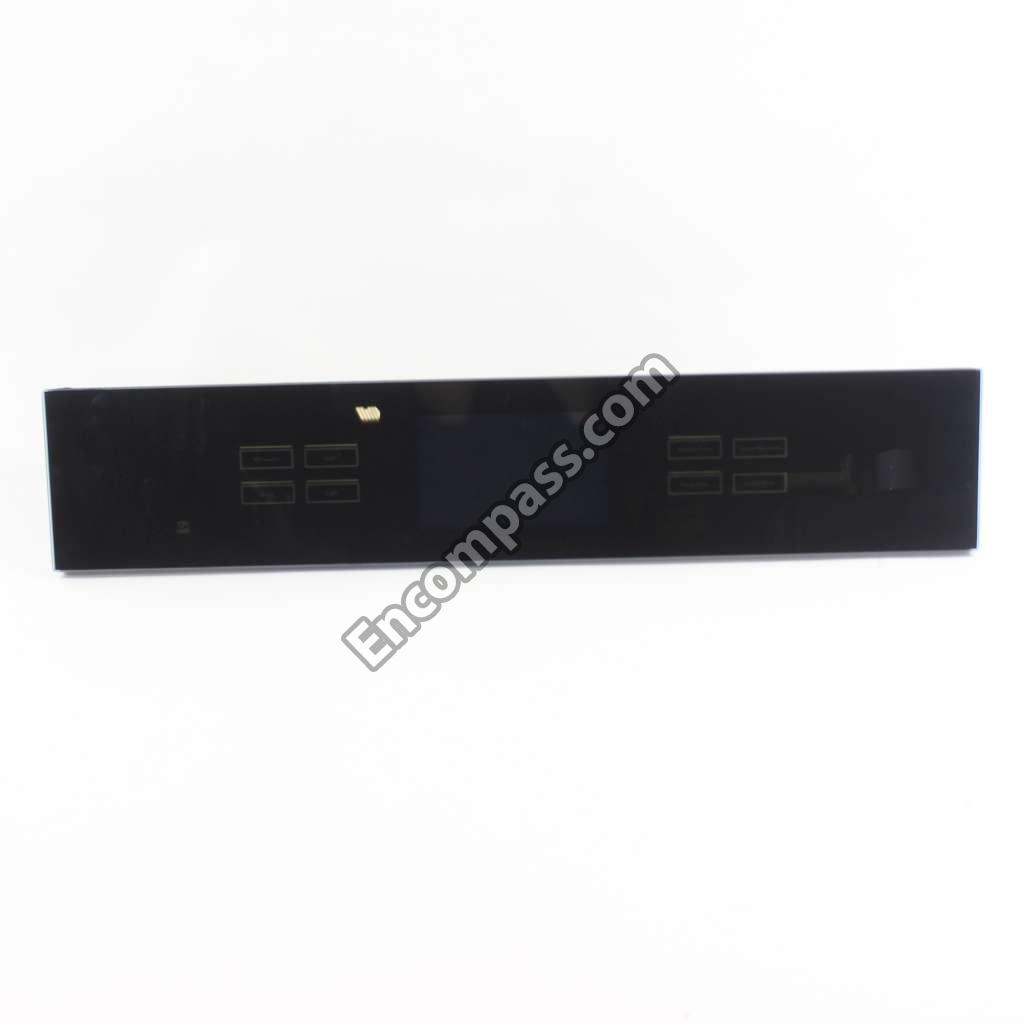

W10552326 W10552326 CONTROL PANEL

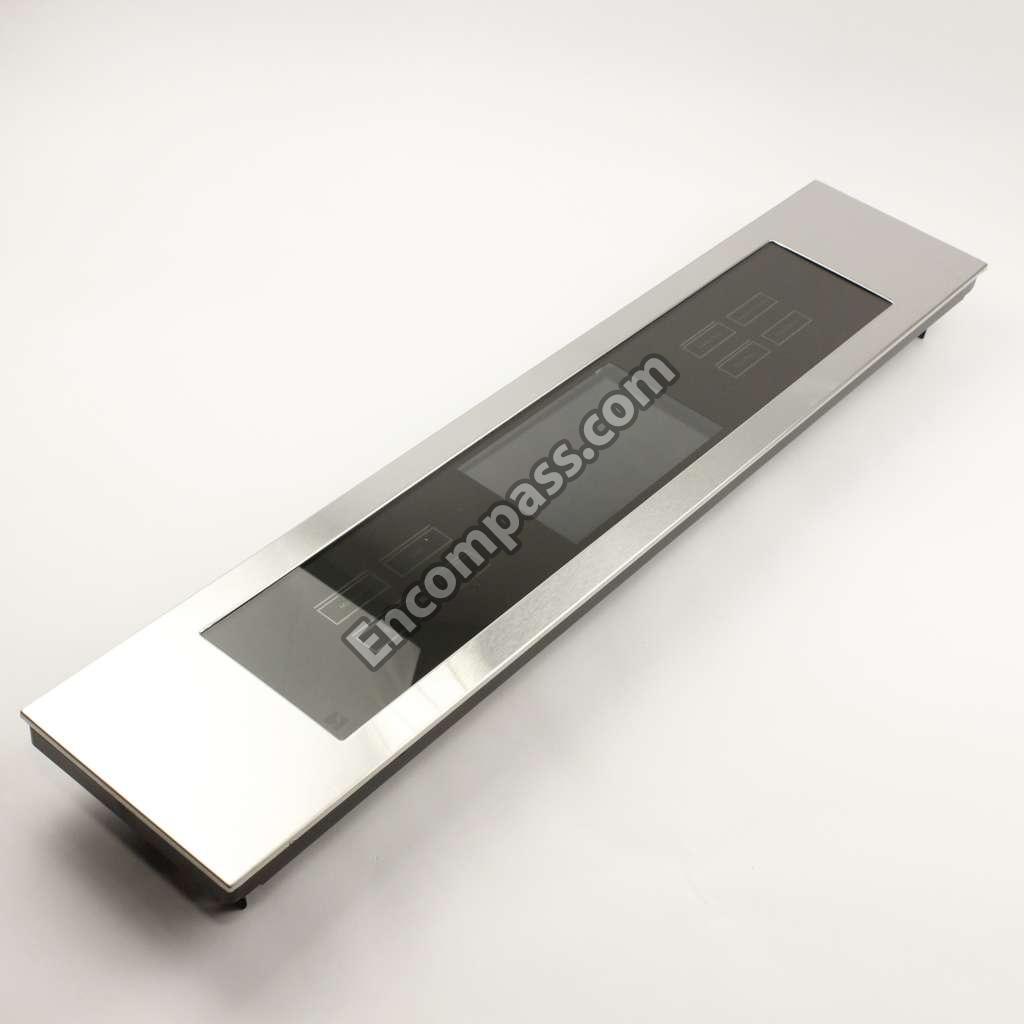

W10323052 W10323052 CONTROL PANEL
2624F043-51 2624F043-51 COVER
W10915651 W10915651 COVER-PLT
W10120471 W10120471 COVER-SIDE
W10311703 W10311703 COVER-TOP
W10213792 W10213792 COVER-VENT
W10176066 W10176066 COVR-ACESS
W10186984 W10186984 COVR-WIRE
WPW10213755 WPW10213755 DOOR DOOR LATCH
WPW10186756 WPW10186756 DOOR HANDLE
W10874474 W10874474 DOOR HINGE
WPW10277751 WPW10277751 DOOR HINGE
W10687342 W10687342 DOOR, MICROWAVE
WPW10387651 WPW10387651 ELEMENT
WP7406P322-60 WP7406P322-60 ELMNT-BAKE
WPW10184147 WPW10184147 ELMNT-BROL
W11512064 W11512064 FAN
WPW10213812 WPW10213812 FAN-CONVCT
W10853613 W10853613 FILTER
8038P035-60 8038P035-60 FOOT- OVEN
WP4375321 WP4375321 FUSE
WPW10017410 WPW10017410 FUSE
W10213818 W10213818 GASKT-DOOR
W10297309 W10297309 GLASS DOOR
WPW10269422 WPW10269422 GLASS DOOR
W10297310 W10297310 GLASS DOOR
WPW10176200 WPW10176200 GLASS DOOR
WPW10213803 WPW10213803 GLASS DOOR
W10401222 W10401222 GLASS DOOR
WPW10176100 WPW10176100 GLASS DOOR
WPW10186889 WPW10186889 GLASS, OUTER DOOR ASSEMBLY. (BLACK)
W10401223 W10401223 GLASS-DOOR
W10187006 W10187006 GLASS-DOOR
W10851464 W10851464 HANDLE-PAN
5171P208-60 5171P208-60 HARNS-WIRE
W10174375 W10174375 HARNS-WIRE
W10277613 W10277613 HARNS-WIRE
W10174376 W10174376 HARNS-WIRE
W10209123 W10209123 HARNS-WIRE

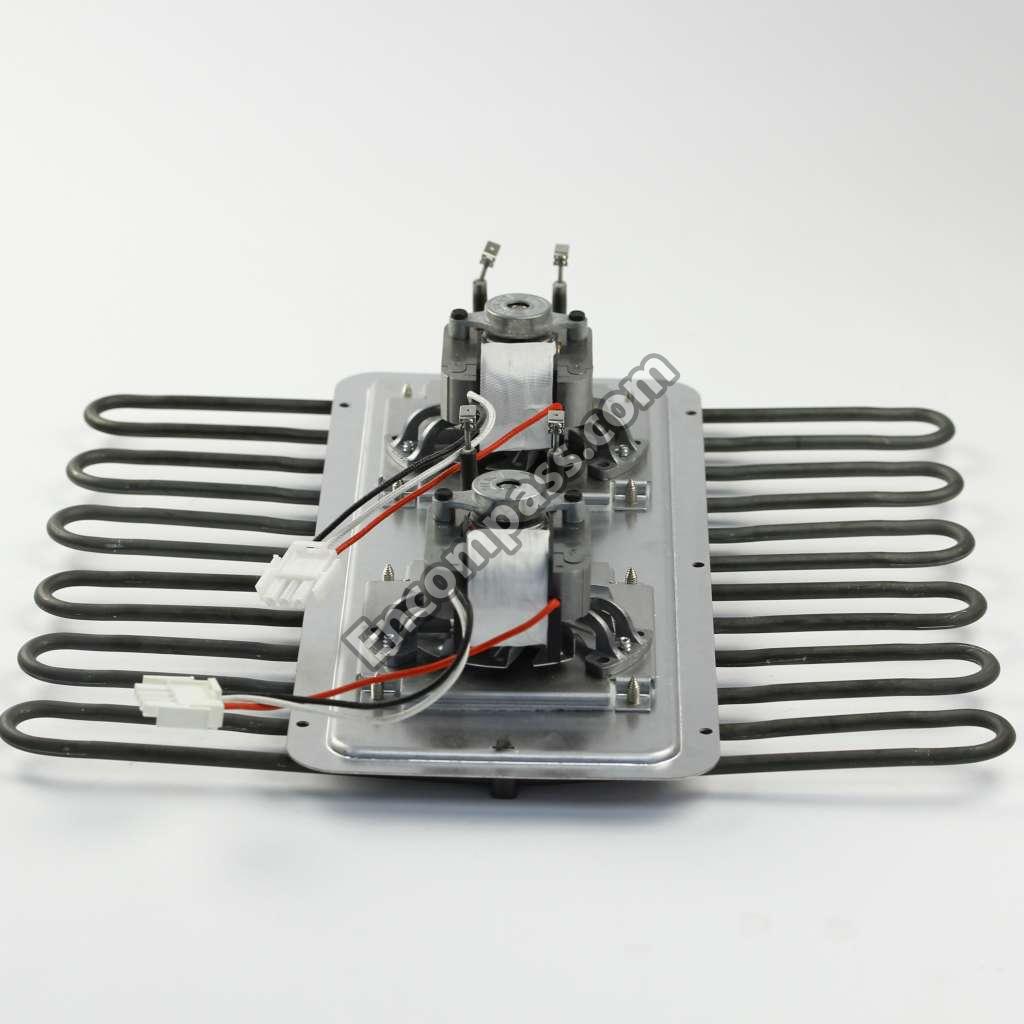

WPW10493735 WPW10493735 HEATER
W10176157 W10176157 HINGE-DOOR
W10175993 W10175993 HINGE-RECV
W10186755 W10186755 HNDLE-DOOR
W10186757 W10186757 HNDLE-DOOR
W10856834 W10856834 HNDLE-DOOR
WPW10490593 WPW10490593 HOUSNG-LMP
W10213745 W10213745 HSNG-SWTCH
W10221384 W10221384 INSTALLATION INSTRUCTIONS
W10075750 W10075750 INSTALLATION INSTRUCTIONS (ENGLISH/FRENCH)
W10186989 W10186989 INSULATION
W11688397 W11688397 INSULATION
W10273591 W10273591 INSULATION
W11688417 W11688417 INSULATION
W10277580 W10277580 INSULATION
W10130901 W10130901 INSULATION
W11684783 W11684783 INSULATION
WP8205683 WP8205683 INTERLOCK
W11033422 W11033422 INTERLOCK
W10217711 W10217711 INVERTER
WP74004607 WP74004607 LENS-LIGHT
WPW10169757 WPW10169757 LIGHT BULB
W10175989 W10175989 LIGHT-OVEN
WPW10187019 WPW10187019 LINER-DOOR
W10886919 W10886919 LMP-BASLES
W10233422 W10233422 MICROWAVE BROCHURE, TIPS (SAFE COOKING)
W11346197 W11346197 MICROWAVE MAGNETRON
W11344874 W11344874 MOTOR-FAN
W10911403 W10911403 MOTOR-TURN
461969000371 461969000371 MTR-CONVCT
WPW10159578 WPW10159578 NAMEPLATE
WPW10214168 WPW10214168 NAMEPLATE
W10190724 W10190724 NAMEPLATE
W10214169 W10214169 NAMEPLATE
W10213722 W10213722 PAD-DOOR
W10213723 W10213723 PAD-DOOR
W10209070 W10209070 PAD-DOOR
W10314607 W10314607 PAD-DOOR
WPW10120480 WPW10120480 PAN-CRISP
3401F079-45 3401F079-45 PAN-HIDDEN
W10587374 W10587374 PLATE, BAKING
WP7430P038-60 WP7430P038-60 PROBE-MEAT
7408P088-60 7408P088-60 PROBE-MEAT
W11175831 W11175831 RACK
4452220 4452220 RACK
WPW10186988 WPW10186988 RACK-OVEN
W10445852A W10445852A RACK-OVEN
WPW10176138 WPW10176138 RACK-OVEN
W11607085 W11607085 RANGE THERMOSTAT
423107022541 423107022541 REFLECTOR
W10175996 W10175996 RETAINER
W10176218 W10176218 RETAINER
W10176103 W10176103 RETAINER
W10176064 W10176064 RETAINER
W10176065 W10176065 RETAINER
W11110134 W11110134 RING-TURN
WPW10120235 WPW10120235 ROD-REL
461967825321 461967825321 SCREW
WPW10254050 WPW10254050 SCREW
WP489464 WP489464 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP90767 WP90767 SCREW
W10267047 W10267047 SCREW
461967825971 461967825971 SCREW
W10312432 W10312432 SEAL-FOAM
W11699906 W11699906 SENSOR
W11208292 W11208292 SENSOR
W11233913 W11233913 SENSOR
WP74008369 WP74008369 SENSOR- OV
WPW10776938 WPW10776938 SHAFT-TURN
W10175995 W10175995 SIDE-COMPT
W10176201 W10176201 SPACER
W10305979 W10305979 SPACER
W11700292 W11700292 SPRING
W10475855 W10475855 SPRING
W10660052 W10660052 STEAMER
W11724411 W11724411 SUPPORT
3807F754-45 3807F754-45 SUPPORT
W11684510 W11684510 SUPPORT
W10213759 W10213759 SUPPORT
W10176196 W10176196 SUPPORT
W10176190 W10176190 SUPPORT
W10176195 W10176195 SUPPORT
W10176189 W10176189 SUPPORT
W10176063 W10176063 SUPPORT
W10286173 W10286173 SWITCH
W10211972 W10211972 SWITCH, MICRO V15T16-CZ200
WP7403P899-60 WP7403P899-60 SWTCH-SFTY
W10213732 W10213732 TECH SHEET (ENGLISH)
W10213741 W10213741 TECH SHEET (FRENCH)
W10277592 W10277592 THERMOSTAT
W11568584 W11568584 THRMST-FIX
9762761 9762761 TIPS, SAFE COOKING (ENGLISH)
W10065852 W10065852 TIPS, SAFE COOKING (FRENCH)
W10175998 W10175998 TOP-CABNT
W11238401 W11238401 TRANSFORMR

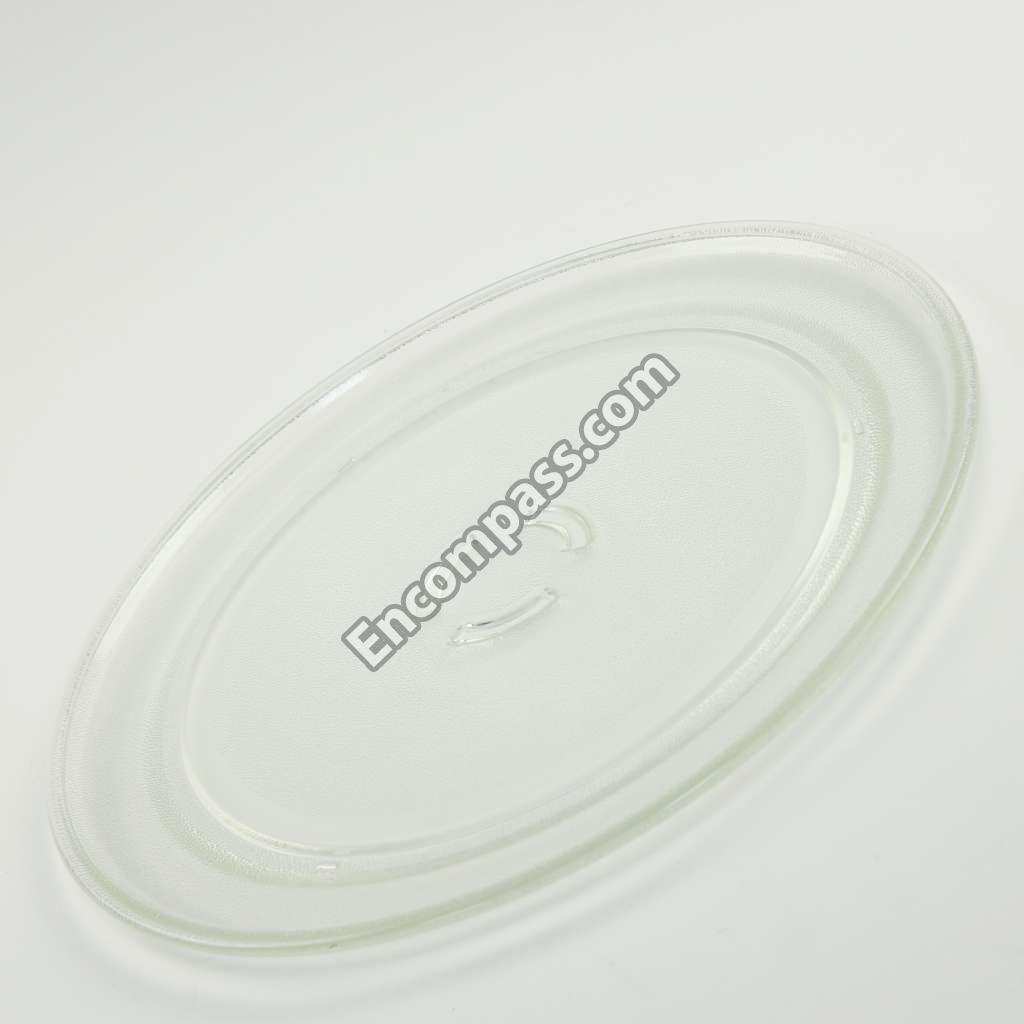

W11373838 W11373838 TRAY-COOK
W10818723 W10818723 TRAY-COOK
W10493731 W10493731 TRIM
W10493732 W10493732 TRIM
461968973241 461968973241 TRIM-DOOR
W10176018 W10176018 TRIM-PANEL
W10277588 W10277588 TRIM-SIDE
WPW10176036 WPW10176036 TRIM-VENT
W10238700 W10238700 TRIM-VENT
8026P065-60 8026P065-60 TUBE-VENT
8034P008-60 8034P008-60 TUBE-VENT
W10450585 W10450585 USE AND CARE GUIDE (COMBO)
W10277599 W10277599 WIRE
W10282791 W10282791 WIRE

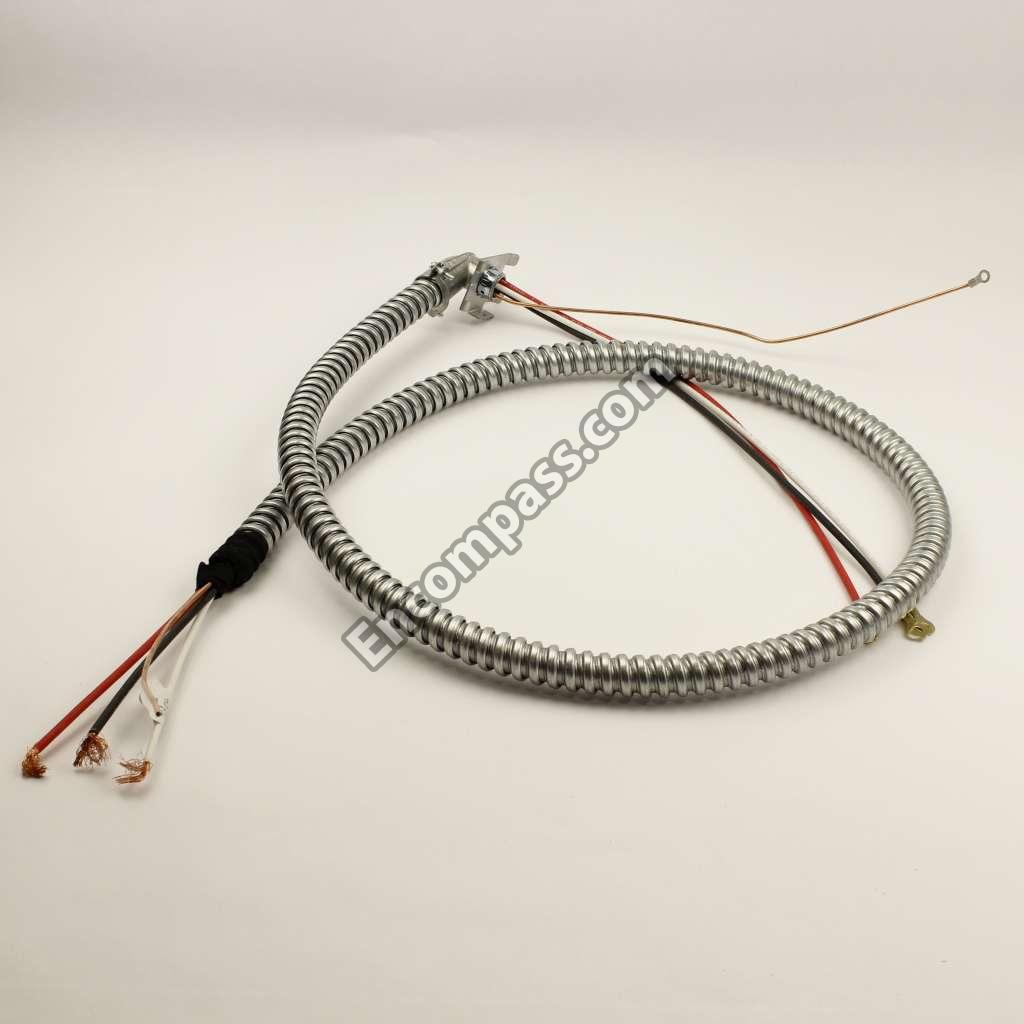

W10343437 W10343437 WIRE HARNESS
