Model Image
Manufacturer

Whirlpool

Model Number

JS42SSDUDE01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP2221296 WP2221296 AIR-BAFFLE
W10797519 W10797519 ASSEMBLY, AIR DIFFUSER
W10160981 W10160981 ASSEMBLY, AIR RETURN BRACKET
W10789203 W10789203 ASSEMBLY, BASKET FRONT
W10785656 W10785656 ASSEMBLY, CONTROL BAFFLE
W11357536 W11357536 ASSEMBLY, CONTROL BOX
W10748858 W10748858 ASSEMBLY, EVAPORATOR COVER

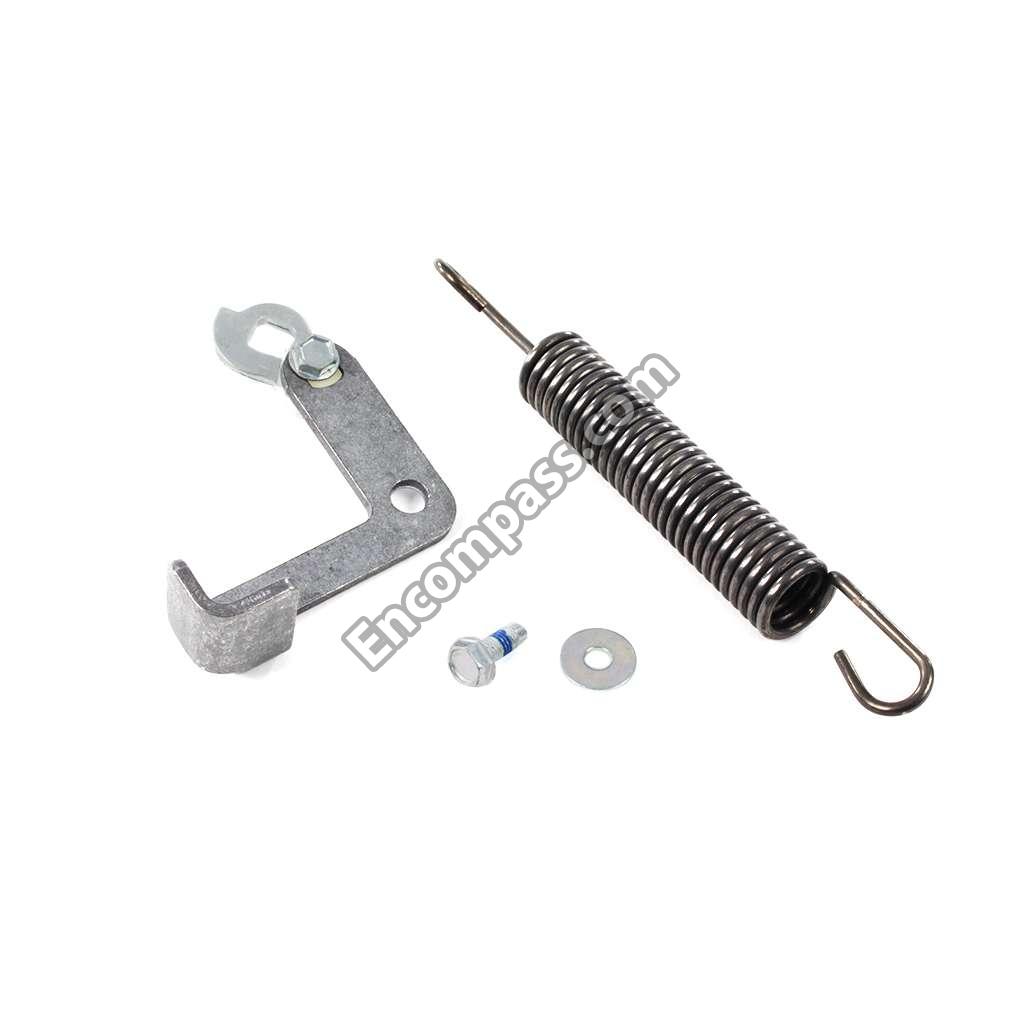

2302878 2302878 ASSEMBLY, HINGE (BOTTOM)
W10784412 W10784412 ASSEMBLY, ICE CONTAINER
W10508659 W10508659 ASSEMBLY, ICEMAKER WIRE
2310195 2310195 ASSEMBLY, JUMPER WIRE (POWER SWITCH TO POWER CORD)
2310205 2310205 ASSEMBLY, MEAT PAN WIRE
W10826105 W10826105 ASSEMBLY, PRODUCE PRESERVER
2318017 2318017 ASSEMBLY, SEPARATOR
W10789219 W10789219 ASSEMBLY, SHELF STUD (INCLUDES SCREW)
W10279391 W10279391 ASSEMBLY, SMART VALVE WIRE
W10795347 W10795347 ASSEMBLY, SPACER
W10780213 W10780213 ASSEMBLY, SWITCH WIRE
W10784036 W10784036 ASSEMBLY, THERMISTOR
W11712702 W11712702 ASSEMBLY, TOP GRILLE
W10775849 W10775849 ASSEMBLY, UNIT WIRE
W10767697 W10767697 BASKET, FREEZER
WPW10160570 WPW10160570 BIMETL-DEF
W10781982 W10781982 BIN, CRUSHER
W10594311 W10594311 BIN, GALLON DOOR
W10594374 W10594374 BIN, SHALLOW
W10529453 W10529453 BIN, SHALLOW DOOR
WP2222970 WP2222970 BIN-ICE
WPW10139483 WPW10139483 BLADE-FAN
WP2169142 WP2169142 BLADE-FAN
W10580754 W10580754 BLOCK, EVAPORATOR SIDE
2209066 2209066 BLOCK, FAN SCROLL (LEFT HAND)
8201798 8201798 BLOCK-FAN
W10839844 W10839844 BRACKET
2006617 2006617 BRACKET, BASE SUPPORT (REAR)
W10321055 W10321055 BRACKET, CONTROL ASSEMBLY
W10775706 W10775706 BRACKET, CONTROL BOX
W10414681 W10414681 BRACKET, FAN MOTOR
W10674648 W10674648 BRACKET, FILTER
W10157752 W10157752 BRACKET, HEATER
W10749631 W10749631 BRACKET, ICEMAKER COVER
W10788852 W10788852 BRACKET, ICEMAKER MOUNTING
2256328 2256328 BRACKET, INVERTER MOUNTING
W10542660 W10542660 BRACKET, MOTOR
2006616 2006616 BRACKET, SUPPORT BASE (FRONT) (LEFT HAND)
2006556 2006556 BRACKET, SUPPORT BASE (FRONT) (RIGHT HAND)
W10741112 W10741112 BRACKET, SWITCH (LEFT HAND)
W10741111 W10741111 BRACKET, SWITCH (RIGHT HAND)
WP2260503B WP2260503B BUTTON
W10749207 W10749207 BUTTON, BIN
N_P N_P CABINET (NOT A SERVICEABLE PART)
WP2198643 WP2198643 CAMERA LENS
W11238395 W11238395 CAP-FILTER
WP488366 WP488366 CLAMP
1113048 1113048 CLAMP, HEATER
549193 549193 CLAMP, POWER CORD
W10663352 W10663352 CLIP
2317000 2317000 CLIP, CONTROL BOX
W10169509 W10169509 CLIP, HEAT EXCHANGER
W10785288 W10785288 CLIP, SHAFT
W11103181 W11103181 COMPRESSOR
W10591457 W10591457 CONDENSER
W10830288 W10830288 CONTROL BOARD
WP2318054 WP2318054 CONTROL BOARD
WPW10624574 WPW10624574 CONTROL BOARD
WPW10200659 WPW10200659 CONTROL BOARD
WP2259350 WP2259350 CONTROL BOARD
W10836024 W10836024 CONTROL BOARD
WP2321746 WP2321746 CONTROL BOARD
W11629974 W11629974 CONTROL BOARD
W10836032 W10836032 CONTROL BOARD
2310196 2310196 CORD, POWER
W11404938 W11404938 COVER
W10782827 W10782827 COVER, AIR DIFFUSER
2215612 2215612 COVER, AIR DUCT
W10785703 W10785703 COVER, AIR OUTLET
W10525175 W10525175 COVER, CONDENSER SUPPORT
2305219 2305219 COVER, CONTROL
W10782876 W10782876 COVER, EMITTER
W10139908 W10139908 COVER, EVAPORATOR SEAL
W10749553 W10749553 COVER, ICEMAKER
W10801567 W10801567 COVER, ICEMAKER
W10785082 W10785082 COVER, MOTOR
W10782879 W10782879 COVER, RECEIVER
2215938 2215938 COVER, SWITCH
2215676 2215676 COVER, TERMINAL
W10545068 W10545068 COVER, UNIT
W10694109 W10694109 COVER, UNIT FRONT
W10321048 W10321048 COVER, WIRE BOX
WPW10309012 WPW10309012 COVER-WIRE
W10884287 W10884287 CRISPER PAN
2215648 2215648 DAMPENER
W11715935 W11715935 DAMPENER
2309283 2309283 DEFLECTOR, AIR DUCT
W10645086 W10645086 DIVIDER, UNIT AIR
W10800815 W10800815 DOOR ASSEMBLY
W10800807 W10800807 DOOR ASSEMBLY
W11752085 W11752085 DOOR HINGE
W11673500 W11673500 DOOR HINGE
WP2006780 WP2006780 DOOR HINGE
W10527053 W10527053 DOOR HINGE
W10134785 W10134785 DOOR LATCH, BIN
WPW10504458 WPW10504458 DOOR-CHUTE
W10800819 W10800819 DOOR-SKIN
W10800811 W10800811 DOOR-SKIN
WPW10143759 WPW10143759 DRIER-UV
W10769278 W10769278 DUCT, AIR
W10832844 W10832844 DUCT, AIR
W10826674 W10826674 ENERGY GUIDE
WPW10121046 WPW10121046 ETENSION
WPW10427992 WPW10427992 EVAPORATOR
W11671461 W11671461 EVAPORATOR MOTOR
WP2307857 WP2307857 EXTENSION
WP2182120 WP2182120 FAN-SCROLL
W10159582 W10159582 FILLER, DOOR (BOTTOM)
W10159585 W10159585 FILLER, DOOR (TOP)
EDR3RXD1 EDR3RXD1 FILTER
WP2300868 WP2300868 FITTING
W10782877 W10782877 FLIPPER, SHUT OFF
WPW10260622 WPW10260622 FRONT COVER
W10881987 W10881987 FRONT-PAN
W10881982 W10881982 FRONT-PAN
W11700297 W11700297 GAP-HINGE
WPW10686115 WPW10686115 GASKET
WP2302817 WP2302817 GASKET
W10800809 W10800809 GASKET ASSEMBLY
W10800817 W10800817 GASKET ASSEMBLY
W10432308 W10432308 GASKET, EVAPORATOR
W10581988 W10581988 GASKET, EVAPORATOR COVER
W10782823 W10782823 GASKET, EVAPORATOR COVER
W10840461 W10840461 GLASS SHELF
W10837251 W10837251 GLASS SHELF
WPW10187535 WPW10187535 GLASS SHELF
WPW10182717 WPW10182717 GRILLE-FRT
WPW10188549 WPW10188549 GRILLE-FRT
W10587113 W10587113 GROMMET
W11671528 W11671528 GROMMET
876811 876811 GROMMET (4) ((PRODUCTION))
2307584 2307584 GROMMET, CROSSOVER TUBE
W10775705 W10775705 GUARD, AIR RETURN
WPW10183428 WPW10183428 HANDLE
WPW10140161 WPW10140161 HEATER, DEFROST
W10890886 W10890886 HEATER-PAN
WP2302876 WP2302876 HING-BUSHG
W11500952 W11500952 HING-BUSHG
WP2004994 WP2004994 HING-BUSHG
2257644 2257644 HINGE, TOP
WPW10121140 WPW10121140 HOUSING
W10550831 W10550831 HOUSING, CONTROL BOARD MOUNTING
W11579388 W11579388 ICEMAKER
WPW10121451 WPW10121451 INSERT
W10779524 W10779524 INSTALLATION INSTRUCTIONS
W11553819 W11553819 INSULATION
W11573593 W11573593 INVRTR-BOX
W10749139 W10749139 LADDER (LONG)
W10794051 W10794051 LADDER (SHORT)
W10787153 W10787153 LADDER, SHELF
W10222215 W10222215 LED ASSEMBLY
2005032 2005032 LEVELER, ADJUSTABLE
W10785658 W10785658 LID, BAFFLE
W10746027 W10746027 MAT, DOOR BIN (GALLON)
W10746023 W10746023 MAT, DOOR BIN (SHALLOW)
W11683242 W11683242 MODULE
WPW10205979 WPW10205979 MOTOR
WPW10546285 WPW10546285 MOTOR
W10271509 W10271509 MOTOR
W11127829 W11127829 MOTOR-COND
WPW10214168 WPW10214168 NAMEPLATE
W10415670 W10415670 ORIFICE, FAN
W10133603 W10133603 PAD
W10884288 W10884288 PAN-MEAT
2256466 2256466 PANEL, UNIT BACK
WP2198634 WP2198634 PIN-DOOR
WPW10525179 WPW10525179 PLATE
WPW10525177 WPW10525177 PLATE
W10761479 W10761479 PLATE, CIRCUIT BOARD
W10770059 W10770059 PLATE, CIRCUIT BOARD (TOP)
W10127710 W10127710 PLATE, HANDLE DOOR
W10777924 W10777924 RACK, WINE
2221107 2221107 RAIL, EVAPORATOR COVER (LEFT HAND)
2259355 2259355 RAIL, EVAPORATOR COVER (RIGHT HAND)
W10645131 W10645131 RESERVOIR, WATER
W11671527 W11671527 RETAINER
2006841 2006841 RING, RETAINER
WP489236 WP489236 RING-E
WPW10138054 WPW10138054 ROLLER-CAB
WP8533993 WP8533993 SCREW
WP489399 WP489399 SCREW
WP4449745 WP4449745 SCREW
WP8281250 WP8281250 SCREW
W10759522 W10759522 SCREW
WP308544 WP308544 SCREW
W11474472 W11474472 SCREW
WP489069 WP489069 SCREW
W10141518 W10141518 SCREW
WP8533928 WP8533928 SCREW
WP98008545 WP98008545 SCREW
WPW10141645 WPW10141645 SCREW
WPW10141604 WPW10141604 SCREW
WP489128 WP489128 SCREW
WP8281163 WP8281163 SCREW
WP965173 WP965173 SCREW
W11624204 W11624204 SCREW
W11189635 W11189635 SCREW
3400230 3400230 SCREW
WP489464 WP489464 SCREW
WP8281164 WP8281164 SCREW
3400525 3400525 SCREW
W10784949 W10784949 SCREW (BLACK)
W10784931 W10784931 SCREW (BLACK)
W10678207 W10678207 SCREW (BLACK)
W10678210 W10678210 SCREW (BLACK)
2198671 2198671 SCREW (STAINLESS)
2006254 2006254 SCREW, 6-19 X .250
WP2198628 WP2198628 SEAL
2259398 2259398 SEAL, AIR DUCT
W10795331 W10795331 SEAL, AIR DUCT (ROUND HOLE)
2005925 2005925 SEAL, SIDE TRIM
WP2318082 WP2318082 SHAFT
W10759069 W10759069 SHELF, FIXED
W10759084 W10759084 SHELF, WIRE
W10321050 W10321050 SHELF, WIRING COVER
2320601 2320601 SHIELD, WATER VALVE
WP2315559 WP2315559 SLEEVE
WP2259318 WP2259318 SLIDE
WP2259317 WP2259317 SLIDE, BASKET (RIGHT HAND)
W10844010 W10844010 SLIDE, CRISPER (LEFT HAND)
W10732303 W10732303 SLIDE, CRISPER (RIGHT HAND)
W10789227 W10789227 SLIDE, ICEMAKER SHUT OFF
W10844011 W10844011 SLIDE, MEAT PAN (LEFT HAND)
W10732727 W10732727 SLIDE, MEAT PAN (RIGHT HAND)
WP2203075 WP2203075 SPACER
2005433 2005433 SPACER
W10769876 W10769876 SPACER, CRISPER
W10758142 W10758142 SPACER, DOOR SKIN (BOTTOM)
W10758115 W10758115 SPACER, DOOR SKIN (TOP)
W10761892 W10761892 SPACER, DOOR SKIN (TOP)
W10761895 W10761895 SPACER, DOOR SKIN BOTTOM
W10758377 W10758377 SPACER, HANDLE SIDE DOOR
W10758378 W10758378 SPACER, HINGE SIDE DOOR
W10783742 W10783742 SPACER, MEAT PAN
WP2305235 WP2305235 SPIGOT
WP2198608 WP2198608 SPRING
WP2198635 WP2198635 SPRING
WP2004517 WP2004517 SPRING
WPW10168981 WPW10168981 STUD-HNDLE
W11690161 W11690161 SUPPORT
W10860448 W10860448 SUPPORT
W10860229 W10860229 SUPPORT
W10745664 W10745664 SUPPORT, AIR DUCT
2320554 2320554 SUPPORT, DRAIN PAN
1112260 1112260 SUPPORT, EVAPORATOR
W10542663 W10542663 SUPPORT, ICE DOOR
2259445 2259445 SUPPORT, LADDER
2320559 2320559 SUPPORT, VALVE
WP2266802 WP2266802 SWITCH
W11457217 W11457217 SWITCH
W11384469 W11384469 SWITCH
W10910733 W10910733 TECH SHEET (ENGLISH)
W10910734 W10910734 TECH SHEET (FRENCH)
WP2188820 WP2188820 THERMISTOR
WP2302937 WP2302937 THERMISTOR
WP2306010 WP2306010 THERMISTOR
WPW10339879 WPW10339879 TIE-WIRE
2318189 2318189 TRAY, FILTER DRIP
W11177738 W11177738 TRAY-DRIP
2314017 2314017 TRIM, TOP (ALUMINUM)
W11173662 W11173662 TRIM-CABNT
W11173663 W11173663 TRIM-CABNT
2198665 2198665 TUBE, CIRCUIT BOARD
W10499596 W10499596 TUBE, DISCHARGE
W10624944 W10624944 TUBE, DRIER TRANSITION
W10648264 W10648264 TUBE, HEAT LOOP TRANSITION
W10648568 W10648568 TUBE, OIL TRAP SUCTION
W10528578 W10528578 TUBE, PROCESS
W10388653 W10388653 TUBE, TRANSITION (DRIER/RESTRICTOR)
W11212166 W11212166 TUBE-INLET
W10779525 W10779525 USE AND CARE GUIDE

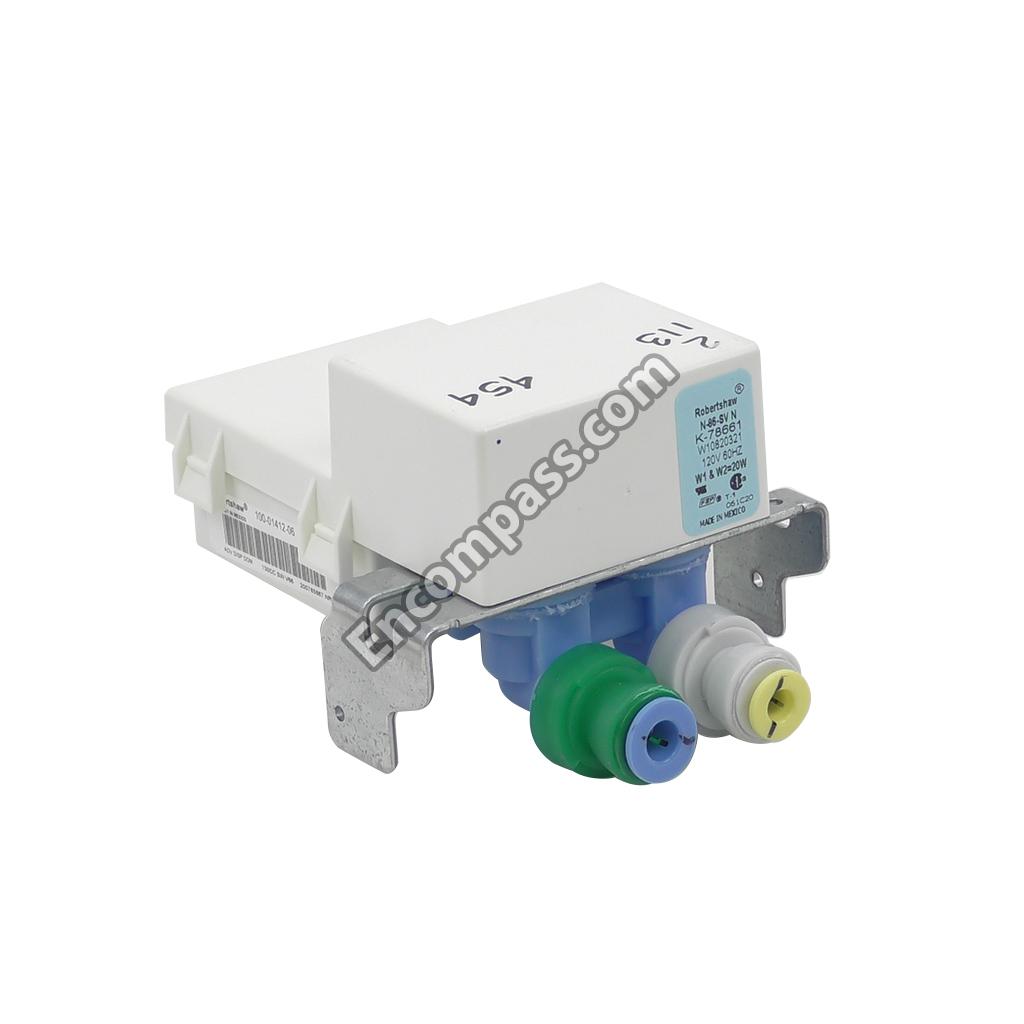

WP978025 WP978025 VALVE
W11243758 W11243758 VALVE
876764 876764 VALVE, ACCESS
978029 978029 VALVE, ACCESS
978026 978026 VALVE, ACCESS
978030 978030 VALVE, ACCESS
978027 978027 VALVE, ACCESS
978028 978028 VALVE, ACCESS
WP2006346 WP2006346 WASHER
WPW10254073 WPW10254073 WASHER
W11565275 W11565275 WATER TUBE
W11533506 W11533506 WATER TUBE
W10769280 W10769280 WEDGE, AIR DUCT (LEFT HAND)
W10769279 W10769279 WEDGE, AIR DUCT (RIGHT HAND)
W11676572 W11676572 WIRE HARNESS
W10458299 W10458299 WIRE, JUMPER
W10762997 W10762997 WIRING DIAGRAM
