Model Image
Manufacturer

Whirlpool

Model Number

JS48SSDUDE00

Description

Side-by-side Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876029 876029 "MISCELLANEOUS, KIT, FOAM SLAB (30"" X 32 1/2"" X 1 1/2"")"
W10355049 W10355049 AFFRESH STAINLESS STEEL CLEANE
W11042467 W11042467 AFFRESH STAINLESS STEEL CLEANE
WP2221296 WP2221296 AIR-BAFFLE
WP627843 WP627843 ARM-EJECTR
W10797519 W10797519 ASSEMBLY, AIR DIFFUSER

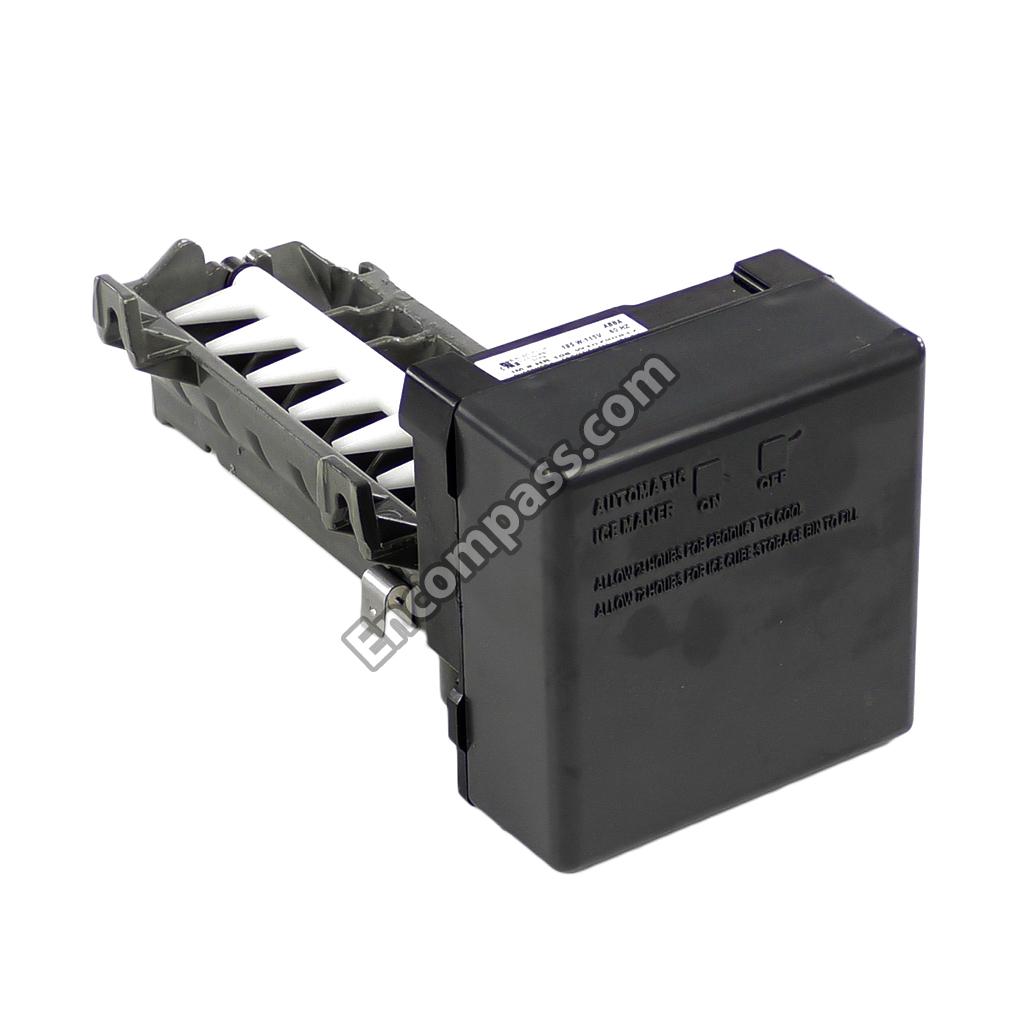

W10790817 W10790817 ASSEMBLY, COMPLETE ICEMAKER
W10785656 W10785656 ASSEMBLY, CONTROL BAFFLE
W11357537 W11357537 ASSEMBLY, CONTROL BOX
W10748861 W10748861 ASSEMBLY, EVAPORATOR COVER
W10789204 W10789204 ASSEMBLY, FREEZER BASKET FRONT
2302878 2302878 ASSEMBLY, HINGE (BOTTOM)
W10784413 W10784413 ASSEMBLY, ICE CONTAINER
2310195 2310195 ASSEMBLY, JUMPER WIRE (POWER SWITCH TO POWER CORD)
2310205 2310205 ASSEMBLY, MEAT PAN WIRE
P1KL6S1CS P1KL6S1CS ASSEMBLY, PRODUCE PRESERVER
2318017 2318017 ASSEMBLY, SEPARATOR
W10789219 W10789219 ASSEMBLY, SHELF STUD (INCLUDES SCREW)
W10795347 W10795347 ASSEMBLY, SPACER
W10780213 W10780213 ASSEMBLY, SWITCH WIRE
W10784036 W10784036 ASSEMBLY, THERMISTOR
W10775849 W10775849 ASSEMBLY, UNIT WIRE
W10767698 W10767698 BASKET, FREEZER
WP627985 WP627985 BIMETL-DEF
WPW10160570 WPW10160570 BIMETL-DEF
W11350968 W11350968 BIN CONTROL LEVER
W10529454 W10529454 BIN, SHALLOW DOOR
W10529451 W10529451 BIN-CNTLVR
WP2222970 WP2222970 BIN-ICE
WPW10139483 WPW10139483 BLADE-FAN
WP2169142 WP2169142 BLADE-FAN
2209066 2209066 BLOCK, FAN SCROLL (LEFT HAND)
8201798 8201798 BLOCK-FAN
W10839844 W10839844 BRACKET
W10321055 W10321055 BRACKET
W10414681 W10414681 BRACKET
W10542660 W10542660 BRACKET
W10741112 W10741112 BRACKET
W10741111 W10741111 BRACKET
W10674648 W10674648 BRACKET
W10157752 W10157752 BRACKET
W10160981 W10160981 BRACKET
2006617 2006617 BRACKET, BASE SUPPORT (REAR)
W10775707 W10775707 BRACKET, CONTROL BOX
W10749631 W10749631 BRACKET, ICEMAKER COVER
W10788852 W10788852 BRACKET, ICEMAKER MOUNTING
2256328 2256328 BRACKET, INVERTER MOUNTING
2006616 2006616 BRACKET, SUPPORT BASE (FRONT) (LEFT HAND)
2006556 2006556 BRACKET, SUPPORT BASE (FRONT) (RIGHT HAND)
WP2316859 WP2316859 BUSHING
WP2260503B WP2260503B BUTTON
W10749207 W10749207 BUTTON, BIN
N_P N_P CABINET (NOT A SERVICEABLE PART)
WP2320509 WP2320509 CAM-DOOR
WP2198643 WP2198643 CAMERA LENS
W11238395 W11238395 CAP-FILTER
WP488366 WP488366 CLAMP
W10833902 W10833902 CLAMP
1113048 1113048 CLAMP, HEATER
549193 549193 CLAMP, POWER CORD
W10355010 W10355010 CLEANER
WP2315522 WP2315522 CLIP
WP628379 WP628379 CLIP
WPM0104106 WPM0104106 CLIP
W10129069 W10129069 CLIP
W10169509 W10169509 CLIP
2317000 2317000 CLIP, CONTROL BOX
W10785288 W10785288 CLIP, SHAFT
2305447 2305447 CLIP, WIRING
W10720770 W10720770 COMPRESSOR
W10591457 W10591457 CONDENSER
WP2259350 WP2259350 CONTROL BOARD
W10830288 W10830288 CONTROL BOARD
WPW10200659 WPW10200659 CONTROL BOARD
WPW10624574 WPW10624574 CONTROL BOARD
WP2318054 WP2318054 CONTROL BOARD
W10836024 W10836024 CONTROL BOARD
WP2321746 WP2321746 CONTROL BOARD
W10836032 W10836032 CONTROL BOARD
W11629974 W11629974 CONTROL BOARD
2310196 2310196 CORD, POWER
W11404938 W11404938 COVER
W10525175 W10525175 COVER
W10782827 W10782827 COVER, AIR DIFFUSER
2215612 2215612 COVER, AIR DUCT
W10785703 W10785703 COVER, AIR OUTLET
2305219 2305219 COVER, CONTROL
W10782876 W10782876 COVER, EMITTER
W10801567 W10801567 COVER, ICEMAKER
W10749629 W10749629 COVER, ICEMAKER
W10785082 W10785082 COVER, MOTOR
W10782879 W10782879 COVER, RECEIVER
2215938 2215938 COVER, SWITCH
2215676 2215676 COVER, TERMINAL
W10694109 W10694109 COVER-UNIT
W10545068 W10545068 COVER-UNIT
WPW10309012 WPW10309012 COVER-WIRE
W10321048 W10321048 COVER-WIRE
W10884290 W10884290 CRISPER PAN
W10884289 W10884289 CRISPER PAN
W10788844 W10788844 CUP, FILL
2215648 2215648 DAMPENER
W11715935 W11715935 DAMPENER
REFDEODOR REFDEODOR DEODORIZER
W10800816 W10800816 DOOR ASSEMBLY
W10800808 W10800808 DOOR ASSEMBLY SS
W11752085 W11752085 DOOR HINGE
W11673500 W11673500 DOOR HINGE
WP2006780 WP2006780 DOOR HINGE
W10527053 W10527053 DOOR HINGE
WPW10504458 WPW10504458 DOOR-CHUTE
W10800820 W10800820 DOOR-SKIN
W10800812 W10800812 DOOR-SKIN
WPW10143759 WPW10143759 DRIER-UV
W10769282 W10769282 DUCT, AIR
2208970 2208970 DUCT, AIR
W10826673 W10826673 ENERGY GUIDE
WPW10427993 WPW10427993 EVAPORATOR
WP2307857 WP2307857 EXTENSION
W10847927 W10847927 EXTENSION
W11298172 W11298172 EXTENSION
WP2182120 WP2182120 FAN-SCROLL
WP2300868 WP2300868 FITTING
W10782877 W10782877 FLIPPER, SHUT OFF
WPW10260622 WPW10260622 FRONT COVER
W10881982 W10881982 FRONT-PAN
W10881986 W10881986 FRONT-PAN
W11700297 W11700297 GAP-HINGE
WP2302817 WP2302817 GASKET
W10432308 W10432308 GASKET
W10581989 W10581989 GASKET
W10800818 W10800818 GASKET ASSEMBLY
W10800810 W10800810 GASKET ASSEMBLY
W10782823 W10782823 GASKET, EVAPORATOR COVER
W10836034 W10836034 GLASS SHELF
W10836033 W10836033 GLASS SHELF
WPW10187538 WPW10187538 GLASS SHELF
WP542638 WP542638 GREASE
W11624932 W11624932 GRILL-UPPR
W10859915 W10859915 GRILLE-FRT
W11169715 W11169715 GRILLE-FRT
W10587113 W10587113 GROMMET
W11671528 W11671528 GROMMET
876811 876811 GROMMET (4) ((PRODUCTION))
2307584 2307584 GROMMET, CROSSOVER TUBE
2215910 2215910 GROMMET, FLEXIBLE
W10775705 W10775705 GUARD, AIR RETURN
WPW10183428 WPW10183428 HANDLE
W10508670 W10508670 HARNS-WIRE
W11676572 W11676572 HARNS-WIRE
W10279391 W10279391 HARNS-WIRE
WPW10140162 WPW10140162 HEATER
W10890886 W10890886 HEATER-PAN
WP2302876 WP2302876 HING-BUSHG
WP2004994 WP2004994 HING-BUSHG
W11500952 W11500952 HING-BUSHG
2257644 2257644 HINGE, TOP
WPW10121140 WPW10121140 HOUSING
W10550831 W10550831 HOUSING
WPW10159842 WPW10159842 INLET VALVE
WPW10121451 WPW10121451 INSERT
W10779524 W10779524 INSTALLATION INSTRUCTIONS
W11553819 W11553819 INSULATION
W11573593 W11573593 INVRTR-BOX
8003RP 8003RP KIT, WATER INLET
W10787153 W10787153 LADDER, SHELF
W10749139 W10749139 LADDER, SHELF (LONG)
W10794051 W10794051 LADDER, SHELF (SHORT)
W10134785 W10134785 LATCH-BIN
W10222215 W10222215 LED ASSEMBLY
2005032 2005032 LEVELER, ADJUSTABLE
W10785658 W10785658 LID, BAFFLE
W10746029 W10746029 MAT, DOOR BIN (GALLON)
W10746024 W10746024 MAT, DOOR BIN (SHALLOW)
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
W11683242 W11683242 MODULE
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
WPW10190929 WPW10190929 MOLD-ICE
WPW10546285 WPW10546285 MOTOR
WPW10205979 WPW10205979 MOTOR
W10271509 W10271509 MOTOR
W11578915 W11578915 MOTOR-COND
W11671461 W11671461 MOTOR-EVAP
WPW10214168 WPW10214168 NAMEPLATE
W10415670 W10415670 ORIFICE
W10133603 W10133603 PAD
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
2256466 2256466 PANEL, UNIT BACK
WP2198634 WP2198634 PIN-DOOR
WPW10525179 WPW10525179 PLATE
WPW10525177 WPW10525177 PLATE
W10127710 W10127710 PLATE
W10777924 W10777924 RACK-WINE
2221107 2221107 RAIL, EVAPORATOR COVER (LEFT HAND)
2259355 2259355 RAIL, EVAPORATOR COVER (RIGHT HAND)
W10645131 W10645131 RESERVOIR
W11671527 W11671527 RETAINER
2006841 2006841 RING, RETAINER
WP489236 WP489236 RING-E
WPW10138054 WPW10138054 ROLLER-CAB
WPW10141645 WPW10141645 SCREW
WP489128 WP489128 SCREW
WP8533993 WP8533993 SCREW
WP4449745 WP4449745 SCREW
WP308544 WP308544 SCREW
WP8281250 WP8281250 SCREW
W10759522 W10759522 SCREW
W11474472 W11474472 SCREW
WP8533928 WP8533928 SCREW
WPW10141604 WPW10141604 SCREW
W11624204 W11624204 SCREW
WP965173 WP965173 SCREW
WP8281163 WP8281163 SCREW
W11189635 W11189635 SCREW
WP489069 WP489069 SCREW
WP489464 WP489464 SCREW
3400230 3400230 SCREW
WP489399 WP489399 SCREW
3400525 3400525 SCREW
WP98008545 WP98008545 SCREW
W10678210 W10678210 SCREW
W11177574 W11177574 SCREW
WP681249 WP681249 SCREW
W10141518 W10141518 SCREW
W10001280 W10001280 SCREW
W10784949 W10784949 SCREW (BLACK)
W10784931 W10784931 SCREW (BLACK)
W10678207 W10678207 SCREW (BLACK)
2198671 2198671 SCREW (STAINLESS)
2006254 2006254 SCREW, 6-19 X .250
WP2198628 WP2198628 SEAL
W10139908 W10139908 SEAL
2259398 2259398 SEAL, AIR DUCT
2005925 2005925 SEAL, SIDE TRIM
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
WP2318082 WP2318082 SHAFT
W10759087 W10759087 SHELF-WIRE
W10759067 W10759067 SHELF-WIRE
W10321050 W10321050 SHIELD
2320601 2320601 SHIELD, WATER VALVE
WP2315559 WP2315559 SLEEVE
WP2259318 WP2259318 SLIDE
WP2259317 WP2259317 SLIDE, BASKET (RIGHT HAND)
W10844010 W10844010 SLIDE, CRISPER (LEFT HAND)
W10732303 W10732303 SLIDE, CRISPER (RIGHT HAND)
W10789227 W10789227 SLIDE, ICEMAKER SHUT OFF
W10844011 W10844011 SLIDE, MEAT PAN (LEFT HAND)
W10732727 W10732727 SLIDE, MEAT PAN (RIGHT HAND)
WP2203075 WP2203075 SPACER
W10769876 W10769876 SPACER, CRISPER
W10766559 W10766559 SPACER, DOOR (BOTTOM)
W10766561 W10766561 SPACER, DOOR (BOTTOM)
W10758114 W10758114 SPACER, DOOR (TOP)
W10766560 W10766560 SPACER, DOOR (TOP)
W10758377 W10758377 SPACER, HANDLE SIDE DOOR
W10758378 W10758378 SPACER, HINGE SIDE DOOR
W10783742 W10783742 SPACER, MEAT PAN
WP2305235 WP2305235 SPIGOT
WP2198608 WP2198608 SPRING
WP2198635 WP2198635 SPRING
WP2004517 WP2004517 SPRING
W10818367 W10818367 STRIPPER, ICE
WPW10168981 WPW10168981 STUD-HNDLE
W10860229 W10860229 SUPPORT
W10860448 W10860448 SUPPORT
W10745665 W10745665 SUPPORT, AIR DUCT
2320554 2320554 SUPPORT, DRAIN PAN
1112260 1112260 SUPPORT, EVAPORATOR
W10790252 W10790252 SUPPORT, HOUSING
2259445 2259445 SUPPORT, LADDER
2320559 2320559 SUPPORT, VALVE
WP2266802 WP2266802 SWITCH
W11457217 W11457217 SWITCH
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
W10794071 W10794071 TECH SHEET (ENGLISH)
W10794072 W10794072 TECH SHEET (FRENCH)
WP2188820 WP2188820 THERMISTOR
WP2302937 WP2302937 THERMISTOR
WP2306010 WP2306010 THERMISTOR
WPW10339879 WPW10339879 TIE-WIRE
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
2318189 2318189 TRAY, FILTER DRIP
W11177738 W11177738 TRAY-DRIP
2316688 2316688 TRIM, CABINET (BOTTOM) (ALUMINUM)
2314018 2314018 TRIM, CABINET (TOP) (ALUMINUM)
W11173662 W11173662 TRIM-CABNT
W11173663 W11173663 TRIM-CABNT
W10648568 W10648568 TUBE
W10388653 W10388653 TUBE
W10648264 W10648264 TUBE
W10528578 W10528578 TUBE
W10624944 W10624944 TUBE
2198665 2198665 TUBE, CIRCUIT BOARD
W10499597 W10499597 TUBE, DISCHARGE
2314064 2314064 TUBE, DRAIN
W11212166 W11212166 TUBE-INLET
W10779525 W10779525 USE AND CARE GUIDE
WP978025 WP978025 VALVE
978029 978029 VALVE, ACCESS
876764 876764 VALVE, ACCESS
978026 978026 VALVE, ACCESS
978027 978027 VALVE, ACCESS
978030 978030 VALVE, ACCESS
978028 978028 VALVE, ACCESS
WPW10254073 WPW10254073 WASHER
WP2006346 WP2006346 WASHER
EDR3RXD1 EDR3RXD1 WATER FILTER
W11533506 W11533506 WATER TUBE
W11565275 W11565275 WATER TUBE
W10769280 W10769280 WEDGE, AIR DUCT (LEFT HAND)
W10769279 W10769279 WEDGE, AIR DUCT (RIGHT HAND)
W10458299 W10458299 WIRE, JUMPER
Main Menu x
