Model Image
Manufacturer

Whirlpool

Model Number

JUD24FCERS00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10281552 W10281552 ARM EXTENSION
W10204674 W10204674 BAFFLE
W10778959 W10778959 BASE-CABNT
W10772877 W10772877 BASE-UNIT
W10204621 W10204621 BIMETL-DEF
W10281561 W10281561 BLOCK
W10772873 W10772873 BOLT
W10772903 W10772903 BOTTOM DRAWER BOX ASSEMBLY
W10796446 W10796446 BOTTOM DRAWER PARTITION
W10772906 W10772906 BOTTOM FOAMED DOOR ASSEMBLY
W10488628 W10488628 BRACKET
W10281565 W10281565 BRACKET
W11506521 W11506521 BRACKET
W10788699 W10788699 BRACKET
4344773 4344773 BRACKET, DEFROST TIMER
W10772927 W10772927 BRACKET, FILTER
4344771 4344771 BRACKET, GRILLE
N_P N_P CABINET (NOT A SERVICABLE PART)
WP2186494B WP2186494B CAP-FILTER
WP488878 WP488878 CLAMP
7111P002-60 7111P002-60 CLAMP-CORD
W10281587 W10281587 CLAMP-TUBE
W10772901 W10772901 CLIP
W10622013 W10622013 CLIP
W10304193 W10304193 CLIP
W10238022 W10238022 CLIP
W10270517 W10270517 CLIP
WPW10772872 WPW10772872 COMPRESSOR
W10772866 W10772866 CONTRL-BOX
W10204948 W10204948 CONTRL-BOX

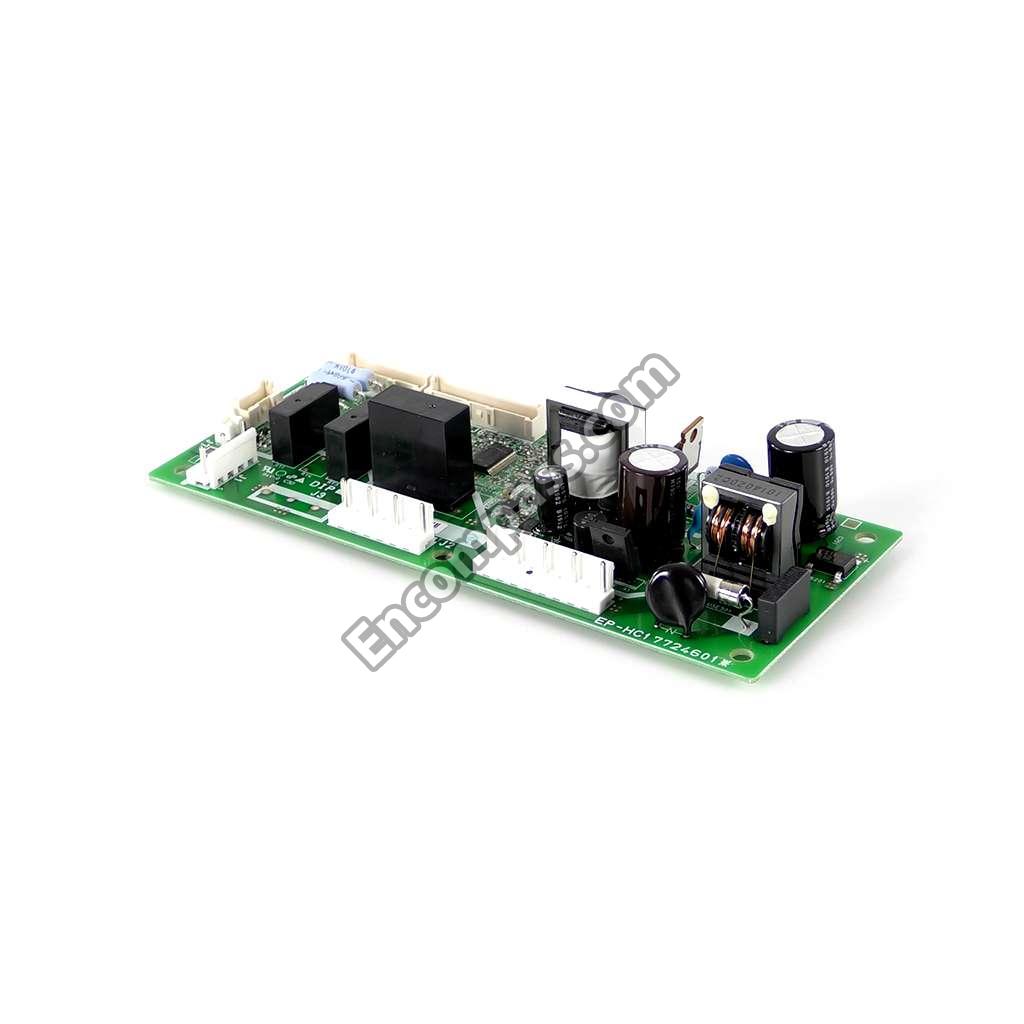

WPW10788697 WPW10788697 CONTROL BOARD
W10788703 W10788703 CONTROL PANEL ASSEMBLY
W10788698 W10788698 COVER
W10788689 W10788689 COVER
W10204929 W10204929 COVER
W10788692 W10788692 COVER, BOTTOM
W10772915 W10772915 COVER, FAN
W10788700 W10788700 COVER, REAR
W10772885 W10772885 COVER, RELAY
WPW10289690 WPW10289690 COVER-FRNT
W10205062 W10205062 COVER-WIRE
W10270486 W10270486 DIVIDER
W10772896 W10772896 DOOR
W11506518 W11506518 DRAIN TRAY
W10622003 W10622003 DRAWER
W10622009 W10622009 DRAWER-FRT
W10204867 W10204867 DRAWER-FRT
W10163273 W10163273 DRIER-TUBE
W10788691 W10788691 ENERGY GUIDE
W10854409 W10854409 EVAPORATOR MOTOR
WP2196157 WP2196157 FITTING
W10281586 W10281586 FITTING
W11625065 W11625065 GASKET
W10287957 W10287957 GASKET
W10204889 W10204889 GASKET
W10204897 W10204897 GASKET
W10281317 W10281317 GASKET
W10281494 W10281494 GRILLE
WP4344779 WP4344779 GROMMET
W10304006 W10304006 GROMMET
W10622019 W10622019 HANDLE
W10788702 W10788702 HARDWR PAK
W10772925 W10772925 HARNESS EXTENSION
W10772924 W10772924 HARNESS, DEFROST HEATER
W10789534 W10789534 HARNESS, DISPLAY TO INDICATOR
W10772918 W10772918 HARNS-WIRE
W10772870 W10772870 HARNS-WIRE
WP2225521 WP2225521 HOUSING
4317943 4317943 ICEMAKER ASSEMBLY
WP2307650 WP2307650 INLET VALVE
W10621528 W10621528 INSULATION
W10205072 W10205072 INSULATION
W10772921 W10772921 INSULATION, COMBO
W10204640 W10204640 KICK PLATE MOUNT
W10204930 W10204930 LENS-LIGHT
W11106296 W11106296 LEVELER
W10622026 W10622026 MAT
W10622004 W10622004 MAT
W10772882 W10772882 MOTOR-COND
WPW10214168 WPW10214168 NAMEPLATE
W10772890 W10772890 NUT
W10204920 W10204920 NUT
W10772884 W10772884 OVERLAY RELAY
W10621514 W10621514 PAD
W11625904 W11625904 PAN-ICE
W10299088 W10299088 PLATE
W10204688 W10204688 PLATE
W10772920 W10772920 PLATE COVER
WPW10204676 WPW10204676 POWER CORD
W10622002 W10622002 RAIL-MULLN
W10266810 W10266810 REPAIR KIT
W10772895 W10772895 RUNNING CAPACITOR
W10772886 W10772886 SCREW
W11380570 W11380570 SCREW
4344825 4344825 SCREW
W10837731 W10837731 SCREW
4344797 4344797 SCREW
4344826 4344826 SCREW
W10774183 W10774183 SCREW
W10281549 W10281549 SCREW
W10281556 W10281556 SCREW
W10281585 W10281585 SCREW
W10319185 W10319185 SCREW
W10319184 W10319184 SCREW
W10319183 W10319183 SCREW
W10621524 W10621524 SCREW
W10204809 W10204809 SCREW
W10859467 W10859467 SCREW
W10204810 W10204810 SCREW
W10204808 W10204808 SCREW
W10205061 W10205061 SCREW
W10205069 W10205069 SCREW
W10788704 W10788704 SEAL
W10304189 W10304189 SEAL
4344823 4344823 SEAL, BRACE
W10772922 W10772922 SEAL, COLD AIR STOP
W10778963 W10778963 SEALER
W10772919 W10772919 SEALER
W10775535 W10775535 SENSOR CASE
2256178 2256178 SHIELD
W10281553 W10281553 SHIELD
W10281546 W10281546 SHUT OFF ARM
W10621521 W10621521 SLIDE
W10621523 W10621523 SLIDE
W10204931 W10204931 SOCKET
W10204659 W10204659 SPACER
W10788693 W10788693 SPEAKER
WP8564951 WP8564951 STUD
W10621525 W10621525 SUPPORT
W10621526 W10621526 SUPPORT
4344820 4344820 SUPPORT, LEFT HAND
4344821 4344821 SUPPORT, RIGHT HAND
W10721454 W10721454 SWITCH
W10281589 W10281589 TAPE
W10721447 W10721447 TAPE
W10205081 W10205081 TAPE
W10772917 W10772917 TEMPERATURE SENSOR
W11238391 W11238391 THERMISTOR
W10287848 W10287848 THERMISTOR
W11573590 W11573590 THERMISTOR
4344829 4344829 TIE, CABLE
W10163276 W10163276 TRAP
W10621527 W10621527 TRIM
4344907 4344907 TRIM, EDGE
8201597 8201597 TUBE, FILTER INLET
W10772928 W10772928 TUBE-WATER
W10741583 W10741583 USE & CARE GUIDE
4344913 4344913 WARNING LABEL
EDR6D1 EDR6D1 WATER FILTER
W10772894 W10772894 WIRING DIAGRAM
