Model Image
Manufacturer

Whirlpool

Model Number

JUDFP242HX01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10204674 W10204674 AIR BAFFLE
W10266810 W10266810 ALUMINUM TAPE
W11633891 W11633891 AUXILIARY PLATE
W11493080 W11493080 BLOCK AIR CIRCULATION
W10772873 W10772873 BOLT
W11633892 W11633892 BOTTOM DRAWER PARTITION
W11422817 W11422817 BOTTOM FOAMED DOOR ASSEMBLY
W10239387 W10239387 BRACKET, DEFROST TIMER
W10239388 W10239388 BRACKET, GRILLE
W11466968 W11466968 BRACKET, POWER CONTROL BOARD BOX
W11422734 W11422734 CABINET BASE PLATE
W11633875 W11633875 CABLE CLAMP
WP3196256 WP3196256 CLAMP, CORD
W10270517 W10270517 CLAMP, CORD
W10238022 W10238022 CLIP, BUSHING
W10772909 W10772909 COLD AIR SEAL
W11422743 W11422743 COMPRESSOR
W10772882 W10772882 CONDENSER DC MOTOR
W11422846 W11422846 CONTROL ASSEMBLY
W11633898 W11633898 COVER
W10772863 W10772863 COVER, BOTTOM
W10796448 W10796448 COVER, FAN
W10796445 W10796445 COVER, REAR
W11422786 W11422786 COVER, RELAY
W11633899 W11633899 COVER, RELAY
W10788698 W10788698 COVER, SPEAKER SENSOR
W10204889 W10204889 DOOR GASKET, LONG
W10204897 W10204897 DOOR GASKET, SHORT
W10721454 W10721454 DOOR SWITCH
W11422821 W11422821 DRAWER BOX ASSEMBLY, UPPER
W11422819 W11422819 DRAWER BOX ASSEMBLY, UPPER
W11422834 W11422834 DRAWER PARTITION
W10163273 W10163273 DRIER
W10778958 W10778958 ENERGY GUIDE
W10854409 W10854409 EVAPORATOR MOTOR
W10204688 W10204688 FAN BUSHING
W11506521 W11506521 FAN COVER, CONDENSER
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
W10800049 W10800049 FRAME (LEFT HAND)
W10800050 W10800050 FRAME (RIGHT HAND)
4344820 4344820 FRAME, SUPPORT (SUPPORT (LEFT HAND))
4344821 4344821 FRAME, SUPPORT (SUPPORT (RIGHT HAND))
WPW10622006 WPW10622006 GASKET
WP4344779 WP4344779 GROMMET
W10772870 W10772870 HARNESS EXTENSION
W10789534 W10789534 HARNESS, DISPLAY TO INDICATOR
W10772918 W10772918 HARNESS, FAN COVER
W10772919 W10772919 INSULATION, FAN COVER
W10778963 W10778963 INSULATION, REAR COVER
W10204635 W10204635 KICK PLATE
W10204640 W10204640 KICK PLATE MOUNT
W10204929 W10204929 LAMP COVER
W10204931 W10204931 LAMP HOLDER
W10204930 W10204930 LED LAMP
W11106296 W11106296 LEVELER
W10621514 W10621514 LINER BUSHING
W11422836 W11422836 MAIN POWER CONTROL BOARD
W10772866 W10772866 MAIN POWER CONTROL BOARD BOX
W11568945 W11568945 MAT, LOWER DRAWER
W11568835 W11568835 MAT, UPPER DRAWER
W10622002 W10622002 MULLION BODY ASSEMBLY
W11422824 W11422824 MULLION CASE COVER
W11422742 W11422742 MULLION CASE INSULATION FRONT
W11466965 W11466965 MULLION INSULATION
W10205072 W10205072 MULLION INSULATION
W10772890 W10772890 NUT
W10204920 W10204920 NUT

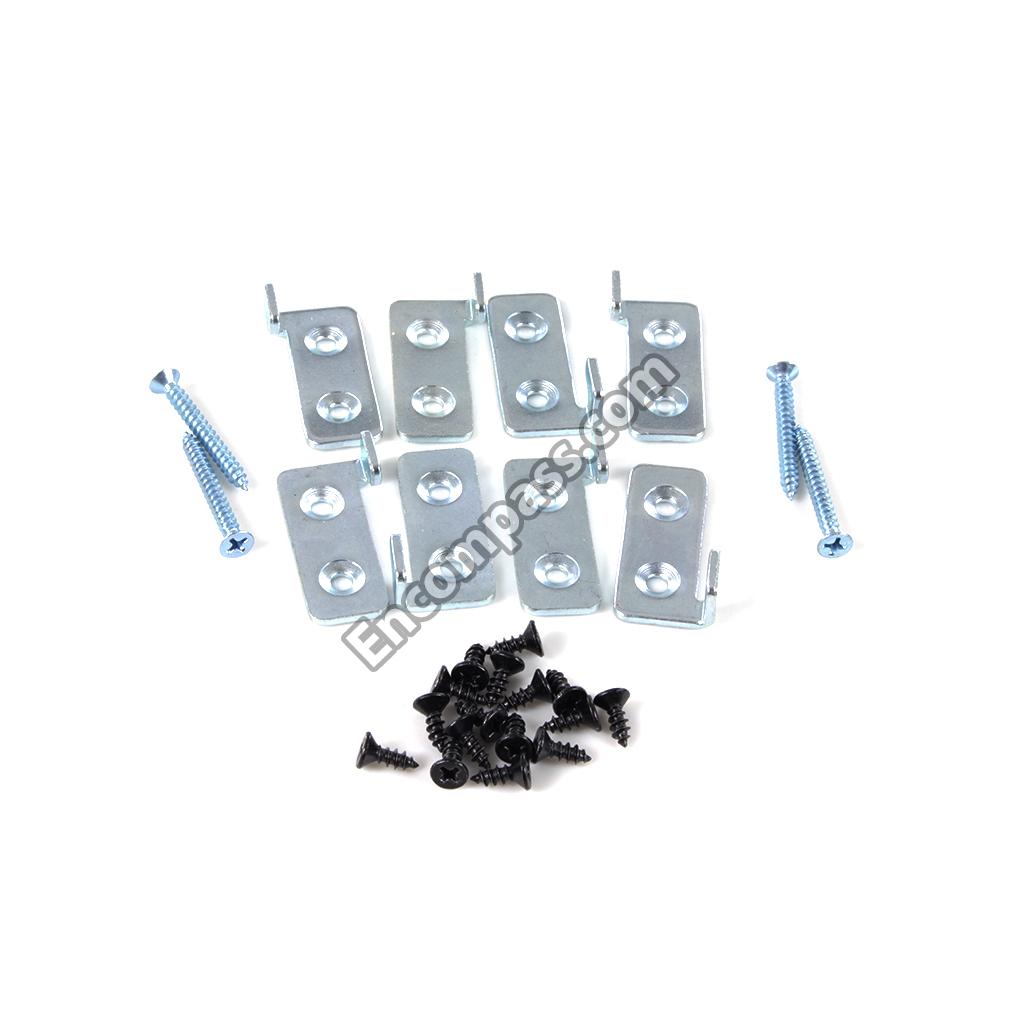

W10788702 W10788702 OVERLAY INSTALLATION KIT
W11422769 W11422769 OVERLOAD RELAY
W10316689 W10316689 PAN, DRAIN
W10204659 W10204659 PCB STANDOFF
W10772920 W10772920 PLATE COVER
WPW10204676 WPW10204676 POWER CORD
W10621521 W10621521 RAIL ASSEMBLY, LEFT HAND
W10621523 W10621523 RAIL ASSEMBLY, RIGHT HAND
W10837731 W10837731 SCREW
W11422695 W11422695 SCREW
W11380570 W11380570 SCREW
W10205061 W10205061 SCREW
W10204808 W10204808 SCREW
W10204810 W10204810 SCREW
W11422709 W11422709 SCREW
W10319183 W10319183 SCREW
4344825 4344825 SCREW
W10319184 W10319184 SCREW
4344797 4344797 SCREW
4344826 4344826 SCREW
W10204809 W10204809 SCREW
W10621524 W10621524 SCREW
W10774183 W10774183 SCREW
W11422827 W11422827 SEAL
W10788704 W10788704 SEAL
4344823 4344823 SEAL, BRACE
W10775535 W10775535 SENSOR CASE
W10204948 W10204948 SENSOR CASE SEAL
W10796444 W10796444 SERVICE & WIRING SHEET
W10788693 W10788693 SPEAKER
W11422694 W11422694 SPRING WASHER
W11596023 W11596023 START-DEV
W10622013 W10622013 SUPPORT, LEAD WIRE
W10772901 W10772901 SUPPORT, WIRE
W10205062 W10205062 TERMINAL PROTECTOR
W10204621 W10204621 THERMAL FUSE ASSEMBLY
W11238391 W11238391 THERMISTOR
W11573590 W11573590 THERMISTOR
W11633878 W11633878 TIE, CABLE
4344829 4344829 TIE, CABLE
W11422740 W11422740 TOP FOAMED DOOR ASSEMBLY
W10163276 W10163276 TRAP, DRAIN
4344907 4344907 TRIM, EDGE
W10741583 W10741583 USE & CARE GUIDE
W11444462 W11444462 WARNING LABEL
W11442514 W11442514 WIRE SUPPORT TAPE
