Model Image
Manufacturer

Whirlpool

Model Number

JUR248RBCX00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4344782 4344782 BAFFLE
4344762 4344762 BASE-CABNT
W10175971 W10175971 BASE-UNIT
4344792 4344792 BIMETL-DEF
W10175958 W10175958 BIN-CNTLVR
4344764 4344764 BRACE
4344784 4344784 BRACKET
4344773 4344773 BRACKET
4344785 4344785 BRACKET
4344757 4344757 BRACKET
4344899 4344899 BRACKET
4344802 4344802 BRACKET
W11123481 W11123481 CAPACITOR
W11456069 W11456069 CLAMP
WP4344836 WP4344836 CLIP
4344831 4344831 CLIP
4344771 4344771 CLIP
4344819 4344819 CLIP
8201787 8201787 COMPRESSOR
4344765 4344765 CONTRL-BOX
4344830 4344830 CORD-POWER
4344786 4344786 COVER-BACK
W10167688 W10167688 DOOR
WP4344828 WP4344828 DRIER-TUBE
W10167591 W10167591 ENERGY GUIDE

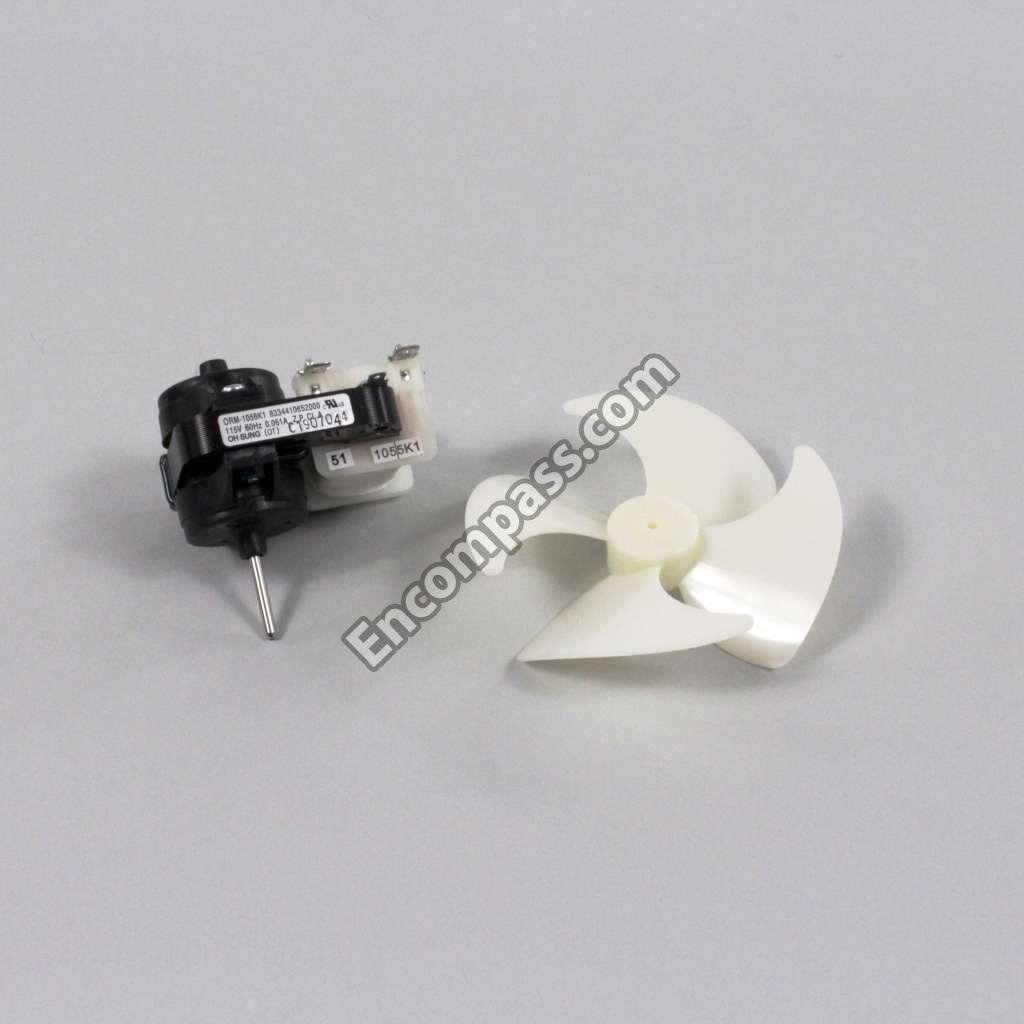

W10315091 W10315091 EVAPORATOR MOTOR
4344868 4344868 FRAME-SHLF
WPW10238068 WPW10238068 GASKET
WP4344869 WP4344869 GLASS, SHELF
WPW10238193 WPW10238193 GRILLE
WP4344779 WP4344779 GROMMET
4344838 4344838 GROMMET
4344778 4344778 GROMMET
4344822 4344822 HARNS-WIRE
4344877 4344877 HARNS-WIRE
W10310989 W10310989 HARNS-WIRE
W11230119 W11230119 HEATER
W10239363 W10239363 HINGE, BOTTOM
4344754 4344754 HINGE-DOOR
WPW10235660 WPW10235660 HOUS-CNTRL
WP4344818 WP4344818 INSTALLATION KIT, DOOR PANEL
WP3402573 WP3402573 KNOB
W10163191 W10163191 LABEL
4344842 4344842 LADDER
4344843 4344843 LADDER
W10167586 W10167586 LENS-LIGHT
W11106296 W11106296 LEVELER
WP22002263 WP22002263 LIGHT BULB
WPW10299090 WPW10299090 MOTOR-COND
W10167587 W10167587 MOTOR-EVAP
W10163274 W10163274 PAD
W10163193 W10163193 PAN-DRIP
4344872 4344872 RETAINER
W10167590 W10167590 RETAINER
W11380570 W11380570 SCREW
4344834 4344834 SCREW
WP90767 WP90767 SCREW
W10772873 W10772873 SCREW
4344801 4344801 SCREW
4344906 4344906 SCREW
4344796 4344796 SCREW
4344794 4344794 SCREW
4344797 4344797 SCREW
4344793 4344793 SCREW
4358271 4358271 SCREW
4344827 4344827 SCREW
4344826 4344826 SCREW
4344825 4344825 SCREW
W10841091 W10841091 SCREW
W10162986 W10162986 SCREW
W10243123 W10243123 SCREW
4344823 4344823 SEAL
WPW10167588 WPW10167588 SHELF, CRISPER
4344747 4344747 SHIELD
4344804 4344804 SPACER
4344803 4344803 SPACER
4344798 4344798 SPACER
WP4344776 WP4344776 START-DEV
4344908 4344908 SUPPORT
4344821 4344821 SUPPORT
4344820 4344820 SUPPORT
4344769 4344769 SUPPORT
4344770 4344770 SUPPORT
WP4344767 WP4344767 SWITCH
W11176247 W11176247 THERMOSTAT
4344829 4344829 TIE-WIRE
W11609704 W11609704 TIMER-DEF
W10163276 W10163276 TRAP
4344907 4344907 TRIM
2300279B 2300279B USE & CARE GUIDE
4344760 4344760 WASHER
4344795 4344795 WASHER
W11241702 W11241702 WASHER
4344902 4344902 WIRING DIAGRAM
