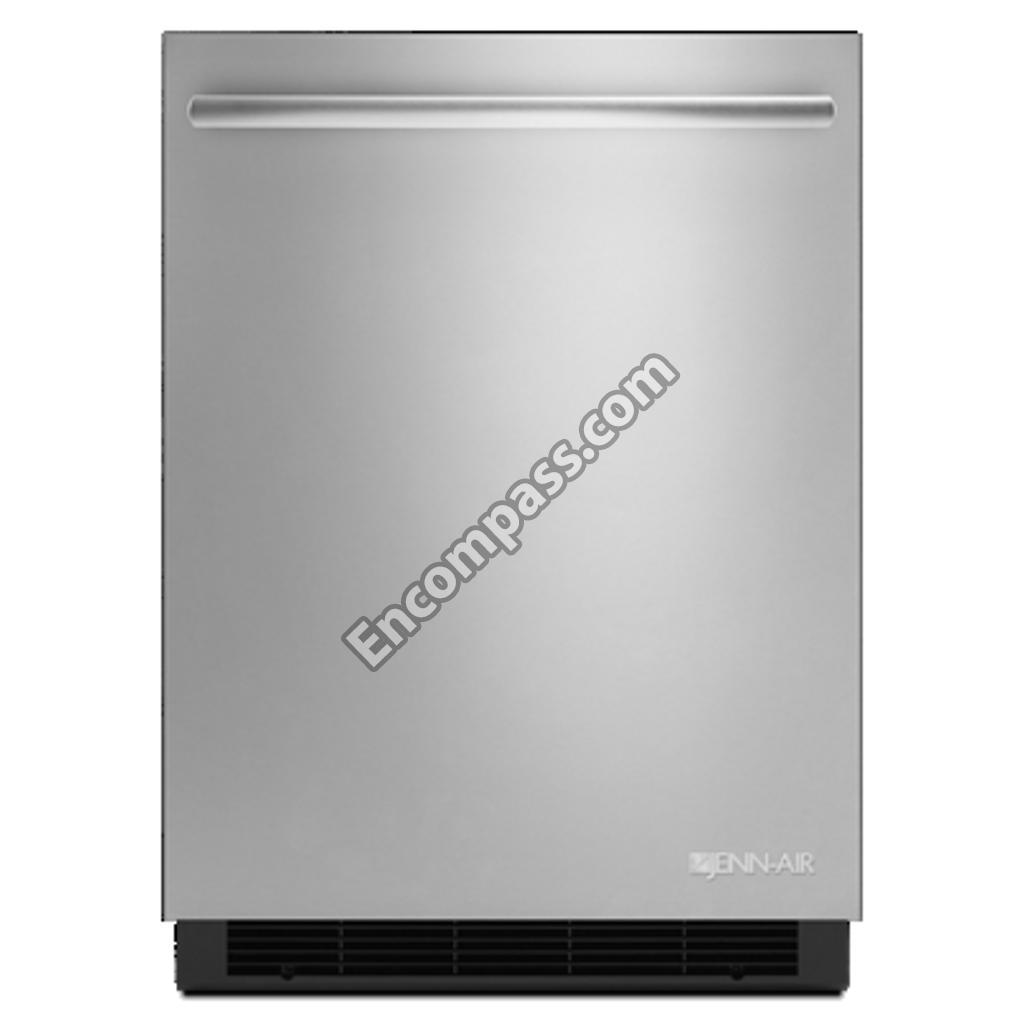

Model Image
Manufacturer

Whirlpool

Model Number

JUR24FLERS00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10204674 W10204674 BAFFLE
W10778959 W10778959 BASE-CABNT
W10772863 W10772863 BASE-CABNT
W10772877 W10772877 BASE-UNIT
W10292475 W10292475 BIMETL-DEF
W10175958 W10175958 BIN-CNTLVR
W10772873 W10772873 BOLT
W10780355 W10780355 BOLT
W10788699 W10788699 BRACKET
W10622808 W10622808 BRACKET
W11506521 W11506521 BRACKET
4344773 4344773 BRACKET, DEFROST TIMER
4344771 4344771 BRACKET, GRILLE
N_P N_P CABINET (NOT A SERVICE PART)
W10778969 W10778969 CAPACITOR
549193 549193 CLAMP
WP3196256 WP3196256 CLAMP, CORD
W10270482 W10270482 CLAMP-CORD
W10238022 W10238022 CLIP
8201787 8201787 COMPRESSOR
W10204948 W10204948 CONTRL-BOX
W10772866 W10772866 CONTRL-BOX
W10807592 W10807592 CONTROL BOARD
W11241069 W11241069 CONTROL BOX
W10797395 W10797395 COVER
W10788698 W10788698 COVER
W10622811 W10622811 COVER
W10622812 W10622812 COVER
W10796445 W10796445 COVER-BACK
W10778967 W10778967 COVER-TERM
W10623024 W10623024 DOOR
W10622805 W10622805 DOOR
W10622813 W10622813 DOOR-SKIN
W10623023 W10623023 DOOR-SKIN
W10163273 W10163273 DRIER-TUBE
W10800030 W10800030 ENERGY GUIDE
W10797393 W10797393 EVAPORATOR FAN HARNESS
W10854409 W10854409 EVAPORATOR MOTOR
W10797392 W10797392 FAN COVER
W10800049 W10800049 FRAME (LEFT HAND)
W10800050 W10800050 FRAME (RIGHT HAND)
W10780356 W10780356 FRAME FRONT, BOTTOM
W10622802 W10622802 FRAME-SHLF
WPW10624183 WPW10624183 GASKET
WPW10622800 WPW10622800 GLASS SHELF
W10204635 W10204635 GRILLE
WP4344779 WP4344779 GROMMET
W10622019 W10622019 HANDLE
W10772870 W10772870 HARNS-WIRE
W10622809 W10622809 HINGE-DOOR
W10622810 W10622810 HINGE-DOOR
W10797394 W10797394 INSULATION, FAN COVER
W10204640 W10204640 KICK PLATE MOUNT
W10622804 W10622804 LADDER
W10622774 W10622774 LENS-LIGHT
W11106296 W11106296 LEVELER
W11441723 W11441723 LIGHT
W10772882 W10772882 MOTOR-COND
WPW10214168 WPW10214168 NAMEPLATE
W10772890 W10772890 NUT
W10800048 W10800048 OVERLAY INSTALLATION PARTS
W10778965 W10778965 OVERLOAD
W10316689 W10316689 PAN-DRIP
W10204688 W10204688 PLATE
W11263339 W11263339 PLATE
WPW10204676 WPW10204676 POWER CORD
W10778971 W10778971 RETAINER
W10772886 W10772886 SCREW
W11380570 W11380570 SCREW
4344797 4344797 SCREW
W10780349 W10780349 SCREW
4344826 4344826 SCREW
4344825 4344825 SCREW
W10774183 W10774183 SCREW
W10859467 W10859467 SCREW
W10205061 W10205061 SCREW
W10319184 W10319184 SCREW
W10319189 W10319189 SCREW
W10319183 W10319183 SCREW
W10319185 W10319185 SCREW
W10319187 W10319187 SCREW
W10622817 W10622817 SCREW
4344823 4344823 SEAL, BRACE
W10772922 W10772922 SEAL, COLD AIR STOP
W10775535 W10775535 SENSOR CASE
WPW10622803 WPW10622803 SHELF-GLAS
4344747 4344747 SHIELD, HEAT
W10204659 W10204659 SPACER
W10622806 W10622806 SPACER
W10622807 W10622807 SPACER
W10623027 W10623027 SPACER
W10623029 W10623029 SPACER
W10780350 W10780350 SPACER, BOTTOM HINGE
W10780357 W10780357 SPACER, FRAME FRONT
W10780347 W10780347 SPACER, MOUNTING HINGE
W10800040 W10800040 SPACER, STAINLESS WRAP
W10788693 W10788693 SPEAKER
WP8564951 WP8564951 STUD
4344820 4344820 SUPPORT (LEFT HAND)
4344821 4344821 SUPPORT (RIGHT HAND)
W10721454 W10721454 SWITCH
W11238391 W11238391 THERMISTOR
W11573590 W11573590 THERMISTOR
W10778966 W10778966 THERMISTOR
4344829 4344829 TIE, CABLE
W10163276 W10163276 TRAP
4344907 4344907 TRIM, EDGE
W10741578 W10741578 USE & CARE GUIDE
4344913 4344913 WARNING LABEL
