Model Image
Manufacturer

Whirlpool

Model Number

JVD0303GS0

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
W10355051 W10355051 ACCESSORIES, CLEANER, COOKTOP
W10807916 W10807916 ACCESSORIES, FILTER, CHARCOAL

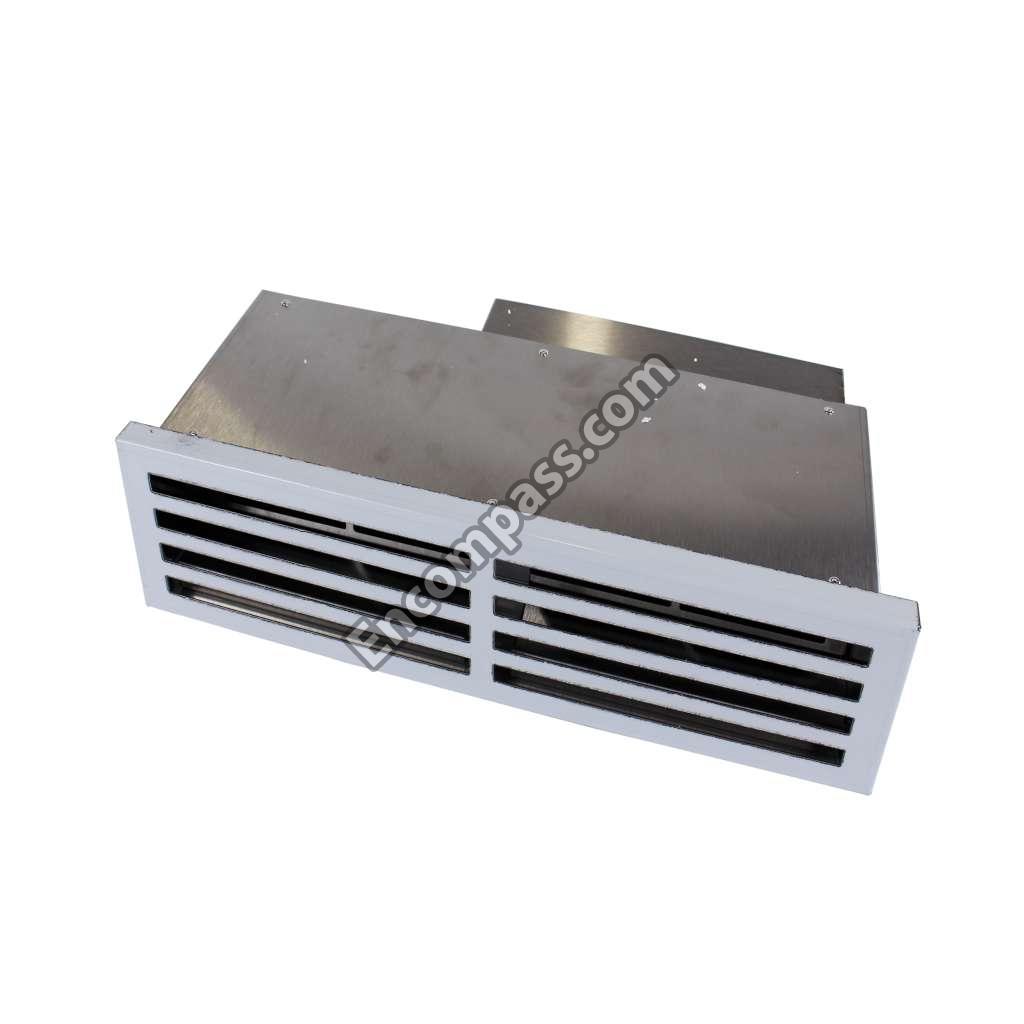

W10807915 W10807915 ACCESSORIES, KIT, RECIRCULATION
W11180669 W11180669 ACCESSORIES, KIT, Y-TRANSITION DUCTING
W10391473 W10391473 ACCESSORIES, PAD, COOKTOP CLEANING
W11226879 W11226879 ADAPTER, DISCHARGE
W11227461 W11227461 BLOCK, TERMINAL
W11227394 W11227394 BRACKET, DOWNDRAFT BRIDGE
W11226888 W11226888 BRACKET, STRUT
W11227427 W11227427 BUSHING
W11226882 W11226882 COLLAR, INLET
W11228240 W11228240 CONTROL BOARD
W11228213 W11228213 COVER-FAN
W11226881 W11226881 DUCT, LOWER
W11226880 W11226880 DUCT, UPPER
W11228634 W11228634 FILTER, GREASE
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
W11229251 W11229251 HARDWARE, INSTALLATION
W11227455 W11227455 HARNESS, BLOWER MOTOR
W11227459 W11227459 HARNESS, INTERNAL LOW VOLT
W11227456 W11227456 HARNESS, INTERNAL MAIN
W11227460 W11227460 HARNESS, LOW VOLT
W11227435 W11227435 HARNESS, MAIN
W11170792 W11170792 INSTALLATION INSTRUCTIONS
W11228219 W11228219 LIGHT
W11227467 W11227467 MOTOR, BLOWER
W11227464 W11227464 PANEL, GLASS LIGHT
W11227466 W11227466 PCBA, CONTROL
W11233220 W11233220 RELIEF, STRAIN
W11227463 W11227463 RELIEF, STRAIN
W10618504 W10618504 RELIEF, STRAIN
W10626012 W10626012 SCREW
W11226896 W11226896 SOLENOID
W11111293 W11111293 SPRING, VALVE
W11195162 W11195162 STANDOFF, CONTROL
W11226892 W11226892 STRUT, GAS
W11227469 W11227469 SWITCH, LED LIGHT
W11227397 W11227397 SWITCH, SOLENOID
W11227462 W11227462 TRAY, GREASE
W11170798 W11170798 USE AND CARE GUIDE
