Manufacturer

Whirlpool

Model Number

KBFN402EPA00

Description

Bottom-mount Refrigerator

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876029 876029 "MISCELLANEOUS, KIT, FOAM SLAB (30"" X 32 1/2"" X 1 1/2"")"
W10311524 W10311524 ANTIBACTERIAL FILTER
WP627843 WP627843 ARM-EJECTR
W11342242 W11342242 ARM-SHUT
W10770922 W10770922 ASSEMBLY, FREEZER BASKET
2327511 2327511 ASSEMBLY, FREEZER PAN
2306175 2306175 ASSEMBLY, ICE PAN FRONT
2310195 2310195 ASSEMBLY, JUMPER WIRE (POWER SWITCH TO POWER CORD)
P1KL6S1CS P1KL6S1CS ASSEMBLY, PRODUCE PRESERVER
2317847 2317847 ASSEMBLY, WATER INLET TUBE
W10258183 W10258183 BASKET-FZR
WP627985 WP627985 BIMETL-DEF

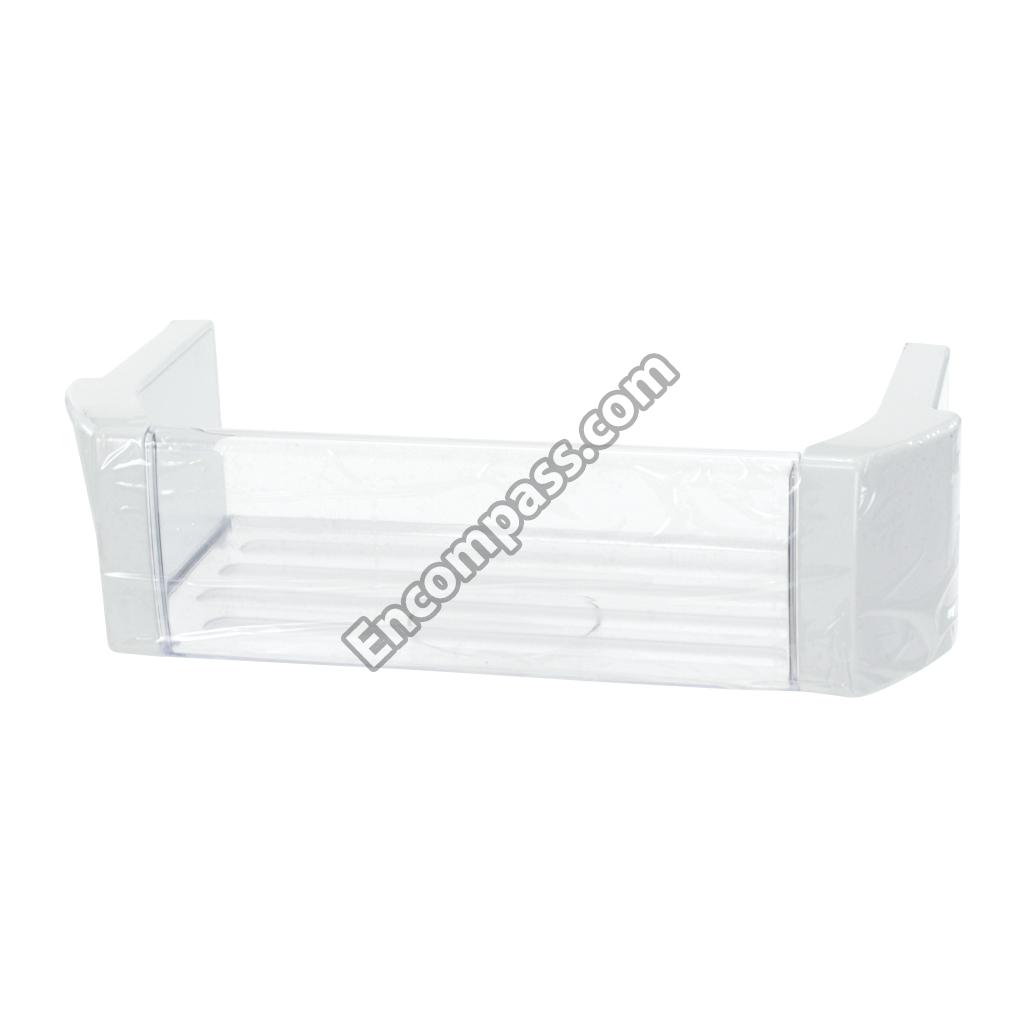

W10323746 W10323746 BIN-CNTLVR
W10323598 W10323598 BIN-CNTLVR
WP2163777 WP2163777 BLADE-FAN
WPW10139483 WPW10139483 BLADE-FAN
2003347 2003347 BOLT

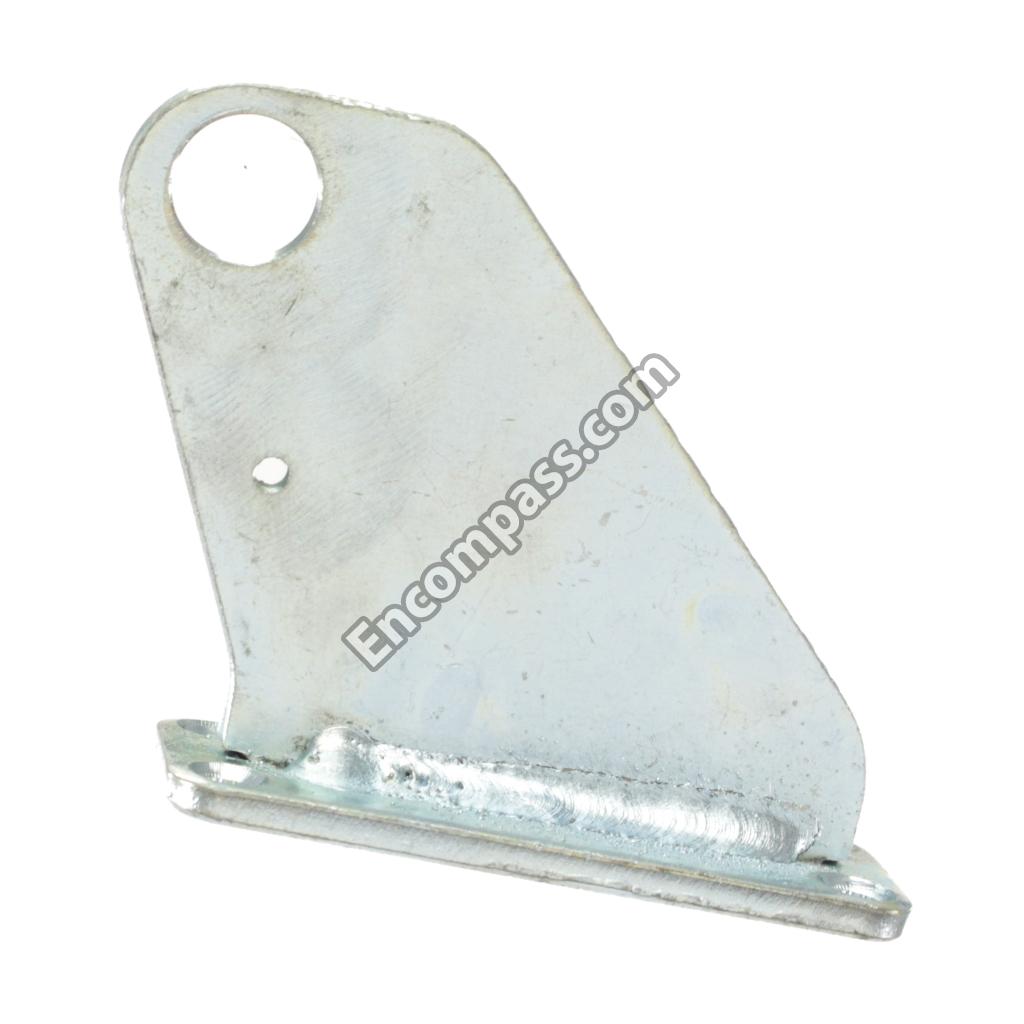

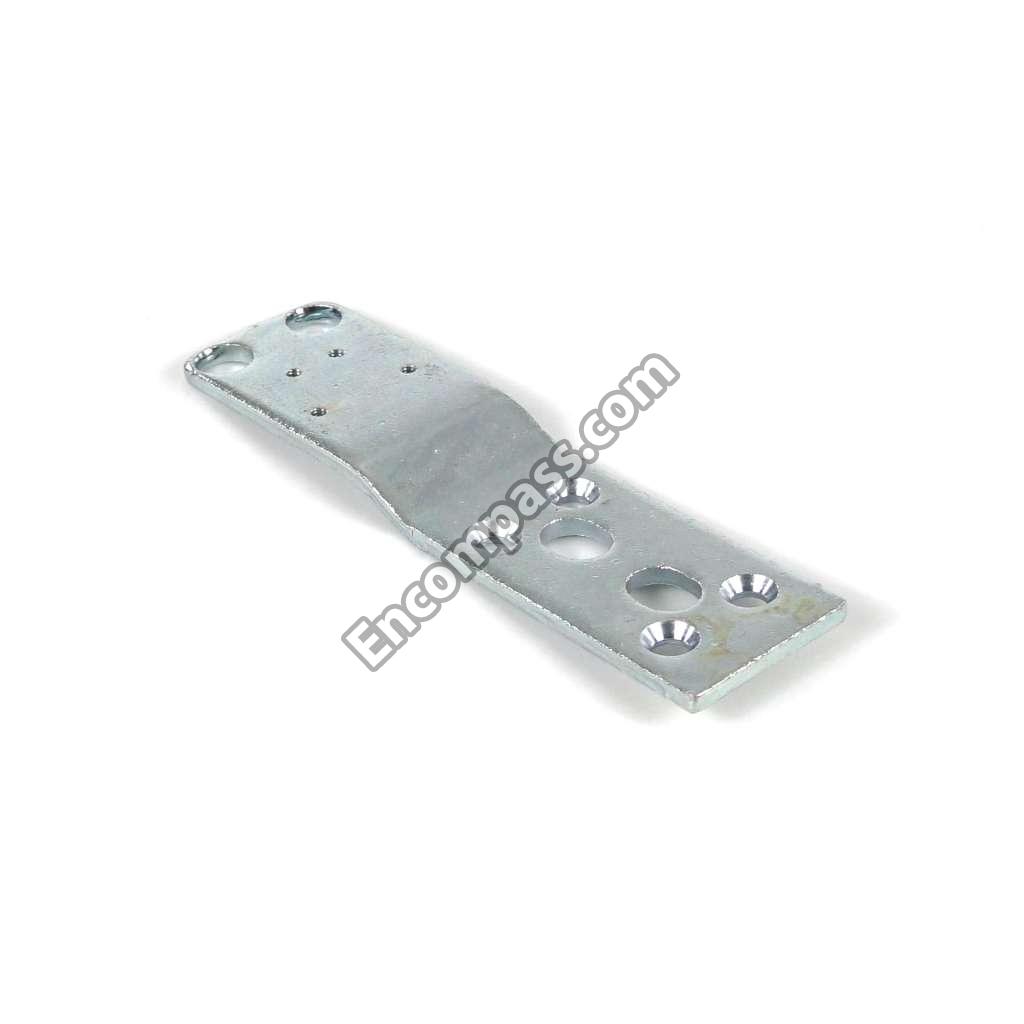

W11403572 W11403572 BRACKET
W10839844 W10839844 BRACKET
W11233715 W11233715 BRACKET
W10625531 W10625531 BRACKET
W10414681 W10414681 BRACKET
W10741112 W10741112 BRACKET
W10741111 W10741111 BRACKET
W10674648 W10674648 BRACKET
2006617 2006617 BRACKET, BASE SUPPORT (REAR)
2307945 2307945 BRACKET, EVAPORATOR HEATER MOUNTING
2256328 2256328 BRACKET, INVERTER MOUNTING
WP2316859 WP2316859 BUSHING
2314023 2314023 BUSHING, HINGE
WP2260503B WP2260503B BUTTON
N_P N_P CABINET (NOT SERVICED)
WP2320509 WP2320509 CAM-DOOR
2258903 2258903 CAP, DOOR CORNER

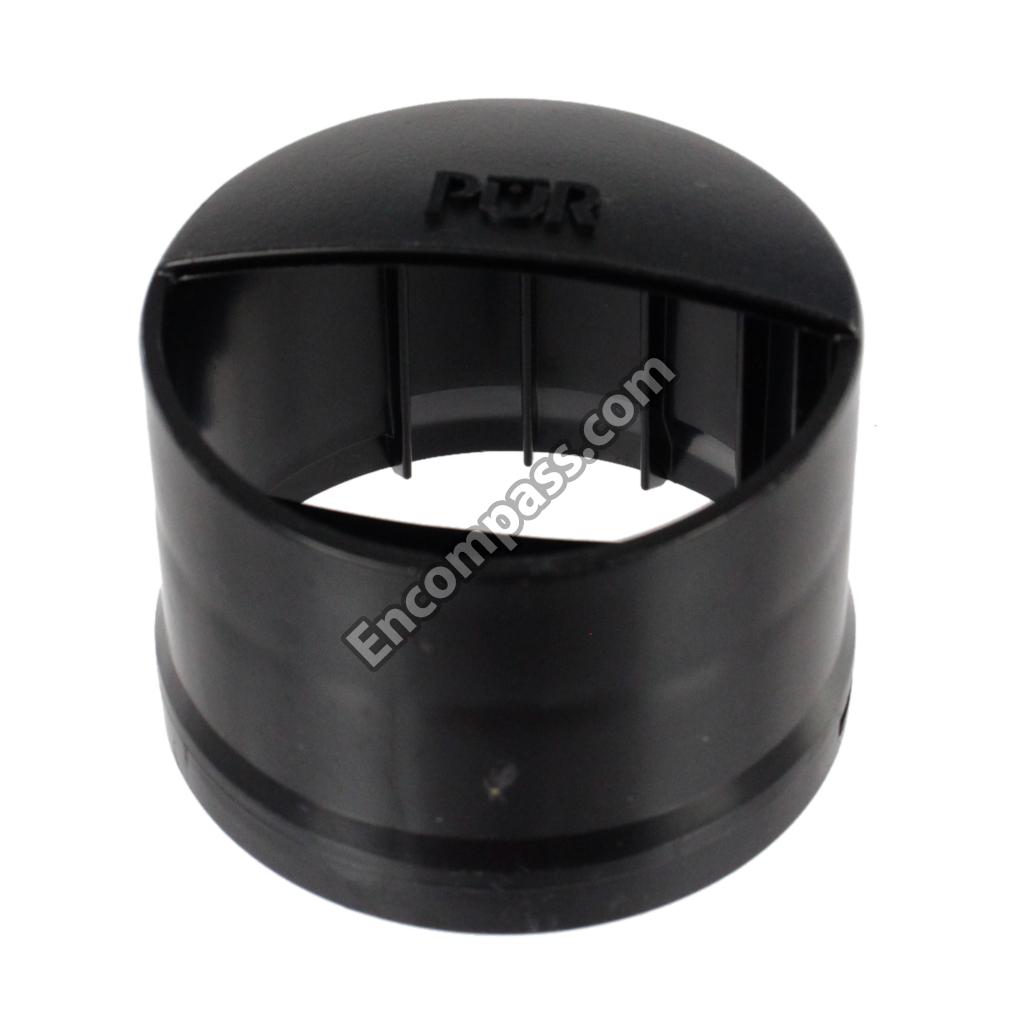

W11238395 W11238395 CAP-FILTER
WP488366 WP488366 CLAMP
549193 549193 CLAMP, POWER CORD
W10663352 W10663352 CLAMP-TUBE

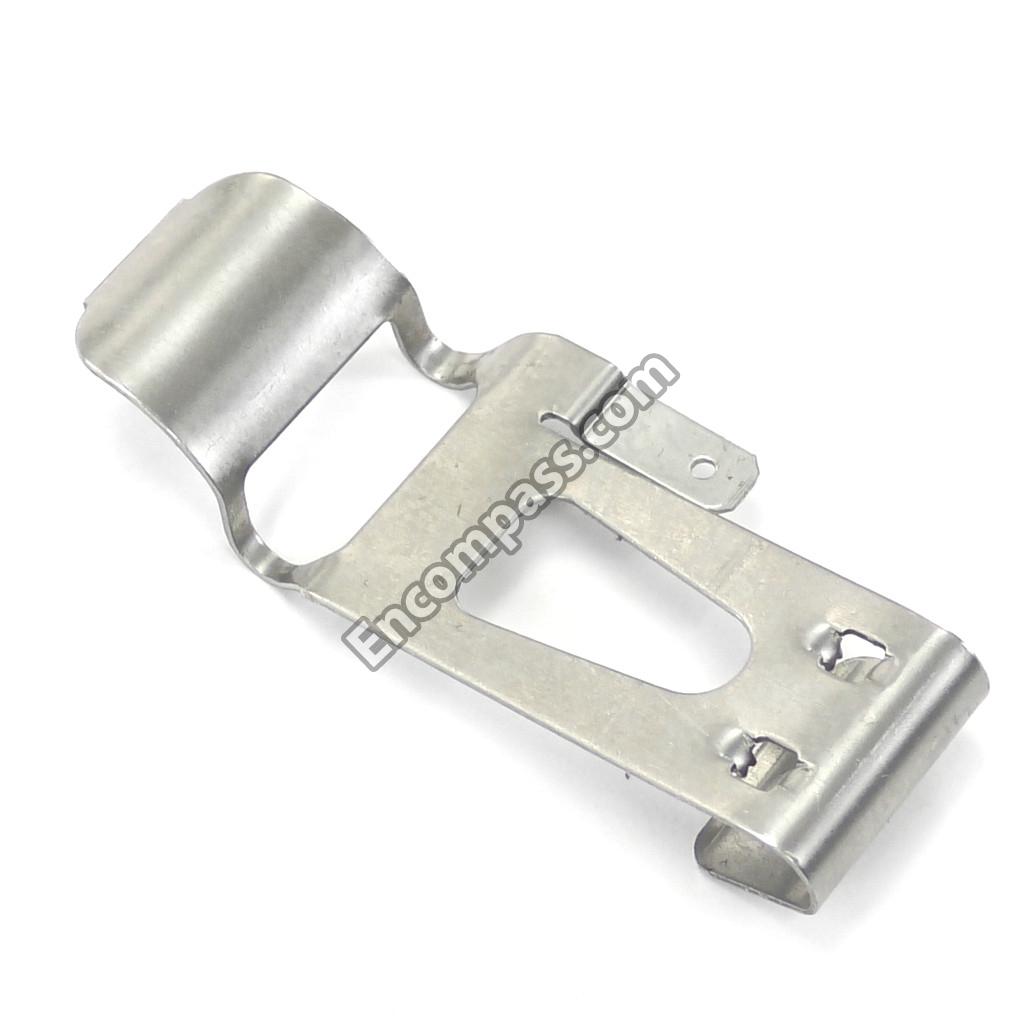

WP2315522 WP2315522 CLIP
WP628379 WP628379 CLIP
W11712696 W11712696 CLIP
W10555493 W10555493 CLIP
2317920 2317920 CLIP, DEFROST HEATER
2307944 2307944 CLIP, EVAPORATOR HEATER
W10741189 W10741189 CLIP, WIRING
8201675 8201675 COMPRESSOR
W10591457 W10591457 CONDENSER
2309231 2309231 CONTACT, MULLION (BOTTOM)
2309230 2309230 CONTACT, MULLION (TOP)

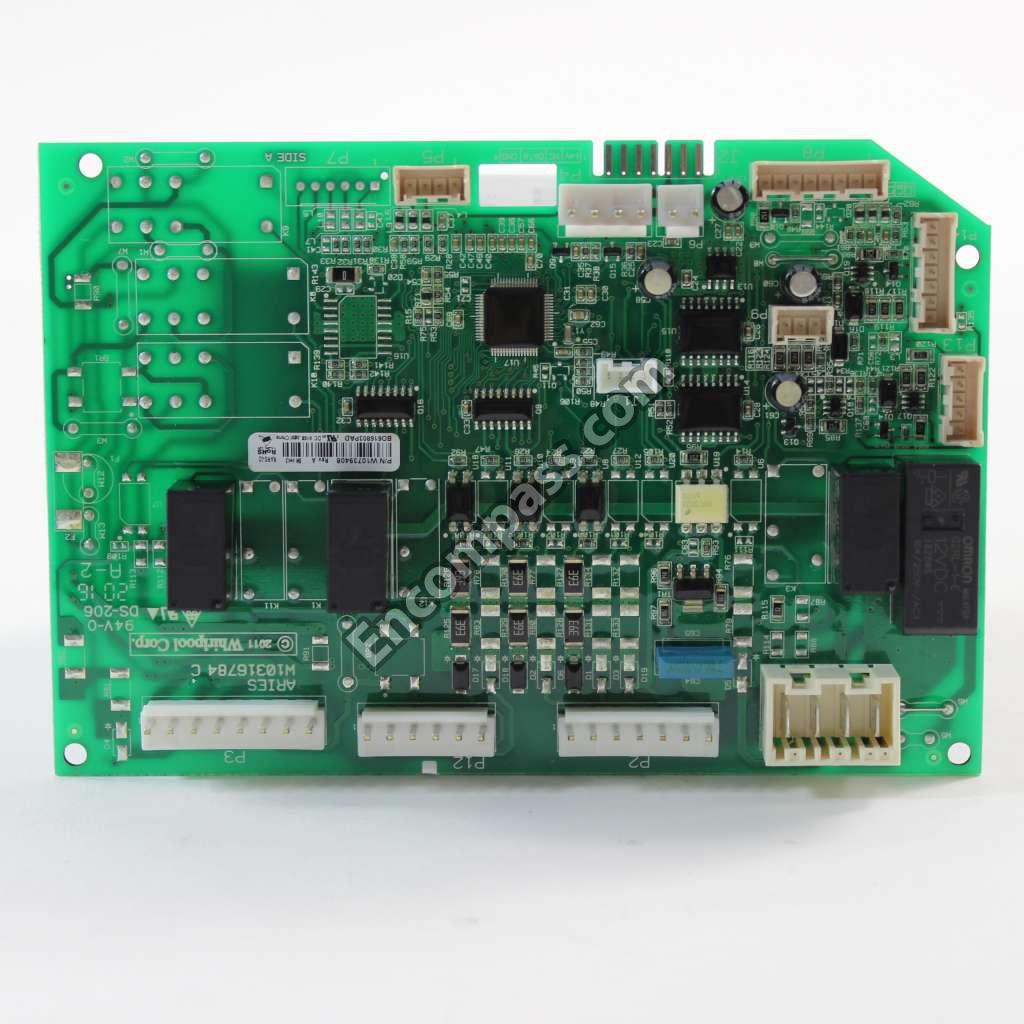

WPW10624574 WPW10624574 CONTROL BOARD
WPW10739408 WPW10739408 CONTROL BOARD
2310196 2310196 CORD, POWER
W10525175 W10525175 COVER
W10609678 W10609678 COVER
W10606833 W10606833 COVER
W10757498 W10757498 COVER
2317004 2317004 COVER, AIR RETURN
2317078 2317078 COVER, SCREW (ROUND)
2316899 2316899 COVER, SCREW (SQUARE)
2309213S 2309213S COVER, SIDE TRIM
2309021S 2309021S COVER, SIDE TRIM (HANDLE SIDE)
2309022S 2309022S COVER, SIDE TRIM (HINGE SIDE)
2215938 2215938 COVER, SWITCH
2215676 2215676 COVER, TERMINAL
2309033S 2309033S COVER, TOP TRIM
2306187 2306187 COVER, WIRING (ICEMAKER)
W10426957 W10426957 COVER-DUCT
W10679179 W10679179 COVER-EVAP
W10686637 W10686637 COVER-EVAP
W10694113 W10694113 COVER-UNIT
W10545068 W10545068 COVER-UNIT
WPW10309012 WPW10309012 COVER-WIRE
W10321048 W10321048 COVER-WIRE
W10392442 W10392442 CUP-FILL
W10710401 W10710401 DEFLECTOR
W10567169 W10567169 DIVERTER, AIR SHROUD
W10645086 W10645086 DIVIDER
W10663430 W10663430 DIVIDER
2317101 2317101 DIVIDER, BASKET
W10782357 W10782357 DOOR ASSEMBLY
W10782316 W10782316 DOOR ASSEMBLY
W10782312 W10782312 DOOR ASSEMBLY
W11673500 W11673500 DOOR HINGE
W11218690 W11218690 DOOR HINGE
WPW10143759 WPW10143759 DRIER-TUBE
W10578092 W10578092 DUCT-AIR
WP2221071A WP2221071A EGG-CONTNR
W10600666 W10600666 ENERGY GUIDE
W10915406 W10915406 EVAPORATOR
W11553229 W11553229 EVAPORATOR
W11215550 W11215550 EXTENSION
W10847927 W10847927 EXTENSION
W11298172 W11298172 EXTENSION
W11678257 W11678257 FAN
2306180 2306180 FOAM-INSRT
WPW10289690 WPW10289690 FRONT COVER
WP2256367 WP2256367 FRONT-PAN
W10707772 W10707772 FRONT-PAN
W10707765 W10707765 FRONT-PAN

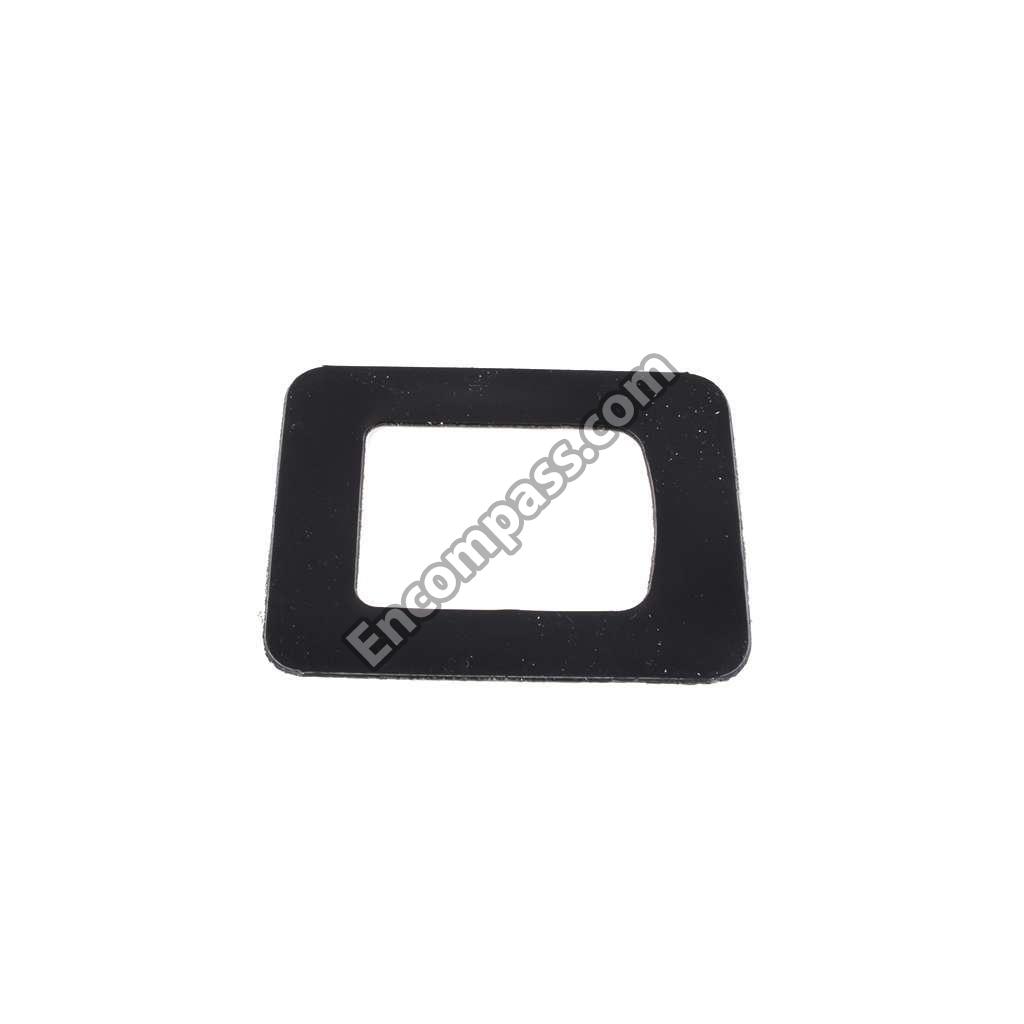

WP1106508 WP1106508 GASKET
W10762685 W10762685 GASKET
W10645113 W10645113 GASKET
W10803138 W10803138 GASKET ASSEMBLY
W10600741 W10600741 GASKET, DOOR (GREY)
W10740077 W10740077 GASKET, EVAPORATOR HOUSING (REAR)
W10638137 W10638137 GASKET, EVAPORATOR OUTLET
2320528 2320528 GASKET, FOAM
WPW10708355 WPW10708355 GLASS SHELF
WPW10570404 WPW10570404 GLASS SHELF
WPW10707766 WPW10707766 GLASS SHELF
WP542638 WP542638 GREASE
WP2317080S WP2317080S GRILL-UPPR

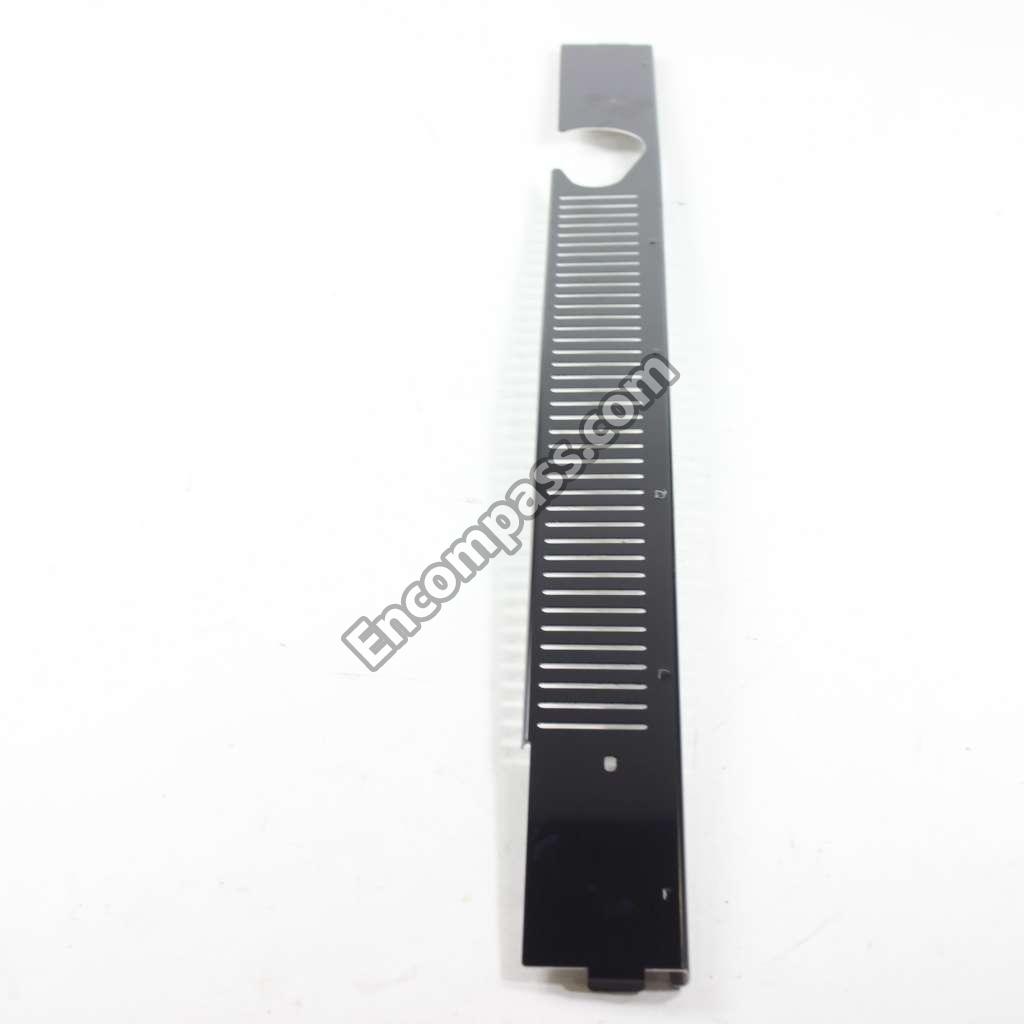

W10541687 W10541687 GRILLE
W10861748 W10861748 GRILLE-FRT
WPW10188549 WPW10188549 GRILLE-FRT
W10852725 W10852725 GROMMET
W11661108 W11661108 GROMMET
W10587113 W10587113 GROMMET
2307584 2307584 GROMMET, CROSSOVER TUBE
W11676465 W11676465 GROMMET- F

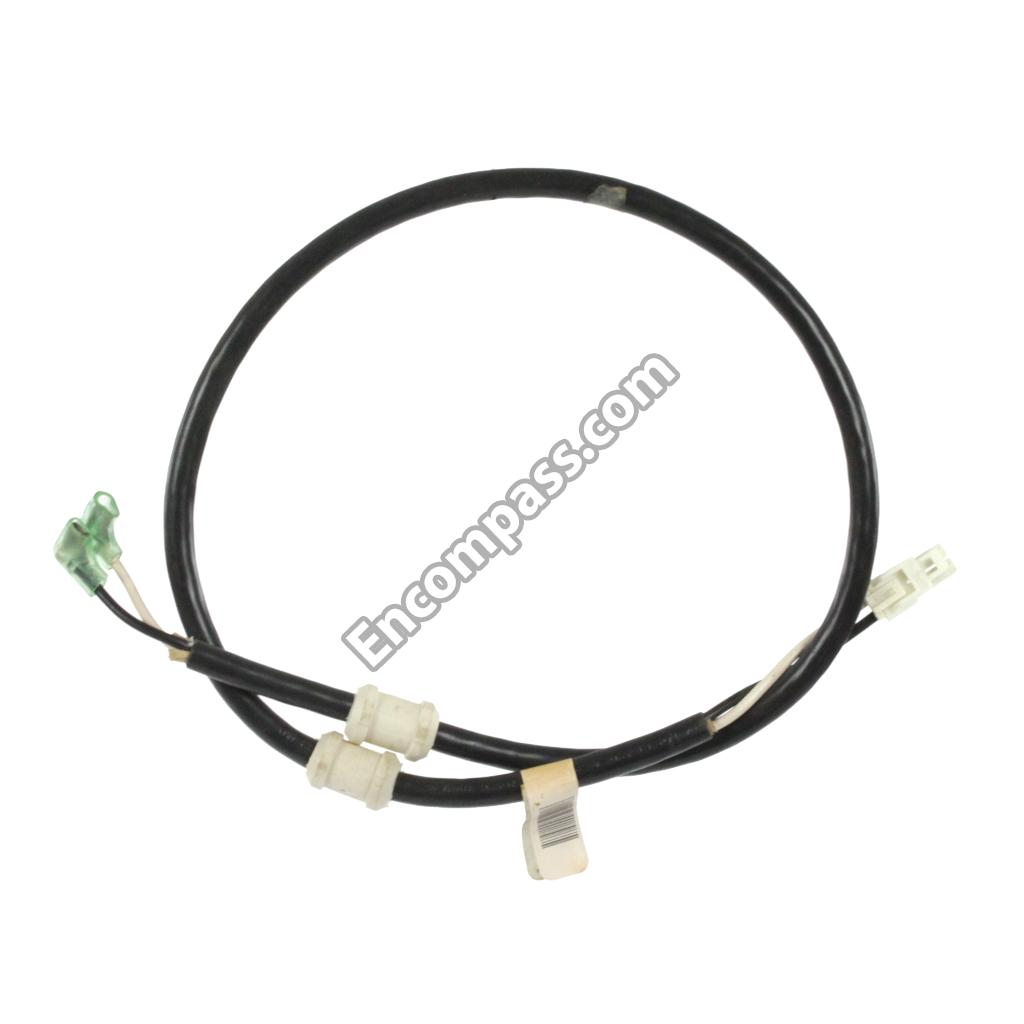

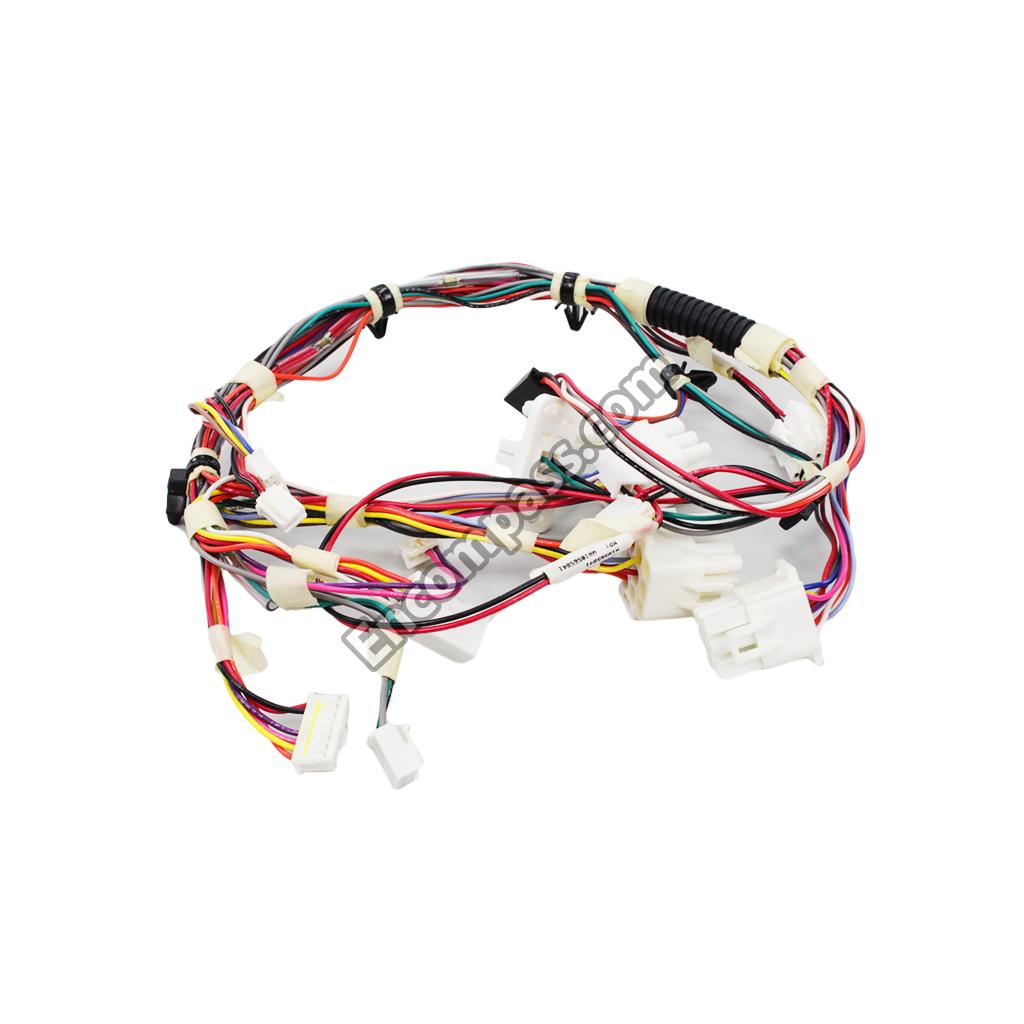

W10565837 W10565837 HARNS-WIRE
W10508673 W10508673 HARNS-WIRE
W10565844 W10565844 HARNS-WIRE
W10565841 W10565841 HARNS-WIRE
W11661567 W11661567 HARNS-WIRE
WP2221240 WP2221240 HEATER
W10524056 W10524056 HEATER, DEFROST

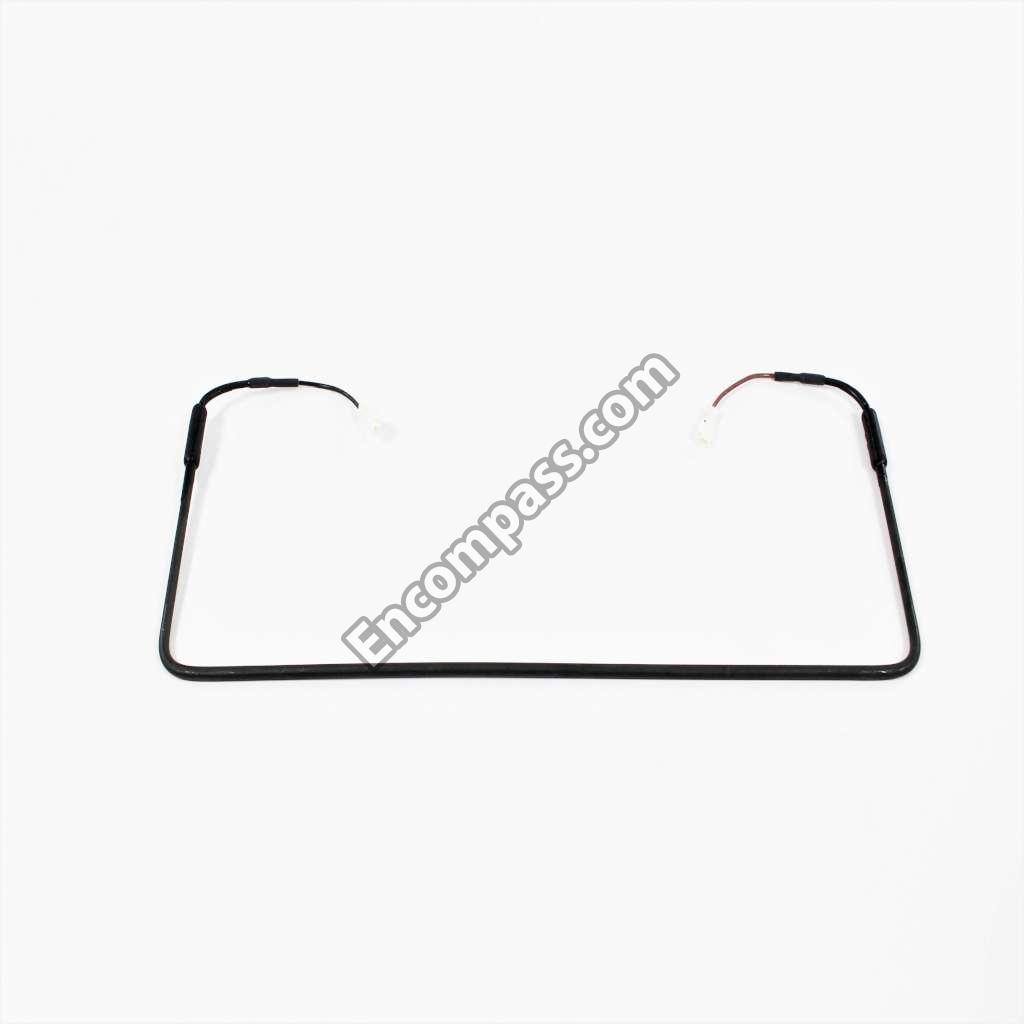

W10735008 W10735008 HEATER-PAN
W11500952 W11500952 HING-BUSHG
WP2004994 WP2004994 HING-BUSHG

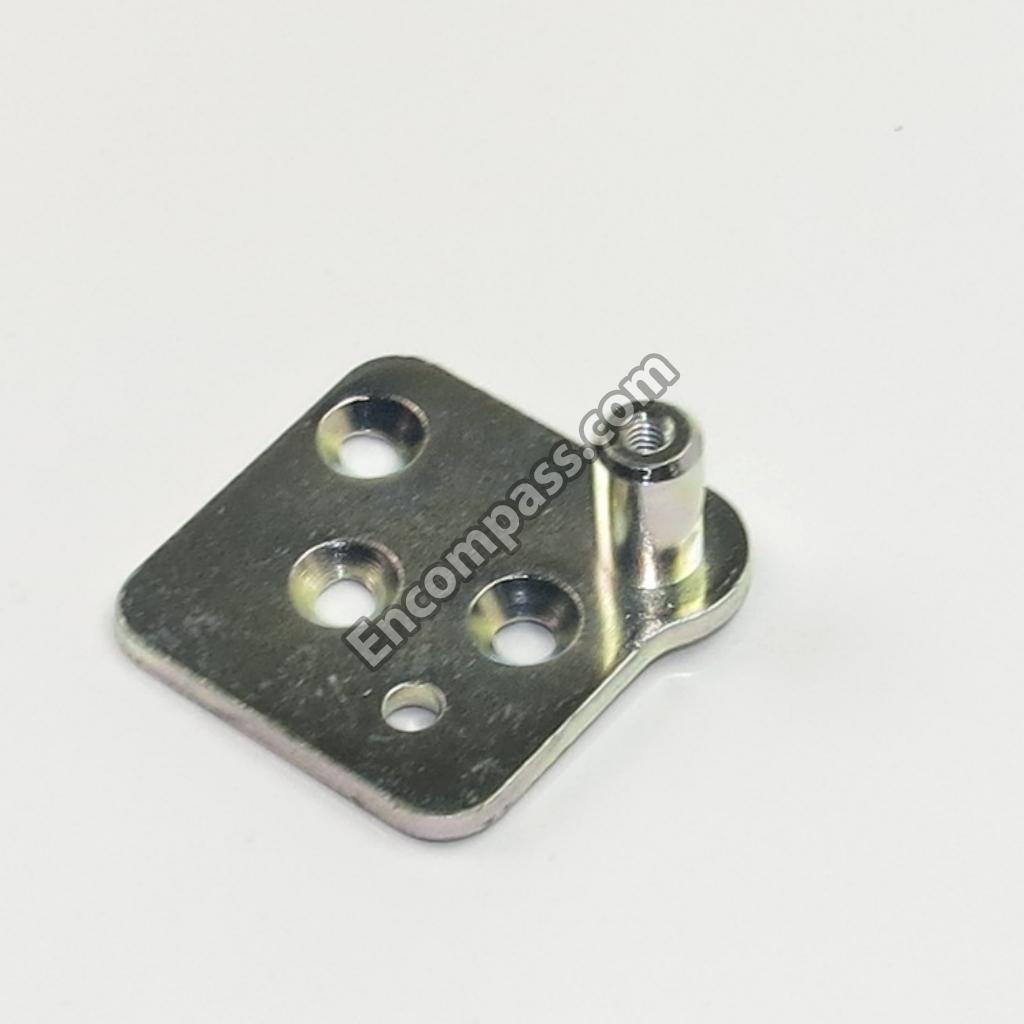

W10337505 W10337505 HINGE-DOOR
W10273367 W10273367 HINGE-DOOR
W10273369 W10273369 HINGE-DOOR
WPW10121140 WPW10121140 HOUSING
W10550831 W10550831 HOUSING
W10686646 W10686646 HOUSING
W10538317 W10538317 HOUSING
W10538315 W10538315 HOUSING
WP2195914 WP2195914 HOUSING-IM

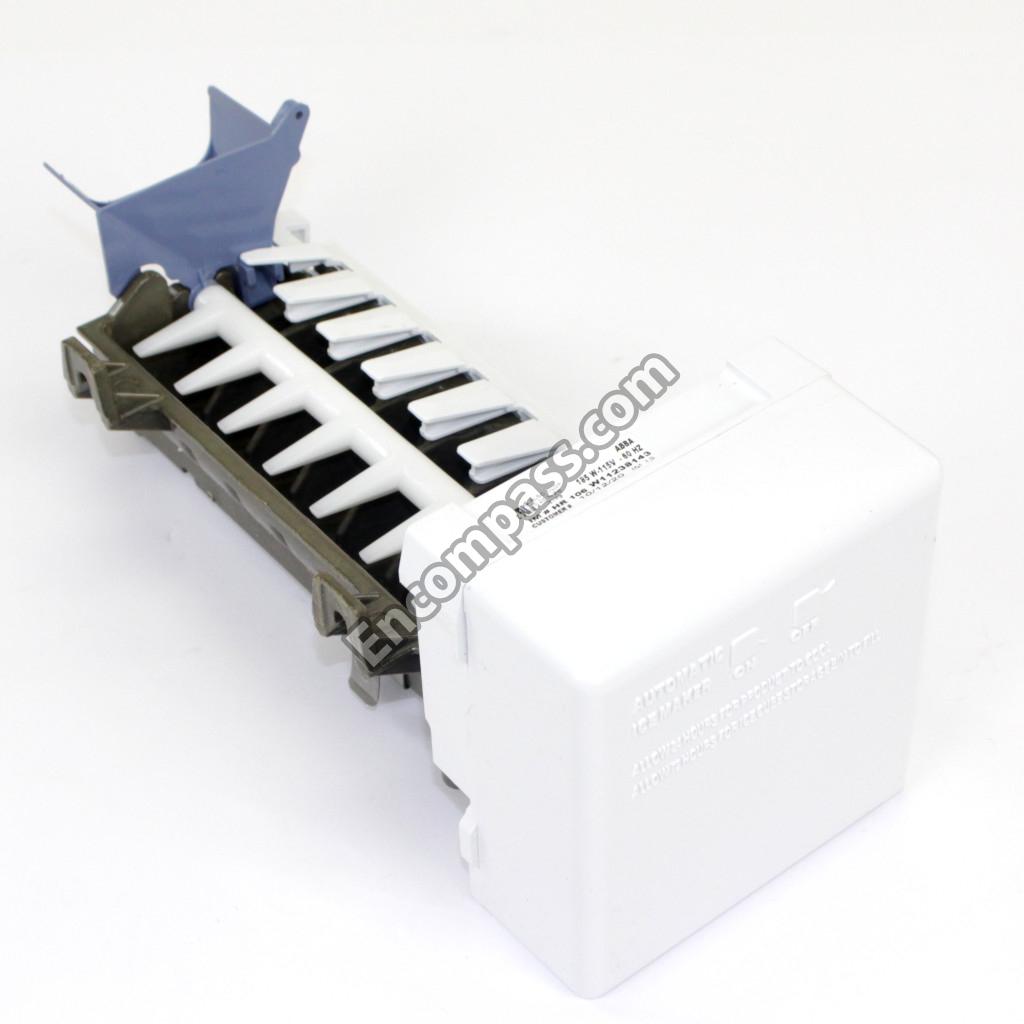

W11397192 W11397192 ICEMAKER

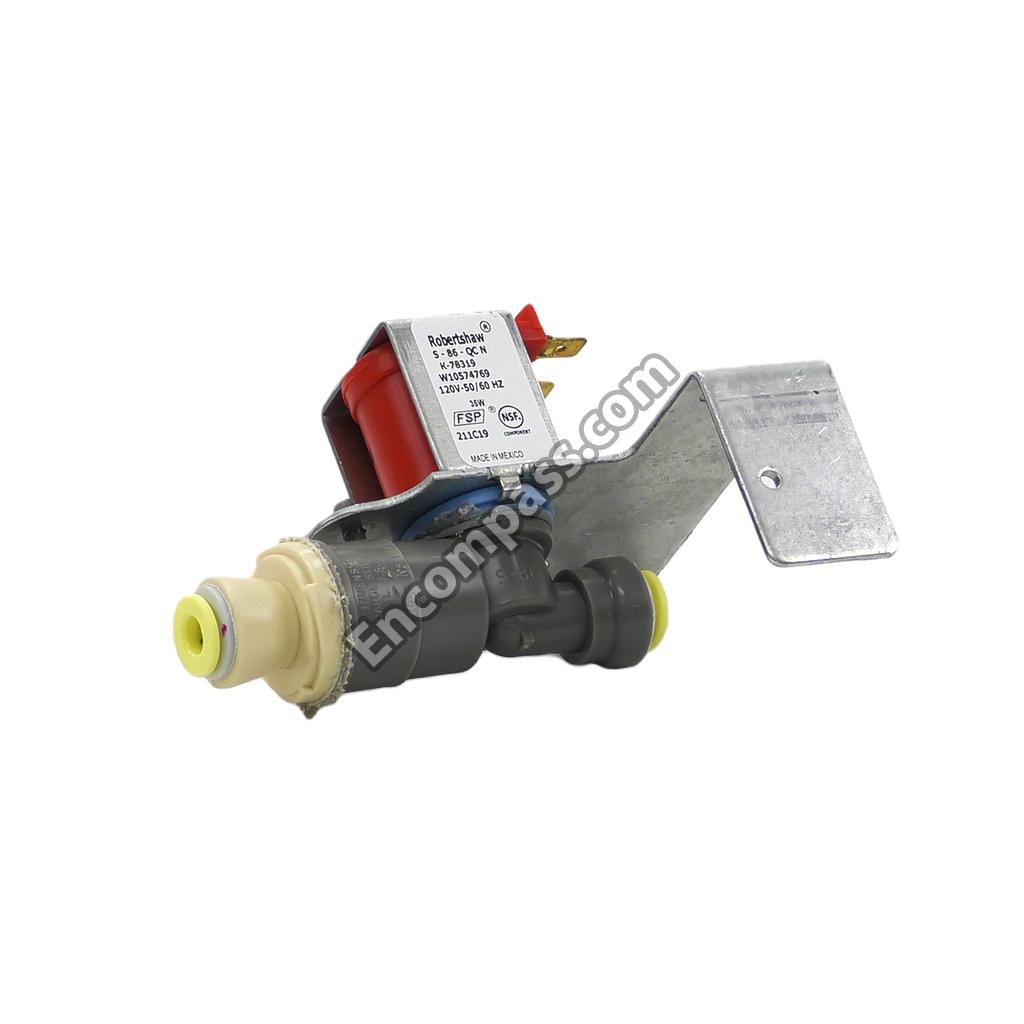

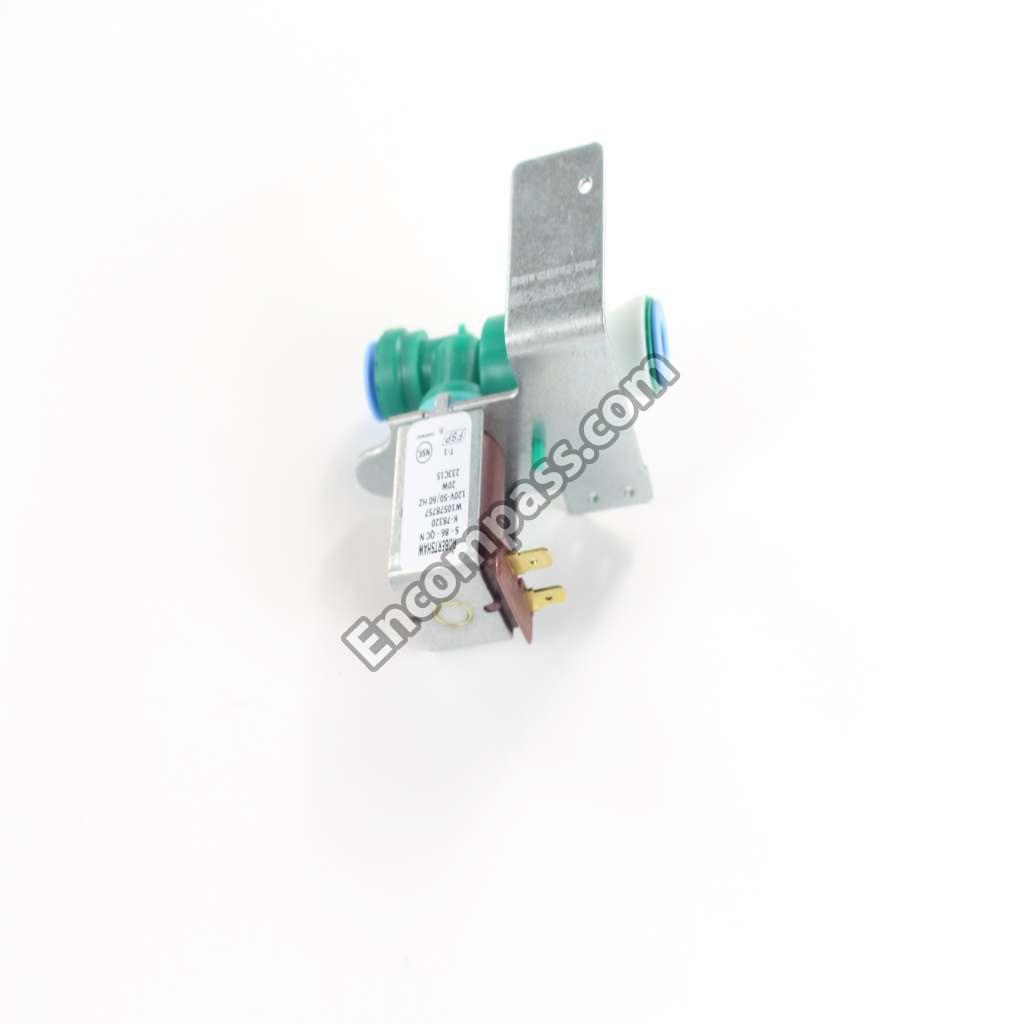

W11246413 W11246413 INLET VALVE
WPW10121451 WPW10121451 INSERT
W10721177 W10721177 INSTALLATION INSTRUCTIONS
W11553819 W11553819 INSULATION
W11712700 W11712700 INSULATION
W10555472 W10555472 INSULATION

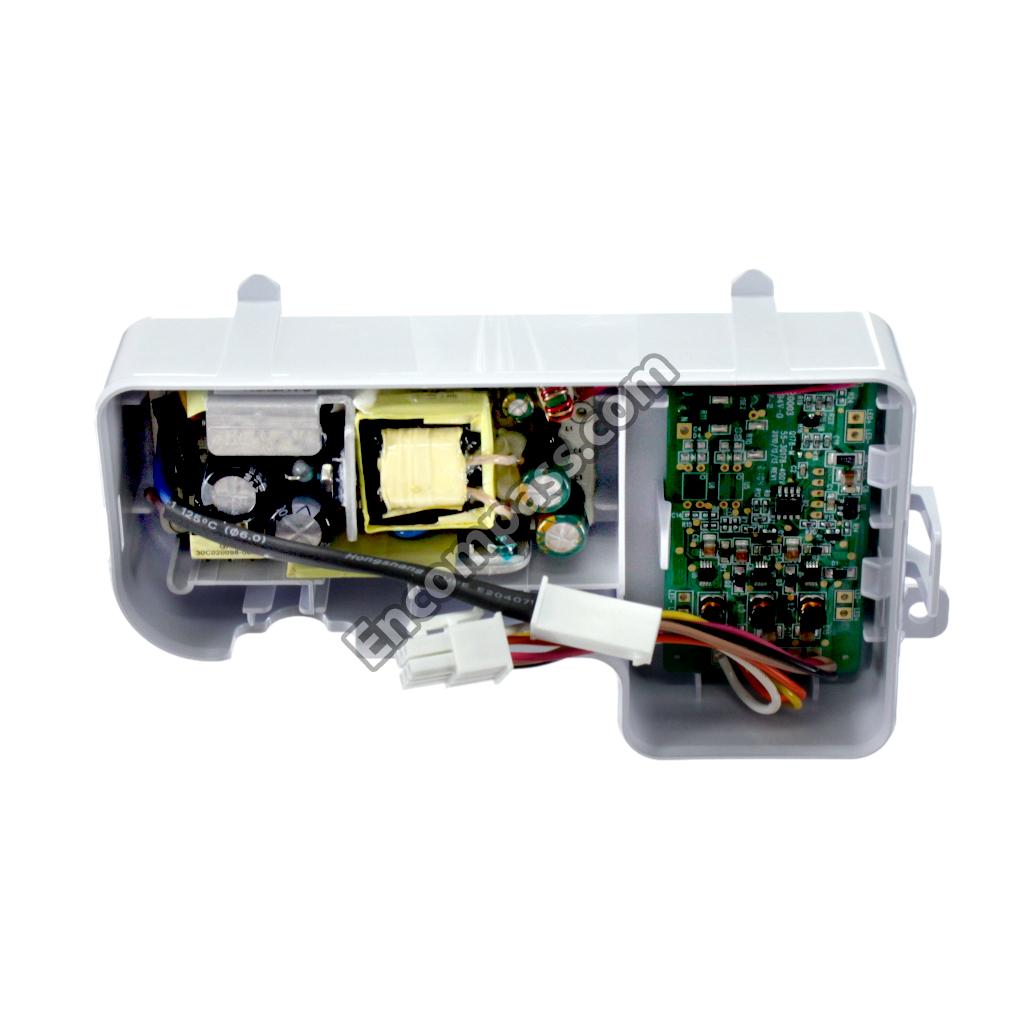

W11368839 W11368839 INVRTR-BOX
W10721030 W10721030 INVRTR-BOX
W10661520 W10661520 LADDER
W10661519 W10661519 LADDER
2005032 2005032 LEVELER, ADJUSTABLE
W10665413 W10665413 MAT
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
8003RP 8003RP MISCELLANEOUS, KIT, WATER INLET
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
W11683242 W11683242 MODULE
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
WPW10190929 WPW10190929 MOLD-ICE
W11127829 W11127829 MOTOR-COND
W11396715 W11396715 MOTOR-EVAP
WP488130 WP488130 NUT
W10771111 W10771111 NUT
W10415670 W10415670 ORIFICE
799344 799344 PAINT, BULK (1 QT.WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10758318 W10758318 PAN-CRISPR
W10758321 W10758321 PAN-CRISPR
W10733946 W10733946 PAN-ICE
2256466 2256466 PANEL, UNIT BACK
W11411871 W11411871 PANEL-UI
WPW10525179 WPW10525179 PLATE
WPW10525177 WPW10525177 PLATE
W10777924 W10777924 RACK-WINE
W10532983 W10532983 RAIL-EVAP
W10757111 W10757111 RAIL-MULLN
WP2210509 WP2210509 RELEAS-VAC
2006841 2006841 RING, RETAINER
WPW10138054 WPW10138054 ROLLER-CAB

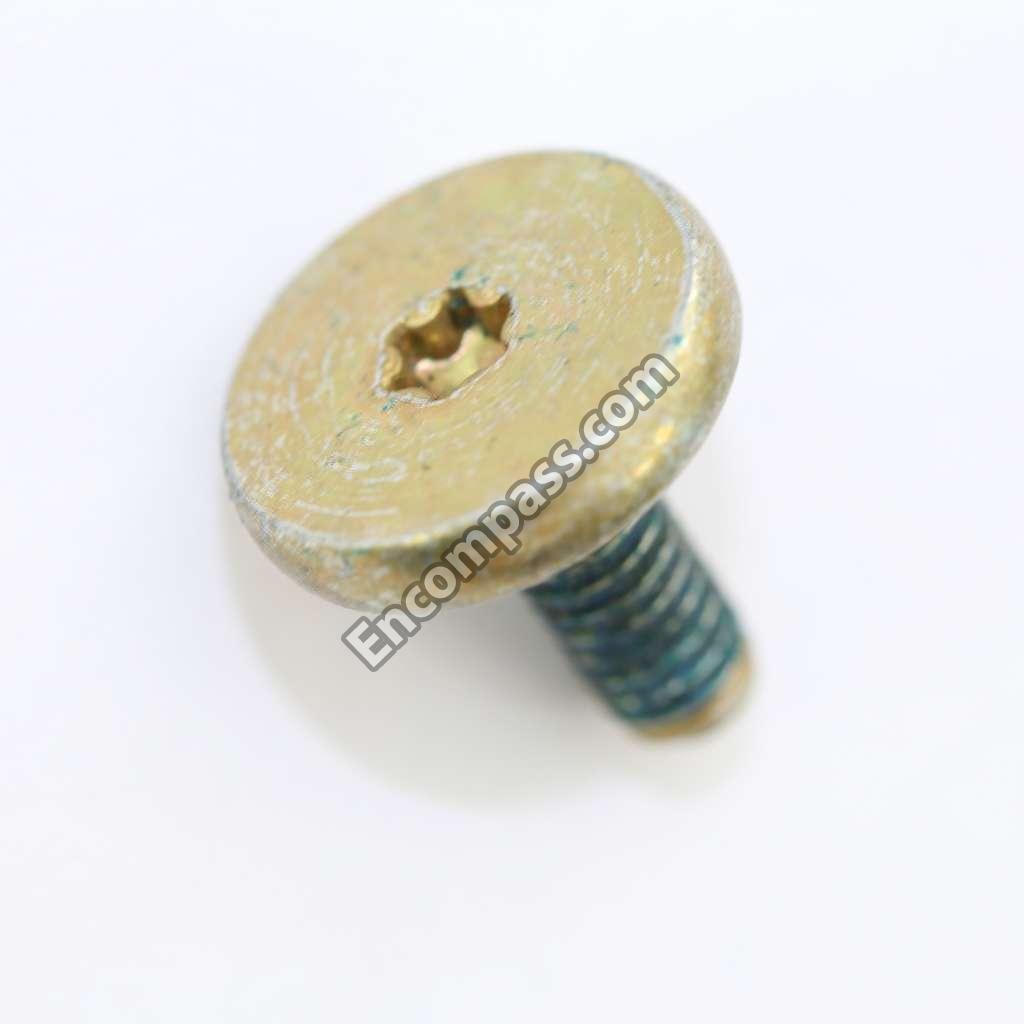

WP8533993 WP8533993 SCREW
W11661574 W11661574 SCREW
WP489069 WP489069 SCREW
W10761334 W10761334 SCREW
WP8281250 WP8281250 SCREW
W10825422 W10825422 SCREW
WP488787 WP488787 SCREW
WP488163 WP488163 SCREW
WPW10001160 WPW10001160 SCREW
WP3400886 WP3400886 SCREW
WP488729 WP488729 SCREW
WPW10141645 WPW10141645 SCREW
WP488234 WP488234 SCREW
WP8533980 WP8533980 SCREW
W11189635 W11189635 SCREW
WP489464 WP489464 SCREW
WP8533928 WP8533928 SCREW
W11624204 W11624204 SCREW
WP965173 WP965173 SCREW
W11474472 W11474472 SCREW
WP8281164 WP8281164 SCREW
WP1163283 WP1163283 SCREW
WP681249 WP681249 SCREW
W11227370 W11227370 SCREW
W10215666 W10215666 SCREW
W10061370 W10061370 SCREW
W10135775 W10135775 SCREW
W10109030 W10109030 SCREW
W10001280 W10001280 SCREW
2006475 2006475 SCREW (WHITE)
2005925 2005925 SEAL, SIDE TRIM
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
WPW10568583 WPW10568583 SHELF-CANT
WP2221231 WP2221231 SHIELD
W10619291 W10619291 SHIELD
W10321050 W10321050 SHIELD
W10555480 W10555480 SHIELD
W10672548 W10672548 SHIM
W10535658 W10535658 SHROUD
W10803566 W10803566 SHROUD, EVAPORATOR FAN
W11650036 W11650036 SLIDE
W10569892 W10569892 SLIDE
W10569891 W10569891 SLIDE
W10569887 W10569887 SLIDE
W10569886 W10569886 SLIDE
2316858 2316858 SLIDE, CAM (BOTTOM)
2316857 2316857 SLIDE, CAM (TOP)
2306117 2306117 SLIDE, FREEZER BIN (LEFT HAND)
2306116 2306116 SLIDE, FREEZER BIN (RIGHT HAND)
WPW10364560 WPW10364560 SOLENOID
WP2203075 WP2203075 SPACER
W10712151 W10712151 SPACER
WP2004517 WP2004517 SPRING
W10788834 W10788834 STRIPPER, ICE
W10711391 W10711391 SUPPORT
W10711390 W10711390 SUPPORT
W10707723 W10707723 SUPPORT
W10716209 W10716209 SUPPORT
W10744329 W10744329 SUPPORT
W10699426 W10699426 SUPPORT
W10711317 W10711317 SUPPORT
W10860229 W10860229 SUPPORT
W10860448 W10860448 SUPPORT
2320554 2320554 SUPPORT, DRAIN PAN
520965 520965 SUPPORT, LADDER
2320559 2320559 SUPPORT, VALVE
WP2266802 WP2266802 SWITCH
W11396033 W11396033 SWITCH
W11384469 W11384469 SWITCH
W11670534 W11670534 SWITCH
W11238399 W11238399 TAPE
W10600683 W10600683 TECH SHEET (ENGLISH)
W10717764 W10717764 TECH SHEET (FRENCH)
W11661569 W11661569 THERMISTOR
WPW10339879 WPW10339879 TIE-WIRE
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
W10664396 W10664396 TRACK
W10664397 W10664397 TRACK
W10711388 W10711388 TRACK
W10711384 W10711384 TRACK
2318189 2318189 TRAY, FILTER DRIP
W10711104 W10711104 TRIM
W10711103 W10711103 TRIM
2314031S 2314031S TRIM, BOTTOM DOOR
2313961S 2313961S TRIM, CABINET (TOP) (ALUMINUM)
2207457 2207457 TRIM, CORNER
2314030S 2314030S TRIM, DOOR (HANDLE SIDE)
2309031S 2309031S TRIM, DOOR (HINGE SIDE)
2313998S 2313998S TRIM, DOOR (TOP & BOTTOM)
2313999S 2313999S TRIM, SIDE DOOR
2314028S 2314028S TRIM, TOP DOOR
W11173662 W11173662 TRIM-CABNT
W11173663 W11173663 TRIM-CABNT

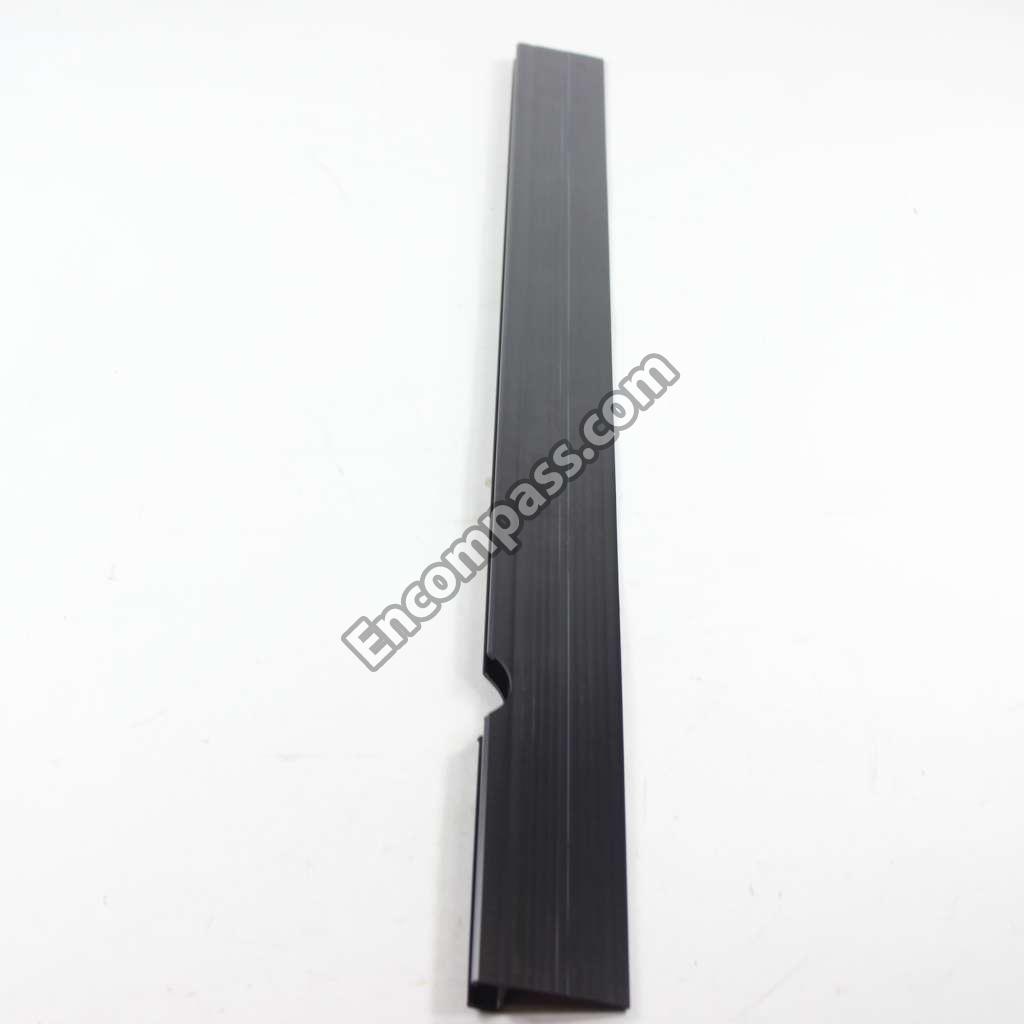

W10651663 W10651663 TRIM-DOOR
W10651661 W10651661 TRIM-DOOR
W10651659 W10651659 TRIM-DOOR
W10651656 W10651656 TRIM-DOOR
W10648994 W10648994 TRIM-DOOR
W10648992 W10648992 TRIM-DOOR
W10545389 W10545389 TUBE
W10555310 W10555310 TUBE
W10720080 W10720080 TUBE
W10720079 W10720079 TUBE
W10528578 W10528578 TUBE
W11291510 W11291510 TUBE-DRAIN
W10635851 W10635851 TUBE-WATER
W10619899 W10619899 TUBE-WATER
W11690636 W11690636 TUBE-WATER
W10721179 W10721179 USE AND CARE GUIDE
WP978025 WP978025 VALVE
W11647768 W11647768 VALVE
978028 978028 VALVE, ACCESS
978029 978029 VALVE, ACCESS
978026 978026 VALVE, ACCESS
978030 978030 VALVE, ACCESS
876764 876764 VALVE, ACCESS
978027 978027 VALVE, ACCESS
W11225845 W11225845 VALVE-INLT
WP2006346 WP2006346 WASHER
EDR3RXD1 EDR3RXD1 WATER FILTER
W10482373 W10482373 WIRE-JUMPR
W10602825 W10602825 WIRE-JUMPR
W10625259 W10625259 WIRE-JUMPR
W10568445 W10568445 WIRE-JUMPR
W10745694 W10745694 WIRE-JUMPR
W10685561 W10685561 WIRING DIAGRAM
