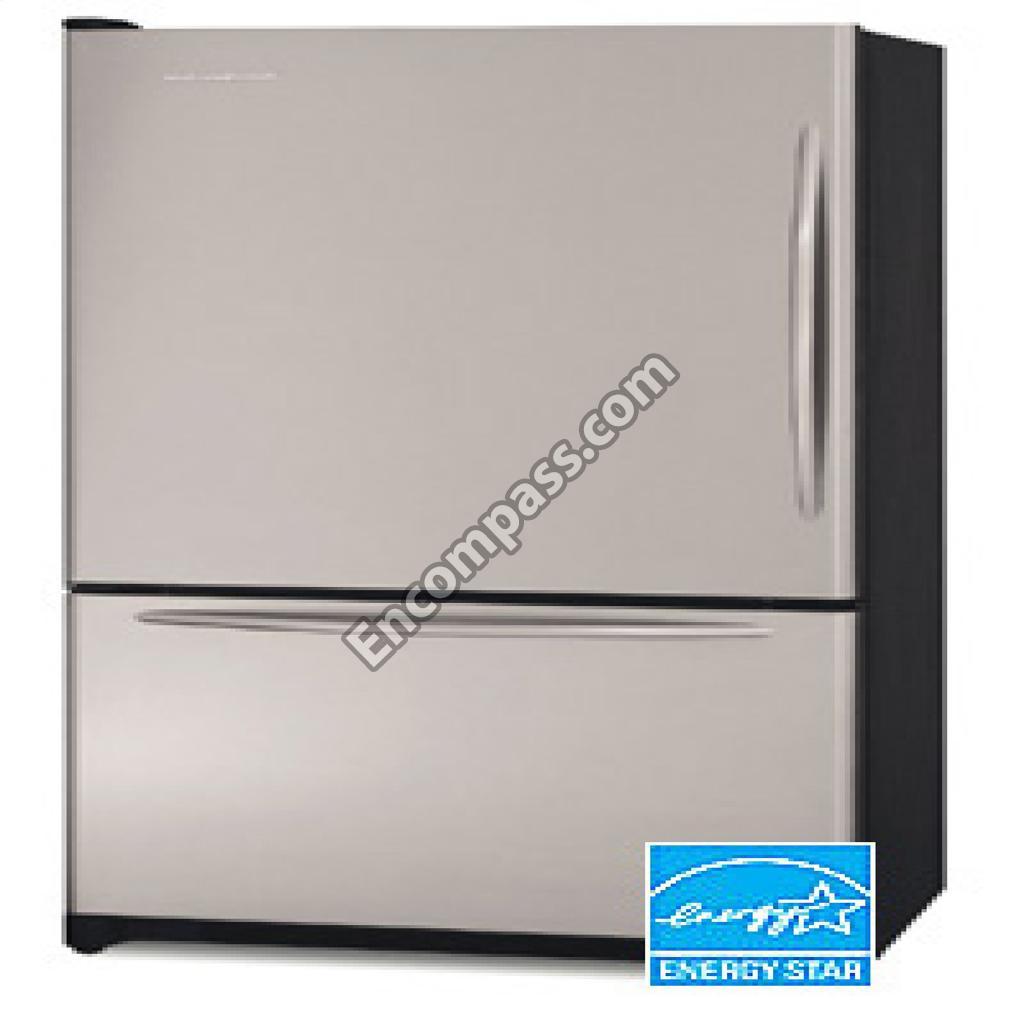

Model Image
Manufacturer

Whirlpool

Model Number

KBLA20EMSS00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
978030 978030 Whirlpool ACCESS VALVE (3/4``)
350956 350956 Whirlpool ALMOND
WP72107 WP72107 Whirlpool ALMOND
WP627843 WP627843 Whirlpool ARM-EJECTR
WP67004028 WP67004028 Whirlpool ARM-SHUT
WP2182124 WP2182124 Whirlpool ARM-STRIPR
12575102ED 12575102ED Whirlpool BACK, MC
606755 606755 Whirlpool BAG, INSULATION (36-5/8`` X 46``)
67003794 67003794 Whirlpool BAR, TEMP CONTROL
12457108 12457108 Whirlpool BASEPAN
67004988 67004988 Whirlpool BASKET, FRZ. (UPR)
W10503185 W10503185 Whirlpool BASKET, LOWER
67002482 67002482 Whirlpool BELT, DAMPER
72032 72032 Whirlpool BLACK
WP12587601 WP12587601 Whirlpool BLADE- CON
WP2169142 WP2169142 Whirlpool BLADE-FAN
WP12227304WD WP12227304WD Whirlpool BRACE- CRI
WP2256087 WP2256087 Whirlpool BRACKET
WP67005633 WP67005633 Whirlpool BRACKET
W10251557 W10251557 Whirlpool BRACKET
WPW10330993 WPW10330993 Whirlpool BRACKET
WPW10330991 WPW10330991 Whirlpool BRACKET
67003028 67003028 Whirlpool BUCKET, LG REF DR
67002930 67002930 Whirlpool BUCKET, MED REF DR
67004978 67004978 Whirlpool BUSHING (BLACK)
WP67004975 WP67004975 Whirlpool BUSHING (WHITE)
WP2165792K WP2165792K Whirlpool BUTTERTRAY
WP12246608 WP12246608 Whirlpool BUTTON- PL
WP67001130 WP67001130 Whirlpool BUTTON- PL
N_P N_P Whirlpool CABINET (NOT A SERVICEABLE PART)
WP67005626 WP67005626 Whirlpool CADDY- CAN
W11395888 W11395888 Whirlpool CAP-FILTER
WP65889-4 WP65889-4 Whirlpool CAPACITOR
WP4317852 WP4317852 Whirlpool CEMENT, ALUMILASTIC (1 1/4 OZ.)
W10833902 W10833902 Whirlpool CLAMP
67004701 67004701 Whirlpool CLAMP, TUBE
WP628379 WP628379 Whirlpool CLIP
WP2315522 WP2315522 Whirlpool CLIP
WPM0104106 WPM0104106 Whirlpool CLIP
W11673433 W11673433 Whirlpool CLIP
M0104102 M0104102 Whirlpool CLIP, CORD
67001067 67001067 Whirlpool CLIP, DRAIN TUBE
8170901 8170901 Whirlpool CLIP, DRIER
4344219 4344219 Whirlpool CLIP, EVAPORATOR
67002816 67002816 Whirlpool CLIP, WATERLINE
4343984 4343984 Whirlpool CLIP, WIRE
WPM0114003 WPM0114003 Whirlpool CLIP- SPEE
WP12627302 WP12627302 Whirlpool CLIP- TOE
WP67003638 WP67003638 Whirlpool CLOSER
12002311 12002311 Whirlpool CLOSER
WP67003639 WP67003639 Whirlpool CLOSURE, DOOR (BLACK)
4396418 4396418 Whirlpool COMPLETE ICE MAKER ASSEMBLY
W10309989 W10309989 Whirlpool COMPRESSOR
WP67006131 WP67006131 Whirlpool CONDENSER
WP67003410 WP67003410 Whirlpool CONTROL
W11033771 W11033771 Whirlpool COUPLING
W11519867 W11519867 Whirlpool COVER
W10720642 W10720642 Whirlpool COVER
67001285 67001285 Whirlpool COVER, CONTROL
12587703C 12587703C Whirlpool COVER, CORNER (BISQUE)
67003485 67003485 Whirlpool COVER, CORNER (BLK)
67003484 67003484 Whirlpool COVER, CORNER (WHT)
67003034 67003034 Whirlpool COVER, DAMPER
8170976 8170976 Whirlpool COVER, HINGE (BISCUIT)
8170832 8170832 Whirlpool COVER, REF. LIGHT
67001012 67001012 Whirlpool COVER, TOP HINGE (BLK)
67001014 67001014 Whirlpool COVER, TOP HINGE (WHT)
12726003 12726003 Whirlpool COVER, WATER LINE
8171287 8171287 Whirlpool COVER, WATER VALVE
12226109 12226109 Whirlpool COVER- EVA
WP12568001 WP12568001 Whirlpool COVER- FIL
WP67002659 WP67002659 Whirlpool CRISPER (2)
WP628356 WP628356 Whirlpool CUP-FILL
350942 350942 Whirlpool CUSTOMER TOUCH-UP MATERIAL (PRIMER, WHITE (13 OZ. SPRAY CAN))
12225601 12225601 Whirlpool DAM (LEFT SIDE)
8171155 8171155 Whirlpool DAM (RIGHT SIDE)
8171277 8171277 Whirlpool DIVIDER, LOWER BASKET
67004127 67004127 Whirlpool DIVIDER, UPPER BASKET
12658535CQ 12658535CQ Whirlpool DOOR ASSEMBLY BT
12658537SQ 12658537SQ Whirlpool DOOR ASSEMBLY SS
WP12744905 WP12744905 Whirlpool DOOR COMP
W10436252 W10436252 Whirlpool DOOR GASKET, MAGNETIC (BLACK)
W10571960 W10571960 Whirlpool DOOR GASKET, MAGNETIC (WHITE)
8171176 8171176 Whirlpool DOOR HANDLE (STAINLESS)
8171184 8171184 Whirlpool DOOR HANDLE (WHITE)
WP12566606ED WP12566606ED Whirlpool DOOR HINGE
W10215663 W10215663 Whirlpool DOOR HINGE
WP12607104ED WP12607104ED Whirlpool DOOR HINGE
WP12690503 WP12690503 Whirlpool DOOR SHELF
W10827015 W10827015 Whirlpool DOOR-COMP
8171283 8171283 Whirlpool DRAIN PAN
72017 72017 Whirlpool DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W10843121 W10843121 Whirlpool DRIER-TUBE
W10136387A W10136387A Whirlpool EGG-CONTNR
12002041 12002041 Whirlpool EVAPORATOR
WP67006010 WP67006010 Whirlpool EXTR- GLAS
W11177593 W11177593 Whirlpool FEET-LVLNG
67003796 67003796 Whirlpool FIBER, ACOUSTIC
EDR4RXD1 EDR4RXD1 Whirlpool FILTER
WP2300868 WP2300868 Whirlpool FITTING
WP67006185 WP67006185 Whirlpool FRAME
12658929CQ 12658929CQ Whirlpool FREEZER DOOR (INCLUDES INSULATION) (BISCUIT)
8171179 8171179 Whirlpool FREEZER DOOR (INCLUDES INSULATION) (BLACK)
12658929SQ 12658929SQ Whirlpool FREEZER DOOR (INCLUDES INSULATION) (STAINLESS STEEL)
WP8171181 WP8171181 Whirlpool FREEZER DOOR (INCLUDES INSULATION) (WHITE)
WPW10289690 WPW10289690 Whirlpool FRONT COVER
W10815413 W10815413 Whirlpool FUNNEL
W11159728 W11159728 Whirlpool GASKET
W10856123 W10856123 Whirlpool GASKET
8170924 8170924 Whirlpool GASKET
W10443317 W10443317 Whirlpool GASKET ASSEMBLY
W10849442 W10849442 Whirlpool GASKET ASSEMBLY
67002329 67002329 Whirlpool GASKET, PANTRY
WPB8381501 WPB8381501 Whirlpool GASKET- DR
12002501 12002501 Whirlpool GEAR
12002497 12002497 Whirlpool GEAR (INCLDS. BOTH)
67001037 67001037 Whirlpool GEAR, DAMPER
WP67006655 WP67006655 Whirlpool GLASS SHELF
WP67002332 WP67002332 Whirlpool GLASS- PAN
WP542638 WP542638 Whirlpool GREASE, SILICONE (1/2 OZ.)
WPW10175909 WPW10175909 Whirlpool GRILLE
67002390 67002390 Whirlpool GRILLE ASSEMBLY (INCLUDES CLIPS) (BISCUIT)
8170866 8170866 Whirlpool GRILLE ASSEMBLY (INCLUDES CLIPS) (WHITE)
WP67002224 WP67002224 Whirlpool GRILLE ASY
67005680 67005680 Whirlpool GROMMET (2)
798392 798392 Whirlpool GROMMET (3)
8170888 8170888 Whirlpool GROMMET, SCREW
WP67002780 WP67002780 Whirlpool GROMMET- F
W11677725 W11677725 Whirlpool GUIDE
WPW10235370 WPW10235370 Whirlpool GUIDE, DRAWER (2)
8208160 8208160 Whirlpool GUIDE, ENERGY
2255516T 2255516T Whirlpool HANDLE (BISCUIT)
2304832B 2304832B Whirlpool HANDLE (BLACK)
8171276 8171276 Whirlpool HANDLE, FREEZER BASKET
8171200 8171200 Whirlpool HARNESS, EVAP. HEATER
8171286 8171286 Whirlpool HARNESS, UNIT
WP67004106 WP67004106 Whirlpool HEAD- WATE
WP67002493 WP67002493 Whirlpool HEATER- DE
12465001WD 12465001WD Whirlpool HINGE BOTTOM (WHITE)
8171003 8171003 Whirlpool HINGE COVER, BOTTOM (BISCUIT)
WP12561901B WP12561901B Whirlpool HINGE COVER, BOTTOM (BLACK)
12561901W 12561901W Whirlpool HINGE COVER, BOTTOM (WHITE)
W11689473 W11689473 Whirlpool HINGE- CEN
W11702858 W11702858 Whirlpool HOUSING
WP67002085 WP67002085 Whirlpool HOUSING
12656202 12656202 Whirlpool HOUSING, CONTROL
8170852 8170852 Whirlpool HOUSING, FRZ. LIGHT
WP12724501 WP12724501 Whirlpool HOUSING, REF. LIGHT
WP2195914 WP2195914 Whirlpool HOUSING-IM
4343700 4343700 Whirlpool ICE CONTAINER ASSEMBLY
WP67005154 WP67005154 Whirlpool INLET VALVE
WPA3223101 WPA3223101 Whirlpool INSERT- PL
12650002 12650002 Whirlpool INSULATION
799833 799833 Whirlpool KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
876029 876029 Whirlpool KIT, FOAM SLAB (30`` X 32-1/2`` X 1-1/2``)
876370 876370 Whirlpool KIT, INSULATION (2 PCS. X 3`` X 24`` X 48``)
833938 833938 Whirlpool KIT, TERMINAL CONNECTOR
12002023 12002023 Whirlpool KIT, WATER TANK
12002684 12002684 Whirlpool KIT- SLIDE
W11498983 W11498983 Whirlpool KNOB
67001033 67001033 Whirlpool KNOB
67002512 67002512 Whirlpool KNOB, FRONT
67003420 67003420 Whirlpool KNOB, FZ CONTROL
67003036 67003036 Whirlpool LADDER, CENTER
67003037 67003037 Whirlpool LADDER, SIDE
W11679940 W11679940 Whirlpool LIGHT BULB
67002945 67002945 Whirlpool LOGO, LIGHT MODULE
W10190935 W10190935 Whirlpool MODULE ASSEMBLY (INCLUDES ITEMS 10, 11 & 12)
WP12476002 WP12476002 Whirlpool MODULE- FZ
WPW10190929 WPW10190929 Whirlpool MOLD & HEATER ASSEMBLY (ALSO ORDER) 542638 SILICONE GREASE
12002738 12002738 Whirlpool MOTOR-COND
WPW10128551 WPW10128551 Whirlpool MOTOR-EVAP
2212760 2212760 Whirlpool NAMEPLATE
2212761 2212761 Whirlpool NAMEPLATE (BISCUIT)
2212762 2212762 Whirlpool NAMEPLATE (BLACK)
8201513 8201513 Whirlpool NUT
WP486692 WP486692 Whirlpool NUT
8208159 8208159 Whirlpool OWNERS MANUAL
786032 786032 Whirlpool PAINT, BULK (1 QT.) (BLACK (UNCUT))
285006 285006 Whirlpool PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
511873 511873 Whirlpool PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
WP67001255 WP67001255 Whirlpool PAN-ICE
W11490183 W11490183 Whirlpool PAN-UTILTY
67001045 67001045 Whirlpool PANEL, FZ CONTROL
WP67001668 WP67001668 Whirlpool PLATE- FIL
4344316 4344316 Whirlpool PLUG, BUTTON
WPA3076901 WPA3076901 Whirlpool PLUG, BUTTON
4343926 4343926 Whirlpool PLUG, BUTTON (BLACK)
A3080001 A3080001 Whirlpool PLUG, BUTTON (BLK)
A3080002 A3080002 Whirlpool PLUG, BUTTON (WHT)
4344549 4344549 Whirlpool PLUG, HOLE
67004838 67004838 Whirlpool PLUG, VENT (BLACK)
10712401 10712401 Whirlpool PLUG, VENT (WHT)
W10709784 W10709784 Whirlpool PLUG-HNDLE
WP2189009 WP2189009 Whirlpool PLUG-HNDLE
WP2189000 WP2189000 Whirlpool PLUG-HNDLE
WP67006506 WP67006506 Whirlpool POWER CORD
8170799 8170799 Whirlpool RACK, WINE
67003035 67003035 Whirlpool REF SHELF
978883 978883 Whirlpool REFINISHING MATERIAL (ENAMEL, ALMOND (1 QT. UNCUT))
799344 799344 Whirlpool REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UNCUT))
8171187 8171187 Whirlpool REFRIGERATOR DOOR (INCLUDES INSULATION) (BLACK)
12658536SQ 12658536SQ Whirlpool REFRIGERATOR DOOR (INCLUDES INSULATION) (STAINLESS- RH-MDL)
8171188 8171188 Whirlpool REFRIGERATOR DOOR (INCLUDES INSULATION) (WHITE)
8170944 8170944 Whirlpool RETAINER, TUBE
WP12580304 WP12580304 Whirlpool ROLLER ASSEMBLY
3400862 3400862 Whirlpool SCREW
WP681249 WP681249 Whirlpool SCREW
W10856125 W10856125 Whirlpool SCREW
4391961 4391961 Whirlpool SCREW
4344523 4344523 Whirlpool SCREW
W10709801 W10709801 Whirlpool SCREW
WPM0223816 WPM0223816 Whirlpool SCREW
12992301 12992301 Whirlpool SCREW
WPW10348409 WPW10348409 Whirlpool SCREW
WP3387230 WP3387230 Whirlpool SCREW
71003131 71003131 Whirlpool SCREW
WP489474 WP489474 Whirlpool SCREW
3400873 3400873 Whirlpool SCREW
WP67006715 WP67006715 Whirlpool SCREW
WP489349 WP489349 Whirlpool SCREW
WP67006380 WP67006380 Whirlpool SCREW
W10005070 W10005070 Whirlpool SCREW
WP98165 WP98165 Whirlpool SCREW
M0216705 M0216705 Whirlpool SCREW (2)
67006425 67006425 Whirlpool SCREW (3)
681390 681390 Whirlpool SCREW, 8-32 X 3/8
8170943 8170943 Whirlpool SCREW, BRACKET
67006697 67006697 Whirlpool SCREW, ROLLER (REAR)
M0221523 M0221523 Whirlpool SCREW, SHLDR
M0260242 M0260242 Whirlpool SCREW, TF
WP67003417 WP67003417 Whirlpool SEAL- FRON
WPM0500703 WPM0500703 Whirlpool SEAL- O RI
WP67002513 WP67002513 Whirlpool SEAL- REAR
WP854334 WP854334 Whirlpool SEAL-STRIP
WP503695 WP503695 Whirlpool SEALER
WP505587 WP505587 Whirlpool SEALER MASTIC (1 QUART)
212643 212643 Whirlpool SEALER, PERMAGUM (4 - 12`` STRIPS)
W11028221 W11028221 Whirlpool SHAFT
12687101 12687101 Whirlpool SHROUD, CONDENSER
67002777 67002777 Whirlpool SHROUD, EVAP FAN
WP67005864 WP67005864 Whirlpool SLIDE
WP67003793 WP67003793 Whirlpool SLIDE- TEM
W11447232 W11447232 Whirlpool SOCKET
350930 350930 Whirlpool SPRAY (13 OZ.) (WHITE)
WPA1055105 WPA1055105 Whirlpool SPRING
W10848274 W10848274 Whirlpool START-DEV
67003781 67003781 Whirlpool STOP, DOOR (BISQUE)
12968202W 12968202W Whirlpool STOP, DOOR (WHITE)
W11708403 W11708403 Whirlpool STOP-DOOR
WP12576801 WP12576801 Whirlpool STRAP
67002936 67002936 Whirlpool STUD, HANDLE
WP67004790 WP67004790 Whirlpool STUD, HANDLE
WP12227305WD WP12227305WD Whirlpool SUPPORT
12831101 12831101 Whirlpool SWEEP-WATER VALVE
W11384469 W11384469 Whirlpool SWITCH
W11396033 W11396033 Whirlpool SWITCH, LIGHT
WP12575501 WP12575501 Whirlpool SWITCH- LI
W11238399 W11238399 Whirlpool TAPE
8208158 8208158 Whirlpool TECH SHEET
67001034 67001034 Whirlpool TENSIONER, BELT
WP67003000 WP67003000 Whirlpool THERMOSTAT
WP627985 WP627985 Whirlpool THERMOSTAT
12001937 12001937 Whirlpool THERMOSTAT KIT
WP67001036 WP67001036 Whirlpool TIMER- DEF
978026 978026 Whirlpool TOP PARTS NOT ILLUSTRATED AND OPTIONAL PARTS (NOT INCLUDED) (VALVE, ACCESS (5/16``))
WP1117510 WP1117510 Whirlpool TORX KE
WP67001719 WP67001719 Whirlpool TRACK
WP12656018 WP12656018 Whirlpool TRACK
WP12656105 WP12656105 Whirlpool TRACK, PANTRY (LEFT)
67004102 67004102 Whirlpool TRACK, WATERLINE
8171081 8171081 Whirlpool TRAY, DRIP
WP67001279 WP67001279 Whirlpool TRAY- DAIR
8171048 8171048 Whirlpool TRIM, CRISPER
WP12866903 WP12866903 Whirlpool TUBE
67001066 67001066 Whirlpool TUBE, DRAIN
978027 978027 Whirlpool VALVE, ACCESS ((3/8``) TUBE)
978028 978028 Whirlpool VALVE, ACCESS (1/2``)
WP978025 WP978025 Whirlpool VALVE, ACCESS (1/4``)
978029 978029 Whirlpool VALVE, ACCESS (5/8)
876764 876764 Whirlpool VALVE,ACCESS (3/16)
W10709787 W10709787 Whirlpool WASHER
67004789 67004789 Whirlpool WASHER
W10823511 W10823511 Whirlpool WATER TUBE
W11176463 W11176463 Whirlpool WATER TUBE
W11181718 W11181718 Whirlpool WATER TUBE
WPD7813010 WPD7813010 Whirlpool WIRE HARNESS
WP488878 WP488878 Whirlpool XXTUBE CLAMP
Main Menu x
