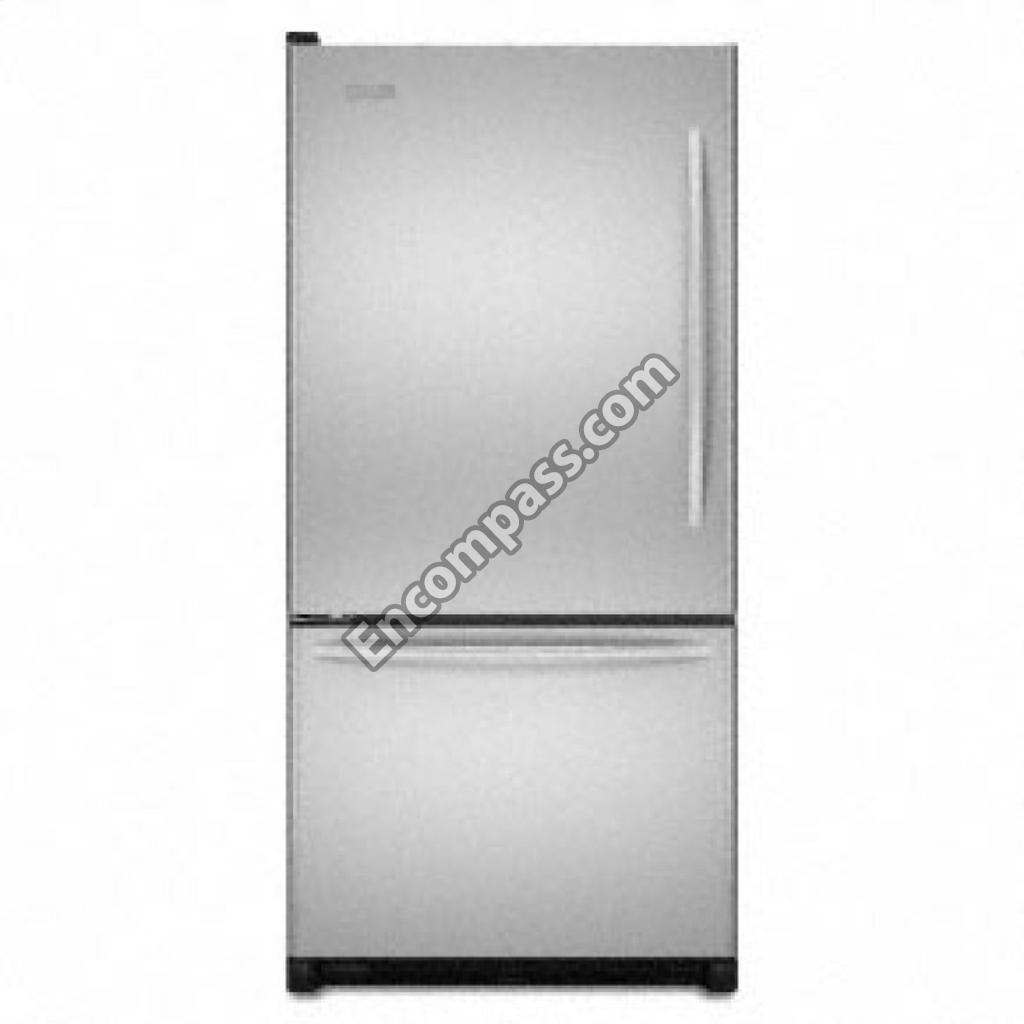

Model Image
Manufacturer

Whirlpool

Model Number

KBLS20ETSS00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10284690 W10284690 ADAPTER, SLIDE (LEFT)
W10284691 W10284691 ADAPTER, SLIDE (RIGHT)
WP627843 WP627843 ARM-EJECTR
WP67004028 WP67004028 ARM-SHUT
WP2182124 WP2182124 ARM-STRIPR
12457108 12457108 BASEPAN
67004988 67004988 BASKET, FREEZER (UPPER)
W10503185 W10503185 BASKET, LOWER
67005724 67005724 BIN, SHELF (1) (MEDIUM)
WP67005464 WP67005464 BIN, SHELF (3) (LARGE)
W10156818 W10156818 BLADE, FAN
WP2169142 WP2169142 BLADE-FAN
WP12777701 WP12777701 BLOCK- FIL
67006697 67006697 BOLT, ADJUSTING (REAR)
67005718 67005718 BOX, CONTROL
WP12227304WD WP12227304WD BRACE- CRI
WP2256087 WP2256087 BRACKET
WP67004953 WP67004953 BRACKET
W10251557 W10251557 BRACKET
WP67005633 WP67005633 BRACKET
WPW10330991 WPW10330991 BRACKET
WPW10330993 WPW10330993 BRACKET
Y67003896 Y67003896 BRACKET, CONTROL AND LIGHTS
12906303WD 12906303WD BRACKET, FOOT
12456801V 12456801V BRACKET, FOOT
67004978 67004978 BUSHING (BLACK)
WP12246608 WP12246608 BUTTON- PL
100000 100000 CABINET (NOT A SERVICABLE PART)
WP67005626 WP67005626 CADDY- CAN
W11395888 W11395888 CAP-FILTER
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A CLEANER, STAINLESS STEEL
WP2315522 WP2315522 CLIP
W11673433 W11673433 CLIP
W10819546 W10819546 CLIP
WPM0104106 WPM0104106 CLIP
67007052 67007052 CLIP, CAPACITOR
67001067 67001067 CLIP, DRAIN TUBE
10547003 10547003 CLIP, DRIER
10623002 10623002 CLIP, EVAPORATOR
67002816 67002816 CLIP, WATER
WP12627302 WP12627302 CLIP- TOE
WP67003639 WP67003639 CLOSER
W10160407 W10160407 COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
WP67006131 WP67006131 CONDENSER
WPW10196393 WPW10196393 CONTROL
12782027 12782027 CONTROL BOARD
WPW10207861 WPW10207861 CONTROL BOARD
W11519867 W11519867 COVER
W10720642 W10720642 COVER
W11284721 W11284721 COVER
67005421 67005421 COVER, BOX
67003485 67003485 COVER, CORNER (BLACK)
67001012 67001012 COVER, HINGE (BLACK)
67003905 67003905 COVER, LIGHT
12575101WD 12575101WD COVER, UNIT
12726003 12726003 COVER, WATER LINE
67004098 67004098 COVER, WATER VALVE
WP12568001 WP12568001 COVER- FIL
WP67003924 WP67003924 COVER- FZ
WP12806701 WP12806701 COVER-BOX
W11727809 W11727809 COVER-EVAP
WP67001098 WP67001098 COVER-TUBE
WP628356 WP628356 CUP-FILL
12225601 12225601 DAM (LEFT SIDE)
67001084 67001084 DAM (RIGHT SIDE)
67004812 67004812 DIVIDER, LOWER BASKET
67004127 67004127 DIVIDER, UPPER BASKET
WP67002321 WP67002321 DIVIDER- P
WP12744905 WP12744905 DOOR COMP
WP12566606ED WP12566606ED DOOR HINGE
WP12607104ED WP12607104ED DOOR HINGE
13024220SQ 13024220SQ DOR-FIP SS
13023829SQ 13023829SQ DOR-FIP SS
WPW10143759 WPW10143759 DRIER-UV
W10136387A W10136387A EGG-CONTNR
WP12656018 WP12656018 ENDCAP
WP12656105 WP12656105 ENDCAP
W10136377 W10136377 ENERGY TAG
12002041 12002041 EVAPORATOR
WPW10128551 WPW10128551 EVAPORATOR MOTOR
WP67006010 WP67006010 EXTR- GLAS
W11177593 W11177593 FEET-LVLNG
67006470 67006470 FILTER, WATER
WP2300868 WP2300868 FITTING
WP67006185 WP67006185 FRAME
WPW10289690 WPW10289690 FRONT COVER
W10815413 W10815413 FUNNEL
W11159728 W11159728 GASKET
W10856123 W10856123 GASKET
B5759649 B5759649 GASKET
W10436252 W10436252 GASKET, DOOR (BLACK)
67002329 67002329 GASKET, PANTRY
WPB8381501 WPB8381501 GASKET- DR
W10133881 W10133881 GASKET-FIP
12002497 12002497 GEAR (2) (INCLUDES RH & LH)
WP67006655 WP67006655 GLASS SHELF
WP67002332 WP67002332 GLASS- PAN
WPW10235370 WPW10235370 GLIDE
WP542638 WP542638 GREASE
WPW10175909 WPW10175909 GRILLE
WPW10534153 WPW10534153 GRILLE-FRT
67003493 67003493 GROMMET (4)
67005680 67005680 GROMMET (8)
WP61004743 WP61004743 GROMMET- B
WP67002780 WP67002780 GROMMET- F
W11677725 W11677725 GUIDE
WP2319727S WP2319727S HANDLE, DOOR (STAINLESS STEEL)
67005644 67005644 HARNESS, CONTROLS (REFRIGERATOR) (INCLUDES 16)
12972902 12972902 HARNESS, HV BOARD
67006095 67006095 HARNESS, LIGHTS (FREEZER)
13060202 13060202 HARNESS, UNIT
WP67002493 WP67002493 HEATER- DE
WP67006524 WP67006524 HOUSING
W11702858 W11702858 HOUSING
12656202 12656202 HOUSING, CONTROL
WPW10203324 WPW10203324 HOUSING, ELECTRONIC CONTROL
12806601 12806601 HOUSING, LIGHT
67003906 67003906 HOUSING, LIGHTING
WP2195914 WP2195914 HOUSING-IM
D7824706Q D7824706Q ICEMAKER
8003RP 8003RP ICEMAKER INSTALL KIT
WP67006531 WP67006531 INLET VALVE
67003900 67003900 INSERT, DAMPER COVER
WPA3223101 WPA3223101 INSERT- PL
WP13012402 WP13012402 INSULATION
67003796 67003796 INSULATION, SOUND

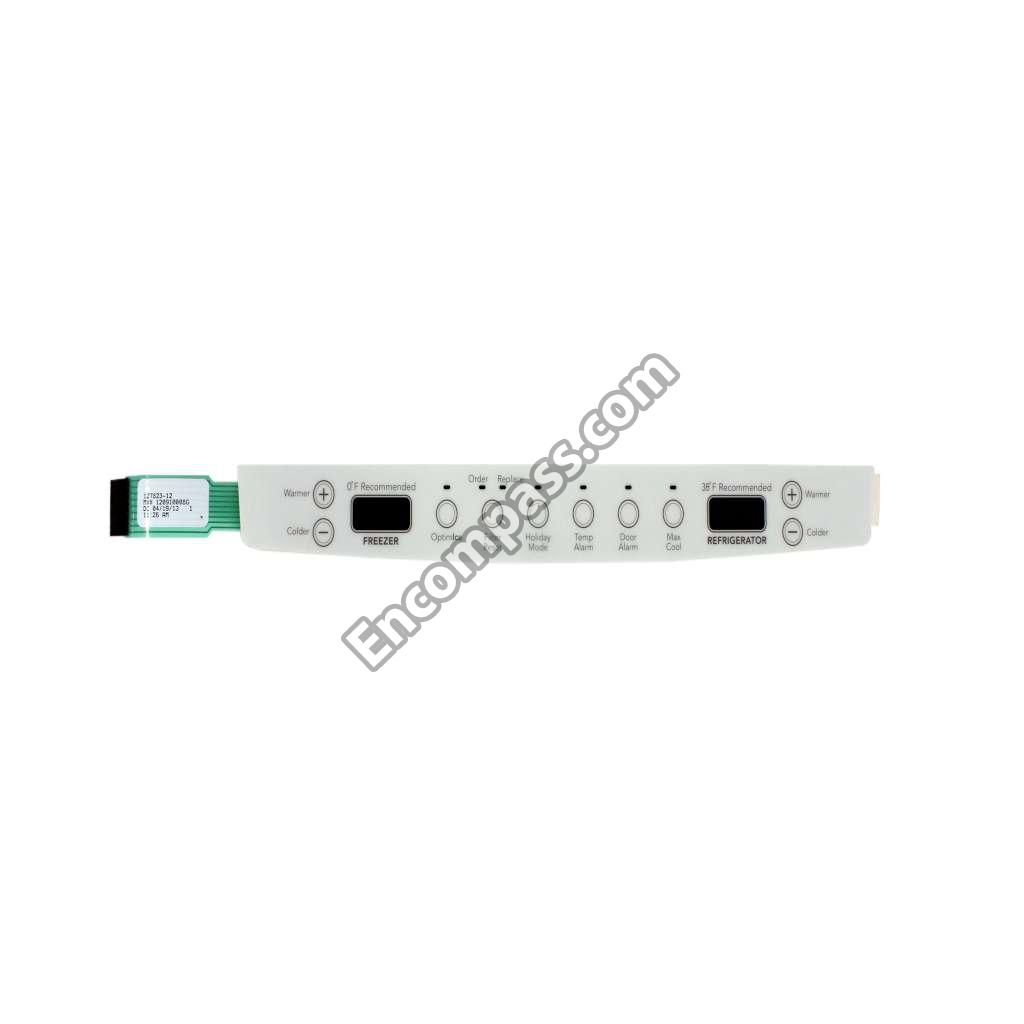

WP67005949 WP67005949 KEYBOARD-
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
833938 833938 KIT, TERMINAL CONNECTOR
12002023 12002023 KIT, WATER TANK
W11498983 W11498983 KNOB
67003036 67003036 LADDER, CENTER
67003037 67003037 LADDER, SIDE
WP67005930 WP67005930 LID-PANTRY
W11679940 W11679940 LIGHT BULB
W11613295 W11613295 MOTOR-COND
WPW10046610 WPW10046610 NAMEPLATE
M0286708 M0286708 NUT- SPEED
W10136388 W10136388 OWNERS MANUAL
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WP67002659 WP67002659 PAN- CRISP
WP12579803 WP12579803 PAN- DRAIN
W11490183 W11490183 PAN-UTILTY
WPM1205302 WPM1205302 PIN
WP67006642 WP67006642 PIN
12707303SP 12707303SP PLATE, SWITCH
WP67001668 WP67001668 PLATE- FIL
WPA3076901 WPA3076901 PLUG, BUTTON
67004838 67004838 PLUG, VENT (BLACK)
67007121 67007121 POWER CORD
WPW10671238 WPW10671238 RAIL-CENTR
67003794 67003794 ROD, TEMPERATURE CONTROL
WP10450603 WP10450603 ROLLER
WP12580304 WP12580304 ROLLER ASSEMBLY
WP489128 WP489128 SCREW
WP681249 WP681249 SCREW
WP67006415 WP67006415 SCREW
67006608 67006608 SCREW
W10709795 W10709795 SCREW
W10709798 W10709798 SCREW
67006550 67006550 SCREW
WP67004954 WP67004954 SCREW
12992301 12992301 SCREW
WP3387230 WP3387230 SCREW
WP400021-1 WP400021-1 SCREW
W10709797 W10709797 SCREW
WP489474 WP489474 SCREW
WP33001882 WP33001882 SCREW
67006425 67006425 SCREW
WP489349 WP489349 SCREW
WP98165 WP98165 SCREW
WP67006380 WP67006380 SCREW
WP8281196 WP8281196 SCREW
71003131 71003131 SCREW
12846902 12846902 SCREW (2)
12991101 12991101 SCREW, HANDLE (BLACK)
WPM0500703 WPM0500703 SEAL- O RI
WP854334 WP854334 SEAL-STRIP
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER, GUM (4 FEET)
W11028221 W11028221 SHAFT
WP67005676 WP67005676 SHELF- GLI
12575305 12575305 SHROUD
67002777 67002777 SHROUD, EVAP.FAN
WP67005864 WP67005864 SLIDE
67003703 67003703 SLIDE, PANTRY CONTROL

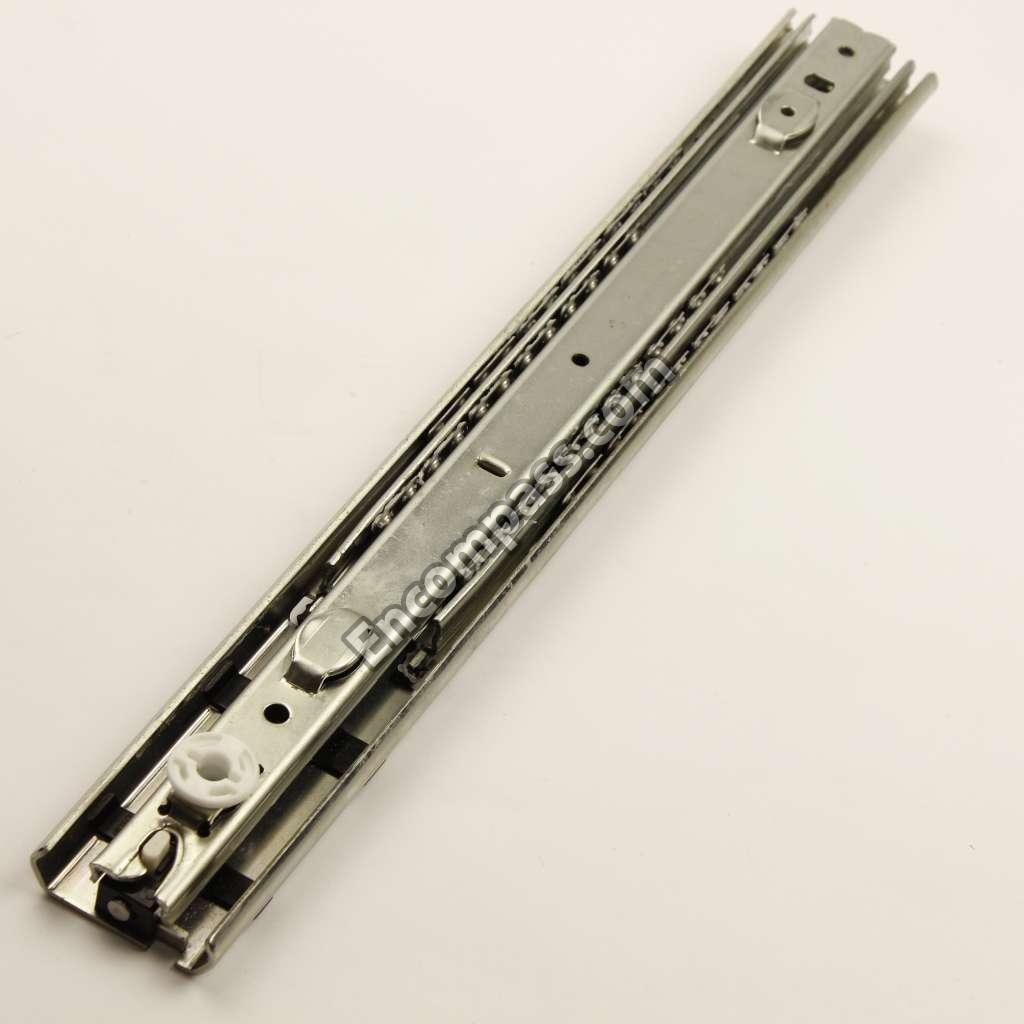

WP13031602 WP13031602 SLIDE- DRA
W11447232 W11447232 SOCKET
67005719 67005719 SPACER, HV BOX
W10613606 W10613606 START-DEV
W11708403 W11708403 STOP-DOOR
WP67004790 WP67004790 STUD, HANDLE
WP12227305WD WP12227305WD SUPPORT
WP67001721 WP67001721 SUPPORT- L
WP67001722 WP67001722 SUPPORT- R
12831101 12831101 SWEEP-WATER VALVE
W11384469 W11384469 SWITCH
W11396033 W11396033 SWITCH
WP12575501 WP12575501 SWITCH- LI
W11238399 W11238399 TAPE
67006616 67006616 TECH SHEET
12002355 12002355 THERMISTOR
WP67003426 WP67003426 THERMOSTAT
WP1117510 WP1117510 TORX KEY
WP67001719 WP67001719 TRACK
67004102 67004102 TRACK, WATER
WP67001279 WP67001279 TRAY- DAIR
W11547653 W11547653 TRAY-DRIP
W10656985 W10656985 TRIM
WP12690503 WP12690503 TRIM, DOOR SHELF
WPW10231486 WPW10231486 TRIM-SHELF
WP12866903 WP12866903 TUBE
WPB5705307 WPB5705307 TUBE
67001066 67001066 TUBE, DRAIN
WP12531601 WP12531601 TUNNEL- PA
WP978025 WP978025 VALVE
978028 978028 VALVE, ACCESS (1/2``)
876764 876764 VALVE, ACCESS (3/16``)
978030 978030 VALVE, ACCESS (3/4``)
978027 978027 VALVE, ACCESS (3/8``)
978026 978026 VALVE, ACCESS (5/16``)
978029 978029 VALVE, ACCESS (5/8``)
EDR4RXD1 EDR4RXD1 WATER FILTER
W11176463 W11176463 WATER TUBE
WPD7813010 WPD7813010 WIRE HARNESS
12906601 12906601 WIRE HARNESS
WP67005162 WP67005162 WIRE HARNESS
