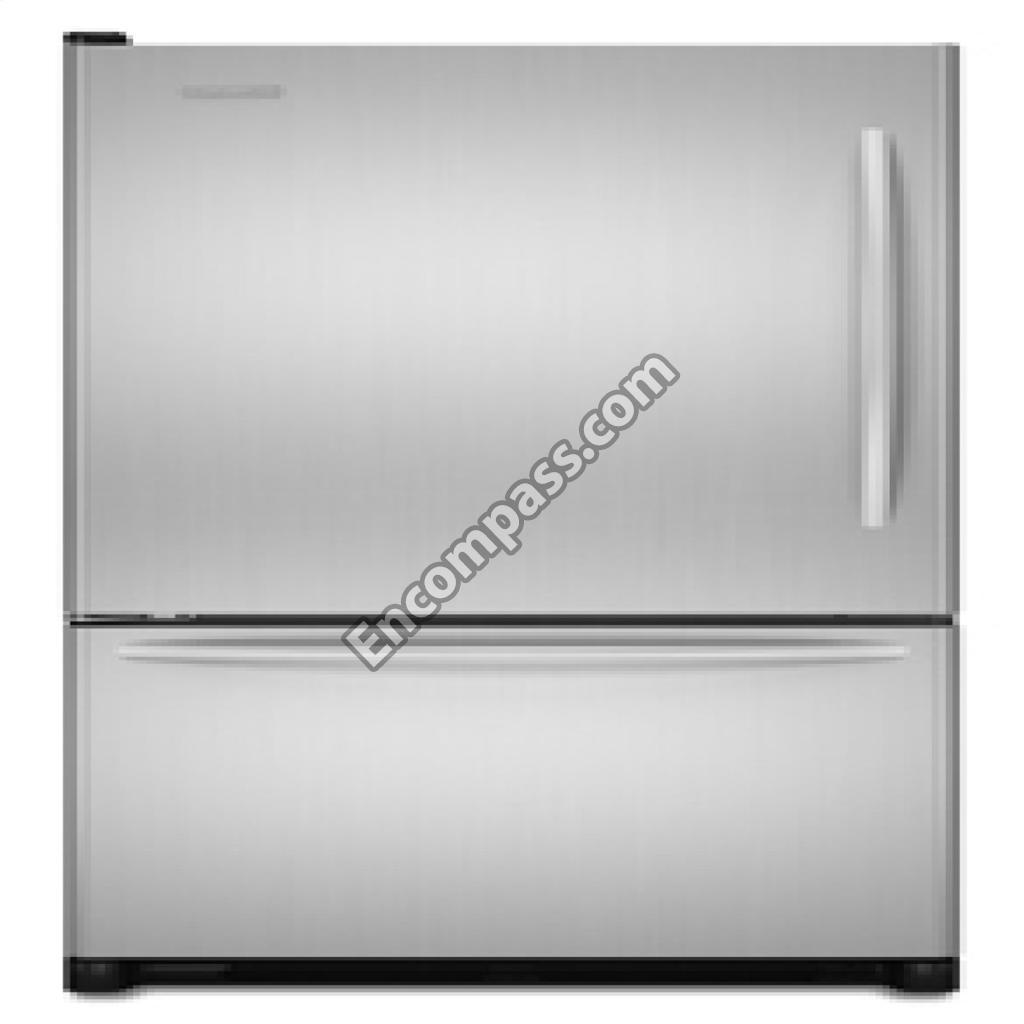

Model Image
Manufacturer

Whirlpool

Model Number

KBLS22KTSS01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
67006434 67006434 AXLE, ROLLER (2)
WP12591403 WP12591403 BASEPAN
13016002 13016002 BASKET, FREEZER (LOWER)
67004986 67004986 BASKET, FREEZER (UPPER)
WPW10165425 WPW10165425 BIMETL-DEF
WPW10371195 WPW10371195 BIN CONTROL LEVER
67005724 67005724 BIN, SHELF (1) (SMALL)
W10156818 W10156818 BLADE, FAN
WP2169142 WP2169142 BLADE-FAN
67005491 67005491 BLOCK, CONDENSER
W10168780 W10168780 BOARD, HV
67005718 67005718 BOX, HV
WP12227303WD WP12227303WD BRACE- CRI
WP67004953 WP67004953 BRACKET
WPW10284681 WPW10284681 BRACKET
WPW10284680 WPW10284680 BRACKET
WPW10280608 WPW10280608 BRACKET
WPW10280613 WPW10280613 BRACKET
WPW10330993 WPW10330993 BRACKET
WPW10330991 WPW10330991 BRACKET
Y67003896 Y67003896 BRACKET, CONTROL AND LIGHTS
12906303WD 12906303WD BRACKET, FOOT
12456801V 12456801V BRACKET, FOOT
67004978 67004978 BUSHING (BLACK)
WP12246608 WP12246608 BUTTON- PL
100000 100000 CABINET (NOT A SERVICABLE PART)
WP67005626 WP67005626 CADDY- CAN
WPW10662129 WPW10662129 CAPACITOR
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
2217192 2217192 CLEANER, (STAINLESS STEEL)
W11673433 W11673433 CLIP
13058002 13058002 CLIP
W10136415 W10136415 CLIP
67001067 67001067 CLIP, DRAIN TUBE
10547003 10547003 CLIP, DRIER
10623002 10623002 CLIP, EVAPORATOR
WP12627302 WP12627302 CLIP- TOE
WP67003639 WP67003639 CLOSER
W10170276 W10170276 COMPRESSOR
WP67006132 WP67006132 CONDENSER
WPW10196393 WPW10196393 CONTROL
WPW10207861 WPW10207861 CONTROL BOARD
W11284721 W11284721 COVER
67003485 67003485 COVER, CORNER (BLACK)
W10308415 W10308415 COVER, EVAPORATOR
67001012 67001012 COVER, HINGE (BLACK)
67005421 67005421 COVER, HV BOX
67003905 67003905 COVER, LIGHT
12575101WD 12575101WD COVER, UNIT
67001097 67001097 COVER, WATER VALVE
WP67003924 WP67003924 COVER- FZ
WP12806701 WP12806701 COVER-BOX
WP67001098 WP67001098 COVER-TUBE
12225601 12225601 DAM (LEFT SIDE)
67001084 67001084 DAM (RIGHT SIDE)
67006644 67006644 DIVIDER, LOWER BASKET
67004127 67004127 DIVIDER, UPPER BASKET
WP67001923 WP67001923 DIVIDER- P
WP12744905 WP12744905 DOOR COMP
WP12566606ED WP12566606ED DOOR HINGE
WP12607104ED WP12607104ED DOOR HINGE
12477402 12477402 DRAIN PAN
W10328328 W10328328 DRAWER, PANTRY
WPB2150504 WPB2150504 DRIER
W10136387A W10136387A EGG-CONTNR
W10123818 W10123818 ENERGY TAG
12001919 12001919 EVAPORATOR
WPW10128551 WPW10128551 EVAPORATOR MOTOR
W11177593 W11177593 FEET-LVLNG
WPW10568041 WPW10568041 FRAME
13092211SQ 13092211SQ FREEZER DOOR (W/ INSULATION) (STAINLESS STEEL)
W10815413 W10815413 FUNNEL
W11159742 W11159742 GASKET
W10856123 W10856123 GASKET
B5759649 B5759649 GASKET
WPW10436250 WPW10436250 GASKET ASSEMBLY
WPW10436248 WPW10436248 GASKET ASSEMBLY
W10368789 W10368789 GASKET, PANTRY
WPB8381501 WPB8381501 GASKET- DR
12002497 12002497 GEAR (2) (INCLUDES RH & LH)
WP67006878 WP67006878 GLASS- CRI
WP542638 WP542638 GREASE
WPW10175909 WPW10175909 GRILLE
WPW10534162 WPW10534162 GRILLE-FRT
67005680 67005680 GROMMER (2)
WPW10169124 WPW10169124 GROMMET
WPW10137529 WPW10137529 GROMMET
W10121318 W10121318 GROMMET
WP61004743 WP61004743 GROMMET- B
WP2319727S WP2319727S HANDLE, DOOR (STAINLESS STEEL)
67005644 67005644 HARNESS, CONTROLS (REFRIGERATOR) (INCLUDES 16)
67005938 67005938 HARNESS, HV
67006095 67006095 HARNESS, LIGHTS (FREEZER)
13060202 13060202 HARNESS, UNIT INCLUDES CORD
W10119857 W10119857 HARNS-WIRE
WP67001794 WP67001794 HEATER- DE
WP67001716 WP67001716 HOOK- LADD
W11702858 W11702858 HOUSING
WPW10203324 WPW10203324 HOUSING, ELECTRONIC CONTROL
12806601 12806601 HOUSING, LIGHT
67003906 67003906 HOUSING, LIGHTING
D7824706Q D7824706Q ICEMAKER
67003900 67003900 INSERT, DAMPER COVER
WP13012402 WP13012402 INSULATION
67003796 67003796 INSULATION, SOUND
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
833938 833938 KIT, TERMINAL CONNECTOR
W11685757 W11685757 LABEL
67001073 67001073 LADDER, CENTER
67001317 67001317 LADDER, SIDE
W11679940 W11679940 LIGHT BULB
W11613295 W11613295 MOTOR-COND
W10146610 W10146610 NAMEPLATE (GREY)
M0286708 M0286708 NUT- SPEED
W10183186 W10183186 OVERLAY
W10137649 W10137649 OWNERS MANUAL
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
67005927 67005927 PAN, CRISPER (2)
WP67001255 WP67001255 PAN-ICE
WPM1205302 WPM1205302 PIN
WP67006642 WP67006642 PIN
WP67006113 WP67006113 PLATE
12479901 12479901 PLATE, COVER
67004938 67004938 PLUG, VENT (2) (BLACK)
67004838 67004838 PLUG, VENT (BLACK)
12646501 12646501 RACK, ICE
WPW10671238 WPW10671238 RAIL-CENTR
13023838SQ 13023838SQ REFRIGERATOR DOOR (STAINLESS STEEL-LH)
WP12690502 WP12690502 RETAINER
67002003 67002003 ROD, TEMPERATURE CONTROL
WP67005149 WP67005149 ROLLER
WP10450603 WP10450603 ROLLER
WP12580304 WP12580304 ROLLER ASSEMBLY
W10709801 W10709801 SCREW
67006550 67006550 SCREW
W10709798 W10709798 SCREW
WP67004954 WP67004954 SCREW
12992301 12992301 SCREW
67006608 67006608 SCREW
WP67006908 WP67006908 SCREW
W10709795 W10709795 SCREW
WP3387230 WP3387230 SCREW
W10709797 W10709797 SCREW
WP489474 WP489474 SCREW
WP400021-1 WP400021-1 SCREW
WP33001882 WP33001882 SCREW
WP489349 WP489349 SCREW
WP98165 WP98165 SCREW
WP67006380 WP67006380 SCREW
WP8281196 WP8281196 SCREW
71003131 71003131 SCREW
WP489128 WP489128 SCREW
12846902 12846902 SCREW (2)
67006425 67006425 SCREW (9)
WPM0500703 WPM0500703 SEAL- O RI
WP854334 WP854334 SEAL-STRIP
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER, GUM (4 FEET)
W11715937 W11715937 SHAFT
67005730 67005730 SHELF, FIXED (2)
67005731 67005731 SHELF, GLIDE (2)
WPW10167023 WPW10167023 SHROUD
12575309 12575309 SHROUD
WP67005864 WP67005864 SLIDE
W11658402 W11658402 SLIDE
67002002 67002002 SLIDE, PANTRY CONTROL
W11447232 W11447232 SOCKET
67005719 67005719 SPACER, HV
WP10972101 WP10972101 SPACER- IC
WPW10197426 WPW10197426 START-DEV
W11708403 W11708403 STOP-DOOR
WP67001721 WP67001721 SUPPORT- L
WP67001722 WP67001722 SUPPORT- R
W11396033 W11396033 SWITCH
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
W10168777 W10168777 TECH SHEET
12002355 12002355 THERMISTOR
WP1117510 WP1117510 TORX KEY
WP67001719 WP67001719 TRACK
WP67001279 WP67001279 TRAY- DAIR
WPW10292802 WPW10292802 TRAY-DRIP
W10656985 W10656985 TRIM
W10231483 W10231483 TRIM, CRISPER
WP12866905 WP12866905 TUBE, DISCHARGE
W10164397 W10164397 TUBE-DRAIN
WP12531601 WP12531601 TUNNEL- PA
WP978025 WP978025 VALVE
978028 978028 VALVE, ACCESS (1/2``)
876764 876764 VALVE, ACCESS (3/16``)
978030 978030 VALVE, ACCESS (3/4``)
978027 978027 VALVE, ACCESS (3/8``)
978026 978026 VALVE, ACCESS (5/16``)
978029 978029 VALVE, ACCESS (5/8``)
