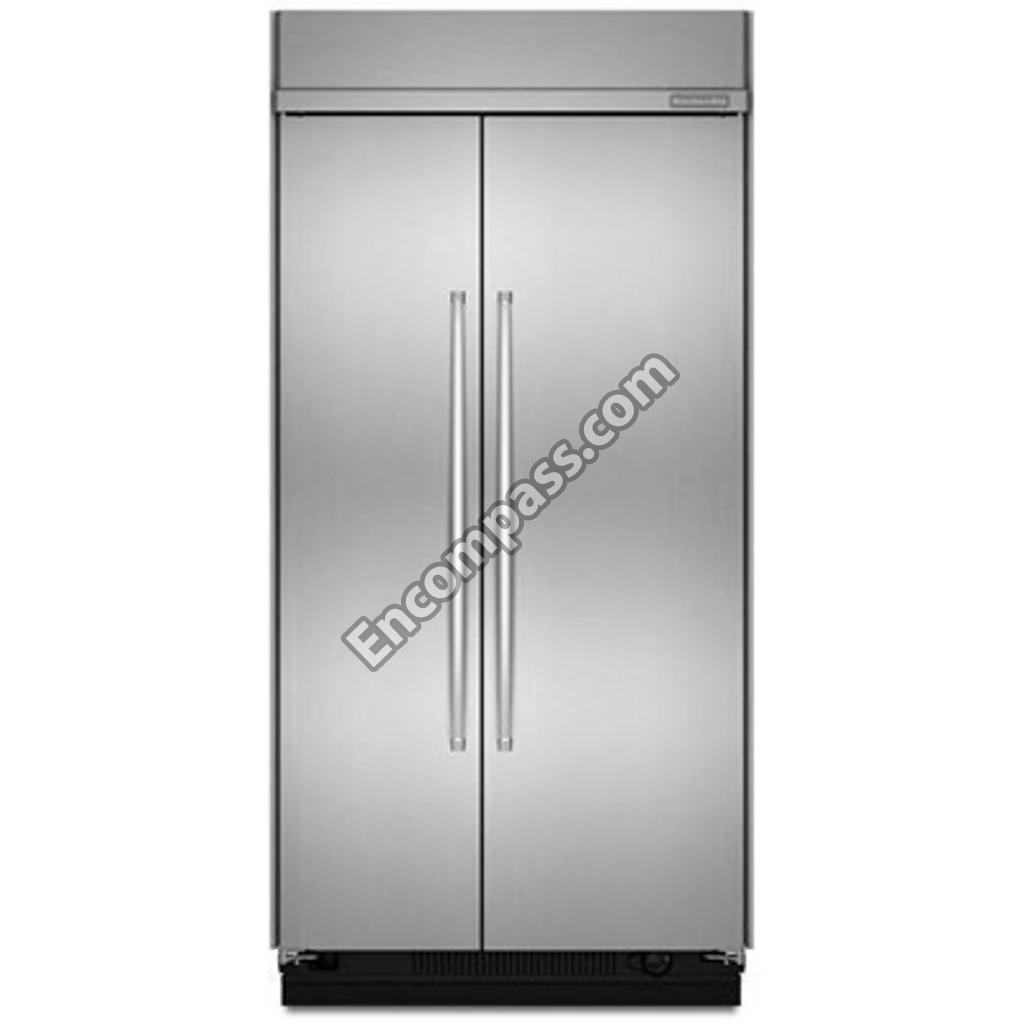

Model Image
Manufacturer

Whirlpool

Model Number

KBSN508ESS00

Description

Built-in Refrigerator - Side-by-side

Interactive Exploded View
Exploded View

Parts List

Part Number Description
876029 876029 "MISCELLANEOUS, KIT, FOAM SLAB (30"" X 32 1/2"" X 1 1/2"")"
W10355049 W10355049 AFFRESH STAINLESS STEEL CLEANE
W11042467 W11042467 AFFRESH STAINLESS STEEL CLEANE
WP2221296 WP2221296 AIR-BAFFLE
WP627843 WP627843 ARM-EJECTR
W11342242 W11342242 ARM-SHUT
WPW10122563 WPW10122563 ARM-STRIPR
2302878 2302878 ASSEMBLY, BOTTOM HINGE
2310207 2310207 ASSEMBLY, CONDENSER FAN WIRE
WP2302836 WP2302836 ASSEMBLY, CRISPER COVER
W10407625 W10407625 ASSEMBLY, CRISPER PAN
W10407628 W10407628 ASSEMBLY, MEAT PAN
WP2302843 WP2302843 ASSEMBLY, MEAT PAN COVER
W11318849 W11318849 BASKET-FZR
WP627985 WP627985 BIMETL-DEF
WPW10160570 WPW10160570 BIMETL-DEF
W11348580 W11348580 BIN
W11752086 W11752086 BIN CONTROL LEVER
W11590561 W11590561 BIN-CNTLVR
W10323748 W10323748 BIN-CNTLVR
W10323600 W10323600 BIN-CNTLVR
WPW10139483 WPW10139483 BLADE-FAN
WP2169142 WP2169142 BLADE-FAN
2209066 2209066 BLOCK, FAN SCROLL (LEFT HAND)
8201798 8201798 BLOCK-FAN
W10839844 W10839844 BRACKET
W10321055 W10321055 BRACKET
W10414681 W10414681 BRACKET
W10674648 W10674648 BRACKET
W10157752 W10157752 BRACKET
W10160981 W10160981 BRACKET
2006617 2006617 BRACKET, BASE SUPPORT (REAR)
2324973 2324973 BRACKET, CONTROL BOX
2256328 2256328 BRACKET, INVERTER MOUNTING
2006616 2006616 BRACKET, SUPPORT (LEFT HAND)
2006556 2006556 BRACKET, SUPPORT (RIGHT HAND)
2221096 2221096 BRACKET, SWITCH (LEFT HAND)
2221097 2221097 BRACKET, SWITCH (RIGHT HAND)
WP2316859 WP2316859 BUSHING
WP2260503B WP2260503B BUTTON
N_P N_P CABINET (NOT SERVICED)
WP2320509 WP2320509 CAM-DOOR
WP2260518B WP2260518B CAP-FILTER
WP488366 WP488366 CLAMP
W10833902 W10833902 CLAMP
1113048 1113048 CLAMP, HEATER
549193 549193 CLAMP, POWER CORD
W10355010 W10355010 CLEANER
WP2315522 WP2315522 CLIP
WP628379 WP628379 CLIP
W10169509 W10169509 CLIP
W10129069 W10129069 CLIP
2317000 2317000 CLIP, CONTROL BOX
W10841139 W10841139 COMPRESSOR
W10591457 W10591457 CONDENSER
WP2266932 WP2266932 CONTAINER
W10691179 W10691179 CONTRL-BOX
WPW10356040 WPW10356040 CONTROL BOARD
WPW10427079 WPW10427079 CONTROL BOARD
WP2259350 WP2259350 CONTROL BOARD
WP2306086 WP2306086 CONTROL BOARD
WP2317844 WP2317844 COVER
W10525175 W10525175 COVER
2309087 2309087 COVER, AIR DIFFUSER
2215612 2215612 COVER, AIR DUCT
2259025 2259025 COVER, AIR OUTLET
2259064 2259064 COVER, FILL TUBE HEATER
2215938 2215938 COVER, SWITCH
2215676 2215676 COVER, TERMINAL
W10581993 W10581993 COVER-EVAP
W10428001 W10428001 COVER-EVAP
W10694109 W10694109 COVER-UNIT
W10545068 W10545068 COVER-UNIT
WPW10309012 WPW10309012 COVER-WIRE
W10321048 W10321048 COVER-WIRE
W11676540 W11676540 CUP-FILL
2215648 2215648 DAMPENER
W11715935 W11715935 DAMPENER
2266801 2266801 DEFLECTOR, AIR
2309284 2309284 DEFLECTOR, AIR DUCT
WP2309222 WP2309222 DIFFUSER
WPW10169528 WPW10169528 DIFFUSER
W10645086 W10645086 DIVIDER
LW10193487 LW10193487 DOOR ASSEMBLY SS
LW10193491 LW10193491 DOOR ASSEMBLY SS
W11752085 W11752085 DOOR HINGE
W11673500 W11673500 DOOR HINGE
WP2006780 WP2006780 DOOR HINGE
W10527053 W10527053 DOOR HINGE
2266935 2266935 DOOR, ICE
W10799039 W10799039 DOOR-SKIN
W10799036 W10799036 DOOR-SKIN
WPW10143759 WPW10143759 DRIER-UV
2307778 2307778 DUCT, AIR
2208970 2208970 DUCT, AIR
WPW10323172 WPW10323172 ENDCAP-TRM
WPW10323173 WPW10323173 ENDCAP-TRM
W10782573 W10782573 ENERGY GUIDE
WPW10427993 WPW10427993 EVAPORATOR
2221107 2221107 EVAPORATOR, COVER RAIL (LEFT HAND)
2259355 2259355 EVAPORATOR, COVER RAIL (RIGHT HAND)
W10847927 W10847927 EXTENSION
W11298172 W11298172 EXTENSION
WP2182120 WP2182120 FAN-SCROLL
WPW10289690 WPW10289690 FRONT COVER
WP2256271 WP2256271 FRONT-BSKT
WP2256367 WP2256367 FRONT-PAN
W11700297 W11700297 GAP-HINGE
WP1106508 WP1106508 GASKET
WP2302817 WP2302817 GASKET
W10432308 W10432308 GASKET
W10581989 W10581989 GASKET
WP2266901 WP2266901 GASKET ASSEMBLY
WP2266903 WP2266903 GASKET ASSEMBLY
2220904 2220904 GASKET, EVAPORATOR COVER
WP542638 WP542638 GREASE
W10321107 W10321107 GRILL-UPPR
W10859915 W10859915 GRILLE-FRT
W11169715 W11169715 GRILLE-FRT
W10587113 W10587113 GROMMET
W11671528 W11671528 GROMMET
876811 876811 GROMMET (4) ((PRODUCTION))
2003577 2003577 GUARD, AIR RETURN
W10783284 W10783284 HANDLE
W10167456 W10167456 HARNS-SWCH
W10508673 W10508673 HARNS-WIRE
W10427089 W10427089 HARNS-WIRE
W11676572 W11676572 HARNS-WIRE
W10279393 W10279393 HARNS-WIRE
WP2221240 WP2221240 HEATER
WPW10140162 WPW10140162 HEATER
W10890886 W10890886 HEATER-PAN
WP2302876 WP2302876 HING-BUSHG
WP2004994 WP2004994 HING-BUSHG
W11500952 W11500952 HING-BUSHG
2257644 2257644 HINGE, TOP
WPW10321056 WPW10321056 HOUSING
WPW10121140 WPW10121140 HOUSING
WP2195914 WP2195914 HOUSING-IM
WPW10277450 WPW10277450 ICEMAKER
2306337 2306337 ICEMAKER AND INGREDIENT CARE CENTER SERVICE SHEET
WP2307650 WP2307650 INLET VALVE
WPW10121451 WPW10121451 INSERT
W10681447 W10681447 INSTALLATION INSTRUCTIONS
W11553819 W11553819 INSULATION
WPW10449006 WPW10449006 INVRTR-BOX
WP2259032 WP2259032 LADDER
WP2259077 WP2259077 LADDER
2005032 2005032 LEVELER, ADJUSTABLE
WPA3073101 WPA3073101 LIGHT BULB
W10469185 W10469185 MAIN CONTROL SERVICE SHEET
WP4317852 WP4317852 MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ.)
31462A 31462A MISCELLANEOUS, CLEANER, STAINLESS STEEL
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
833938 833938 MISCELLANEOUS, KIT, TERMINAL CONNECTOR
212643 212643 MISCELLANEOUS, SEALER, GUM (4 FEET)
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
WPW10190929 WPW10190929 MOLD-ICE
W11578915 W11578915 MOTOR-COND
W11671461 W11671461 MOTOR-EVAP
2317923S 2317923S NAMEPLATE (STAINLESS)
WP2004333 WP2004333 NUT
W10415670 W10415670 ORIFICE
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
2256466 2256466 PANEL, UNIT BACK
WPW10525179 WPW10525179 PLATE
WPW10525177 WPW10525177 PLATE
W10127710 W10127710 PLATE
WP2310251 WP2310251 POWER CORD
W10777924 W10777924 RACK-WINE
W11671527 W11671527 RETAINER
WP489236 WP489236 RING-E
WPW10138054 WPW10138054 ROLLER-CAB
WP8533993 WP8533993 SCREW
WP489128 WP489128 SCREW
WP489399 WP489399 SCREW
WP489069 WP489069 SCREW
WP308544 WP308544 SCREW
WP8281250 WP8281250 SCREW
W10759522 W10759522 SCREW
W11474472 W11474472 SCREW
WP8533928 WP8533928 SCREW
WPW10142283 WPW10142283 SCREW
WP3400886 WP3400886 SCREW
WP488729 WP488729 SCREW
WP1163283 WP1163283 SCREW
WPW10141604 WPW10141604 SCREW
WP8281163 WP8281163 SCREW
W11624204 W11624204 SCREW
WP965173 WP965173 SCREW
W11189635 W11189635 SCREW
3400230 3400230 SCREW
WP8281164 WP8281164 SCREW
3400525 3400525 SCREW
WP489464 WP489464 SCREW
W11177574 W11177574 SCREW
WP681249 WP681249 SCREW
W10001280 W10001280 SCREW
2006475 2006475 SCREW (WHITE)
W10139908 W10139908 SEAL
2005925 2005925 SEAL, SIDE TRIM
WP505587 WP505587 SEALER
WP503695 WP503695 SEALER
W10213535 W10213535 SHELF
2302884 2302884 SHELF, FIXED
WP2222593 WP2222593 SHELF-CANT
W10175906 W10175906 SHELF-WIRE
WP2221231 WP2221231 SHIELD
W10321050 W10321050 SHIELD
W10129653 W10129653 SHIELD
2307596 2307596 SHIELD, CONTROL BOX
2307751 2307751 SHIELD, LIGHT
WP2259318 WP2259318 SLIDE
WP2259317 WP2259317 SLIDE, BASKET (RIGHT HAND)
2302956 2302956 SLIDE, CRISPER (LEFT HAND)
2302957 2302957 SLIDE, CRISPER (RIGHT HAND)
2302954 2302954 SLIDE, MEAT PAN (LEFT HAND)
2302955 2302955 SLIDE, MEAT PAN (RIGHT HAND)
WPW10191429 WPW10191429 SOCKET
WP2203075 WP2203075 SPACER
WP2257333 WP2257333 SPACER
WP2257343 WP2257343 SPACER
W10475010 W10475010 SPACER
W10142296 W10142296 SPACER
2256223 2256223 SPACER, CRISPER (LEFT HAND)
2256222 2256222 SPACER, CRISPER (RIGHT HAND)
2005433 2005433 SPACER, DOOR SKIN (TOP)
2309060 2309060 SPACER, HANDLE SIDE DOOR
2256243 2256243 SPACER, MEAT PAN (LEFT HAND)
2256244 2256244 SPACER, MEAT PAN (RIGHT HAND)
WP2004517 WP2004517 SPRING
W11527119 W11527119 STUD-SHELF
W10860229 W10860229 SUPPORT
W10860448 W10860448 SUPPORT
2302851 2302851 SUPPORT, AIR DUCT
2320554 2320554 SUPPORT, DRAIN PAN
1112260 1112260 SUPPORT, EVAPORATOR
2259445 2259445 SUPPORT, LADDER
520965 520965 SUPPORT, LADDER
2320559 2320559 SUPPORT, VALVE
WP2266802 WP2266802 SWITCH
W11457217 W11457217 SWITCH
W11384469 W11384469 SWITCH
W11238399 W11238399 TAPE
WP2188820 WP2188820 THERMISTOR
WP2302937 WP2302937 THERMISTOR
WP2306010 WP2306010 THERMISTOR
WPW10339879 WPW10339879 TIE-WIRE
WP1117510 WP1117510 TORX SCREW WRENCH, TORX KEY
2318189 2318189 TRAY, FILTER DRIP
2316688 2316688 TRIM, BOTTOM CABINET (ALUMINUM)
2314018 2314018 TRIM, TOP CABINET (ALUMINUM)
WPW10259175 WPW10259175 TRIM-CABNT
WPW10259169 WPW10259169 TRIM-CABNT
W10673675 W10673675 TUBE
W10648568 W10648568 TUBE
W10388653 W10388653 TUBE
W10528578 W10528578 TUBE
W10624944 W10624944 TUBE
W10625009 W10625009 TUBE
2314064 2314064 TUBE, DRAIN
W10681391 W10681391 USE AND CARE GUIDE
WP978025 WP978025 VALVE
978026 978026 VALVE, ACCESS
978029 978029 VALVE, ACCESS
978030 978030 VALVE, ACCESS
978027 978027 VALVE, ACCESS
876764 876764 VALVE, ACCESS
978028 978028 VALVE, ACCESS
WP2006346 WP2006346 WASHER
EDR3RXD1 EDR3RXD1 WATER FILTER
W11533506 W11533506 WATER TUBE
W11662302 W11662302 WATER TUBE
W11565275 W11565275 WATER TUBE
2259465 2259465 WEDGE, LEFT AIR DUCT
2259464 2259464 WEDGE, RIGHT AIR DUCT
WPW10495645 WPW10495645 WIRE-JUMPR
WPW10483905 WPW10483905 WIRE-JUMPR
W10482373 W10482373 WIRE-JUMPR
