Model Image
Manufacturer

Whirlpool

Model Number

KCMS125EBS0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4386631 4386631 24`` BUILT-IN KIT (BLACK)
4386632 4386632 24`` BUILT-IN KIT (STAINLESS)
4386634 4386634 27`` BUILT-IN KIT (BLACK)
4386635 4386635 27`` BUILT-IN KIT (STAINLESS)
4386637 4386637 30`` BUILT-IN KIT (BLACK)
4386638 4386638 30`` BUILT-IN KIT (STAINLESS)
591014 591014 ADHESIVE LOCTITE (1/3 OZ.)
4313204 4313204 BARRIER
4313120 4313120 BLADE, FAN
4313114 4313114 BRACKET, CAPACITOR
4313052 4313052 CAPACTR-MG
100000 100000 CAVITY, OVEN (NOT A SERVICEABLE PART)
4313136 4313136 CHOKE COVER
WP261869 WP261869 CITRINE WHITE
WP832889 WP832889 CONNECTOR
4313201 4313201 CONTROL PANEL (BLACK)
4313197 4313197 CONTROL PANEL (STAINLESS)
4313122 4313122 COVER, WAVE GUIDE
4365615 4365615 CUSHION
4313116 4313116 DOOR LATCH HOOK
4313191 4313191 DOOR LATCH LEVER
4313137 4313137 DOOR LATCH, DOOR
4313202 4313202 DOOR, COMPLETE (BLACK)
4313199 4313199 DOOR, COMPLETE (STAINLESS)
4313121 4313121 DUCT, FAN
4313119 4313119 DUCT, MICROWAVE MAGNETRON
4313173 4313173 DUCT, SENSOR
4365606 4365606 FOOT
4313203 4313203 FRAME, DOOR (BLACK)
4313200 4313200 FRAME, DOOR (STAINLESS)
4313106 4313106 FUSE, TEMP
4313125 4313125 GASKET, TURNTABLE
4313110 4313110 H.V. WIRE TRANSFORMER TO CAPACITOR
4313193 4313193 HARNESS, MAIN
4313194 4313194 HARNESS, THERMAL PROTECTION
4313104 4313104 HOLDER, FUSE
LIT4313775 LIT4313775 INSTALLATION, INSTR.
W10873798 W10873798 LIGHT BULB
4313174 4313174 MICROCOMPUTER
4313107 4313107 MICROWAVE MAGNETRON
4313192 4313192 MOTOR, FAN
4313108 4313108 MOTOR, TURNTABLE
4313123 4313123 OUTER CABINET
261900 261900 PAINT, SPRAY (CITRINE WHITE (6 OZ.))
4313135 4313135 PANEL, DOOR
4357406 4357406 POWER CORD
4313198 4313198 PUSH BUTTON
WP4313101 WP4313101 RECTIFIER
4313138 4313138 SCREEN, DOOR
4313632 4313632 SCREW
4312922 4312922 SCREW
4357320 4357320 SCREW
4313665 4313665 SCREW
4365500 4365500 SCREW
4357322 4357322 SCREW
W11233072 W11233072 SCREW
4176862 4176862 SCREW, 3 X 8 MM
4174757 4174757 SCREW, 3 X 8 MM
WP482338 WP482338 SEALER, SILASTIC (3OZ.)
4313171 4313171 SENSOR
4313102 4313102 SOCKET, LAMP
WP8205529 WP8205529 SPRING, BUTTON
4174992 4174992 SPRING, DOOR LATCH
4313195 4313195 SUPPORT
4313196 4313196 SUPPORT, TURNTABLE
4313105 4313105 SWITCH AND FUSE ASSEMBLY.
4392027 4392027 SWITCH MICRO PRIMARY
LIT4313776 LIT4313776 TECH SHEET
4313109 4313109 TRANSFORMER

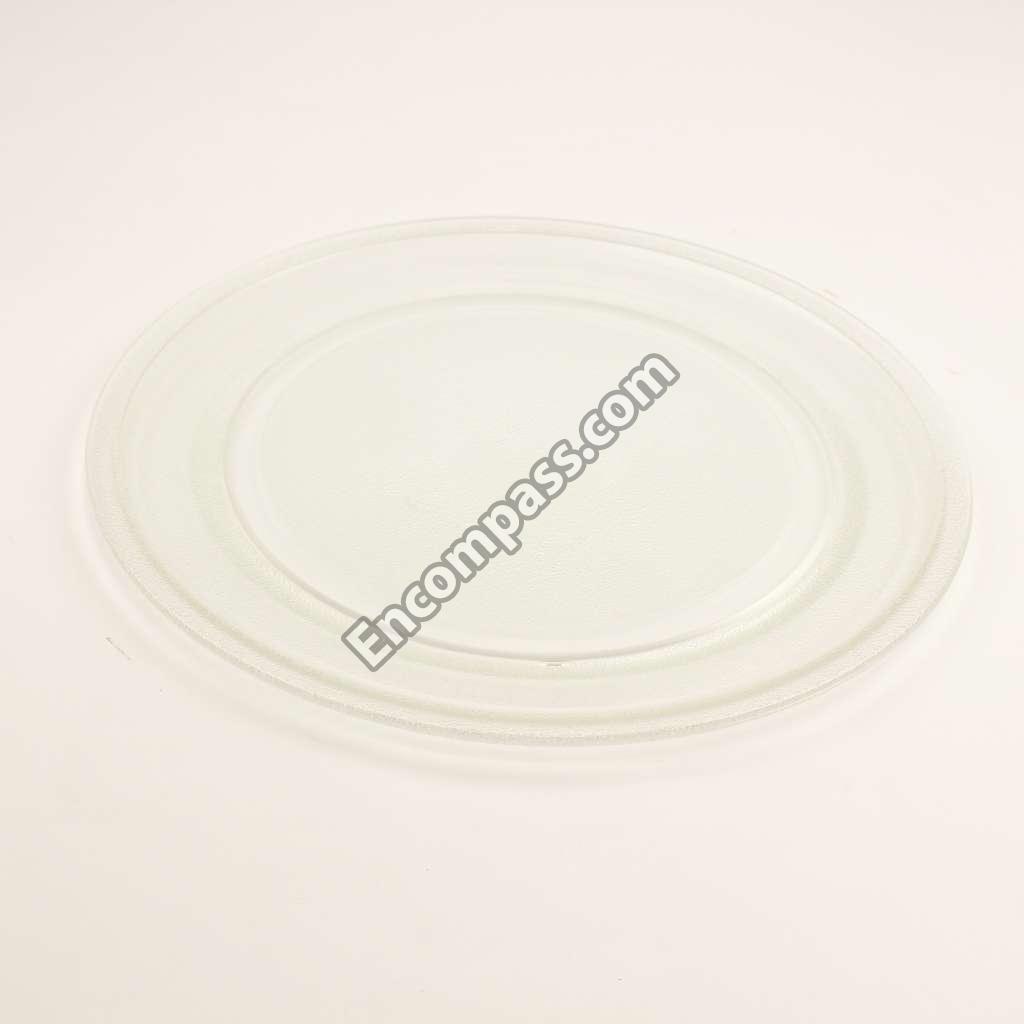

WP8184775 WP8184775 TRAY-COOK
LIT4313774 LIT4313774 USE & CARE GUIDE
4313176 4313176 WINDOW
242828 242828 WIRE (12 GA. 150 C BLACK)
242829 242829 WIRE (12 GA. 150 C RED)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242826 242826 WIRE (14 GA. 150 C WHITE)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
242832 242832 WIRE (14 GA. 200 C YELLOW)
