Model Image
Manufacturer

Whirlpool

Model Number

KDB21

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
877795 877795 ACTUATOR
4172040 4172040 ACTUATOR - INTERLOCK SWITCH
116154 116154 ADJUSTABLE RACK TRACK MECH. (L.H.) (NOT SHOWN)
116155 116155 ADJUSTABLE RACK TRACK MECH. (R.H.)
WPW10254672 WPW10254672 AERATOR & CONNECTOR ASSEMBLY. (INCLS. ITEM NO.3)
242446 242446 AIR GAP - FILL ASSEMBLY. (INCLS. ITEMS 1 & 2)
242632 242632 ANCHOR - CANCEL SPRING
240682 240682 AXLE - LOWER RACK
115053-1 115053-1 BAFFLE - LOWER
116297 116297 BAR - GUIDE
241999 241999 BARRIER - FRONT PANEL
WP8519598 WP8519598 BASKET - SILVERWARE
241034 241034 BEARING & SPACER - RACK ADJUSTING
241035 241035 BEARING & SPACER - RACK ROLLER
241332 241332 BEARING - ARM (BOTTOM)
241095 241095 BEARING - ARM (TOP)
88044 88044 BEARING - DOOR STOP INSERT
WP4162568 WP4162568 BIMETAL ASSEMBLY
241082 241082 BLOWER ASSEMBLY. UNIT (INCLS. ITEMS 8, 9, 11, 12, 13, 14, 15 & 16)
241104 241104 BLOWER WHEEL ASSEMBLY. (INCLS. ITEM 17)
W10196406RW W10196406RW BOWL-DRIP
W10291024 W10291024 BOWL-DRIP
242525 242525 BRACKET - CHECK VALVE
241996 241996 BRACKET - CORD REEL MOUNTING
116295 116295 BRACKET - FRONT CASTER
241998 241998 BRACKET - HOSE ANCHOR
115977-3 115977-3 BRACKET - L.H. DOOR STOP
115971-3 115971-3 BRACKET - L.H. HINGE
240027 240027 BRACKET - L.H. SPRING MOUNTING (NOT SHOWN)
242424 242424 BRACKET - PROGRAM SWITCH
115970-3 115970-3 BRACKET - R.H. HINGE
240028 240028 BRACKET - R.H. SPRING MOUNTING
242003 242003 BRACKET - REAR CASTER (L.H.)
242999 242999 BRACKET - REAR CASTER (R.H.)
241997 241997 BRACKET - REAR PANEL ANCHOR
116223 116223 BRACKET - SIDE PANEL MOUNTING
242125 242125 BRACKET - TOP PANEL ANCHOR
240412-1 240412-1 BRACKET - TOP PANEL ANCHOR
116101 116101 BUMPER - DOOR
241244 241244 BUMPER - LOWER RACK
240288 240288 BUMPER - RACK TRACK
240228 240228 BUMPER - UPPER RACK
241953 241953 BUSHING - RACK ROLLER
242406-2 242406-2 BUTTON - PROGRAM SWITCH
242406-1 242406-1 BUTTON - PROGRAM SWITCH
240471 240471 CAP
241075 241075 CAP - AIR INLET
242413-2 242413-2 CAP - END (L.H.)
242413-1 242413-1 CAP - END (R.H.)
116273 116273 CASTER - FRONT
104540 104540 CASTER - REAR
240649 240649 CHANNEL - EVAPORATION
241905 241905 CHECK VALVE ASSEMBLY
105662 105662 CLAMP - HOSE
240319 240319 CLAMP - HOSE
115747-5 115747-5 CLAMP - HOSE
240318 240318 CLAMP - HOSE
115747-7 115747-7 CLAMP - HOSE (.937`` DIA.)
240202-1 240202-1 CLAMP - HOSE (1.468`` DIA.)
240202-3 240202-3 CLAMP - HOSE (1`` DIA.)
241107 241107 CLIP - ARM GUARD (KDC-61A & KDI-21A)
240220 240220 CLIP - GROUNDING (FRONT PANEL)
242641 242641 CLIP - HARNESS GUIDE
115968 115968 CLIP - HINGE PIN RETAINING
101685 101685 CLIP - PARTITION RETAINING
116010 116010 CLIP - SEAL
116003 116003 CONNECTOR - OVERHEAD
241546 241546 CONNECTOR - VERTICAL CONDUIT
4318290 4318290 CONTROL
242972-2 242972-2 CONTROL PANEL
242973-3 242973-3 CONTROL PANEL & END CAP ASSEMBLY. (KDB-21) (INCLS. ITEMS 16, 17, 18, 28, 29, 30, 39, 41 & 42)
242973-1 242973-1 CONTROL PANEL & END CAP ASSEMBLY. (KDC-21A & KDC-61A) (INCLS. ITEMS 16, 17, 18, 28, 29, 30, 40, 41 & 42)
242973-2 242973-2 CONTROL PANEL & END CAPS ASSEMBLY. (INCLS. ITEMS 18, 20, 21, 29, 30, 31, 38, 40 & 41)
242972-3 242972-3 CONTROL PANEL (KDB-21)
242972-1 242972-1 CONTROL PANEL (KDC-21A & KDC-61A)
242110 242110 CORD REEL ASSEMBLY. (SERVICE)
240936 240936 COUPLER SERVICE KIT
106955-2 106955-2 COUPLER, DRAIN HOSE & FERRULE ASSEMBLY. (INCLS. ITEM NO.5)
116174 116174 COVER - WIRING HARNESS
115370 115370 CROSS FRAME - FRONT
241078 241078 DAMPER - AIR INLET
115152 115152 DETERGENT DISPENSER & GASKET ASSEMBLY. (115 V., 60 HZ.) (INCLS. ITEM 24)
279570 279570 DOOR LATCH
116022-2 116022-2 DOOR LATCH MECHANISM ASSEMBLY
116115 116115 DOOR SEAL ASSEMBLY. (INCLS. ITEM 4)
241915 241915 DRAIN PUMP TOP ASSEMBLY
240872 240872 ELBOW - TUBE FITTING
242951 242951 ELEMENT - HEATER
115371 115371 ENCLOSURE - ELEC. SUPPLY
240011 240011 END CAP - CASTER TRIM (L.H.)
240010 240010 END CAP - CASTER TRIM (R.H.)
116299 116299 END CAP - GUIDE BAR (L.H.)
116298 116298 END CAP - GUIDE BAR (R.H.)
241163 241163 FILL HOLE PLUG ASSEMBLY. (INCLS. ITEM 35)
107113 107113 FILL HOSE, SLEEVE & NUT ASSEMBLY
242905 242905 FILL VALVE ASSEMBLY. (115 V., 60 HZ.)
241938 241938 FINE STRAINER
240917 240917 FLOAT & RETAINER ASSEMBLY
241857 241857 FOOT - LEVELING (5/16-18 THD.)
241852 241852 FRAME ASSEMBLY. (L.H.)
241851 241851 FRAME ASSEMBLY. (R.H.)
WP8531743 WP8531743 GASKET
116065 116065 GASKET - DETERGENT DISPENSER
242108 242108 GASKET - DRAIN PUMP
115716 115716 GASKET - MOTOR MOUNTING PLATE
240163 240163 GASKET - PLUG BUTTON
241950 241950 GASKET - RACK STUD
115840 115840 GASKET - RUBBER
89038 89038 GASKET - SEAL (``U`` SECTION)
241894 241894 GASKET - VENTURI
865974 865974 GASKT-DOOR
241135-3 241135-3 GROMMET - HEATER ELEMENT
241056 241056 GUARD - ARM (KDC-61A & KDI-21A)
113715 113715 GUIDE-LOCKING
242414 242414 HANDLE - DOOR LATCH
243041 243041 HEATER KIT (SERVICE) (INCLS. ITEMS 12 THRU 15)
242958 242958 HOOK - HEATER ELEMENT
242402 242402 HOSE - FLEXIBLE (FILL VALVE TO AIR GAP)
241081 241081 HOUSING - BLOWER
111464 111464 HOUSING - HOSE COUPLER
111465 111465 HOUSING - POWER CORD
242649 242649 INNER DOOR (SERVICE)
241119 241119 INNER DOOR ASSEMBLY
240377 240377 INSULATION - SWITCH
242870 242870 INSULATOR - DOOR LATCH AREA
242599 242599 INSULATOR - LIGHT PACKAGE
NS-17-16 NS-17-16 JAM NUT 3/8-16 HEX FIN
81218 81218 KEEPER - DOOR LATCH
115957 115957 KICK BOARD
242000 242000 KICKBOARD
241677-5 241677-5 KIT - PANEL INSERTS (AL/WH)
241677-3 241677-3 KIT - PANEL INSERTS (FA/CO)
251677-6 251677-6 KIT - PANEL INSERTS (HT/OB)
241677-7 241677-7 KIT - PANEL INSERTS (PL/TO)
251677-8 251677-8 KIT - PANEL INSERTS (SA/OB)
241677-9 241677-9 KIT - PANEL INSERTS (SI/OB)
241677-4 241677-4 KIT - PANEL INSERTS (SST)
241537 241537 KNOB - TIMER
21914 21914 LAMP, FLUORESCENT
242777 242777 LEAD ASSEMBLY. (FILL CONTROL SWITCH TO FILL VALVE)
241315 241315 LEAD ASSEMBLY. (INTERLOCK SWITCH TO PROGRAM SWITCH)
116113 116113 LIFT - RECEIVER (L.H.) (NOT SHOWN)
116114 116114 LIFT - RECEIVER (R.H.)
242964 242964 LIGHT PACKAGE
8316805 8316805 LIGHT-IND
NS-47-28 NS-47-28 LOCK NUT 3/16 PALNUT
WL-4-4 WL-4-4 LOCK WASHER - 3/8`` LIGHT
WL-7-12 WL-7-12 LOCK WASHER 10 EXT. SHAKEPROOF
WL-14-7 WL-14-7 LOCK WASHER 10 EXT. SHAKEPROOF
WL-7-2 WL-7-2 LOCK WASHER 6 EXT. SHAKEPROOF
116157 116157 LOWER RACK ASSEMBLY. (INCLS. ITEMS 2 & 3)
NS-9-7 NS-9-7 MACH. NUT 6-32 HEX
SC-18-71 SC-18-71 MACH. SCREW 1/4-20 X 1 PAN HD
SC-109-58 SC-109-58 MACH. SCREW 10-24 X 1 PHIL. PAN HD
240388 240388 MACH. SCREW 10-32 X 1/2 PHIL. TRUSS HD., CA PT. ``TAPTITE``
SC-66-7 SC-66-7 MACH. SCREW 10-32 X 5/16 PHIL. TRUSS HD
SC-17-14 SC-17-14 MACH. SCREW 10-32 X 5/8 PHIL. OVAL HD
SC-117-52 SC-117-52 MACH. SCREW 8-32 X 1/2 PHIL. FLAT HD
SC-93-4 SC-93-4 MACH. SCREW 8-32 X 1/2 PHIL. PAN HD
SC-69-10 SC-69-10 MACH. SCREW 8-32 X 1/4 PHIL. PAN HD. ``NYLOK``
241051 241051 MANIFOLD - UPPER ARM
241220 241220 MOTOR - BLOWER (115 V., 60 HZ.) (INCLS. SCREWS)
240106 240106 MOTOR CLAMP ASSEMBLY
242636 242636 MOTOR MOUNTING PLATE KIT (INCLS. ITEMS 18 & 35)
242635 242635 MOTOR, SEAL & GASKET KIT (INCLS. ITEMS 18, 24 & 35)
116198-2 116198-2 NUT (FILL AIR GAP)
114054 114054 NUT - ROLLER
115983 115983 NUT - STANDPIPE
241992-2 241992-2 PANEL - REAR (ALMOND)
115948 115948 PARTITION - UPPER RACK
115910 115910 PIN - HINGE
241080 241080 PLATE - BLOWER MOTOR MOUNTING
PB-3-12 PB-3-12 PLUG BUTTON
240162 240162 PLUG BUTTON (MACH. W/O RINSE AGENT)
RS-30-13 RS-30-13 POP RIVET - 1/8`` OPEN END
116247 116247 PROTECTOR - UPPER WATER INLET
241936 241936 PUMP SYSTEM ASSEMBLY. (INCLS. ITEMS 2 THRU 21, 23, 31, 32, 35 & 36)
108783 108783 QUADRANT - FLEXO DIVIDER (L.H.)
108784 108784 QUADRANT - FLEXO DIVIDER (R.H.) (NOT SHOWN)
240968 240968 RECEIVER - MANIFOLD (KDB-21, KDC-21A & KDI-21A)
115958 115958 RECEIVER - MANIFOLD TUBE (KDC-61A)
241105 241105 RETAINER - MANIFOLD
241084 241084 RETAINING RING
241137 241137 RINSE AGENT DISPENSING VALVE
241951 241951 ROLLER - RACK TRACK
116008 116008 ROLLER - UPPER RACK
89738 89738 ROLLER - UPPER RACK TRACK
4163370 4163370 SCREEN
SA-11-8 SA-11-8 SCREW & LOCK WASHER ASSEMBLY. 10-16 X 5/8 PHIL. TRUSS HD., TYPE AB
240333 240333 SCREW & WASHER ASSEMBLY
242436 242436 SCREW & WASHER ASSEMBLY
A-21-8 A-21-8 SCREW & WASHER ASSEMBLY. 10-32 X 3/8 PHIL. HEX HD., TYPE AB
241143 241143 SCREW - BLOWER RETAINER
241074 241074 SEAL - AIR INLET
241901 241901 SEAL - WASH PUMP RING
SD-33-90 SD-33-90 SELF-TAPPING SCREW 1/4-20 X 1/2 HEX WASHER HD., TYPE TT
SD-32-14 SD-32-14 SELF-TAPPING SCREW 10-16 X 1 PHIL. PAN HD., TYPE B
SD-17-12 SD-17-12 SELF-TAPPING SCREW 10-16 X 1/2 PHIL. RD. HD., TYPE AB
SD-17-18 SD-17-18 SELF-TAPPING SCREW 10-16 X 1/2 PHIL. TRUSS HD., TYPE AB
SD-17-13 SD-17-13 SELF-TAPPING SCREW 10-16 X 1/2 PHIL. TRUSS HD., TYPE AB
SD-17-14 SD-17-14 SELF-TAPPING SCREW 10-16 X 1/2 PHIL. TRUSS HD., TYPE AB
SD-36-29 SD-36-29 SELF-TAPPING SCREW 10-16 X 1/2 PHIL. TRUSS HD., TYPE AB
SD-22-33 SD-22-33 SELF-TAPPING SCREW 10-16 X 3/8 IND. HEX HD., TYPE AB
SD-19-23 SD-19-23 SELF-TAPPING SCREW 10-16 X 3/8 PHIL. PAN HD., TYPE B
SD-17-11 SD-17-11 SELF-TAPPING SCREW 10-16 X 3/8 PHIL. TRUSS HD., TYPE AB
SD-26-25 SD-26-25 SELF-TAPPING SCREW 10-16 X 3/8 PHIL. TRUSS HD., TYPE AB
SD-17-9 SD-17-9 SELF-TAPPING SCREW 10-16 X 5/16 PHIL. TRUSS HD., TYPE AB
SD-32-20 SD-32-20 SELF-TAPPING SCREW 10-16 X 5/8 PHIL. PAN HD., TYPE B
SD-12-38 SD-12-38 SELF-TAPPING SCREW 10-32 X 3/8 INDENTED HEX WASHER HD., TYPE T
SD-29-12 SD-29-12 SELF-TAPPING SCREW 4-40 X 3/4 PHIL. PAN HD., TYPE F
SD-19-29 SD-19-29 SELF-TAPPING SCREW 6 X 1/2 PHIL. PAN HD., TYPE B
SD-22-37 SD-22-37 SELF-TAPPING SCREW 6-20 X 3/8 PHIL. OVAL HD., TYPE AB
SD-22-27 SD-22-27 SELF-TAPPING SCREW 6-20 X 3/8 PHIL. OVAL HD., TYPE AB
SD-17-4 SD-17-4 SELF-TAPPING SCREW 6-20 X 3/8 PHIL. RD. HD., TYPE AB
SD-35-80 SD-35-80 SELF-TAPPING SCREW 6-20 X 3/8 PHIL. TRUSS HD., TYPE BT
SD-26-14 SD-26-14 SELF-TAPPING SCREW 6-20 X 5/8 PHIL. OVAL HD., TYPE AB
SD-32-29 SD-32-29 SELF-TAPPING SCREW 6-32 X 3/8 PHIL. TRUSS HD., TYPE 17
SD-9-32 SD-9-32 SELF-TAPPING SCREW 6-32 X 7/8 PHIL. PAN HD., TYPE F
SD-33-23 SD-33-23 SELF-TAPPING SCREW 6-32 X 7/8 PHIL. RD. HD., TYPE B
SD-19-26 SD-19-26 SELF-TAPPING SCREW 8-18 X 1 1/4 PHIL. RD. HD., TYPE B
SD-17-41 SD-17-41 SELF-TAPPING SCREW 8-18 X 1/2 PHIL. BIND. HD., TYPE AB
SD-13-11 SD-13-11 SELF-TAPPING SCREW 8-18 X 1/2 PHIL. PAN HD., TYPE BT
SD-17-42 SD-17-42 SELF-TAPPING SCREW 8-18 X 1/2 PHIL. TRUSS HD., TYPE AB
SD-8-43 SD-8-43 SELF-TAPPING SCREW 8-18 X 3/8 PHIL. RD. HD., TYPE B
SD-36-23 SD-36-23 SELF-TAPPING SCREW 8-32 X 7/8 PHIL. PAN HD., TYPE TT
242634 242634 SHAFT SEAL & GASKET KIT (INCLS. ITEMS 8, 16, 20 & 23)
241837 241837 SHORT FRAME ASSEMBLY. (INCLS. ITEMS 2, 18, 19, 20, 21 & 23)
242004-4 242004-4 SIDE PANEL (L.H.) (ALMOND)
242004-6 242004-6 SIDE PANEL (L.H.) (HARVEST TONE)
242004-2 242004-2 SIDE PANEL (L.H.) (WHITE)
242004-3 242004-3 SIDE PANEL (R.H.) (ALMOND)
242004-5 242004-5 SIDE PANEL (R.H.) (HARVEST TONE)
242004-1 242004-1 SIDE PANEL (R.H.) (WHITE)
241484 241484 SIDE TRIM - LOWER PANEL
241482 241482 SIDE TRIM - UPPER PANEL
241279 241279 SPACER
241316 241316 SPACER - BLOWER MOUNTING
242494-2 242494-2 SPACER - END CAP (L.H.)
242494-1 242494-1 SPACER - END CAP (R.H.)
108984 108984 SPACER - SPRING
242263 242263 SPACER - UPPER RACK (KDB-21 & KDC-21A)
116277 116277 SPECIAL SCREW - HEX WASHER HD
241898 241898 SPECIAL SCREW - NO.10-32
240423 240423 SPEED NUT 10, TYPE U
241815 241815 SPEEDNUT - TYPE ``U``
241342 241342 SPRING - DOOR CO-BALANCE
243148 243148 SPRING - HEATER RETAINER
242425 242425 SPRING - SWITCH CANCEL
116270 116270 STANDPIPE - OVERFILL
243102 243102 START RELAY KIT (INCLS. ITEM 25)
241939 241939 STRAINER - COARSE
241934 241934 STRAINER - FINE
241941 241941 STRAP (FLEXIBLE CONNECTOR TO TANK)
89746 89746 STUD - BUMPER RETAINING
241952 241952 STUD - RACK ROLLER
241077 241077 SUPPORT - BLOWER
115912 115912 SUPPORT - EVAPORATION CHANNEL
242001-1 242001-1 SUPPORT - FRONT CASTER BRACKET (L.H.)
242001-2 242001-2 SUPPORT - FRONT CASTER BRACKET (R.H.)
240979 240979 SUPPORT - RECEIVER (KDB-21, KDC-21A & KDI-21A)
105437 105437 SWITCH - INTERLOCK
W10207863 W10207863 SWITCH - OVERFILL CONTROL (115 V., 60 HZ.)
242954 242954 SWITCH - PROGRAM
242433 242433 SWITCH - PROGRAM (KDB-21)
WP8189867 WP8189867 SWTCH-LITE
243040 243040 TANK & FRAME ASSEMBLY. (SERVICE)
834601 834601 THRMST-OVN
8316801 8316801 THRMST-OVN
242960 242960 TIMER ASSEMBLY. (115 V., 60 HZ.)
242993 242993 TIMER ASSEMBLY. (115 V., 60 HZ.) (KDB-21)
242959 242959 TIMER ASSEMBLY. (115 V., 60 HZ.) (KDC-21A & KDC-61A)
240989 240989 TRACK - RACK
240009 240009 TRIM - FRONT CASTER
242422-2 242422-2 TRIM - HANDLE
242422-1 242422-1 TRIM - HANDLE
115903 115903 TRIM TANK L.H.
115904 115904 TRIM, TANK (R.H.)
116029 116029 TUBE (MANIFOLD TO RECEIVER)
241076 241076 TUBE - AIR INLET
242211 242211 TUBE - FLEXIBLE (DRAIN)

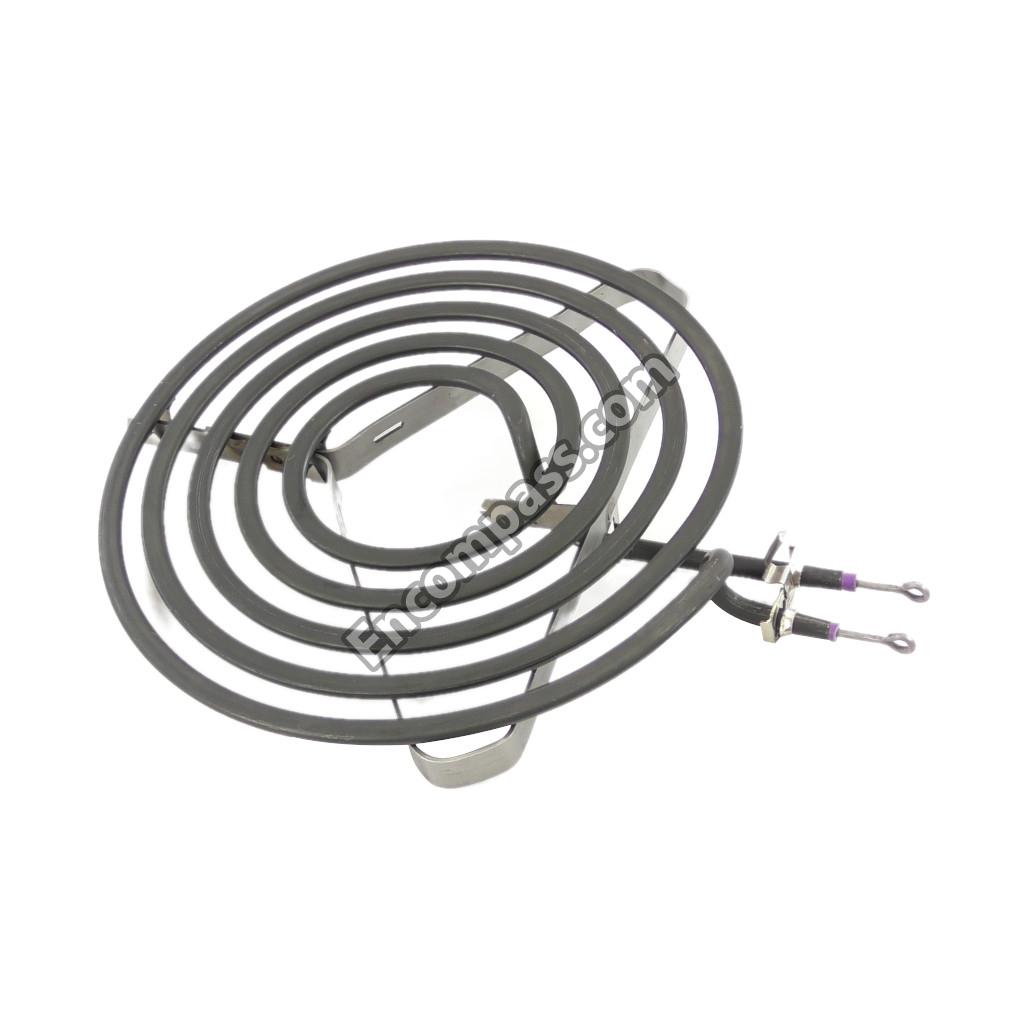

326789 326789 UNIT, SURFACE (240V) (8`` (2) (INCLUDES ILLUS. 29))
241245 241245 UPPER RACK ASSEMBLY. (INCLS. ITEM 25) / (KDC-61A
241196 241196 UPPER RACK ASSEMBLY. (INCLS. ITEMS 2 THRU 6 & 9 THRU 12) / (KDI-21A
242257 242257 UPPER RACK ASSEMBLY. (INCLS. ITEMS 2, 3, 4, 5 & 15)
241131 241131 UPPER RACK ASSEMBLY. (KDB-21SE)
241140 241140 UPPER RACK ASSEMBLY. (KDC-21AD & KDI-21AD)
241970 241970 VAPOR SHIELD KIT
241917 241917 WASH ARM ASSEMBLY
241908 241908 WASH IMPELLER ASSEMBLY
241055 241055 WASH/RINSE ARM ASSEMBLY
WS-28-14 WS-28-14 WASHER
WS-2-51 WS-2-51 WASHER
241331 241331 WASHER
WS-23-5 WS-23-5 WASHER
WS-19-17 WS-19-17 WASHER
WS-19-34 WS-19-34 WASHER (FIBER)
242264 242264 WASHER (KDB-21 & KDC-21A)
WS-28-15 WS-28-15 WASHER (RUBBER)
WC-5-8 WC-5-8 WASHER - COUNTERSUNK
241101 241101 WASHER - FILL HOLE PLUG
242963 242963 WASHER - HEATER ELEMENT
241896 241896 WASHER - IMPELLER
241025 241025 WASHER - RACK
241954 241954 WASHER - ROLLER SPACING
78397 78397 WASHER - SEALING
83752 83752 WASHER - SPRING (IMPELLER)
73017 73017 WASHER - TRIM
241783 241783 WASHER - WEAR
110553 110553 WASHER KIT
240683 240683 WHEEL - LOWER RACK
242968 242968 WIRING HARNESS (GROUND)
243020 243020 WIRING HARNESS (GROUNDING) (KDB-21)
242967 242967 WIRING HARNESS (LOWER COMMON)
243018 243018 WIRING HARNESS (LOWER COMMON) (KDB-21)
242970 242970 WIRING HARNESS (MAIN)
243019 243019 WIRING HARNESS (MAIN) (KDB-21)
242969 242969 WIRING HARNESS (MAIN) (KDC-21A & KDC-61A)
SW-10-4 SW-10-4 WOOD SCREW 10-13 X 3/4 PHIL. FLAT HD
SW-9-10 SW-9-10 WOOD SCREW 10-13 X 3/4 PHIL. OVAL HD
SW-5-25 SW-5-25 WOOD SCREW 10-13 X 3/4 PHIL. RD. HD
241686-2 241686-2 WOOD TOP & INSULATION ASSEMBLY. (W/O PULL BAR) (INCLS. ITEM 3)
242686-1 242686-1 WOOD TOP & INSULATION ASSEMBLY. (W/PULL BAR) (INCLS. ITEMS 3 THRU 7)
242961 242961 XBRACKET - THERMOSTAT
243056 243056 XLEAD (THERMOSTAT TO HEATER)
NS-40-6 NS-40-6 XLOCK NUT 10-32 HEX
243044 243044 XTHERMOSTAT - LIMITER
100000 100000 XXSCREW & WASHER ASSEMBLY
67500-108 67500-108 ``O`` RING
67500-107 67500-107 ``O`` RING
Main Menu x
