Model Image
Manufacturer

Whirlpool

Model Number

KDDC27TTS00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
2257876 2257876 BASEPLATE
2258000 2258000 BASKET (2)
2258137 2258137 BI-METAL
W11458267 W11458267 BLADE-FAN
2257840 2257840 BOX, CONTROL BOARD
2257844 2257844 BRACKET, CONTROL BOX
2208157 2208157 BRACKET, FAN
2257923 2257923 BRACKET, SWITCH
100000 100000 CABINET (NOT A SERVICABLE PART)
WPW10662129 WPW10662129 CAPACITOR
2258085 2258085 CLAMP, DRAIN TUBE
549193 549193 CLAMP, POWER CORD
2163787 2163787 CLIP, MOUNTING
2209204 2209204 CLIP, THERMISTOR (2)
2257639 2257639 CLIP, THERMISTOR (EVAPORATOR)
2257537 2257537 COIL, SOLENOID (2)
8201746 8201746 COMPRESSOR
2257869 2257869 CONDENSER
2252184 2252184 CONTROL BOARD (MAIN)
2304086 2304086 CONTROL, ELECTRONIC
2258173 2258173 COVER, CONNECTOR
2258314 2258314 COVER, EVAPORATOR (LOWER)
2258295 2258295 COVER, EVAPORATOR (UPPER)
1116793 1116793 COVER, THERMISTOR (2)
2257885 2257885 COVER, UNIT
WP2158826 WP2158826 DAMPENER
2258131 2258131 DIVIDER
2257949 2257949 DRAWER FRONT (LOWER)
2257951 2257951 DRAWER FRONT (UPPER)
2257848 2257848 DRAWER, LOWER
2257847 2257847 DRAWER, UPPER
2257904 2257904 DRIER
2258384 2258384 ENERGY GUIDE
2257814 2257814 EVAPORATOR (2)
2258310 2258310 EVAPORATOR FAN (UPPER & LOWER)
W11566763 W11566763 FITTING
2258016 2258016 GASKET, LOWER DRAWER
2258015 2258015 GASKET, UPPER DRAWER
2258378 2258378 GRILLE
W10852725 W10852725 GROMMET
WP2163786 WP2163786 GROMMET
W10096010 W10096010 HANDLE
2310005 2310005 HARNESS, UNIT (INCLUDES 13)
2258277 2258277 INSTALLATION INSTRUCTIONS
2258203 2258203 KIT, MOUNTING (4 BRACKETS & 16 SCREWS)
2005032 2005032 LEVELER ASM (4)
2258025 2258025 LIGHT ASSEMBLY (2)
2258134 2258134 MAT, LOWER DRAWER
2257937 2257937 MAT, UPPER DRAWER
W10124096 W10124096 MOTOR, FAN
WPW10046610 WPW10046610 NAMEPLATE
2258032 2258032 OVERLAY
WP9744437 WP9744437 PLATE, BACKING
2301979 2301979 PLATE, MOTOR
54690 54690 PLUG, BUTTON (2)
WP3400924 WP3400924 RETAINER
2006841 2006841 RING, RETAINING
2258135 2258135 RIVET, PLASTIC
2257893 2257893 ROD, LEVELER (FRONT (2))
2257892 2257892 ROD, LEVELER (REAR (2))
WPW10138054 WPW10138054 ROLLER-CAB
8281197 8281197 SCREW
WP8281196 WP8281196 SCREW
WP3400067 WP3400067 SCREW
8534081 8534081 SCREW
WP489478 WP489478 SCREW
W10113774 W10113774 SCREW
2258105 2258105 SERVICE & WIRING SHEET
2258366 2258366 SKIN, DOOR (LOWER)
2258205 2258205 SKIN, DOOR (UPPER)
2257882 2257882 SLIDE, DRAWER (LEFT (2))
2257883 2257883 SLIDE, DRAWER (RIGHT (2))
2223800 2223800 SPACER (5)
2258026 2258026 START-DEVICE COMBINATION
WP2266802 WP2266802 SWITCH
2257999 2257999 SWITCH, ROCKER (2)
2258088 2258088 TEMPERATURE GUIDE
WP2188820 WP2188820 THERMISTOR
2258075 2258075 THERMISTOR (EVAPORATOR)
WPW10339879 WPW10339879 TIE-WIRE
2257890 2257890 TRAY, EVAPORATOR
2257914 2257914 TUBE, CAPILLARY TO EVAPORATOR
2258071 2258071 TUBE, CONDENSER TO HEAT LOOP
2257919 2257919 TUBE, DISCHARGE
2257916 2257916 TUBE, DRAIN
2257902 2257902 TUBE, DRIER TO LOWER VALVE
2257903 2257903 TUBE, DRIER TO UPPER VALVE
2258070 2258070 TUBE, HEAT LOOP TO DRIER
2258083 2258083 TUBE, PROCESS
2257905 2257905 TUBE, SUCTION
2258024 2258024 USE & CARE GUIDE
2257924 2257924 VALVE, SOLENOID (2)

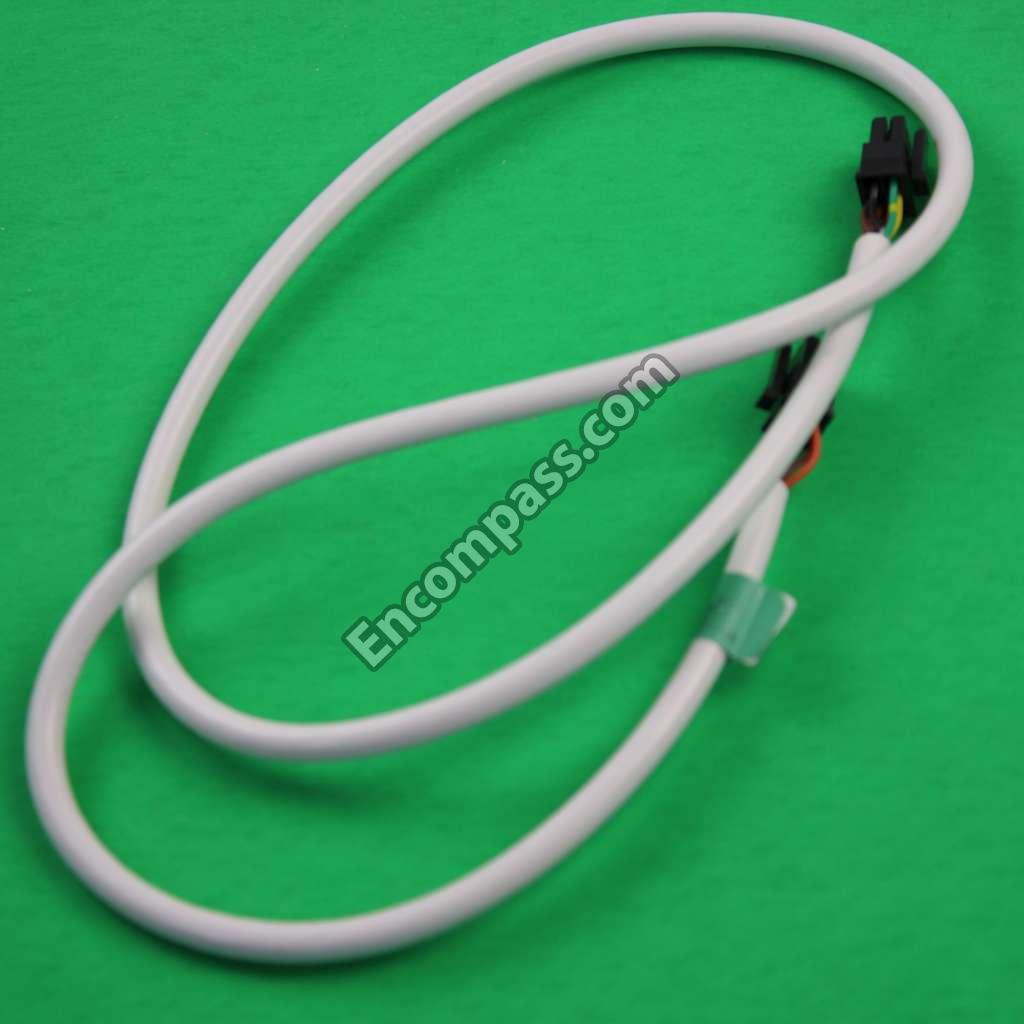

WP2310340 WP2310340 WIRE HARNESS
2310033 2310033 WIRE, GROUND
