Model Image
Manufacturer

Whirlpool

Model Number

KDPE334GPS0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10712311 W10712311 ACCESSORIES, DISHRACK ANTI-TARNISH SILVERWARE BASKET
W10712313 W10712313 ACCESSORIES, DISHRACK BOTTLE/VASE HOLDER
W10712312 W10712312 ACCESSORIES, DISHRACK CUTLERY DISHWASHER BASKET
W10701399 W10701399 ACCESSORIES, TOWEL BAR HANDLE (STAINLESS)
WPW10195839 WPW10195839 ADJUSTER
WPW10546503 WPW10546503 ADJUSTER
WPW10448645 WPW10448645 ARM-SPRAY
WPW10327455 WPW10327455 ARM-SPRAY
W11101428 W11101428 ARM-SPRAY
W10875047 W10875047 ASSEMBLY, BOTTLE WASH
W10692757 W10692757 BARREL NUT, FRONT PANEL
4396277 4396277 BARRIER KIT
WPW10473836 WPW10473836 BASKET-WAR
W11240750 W11240750 BASKT-WARE
WPW10462395 WPW10462395 BRACE
W10850371 W10850371 BRACE
W10300703 W10300703 BRACKET, THERMOSTAT
WP8269145 WP8269145 BRCKT-MTG
W10795980 W10795980 CAP
WP8269146 WP8269146 CLAMP
WP285655 WP285655 CLAMP
WP596669 WP596669 CLAMP
W10789434 W10789434 CLAMP, HOSE
WPW10082848 WPW10082848 CLIP
W10919676 W10919676 CLIP
WPW10250160 WPW10250160 CLIP
W10653320 W10653320 CLIP, RETAINER
WPW10462393 WPW10462393 CONNECTOR
W11162732 W11162732 CONSOLE

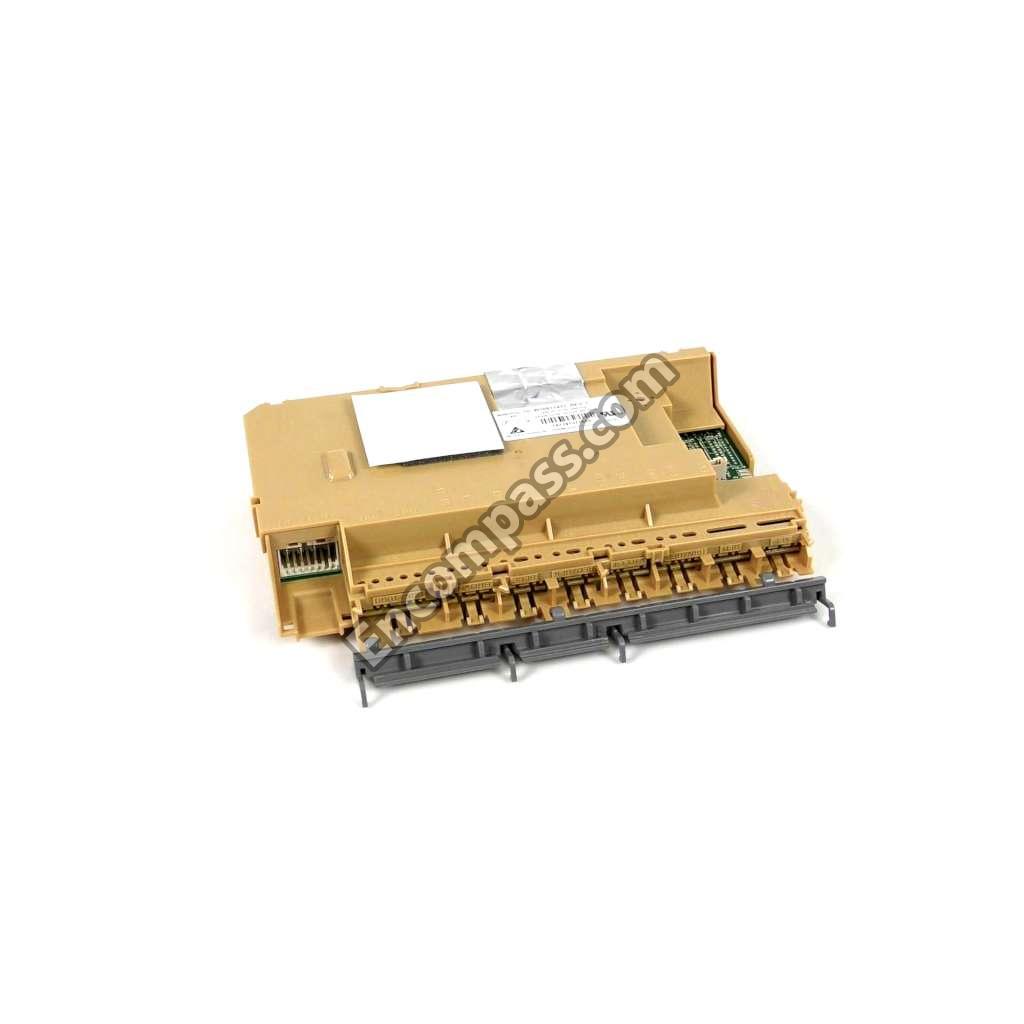

W11120155 W11120155 CONTROL BOARD
WPW10250162 WPW10250162 COVER
W11245091 W11245091 COVER
W11662067 W11662067 COVER
W10847918 W10847918 COVR-BOX
W11167239 W11167239 COVR-BOX
WPW10082649 WPW10082649 CUPSHELF
WPW10476221 WPW10476221 DIFFUSER
W11027154 W11027154 DISHRACK
W11527890 W11527890 DISHRACK
W10728863 W10728863 DISHRACK
4396853 4396853 DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER ATLANTIS)
W10861000 W10861000 DISPENSER
W11481723 W11481723 DISPLAY
WPW10653840 WPW10653840 DOOR DOOR LATCH
WP8534853 WP8534853 DOOR HINGE
W11612302 W11612302 DOOR HINGE
W10919271 W10919271 DOOR-INNER
W10712310 W10712310 DRAIN HOSE 12 FT.
WPW10531320 WPW10531320 DRAIN PUMP
W11243817 W11243817 ENERGY GUIDE
W10872845 W10872845 FILTER
WPW10195036 WPW10195036 FLOAT
W11177741 W11177741 GASKET
WP8531743 WP8531743 GASKET
WP8531323 WP8531323 GASKET
WPW10538166 WPW10538166 GROMMET
W11110542 W11110542 HANDLE
W10703867 W10703867 HEATER
W10445975 W10445975 HOSE ASSEMBLY (INCLUDES 2 CLAMPS)
8269144A 8269144A HOSE-DRAIN
WPW10545278 WPW10545278 HOSE-DRAIN
W10878507 W10878507 HOSE-FILL
WPW10588165 WPW10588165 HOUSING
WPW10588164 WPW10588164 HOUSING
W10873429 W10873429 HOUSING
W11175771 W11175771 INLET VALVE
W11676544 W11676544 INLET-WATR
W10806906 W10806906 INSTALLATION INSTRUCTIONS
W10750120 W10750120 INSULATION, U-WRAP
W10889948 W10889948 JUMPER, UI
WPW10195037 WPW10195037 LEVER
8193716 8193716 LEVLER-LEG
WPW10473835 WPW10473835 LID
8194001 8194001 LINK
W11162734 W11162734 MANIFOLD
8171477 8171477 MOISTURE BARRIER KIT, FLOOR MOUNT KIT
4317824 4317824 MOISTURE BARRIER KIT, POWER CORD KIT (INCLUDED CORD & MISC. HARDWARE)
8212560 8212560 MOISTURE BARRIER KIT, SIDE MOUNT KIT
W10537869 W10537869 MOTOR
WPW10084086 WPW10084086 MOUNT
W10653323 W10653323 NOZZLE, AIRDUCT
WPW10195038 WPW10195038 NUT
W10910629 W10910629 NUT
WPW10687139 WPW10687139 NUT-TERMNL
WPW10213825 WPW10213825 NUT-TUBE
W11747584 W11747584 PAD-INS
W11126003 W11126003 PAD-INS
4392900 4392900 PAINT, BULK (1 QT. BISCUIT/BISQUE)
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT AND BISQUE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10202939 W10202939 PAINT, TOUCH-UP (1/2OZ.) (OXIDE METALLIC)
W11157411 W11157411 PANEL
W11157407 W11157407 PANEL
W10909064 W10909064 PANEL
WPW10292152 WPW10292152 PARTS-MISC
WPW10082853 WPW10082853 PIVOT-TINE
WP8539102 WP8539102 POSITIONER
WPW10195840 WPW10195840 POSITIONER
W11178672 W11178672 PUMP & MOTOR
W10894668 W10894668 PUMP MOTOR
4396840RC 4396840RC RAK KIT
4396838RC 4396838RC RAK KIT
WP3400918 WP3400918 RETAINER
WP304666 WP304666 RETAINER
WPW10486051 WPW10486051 RETAINER
W10875054 W10875054 RETAINER, FEEDTUBE
WPW10463906 WPW10463906 SCREEN
WPW10309090 WPW10309090 SCREW
WPW10348407 WPW10348407 SCREW
WP9741232 WP9741232 SCREW
WP3400014 WP3400014 SCREW
WPW10348411 WPW10348411 SCREW
WP3400074 WP3400074 SCREW
WP308685 WP308685 SCREW
WP489069 WP489069 SCREW
WP3390631 WP3390631 SCREW
W11631670 W11631670 SCREW
WPW10348409 WPW10348409 SCREW
WPW10348408 WPW10348408 SCREW
WP3400071 WP3400071 SCREW
WP302868 WP302868 SCREW
WPW10273971 WPW10273971 SCREW
W10864081 W10864081 SEAL
W11213719 W11213719 SEAL
W10909089 W10909089 SEAL
W10653310 W10653310 SEAL, RUBBER
W11084121 W11084121 SENSOR
W10877094 W10877094 SHIELD
W11223838 W11223838 SHIELD
W10292870 W10292870 SHIELD, THERMOSTAT
W10380173 W10380173 SOUND INSULATOR, BOTTOM
W10195630 W10195630 SPACER, TUB/BRACE (LEFT HAND)
W10195631 W10195631 SPACER, TUB/BRACE (RIGHT HAND)
WP8270020 WP8270020 SPRING
W10337661 W10337661 STRAIN RELIEF
WPW10544004 WPW10544004 STRIKE
WPW10455268 WPW10455268 SUMP
W11243394 W11243394 SUPPORT
WPW10681564 WPW10681564 SUPPORT
WPW10195039 WPW10195039 SWITCH
WPW10372113 WPW10372113 TAB-SUMP
W11266095 W11266095 TECH SHEET
WPW10195091 WPW10195091 THERMOSTAT
W10713311 W10713311 TINE ROW, FOLD DOWN
W10727426 W10727426 TINE-ROW
72032 72032 TOUCH-UP PAINT (BLACK)
W10914507 W10914507 TRACK
W10913628 W10913628 TRACK
W11259786 W11259786 TRACK
W11259785 W11259785 TRACK
W10713320 W10713320 TUB-DISHWR
W11288079 W11288079 TUBE, EXHAUST
W10861745 W10861745 TUBE-FEED
WP676455 WP676455 TUCHUP
WP676453 WP676453 TUCHUP
W11040100 W11040100 USE & CARE GUIDE
W11228135 W11228135 VENT
W10871832 W10871832 VENT
W10772907 W10772907 VENT HOSE
WP3378128 WP3378128 WASHER
W10195416 W10195416 WHEEL
WPW10190778 WPW10190778 WHEEL
W11662069 W11662069 WIRE
W10889944 W10889944 WIRING HARNESS
