Whirlpool

Model Number

KDRP767RSS00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4453115 4453115 ADAPTER, COMPRESSION (1/2`` FEMALE)
4453116 4453116 ADAPTER, COMPRESSION (1/2`` MALE)
WP482338 WP482338 ADHESIVE
591014 591014 ADHESIVE LOCTITE (1/3 OZ.)
W10138103 W10138103 ANCHOR-TIP
W10814910 W10814910 ASSY, DOOR GLASS
9761160 9761160 BACK, CHASSIS
8300965 8300965 BASE, CHASSIS
4455192 4455192 BEZEL, KNOB
WP4457152 WP4457152 BEZEL-KNOB
WP8203546 WP8203546 BLOCK-TERM
WP9759837 WP9759837 BLOWER 60MM
8186352 8186352 BOILER
9762135 9762135 BOX, BURNER
9760673 9760673 BRACE, REAR
8302094 8302094 BRACKET (3RD GLASS)
9758956 9758956 BRACKET, BLOWER
3192811 3192811 BRACKET, BURNER
8303528 8303528 BRACKET, DISPLAY
9758961 9758961 BRACKET, DISPLAY MOUNTING
4455804 4455804 BRACKET, HANDLE (LEFT HAND)
4455803 4455803 BRACKET, HANDLE (RIGHT HAND)
4452152 4452152 BRACKET, MOUNTING
9759092 9759092 BRACKET, MOUNTING REGULATOR
8300216 8300216 BRACKET, PANEL SUPPORT
4455510 4455510 BRACKET, SUPPORT
9758964 9758964 BRACKET, VALVE
WP9759229 WP9759229 BRKT-MNTG
4448520 4448520 BUMPER, DOOR
WP4455849 WP4455849 BURNER HEAD (TURBI (4))
4456903 4456903 BURNER SWITCH & HARNESS ASSEMBLY
WP4455979 WP4455979 BURNR-HEAD
1129449 1129449 BUSHING
3191506 3191506 BUSHING, CONDUIT
9758974 9758974 BUTTON, DRAIN
WP4452163 WP4452163 CAMERA LENS, LIGHT
WP4455243 WP4455243 CAP, BURNER (14K (4))
WP8284669 WP8284669 CAP-BURNER
WP489503 WP489503 CLAMP
31462A 31462A CLEANER, STAINLESS STEEL (12 OZ)
3196896 3196896 CLIP, WIRE
WP8301282 WP8301282 CNVRSN-KIT
8301668 8301668 CONDUIT
8186373 8186373 CONTROL PANEL
WP9758985 WP9758985 CONTROL, STEAM
WP9761156 WP9761156 CONTROL, TAURUS (APPLIANCE MNGR)
WP9761103 WP9761103 CONTROL, ZODIAC
9759441 9759441 CONVERSION INSTRUCTIONS
9762575 9762575 COOK BOOK
WP4456865 WP4456865 COOKTOP
8300800 8300800 COVER, ACCESS
9758583 9758583 COVER, BACK
8284964 8284964 COVER, BURNER BOX
9762133 9762133 COVER, MANIFOLD
9758596 9758596 COVER, ORIFICE BOILER
WPW10160821 WPW10160821 COVER-FAN
4452801 4452801 DEFLECTOR, CENTER
4455852 4455852 DOOR HANDLE
WP9760579 WP9760579 DOOR HINGE
WP9760574 WP9760574 DOOR HINGE
9762606 9762606 DOOR LATCH, MOTORIZED
8300152 8300152 DOOR LINER
8186360 8186360 DRAIN PUMP
W11643125 W11643125 ELEMENT
9760770 9760770 ELEMENT, BAKE
9760773 9760773 ELEMENT, BROIL
W10146001 W10146001 FACE, CONTROL PANEL
WP4452226 WP4452226 FAN-CONVCT
8186359 8186359 FITTING
WP9759117 WP9759117 FOOT-LEVEL
9762238 9762238 FRAME, FRONT
9758999 9758999 FUSE-THERMO (105C 15A/120VAC)
4453327 4453327 GASKET
9762243 9762243 GASKET, SENSOR
W10858111 W10858111 GASKT-DOOR
WP4449263 WP4449263 GLASS DOOR
WP4449259 WP4449259 GLASS DOOR
W10131086 W10131086 GLASS, CONTROL PANEL
WPW10106700 WPW10106700 GRATE, BURNER (3)
WP3195996 WP3195996 GRID-PAN
4455644 4455644 GUSSET
9758957 9758957 HARNESS, SENSOR
9761098 9761098 HARNESS, SIGNAL
9762508 9762508 HARNESS, WIRE (DSI, 36``, STEAM)
4456627 4456627 HARNESS, WIRE (IGNITOR 28``)
4456628 4456628 HARNESS, WIRE (IGNITOR 39``)
9763619 9763619 HARNESS, WIRE (MAIN)
9762144 9762144 HEAT SHIELD (BTM)
WP4455606 WP4455606 HINGE-RECV
WP4455605 WP4455605 HINGE-RECV
WPW10155786 WPW10155786 HOLDER-ORF
8186363 8186363 HOSE
8186362 8186362 HOSE
8186364 8186364 HOSE
8186367 8186367 HOSE
8186366 8186366 HOSE
8186365 8186365 HOSE
WP9782116 WP9782116 IGNTR-SURF
8186349 8186349 INLET-WATR
9758978 9758978 INSTALLATION INSTRUCTIONS
8300159 8300159 INSULATION, BACK
8300797 8300797 INSULATION, DOOR
8300158 8300158 INSULATION, WRAP
4457278 4457278 JUMPER
WPW10078400 WPW10078400 KNOB
9758966 9758966 KNOB, SELECTOR
4455115 4455115 KNOB, TEMP/TIME
WP4452164 WP4452164 LIGHT BULB
WP4448972 WP4448972 LIGHT-OVEN
100000 100000 LINER, OVEN (NOT SERVICEABLE)
4457248 4457248 MANIFOLD
9758960 9758960 MODULE, DISPLAY
WP4451583 WP4451583 MOTOR-FAN
W10368699 W10368699 NAMEPLATE
WP112432 WP112432 NUT
WP4167077 WP4167077 NUT
WP2004333 WP2004333 NUT
WP4452227 WP4452227 NUT
WP4450118 WP4450118 NUT
9758597 9758597 ORIFICE, BOILER
W10123240 W10123240 PAN, BROILER
W10737569 W10737569 PAN-BROILR
WP4455109 WP4455109 PLATE, SIMMER
WP9759118 WP9759118 PLATE-MTG
WP8284796 WP8284796 PLUG, MANIFOLD
9759437 9759437 RACK, OVEN
4454974 4454974 RAIL, SUPPORT

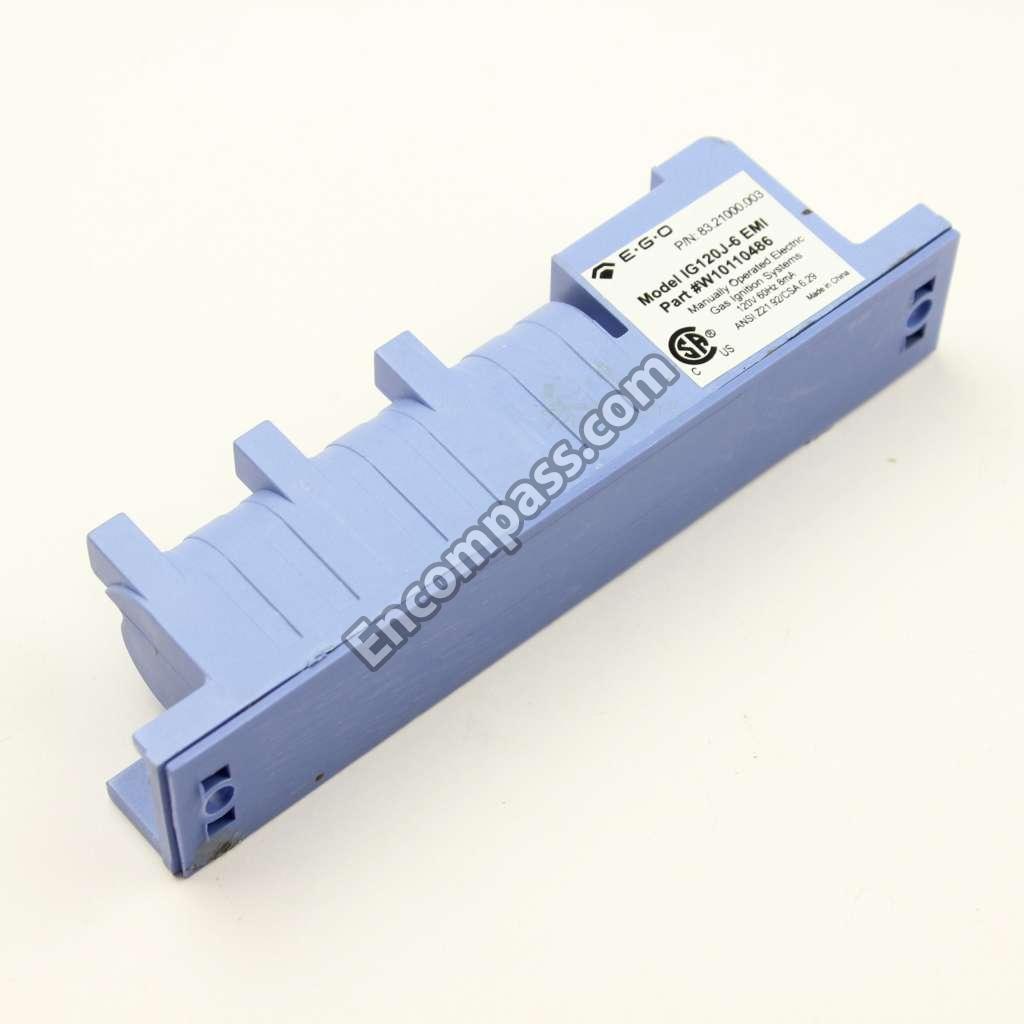

WPW10110486 WPW10110486 RANGE SPARK MODULE
WP4450249 WP4450249 RANGE THERMOSTAT
WP9759091 WP9759091 REGULATOR
8186357 8186357 RESERVOIR
9758595 9758595 RETAINER, GASKET
9759634 9759634 RETAINER, GLASS
8300190 8300190 RETAINER, GLASS
3191638 3191638 SAFER COOKING TIPS
9759133 9759133 SAFER COOKING TIPS
WP3186217 WP3186217 SCREW
WP12990527 WP12990527 SCREW
WP3400805 WP3400805 SCREW
WP3177991 WP3177991 SCREW
WP3196557 WP3196557 SCREW
WPW10132940 WPW10132940 SCREW
WP3400832 WP3400832 SCREW
9762844 9762844 SCREW
W11233072 W11233072 SCREW
WP4449040 WP4449040 SCREW
WP4449154 WP4449154 SCREW
4449748 4449748 SCREW
WP4449743 WP4449743 SCREW
WP4449809 WP4449809 SCREW
3400518 3400518 SCREW, 5/16-12 X 5/8
4450800 4450800 SCREW, 8-32 X 3/8
WP3368921 WP3368921 SCREW-TORX
8300153 8300153 SEAL, DOOR TOP
4453191 4453191 SEAL, PANEL
4453192 4453192 SEAL, RIBBON CABLE
WP3188425 WP3188425 SEAL-SWTCH
W10491984 W10491984 SEAL-SWTCH
WPW10131825 WPW10131825 SENSOR
9761107 9761107 SENSOR, LEVEL
8300971 8300971 SHIELD, TOP HEAT
8301084 8301084 SHIELD, TOP HEAT (ADDITION) (2)
9761933 9761933 SIDE CHASSIS (LEFT SIDE)
9761934 9761934 SIDE CHASSIS (RIGHT SIDE)
8285606 8285606 SIDE, BURNER BOX (LEFT SIDE)
8285607 8285607 SIDE, BURNER BOX (RIGHT SIDE)
W10782197 W10782197 SIDE, CHASSIS
4452442 4452442 SIDE, CONTROL TOP
4452260 4452260 SPACER, FOAM
9759635 9759635 SPACER, GLASS
9762603 9762603 SUPPORT, BACKSPLASH
4455648 4455648 SUPPORT, CHANNEL
9758987 9758987 SUPPORT, COOKTOP
8300184 8300184 SUPPORT, INSULATION
9759140 9759140 SUPPORT, REAR
WP8302143 WP8302143 SUPPRESSOR
WP4457218 WP4457218 SWITCH, CANCEL
WP4452997 WP4452997 SWITCH-PB
WP4452842 WP4452842 SWTCH-LITE
9758979 9758979 TECH SHEET
9761161 9761161 TOP, CHASSIS
WP9760587 WP9760587 TRANSFORMR
WP9760588 WP9760588 TRANSFORMR
9762143 9762143 TRAY, DRIP
8300799 8300799 TRAY, HIDDEN BAKE
9762605 9762605 TRIM, BACKSPLASH
4453205 4453205 TRIM, FRONT (LEFT SIDE)
4452804 4452804 TRIM, FRONT (RIGHT SIDE)
W10157548 W10157548 TRIM, ISLAND
8301252 8301252 TUBE, MANIFOLD
W10861715 W10861715 TUBE-VENT
8300229 8300229 TUBING, GAS BURNER - CF
8300232 8300232 TUBING, GAS BURNER - CR
8300187 8300187 TUBING, GAS BURNER - LF
8300188 8300188 TUBING, GAS BURNER - LR
8300231 8300231 TUBING, GAS BURNER - RF
8300230 8300230 TUBING, GAS BURNER - RR
9761936 9761936 USE & CARE GUIDE
8186361 8186361 VALVE
4456818 4456818 VALVE, BURNER (TURBI (4) (BRONZE))
WP4456816 WP4456816 VALVE-BRNR
4452803 4452803 VENT, BOTTOM LOWER
9761914 9761914 VENT, CENTER
9758955 9758955 VENT, EXHAUST
9758953 9758953 VENT-BOTTOM
9758954 9758954 VENT-TOP
242828 242828 WIRE (12 GA. 150 C BLACK)
242829 242829 WIRE (12 GA. 150 C RED)
242820 242820 WIRE (14 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242826 242826 WIRE (14 GA. 150 C WHITE)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
242832 242832 WIRE (14 GA. 200 C YELLOW)
9761106 9761106 WIRE, JUMPER (OVEN LIGHT)
