Model Image
Manufacturer

Whirlpool

Model Number

KDRS407VMW01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10160844 W10160844 "BRACKET, BLOWER (18"")"
W10270397 W10270397 "SEAL, VENT SLOPE (30"")"
W10818234 W10818234 "SLOPE, EXHAUST VENT (30"")"
W10246078 W10246078 "VENT, COOLING BOTTOM (30"")"
W10160896 W10160896 "VENT, COOLING TOP (30"")"
4453115 4453115 ADAPTER, FEMALE
4453116 4453116 ADAPTER, MALE
WP482338 WP482338 ADHESIVE
591014 591014 ADHESIVE, LOCTITE
4453191 4453191 ADHESIVE, SEAL, ACCESS PANEL
4453192 4453192 ADHESIVE, SEAL, RIBBON CABLE
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W10235557 W10235557 ASSEMBLY, DRAWER
W10402609 W10402609 ASSEMBLY, MANIFOLD
W10846622 W10846622 ASSEMBLY, ORIFICE HOLDER (LEFT FRONT)
W10846623 W10846623 ASSEMBLY, ORIFICE HOLDER (LEFT REAR & RIGHT FRONT)
W10235550 W10235550 BACK, CHASSIS
W10860133 W10860133 BAFFL-CONV
W10249333 W10249333 BASE, LEVELING LEG
W11103330 W11103330 BEZEL-KNOB
W11103328 W11103328 BEZEL-KNOB
WP9761958 WP9761958 BLOCK-TERM
WPW10245511 WPW10245511 BLOWER
W10235537 W10235537 BOTTOM, CHASSIS
W10371508 W10371508 BOX, BURNER
W10467022 W10467022 BOX, TERMINAL
W11544575 W11544575 BRACKET, ANTI-TIP
W10560553 W10560553 BRACKET, BURNER
W10115715 W10115715 BRACKET, DOOR TOP
W10130760 W10130760 BRACKET, MOVING CONSOLE (LEFT)
W10130759 W10130759 BRACKET, MOVING CONSOLE (RIGHT)
W10145809 W10145809 BRACKET, OUTER GLASS (BOTTOM)
W10145811 W10145811 BRACKET, OUTER GLASS (SIDE)
W10145805 W10145805 BRACKET, OUTER GLASS (TOP)
W10115850 W10115850 BRACKET, PRESSURE REGULATOR
W10498407 W10498407 BRACKET, SPARK MODULE
W10250476 W10250476 BRACKET, USER INTERFACE
WP9759230 WP9759230 BRKT-MNTG
WP9759229 WP9759229 BRKT-MNTG
WPW10432260 WPW10432260 BRKT-MNTG
W10105790 W10105790 BUMPER & SCREW
4448520 4448520 BUMPER, DOOR

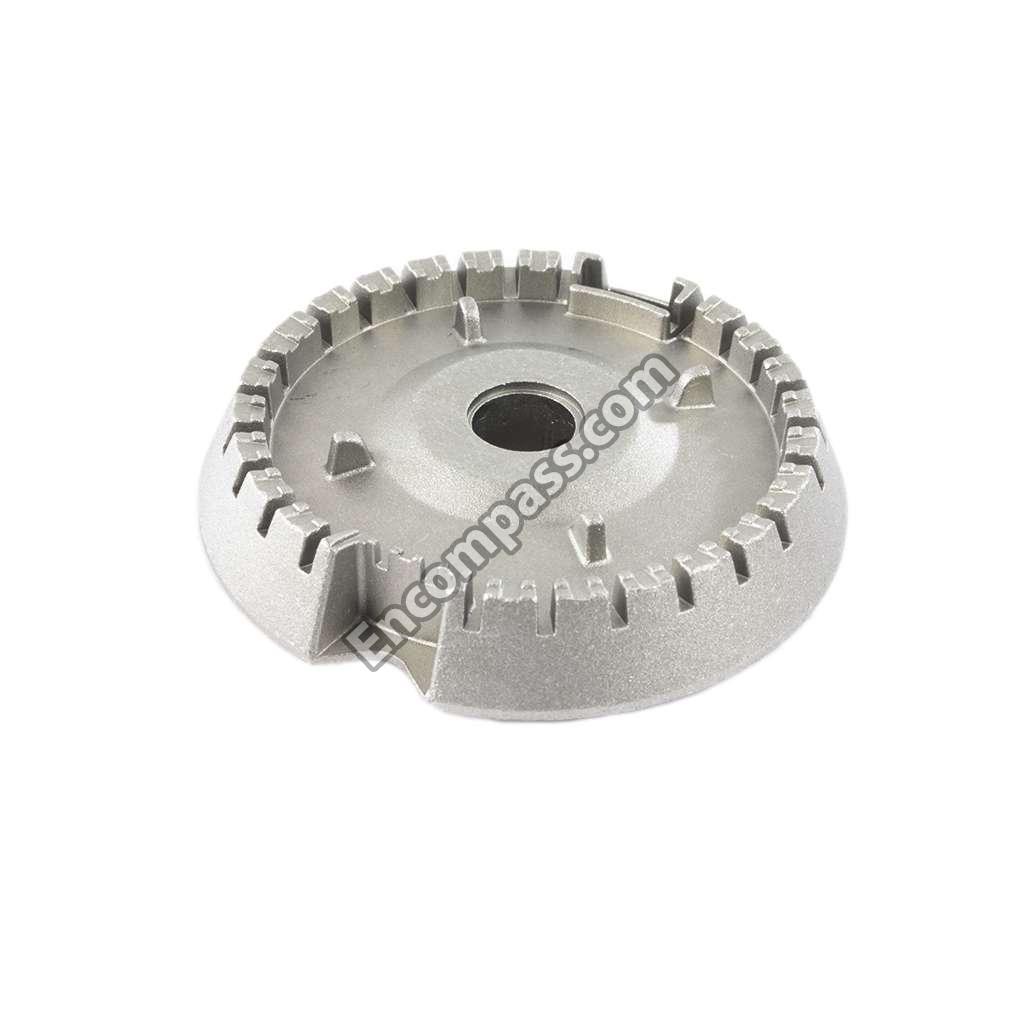

WPW10282515 WPW10282515 BURNR-HEAD
WPW10256027 WPW10256027 BURNR-HEAD
W11106799 W11106799 BURNR-HEAD
W10189097 W10189097 BUSHING, BURNER BOX
9757778 9757778 BUSHING, SNAP SPLIT
W10169756 W10169756 CAMERA LENS, LIGHT

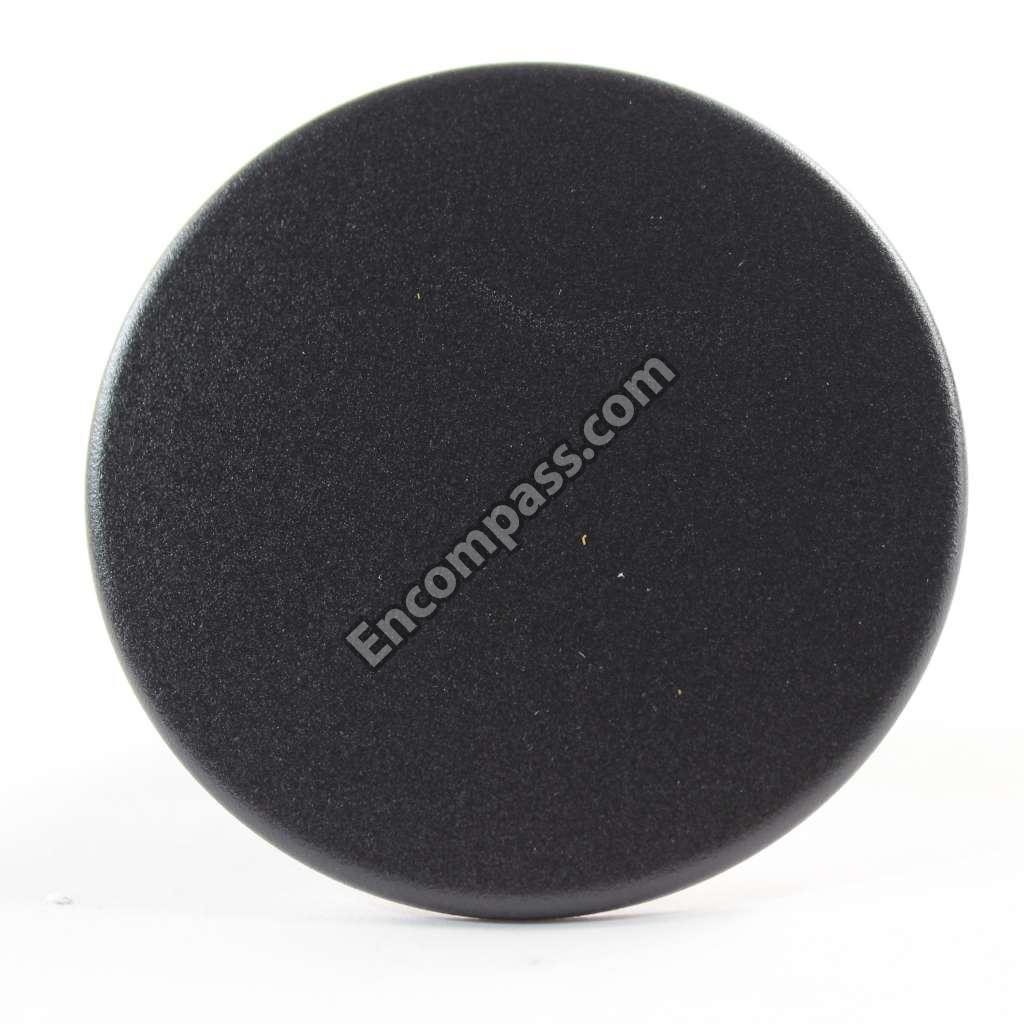

WPW10364463 WPW10364463 CAP-BURNER
WPW10256032 WPW10256032 CAP-BURNER
WPW10256034 WPW10256034 CAP-BURNER
W10269206 W10269206 CHASSIS, SIDE (LEFT)
W10269205 W10269205 CHASSIS, SIDE (RIGHT)
W10267897 W10267897 CHASSIS, TOP
W10355051 W10355051 CLEANER, COOKTOP
W11684564 W11684564 CLIP
16515 16515 CLIP, HARNESS
8287106 8287106 CLIP, WIRE
8019P013-60 8019P013-60 CLIP, WIRE LOCK

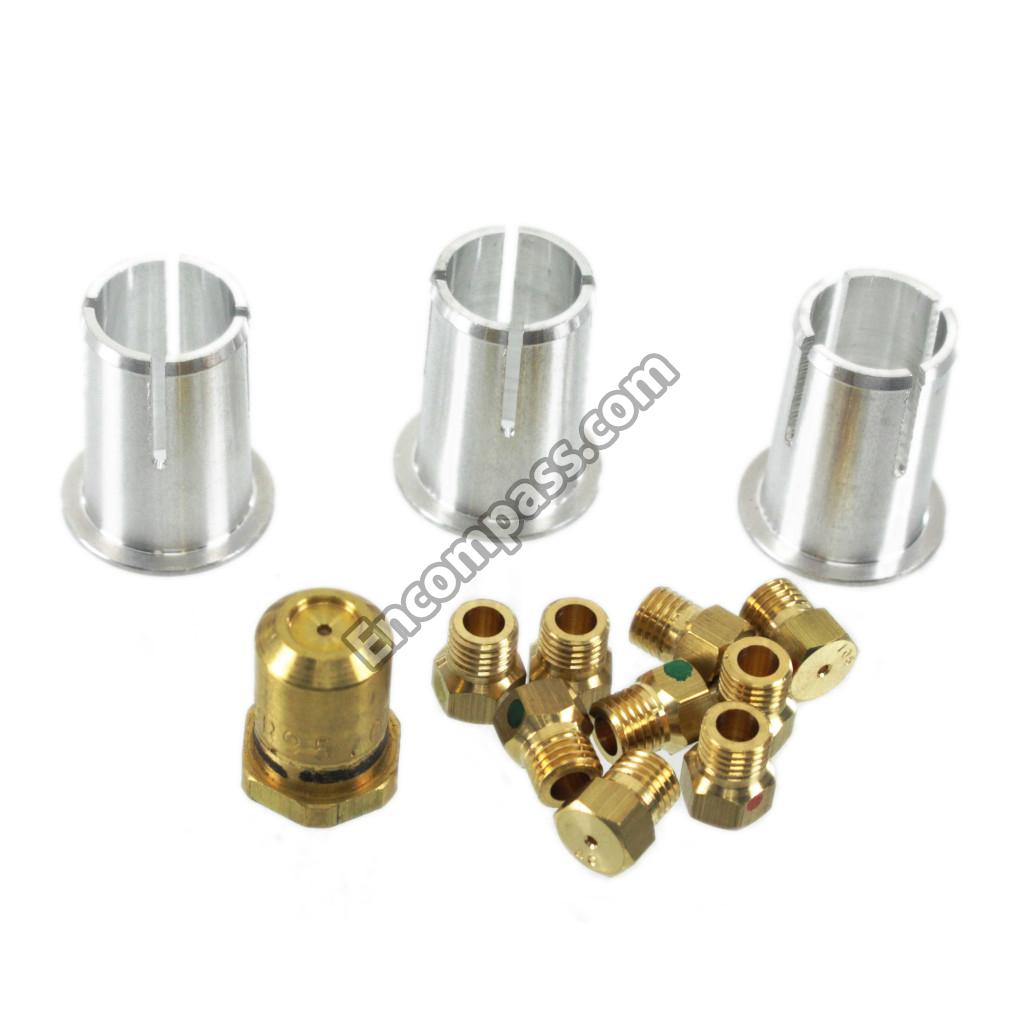

W10810387 W10810387 CNVRSN-KIT
W10323791A W10323791A CNVRSN-KIT
W10726866 W10726866 CONNECTOR, RIBBON

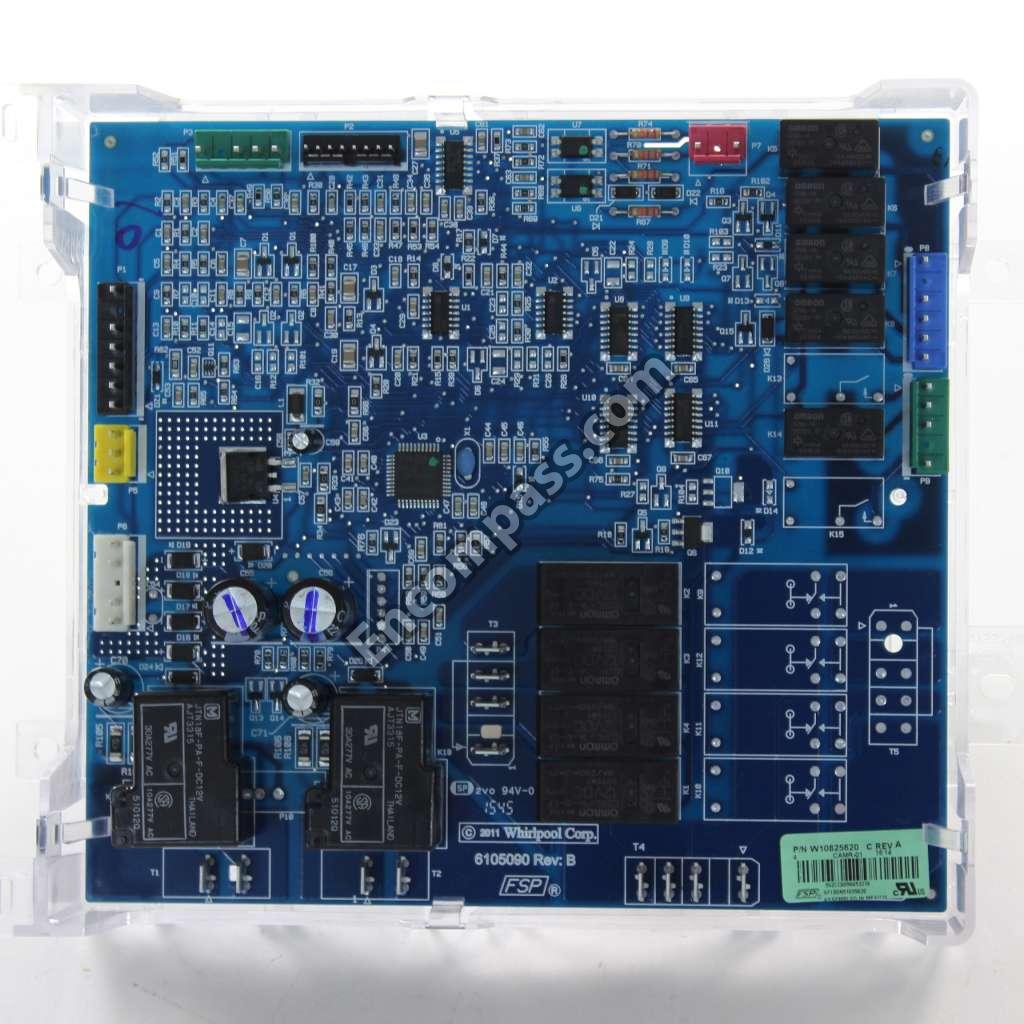

W10852104 W10852104 CONTROL BOARD
WPW10298119 WPW10298119 CONTROL BOARD
WPW10115889 WPW10115889 CONTROL PANEL
W10352969 W10352969 COOKTOP (BLACK (LEFT))
W10352968 W10352968 COOKTOP (BLACK (RIGHT))
W11321066 W11321066 CORD, POWER
W10618712 W10618712 COVER, CHANNEL
W10160858 W10160858 COVER, DOOR LATCH
W10115876 W10115876 COVER, HINGE (LEFT)
W10115877 W10115877 COVER, HINGE (RIGHT)
W10287036 W10287036 COVER, HOUSING
W10115843 W10115843 COVER, IGNITION
W11029221 W11029221 DOOR DOOR LATCH
W10782122 W10782122 DOOR HINGE
W10782123 W10782123 DOOR HINGE
W10269197 W10269197 DUCT, BOTTOM
489504 489504 E-RING
W11643125 W11643125 ELEMENT
W10115994 W10115994 ELEMENT, BROIL
W10115995 W10115995 ELEMENT, HIDDEN BAKE
W11428542 W11428542 ENDCAP-HDL
W11428546 W11428546 ENDCAP-HDL
W10819914 W10819914 FAN-CONVCT
W10189105 W10189105 FILLER, COOKTOP
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
W10859931 W10859931 FOOT-LEVEL
WPW10115831 WPW10115831 FRAME-FRNT
8286930 8286930 GASKET, ORIFICE
W11675844 W11675844 GASKET-OVN
WP9759225 WP9759225 GLASS DOOR
WP4449259 WP4449259 GLASS DOOR
WPW10115711 WPW10115711 GLASS, OUTER DOOR
W11241670 W11241670 GRATE-GRIL
W11569347 W11569347 GRATE-KIT
W11090447 W11090447 GUIDE, USE & CARE
W10774333 W10774333 HANDLE, DOOR
W10780278 W10780278 HARNESS, DOOR LOCK
W10763500 W10763500 HARNESS, IGNITION (INCLUDES 3 IGNITERS)
W10494088 W10494088 HARNESS, WIRE (COMMUNICATION)
W10503778 W10503778 HARNESS, WIRE (SWITCH, F/S)
W10338986 W10338986 HARNESS, WIRING (MAIN)
WP4455606 WP4455606 HINGE-RECV
WP4455605 WP4455605 HINGE-RECV
W10883622 W10883622 HOLDER, ORIFICE (AUX) (RIGHT REAR)

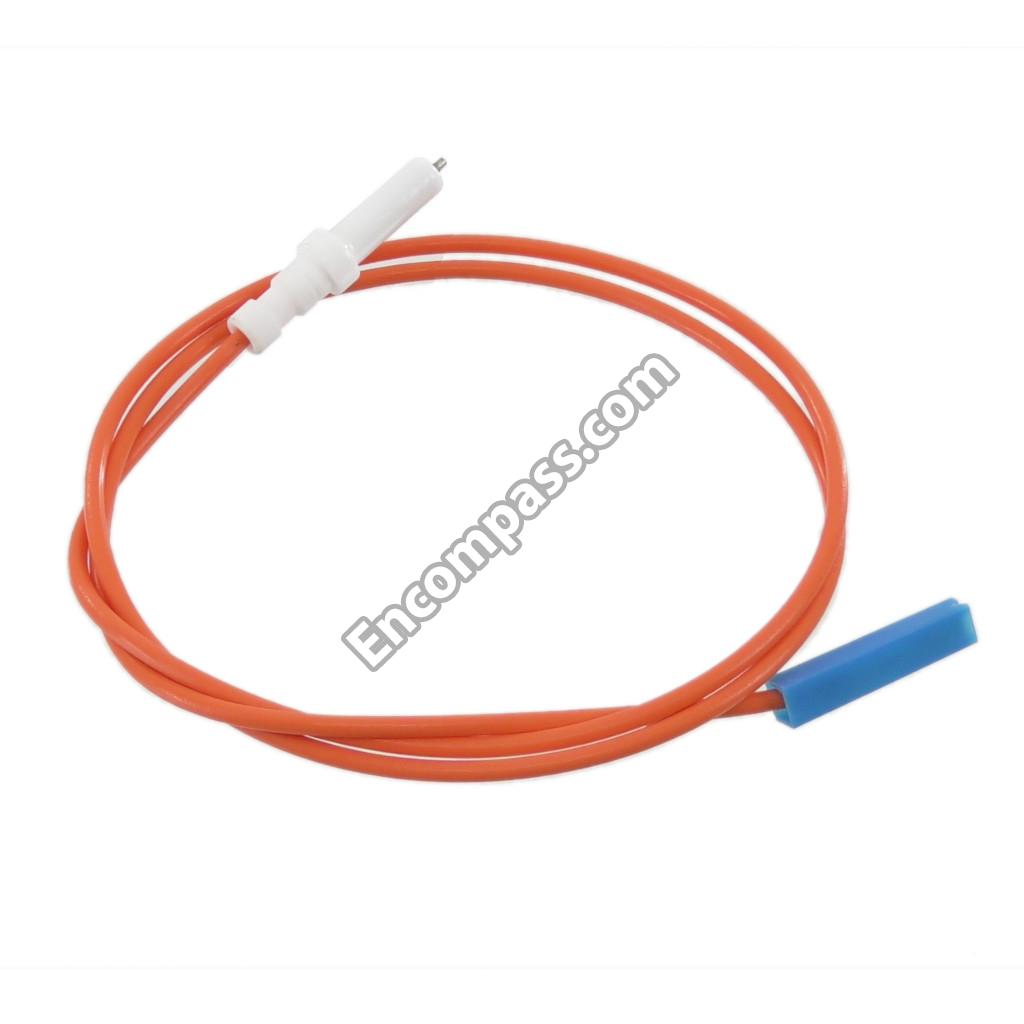

W10854967 W10854967 IGNTR-SURF
W10776010 W10776010 INSERT, GRILL PAN
W11090456 W11090456 INSTRUCTIONS, INSTALLATION
WP4451722 WP4451722 INSULATION
W11684730 W11684730 INSULATION
W11688361 W11688361 INSULATION
W11706804 W11706804 INSULATION
9759721 9759721 INSULATOR, TERMINAL BOX
8186589 8186589 JACK-PROBE

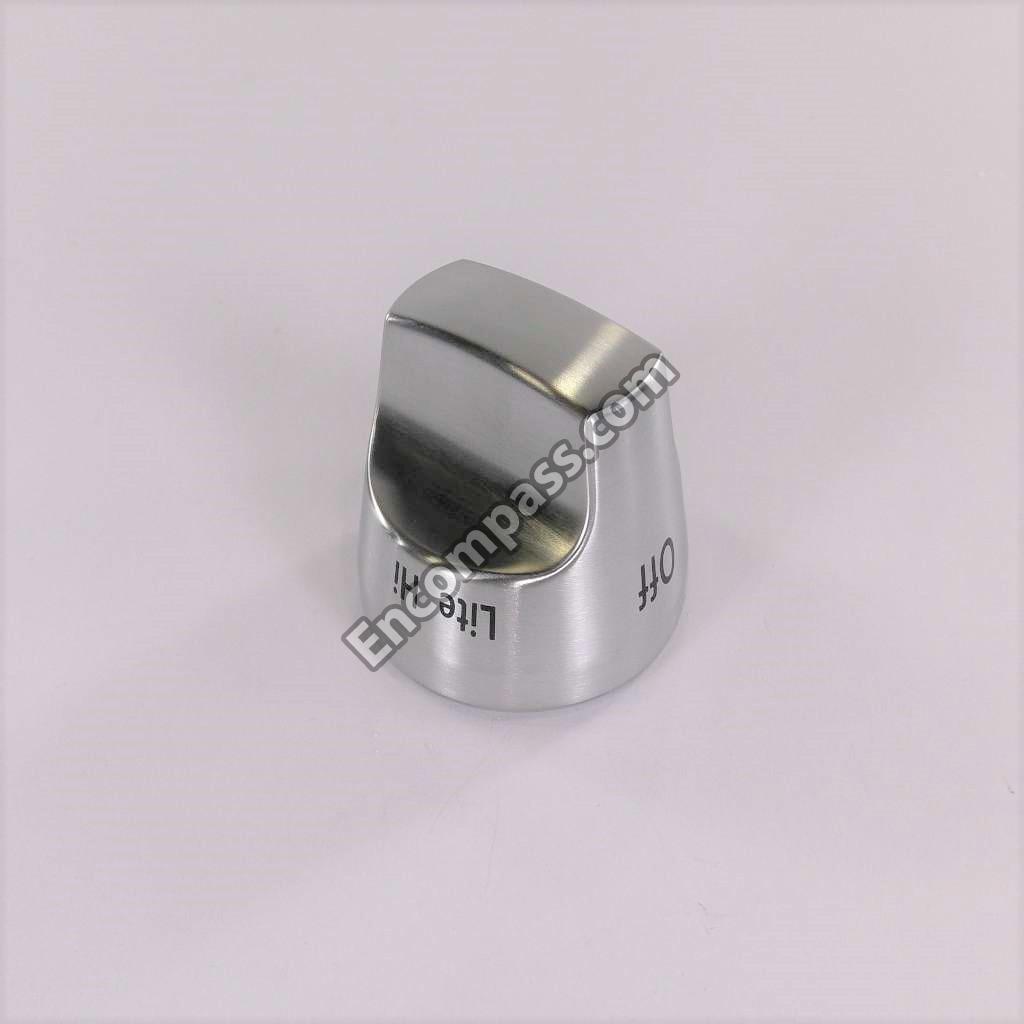

W11103351 W11103351 KNOB
W11103350 W11103350 KNOB
WPW10169757 WPW10169757 LIGHT BULB
WPW10307114 WPW10307114 LIGHT-OVEN
WP9759413 WP9759413 LINER-DOOR
WP9755546 WP9755546 LOCKNUT
WP9755547 WP9755547 LOCKWASHER
WPW10116104 WPW10116104 MEMBRANE SWITCH
W10123240 W10123240 MISCELLANEOUS, RACK, BROILER PAN & ROASTING
31462A 31462A MISCELLANEOUS, STAINLESS STEEL CLEANER & POLISH
W10860984 W10860984 MOTOR-FAN
W10839793 W10839793 NAMEPLATE
W10794042 W10794042 NUT
WP3400968 WP3400968 NUT
WP112432 WP112432 NUT
7103P166-60 7103P166-60 NUT
W11051480 W11051480 ORIFICE
W10657945 W10657945 ORIFICE (20K) (LEFT FRONT, HIGH)

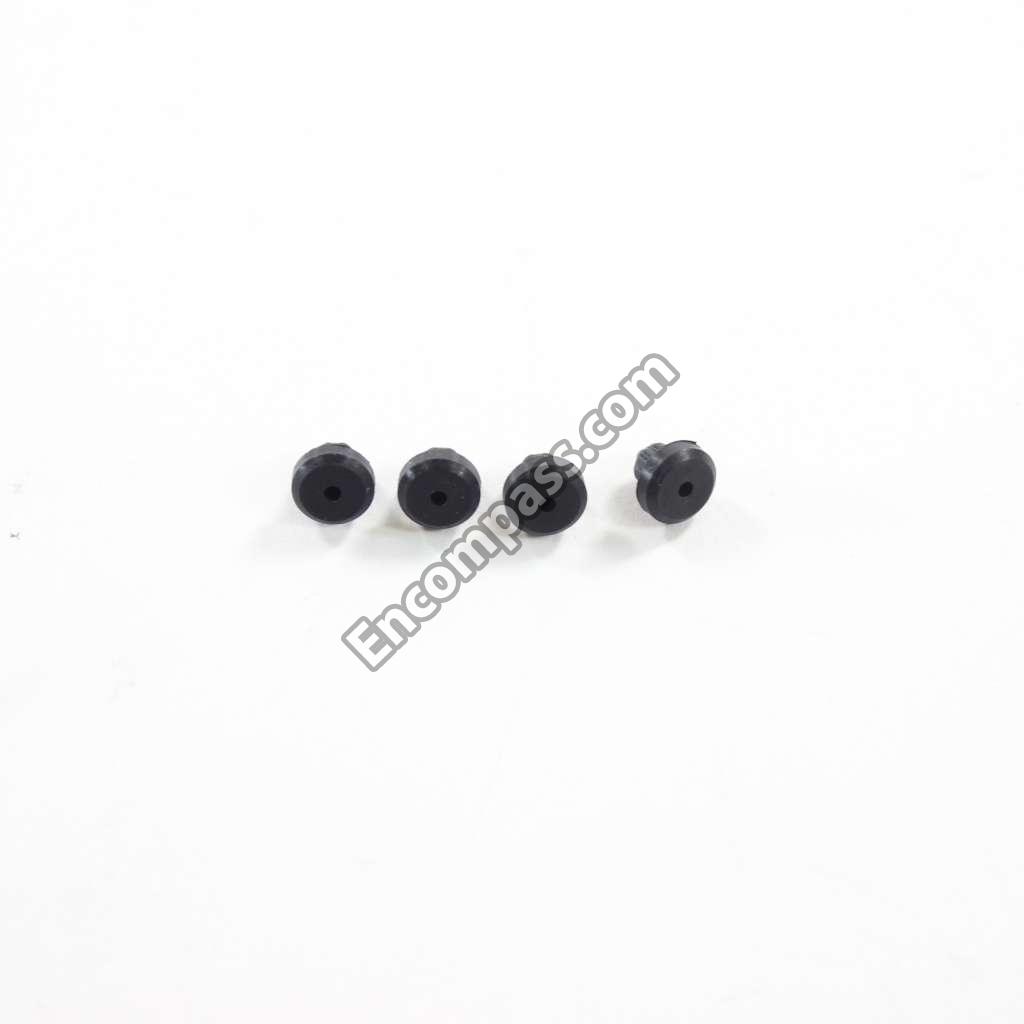

8186321 8186321 PAD-GRATE
W10145399 W10145399 PANEL, BACK BOTTOM
W10269207 W10269207 PANEL, BACK TOP
WPW10250465 WPW10250465 PANEL-CBNT
W11167354 W11167354 PANEL-DOOR
W11165661 W11165661 PANEL-DOOR
W11167330 W11167330 PANEL-DOOR
W10160875 W10160875 PLATE, COOLING DOOR LATCH
W10261523 W10261523 PLATE, FAN
W11167958 W11167958 PLATE-COVR
W11167952 W11167952 PLATE-COVR
W11167950 W11167950 PLATE-COVR
WP9755542 WP9755542 PROBE-MEAT

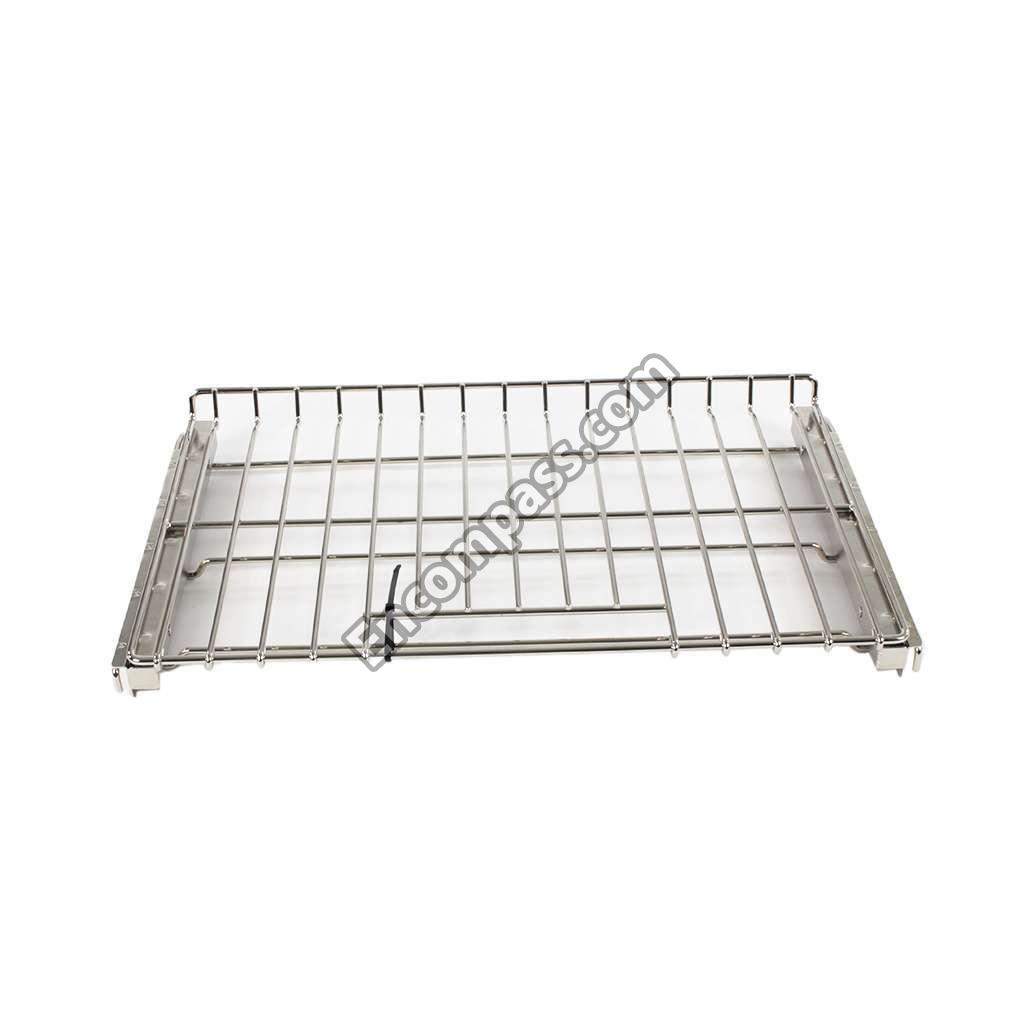

W11186364 W11186364 RACK-OVEN
W11550107 W11550107 RACK-OVEN

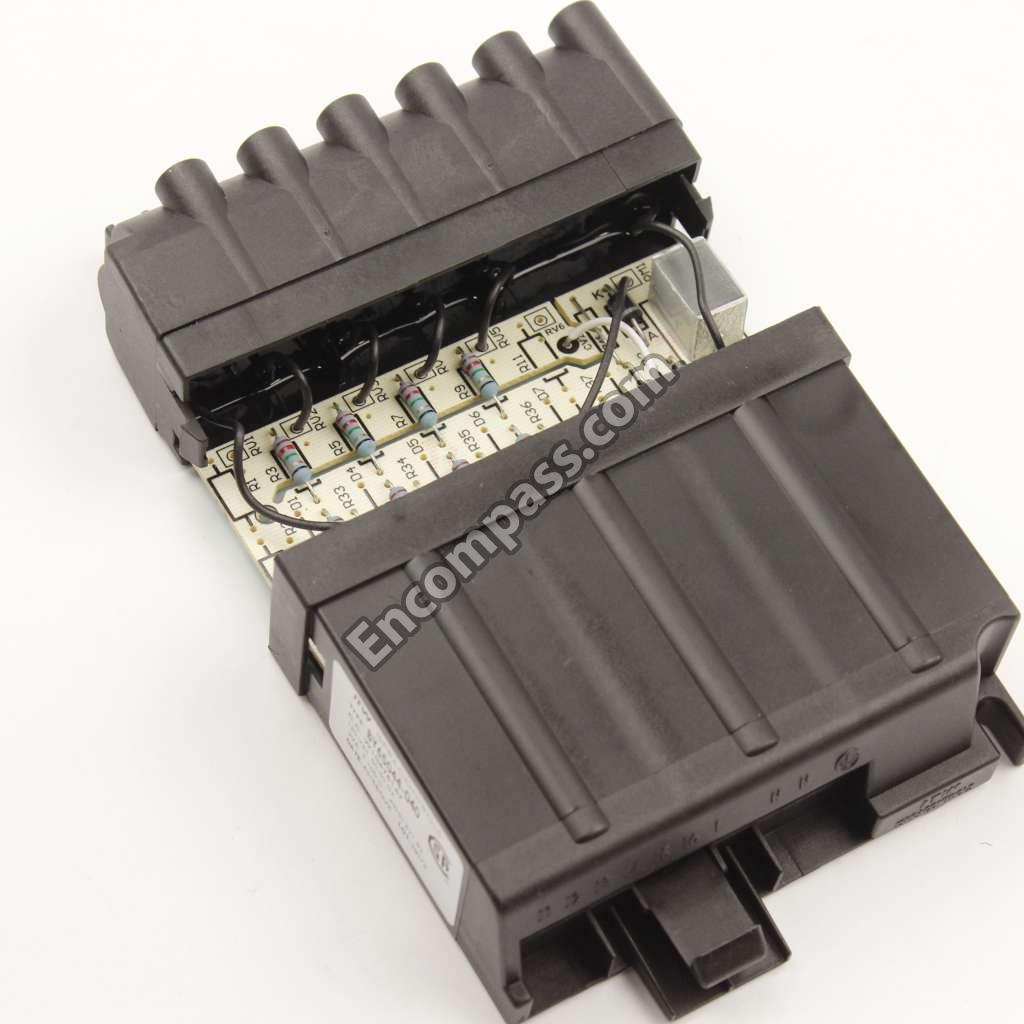

WPW10475147 WPW10475147 RANGE SPARK MODULE
WP4449751 WP4449751 RANGE THERMOSTAT
W10449141 W10449141 REGULATOR, PRESSURE
WP4457132 WP4457132 RETAINER
W11368870 W11368870 RETAINER
WP9759877 WP9759877 RETAINER
WPW10138054 WPW10138054 ROLLER-CAB
W10061760 W10061760 SCREW
W10771437 W10771437 SCREW
W10217130 W10217130 SCREW
WP3400015 WP3400015 SCREW
WP3196163 WP3196163 SCREW
WP4449040 WP4449040 SCREW
WP4449154 WP4449154 SCREW
4449748 4449748 SCREW
WP3196557 WP3196557 SCREW
WPW10292297 WPW10292297 SCREW
W10189140 W10189140 SCREW
WP90767 WP90767 SCREW
W11241230 W11241230 SCREW
W11676349 W11676349 SCREW
W11233072 W11233072 SCREW
W10491985 W10491985 SCREW
WP3177991 WP3177991 SCREW
4450800 4450800 SCREW, GROUNDING
W10270396 W10270396 SEAL, CHIMNEY
W10239444 W10239444 SEAL, CONTROL
W10189177 W10189177 SEAL, SWITCH COVER
WP854334 WP854334 SEAL-STRIP
WPW10131825 WPW10131825 SENSOR
W10115869 W10115869 SHAFT, LONG
W10115793 W10115793 SHAFT, SHORT
W10403294 W10403294 SHEET, TECH (ENGLISH)
W10403296 W10403296 SHEET, TECH (FRENCH)
W10160856 W10160856 SHIELD, ELEMENT BROIL
4457114 4457114 SHIELD, HEAT BOTTOM
WP4457104 WP4457104 SHIELD, HEAT TOP
W11333303 W11333303 SIDE-COMPT
8286863 8286863 SPRING, ELECTRODE (RIGHT REAR)
W10791075 W10791075 SPUD-ORFCE
W10819958 W10819958 SPUD-ORFCE
W10269194 W10269194 SUPPORT, CHANNEL
W10853036 W10853036 SUPPORT, CONTROL
W10225964 W10225964 SUPPORT, HANDLE
W10271524 W10271524 T-STRIP
W10495854 W10495854 TRANSFORMER, CONTROL
W10160845 W10160845 TRAY, HIDDEN BAKE
W10269218 W10269218 TRIM, ISLAND
W10353152 W10353152 TUBE (CENTER FRONT)
W10353154 W10353154 TUBE (LEFT FRONT)
W10353141 W10353141 TUBE (RIGHT FRONT)
W10280797 W10280797 TUBE, (LEFT REAR)
W10452066 W10452066 TUBE, PRESSURE REGULATOR
W10288061 W10288061 TUBE, VENT
WPW10353133 WPW10353133 TUBING-GAS

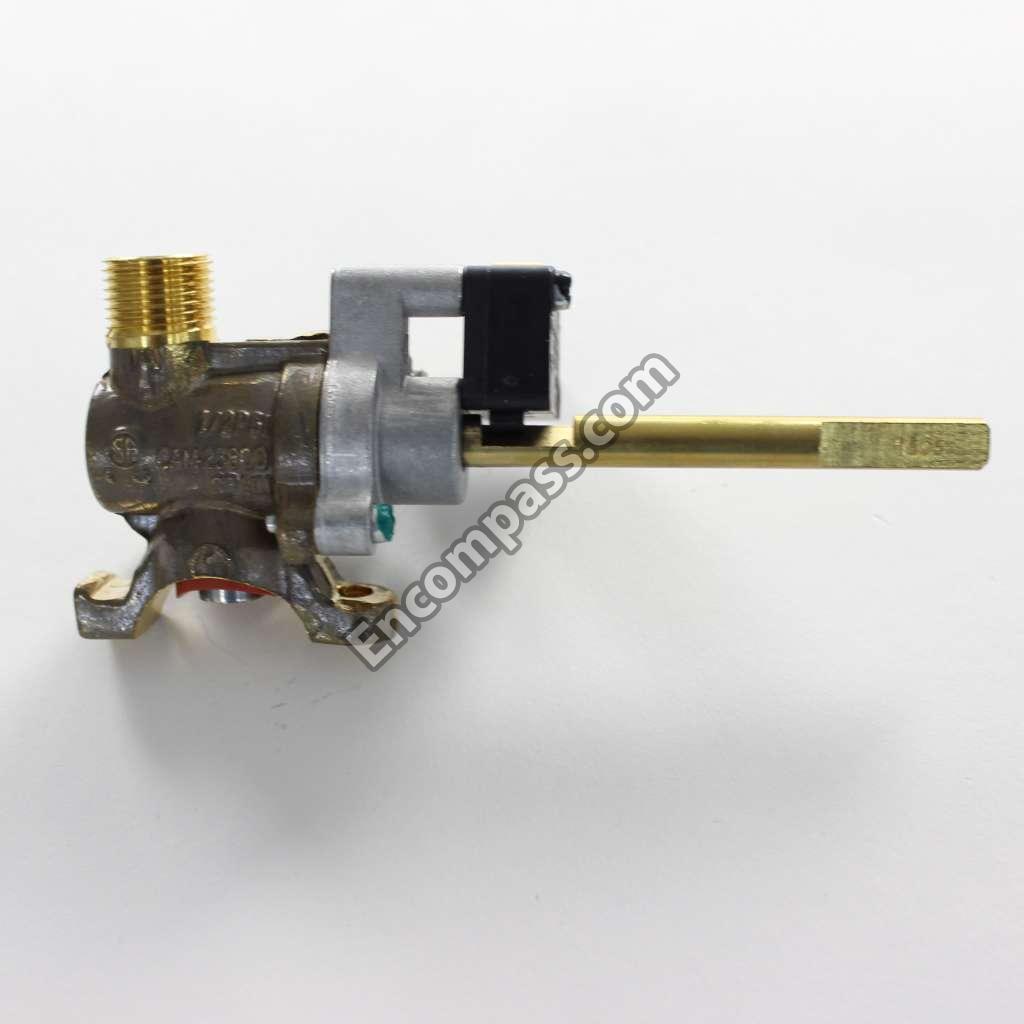

WPW10371235 WPW10371235 VALVE-BRNR
WPW10385582 WPW10385582 VALVE-BRNR
WPW10385583 WPW10385583 VALVE-BRNR
W10856625 W10856625 VENTURI
