Model Image
Manufacturer

Whirlpool

Model Number

KDRS407VSS00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4453115 4453115 Whirlpool ADAPTER (FEMALE)
4453116 4453116 Whirlpool ADAPTER (MALE)
WP482338 WP482338 Whirlpool ADHESIVE
4453191 4453191 Whirlpool ADHESIVE (SEAL, ACCESS PANEL)
4453192 4453192 Whirlpool ADHESIVE (SEAL, RIBBON CABLE)
591014 591014 Whirlpool ADHESIVE, LOCTITE
W11544575 W11544575 Whirlpool ANCHOR-TIP
W10860133 W10860133 Whirlpool BAFFL-CONV
W10261512 W10261512 Whirlpool BEZEL-KNOB
W10261510 W10261510 Whirlpool BEZEL-KNOB
WP9761958 WP9761958 Whirlpool BLOCK-TERM
WPW10245511 WPW10245511 Whirlpool BLOWER
W10235537 W10235537 Whirlpool BOTTM-MAIN
W10276535 W10276535 Whirlpool BOX-BURNER
W10115858 W10115858 Whirlpool BOX-TERMNL
W10145805 W10145805 Whirlpool BRKT-GLASS
W10145809 W10145809 Whirlpool BRKT-GLASS
W10145811 W10145811 Whirlpool BRKT-GLASS
WP9759230 WP9759230 Whirlpool BRKT-MNTG
WP9759229 WP9759229 Whirlpool BRKT-MNTG
W10130760 W10130760 Whirlpool BRKT-MNTG
W10250476 W10250476 Whirlpool BRKT-MNTG
W10130759 W10130759 Whirlpool BRKT-MNTG
W10115850 W10115850 Whirlpool BRKT-MNTG
W10115929 W10115929 Whirlpool BRKT-MNTG
W10280796 W10280796 Whirlpool BRKT-MNTG
W10189107 W10189107 Whirlpool BRKT-MNTG
W10249333 W10249333 Whirlpool BRKT-MNTG
W10160844 W10160844 Whirlpool BRKT-MNTG
W10249337 W10249337 Whirlpool BRKT-MNTG
W10115715 W10115715 Whirlpool BRKT-MNTG
W10367052 W10367052 Whirlpool BRKT-SWTCH
W10105790 W10105790 Whirlpool BUMPER
4448520 4448520 Whirlpool BUMPER, DOOR
WPW10282515 WPW10282515 Whirlpool BURNR-HEAD
WPW10250459 WPW10250459 Whirlpool BURNR-HEAD
W10364850 W10364850 Whirlpool BURNR-TOP
WPW10320937 WPW10320937 Whirlpool BURNR-TOP
W10189097 W10189097 Whirlpool BUSHING
WPW10160229 WPW10160229 Whirlpool CAP-BURNER
WP8286816 WP8286816 Whirlpool CAP-BURNER
WPW10115952 WPW10115952 Whirlpool CAP-BURNER
W10235550 W10235550 Whirlpool CHASSIS
W10355051 W10355051 Whirlpool CLEANER, COOKTOP
WPW10116185 WPW10116185 Whirlpool CONTROL BOARD
WPW10298119 WPW10298119 Whirlpool CONTROL BOARD
WPW10115889 WPW10115889 Whirlpool CONTROL PANEL
W10189104 W10189104 Whirlpool COOKTOP
W10189105 W10189105 Whirlpool COOKTOP
W10282192 W10282192 Whirlpool COOKTOP
W10115877 W10115877 Whirlpool COVER
W10115876 W10115876 Whirlpool COVER
W10160858 W10160858 Whirlpool COVER-LTCH
W10145399 W10145399 Whirlpool COVER-REAR
W10269207 W10269207 Whirlpool COVER-REAR
W10115843 W10115843 Whirlpool COVR-ACESS
W10160875 W10160875 Whirlpool COVR-ACESS
W10269198 W10269198 Whirlpool COVR-ACESS
W11029221 W11029221 Whirlpool DOOR DOOR LATCH
W10782122 W10782122 Whirlpool DOOR HINGE
W10782123 W10782123 Whirlpool DOOR HINGE
W10269197 W10269197 Whirlpool DUCT
489504 489504 Whirlpool E-RING
W11643125 W11643125 Whirlpool ELEMENT
W10115995 W10115995 Whirlpool ELMNT-BAKE
W10115994 W10115994 Whirlpool ELMNT-BROL
W10226026 W10226026 Whirlpool ENDCAP-HDL
W10226025 W10226025 Whirlpool ENDCAP-HDL
W10758272 W10758272 Whirlpool FAN-CONVCT
N_P N_P Whirlpool FOLLOWING PARTS NOT ILLUSTRATED
W10859931 W10859931 Whirlpool FOOT-LEVEL
WPW10115831 WPW10115831 Whirlpool FRAME-FRNT
8286930 8286930 Whirlpool GASKET, ORIFICE
WP9759225 WP9759225 Whirlpool GLASS DOOR
WP4449259 WP4449259 Whirlpool GLASS DOOR
WPW10115711 WPW10115711 Whirlpool GLASS, DOOR OUTER
W11241670 W11241670 Whirlpool GRATE-GRIL
W11569347 W11569347 Whirlpool GRATE-KIT
W10177363 W10177363 Whirlpool GROMMET
W10145992 W10145992 Whirlpool HARNS-WIRE
W10116124 W10116124 Whirlpool HARNS-WIRE
W10116174 W10116174 Whirlpool HARNS-WIRE
W10116180 W10116180 Whirlpool HARNS-WIRE
W10503778 W10503778 Whirlpool HARNS-WIRE
W10780278 W10780278 Whirlpool HARNS-WIRE
WP4455605 WP4455605 Whirlpool HINGE-RECV
WP4455606 WP4455606 Whirlpool HINGE-RECV
W10115720 W10115720 Whirlpool HNDLE-DOOR
W10188342 W10188342 Whirlpool HNDLE-DOOR
WPW10160187 WPW10160187 Whirlpool HOLDER-ORF
W10160234 W10160234 Whirlpool HOLDER-ORF
W10282659 W10282659 Whirlpool HOLDER-ORF
WPW10145991 WPW10145991 Whirlpool IGNTR-SURF
WPW10250406 WPW10250406 Whirlpool IGNTR-SURF
WPW10160235 WPW10160235 Whirlpool IGNTR-SURF
W10349767 W10349767 Whirlpool INSTALLATION INSTRUCTIONS
WP4451722 WP4451722 Whirlpool INSULATION
W11684730 W11684730 Whirlpool INSULATION
W11706804 W11706804 Whirlpool INSULATION
W11688361 W11688361 Whirlpool INSULATION
9759721 9759721 Whirlpool INSULATOR, TERMINAL BOX
8186589 8186589 Whirlpool JACK-PROBE

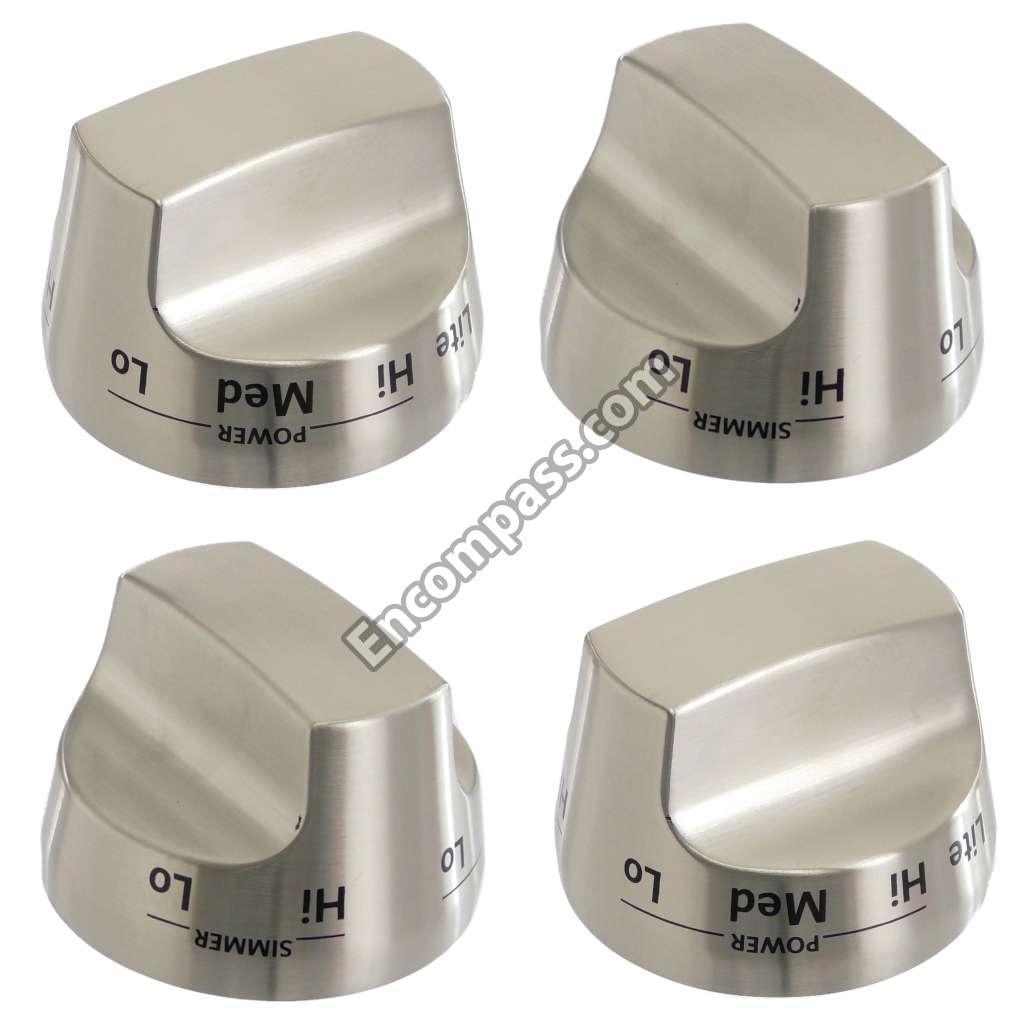

W11177673 W11177673 Whirlpool KNOB
W11244176 W11244176 Whirlpool KNOB
W10231702 W10231702 Whirlpool KNOB
W10169756 W10169756 Whirlpool LENS-LIGHT
WPW10169757 WPW10169757 Whirlpool LIGHT BULB
WPW10307114 WPW10307114 Whirlpool LIGHT-OVEN
WP9759413 WP9759413 Whirlpool LINER-DOOR
WP9755546 WP9755546 Whirlpool LOCKNUT
WP9755547 WP9755547 Whirlpool LOCKWASHER
W10115891 W10115891 Whirlpool MANIFOLD
WPW10116104 WPW10116104 Whirlpool MEMBRANE SWITCH
31462A 31462A Whirlpool MISCELLANEOUS, SS CLEANER & POLISH
W10794022 W10794022 Whirlpool MOTOR-FAN
W10852683 W10852683 Whirlpool NAMEPLATE
WP112432 WP112432 Whirlpool NUT
WPW10116349 WPW10116349 Whirlpool NUT
7103P166-60 7103P166-60 Whirlpool NUT
W10115953 W10115953 Whirlpool NUT
W10160179 W10160179 Whirlpool ORIFICE
W10160185 W10160185 Whirlpool ORIFICE
W10160232 W10160232 Whirlpool ORIFICE
9759322 9759322 Whirlpool PAD, GRATE
W10123240 W10123240 Whirlpool PAN-BROILR
WPW10250465 WPW10250465 Whirlpool PANEL-CBNT
WPW10225959 WPW10225959 Whirlpool PANEL-DOOR
W10246078 W10246078 Whirlpool PANEL-VENT
W10261523 W10261523 Whirlpool PLATE
WP9755542 WP9755542 Whirlpool PROBE-MEAT
W11186364 W11186364 Whirlpool RACK-OVEN
W11550107 W11550107 Whirlpool RACK-OVEN
WPW10475147 WPW10475147 Whirlpool RANGE SPARK MODULE
WP4449751 WP4449751 Whirlpool RANGE THERMOSTAT
W10293267 W10293267 Whirlpool REGULATOR
WP4457132 WP4457132 Whirlpool RETAINER
W11368870 W11368870 Whirlpool RETAINER
W10160825 W10160825 Whirlpool RING-C
WPW10138054 WPW10138054 Whirlpool ROLLER-CAB
WP71001171 WP71001171 Whirlpool SCREW
WP3196163 WP3196163 Whirlpool SCREW
WP4449040 WP4449040 Whirlpool SCREW
WP4449154 WP4449154 Whirlpool SCREW
4449748 4449748 Whirlpool SCREW
WP3196557 WP3196557 Whirlpool SCREW
WPW10292297 WPW10292297 Whirlpool SCREW
WP90767 WP90767 Whirlpool SCREW
W11233072 W11233072 Whirlpool SCREW
W10491985 W10491985 Whirlpool SCREW
W11404293 W11404293 Whirlpool SCREW
W10189140 W10189140 Whirlpool SCREW
W10217130 W10217130 Whirlpool SCREW
W10771437 W10771437 Whirlpool SCREW
W10061760 W10061760 Whirlpool SCREW
W10270396 W10270396 Whirlpool SEAL-FOAM
W10270397 W10270397 Whirlpool SEAL-FOAM
W10239444 W10239444 Whirlpool SEAL-FOAM
W10189177 W10189177 Whirlpool SEAL-SWTCH
WPW10131825 WPW10131825 Whirlpool SENSOR
W10115793 W10115793 Whirlpool SHAFT
W10115869 W10115869 Whirlpool SHAFT
4457114 4457114 Whirlpool SHIELD, HEAT BOTTOM
WP4457104 WP4457104 Whirlpool SHIELD, HEAT TOP
W10160856 W10160856 Whirlpool SHIELD-HT
W11333303 W11333303 Whirlpool SIDE-COMPT
W10269206 W10269206 Whirlpool SIDE-COMPT
W10269205 W10269205 Whirlpool SIDE-COMPT
W10160826 W10160826 Whirlpool SPRING
8286863 8286863 Whirlpool SPRING, ELECTRODE (RIGHT REAR)
W10791075 W10791075 Whirlpool SPUD-ORFCE
W10269194 W10269194 Whirlpool SUPPORT
W10225964 W10225964 Whirlpool SUPPORT
W10284339 W10284339 Whirlpool TECH SHEET (ENGLISH)
W10284343 W10284343 Whirlpool TECH SHEET (FRENCH)
9762761 9762761 Whirlpool TIPS, SAFE COOKING (ENGLISH)
W10065852 W10065852 Whirlpool TIPS, SAFE COOKING (FRENCH)
W10267897 W10267897 Whirlpool TOP-OVEN
W10160845 W10160845 Whirlpool TOP-OVEN
WPW10111628 WPW10111628 Whirlpool TRANSFORMR
W10271524 W10271524 Whirlpool TRIM-TOP
W10269218 W10269218 Whirlpool TRIM-TOP
W10288061 W10288061 Whirlpool TUBE-VENT
W10280797 W10280797 Whirlpool TUBING-GAS
W10269191 W10269191 Whirlpool TUBING-GAS
W10115908 W10115908 Whirlpool TUBING-GAS
W10115910 W10115910 Whirlpool TUBING-GAS
W10115911 W10115911 Whirlpool TUBING-GAS
W10285550 W10285550 Whirlpool USE & CARE GUIDE
WPW10385583 WPW10385583 Whirlpool VALVE-BRNR
WPW10326645 WPW10326645 Whirlpool VALVE-BRNR
WPW10371235 WPW10371235 Whirlpool VALVE-BRNR
W10246075 W10246075 Whirlpool VENT-EXHST
W10225971 W10225971 Whirlpool VENT-OVEN
W10160896 W10160896 Whirlpool VENT-OVEN
4450800 4450800 Whirlpool WIRING HARNESS PARTS, SCREW, GROUNDING
