Model Image
Manufacturer

Whirlpool

Model Number

KDTE204DSS0

Description

Kitchenaid Dishwasher

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10827631 W10827631 ACCESS PANEL (BLACK)
W10827632 W10827632 ACCESS PANEL (WHITE)
W10195737A W10195737A ACCESSORIES,ARCHITECT II HANDLES (BISCUIT/BISQUE)
W10195735A W10195735A ACCESSORIES,ARCHITECT II HANDLES (BLACK)
W10195738A W10195738A ACCESSORIES,ARCHITECT II HANDLES (STAINLESS STEEL)
W10195736A W10195736A ACCESSORIES,ARCHITECT II HANDLES (WHITE)
8212489 8212489 ACCESSORIES,CUSTOM PANEL & TRIM KIT (BLACK)
3385556 3385556 ACCESSORIES,DRAIN HOSE 12 FT.
4396277 4396277 ACCESSORIES,MOISTURE BARRIER KIT
8171658 8171658 ACCESSORIES,SIDE PANEL KITS (BISCUIT/BISQUE)
8171657 8171657 ACCESSORIES,SIDE PANEL KITS (BLACK)
8171659 8171659 ACCESSORIES,SIDE PANEL KITS (STAINLESS STEEL)
8171656 8171656 ACCESSORIES,SIDE PANEL KITS (WHITE)
WP676455 WP676455 ACCESSORIES,VINYL TOUCH-UP (4OZ GREY)
4396853 4396853 ACCESSORIES,VINYL TOUCH-UP (4OZ SILVER ATLANTIS)
WP676453 WP676453 ACCESSORIES,VINYL TOUCH-UP (4OZ WHITE)
WPW10546503 WPW10546503 ADJUSTER ASSEMBLY
8171477 8171477 ANTI-TIP KIT,FLOOR MOUNT KIT
8212560 8212560 ANTI-TIP KIT,SIDE MOUNT KIT

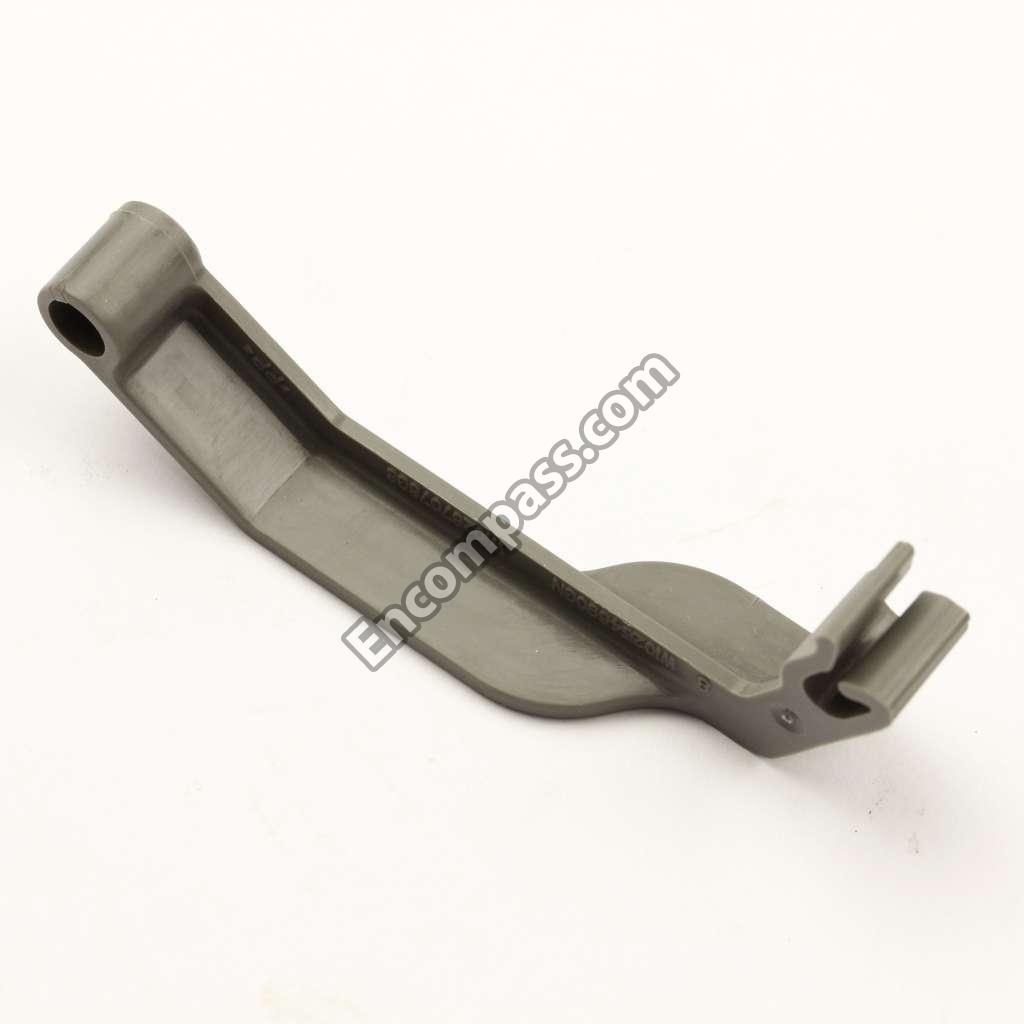

W11612302 W11612302 ARM,HINGE (LEFT HAND)
WP8534853 WP8534853 ARM,HINGE (RIGHT HAND)

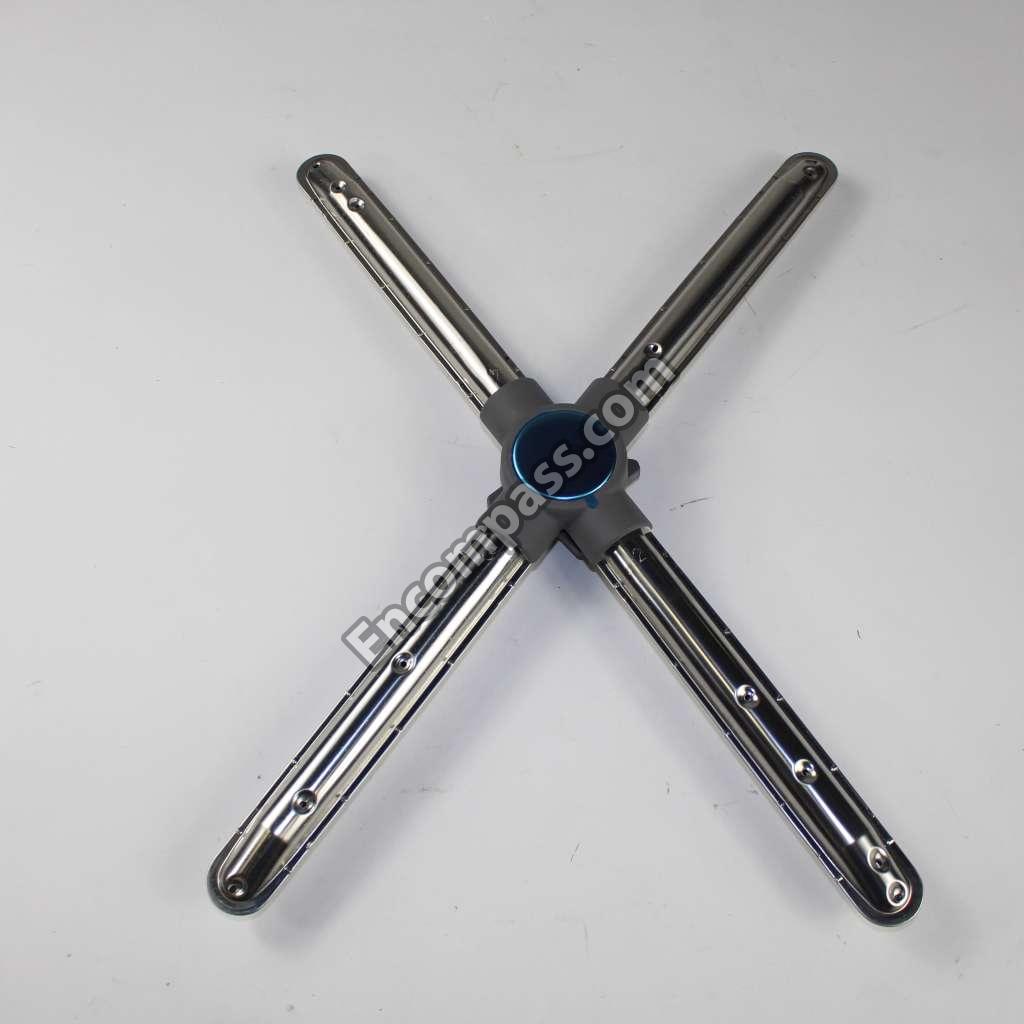

W11101428 W11101428 ARM-SPRAY
W10850371 W10850371 BARRIER,VAPOR ASSEMBLY

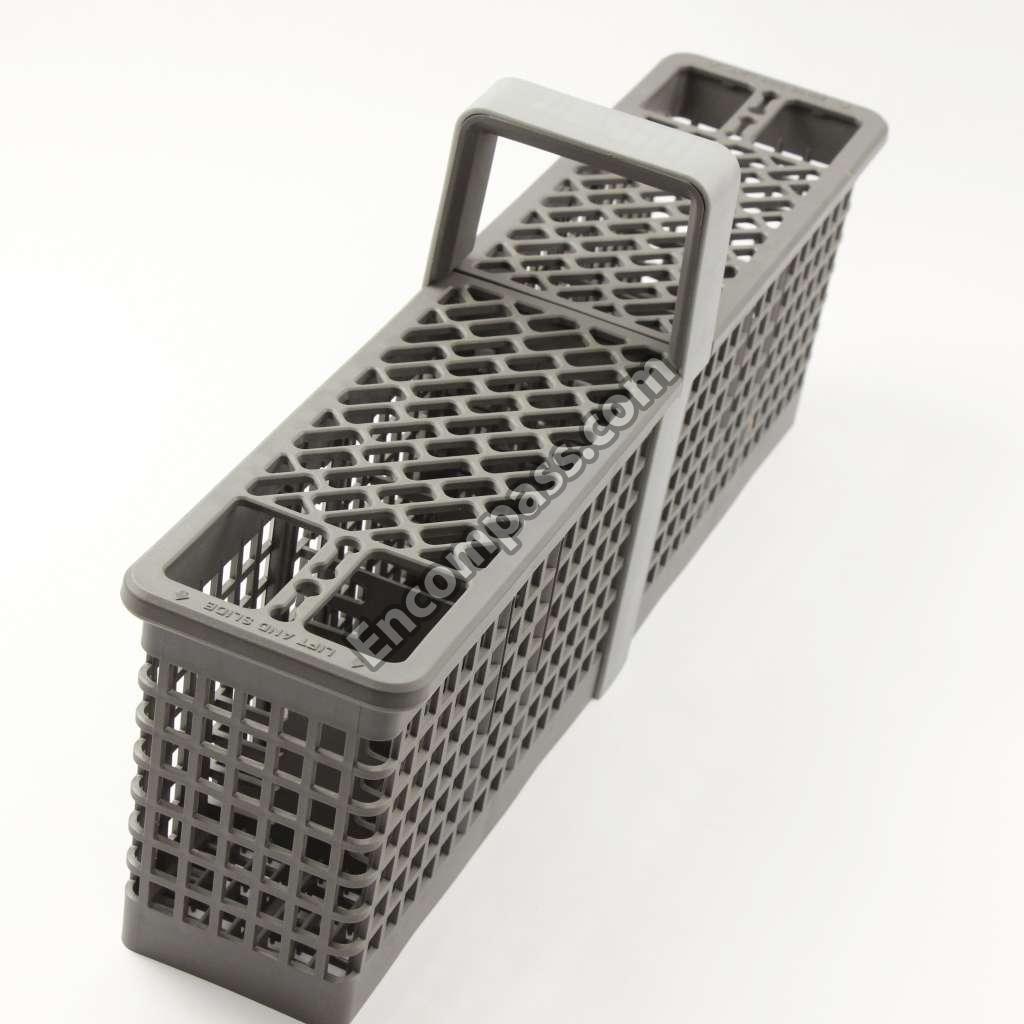

WPW10473836 WPW10473836 BASKET ASSEMBLY,SILVERWARE
WPW10418356 WPW10418356 BASKET,THIRD LEVEL
WPW10462393 WPW10462393 BOX,CONNECTOR
WPW10462395 WPW10462395 BRACE,CONNECTOR

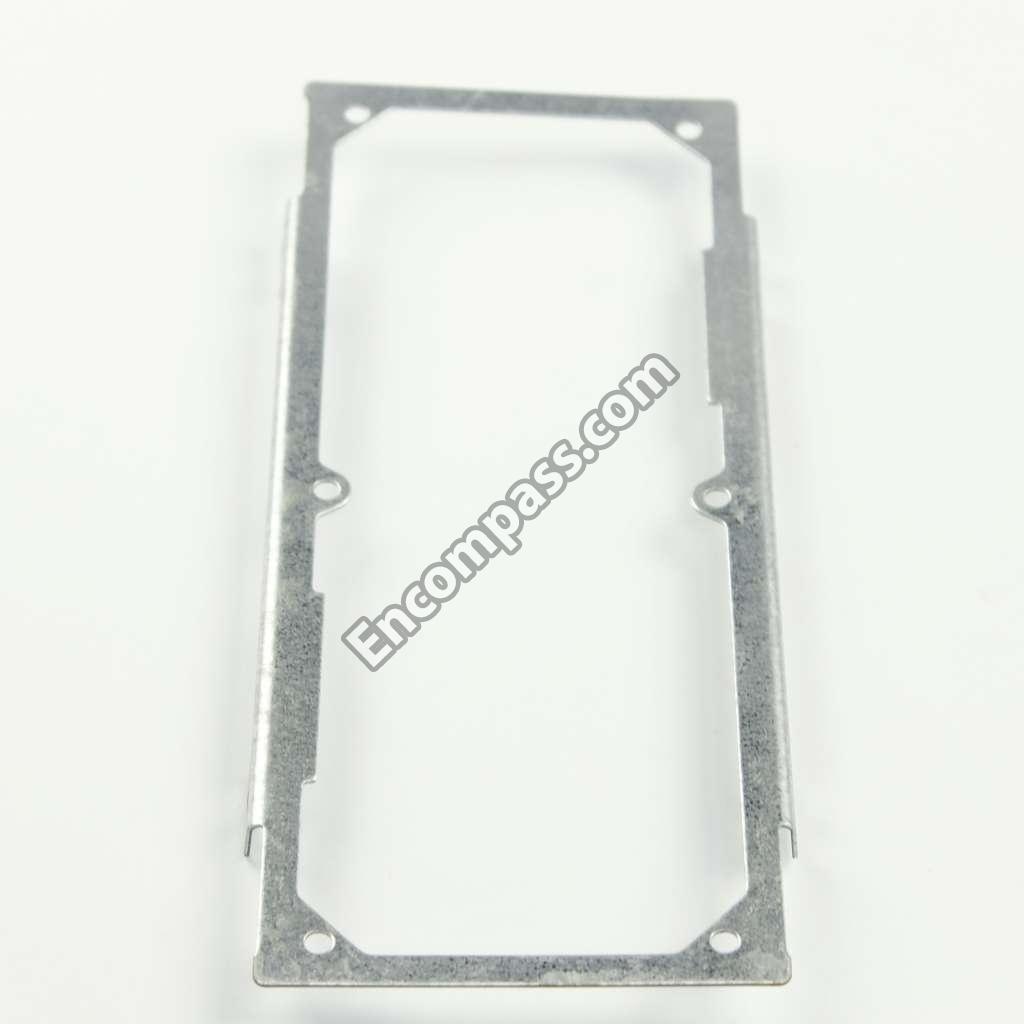

WPW10350242 WPW10350242 BRACKET,CONTROL
WPW10462232 WPW10462232 BRACKET,DISPENSER
W10837623 W10837623 BRACKET,FEED TUBE
W10300703 W10300703 BRACKET,THERMOSTAT
WP8269145 WP8269145 BRACKET,UNDERCOUNTER
WP8269146 WP8269146 CLAMP
WP285655 WP285655 CLAMP

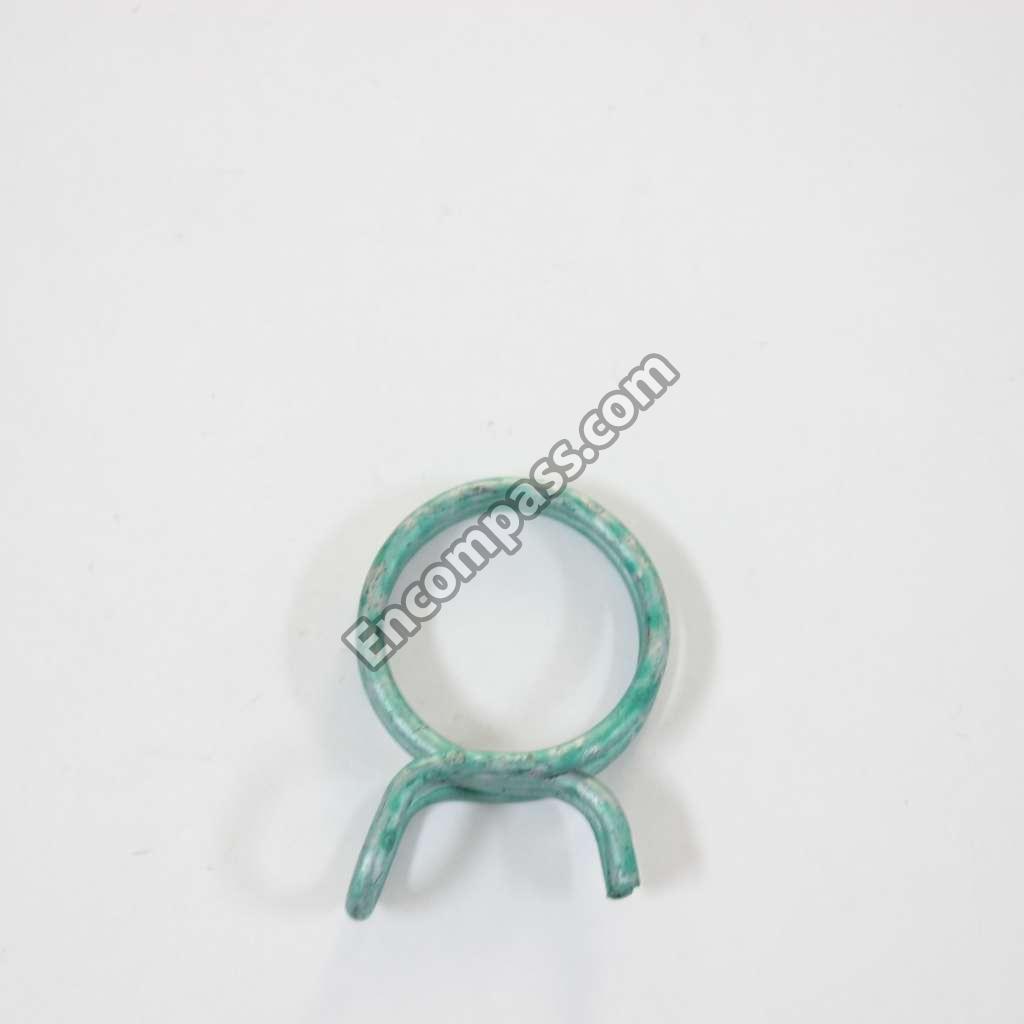

WP596669 WP596669 CLAMP,HOSE
8269146 8269146 CLAMP,HOSE
W10789434 W10789434 CLAMP,HOSE

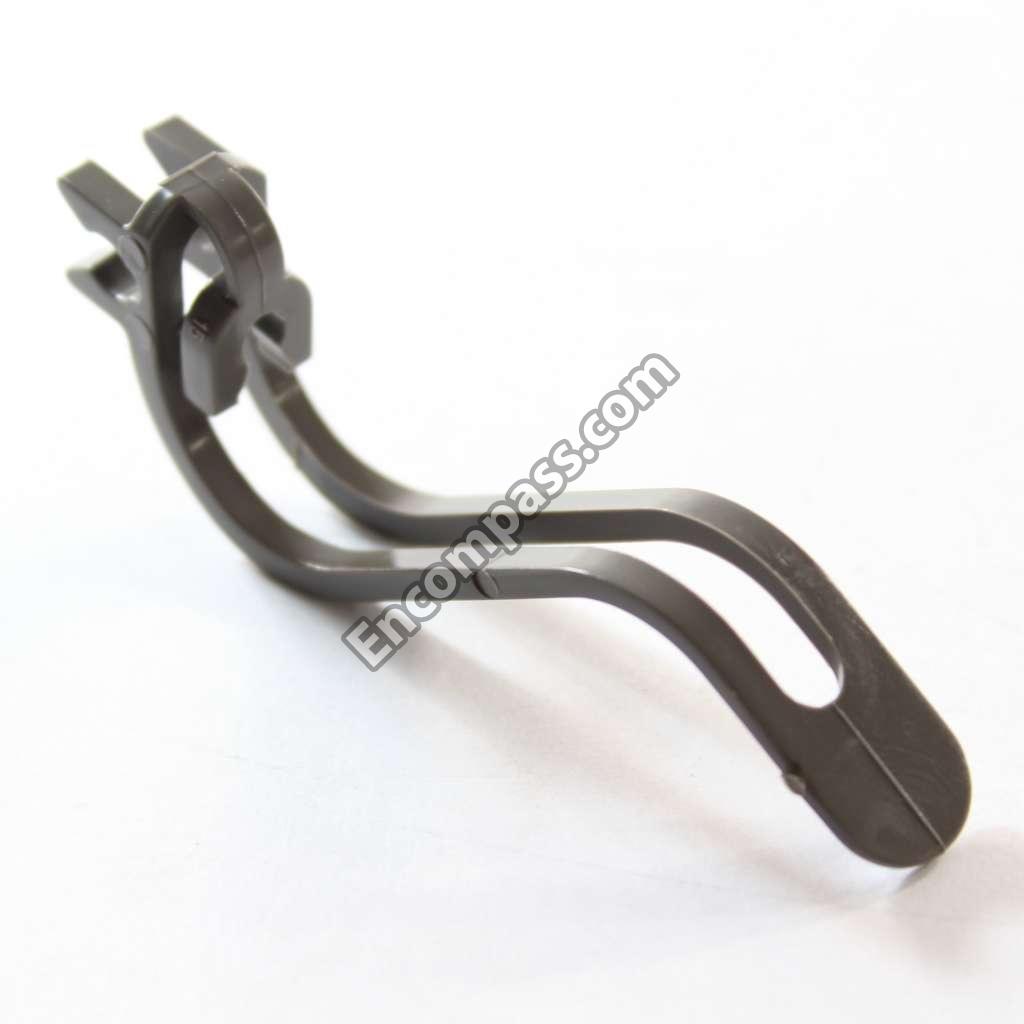

WPW10250160 WPW10250160 CLIP,ADJUSTER
W11256107 W11256107 CLIP,CONTROL

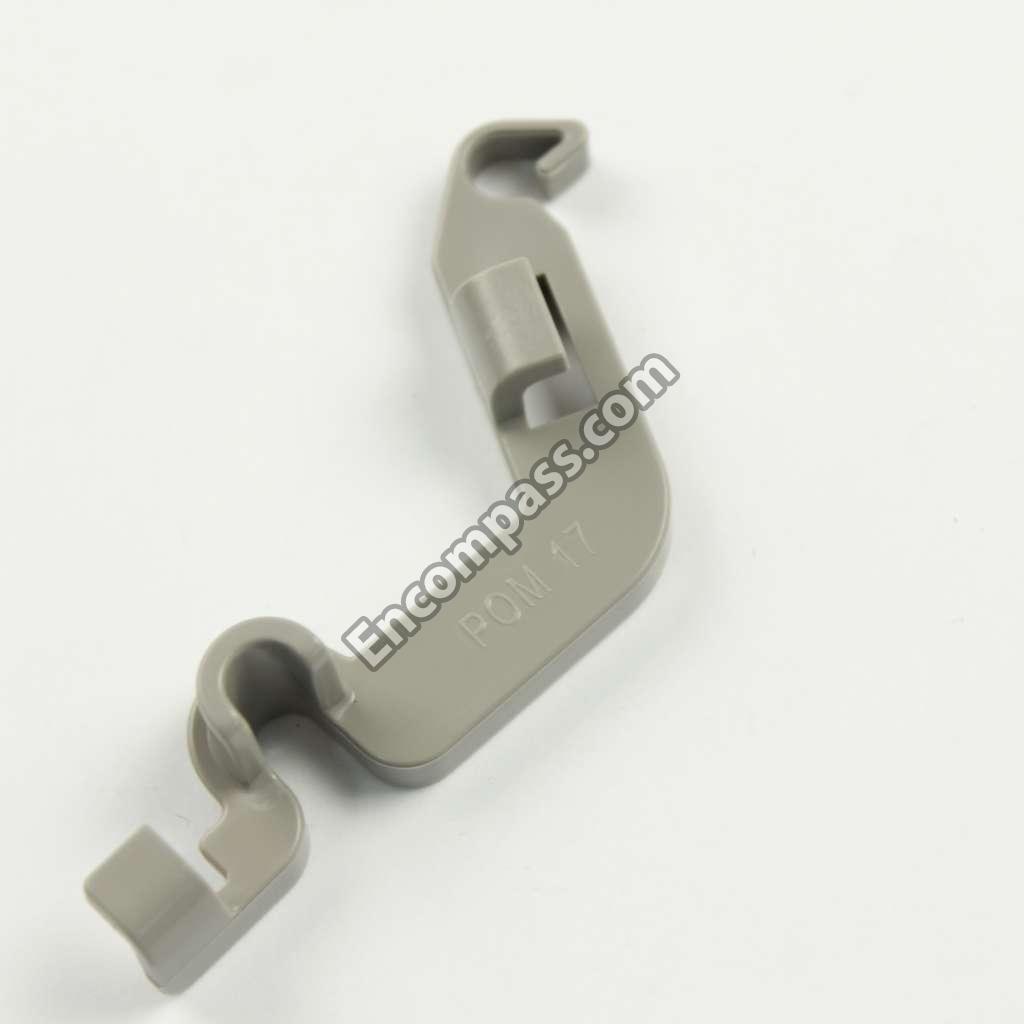

WPW10082848 WPW10082848 CLIP,CUPSHELF
WPW10267076 WPW10267076 CLIP,DISPENSER GUARD
WP8539101 WP8539101 CLIP,NO FLIP

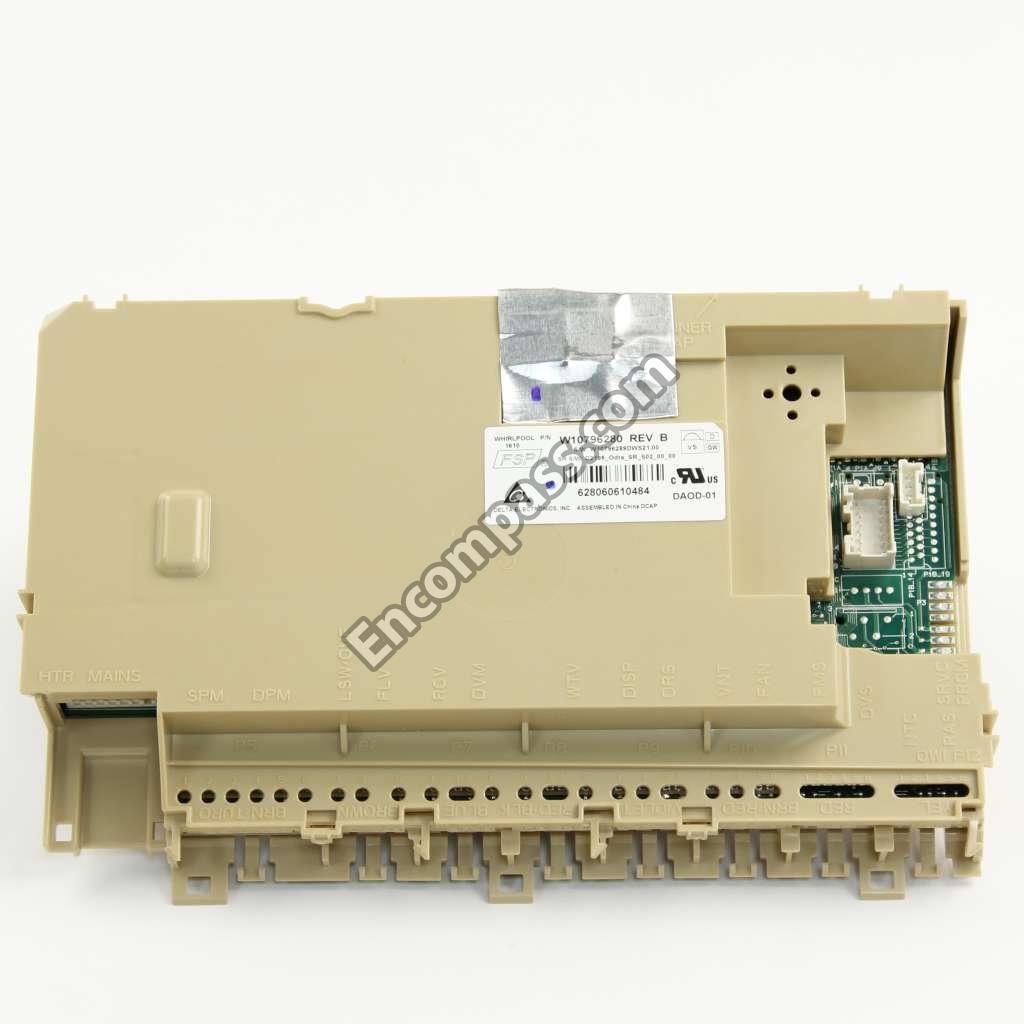

W10866116 W10866116 CONTROL BOARD

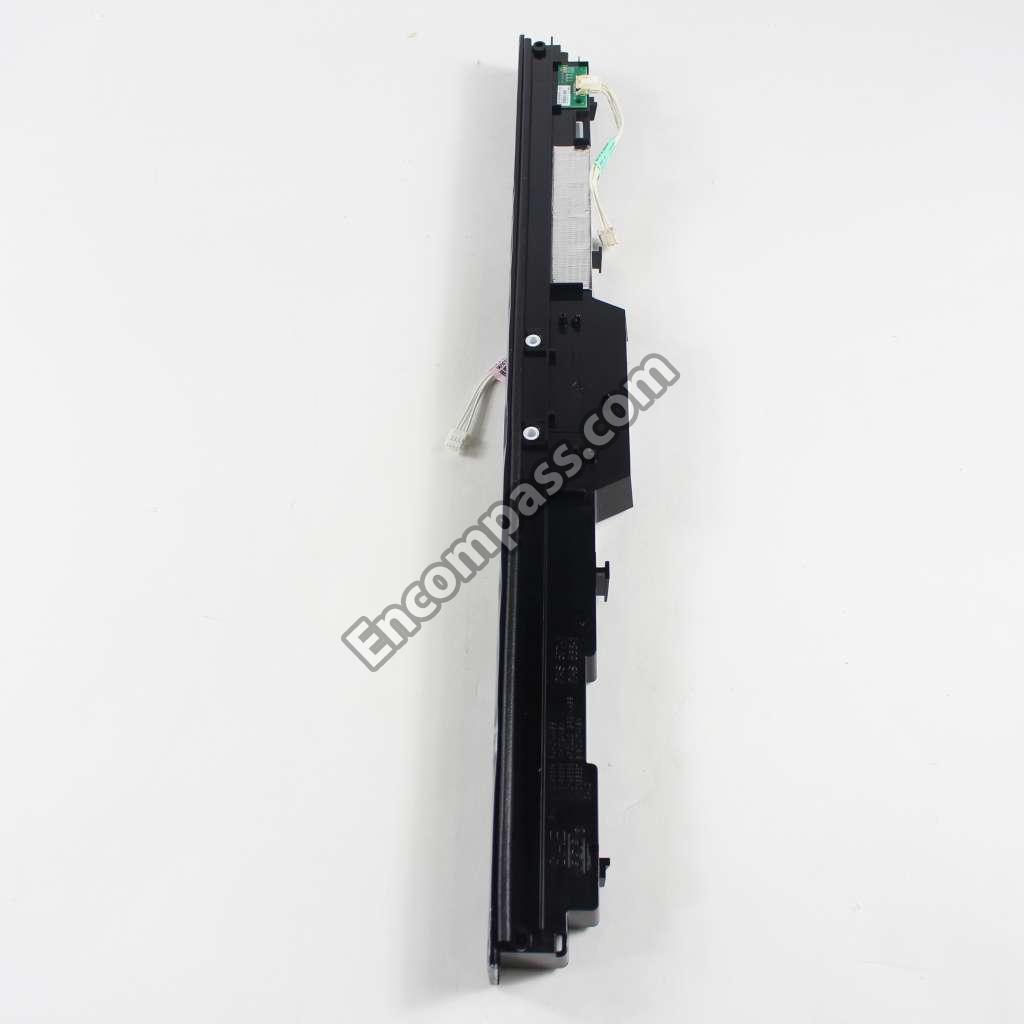

WPW10579108 WPW10579108 CONTROL PANEL
W10609495 W10609495 COVER
WPW10250162 WPW10250162 COVER,ADJUSTER
WPW10455271 WPW10455271 COVER,OUTLET
WP8268991 WP8268991 COVER,TERMINAL BOX
WPW10082649 WPW10082649 CUPSHELF ASSEMBLY
WPW10476221 WPW10476221 DISC,DIVERTER
4396840RC 4396840RC DISHRACK REPAIR (BLACK)
4396838RC 4396838RC DISHRACK REPAIR (WHITE)

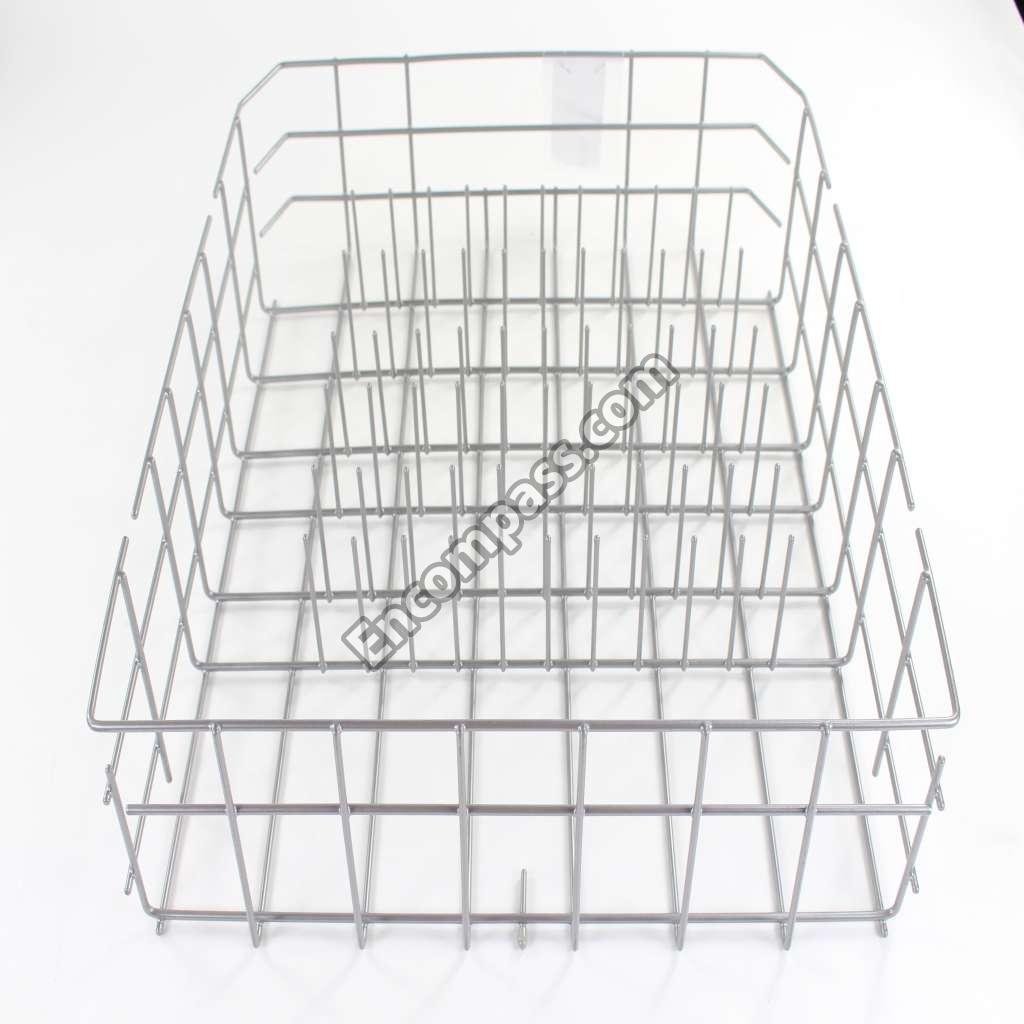

W10728159 W10728159 DISHRACK,LOWER
WPW10312792 WPW10312792 DISHRACK,UPPER

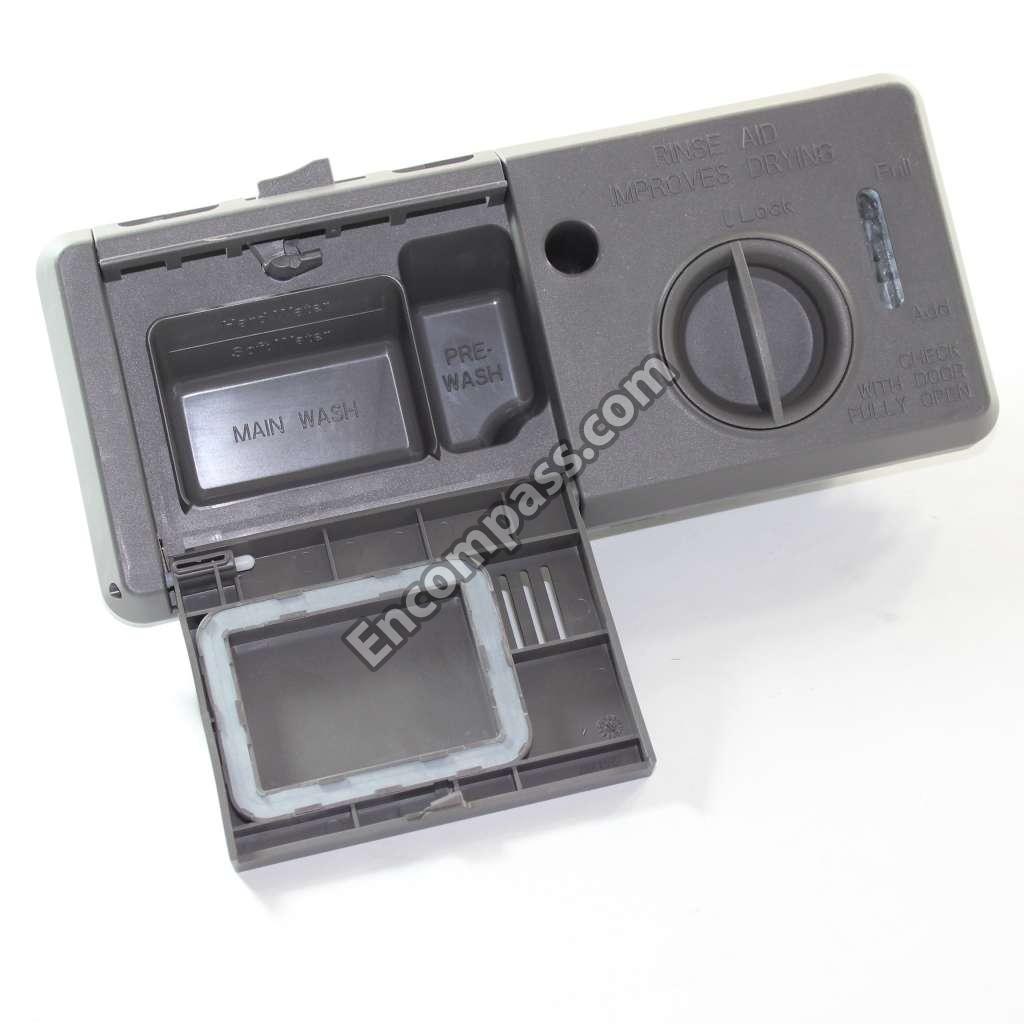

W11032769 W11032769 DISPENSER ASSEMBLY
WPW10084086 WPW10084086 DOOR BALANCE ASSEMBLY
WPW10545278 WPW10545278 DRAIN LOOP WITH CHECK VALVE ASSEMBLY
W10579103 W10579103 ENERGY GUIDE
WPW10503548 WPW10503548 FASTENER (BLACK)
WPW10503549 WPW10503549 FASTENER (WHITE)
WPW10340745 WPW10340745 FEED TUBE ASSEMBLY (INCLUDES ITEMS 2 & 3)
W10648041 W10648041 FILL VALVE ASSEMBLY
W10872845 W10872845 FILTER
WP8539190 WP8539190 FILTER CUP ASSEMBLY
WPW10195036 WPW10195036 FLOAT & RETAINER ASSEMBLY
WP8531323 WP8531323 GASKET
WP8531743 WP8531743 GASKET,FLAT
W11177741 W11177741 GASKET,TUB
WPW10538166 WPW10538166 GROMMET

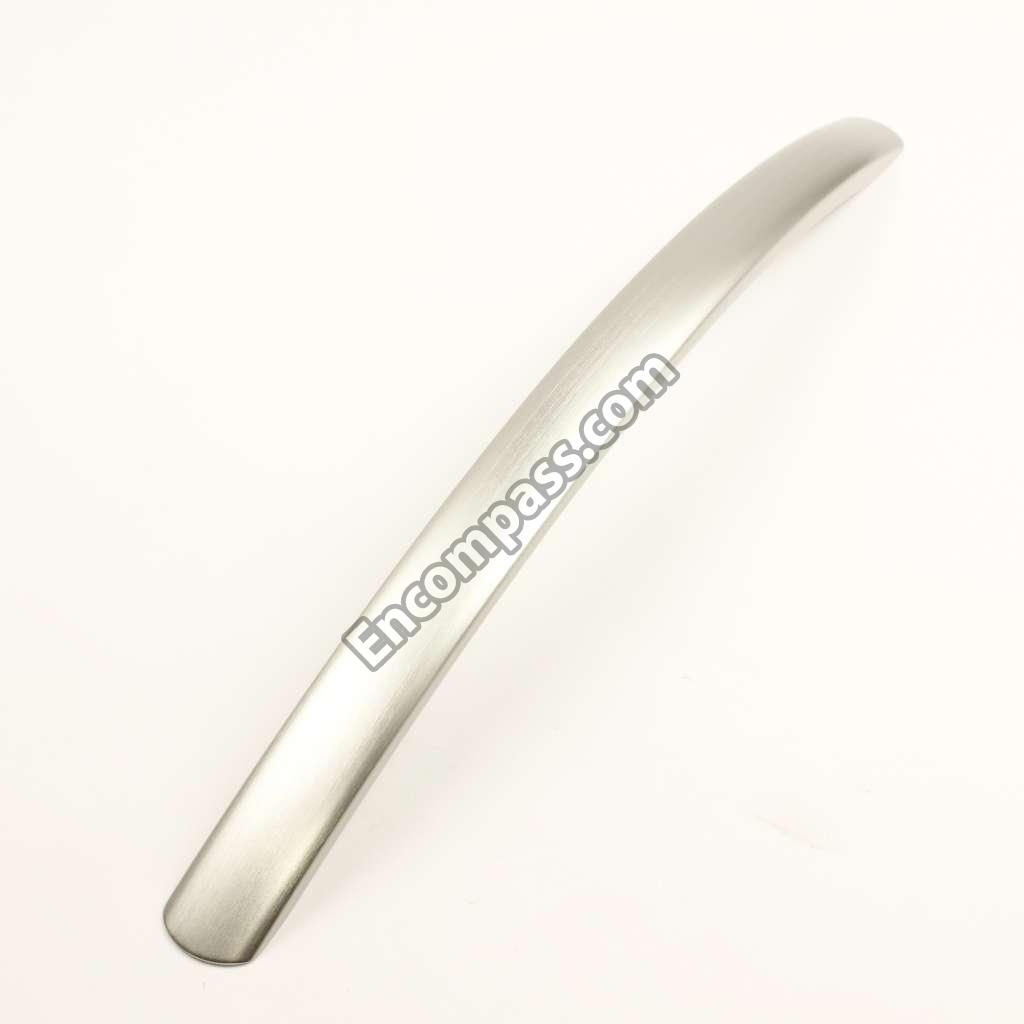

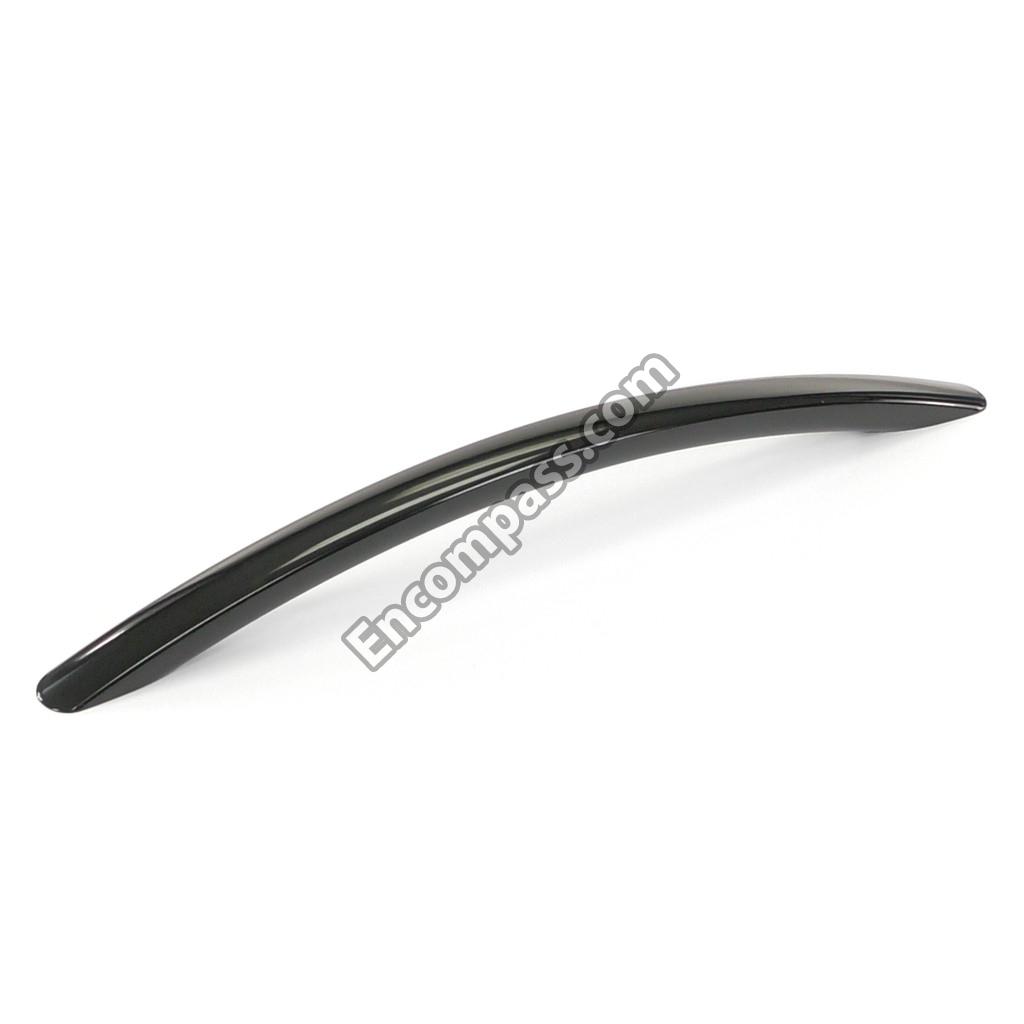

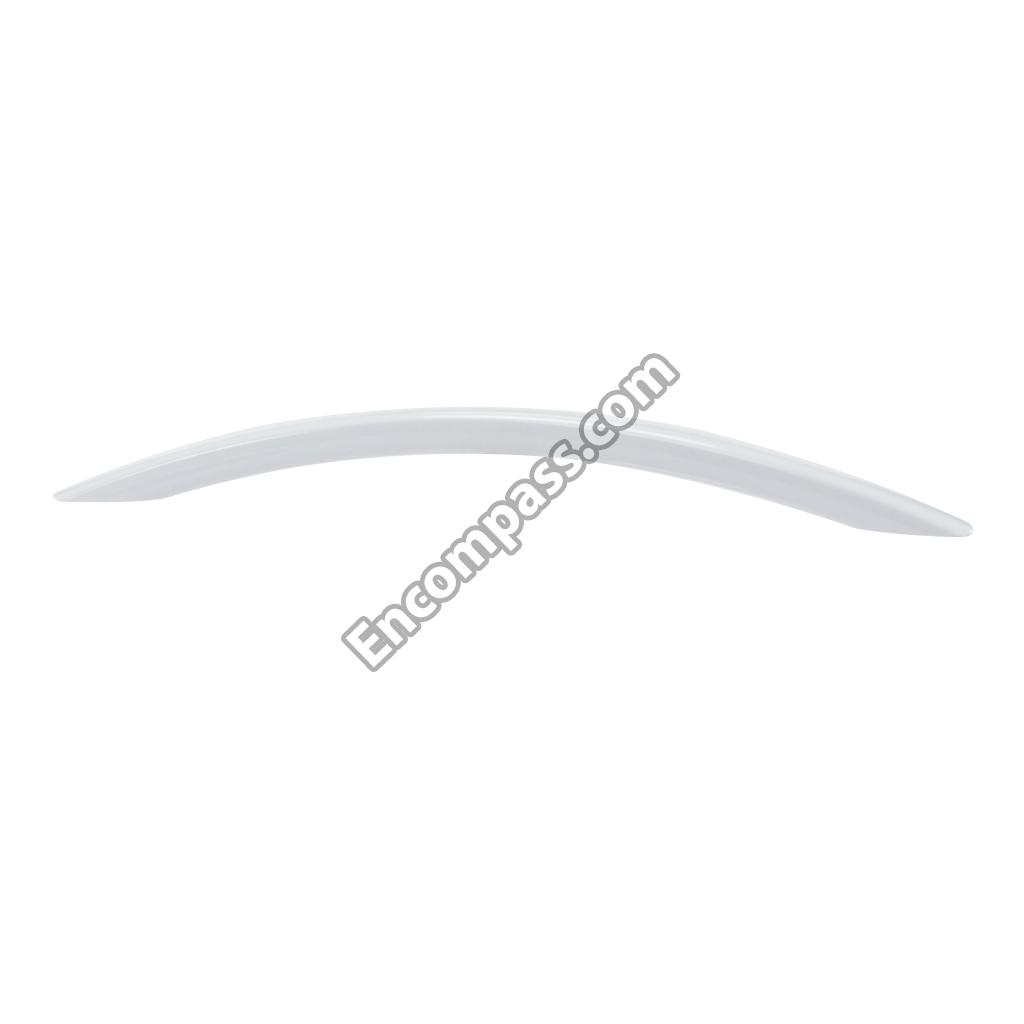

W11110542 W11110542 HANDLE
W10703867 W10703867 HEATER
W10878507 W10878507 HOSE
W10445975 W10445975 HOSE ASSEMBLY (INCLUDES 2 CLAMPS)
8269144A 8269144A HOSE,DRAIN
WPW10588164 WPW10588164 HOUSING,ADJUSTER (INCLUDES SPRING AND LEVER) (LEFT HAND)
WPW10588165 WPW10588165 HOUSING,ADJUSTER (INCLUDES SPRING AND LEVER) (RIGHT HAND)
W10873429 W10873429 HOUSING,OVERFILL (ALSO ORDER ITEM 11)

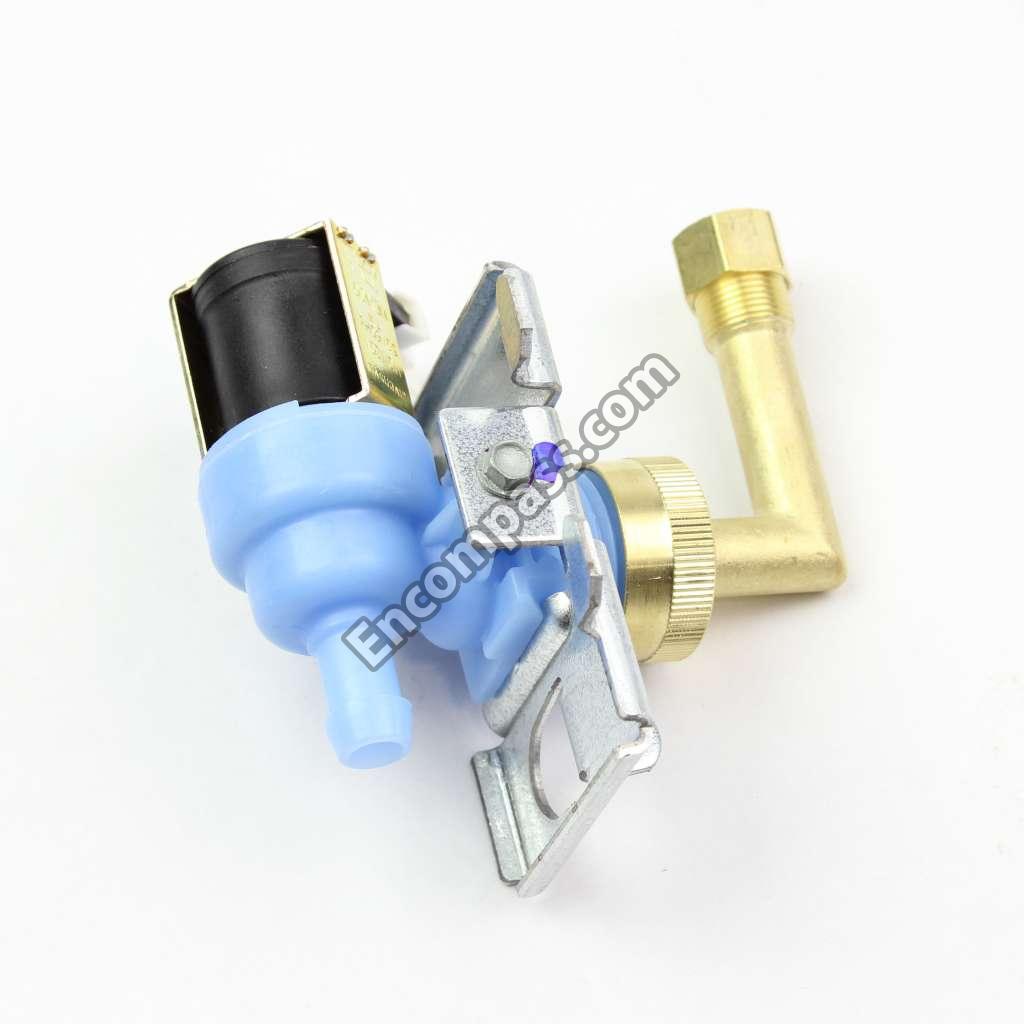

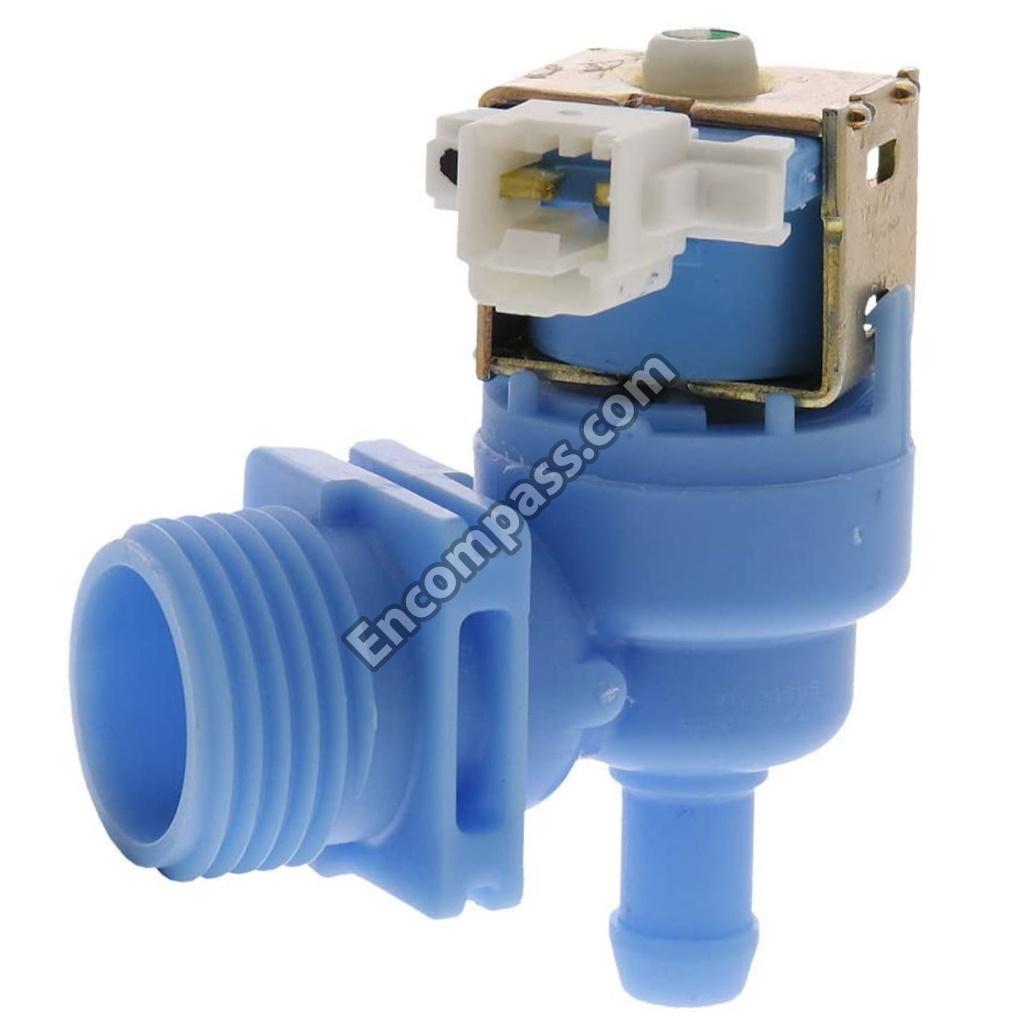

W11175771 W11175771 INLET VALVE
WPW10195536 WPW10195536 INLET,WATER (ALSO ORDER ITEM 4)

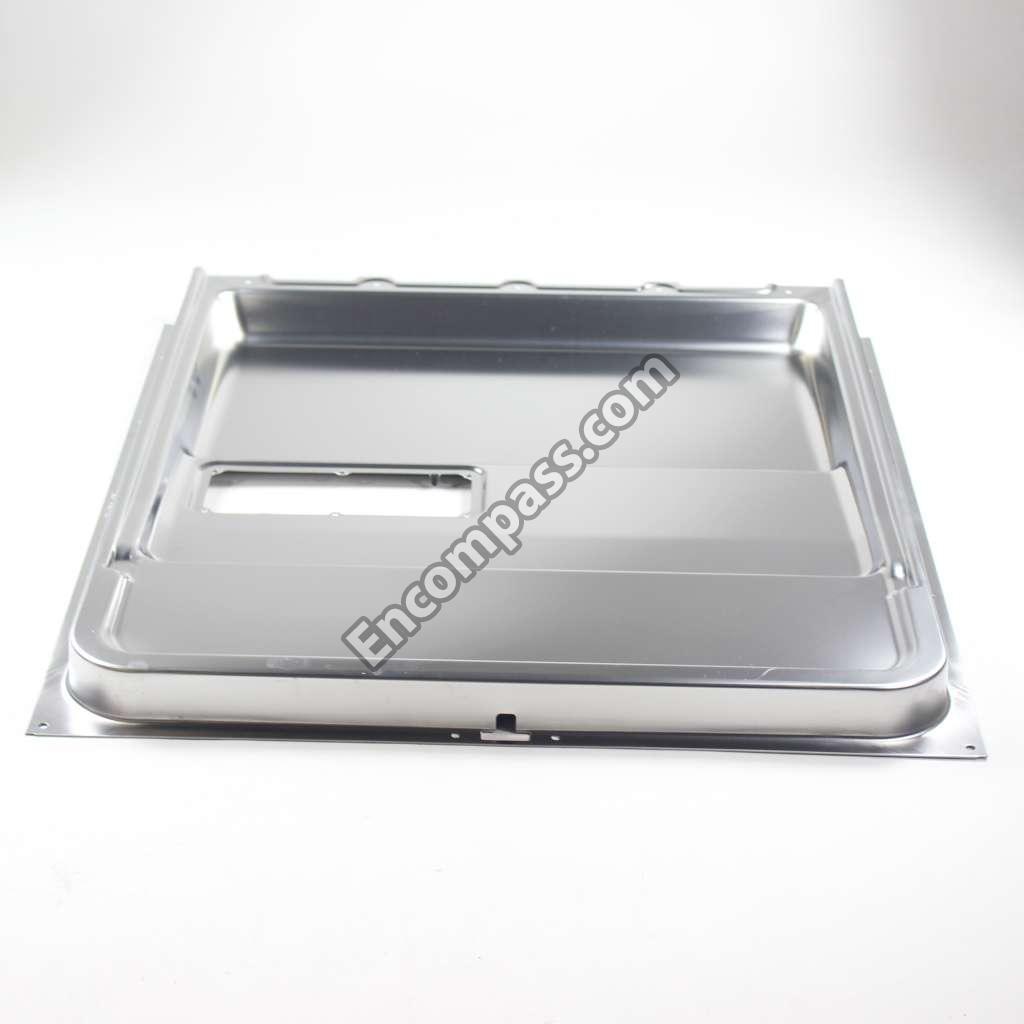

WPW10480715 WPW10480715 INNER DOOR
W10579129 W10579129 INSTRUCTIONS, INSTALLATION
WPW10073520 WPW10073520 INSULATION,DOOR
W10831329 W10831329 INSULATION,TOE PANEL

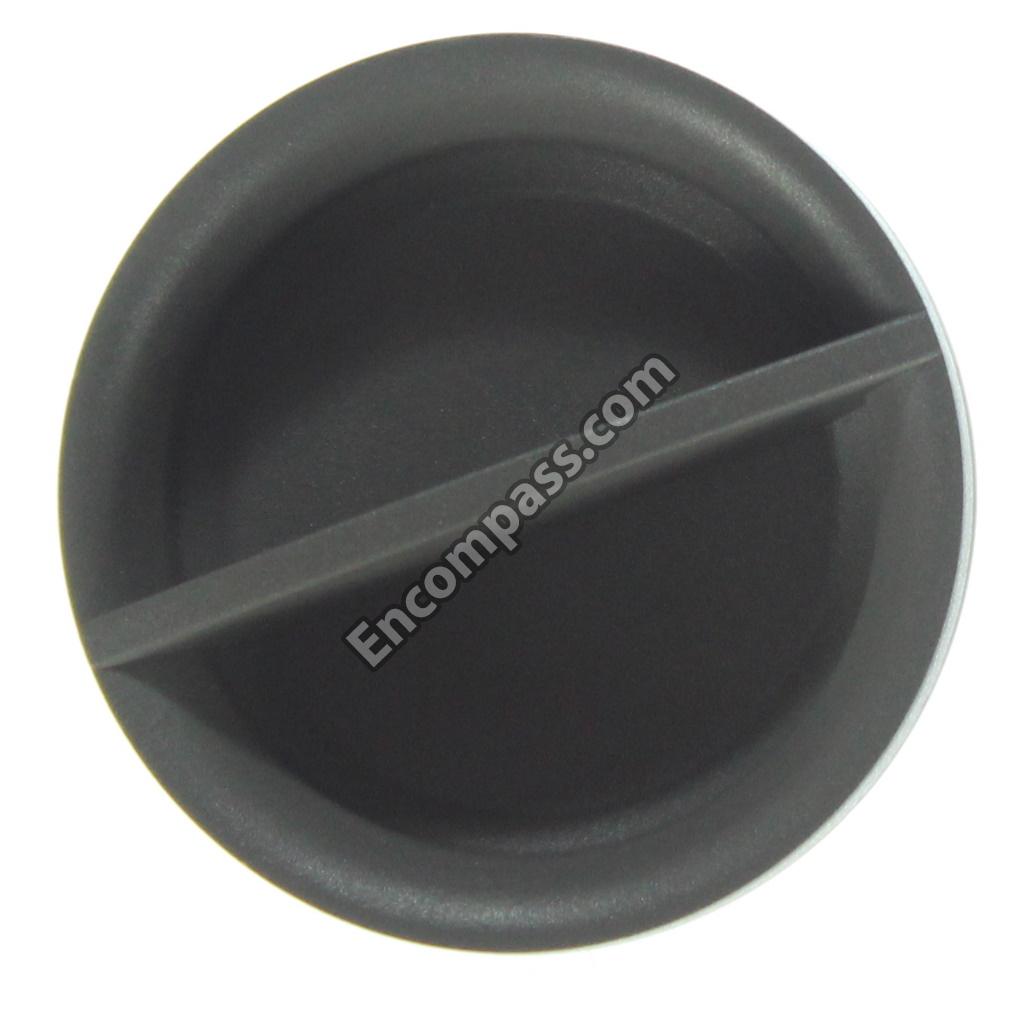

WPW10524919 WPW10524919 KNOB,RINSE
WPW10653840 WPW10653840 LATCH ASSEMBLY (INCLUDES SWITCH)
8193716 8193716 LEVELER,LEG

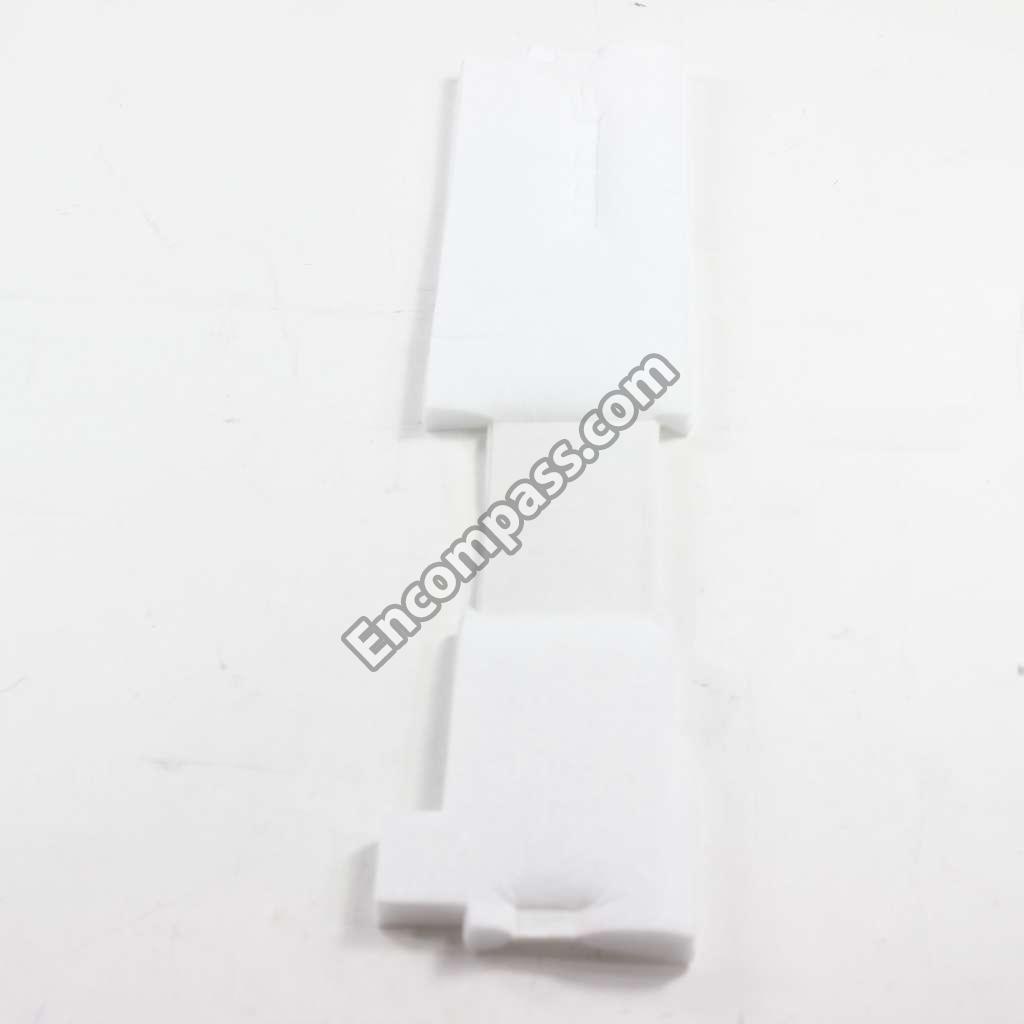

WPW10195037 WPW10195037 LEVER,OVERFILL SWITCH

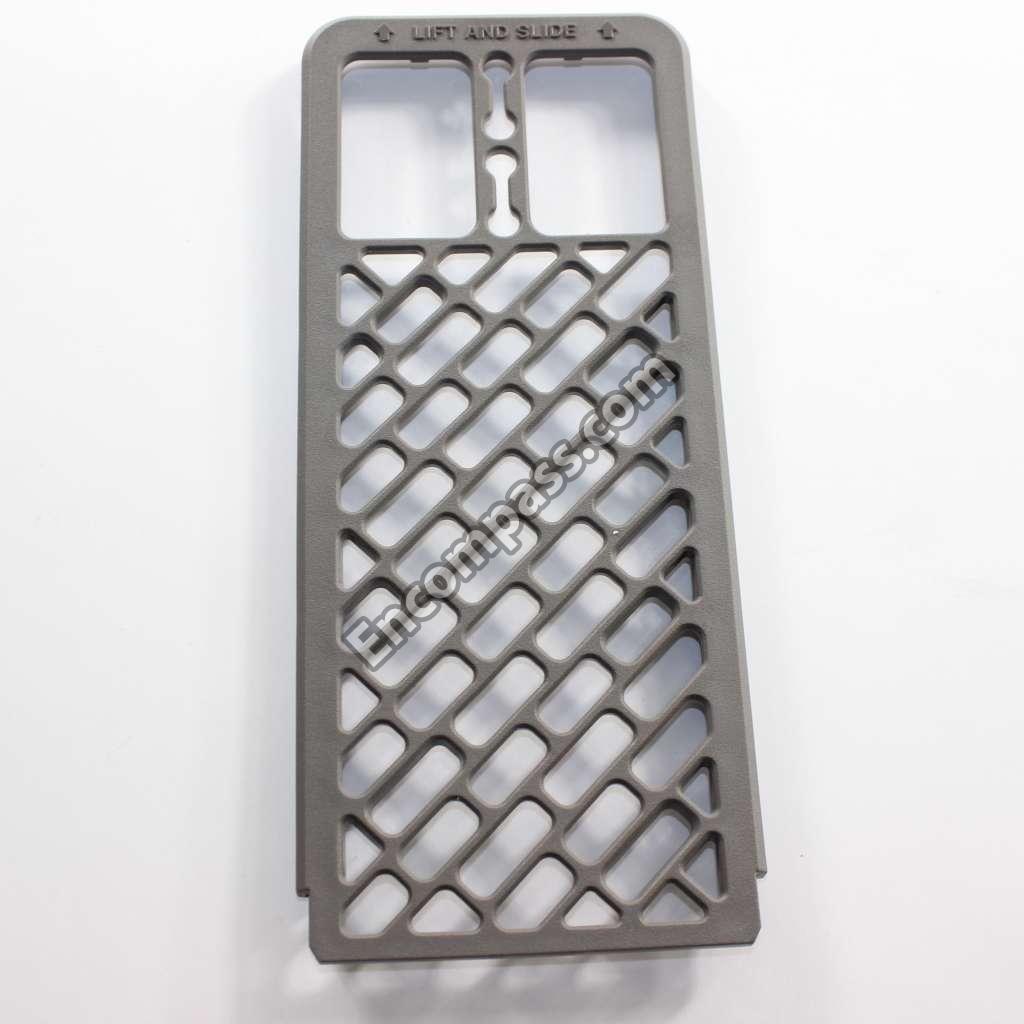

WPW10473835 WPW10473835 LID,SILVERWARE BASKET
W10319007 W10319007 LIGHT,PIPE

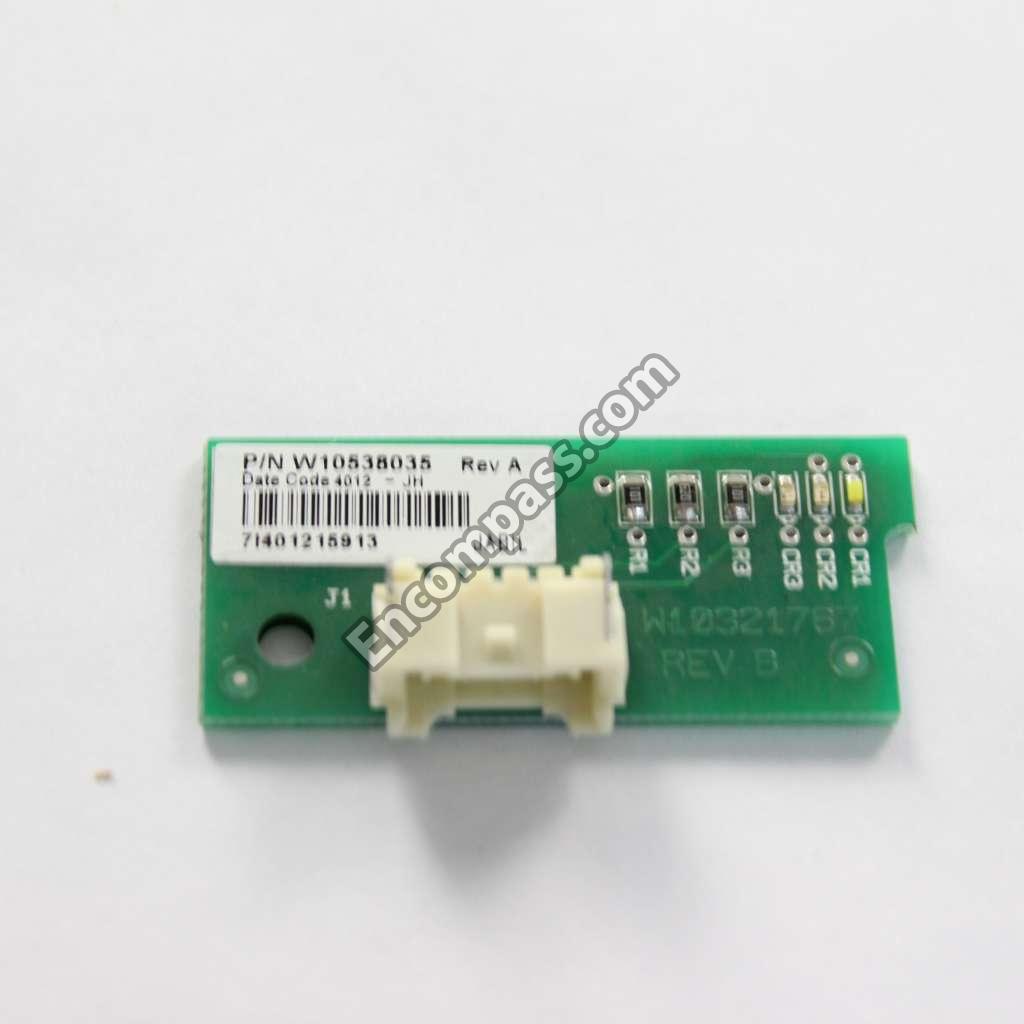

WPW10538035 WPW10538035 LIGHT-IND
8194001 8194001 LINK
WPW10340542 WPW10340542 MANIFOLD
WPW10292152 WPW10292152 MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS,2 CLAMPS,& 2 BRACKETS)
W10894668 W10894668 MOTOR (ALSO ORDER ITEMS 9 & 11)
W10537869 W10537869 MOTOR,DIVERTER
WPW10531320 WPW10531320 MOTOR,DRAIN
W11243394 W11243394 MOTOR,ISOLATOR
WP8564899 WP8564899 MOUNT,TRACK
WPW10243392 WPW10243392 NAMEPLATE (BLACK)
WPW10243391 WPW10243391 NAMEPLATE (GREY)
WPW10243393 WPW10243393 NAMEPLATE (WHITE)
W10446558 W10446558 NUT
WPW10477552 WPW10477552 NUT,HEATER ELEMENT
WPW10195038 WPW10195038 NUT,STANDPIPE
WPW10213825 WPW10213825 NUT,WATER INLET (ALSO ORDER ITEM 4)

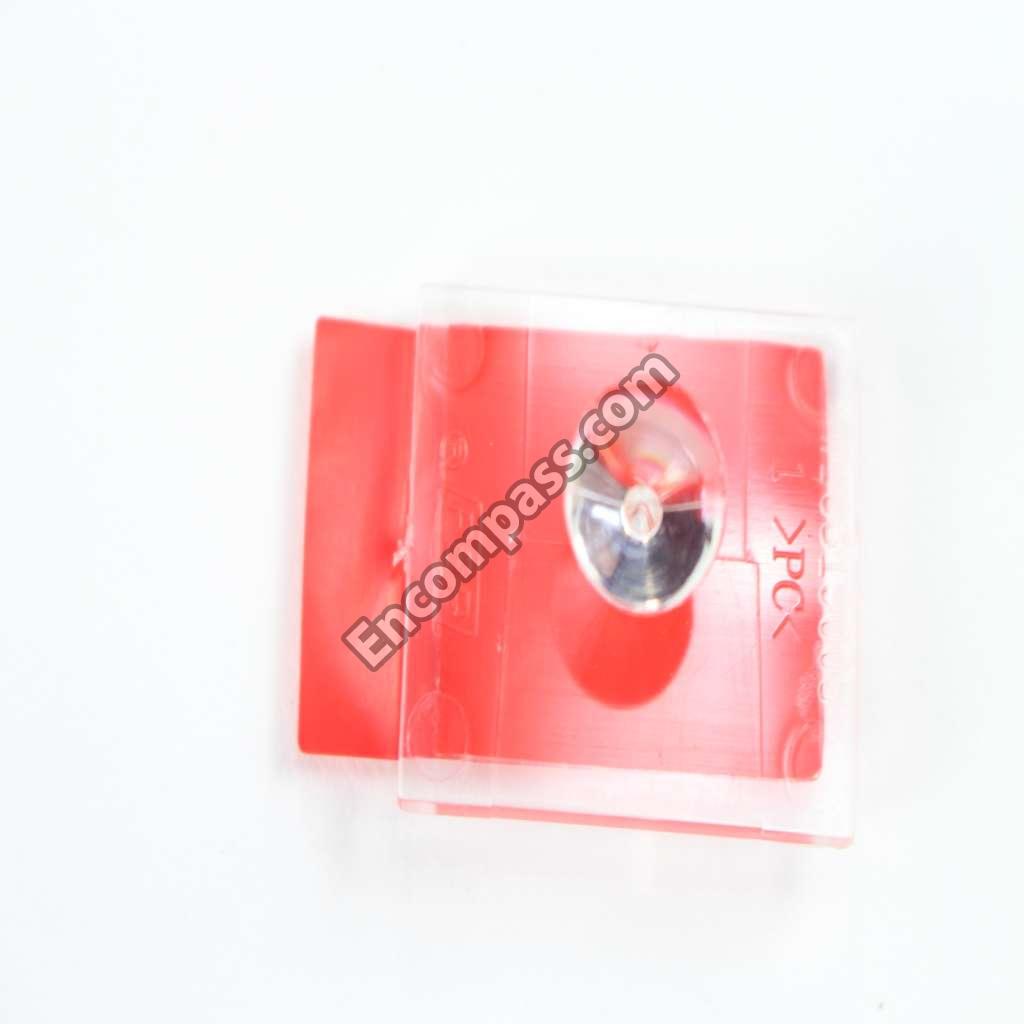

WPW10705575 WPW10705575 OPTICAL WATER INDICATOR
4392900 4392900 PAINT,BULK (1 QT. BISCUIT/BISQUE)
799344 799344 PAINT,BULK (1 QT. WHITE)
4392901 4392901 PAINT,PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
285006 285006 PAINT,PRESSURIZED SPRAY (12 OZ. BLACK)
350930 350930 PAINT,PRESSURIZED SPRAY (12 OZ. WHITE)
4392899 4392899 PAINT,TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT,TOUCH-UP (1/2OZ. BLACK)
W10202939 W10202939 PAINT,TOUCH-UP (1/2OZ. METEORITE)
72017 72017 PAINT,TOUCH-UP (1/2OZ. WHITE)
WPW10195873 WPW10195873 PANEL,FRONT (INCLUDES 4,10,11 & 16) (BLACK)

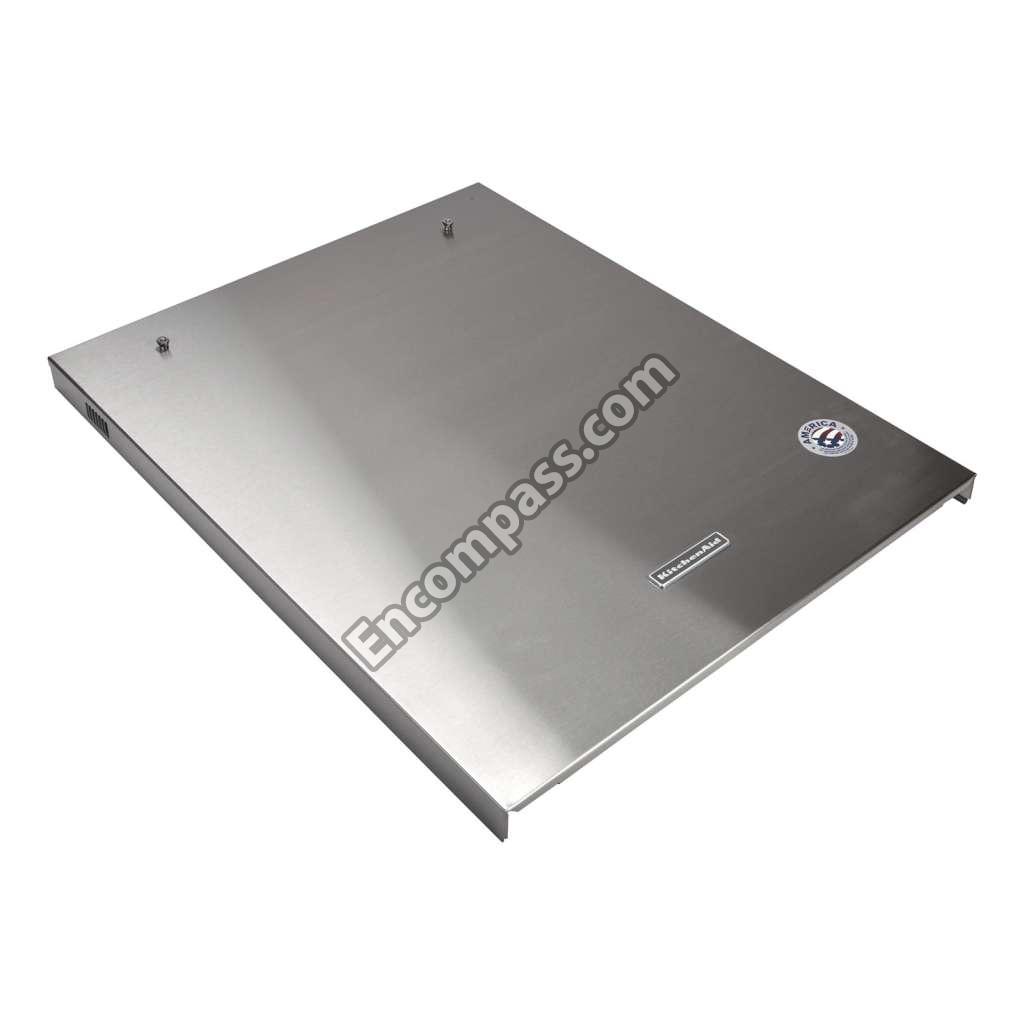

WPW10195870 WPW10195870 PANEL,FRONT (INCLUDES 4,10,11 & 16) (STAINLESS)
WPW10195872 WPW10195872 PANEL,FRONT (INCLUDES 4,10,11 & 16) (WHITE)
W10579109 W10579109 PANEL-CNTL
W10795980 W10795980 PLUG,TUB
WPW10195840 WPW10195840 POSITIONER,ADJUSTER
4317824 4317824 POWER CORD KIT (INCLUDED CORD & MISC. HARDWARE)
WPW10455260 WPW10455260 PUMP & MOTOR

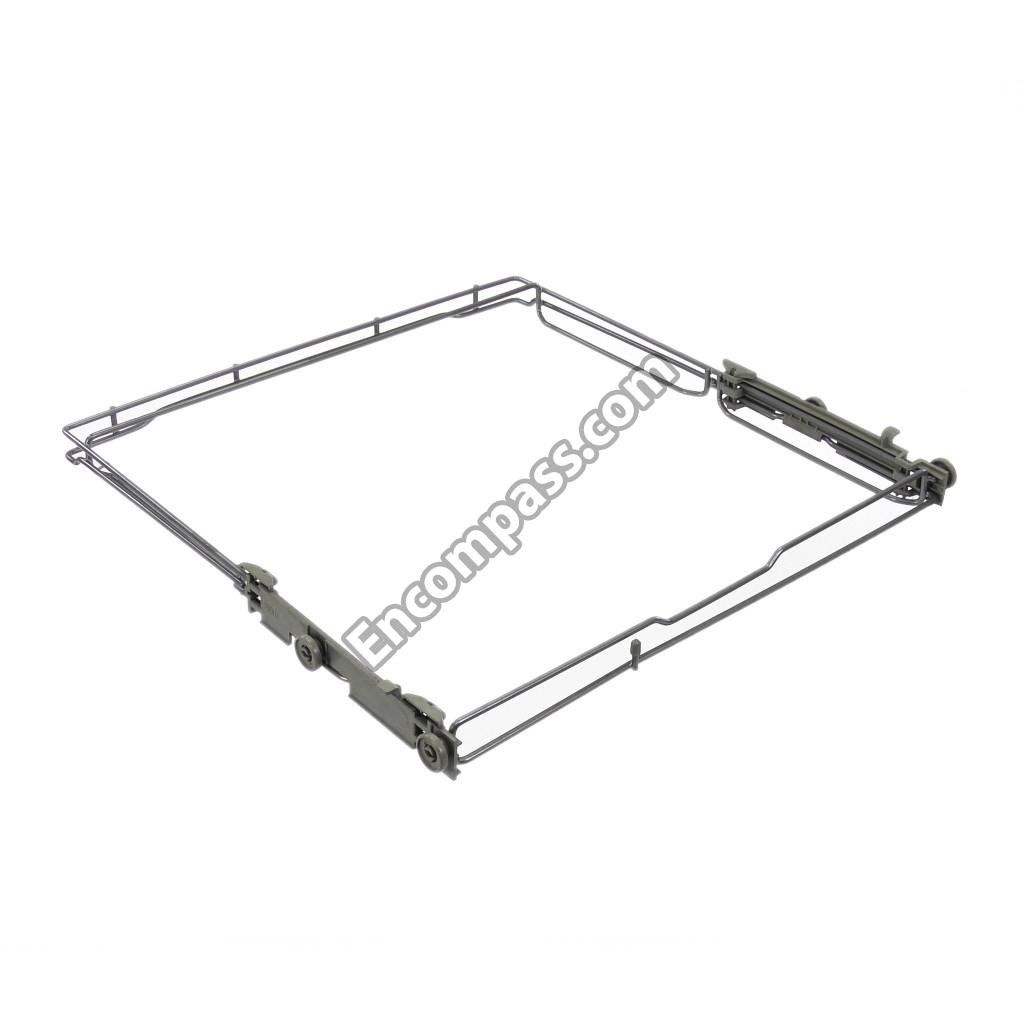

WPW10275189 WPW10275189 RACK ASSEMBLY (THIRD LEVEL)
WP304666 WP304666 RETAINER
WP3400918 WP3400918 RETAINER
WP3400924 WP3400924 RETAINER,PUSH IN
WPW10078215 WPW10078215 RETAINER,TINE ROW COMBO
WPW10463906 WPW10463906 SCREEN

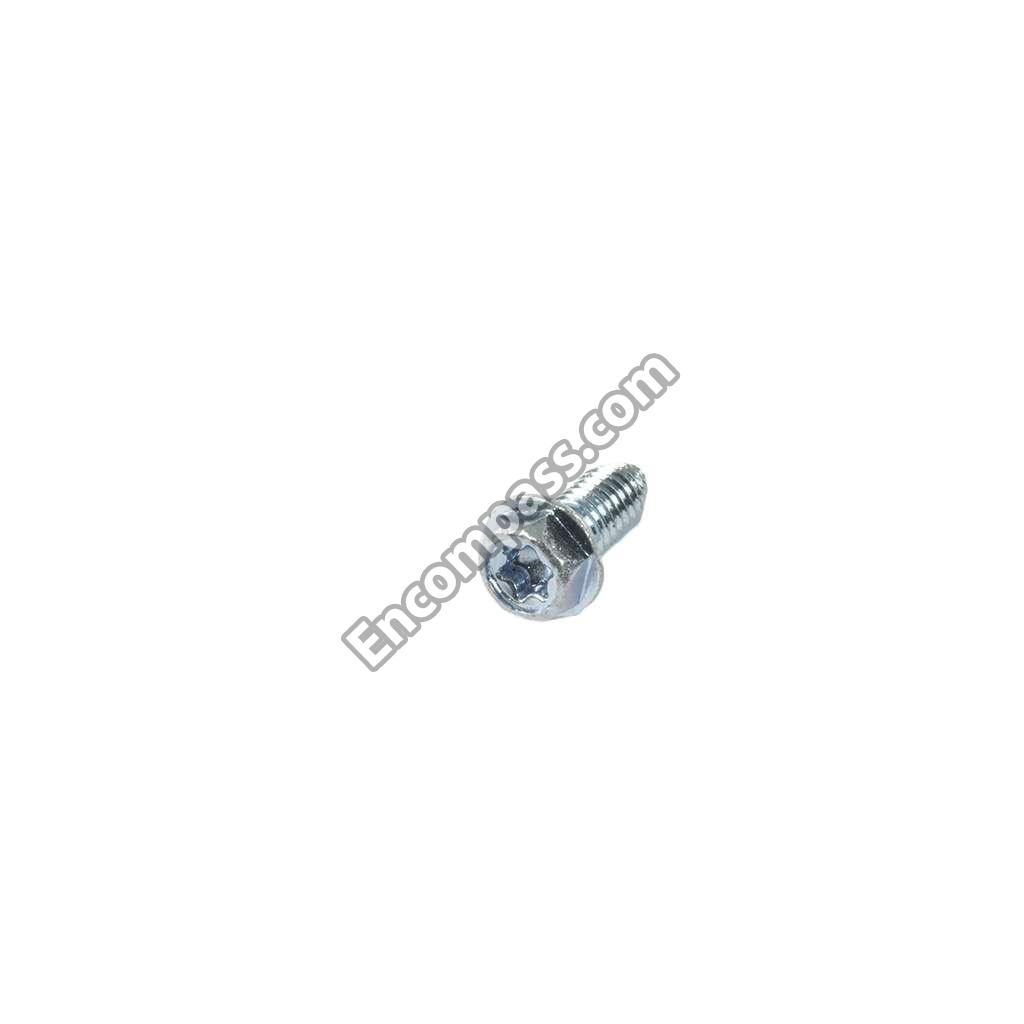

WP308685 WP308685 SCREW
WP489069 WP489069 SCREW
W10826179 W10826179 SCREW
WPW10307614 WPW10307614 SCREW
WP3400071 WP3400071 SCREW
WPW10348408 WPW10348408 SCREW
WPW10348409 WPW10348409 SCREW
W11631670 W11631670 SCREW
WPW10177098 WPW10177098 SCREW
WP3390631 WP3390631 SCREW
WP3400074 WP3400074 SCREW
WPW10348411 WPW10348411 SCREW
WPW10277003 WPW10277003 SCREW
WP9741232 WP9741232 SCREW
WPW10348407 WPW10348407 SCREW
WPW10309090 WPW10309090 SCREW
WP3400014 WP3400014 SCREW,GROUNDING
W10864081 W10864081 SEAL,CABINET
WPW10195007 WPW10195007 SEAL,CONSOLE/DOOR
WPW10497235 WPW10497235 SEAL,DOOR BOTTOM
W10292870 W10292870 SHIELD,THERMOSTAT
W11086533 W11086533 SHIELD,TUB SOUND
WPW10746770 WPW10746770 SOUND INSULATION,BOTTOM
W10195630 W10195630 SPACER,TUB BRACE (LEFT HAND)
W10195631 W10195631 SPACER,TUB BRACE (RIGHT HAND)
WPW10448645 WPW10448645 SPRAYARM
WPW10327455 WPW10327455 SPRAYARM,THIRD LEVEL
WP8270020 WP8270020 SPRING,DOOR BALANCE
W11544573 W11544573 STOP,TRACK
W10337661 W10337661 STRAIN RELIEF
WPW10195839 WPW10195839 STRAP,TETHER ADJUSTER
WPW10544004 WPW10544004 STRIKE,LATCH

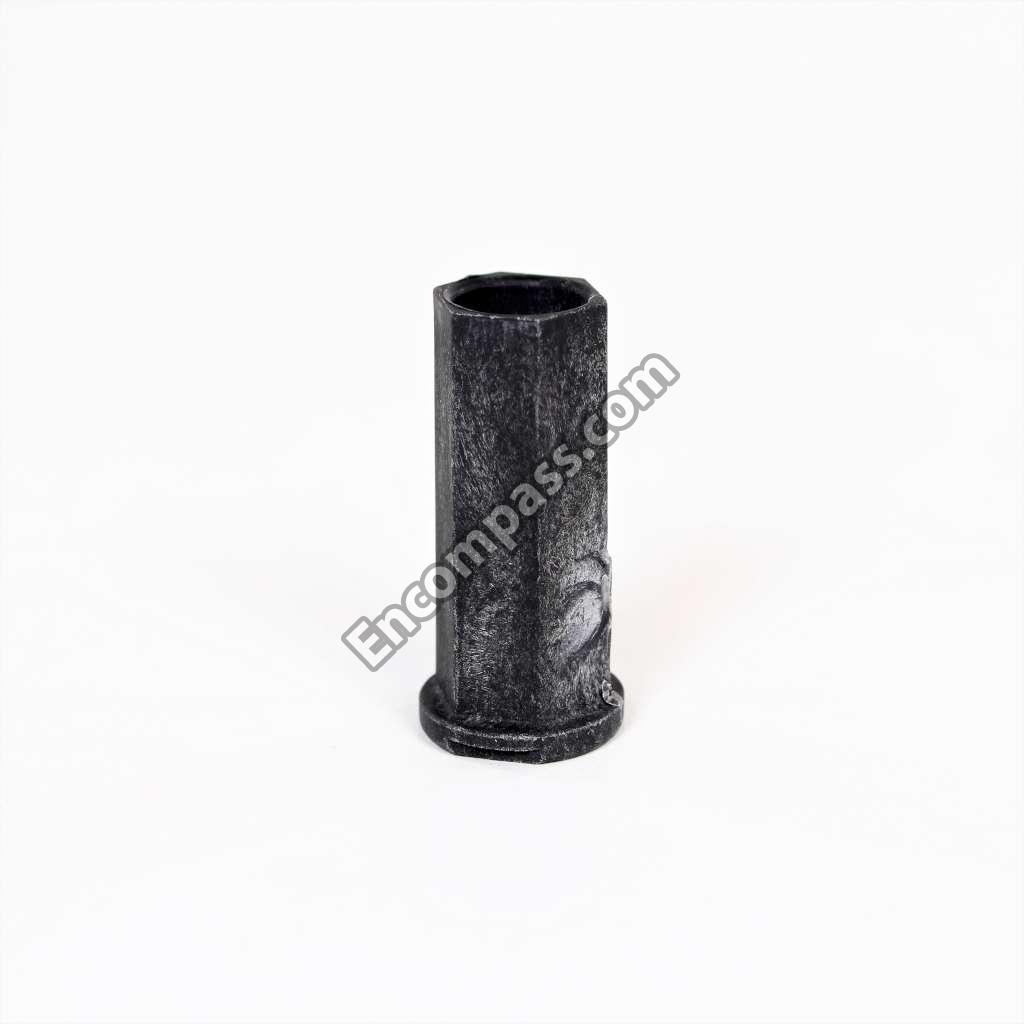

W11157086 W11157086 STUD,MOUNTING

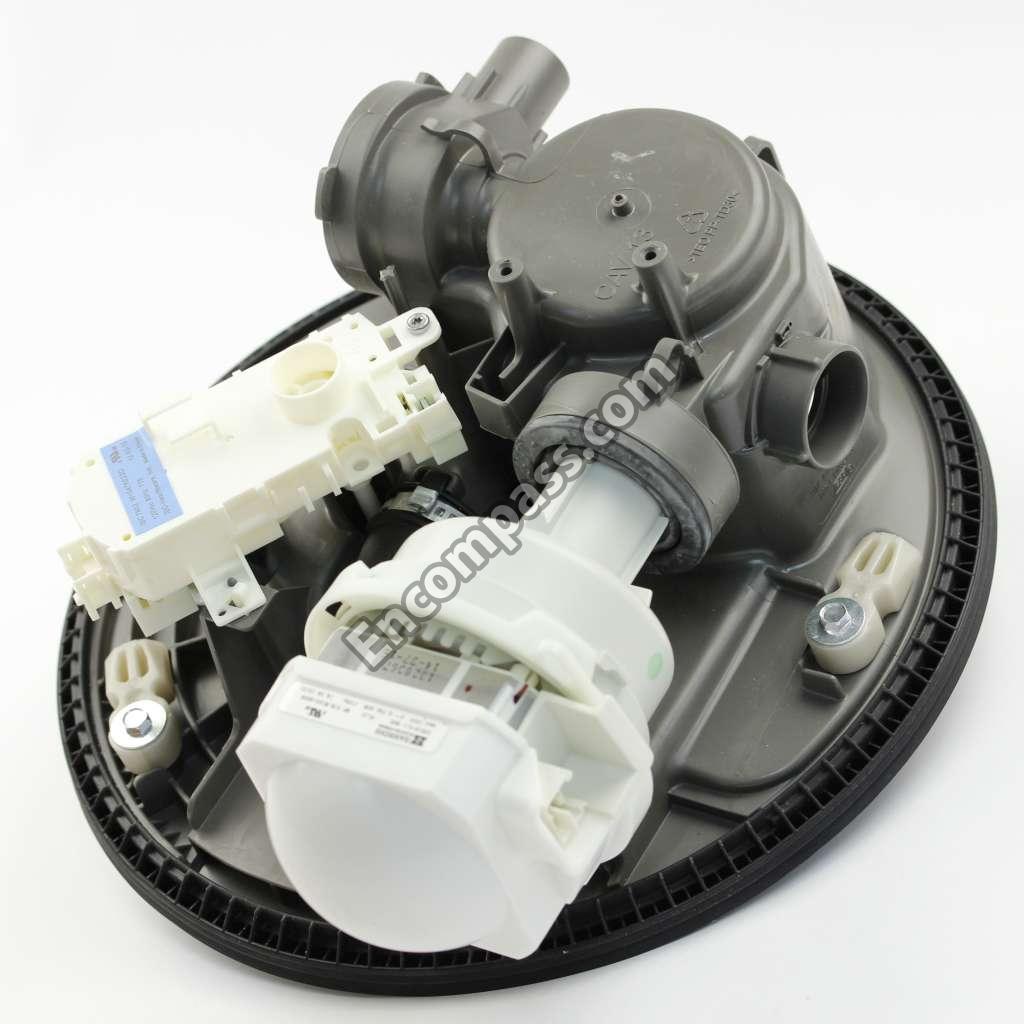

WPW10455268 WPW10455268 SUMP WITH SEAL (ALSO ORDER ITEMS 5 & 18)
WPW10681564 WPW10681564 SUPPORT ASSEMBLY,REAR
WPW10195039 WPW10195039 SWITCH,OVERFILL CONTROL
WPW10372113 WPW10372113 TAB,SUMP
W10543820 W10543820 TECH SHEET, ENGLISH
W10543821 W10543821 TECH SHEET, FRENCH
WPW10195091 WPW10195091 THERMOSTAT
W10728160 W10728160 TINE ROW,FOLD DOWN

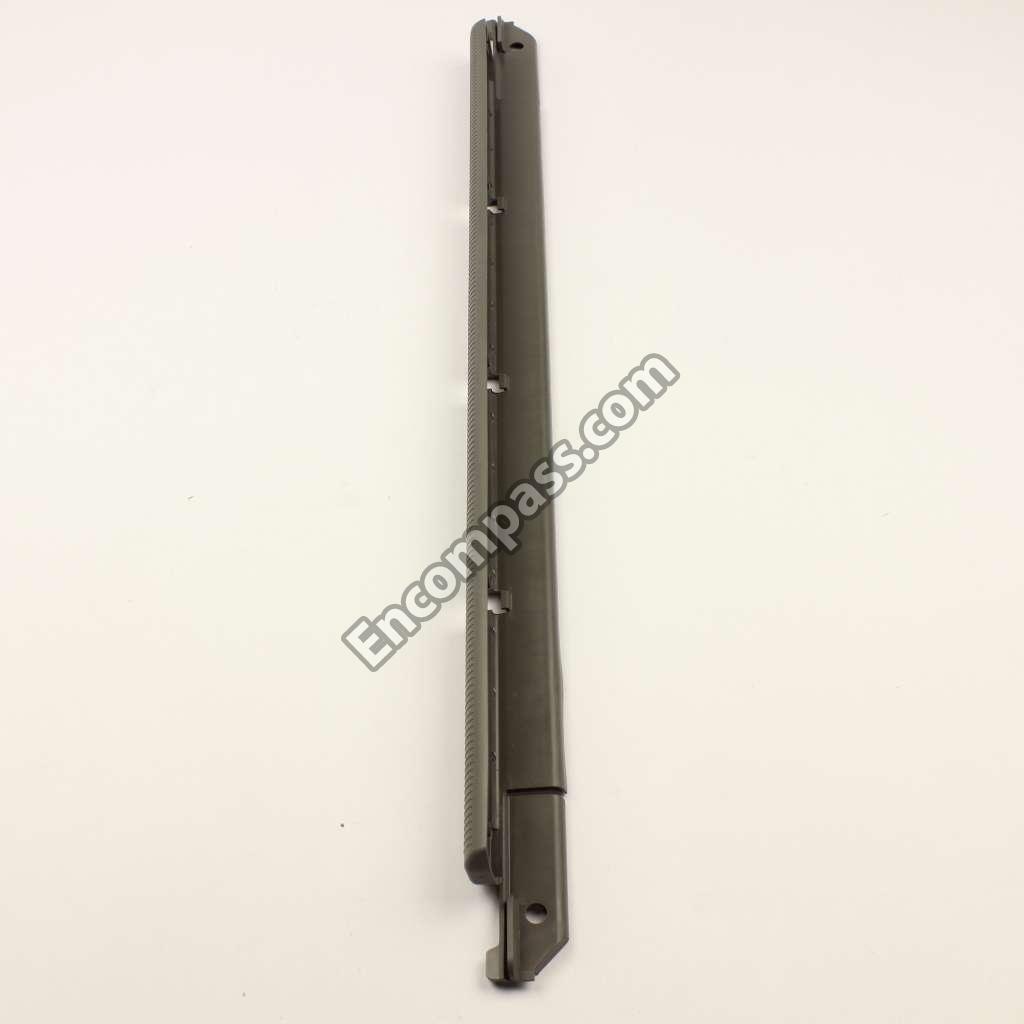

WPW10195238 WPW10195238 TRACK ASSEMBLY (LEFT HAND)
WPW10195240 WPW10195240 TRACK ASSEMBLY (RIGHT HAND)
W11259785 W11259785 TRACK,ASSEMBLY (LEFT HAND)
W11259786 W11259786 TRACK,ASSEMBLY (RIGHT HAND)
WPW10681506 WPW10681506 TUB-DISHWR
W10579120 W10579120 USE & CARE GUIDE
WP3378128 WP3378128 WASHER,PRONGED CUP
WPW10195417 WPW10195417 WHEEL & TRANSPORT ASSEMBLY
WPW10190778 WPW10190778 WHEEL LEG
W10528492 W10528492 WIRE

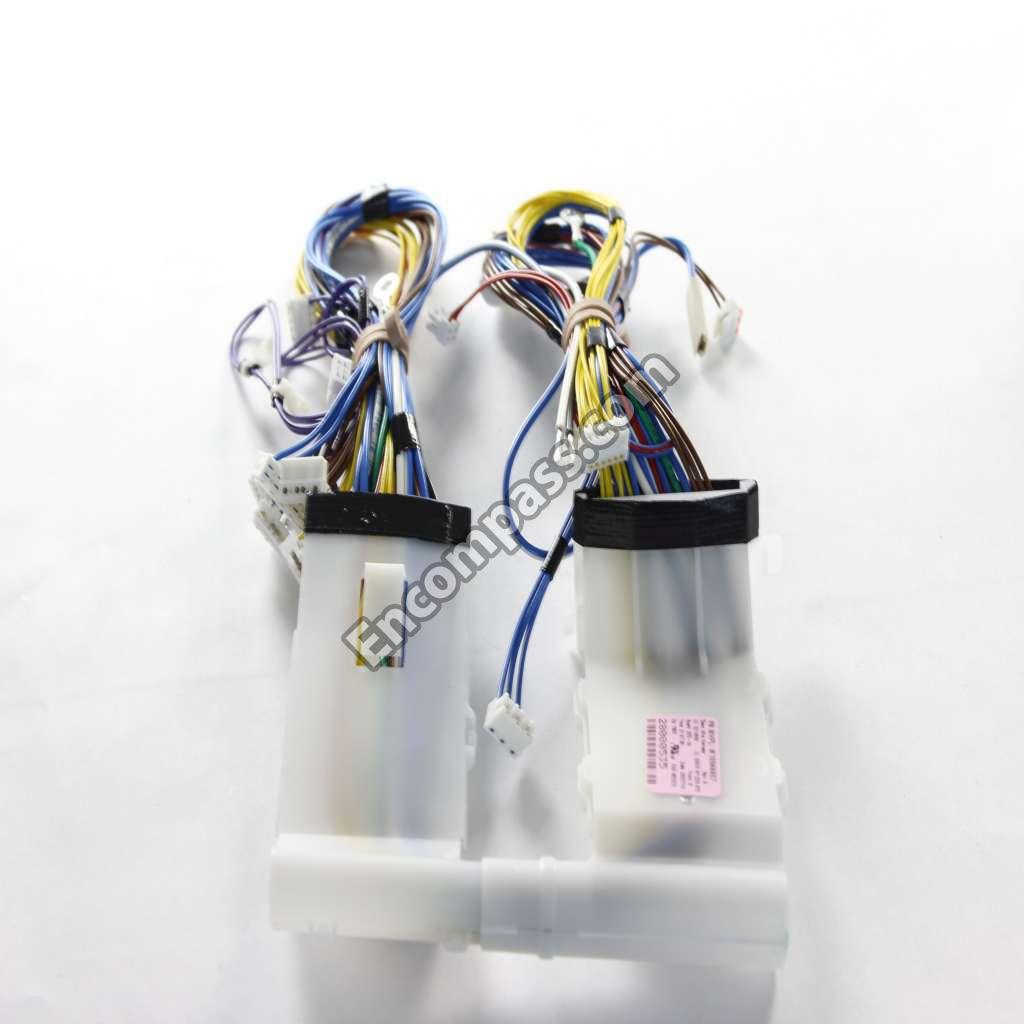

W10911101 W10911101 WIRING HARNESS
