Model Image
Manufacturer

Whirlpool

Model Number

KDTM604KBS0

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
W11551430 W11551430 ADJUSTER
W11551537 W11551537 ADJUSTER

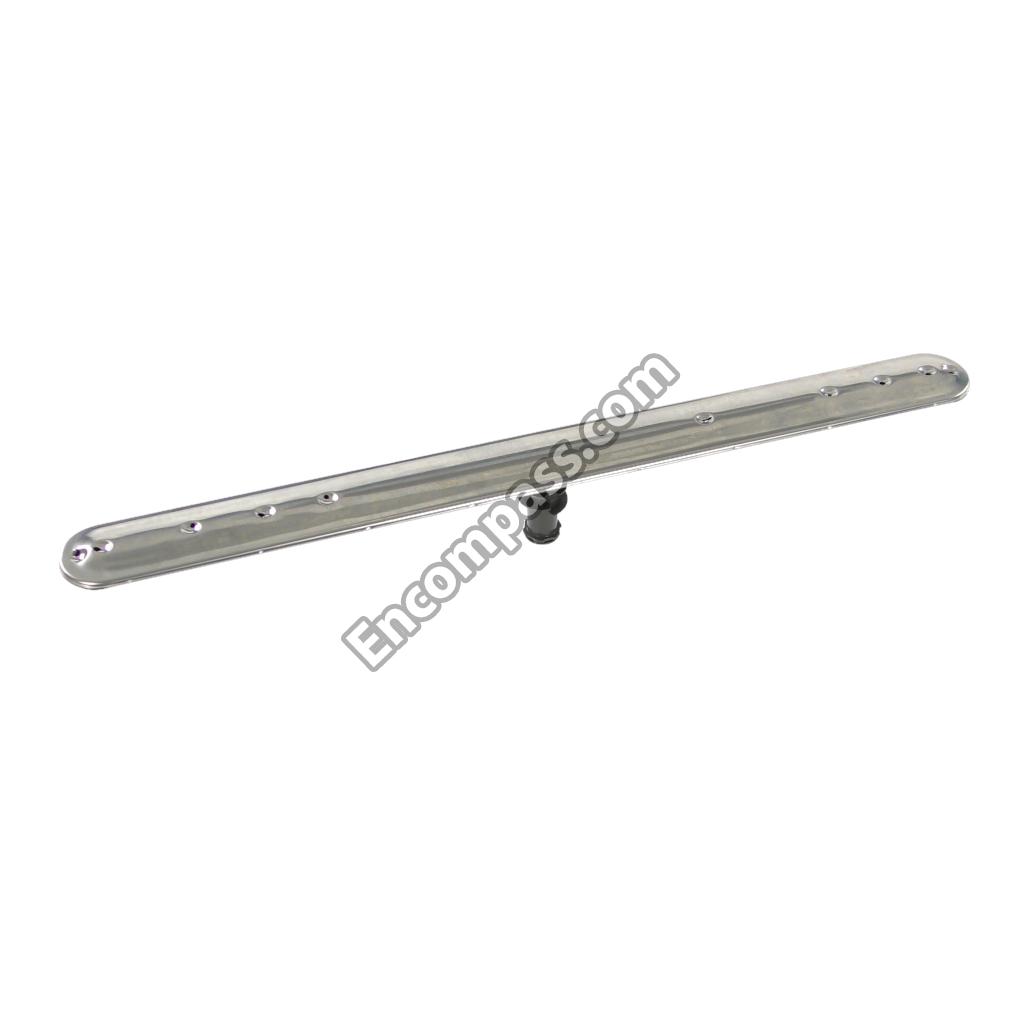

W11573766 W11573766 ARM-SPRAY
W11550888 W11550888 ARM-SPRAY
W10692757 W10692757 BARREL NUT, FRONT PANEL
4396277 4396277 BARRIER KIT
W11226744 W11226744 BASE, TERMINAL BOX
W11414076 W11414076 BASE-PUMP
W11690650 W11690650 BASKT-WARE
W11643665 W11643665 BASKT-WARE
W11025963 W11025963 BRACKET, REAR MOTOR
W11163419 W11163419 BRACKET, THERMOSTAT
WP8269145 WP8269145 BRCKT-MTG
W11267699 W11267699 BUTTON, ADJUSTER ARM
W11573757 W11573757 CAP
W11662065 W11662065 CAPACITOR
WP596669 WP596669 CLAMP
W11545578 W11545578 CLAMP
W10783615 W10783615 CLAMP
WP285655 WP285655 CLAMP
W11545820 W11545820 CLIP
W11596052 W11596052 CLIP
W10685193 W10685193 COMPRESSION HOSE FITTING, WATER LINE
W11416458 W11416458 CONSOLE

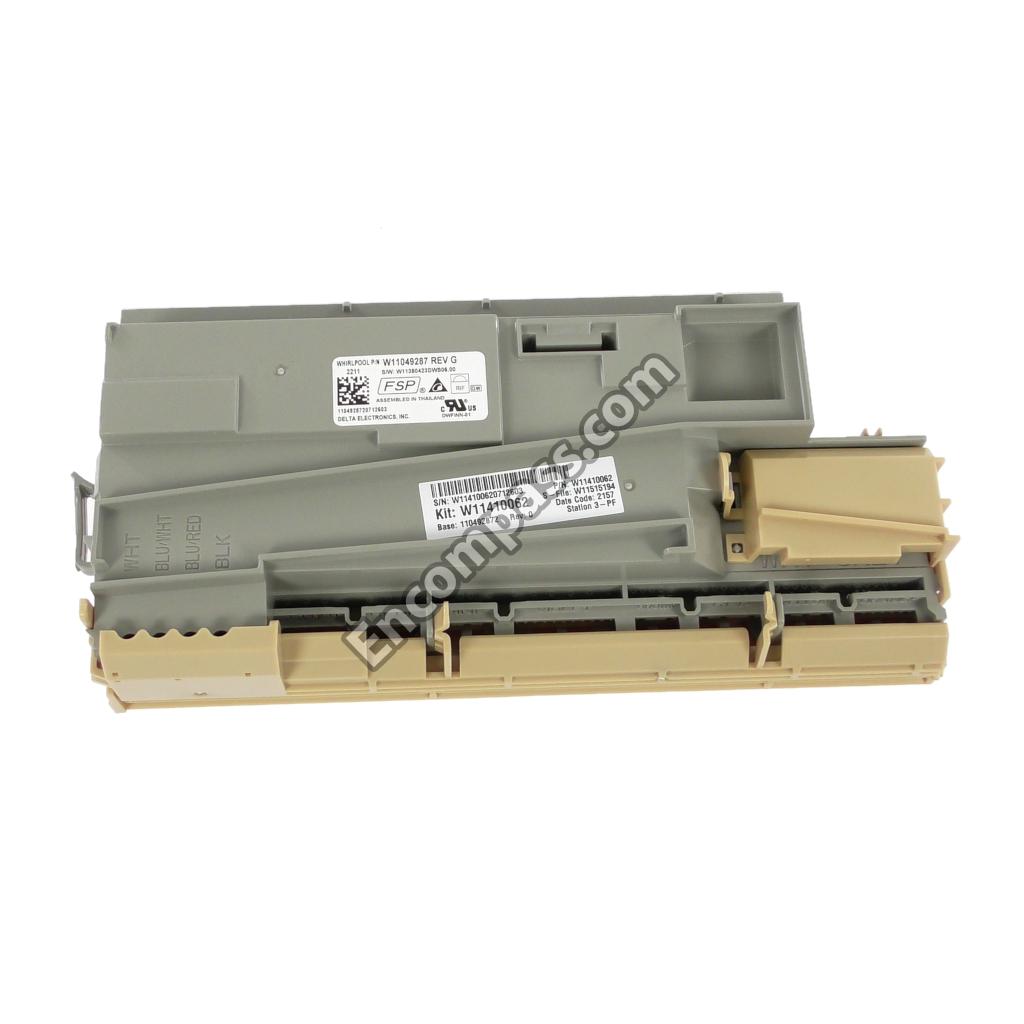

W11410062 W11410062 CONTROL BOARD
W11101860 W11101860 COVER, WASH TUBE
W11407385 W11407385 COVR-BOX
W11377160 W11377160 CROSS BRACE, DOOR
W11202101 W11202101 CUP GUARD
W11545290 W11545290 DEFLECTOR
W11662107 W11662107 DIFFUSER
W10891545 W10891545 DIFFUSER, INLET
W11690882 W11690882 DISHRACK
W11498446 W11498446 DISHRACK
W11672788 W11672788 DISHRACK
W11412300 W11412300 DISPENSER
W11679656 W11679656 DIVERTER
W11412299 W11412299 DOOR DOOR LATCH
W11712996 W11712996 DOOR HINGE
W11712995 W11712995 DOOR HINGE
W11559689 W11559689 DOOR-INNER
W11412291 W11412291 DRAIN PUMP
W11550169 W11550169 DRIPTRAY
W11038734 W11038734 DUCT, VENT
W11404477 W11404477 ENERGY GUIDE
W11381654 W11381654 EXTERNAL DRAIN HOSE, 12 FT
W11104048 W11104048 FASTENER
W10278635RP W10278635RP FILL HOSE KIT
W11643383 W11643383 FILTR-PUMP
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
W11025988 W11025988 FUNNEL EXTENSION
W11025986 W11025986 FUNNEL, OVERFILL PROTECTION
W11397505 W11397505 FUSE, IN-LINE
W11483553 W11483553 GASKET
W11545539 W11545539 GASKET
W10708004 W10708004 HANDLE ASSEMBLY (STAINLESS)
W11392620 W11392620 HANDLE, DISHRACK FRONT
W11268682 W11268682 HANDLE, DISHRACK FRONT
W11268681 W11268681 HANDLE, DISHRACK REAR
W11088985 W11088985 HANGER, CONTROL
W11294350 W11294350 HANGER, FRONT MOTOR
W11537778 W11537778 HEATER
W11419333 W11419333 HOSE
W11419334 W11419334 HOSE
W11551233 W11551233 HOSE-DRAIN
W11414944 W11414944 HOSE-DRAIN
W11627534 W11627534 HOSE-FILL
W11434044 W11434044 INLET VALVE
W11535094 W11535094 INLET-WATR
W11579566 W11579566 INSERT
W10919861 W10919861 INSULATION, FRONT PANEL
W11294352 W11294352 ISOLATOR, FRONT MOTOR
W11036663 W11036663 ISOLATOR, REAR MOTOR
W11180178 W11180178 LEVELER, ADJUSTER ARM
W11561254 W11561254 LEVLER-LEG
W11267718 W11267718 LID, SILVERWARE BASKET
W11102920 W11102920 LIGHT PIPE
W11677712 W11677712 MANIFOLD
W11568642 W11568642 MANIFOLD
W11573754 W11573754 MANIFOLD
W11545334 W11545334 MANIFOLD
W11569162 W11569162 MOUNT
W11551395 W11551395 MOUNT
W10909682 W10909682 NAMEPLATE
W11545286 W11545286 NUT
W11538351 W11538351 NUT-TERMNL
W11535081 W11535081 NUT-TUBE
W11323304 W11323304 OWNERS MANUAL
W11416374 W11416374 PANEL
W11702836 W11702836 PANEL
W11545318 W11545318 PANEL
W11579528 W11579528 PANEL-TOE
W11502191 W11502191 PARTS-MISC
W11627535 W11627535 PIVOT-TINE
W11179755 W11179755 POSITIONER
W11580020 W11580020 POSITIONER
W11365014 W11365014 POWER CORD KIT (RIGHT ANGLE)
W11365011 W11365011 POWER CORD KIT (STRAIGHT)
W11416362 W11416362 PUMP & MOTOR
W11736466 W11736466 RETAINER
W11690647 W11690647 RETAINER
W11590538 W11590538 RETAINER
W10892835 W10892835 RETAINER, DOCKING (3RD LEVEL)
W11268661 W11268661 RETAINER, SLIDING TINE ROW
W10380239 W10380239 RING, VOLUTE
W11568785 W11568785 SCREEN
W11708397 W11708397 SCREW
WP9741232 WP9741232 SCREW
WPW10277003 WPW10277003 SCREW
WP3400014 WP3400014 SCREW
W11551549 W11551549 SCREW
WPW10348409 WPW10348409 SCREW
WPW10213953 WPW10213953 SCREW
W11627527 W11627527 SCREW
W10917698 W10917698 SCREW
W10826179 W10826179 SCREW
W11676450 W11676450 SCREW
WPW10309090 WPW10309090 SCREW
W11545329 W11545329 SCREW
W11414078 W11414078 SEAL
W11412696 W11412696 SEAL
W11664713 W11664713 SEAL
W11410464 W11410464 SENSOR
W11553445 W11553445 SHIELD
W11573704 W11573704 SHIELD
W11573700 W11573700 SHIELD
W11579392 W11579392 STOP
W11545307 W11545307 STOP
4396672 4396672 STRAIN RELIEF, POWER CORD (METALLIC)
W11545309 W11545309 STRIKE
W11157086 W11157086 STUD
W11443104 W11443104 SUMP
W11679657 W11679657 SUPPORT
W11679658 W11679658 SUPPORT
W11545764 W11545764 SWITCH
W11366142 W11366142 TECH SHEET
W11573809 W11573809 TERM-BLOCK
W11573758 W11573758 THERMOSTAT
W10554952 W10554952 TINE ROW, SLIDING
W10728160 W10728160 TINE-ROW
W11727974 W11727974 TINE-ROW
W11561204 W11561204 TRACK
W11409866 W11409866 TUB-DISHWR
W11679655 W11679655 TUBE
W11744286 W11744286 TUBE-FEED
W11622925 W11622925 VALVE-CHEK
W11414073 W11414073 VENT
WP3378128 WP3378128 WASHER
W11551383 W11551383 WHEEL
W11545296 W11545296 WHEEL
W11580025 W11580025 WHEEL-TUB
W11553484 W11553484 WHEEL-TUB
W11561080 W11561080 WHEEL-TUB
W11678803 W11678803 WIRE HARNESS
W11662347 W11662347 WIRE HARNESS
W11690158 W11690158 WIRE HARNESS
