Model Image
Manufacturer

Whirlpool

Model Number

KEBS177WWH1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3177557 3177557 BACK, MODULE
3179778 3179778 BACKLIGHT (2)
4173173 4173173 BASE, OVEN LIGHT
4169372 4169372 BEZEL, SWITCH (BLACK)
3179707 3179707 BEZEL, SWITCH (WHITE OR ALMOND MODEL)
WP8203546 WP8203546 BLOCK-TERM
3177621 3177621 BOTTOM, MODULE
3177551 3177551 BOTTOM, OVEN
4173185 4173185 BRACKET GUARD
3179695 3179695 BRACKET, BUZZER
3177545 3177545 BRACKET, CONDUIT
3177747 3177747 BRACKET, CONTROL PANEL
4163855 4163855 BRACKET, GLASS MOUNTING (2)
3177433 3177433 BRACKET, HINGE
3177681 3177681 BRACKET, SWITCH
WP4173175 WP4173175 BULB, LAMP
4159035 4159035 BUSHING, ELECTRIC
3179914 3179914 BUZZER, MEAT PROBE
3177738 3177738 CABINET, BACK
3178136 3178136 CABINET, TOP
4173174 4173174 CAMERA LENS, OVEN LIGHT
WP308605 WP308605 CLAMP
7111P002-60 7111P002-60 CLAMP, WIRE 3/4
98005642 98005642 CLIP, BULB THERM.
3179848 3179848 CLIP, OVEN SEAL
3180844 3180844 CLIP, SPACER
3177804 3177804 CONTROL PANEL
4168203 4168203 COVER, CAP TUBE
3180815 3180815 COVER, FAN
4167277 4167277 COVER, JACK- LOCK NUT
3178254 3178254 DISC, SELECTOR
3178473 3178473 DISC, THERMOSTAT (SELF CLEAN) (2)
3178410 3178410 DOOR LATCH, MECHANISM
3177831 3177831 DOOR LATCH, STRIKE
3179710 3179710 DOOR, DOOR LATCH HANDLE (ALMOND)
3177972 3177972 DOOR, DOOR LATCH HANDLE (BLACK)
3179709 3179709 DOOR, DOOR LATCH HANDLE (WHITE)
4173238 4173238 E-RING
3180164 3180164 ELEMENT, BROIL
3178517 3178517 ELEMENT, CONVECTION
3178132 3178132 EXTENSION, SHELF
4173236 4173236 FAN
4173230 4173230 FLAT WASHER
3178574 3178574 FRAME, CONTROL PANEL (ALMOND)
3177758 3177758 FRAME, CONTROL PANEL (BLACK)
3178573 3178573 FRAME, CONTROL PANEL (WHITE)
3177674 3177674 FRAME, DOOR (ALMOND)
3177671 3177671 FRAME, DOOR (BLACK)
3177673 3177673 FRAME, DOOR (WHITE)
3185860 3185860 FRAME, FRONT
3179790 3179790 GASKET, FOAM
4163975 4163975 GASKET, MEAT PROBE
3179712 3179712 GLASS, CONTROL PANEL (ALMOND)
3177937 3177937 GLASS, CONTROL PANEL (BLACK)
3179711 3179711 GLASS, CONTROL PANEL (WHITE)
3179700 3179700 GLASS, DOOR (ALMOND)
3177768 3177768 GLASS, DOOR (BLACK)
3179699 3179699 GLASS, DOOR (WHITE)
4164243 4164243 GLASS, REFLECTIVE
3177662 3177662 GUARD, DOOR LATCH
LIT3177060 LIT3177060 GUIDE, USE & CARE
3178645 3178645 HANDLE, DOOR (ALMOND)
3178642 3178642 HANDLE, DOOR (BLACK)
3179114 3179114 HANDLE, DOOR (SCREW (2))
3178644 3178644 HANDLE, DOOR (WHITE)
3177969 3177969 HANDLE, DOOR LATCH
3179938 3179938 HARNESS ADAPTER MEAT PROBE
3179920 3179920 HARNESS WIRE
3179941 3179941 HARNESS WIRE DOOR SWITCH
3179937 3179937 HARNESS, WIRE MEAT PROBE
3178298 3178298 HINGE, DOOR (2)
3177971 3177971 HINGE, DOOR (2)
4173153 4173153 INDICATOR, LIGHT MEAT PROBE
3180130 3180130 INSERT, TOP (ALMOND)
4173163 4173163 INSERT, TOP (BLACK)
3180131 3180131 INSERT, TOP (WHITE)
3179916 3179916 INSERT, VENT
LIT3178195 LIT3178195 INSTALLATION INSTRUCTIONS
3177872 3177872 INSULATION, BACK
3180094 3180094 INSULATION, DOOR
3177718 3177718 INSULATION, RETAINER
3177862 3177862 INSULATION, WRAP
3178185 3178185 INSULATOR, SWITCH
3177923 3177923 INSULATOR, SWITCH
4168571 4168571 KNOB, (2) RETAINED HEAT

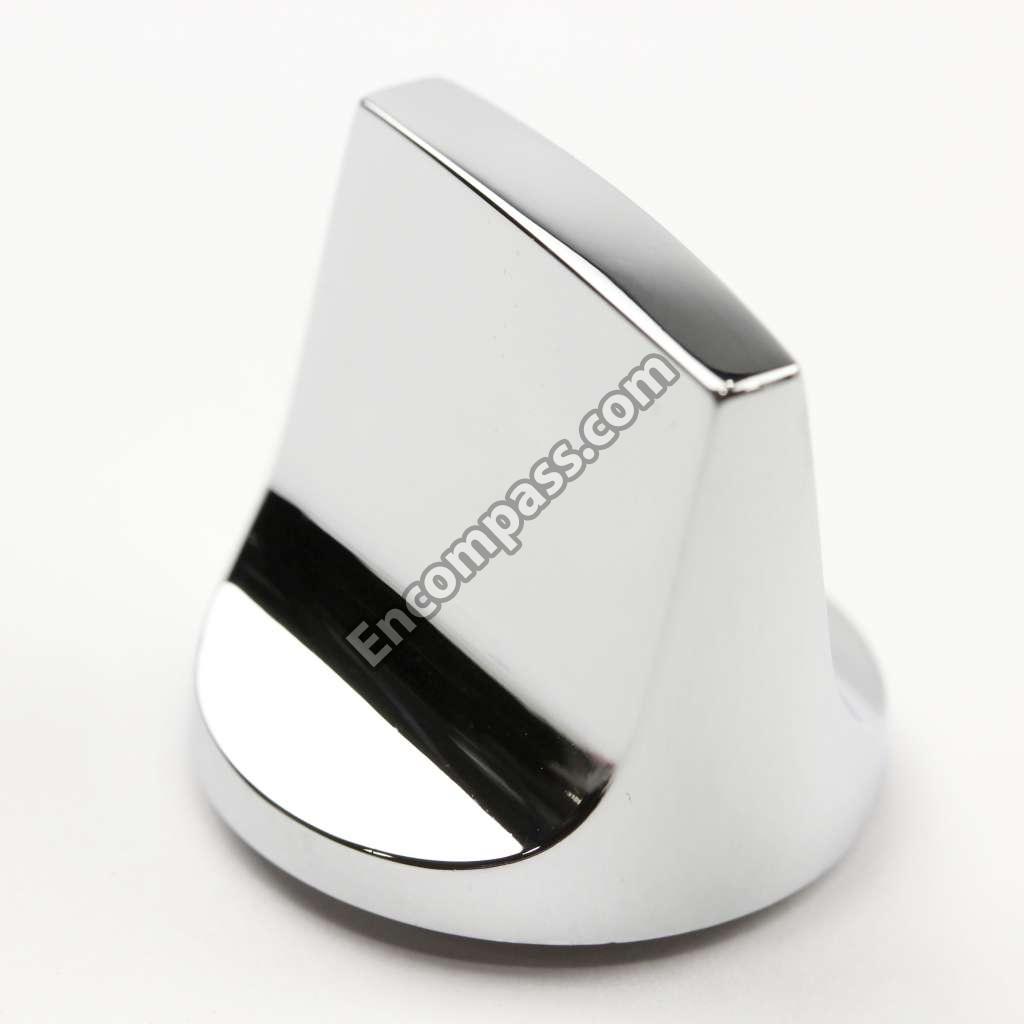

WP3178400 WP3178400 KNOB, CONTROL (2)
3184039 3184039 KNOB, DOOR LATCH HANDLE
3179704 3179704 KNOB, TIMER
3179705 3179705 KNOB, TIMER (2) (WHITE OR ALMOND MODEL)
4168598 4168598 LIGHT, INDICATOR
3177599 3177599 LINER, DOOR
3177467 3177467 LINER, OVEN
4173194 4173194 LOCKWASHER (3)
4167267 4167267 MEAT PROBE
3183748 3183748 MODULE, TOP
4173198 4173198 MOTOR
4159117 4159117 NUT (2)
4168838 4168838 NUT (3)
4173237 4173237 NUT (LEFT HAND)
4173084 4173084 NUT, HEX JAM
WP112432 WP112432 NUT, T-BLOCK (4)
98788 98788 NUT, TIMER (4)
4163883 4163883 PLATE, COVER
4167518 4167518 PLATE, COVER
3178512 3178512 PLATE, MOUNTING
3177496 3177496 PLATE, MOUNTING
3178040 3178040 PLATE, OVEN LIGHT
3179777 3179777 PLUG, BUTTON
4167266 4167266 PROBE COVER
4396923 4396923 PROCELAIN BROILER (PAN AND GRID)
3180865 3180865 RACK, OFFSET
3185368 3185368 RACK, OVEN
3179220 3179220 RAIL, SUPPORT (2)
4173189 4173189 RECEPTACLE, LIGHTED PROBE
LIT4174114 LIT4174114 REPAIR PARTS LIST
4167975 4167975 RETAINER, GLASS
4167590 4167590 RETAINER, GLASS
3179587 3179587 RETAINER, SEAL
348689 348689 SCREW
WP488234 WP488234 SCREW
W10841059 W10841059 SCREW
W11233072 W11233072 SCREW
488620 488620 SCREW
WP3177991 WP3177991 SCREW
WP90767 WP90767 SCREW
WP486579 WP486579 SCREW
3179776 3179776 SCREW
313806 313806 SCREW (2)
3179950 3179950 SCREW (2)
3177988 3177988 SCREW (2)
3179117 3179117 SCREW (3)
3179847 3179847 SCREW (4)
3179795 3179795 SCREW (6)
4159456 4159456 SCREW (6)
4168863 4168863 SCREW (6)
4159445 4159445 SCREW, (2)
786259 786259 SCREW, 4-40 X 5/8 (2)
3178001 3178001 SCREW, BLACK (2)
4173193 4173193 SCREW, FAN MOUNTING
3179813 3179813 SEAL, DOOR
3185462 3185462 SEAL, WINDOW
3178089 3178089 SHELF, COMPONENT
3178612 3178612 SHIELD, RADIATION
3178614 3178614 SHIELD, VENT
3177441 3177441 SIDE, CABINET (LEFT HAND)
3177442 3177442 SIDE, CABINET (RIGHT HAND)
3177572 3177572 SIDE, MODULE (R.H. & L.H.)
3179672 3179672 SPACER - TUBING
3177986 3177986 SPACER, HANDLE
3179693 3179693 SPACER, WINDOW
3179668 3179668 STANDOFF, WIRE
3178232 3178232 SUPPORT, DOOR LATCH
4168217 4168217 SUPPORT, ELEMENT (2)
3177650 3177650 SUPPORT, FRAME
3177434 3177434 SUPPORT, OVEN
4173553 4173553 SWITCH, DOOR
3178187 3178187 SWITCH, DOOR LATCH
3178668 3178668 SWITCH, DOOR LATCH
WP8189867 WP8189867 SWITCH, OVEN LIGHT (BLACK)
3178126 3178126 SWITCH, ROTORY
3178236 3178236 SWITCH, SELECTOR
LIT3178199 LIT3178199 TECH SHEET
3178273 3178273 THERMOSTAT, UPPER
4173071 4173071 TIMER, ELECTRONIC
3179532 3179532 TRANSFORMER
4168492 4168492 TUBE, VENT
WP661416 WP661416 UNIT, BAKE
4168126 4168126 VENT TUBE
3177787 3177787 VENT, LOWER TRIM (BLACK)
3177789 3177789 VENT, LOWER TRIM (BRUSHED CHROME)
3180022 3180022 VENT, LOWER TRIM (SCREW (4))
3179922 3179922 VENT, TUBE (UPPER, FEMALE)
3179923 3179923 VENT, TUBE (UPPER, MALE)
4159557 4159557 WASHER
4164235 4164235 WINDOW PACKAGE
