Model Image
Manufacturer

Whirlpool

Model Number

KEBS276BWH3

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
350806 350806 18 GA. 80~C RATING (YELLOW)
591014 591014 ADHESIVE LOCTITE (1/3 OZ.)
978883 978883 ALMOND
WP72107 WP72107 ALMOND
350956 350956 ALMOND
3177560 3177560 BACK, MODULE
3185455 3185455 BAFFLE
285006 285006 BLACK
72032 72032 BLACK
WP8203546 WP8203546 BLOCK-TERM
3183720 3183720 BLOWER, FAN
3177621 3177621 BOTTOM, MODULE
3177551 3177551 BOTTOM, OVEN
3183999 3183999 BOX, VENT
3184321 3184321 BRACKET
3180694 3180694 BRACKET, ELEMENT
3177433 3177433 BRACKET, HINGE
3183533 3183533 BRACKET, MOUNTING
3177545 3177545 BRACKET, MOUNTING
3183752 3183752 BRACKET, MOUNTING CONTROL PANEL
3181889 3181889 BRACKET, MOUNTING SWITCH MEMBRANE
3177681 3177681 BRACKET, SWITCH
4159035 4159035 BUSHING
3185456 3185456 BUSHING, DOOR HANDLE
3182814 3182814 BUTTON, PLUG
3185085 3185085 BUTTON, PLUG
3177623 3177623 CABINET, BACK
3178143 3178143 CABINET, TOP
WP261869 WP261869 CITRINE WHITE
7111P002-60 7111P002-60 CLAMP, WIRE 3/4
3184567 3184567 CLIP, CONTROL FRAME
16515 16515 CLIP, HARNESS
3179848 3179848 CLIP, OVEN SEAL
3182985 3182985 CLIP, RETAINER
4168203 4168203 COVER, CAP TUBE
3178410 3178410 DOOR LATCH, MECHANISM
3185438 3185438 DOOR LATCH, STRIKE
3182151 3182151 DOOR, DOOR LATCH HANDLE (BLACK MODEL)
3182154 3182154 DOOR, DOOR LATCH HANDLE (WHITE MODEL)
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
3180164 3180164 ELEMENT, BROIL
285367 285367 ENAMAL, TOAST (1 QT. UNCUT)
3183964 3183964 END, VENT BOX
3148184 3148184 FOIL
3182148 3182148 FRAME, CONTROL PANEL
3187850 3187850 FRAME, DOOR (BLACK MODEL)
3187852 3187852 FRAME, DOOR (WHITE MODEL)
814335 814335 FRAME-FRNT
814336 814336 FRAME-FRNT
WP3184533 WP3184533 GASKET, LENS
4163975 4163975 GASKET, MEAT PROBE
3185462 3185462 GASKET, WINDOW
3185459 3185459 GLASS, CLEAR
3185457 3185457 GLASS, CLEAR
3187863 3187863 GLASS, DOOR (BLACK MODEL)
3185458 3185458 GLASS, REFLECTIVE
3177662 3177662 GUARD, DOOR LATCH
3185986 3185986 HANDLE, DOOR (BLACK MODEL)
3185987 3185987 HANDLE, DOOR (WHITE MODEL)
3181963 3181963 HANDLE, DOOR LATCH (LOWER OVEN)
3185414 3185414 HANDLE, DOOR LATCH (SCREW (2))
3184037 3184037 HANDLE, DOOR LATCH (SCREW (2))
3177969 3177969 HANDLE, DOOR LATCH (UPPER OVEN)
3183656 3183656 HARNESS WIRE (DOOR SWITCH LOWER)
3187607 3187607 HARNESS WIRE (DOOR SWITCH UPPER)
3185950 3185950 HARNESS WIRE (LOWER OVEN)
3185965 3185965 HARNESS WIRE (UPPER OVEN)
3183361 3183361 HARNESS, WIRE DOOR LATCH ASSEMBLY. (LOWER)
3185952 3185952 HARNESS, WIRE DOOR LATCH ASSEMBLY. (UPPER)
261891 261891 HARVEST GOLD
261890 261890 HARVEST GOLD
3178298 3178298 HINGE, DOOR (2)
LIT3183659 LIT3183659 INSTALLATION INSTRUCTIONS
816836 816836 INSULATION, DOOR
4454418 4454418 INSULATION, WRAP
3178185 3178185 INSULATOR, SWITCH
3177923 3177923 INSULATOR, SWITCH
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
3184039 3184039 KNOB, DOOR LATCH HANDLE
W11594027 W11594027 LAMP ASSEMBLY
8009 8009 LIGHT BULB
3185497 3185497 LINER, DOOR
3185562 3185562 LINER, OVEN
4454363 4454363 MEMBRANE, SWITCH (BLACK MODEL)
4454364 4454364 MEMBRANE, SWITCH (WHITE MODEL)
3181705 3181705 MICROCOMPUTER
3183748 3183748 MODULE, TOP
3183954 3183954 NOZZLE, VENT BOTTOM
3183955 3183955 NOZZLE, VENT TOP
4159117 4159117 NUT (2)
4167277 4167277 NUT, MEAT PROBE
72112 72112 PAINT, (TOUCH-UP 1/2 OZ.) (TOAST)
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
285366 285366 PAINT, SPRAY (13 OZ.) (PLATINUM)
72110 72110 PAINT, TOUCH-UP 1/2 OZ. (GOLDEN HARVEST)
4163883 4163883 PLATE, COVER
3177496 3177496 PLATE, MOUNTING
285368 285368 PLATINUM
350942 350942 PRIMER
WP3150144 WP3150144 PROBE
4167266 4167266 PROBE COVER
4396923 4396923 PROCELAIN BROILER (PAN AND GRID)
832985 832985 RACK, COOKING (BI-LEVEL)
3185367 3185367 RACK, OFFSET
3185368 3185368 RACK, OVEN
3179220 3179220 RAIL, SUPPORT (2)
3150107 3150107 RECEPTACLE, PROBE
242829 242829 RED 12 GA. 150~C RATING
3183705 3183705 RETAINER, BRACKET
3188720 3188720 RETAINER, GLASS (2)
3188815 3188815 RETAINER, INSULATION
3179587 3179587 RETAINER, SEAL
4173231 4173231 SCREW
309258 309258 SCREW
3183294 3183294 SCREW
348689 348689 SCREW
488620 488620 SCREW
308043 308043 SCREW
3178001 3178001 SCREW
309133 309133 SCREW
WP98520 WP98520 SCREW
WP3177991 WP3177991 SCREW
4159445 4159445 SCREW
WP3400832 WP3400832 SCREW
3179117 3179117 SCREW (3)
3179795 3179795 SCREW (6)
786259 786259 SCREW, 4-40 X 5/8 (2)
777460 777460 SCREW, 6-32 X 7/8
3179813 3179813 SEAL, DOOR
313755 313755 SEAL, FOAM
WP482338 WP482338 SEALER, SILASTIC (3OZ.)
WP8053344 WP8053344 SENSOR
3183785 3183785 SHIELD, HEAT
3178612 3178612 SHIELD, RADIATION
3187878 3187878 SIDE TRIM, DOOR (2) (WHITE MODEL)
3177443 3177443 SIDE, CABINET (LEFT HAND)
3177438 3177438 SIDE, CABINET (RIGHT HAND)
3179672 3179672 SPACER - TUBING
3182138 3182138 SPACER, DOOR HANDLE
350930 350930 SPRAY (13 OZ.) (WHITE)
WP3149651 WP3149651 SPST THERMOSTAT
3149653 3149653 SPST-THERMOSTAT
3179668 3179668 STANDOFF, WIRE
3177434 3177434 SUPPORT, OVEN
4173553 4173553 SWITCH, DOOR
3178668 3178668 SWITCH, DOOR LATCH
3183784 3183784 SWITCH, DOOR LATCH
LIT3185963 LIT3185963 TECH SHEET
285365 285365 TOAST
3182162 3182162 TRIM, DOOR (2)
3187875 3187875 TRIM, DOOR SIDE (2) (BLACK MODEL)
3177783 3177783 TRIM, LOWER VENT (BLACK MODEL)
3187957 3187957 TRIM, LOWER VENT (WHITE MODEL)
3183702 3183702 TRIM, PANEL
3186684 3186684 TUBE, VENT
3187388 3187388 TUBE, VENT (FEMALE)
3179945 3179945 TUBE, VENT MALE

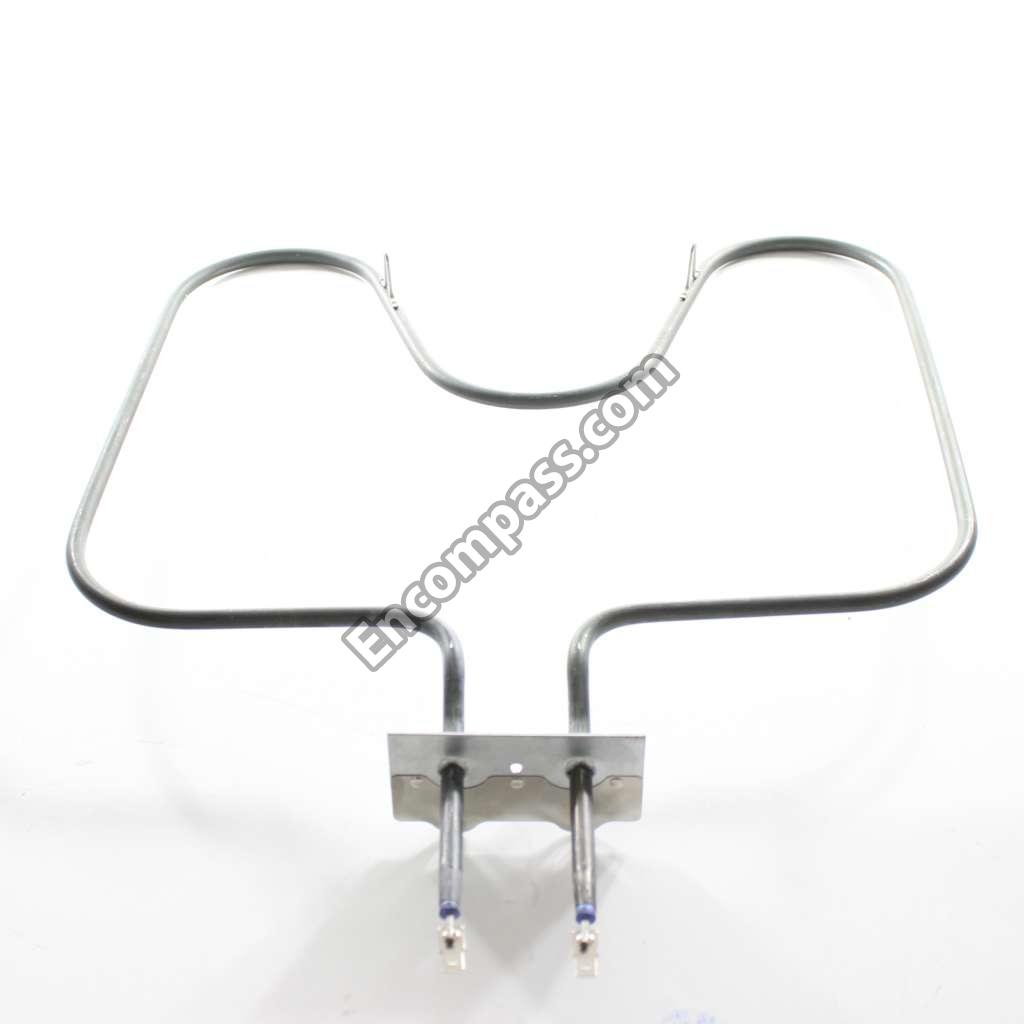

WP661416 WP661416 UNIT, BAKE
LIT3188200 LIT3188200 USE & CARE GUIDE
3187883 3187883 VENT, MIDDLE TRIM (BLACK MODEL)
4168863 4168863 VENT, MIDDLE TRIM (SCREW (8))
3188644 3188644 VENT, MIDDLE TRIM (SCREW BLACK (4))
3188645 3188645 VENT, MIDDLE TRIM (SCREW, WHITE (4))
3187885 3187885 VENT, MIDDLE TRIM (WHITE MODEL)
3183791 3183791 VENT, TUBE
4159557 4159557 WASHER
242826 242826 WHITE 14 GA. 150~C RATING
242828 242828 WIRE (12 GA. 150 C BLACK)
242820 242820 WIRE (14 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
72113 72113 WIRE, SPLICING 25 FT. BLACK 12 GA. 150~C (PLATINUM)
242832 242832 YELLOW 14 GA. 200~C RATING
