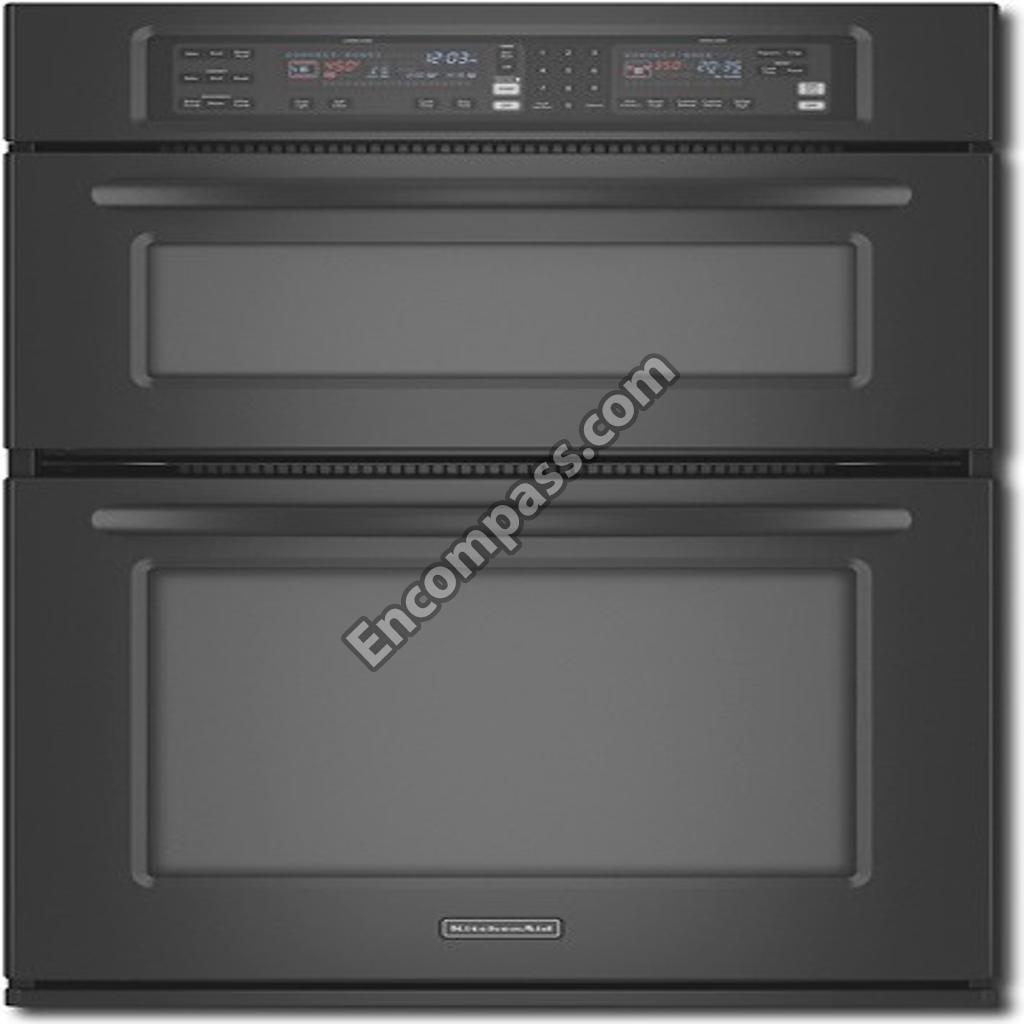

Model Image
Manufacturer

Whirlpool

Model Number

KEMS378SBL02

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP482338 WP482338 Whirlpool ADHESIVE
591014 591014 Whirlpool ADHESIVE LOCTITE (1/3 OZ.)
W11214480 W11214480 Whirlpool ARM
WPW10128850 WPW10128850 Whirlpool ARM
8304509 8304509 Whirlpool BACK CHASSIS PANEL
8304304 8304304 Whirlpool BACK, CHASSIS
8303720 8303720 Whirlpool BACKER, CONTROL
8304603BL 8304603BL Whirlpool BADGE (BLACK)
8304603SS 8304603SS Whirlpool BADGE (STAINLESS)
8304603WH 8304603WH Whirlpool BADGE (WHITE)
W10130908 W10130908 Whirlpool BAFFLE-AIR
8303772 8303772 Whirlpool BASE, CHASSIS
WP8203546 WP8203546 Whirlpool BLOCK-TERM
WP8303972 WP8303972 Whirlpool BLOWER
WPW10153090 WPW10153090 Whirlpool BRACKET, BASE
8304378 8304378 Whirlpool BRACKET, DOOR (LEFT)
8304377 8304377 Whirlpool BRACKET, DOOR (RIGHT)
8303033 8303033 Whirlpool BRACKET, HANDLE
8304361BL 8304361BL Whirlpool BRACKET, HANDLE
8205708 8205708 Whirlpool BRACKET, SUPPORT
8303887 8303887 Whirlpool BRACKET,ENCLOSURE
W10169348 W10169348 Whirlpool BRKT-MNTG
W10130897 W10130897 Whirlpool BRKT-SUPPT
W10130909 W10130909 Whirlpool BRKT-SUPPT
W10105790 W10105790 Whirlpool BUMPER
8304522 8304522 Whirlpool BUMPER, GLASS
8304588BL 8304588BL Whirlpool BUTTON, PLUG
W11193483 W11193483 Whirlpool CAMERA LENS-LAMP
8303538 8303538 Whirlpool CHANNEL, REAR COMBO
W10120231 W10120231 Whirlpool CLIP
8304440 8304440 Whirlpool CONDUIT, COMBO
WPW10120228 WPW10120228 Whirlpool CONTROL BOARD
WPW10398151 WPW10398151 Whirlpool CONTROL BOARD
WPW10460454 WPW10460454 Whirlpool CONTROL BOARD
WPW10119143 WPW10119143 Whirlpool CONTROL BOARD
WPW10312206 WPW10312206 Whirlpool CONTROL BOARD
8285593 8285593 Whirlpool CONTROL COVER
W10137043 W10137043 Whirlpool COVER
W10137044 W10137044 Whirlpool COVER
8303517 8303517 Whirlpool COVER, BACK
4450039 4450039 Whirlpool COVER, BAKE TRAY
8304422BU 8304422BU Whirlpool COVER, FAN
8205680 8205680 Whirlpool COVER, SIDE RIGHT
8303802 8303802 Whirlpool COVER, TOP
W10915651 W10915651 Whirlpool COVER-PLT
W10130903 W10130903 Whirlpool COVER-PLT
W10120472 W10120472 Whirlpool COVER-PLT
W10120474 W10120474 Whirlpool COVER-PLT
W10130904 W10130904 Whirlpool COVER-REAR
W10120471 W10120471 Whirlpool COVER-SIDE
W10130907 W10130907 Whirlpool COVR-INVT
W10120234 W10120234 Whirlpool COVR-MOTOR
W11029221 W11029221 Whirlpool DOOR DOOR LATCH
W10401215 W10401215 Whirlpool DOOR GLASS, ASSEMBLY INCLUDES NO.17 (BLACK)
W10401229 W10401229 Whirlpool DOOR GLASS, ASSEMBLY INCLUDES NO.17 (STAINLESS)
WP8304003 WP8304003 Whirlpool DOOR GLASS, ASSEMBLY INCLUDES NO.17 (WHITE)
W10448662 W10448662 Whirlpool DOOR HANDLE (BLACK)
WPW10448663 WPW10448663 Whirlpool DOOR HANDLE (STAINLESS)
8303775WH 8303775WH Whirlpool DOOR HANDLE (WHITE)
W10874474 W10874474 Whirlpool DOOR HINGE
8303754 8303754 Whirlpool DOOR, TOP BRACKET
8304643 8304643 Whirlpool DUCT, AIR OUTLET
W10130898 W10130898 Whirlpool DUCT-MAG
8304375 8304375 Whirlpool EASY SET GUIDE (MICROWAVE)
8304338 8304338 Whirlpool EASY SET GUIDE (OVEN)
WP9760769 WP9760769 Whirlpool ELEMENT
W10776940 W10776940 Whirlpool ELEMENT
WPW10207398 WPW10207398 Whirlpool ELMNT-BAKE
WP9760774 WP9760774 Whirlpool ELMNT-BROL
8303829 8303829 Whirlpool EXHAUST,VENT SLOPE
W11512064 W11512064 Whirlpool FAN
W10758272 W10758272 Whirlpool FAN-CONVCT
WPW10120220 WPW10120220 Whirlpool FILTER
W10549523 W10549523 Whirlpool FILTER, LINE NOISE
WP8303745BL WP8303745BL Whirlpool FRAME, DOOR SIDE
8304629 8304629 Whirlpool FRAME, FRONT
WP4375321 WP4375321 Whirlpool FUSE
WPW10017410 WPW10017410 Whirlpool FUSE
WP8304452 WP8304452 Whirlpool FUSE-THRML
8304494 8304494 Whirlpool GASKET, DOOR
4375252 4375252 Whirlpool GASKET, SHAFT
W10401386 W10401386 Whirlpool GLASS ASSEMBLY (BLACK)
W10401230 W10401230 Whirlpool GLASS ASSEMBLY (STAINLESS)
8304031 8304031 Whirlpool GLASS ASSEMBLY (WHITE)
W10755521 W10755521 Whirlpool GLASS DOOR
WP8303732 WP8303732 Whirlpool GLASS, INNER
8205720 8205720 Whirlpool GRILL-VENT
W10694560 W10694560 Whirlpool GRILL-VENT
WP4448444 WP4448444 Whirlpool GROMMET
W10851464 W10851464 Whirlpool HANDLE-PAN
8304052 8304052 Whirlpool HARNESS, USER INTERFACE
W10231531 W10231531 Whirlpool HARNS-WIRE
W10344757 W10344757 Whirlpool HARNS-WIRE
W10120224 W10120224 Whirlpool HEATER
WPW10174288 WPW10174288 Whirlpool HINGE, DOOR
WP4455605 WP4455605 Whirlpool HINGE-RECV
WP4455606 WP4455606 Whirlpool HINGE-RECV
461967752331 461967752331 Whirlpool HOLDER
W10130891 W10130891 Whirlpool HOLDER
W10245194 W10245194 Whirlpool HOLDER, FUSE
4454949 4454949 Whirlpool HOLDER, FUSE
461967750752 461967750752 Whirlpool HOLDER, POWER CONTROL BOARD
461967008471 461967008471 Whirlpool HOLDER, TURNTABLE MOTOR
WPW10490593 WPW10490593 Whirlpool HOUSNG-LMP
8304337 8304337 Whirlpool INSTALLATION INSTRUCTIONS
W10130900 W10130900 Whirlpool INSULATION
W10130901 W10130901 Whirlpool INSULATION
W10130902 W10130902 Whirlpool INSULATION
8303968 8303968 Whirlpool INSULATION, BACK
8303966 8303966 Whirlpool INSULATION, WRAP
WP8205683 WP8205683 Whirlpool INTERLOCK
W10217711 W10217711 Whirlpool INVERTER
8186589 8186589 Whirlpool JACK-PROBE
WP8303881 WP8303881 Whirlpool KEYBOARD, GLASS TOUCH
4452400 4452400 Whirlpool LEAD, GROUND
W10169756 W10169756 Whirlpool LENS-LIGHT
WPW10169757 WPW10169757 Whirlpool LIGHT BULB
WPW10307114 WPW10307114 Whirlpool LIGHT-OVEN
N_P N_P Whirlpool LINER, OVEN (NOT SERVICEABLE)
WPW10440740 WPW10440740 Whirlpool LMP-BASLES
WP9755546 WP9755546 Whirlpool LOCKNUT
WP9755547 WP9755547 Whirlpool LOCKWASHER
WPW10120488 WPW10120488 Whirlpool MICROWAVE DOOR
W11346197 W11346197 Whirlpool MICROWAVE MAGNETRON
WP8205721 WP8205721 Whirlpool MOTOR-FAN
W10794022 W10794022 Whirlpool MOTOR-FAN
W10911403 W10911403 Whirlpool MOTOR-TURN
8303680BL 8303680BL Whirlpool MOUNTING RAIL, SIDE LEFT (BLACK)
8303680WH 8303680WH Whirlpool MOUNTING RAIL, SIDE LEFT (WHITE)
8303679BL 8303679BL Whirlpool MOUNTING RAIL, SIDE RIGHT (BLACK)
8303679WH 8303679WH Whirlpool MOUNTING RAIL, SIDE RIGHT (WHITE)
W10120221 W10120221 Whirlpool MTR-CONVCT
WP7103P027-60 WP7103P027-60 Whirlpool NUT
WPW10116349 WPW10116349 Whirlpool NUT
WP261869 WP261869 Whirlpool PAINT CW
350930 350930 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
285006 285006 Whirlpool PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
261900 261900 Whirlpool PAINT, SPRAY (CITRINE WHITE)
72032 72032 Whirlpool PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 Whirlpool PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10120480 WPW10120480 Whirlpool PAN-CRISP
WP8303717BL WP8303717BL Whirlpool PANEL, CONTROL (BLACK)
WPW10216220 WPW10216220 Whirlpool PANEL, CONTROL (STAINLESS)
8303717WH 8303717WH Whirlpool PANEL, CONTROL (WHITE)
W10181198 W10181198 Whirlpool PANEL-VENT
W10130899 W10130899 Whirlpool PLATE, AIR
W10587374 W10587374 Whirlpool PLATE, BAKING
W10130892 W10130892 Whirlpool PLATE-AIR
W10130895 W10130895 Whirlpool PLATE-AIR
WP9755542 WP9755542 Whirlpool PROBE-MEAT
W11175831 W11175831 Whirlpool RACK
8303840A 8303840A Whirlpool RACK-OVEN
WPW10285003 WPW10285003 Whirlpool RACK-OVEN
W10852735 W10852735 Whirlpool RANGE THERMOSTAT
W11607085 W11607085 Whirlpool RANGE THERMOSTAT
423107022541 423107022541 Whirlpool REFLECTOR
8304441 8304441 Whirlpool RESISTOR, DROP
W10153361 W10153361 Whirlpool RETAINER, GASKET
W11110134 W11110134 Whirlpool RING-TURN
WPW10120235 WPW10120235 Whirlpool ROD-REL
9762761 9762761 Whirlpool SAFER COOKING TIPS (ENGLISH
W10065852 W10065852 Whirlpool SAFER COOKING TIPS (FRENCH)
WP4448950 WP4448950 Whirlpool SCREW
461967825321 461967825321 Whirlpool SCREW
W11684512 W11684512 Whirlpool SCREW
WP3196183 WP3196183 Whirlpool SCREW
WP4449154 WP4449154 Whirlpool SCREW
4449748 4449748 Whirlpool SCREW
WP4449743 WP4449743 Whirlpool SCREW
WP4450038 WP4450038 Whirlpool SCREW
WP4449040 WP4449040 Whirlpool SCREW
W11233072 W11233072 Whirlpool SCREW
WP3400832 WP3400832 Whirlpool SCREW
WP4449809 WP4449809 Whirlpool SCREW
461967825971 461967825971 Whirlpool SCREW
WP7101P246-60 WP7101P246-60 Whirlpool SCREW
W10142289 W10142289 Whirlpool SCREW 8-18 X 5/8
4450800 4450800 Whirlpool SCREW, GROUND
W10754409 W10754409 Whirlpool SEAL
W10871220 W10871220 Whirlpool SENSOR
WPW10131825 WPW10131825 Whirlpool SENSOR
W10120225 W10120225 Whirlpool SENSOR
WPW10776938 WPW10776938 Whirlpool SHAFT-TURN
W11126044 W11126044 Whirlpool SHAFT-TURN
WP8304602 WP8304602 Whirlpool SHIELD-HT
W10782197 W10782197 Whirlpool SIDE, CHASSIS
8303539 8303539 Whirlpool SIDE, COMBO (LEFT)
8304546 8304546 Whirlpool SIDE, COMBO (RIGHT)
W11700292 W11700292 Whirlpool SPRING
W11715912 W11715912 Whirlpool SPRING
W10465869 W10465869 Whirlpool SPRING, LAMP
W10660052 W10660052 Whirlpool STEAMER
W11684510 W11684510 Whirlpool SUPPORT
8205707 8205707 Whirlpool SUPPORT
W11724411 W11724411 Whirlpool SUPPORT
4451477 4451477 Whirlpool SUPPORT, INSULATION
8304570 8304570 Whirlpool SUPPORT, MICROWAVE MODULE
W10211972 W10211972 Whirlpool SWITCH, MICRO V15T16-CZ200
W10185205 W10185205 Whirlpool TECH SHEET (ENGLISH)
W10185206 W10185206 Whirlpool TECH SHEET (FRENCH)
461967842541 461967842541 Whirlpool THERMOACTUATOR
W10120222 W10120222 Whirlpool THRMST-FIX
W10204469 W10204469 Whirlpool TOP-OVEN
WP9762053 WP9762053 Whirlpool TRANSFORMER, CONTROL
W11238401 W11238401 Whirlpool TRANSFORMR
4455036 4455036 Whirlpool TRAY, BAKE
W11373838 W11373838 Whirlpool TRAY-COOK
WP8303706BL WP8303706BL Whirlpool TRIM, BOTTOM (BLACK)
WPW10165444 WPW10165444 Whirlpool TRIM, BOTTOM (STAINLESS)
8303706WH 8303706WH Whirlpool TRIM, BOTTOM (WHITE)
W10861715 W10861715 Whirlpool TUBE-VENT
W10162223 W10162223 Whirlpool USE & CARE GUIDE (COMBO)
W10162181 W10162181 Whirlpool USE & CARE GUIDE (MICROWAVE)
8303724 8303724 Whirlpool VENT, CENTER
8304580BL 8304580BL Whirlpool VENT, DOOR TOP
W10120476 W10120476 Whirlpool VENT-PANEL
W11209404 W11209404 Whirlpool WIRE HARNESS
