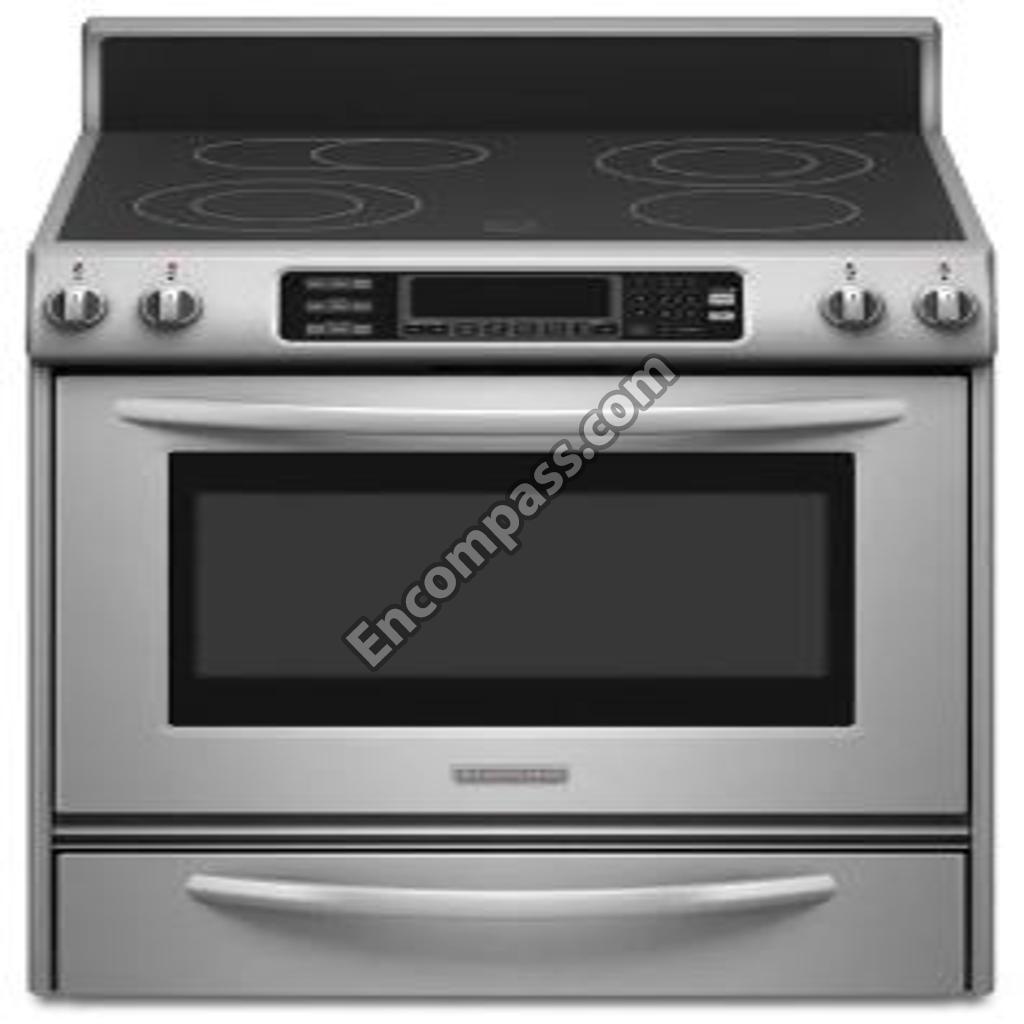

Model Image
Manufacturer

Whirlpool

Model Number

KERS807SSS00

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP482338 WP482338 ADHESIVE
591014 591014 ADHESIVE LOCTITE (1/3 OZ.)
W11447673 W11447673 ANCHOR-TIP
9757680 9757680 ANTI-TIP INSTRUCT.
W10155557 W10155557 ASSEMBLY, DOOR KIT
9759761 9759761 BACK, CHASSIS
W10109740 W10109740 BACKSPLASH
W10109760 W10109760 BACKSPLASH
W10109770 W10109770 BACKSPLASH
W10109750 W10109750 BACKSPLASH
8304603SS 8304603SS BADGE
W10860133 W10860133 BAFFL-CONV
9759713 9759713 BASE, CHASSIS
WP8203546 WP8203546 BLOCK-TERM
WP9761958 WP9761958 BLOCK-TERM
W10810687 W10810687 BLOWER
9760723PC 9760723PC BODY, SIDE (BISCUIT)
8186386 8186386 BODY, SIDE (WHITE)
W10115858 W10115858 BOX, TERMINAL
9757811 9757811 BRACE, SIDE PANEL
9761423 9761423 BRACKET, FRONT SUPPORT
9756454 9756454 BRACKET, GOC
W10246113 W10246113 BRACKET, HANDLE (L.HAND)
W10246114 W10246114 BRACKET, HANDLE (R.HAND)
9758799 9758799 BRACKET, IND. LAMP
4452152 4452152 BRACKET, MOUNTING
9761784 9761784 BRACKET, MOUNTING
9761783 9761783 BRACKET, REAR SPRT
9759938 9759938 BRACKET, TERM.BOX
9757461 9757461 BRACKET,SIDE PANEL
9761745 9761745 BRKT, TOUCHSENSOR
WP4455352 WP4455352 BRKT-MNTG
WP9757829 WP9757829 BRKT-MNTG
WP9759229 WP9759229 BRKT-MNTG
WP9759230 WP9759230 BRKT-MNTG
W10105790 W10105790 BUMPER, DOOR
9757778 9757778 BUSHING
4452165 4452165 CAMERA LENS, LIGHT
WP3196068 WP3196068 CAMERA LENS-LIGHT
4448664 4448664 CLAMP
313660 313660 CLIP, GROUND WIRE
9762768 9762768 CLIP, RETAINER
9759890 9759890 CLIP, SIDE PANEL
9759715 9759715 CONDUIT
WPW10181439 WPW10181439 CONTROL BOARD
WPW10181438 WPW10181438 CONTROL BOARD
9761551BT 9761551BT CONTROL PANEL (BISCUIT)
9761551BL 9761551BL CONTROL PANEL (BLACK)
9761551NP 9761551NP CONTROL PANEL (NICKEL PLATED)
9761551WH 9761551WH CONTROL PANEL (WHITE)
W10285082 W10285082 COOKTOP
W10401218 W10401218 COOKTOP (WHITE)
9758583 9758583 COVER, BACK
WPW10153092 WPW10153092 COVER, BACKSPLASH REAR
4450039 4450039 COVER, BAKE TRAY
9761724 9761724 COVER, CKTP REAR
9759945 9759945 COVER, REAR STANDOFF
9757405 9757405 COVER, TERM BOX
W10153100 W10153100 COVER-BLCK
WP9760889 WP9760889 DOOR DOOR LATCH
WP9760579 WP9760579 DOOR HINGE
WP9760574 WP9760574 DOOR HINGE
WPW10164163 WPW10164163 DRAWER ASSEMBLY
4455177 4455177 ELBOW, VENT BOTTOM
4455178 4455178 ELBOW, VENT TOP
WP9760769 WP9760769 ELEMENT
9760775 9760775 ELEMENT, WARMING
4451175 4451175 ELMNT-BAKE
WP9760774 WP9760774 ELMNT-BROL
WP4452226 WP4452226 FAN-CONVCT
WP3196037 WP3196037 FOOT-LEVEL
WPW10058460 WPW10058460 FOOT-LEVEL
WPW10115831 WPW10115831 FRAME-FRNT
9761747BT 9761747BT FRONT, DRAWER (BISCUIT)
WPW10203760 WPW10203760 FRONT, DRAWER (BLACK)
W10203762 W10203762 FRONT, DRAWER (WHITE)
9763483BL 9763483BL GASKET (BLACK)
9763483GY 9763483GY GASKET (GRAY)
W10076020 W10076020 GASKET, COOKTOP
W11675844 W11675844 GASKET-OVN
WP9759225 WP9759225 GLASS DOOR
WP9757706 WP9757706 GLASS DOOR
9761749BT 9761749BT GLASS, BACKSPLASH (BISCUIT)
WP9761749BL WP9761749BL GLASS, BACKSPLASH (BLACK)
WP9761749WH WP9761749WH GLASS, BACKSPLASH (WHITE)
9762766BT 9762766BT GLASS, DOOR FRONT (BISCUIT)
W10131888 W10131888 GLASS, DOOR FRONT (BLACK)
W10131889 W10131889 GLASS, DOOR FRONT (WHITE)
WP3195996 WP3195996 GRID-PAN
W10127413 W10127413 GROMMET
W10123242 W10123242 GROMMET
9763467 9763467 GUIDE EASY SET
WP9757685 WP9757685 GUIDE-PANL
8303774BT 8303774BT HANDLE, DOOR (BISCUIT)
WPW10292381 WPW10292381 HANDLE, DOOR (BLACK)
W10899599 W10899599 HANDLE, DOOR (S.STEEL)
W10292382 W10292382 HANDLE, DOOR (WHITE)
9761573BT 9761573BT HANDLE, DRAWER (BISCUIT)
W10292375 W10292375 HANDLE, DRAWER (BLACK)
WPW10292374 WPW10292374 HANDLE, DRAWER (S.STEEL)
9761573WH 9761573WH HANDLE, DRAWER (WHITE)
9763481 9763481 HARNESS, GROUND STRAP
W10118728 W10118728 HARNESS, MAIN
9762921 9762921 HARNESS, WIRE
9762909 9762909 HARNESS, WIRE (SWITCH, ELEC)
W10115167 W10115167 HARNS-WIRE
814381 814381 HINGE PIN KIT
WP4455606 WP4455606 HINGE-RECV
WP4455605 WP4455605 HINGE-RECV
8523739 8523739 INDICATOR, LAMP HOT SURFACE
WP9763761 WP9763761 INFINITE CONTROL SWITCH
WP9763762 WP9763762 INFINITE CONTROL SWITCH
9763461 9763461 INSTALLATION INSTRUCTIONS
9759884 9759884 INSULATION
WP4451722 WP4451722 INSULATION
9756470 9756470 INSULATION, BACK
9757717 9757717 INSULATION, BOTTOM VENT
9756817 9756817 INSULATION, WRAP
9759721 9759721 INSULATOR, TERMIANL BOX
8186589 8186589 JACK-PROBE

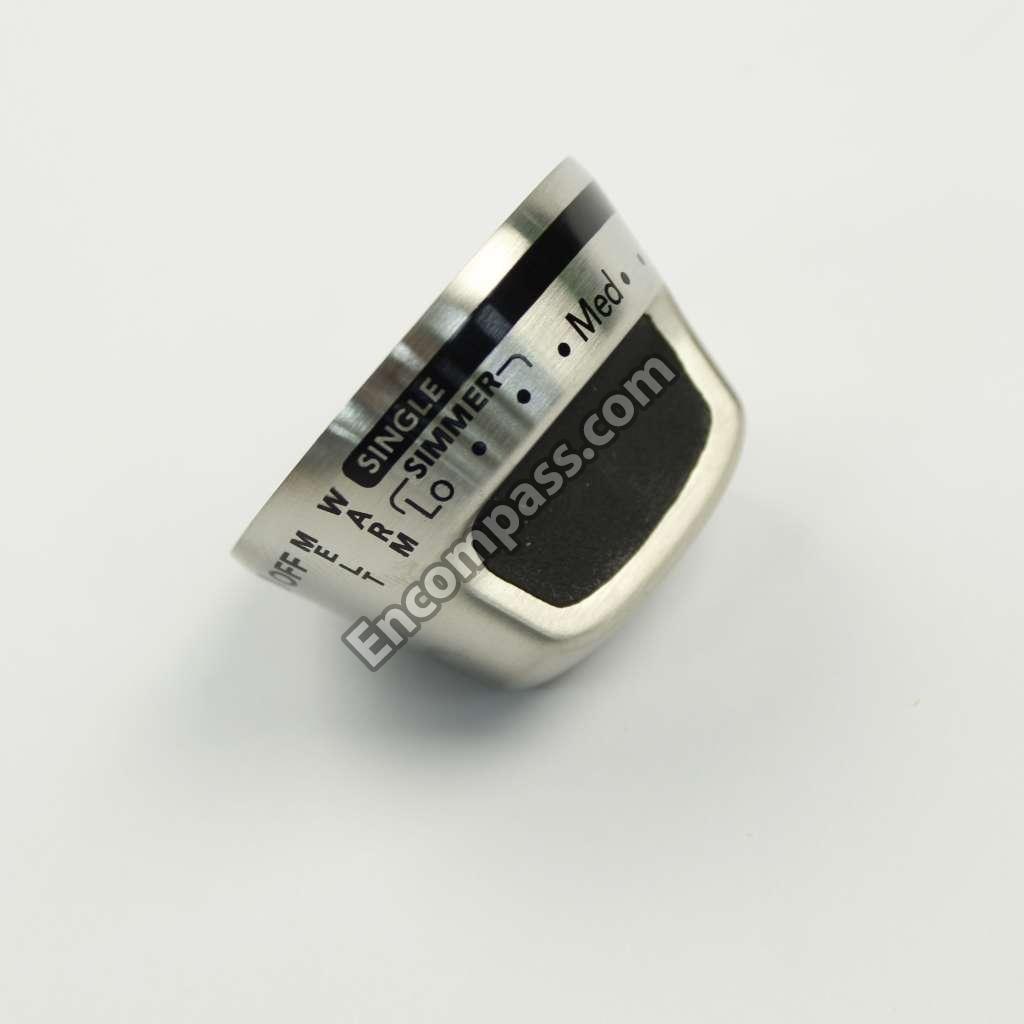

WPW10193253 WPW10193253 KNOB
WPW10193255 WPW10193255 KNOB
WPW10193257 WPW10193257 KNOB
WPW10193259 WPW10193259 KNOB
W10114675 W10114675 KNOB (LF, RR, LR) (BISCUIT)
W10856605 W10856605 KNOB (LF, RR, LR) (NICKEL PLATED)
W10114679 W10114679 KNOB (RF) (BISCUIT)
WP4173175 WP4173175 LIGHT BULB
100000 100000 LINER, OVEN (NOT SERVICEABLE)
WP9759413 WP9759413 LINER-DOOR
WP9755546 WP9755546 LOCKNUT
WP9755547 WP9755547 LOCKWASHER
WP9761566 WP9761566 MEMBRANE SWITCH
WP4451583 WP4451583 MOTOR-FAN
9763444BT 9763444BT NAMEPLATE (BISCUIT)
8304603BL 8304603BL NAMEPLATE (BLACK)
8304603WH 8304603WH NAMEPLATE (WHITE)
WP112432 WP112432 NUT
WP4452227 WP4452227 NUT
4452368 4452368 OVEN LIGHT ASSEMBLY
8186387 8186387 OVEN, SIDE PANEL (BLACK)
WP261869 WP261869 PAINT CW
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
261900 261900 PAINT, SPRAY (CITRINE WHITE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10123240 W10123240 PAN, BROILER
W10737569 W10737569 PAN-BROILR
W10588269 W10588269 PANEL, DRAWER
WPW10203763 WPW10203763 PANEL-DRWR
WP9755542 WP9755542 PROBE-MEAT
WPW10179152 WPW10179152 RACK-OVEN
9757825 9757825 RAIL, ELEMENT (2) (CENTER (1))
9763517 9763517 RAIL, ELEMENT (2) (SIDE (3))
WP9759242 WP9759242 RANGE THERMOSTAT
WP341196 WP341196 RANGE THERMOSTAT
WP9759944 WP9759944 RANGE THERMOSTAT
WP4457132 WP4457132 RETAINER
WP4448933 WP4448933 RETAINER
3191638 3191638 SAFE COOKING TIPS
9759133 9759133 SAFE COOKING TIPS (FRENCH)
WP4448950 WP4448950 SCREW
WP3400015 WP3400015 SCREW
W11684512 W11684512 SCREW
WP8533988 WP8533988 SCREW
WP3400805 WP3400805 SCREW
WP4449154 WP4449154 SCREW
WP4449040 WP4449040 SCREW
W11233072 W11233072 SCREW
WP4449743 WP4449743 SCREW
WP3400832 WP3400832 SCREW
WP3196557 WP3196557 SCREW
W10491985 W10491985 SCREW
WP4449809 WP4449809 SCREW
WP486754 WP486754 SCREW
4450800 4450800 SCREW, GROUND
W10491987 W10491987 SEAL-FOAM
WP8274149 WP8274149 SENSOR
WPW10131825 WPW10131825 SENSOR
W10105370 W10105370 SHIELD, CONSOLE
4457114 4457114 SHIELD, HEAT BOTTOM
WP4457104 WP4457104 SHIELD, HEAT TOP
9759954 9759954 SIDE, BASE (L.SIDE)
9759953 9759953 SIDE, BASE (R.SIDE)
W10782197 W10782197 SIDE, CHASSIS
W10083460 W10083460 SLIDE
WPW10155633 WPW10155633 SLIDE-DRWR
WPW10155632 WPW10155632 SLIDE-DRWR
4452222 4452222 SPACER, HARNESS
9759094 9759094 SPRING LOCATOR
WP9756821 WP9756821 SUPPORT
9757686 9757686 SUPPORT (L.HAND)
9757687 9757687 SUPPORT (R.HAND)
9758676 9758676 SUPPORT, ELEMENT
4451478 4451478 SUPPORT, INSULATION
W10823730 W10823730 SURFACE ELEMENT
W10823692 W10823692 SURFACE ELEMENT
W10823698 W10823698 SURFACE ELEMENT
9762786 9762786 TECH SHEET
8303099 8303099 TOP CHASSIS
WPW10111628 WPW10111628 TRANSFORMR
WP4455037 WP4455037 TRAY-BAKE
9756485BT 9756485BT TRIM, BOTTOM VENT (BISCUIT)
WPW10154789 WPW10154789 TRIM, BTM VENT (S.STEEL)
WPW10153488 WPW10153488 TRIM, BTM VENT (WHITE)
W10110681 W10110681 TRIM, COOKTOP LEFT (BISCUIT)
9761571BT 9761571BT TRIM, SIDE (LEFT HAND) (BISCUIT)
WPW10109490 WPW10109490 TRIM, SIDE (LEFT HAND) (BLACK)
9761571SS 9761571SS TRIM, SIDE (LEFT HAND) (S.STEEL)
W10109520 W10109520 TRIM, SIDE (LEFT HAND) (WHITE)
9761572BT 9761572BT TRIM, SIDE (RIGHT HAND) (BISCUIT)
W10109540 W10109540 TRIM, SIDE (RIGHT HAND) (BLACK)
9761572SS 9761572SS TRIM, SIDE (RIGHT HAND) (S.STEEL)
W10109570 W10109570 TRIM, SIDE (RIGHT HAND) (WHITE)
9761739BT 9761739BT TRIM-CKTOP, SI (BISCUIT RH)
W10110682 W10110682 TRIM-CKTOP, SI (BLACK LH)
WPW10110687 WPW10110687 TRIM-CKTOP, SI (BLACK RH)
9761738SS 9761738SS TRIM-CKTOP, SI (S.STEEL LH)
9761739SS 9761739SS TRIM-CKTOP, SI (S.STEEL RH)
W10110680 W10110680 TRIM-CKTOP, SI (WHITE LH)
W10110685 W10110685 TRIM-CKTOP, SI (WHITE RH)
W10861715 W10861715 TUBE-VENT
9763458 9763458 USE & CARE GUIDE
W10153486 W10153486 VENT, BOTTOM LOWER (BLACK)
9756481BT 9756481BT VENT, BOTTOM UPPER (BISCUIT)
W10116899 W10116899 VENT, BOTTOM UPPER (BLACK)
WPW10160347 WPW10160347 VENT, BOTTOM UPPER (S. STEEL)
WPW10116897 WPW10116897 VENT, BOTTOM UPPER (WHITE)
4451759 4451759 VENT, EXHAUST
242828 242828 WIRE (12 GA. 150 C BLACK)
242829 242829 WIRE (12 GA. 150 C RED)
242820 242820 WIRE (14 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242826 242826 WIRE (14 GA. 150 C WHITE)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
242832 242832 WIRE (14 GA. 200 C YELLOW)
W11209404 W11209404 WIRE HARNESS
